Description

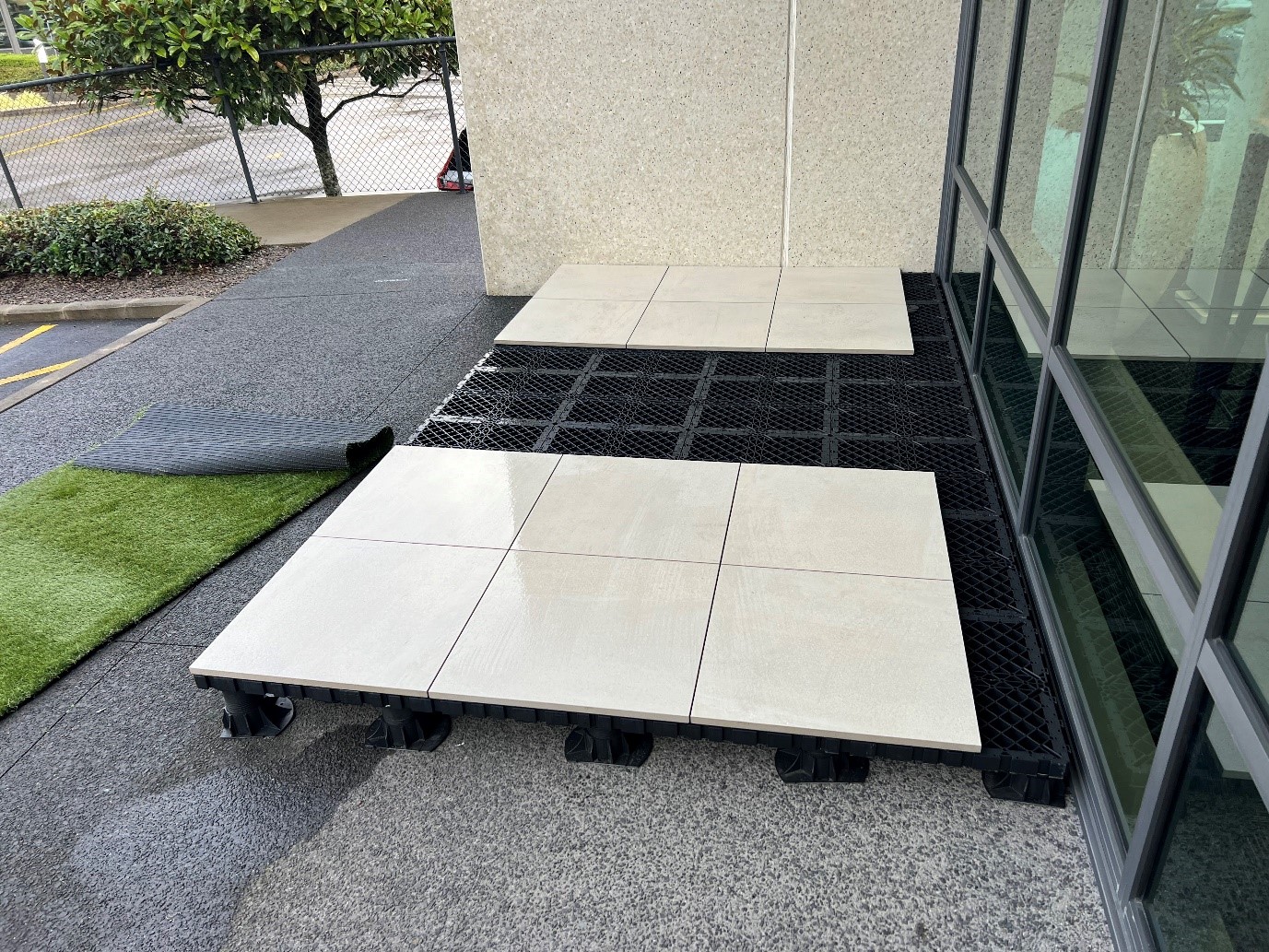

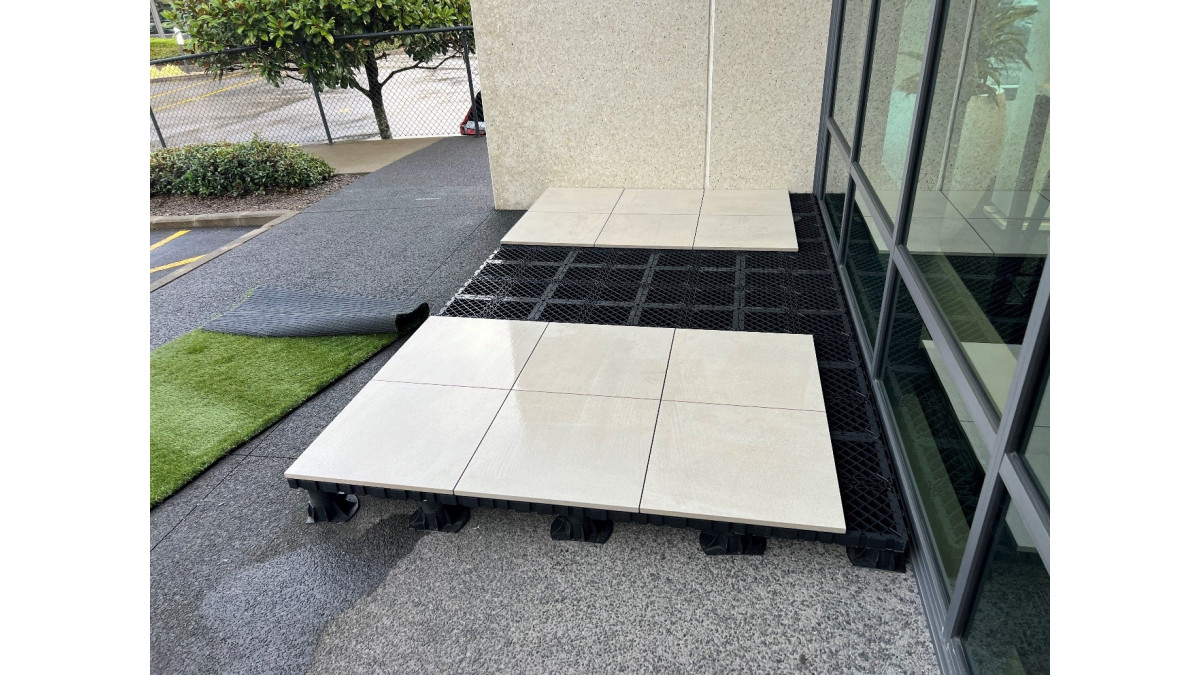

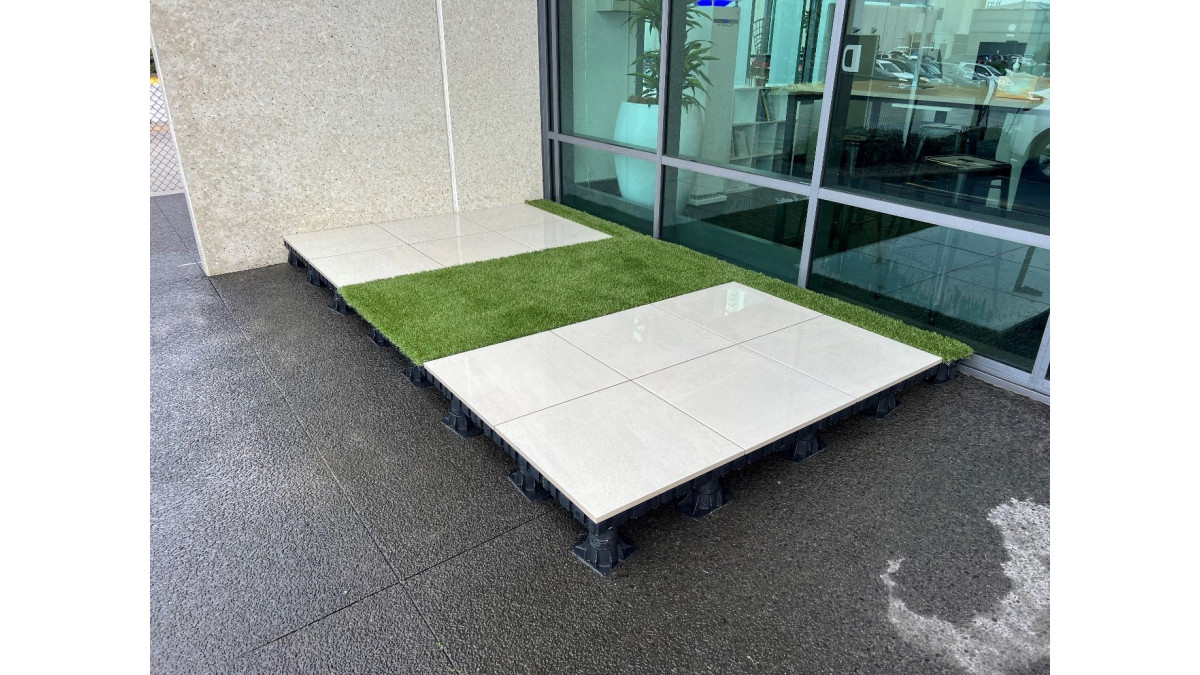

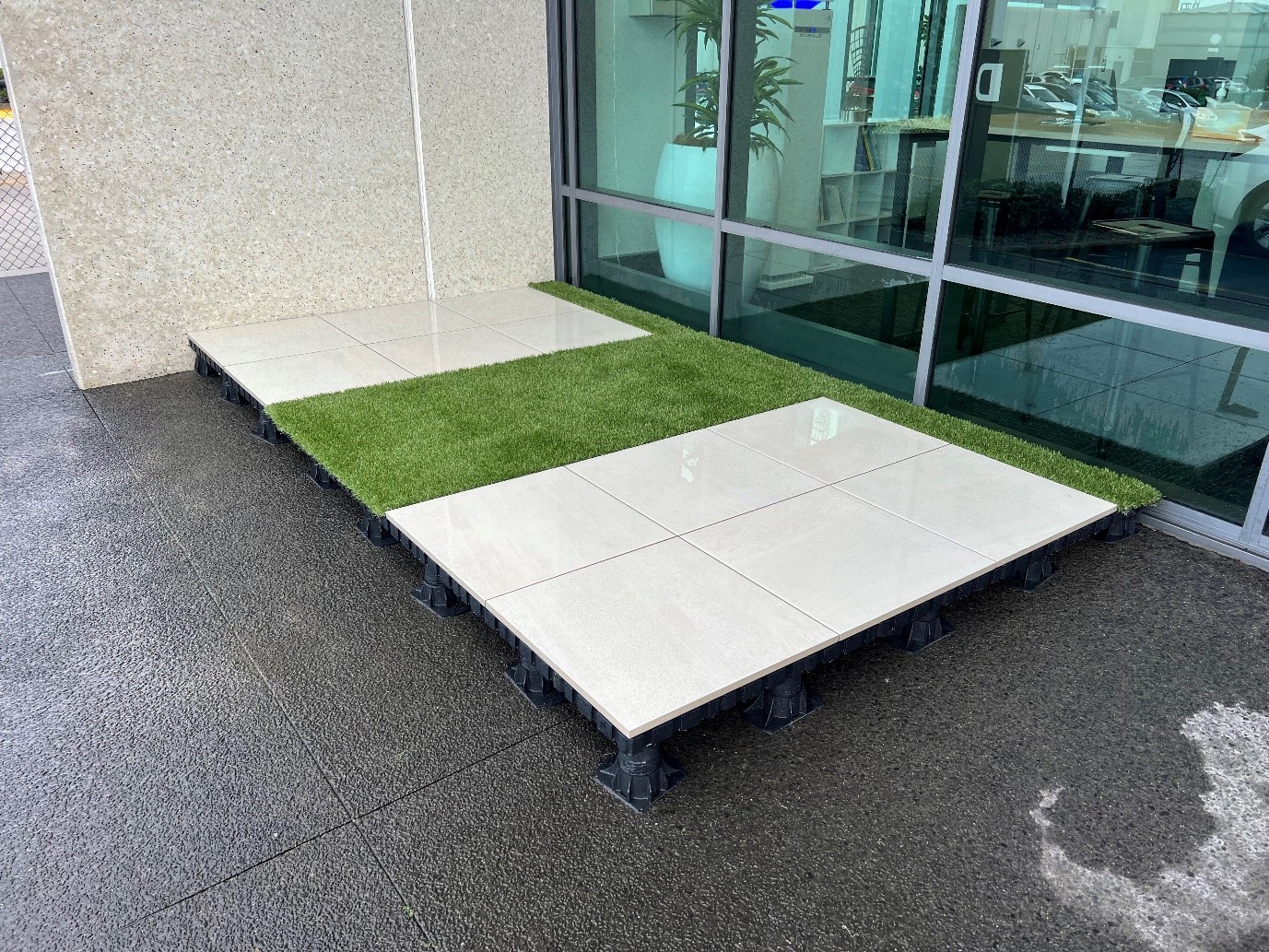

The greatest risk to a floated tile or paver deck is if a tile was to break. The Nuragrid offers a revolutionary approach to raised floated decking, providing unparalleled safety, flexibility, durability and ease of installation. This innovative system is perfect for large podium areas, public spaces, rooftop bars and even stylish backyards. It allows for the seamless integration of various flooring materials, such as pavers of different sizes and artificial turf, without sacrificing aesthetic appeal or structural integrity.

Key Features

Freedom of Choice: The Nuragrid grants complete freedom in flooring selection. Mix and match different materials, patterns and sizes to create a truly personalised space.
Dry Installation: The Nuragrid typically is a dry installation process, ensuring raised and removable access to membranes and a clean and environmentally friendly installation.
Adhesive Installation: To ensure a firm and resilient surface, an adhesive system is available. The adhesive option may allow for wind-proof, vandal-proof or non-structural paver applications (testing recommended).
Level Surface: Due to the self-levelling heads of the Nurajacks, the system guarantees a perfectly level surface while still protecting membranes from point loading.
Excellent Drainage: Like all Nurajack systems, it features drainage below the trafficable surface, ensuring a completely level surface and eliminating potential trip hazards.
Versatility: Compatible with a wide range of subfloors, including waterproof membrane systems, it is ideal for both residential and commercial applications.
Low-Maintenance: Once installed, the Nuragrid requires minimal to no maintenance.
Sustainability: All components of the Nurajack systems are made from a high percentage of post-consumer recycled materials and are recyclable, aligning with sustainable building practices. Nurajack is part of Nuralite Waterproofing group of companies and has a target of zero carbon emissions.
Wide Range of Accessories: With a variety of accessories available, including vertical closures and perimeter spacers, the system can be installed in a wide variety of scenarios.

Ranges

Decks

Post-Consumer Recyclable Content

Scope of Use

Solution for raised flooring projects
Residential and commercial applications
Provides enhanced safety, especially in raised flooring applications where a broken paver will cause significant damage or disruption such as public spaces, and emergency egress

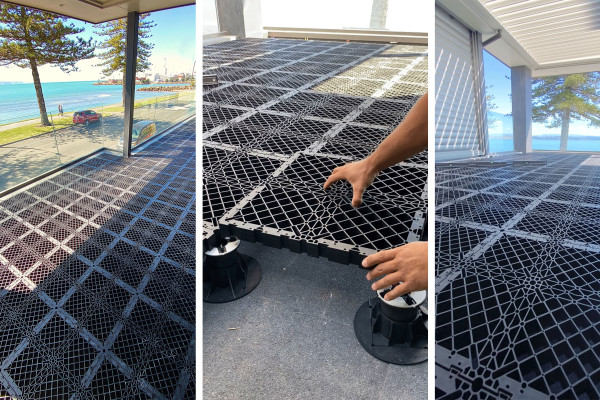

The Nuragrid installation is a straightforward process that can be completed in four simple steps:

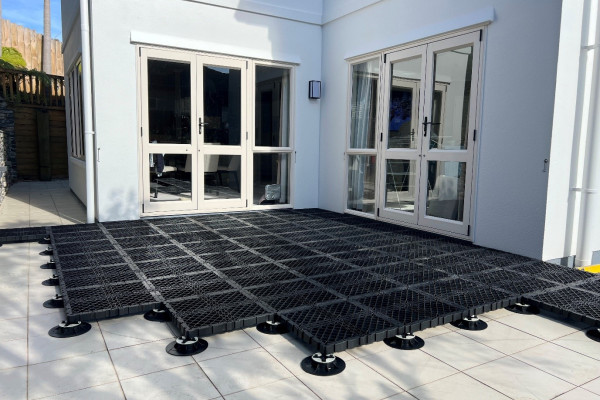

Place Nurajacks: Position the Nurajacks on the desired surface and adjust them to the required height.

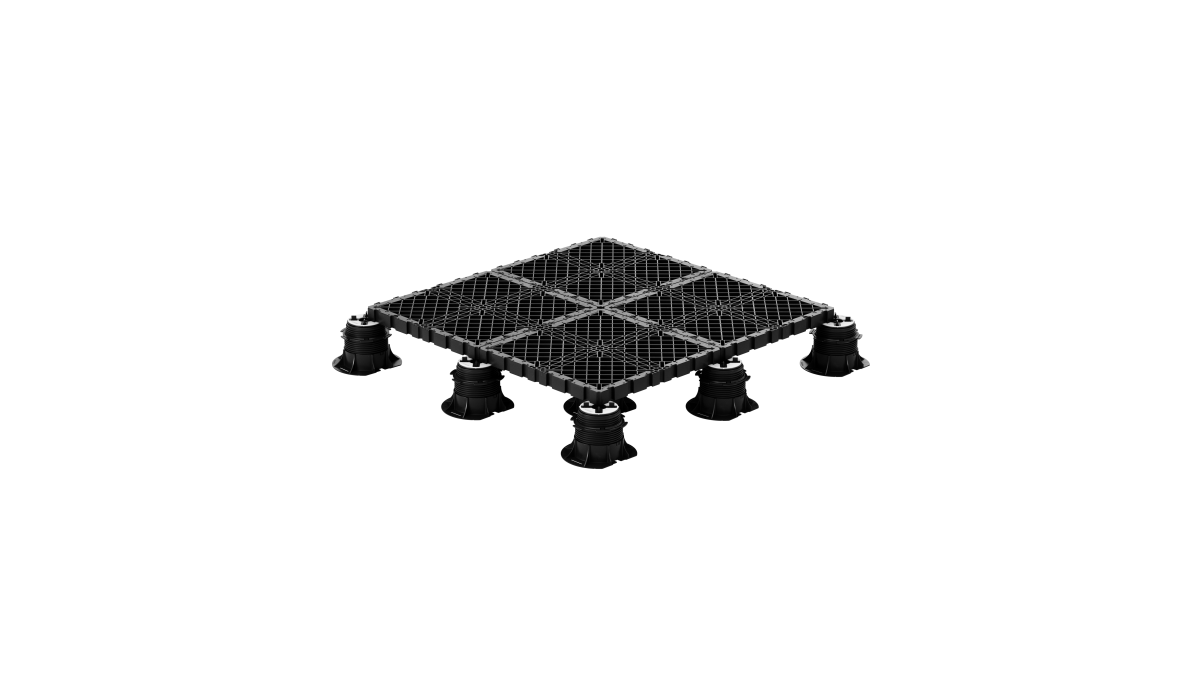

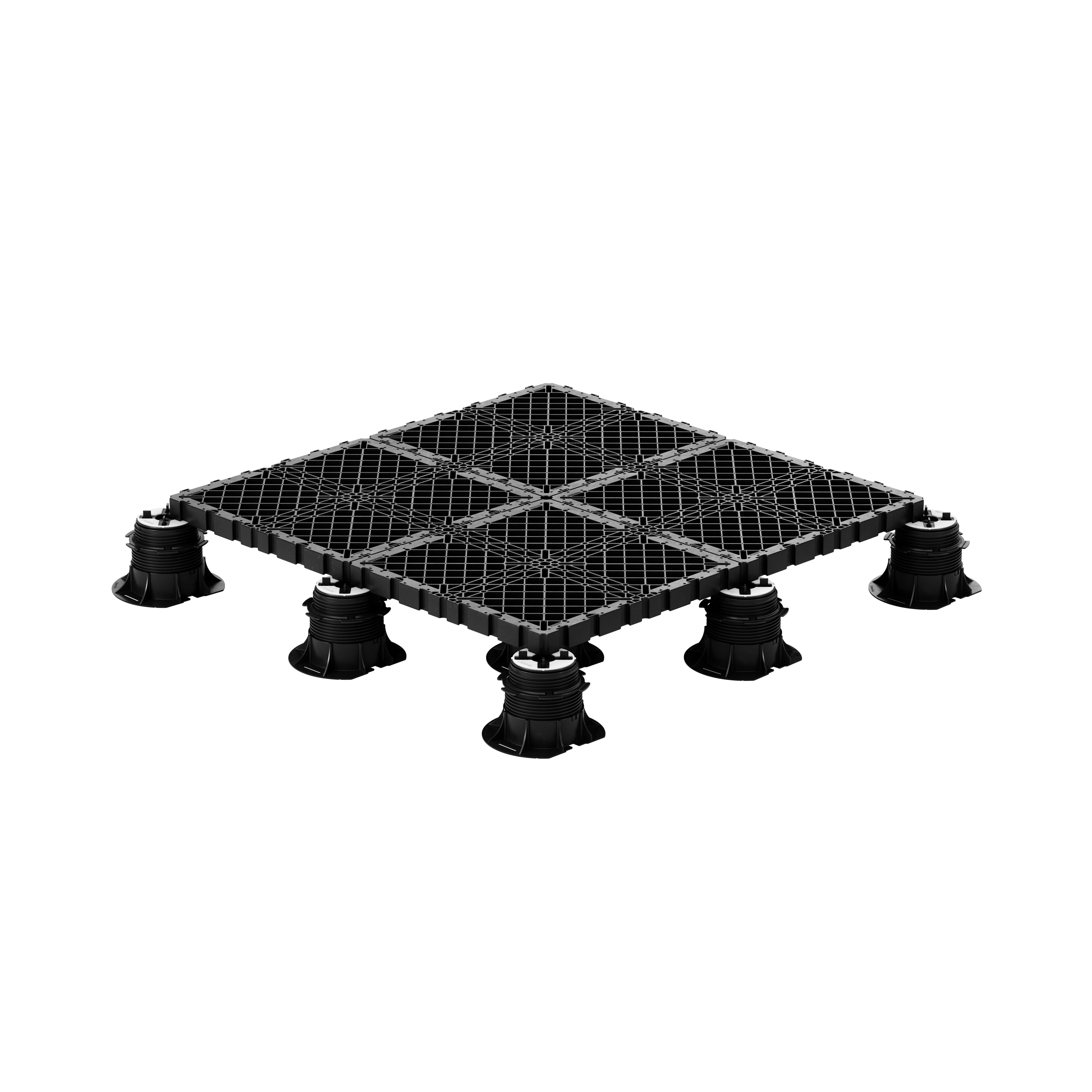

Install Nuragrid Panels: Connect the Nuragrid panels together using the dovetail joints, ensuring a stable and level surface.
Adjust and Level: Use the Nurajack Adjustment Key to fine-tune the levelling of the Nuragrid panels.
Lay Flooring: Install your chosen flooring elements, utilising the Nurajack Mini Spacer and Nurajack/NurapadShim for precise alignment.
