suPIR Span (PIR) Insulated Panel
Description

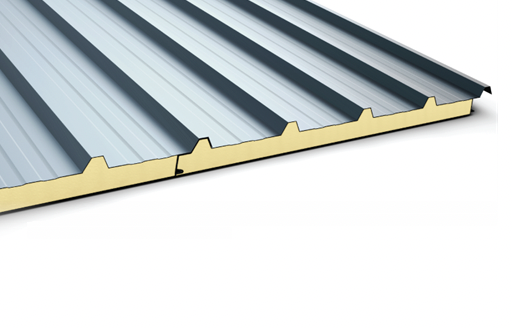

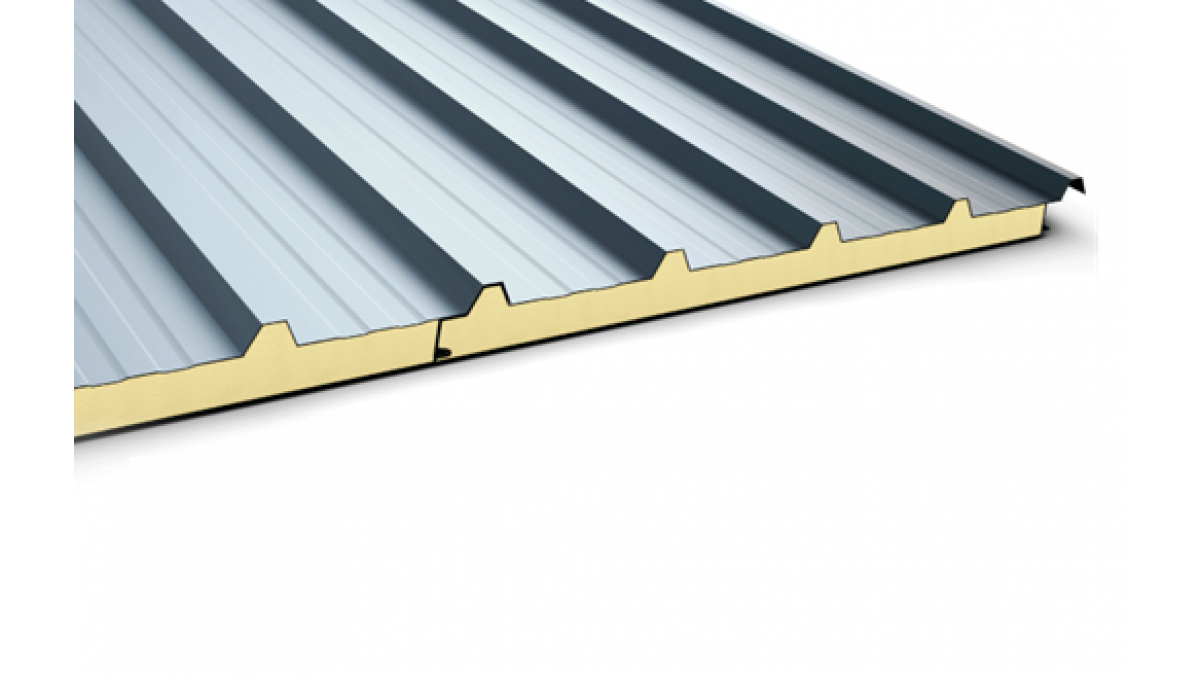

suPIRspan is a lightweight, thermally efficient panel intended for use as an insulated, fire resistant, fully finished roof panel.

SuPIR Span consists of a 0.59mm profiled roofing sheet bonded to a PIR core with a ceiling panel sheet bonded to the underside. Panels are finished with a factory applied COLORSTEEL finish to suit the specific exposure zone and use.

Panels are 1000mm wide and can be supplied in project specific lengths. The panels can be made with different thicknesses of PIR core, depending on thermal and span requirements.

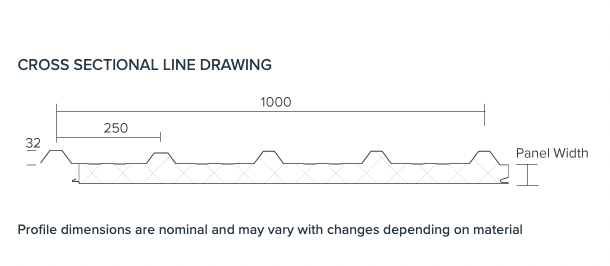

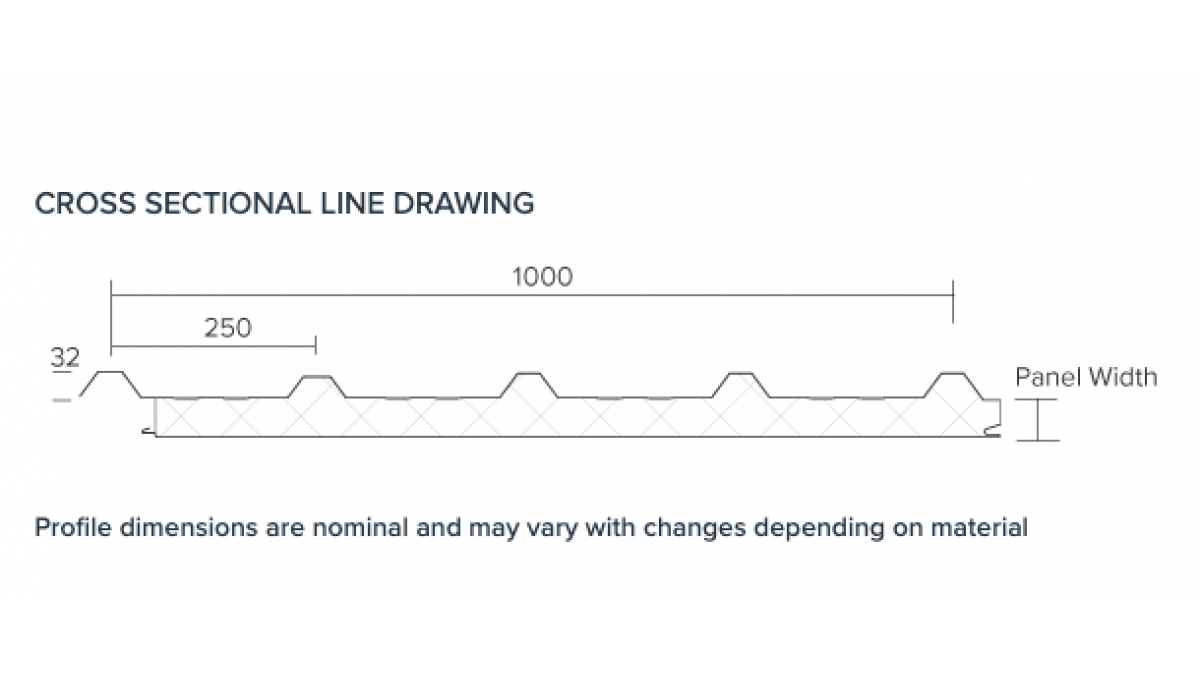

suPIR has a trapezoidal profile with a single lap corrugation, and a symmetrical external face. The panels are supplied with a smooth internal face with a tongue and groove joint.

Key Features
  • NZ made using COLORSTEEL longer sheet lengths available than imported product
  • Can be used in horizontal or vertical applications
  • 15m sheet length (longer lengths available subject to freight restrictions)
  • Lightweight, thermally efficient
  • Manufactured in Auckland, using locally and imported products. Available nationwide
NZ Made
NZ Made
Scope of Use
  • Suitable for roof and wall cladding
  • 15m un-piloted truck (longer lengths available depending on freight restrictions to site)
  • With steel or timber structural framing and on a concrete slab or sub-floor structure
  • In all wind zones, up to and, including Extra High wind zone as defined in NZS 3604:2011 or a calculated wind design pressure (ULS) of 4 kPa
  • With a snow loading of up to 1kPa
  • In all exposure zones as defined in NZS 3604:2011
Limitations on Use
  • The specification and installation of the suPIRspan is to be in accordance with the ThermoSpan EPS specification and installation
  • Minimum roof pitch 3°
  • Span of the panels is to be in accordance with suPIRspan tables V1.0, dated November 2019
  • In buildings that require fire-resistance rating (FRR) for passive fire protection, the passive fire protection systems must be specifically designed
  • All fixings to comply NZ Steel requirements (NZ Steel, 2018)
  • Where the system is to be used in a micro-climate (as defined in clause 4.2.2, NZS 3604:2011), Metalcraft Insulated Panel Systems is to be consulted
  • In exposure zone D, COLORSTEEL Maxx must be specified. In exposure zone C, COLORSTEEL Maxx or Endura may be specified. In exposure zone B, any COLORSTEEL product may be specified (NZ Steel, 2018)
  • Where compliance with G3.3.2 (a and b) is required, COLORSTEEL CP-Antibacterial must be specified as the internal lining of the panel
Statement of Building Code Compliance

If designed, installed and maintained in accordance with all Metalcraft Insulation Panels requirements, suPIRspan will comply with or contribute to compliance with the following performance claims:

  • B1 Structure B1.3.1, B1.3.2, B1.3.3 (a), (b), (c), (f), (e), (g), (i), (j), (I), (m) & (q) B1.3.4 (b), (c), (d) & (e) — Alternative solution
  • B2 Durability B2.3.1(a) — Alternative solution
  • C3 Fire affecting areas beyond the fire source C3.4 (a) — Acceptable solution C/AS2
  • E2 External moisture E2.3.1, E2.3.2, E2.3.3, E2.3.4, E2.3.7 (b) & (c) — Alternative solution
  • E3 Internal moisture E3.3.1, E3.3.4, E3.3.5, E3.3.6 — Alternative solution
  • F2 Hazardous building materials F2.3.1 — Alternative solution
  • G3 Food preparation and prevention of contamination G3.3.2 (a) & (b) — Alternative solution
Other Performance Attributes
  • The panel achieves a material group 1S when tested to ISO 9705:1993. The test was carried out by BRANZ and BRANZ is accredited to carry out this test (BRANZ, 17 April 2019). Metalcraft Insulated Panels confirmed the PIR core in suPIRpanel is the same as that tested in BRANZ Type Test FI11055-001
  • Global Mark CodeMark certification evaluation (Global Mark, 28/06/2017)
Independent Assessment
Independent Assessment
PASS
PASS
Documents
Loadspan Tables and Product Information

2021

PASS Statement: 19049

19049 (2022)

Additional Information
Installation Details

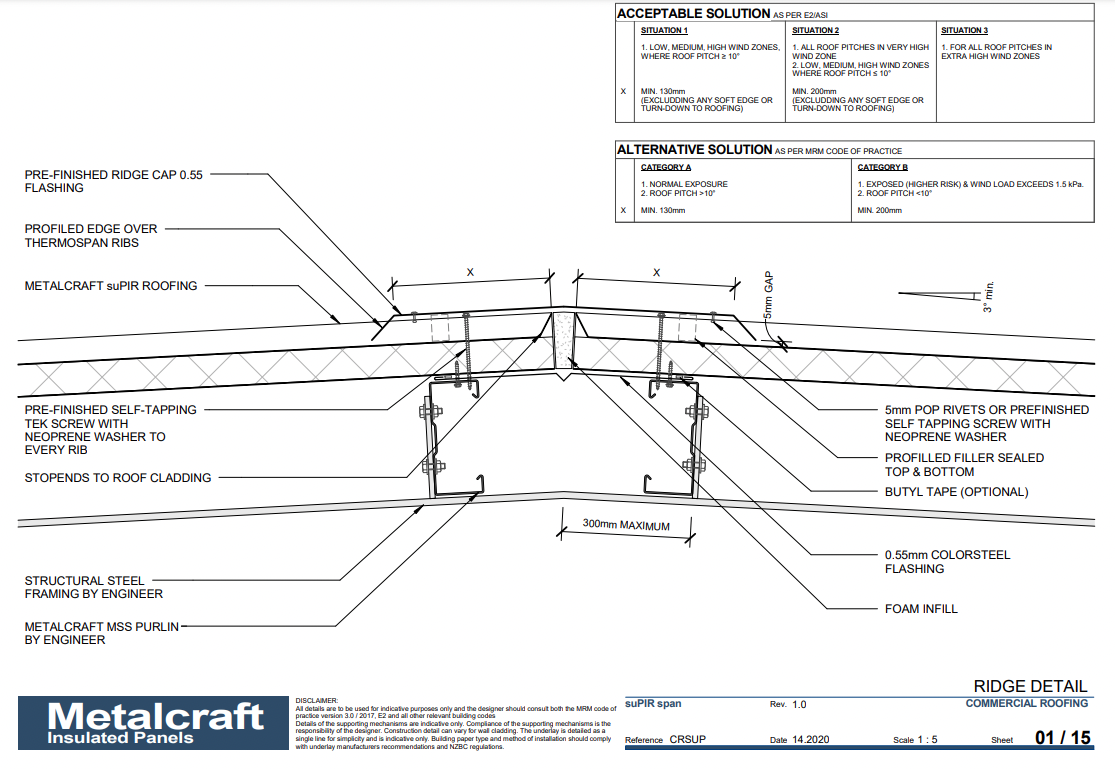

Commercial Roof Details

CRSUP 01-15

Metalcraft Insulated Panel manufacture a full range of panel solutions using various core technologies that meet the performance requirements of the external environment.
