ThermoSpan EPS
Description

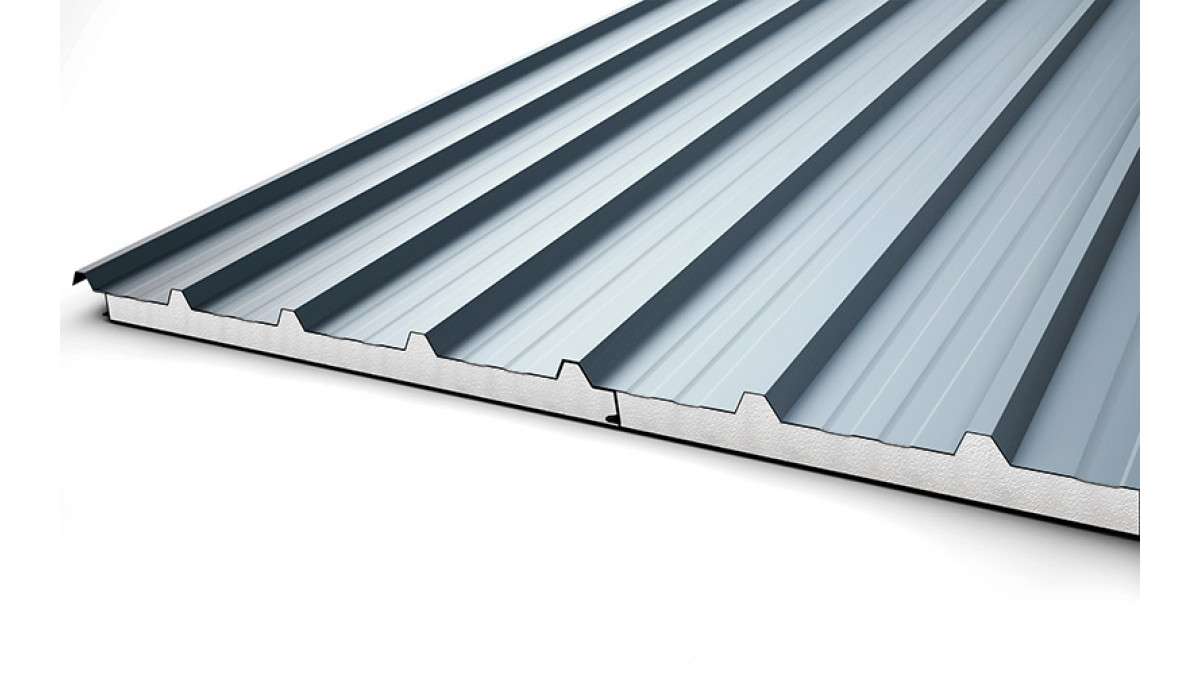

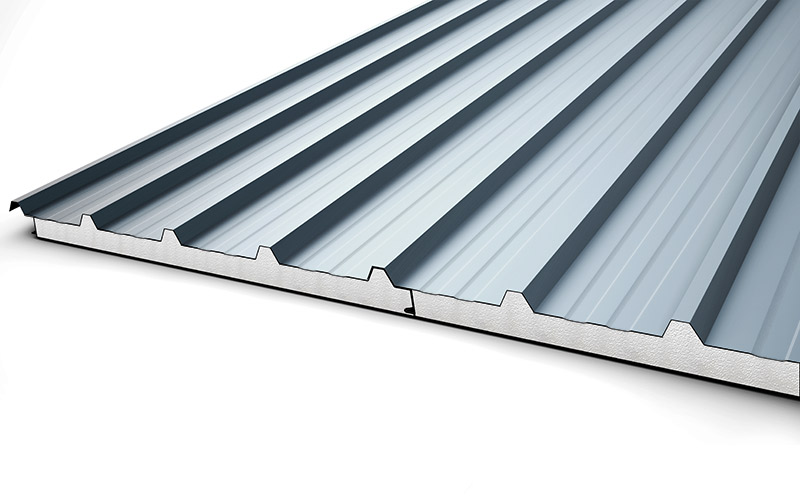

ThermoSpan EPS is a polystyrene cored insulated panel, consisting of a 0.59mm profiled roofing sheet bonded to an EPS core with a ceiling panel sheet bonded to the underside. ThermoSpan EPS does have fire retardant properties but is not fire rated. ThermoSpan can be used in residential and commercial applications as load bearing and non-load bearing wall and roofing panels.

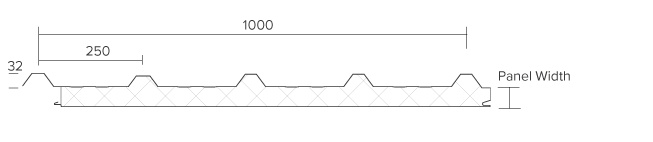

ThermoSpan panels are available in a limited colour range from the Colorsteel® range of roof colours, and in the following thicknesses (mm): 50, 75, 100,150, 200, 250, 300.

Key Features
  • Flame Retardant additive to EPS core
  • Long spans
  • NZ manufactured — longer sheet lengths
  • Thermally efficient
  • Non ozone depleting
  • Compatibility with openings and design elements of  the building
  • ThermoSpan has been Codemark certified. Please refer to Metalcraft for specific Codemark installation requirements
NZ Made
NZ Made
Scope of Use

Applications include wall cladding, roofing depending on application. Contact Metalcraft Insulated Panels for more information.

Metalcraft Insulated Panel Systems supplies Thermopanel and Thermospan Insulated Panels for use as load bearing and non-load bearing wall and roofing panels.

Location:

  • In all wind zones up to and included extra high as defined in NZS3604:2011 or up to a specifically designed maximum wind pressure (ULS) of 2.5kPa.
  • All corrosion zones as defined in NZS3604:2011

Building:

  • In new buildings where the relevant part of the building complies with the NZ Building Code or in existing buildings where the designer and installer have assured themselves that the relevant part of the building is adequate for the intended building work.
  • In conjunction with a concrete, steel or timber sub-floor and flooring structure (where panels are to be load bearing)
  • In conjunction with steel or timber structural framing and concrete, steel or timber sub-floor and flooring structure (non-load bearing). Joinery that complies with NZS4211:2008
  • All building uses, where material group 2 or more is required
Limitations on Use

Location:

  • Where the system is to be used in a micro-climate (as defined in clauses 4.2.2, NZS3604:2011), Metalcraft Insulated Panel Systems is to be consulted

Building:

  • Where the panels are to be located within 1m of a relevant boundary the system may only be used as a non-load bearing external wall cladding system
  • Where fire resistance rating (FRR) is required, specific design is required
  • A maximum building height of 10m
  • Where the panels are to be used as roof panels, a minimum roof pitch of 3°
  • Colorsteel® CP-Antibacterial must be specified where the internal face must comply with G3.3.2(a)
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

Where the Metalcraft Insulated Panel System is designed, installed and maintained in accordance with the scope and conditions of CodeMark Certificate CMNZ 30078 Rev E, the Metalcraft Insulated Panel System, will comply or contribute to compliance with following provisions of the NZ Building Code:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a),(b),(e),(f),(h) and (j)
  • Clause B2 DURABILITY: Performance B2.3.1(a)
  • Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: C3.4(a) where a material group number 1 is required.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2, E2.3.3, E2.3.7
  • Clause E3 INTERNAL MOISTURE: Performance E3.3.1, E3.3.4, E3.3.5 and E3.3.6
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
  • Clause G3 FOOD PREPARATION & PREVENTION OF CONTAMINATION: Performance G3.3.2 (a) and (b)
  • Clause H1 THERMAL EFFICIENCY: Performance H1.3.1 (a) and (b), H1.3.2E for the relevant physical conditions of H1.3.3 (c) and (e)
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Documents
CAD/PDF Link
Loadspan Graph and Fixing Table
Product Technical Statement
CodeMark

CM30078 Rev E

CodeMark Certificate of Conformity
CodeMark Specification Guide

V2 June 2020

Colour Chart
Environmental Category Brochure
CAD/PDF Details

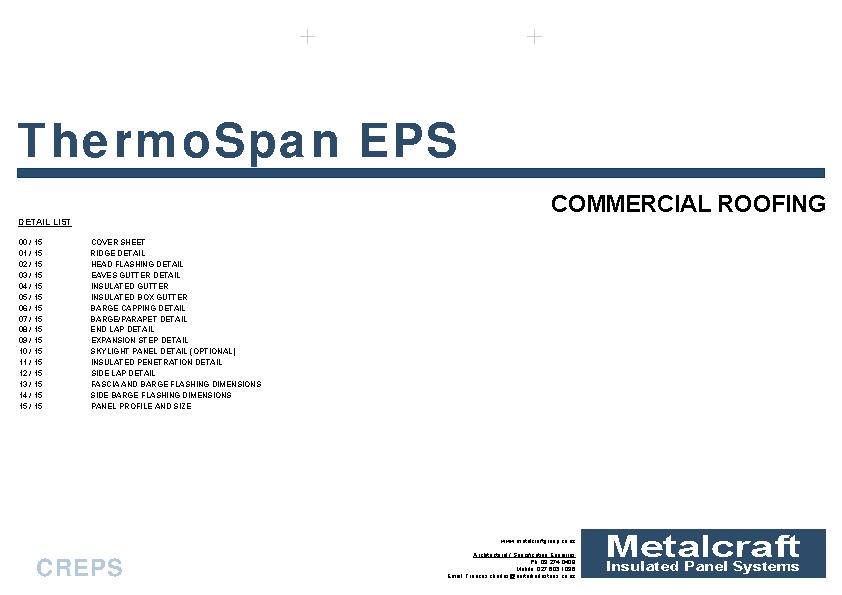

Commercial Roof Details

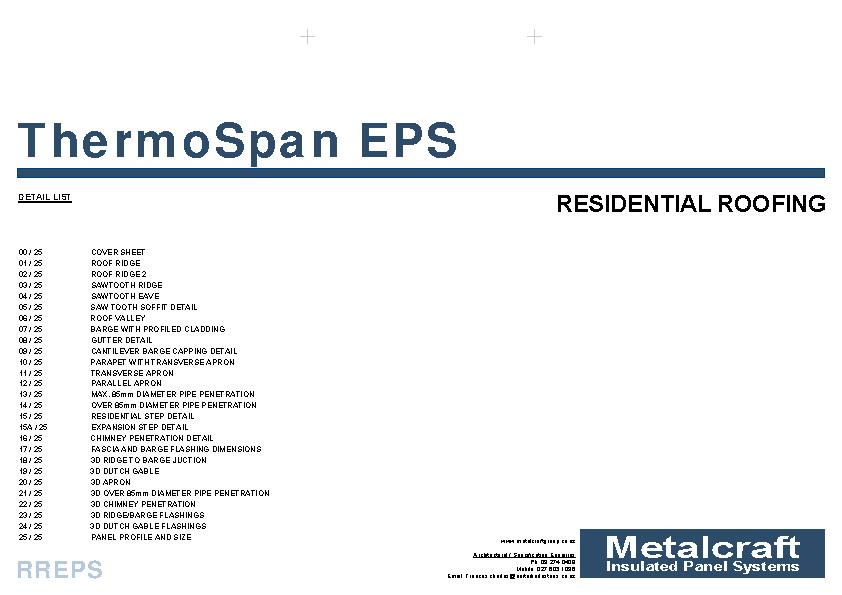

Residential Roof Details
