NZ Made PIR Panel Needs a New Name!

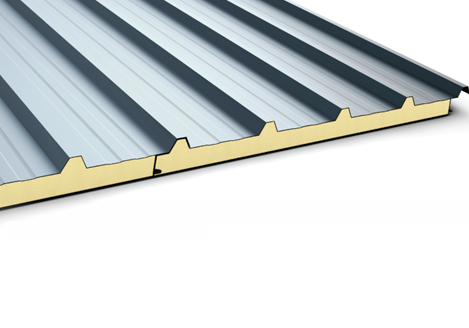

suPIR Span is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant PIR core. Manufactured in New Zealand, suPIR Span offers excellent build advantages. The locally made panels can be delivered quickly to site, and sheet lengths can be longer than lengths typically associated with imported panels, reducing the need for end laps. These lengths are restricted by transportation to site, so if sheet lengths longer than 15m are required, then piloted vehicles may be required, please check with Metalcraft Insulated Panels.

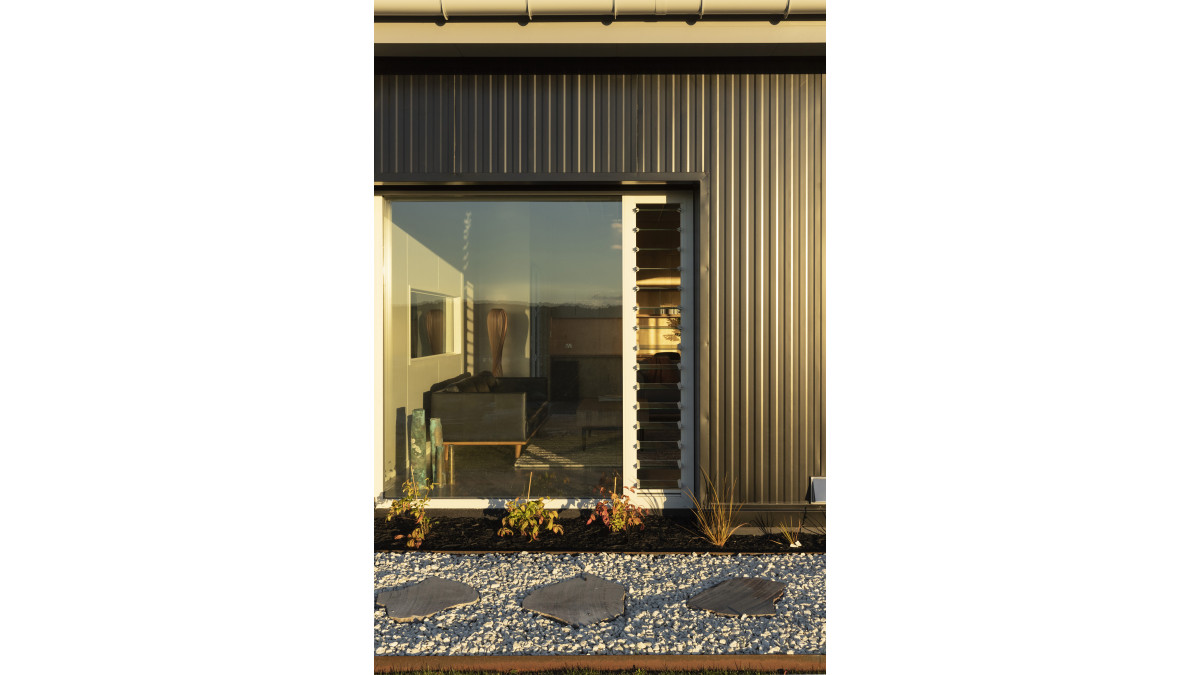

suPIR span is available in a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.

Fire retardant core
Longer spans
Shorter lead times
Thermally efficient
Ease of cutting and trimming on site
Minimal mess on site
Manufactured locally using local and imported products
NZ Steel COLORSTEEL colours for perfect colour match with flashing

This competition has now closed.

suPIR Span (PIR) Insulated Panel

Metalcraft Insulated Panels

View Product

suPIRspan is a lightweight, thermally efficient panel intended for use as an insulated, fire resistant, fully finished roof panel.

NZ Made

Suitable for roof and wall cladding
15m un-piloted truck (longer lengths available depending on freight restrictions to site)
With steel or timber structural framing and on a concrete slab or sub-floor structure
In all wind zones, up to and, including Extra High wind zone as defined in NZS 3604:2011 or a calculated wind design pressure (ULS) of 4 kPa
With a snow loading of up to 1kPa
In all exposure zones as defined in NZS 3604:2011

Extra High Wind Zone

If designed, installed and maintained in accordance with all Metalcraft Insulation Panels requirements, suPIRspan will comply with or contribute to compliance with the following performance claims:

B1 Structure B1.3.1, B1.3.2, B1.3.3 (a), (b), (c), (f), (e), (g), (i), (j), (I), (m) & (q) B1.3.4 (b), (c), (d) & (e) — Alternative solution
B2 Durability B2.3.1(a) — Alternative solution
C3 Fire affecting areas beyond the fire source C3.4 (a) — Acceptable solution C/AS2
E2 External moisture E2.3.1, E2.3.2, E2.3.3, E2.3.4, E2.3.7 (b) & (c) — Alternative solution
E3 Internal moisture E3.3.1, E3.3.4, E3.3.5, E3.3.6 — Alternative solution
F2 Hazardous building materials F2.3.1 — Alternative solution
G3 Food preparation and prevention of contamination G3.3.2 (a) & (b) — Alternative solution

Independent Assessment
