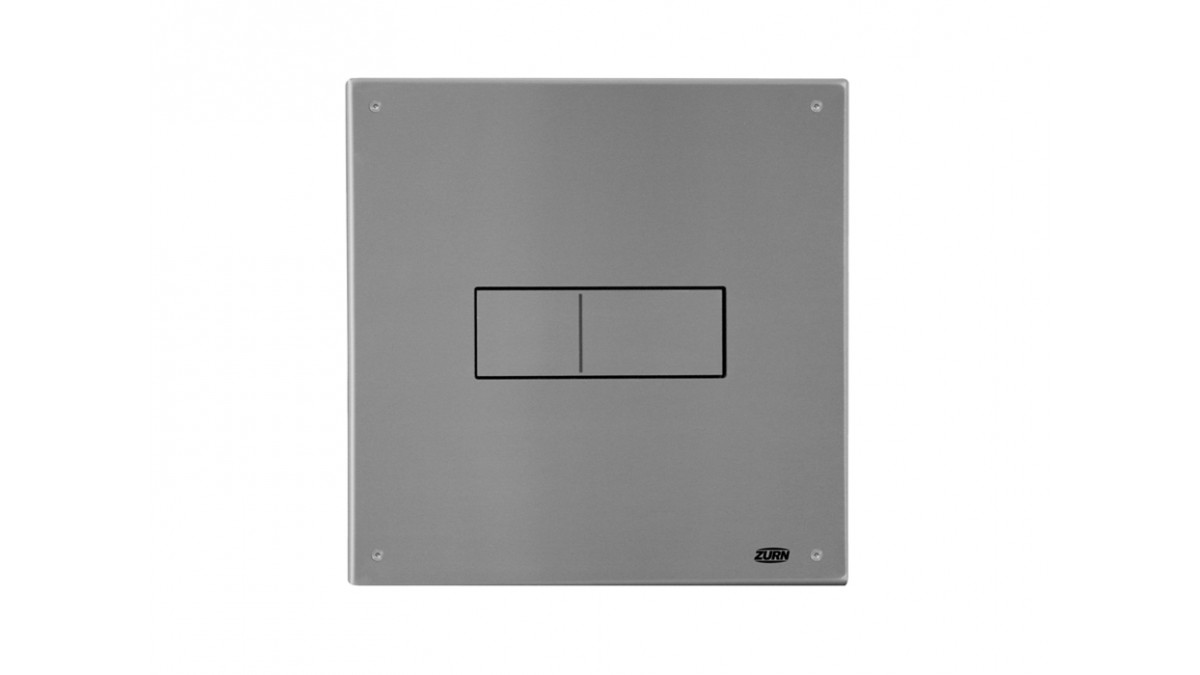

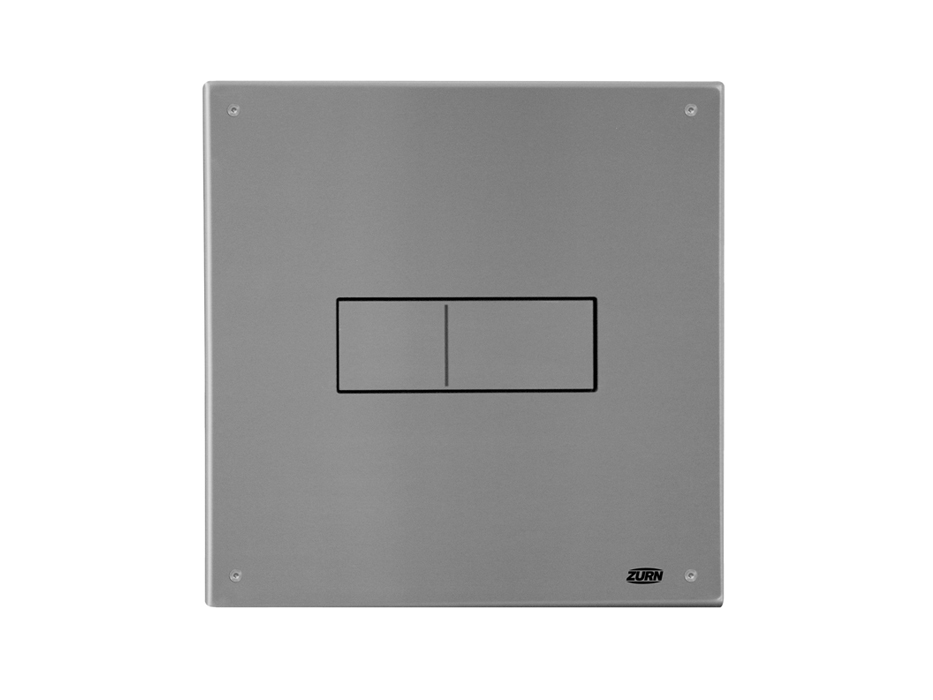

Zurn Dual Flush Valve — ZDF-6152XL
Description

Zurn ZDF6152-XL is a recess mounted toilet flush valve designed to be connected to mains pressure water supply. It is also available as a non potable valve where water is supplied from a dedicated supply tank or from a pressurised recycled water feed.

Key Features
  • The 2 button plate allows the user the option of flushing 3 or 6L.
  • Flush volumes are consistent irrespective of pressure variations. The product is specified in 2 parts: the inwall valve is common to all versions and then the customer must then chose the type of face plate.
  • Correct pipe sizing is essential to flush valve installation
  • All mains pressure flush valves (ZDF-6152XL) require flow rates of 90l/min at dynamic pressures of 150 - 500kPa
  • Valves fed from a non-potable source are available (ZDF-6152L) but restricted to a dynamic pressure of 100 - 150kPa
  • All pipework should be designed by a suitably qualified person to ensure correct flow rates and pressures are available. Stated pressures are dynamic, not static



Categories
Toilets
Scope of Use
  • Suitable for use in public and commercial bathrooms.
Limitations on Use
  • Correct pipe sizing is essential to flush valve installation
  • All mains pressure flush valves (ZDF-6152XL) require flow rates of 90l/min at dynamic pressures of 150 - 500kPa
  • Valves fed from a non-potable source are available (ZDF-6152L) but restricted to a dynamic pressure of 100 - 150kPa
  • All pipework should be designed by a suitably qualified person to ensure correct flow rates and pressures are available. Stated pressures are dynamic, not static
Documents
Data Sheet
