RL Louvres (Large Rectangular Box Louvres)
Description

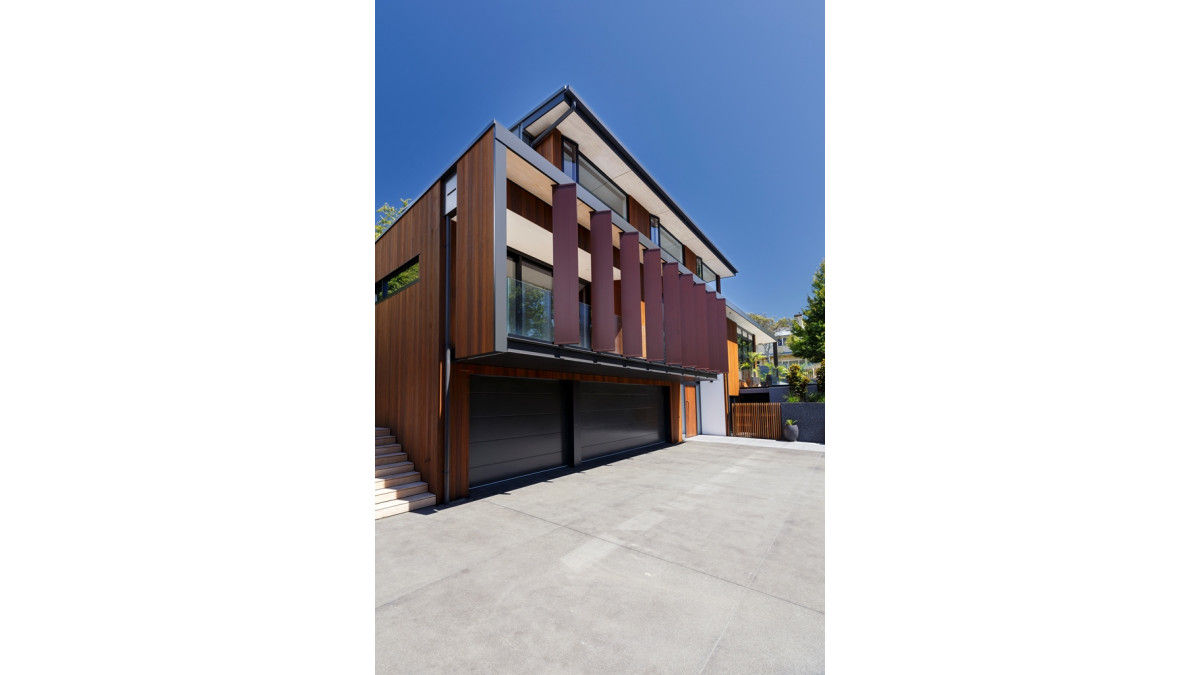

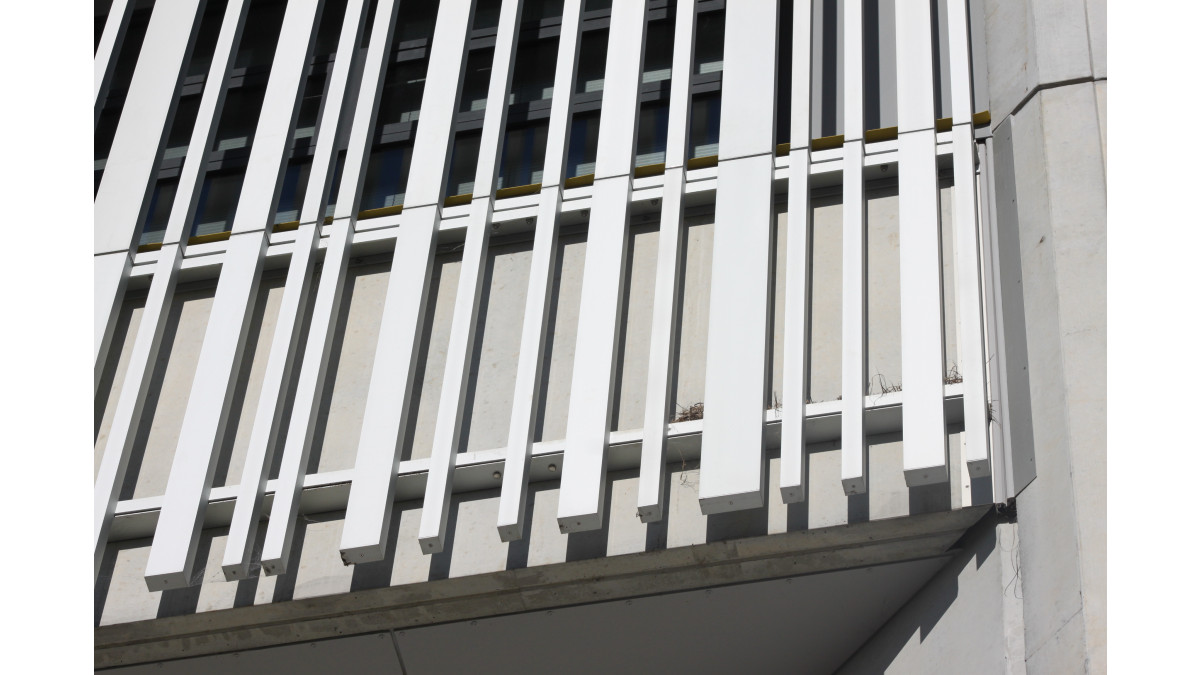

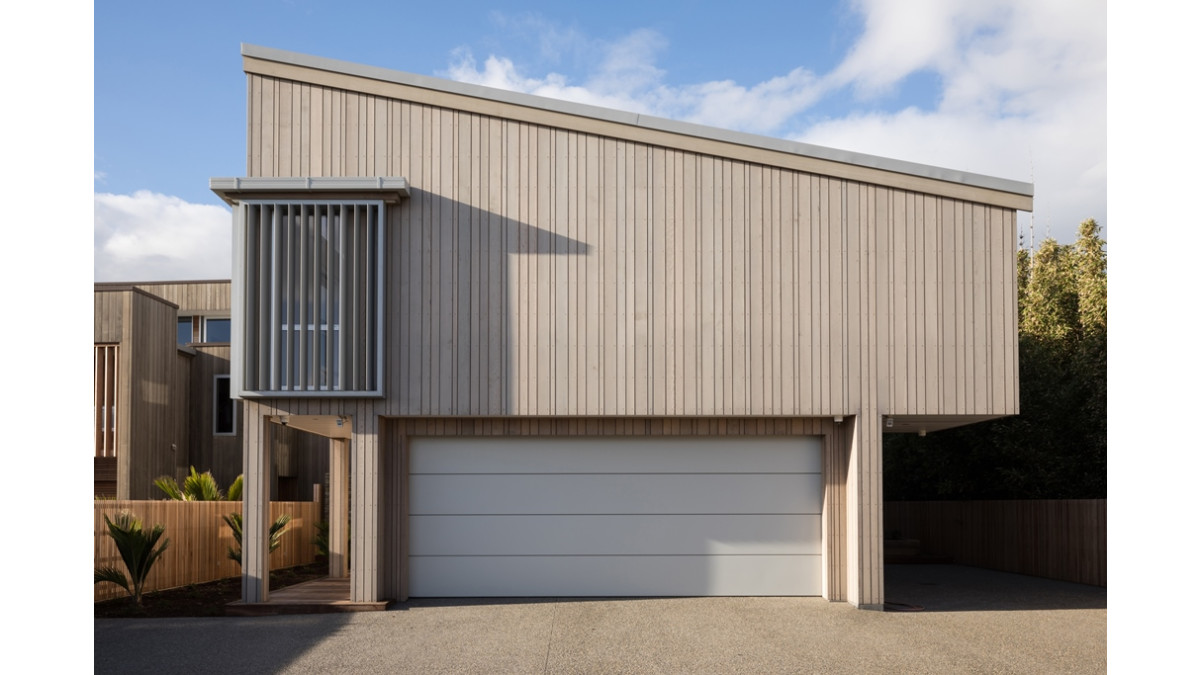

Louvretec's RL Louvre Range features large, rectangular shaped box section Louvres.

There are 6 different types of RL Louvres, incluing three x RL Louvres with Square corners and three x RL Louvres with Mitred corners as follows. RL Louvres can be end fixed or bracket Fixed and are designed to meet demand for large custom louvre systems.

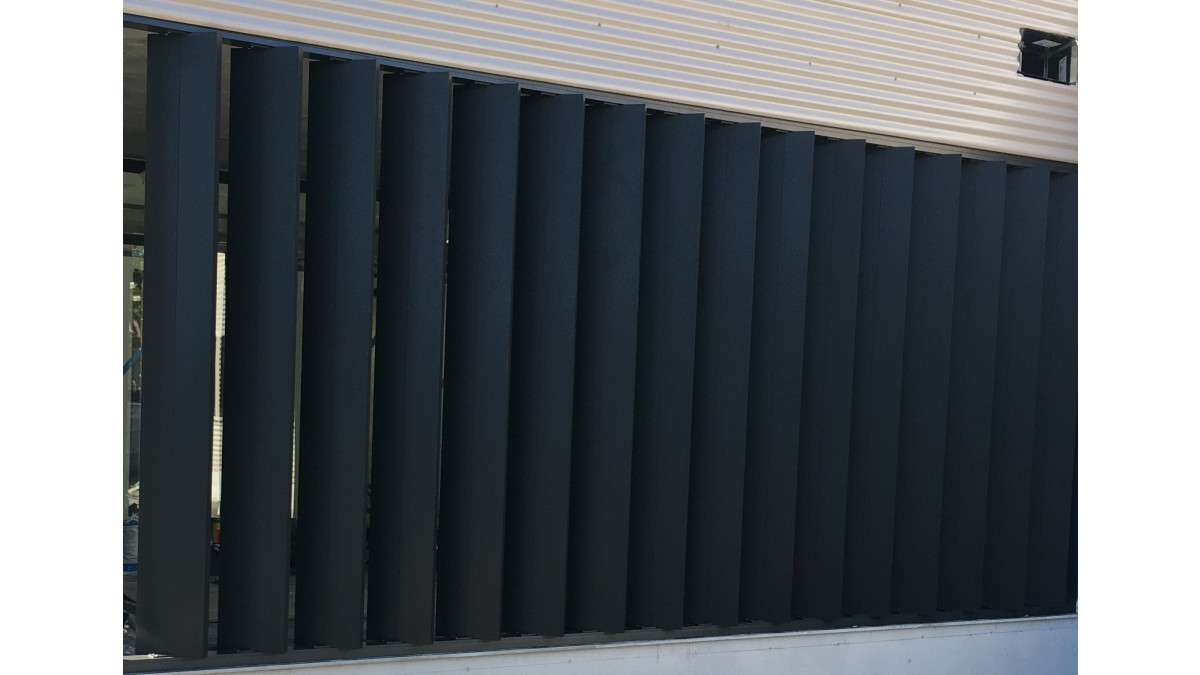

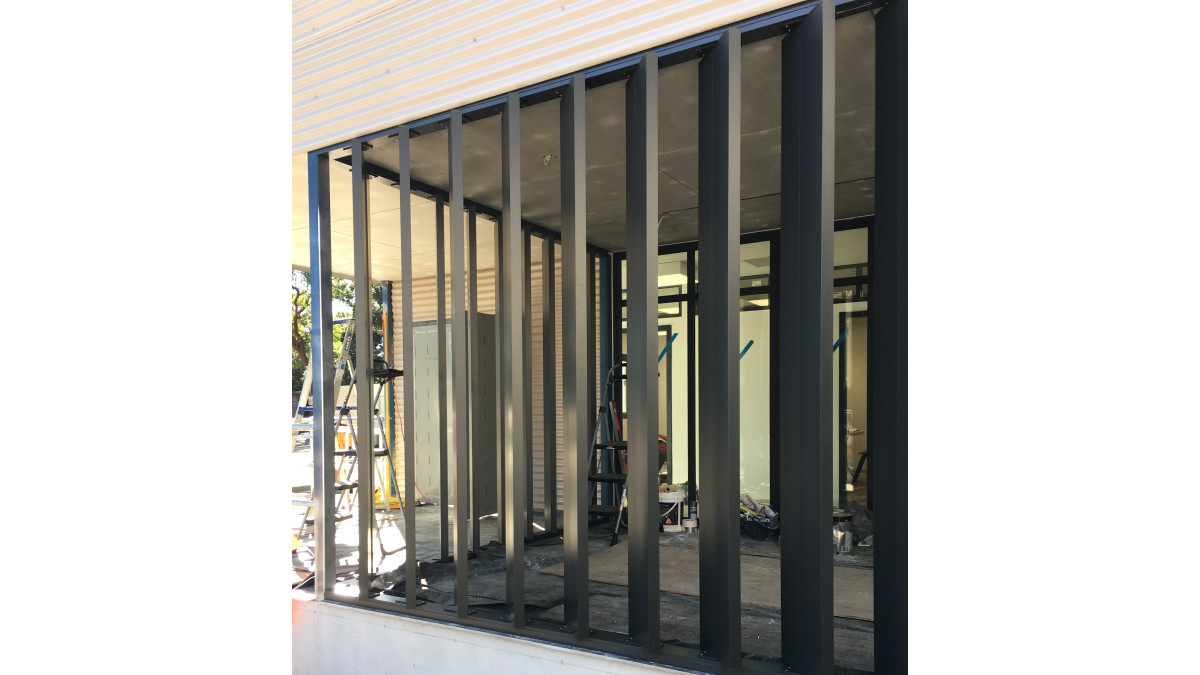

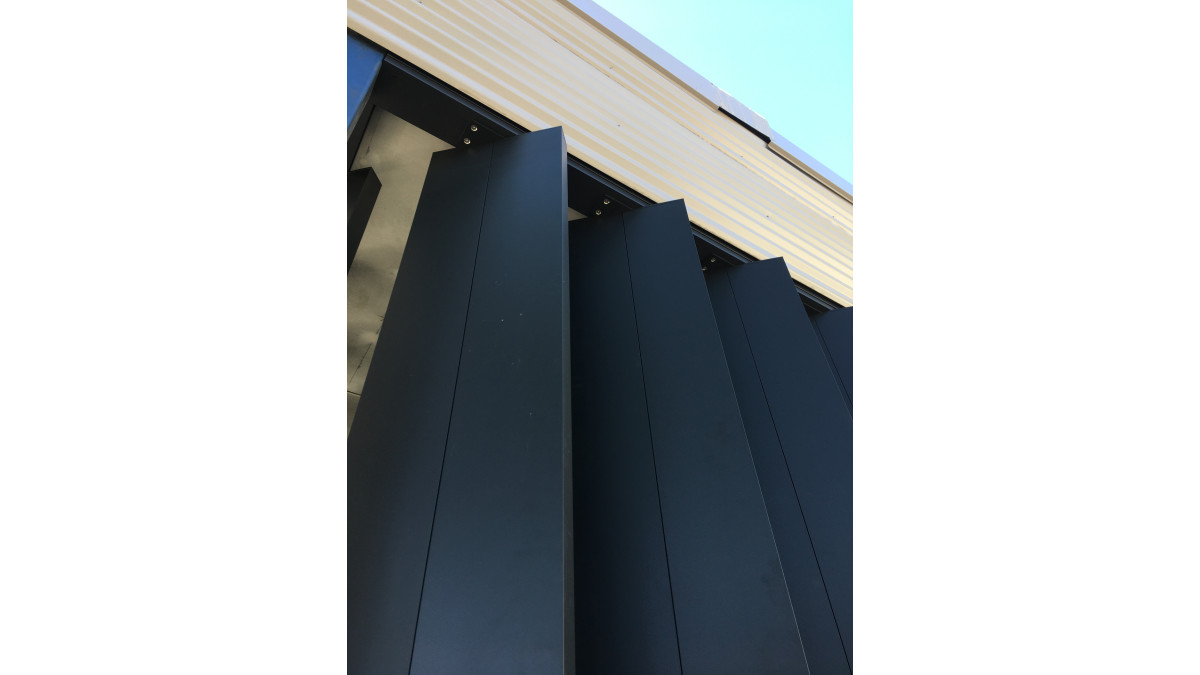

  • RL300 Square (Rectangular in length with square corners)
  • RL300 Mitre (Rectangular in length with mitred corners)
  • RL450 Square (Rectangular in length with square corners)
  • RL450 Mitre (Rectangular in length with mitred corners
  • RL600 Square (Rectangular in length with square corners)
  • RL600 Mitre (Rectangular in length with mitred corners
Key Features
  • Two blade shapes are available in the RL Large Louvre Collection; traditional square end or mitred end to a 7 degree angle
  • RL Louvres can be end fixed or bracket fixed
  • Capable of outstanding spanning capabilities
  • Three width sizes are available including 300 Square and Mitre, 450 Square and Mitre & 600 Square and Mitre
  • RL Louvres provide a clean, uncluttered appearance
  • For both commercial and residential applications
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for exterior applications
  • Suitable for commercial and residential buildings
  • Available end fixed or bracket fixed
  • Suitable for Extra High Wind Zones as per relevant Maximum Wind Loads & Spans Chart, specific to the project location.
Limitations on Use

Suitable for Extra High Wind Zones as per relevant Maximum Wind Loads & Spans Chart, specific to the project location.

Statement of Building Code Compliance

Louvretec Louvres comply with these clauses of the NZ Building Code:

  • B1: Structure
  • B2: Durability
In-Service History

RL Louvres have been specified on projects since 2021, demonstrating durability, aesthetics and performance on architectural projects. View RL Louvres on Woolworths Ponsonby, Auckland.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are engineered and constructed of high quality aluminium
  • See Warranty document
Documents
BPIR/PTS

BPIR Louvretec Sun Louvre Systems 2025

Louvretec 2025 Design Manual Section 10.4

2025

Louvretec 2025 Design Manual Section 10.5

2025

Louvretec Design Manual - Maxi Drive Sun Louvres Section 10.3

2025

RL300 SQUARE & RL300 MITRE LOUVRE SPANS

LOUVRETEC DESIGN MANUAL 2025

RL450 SQUARE & RL450 MITRE LOUVRE SPANS

LOUVRETEC DESIGN MANUAL 2025

RL600 SQUARE & RL600 MITRE LOUVRE SPANS

LOUVRETEC DESIGN MANUAL 2025

Warranty: Opening Roofs, Louvres, Shutters
Louvretec 2025 Sun Louvres Brochure

2025

Colour Range
CAD/PDF Details
RL300, RL450 and RL600 Mitre Bracket Fixed options
RL300, RL450 and RL600 Mitre Motorised Maxi-Drive option
RL300, RL450 and RL600 Mitre End Fixed options
