180/30 Slimline Opening Roof
Louvretec
All products
OR.NL.LR180M.005

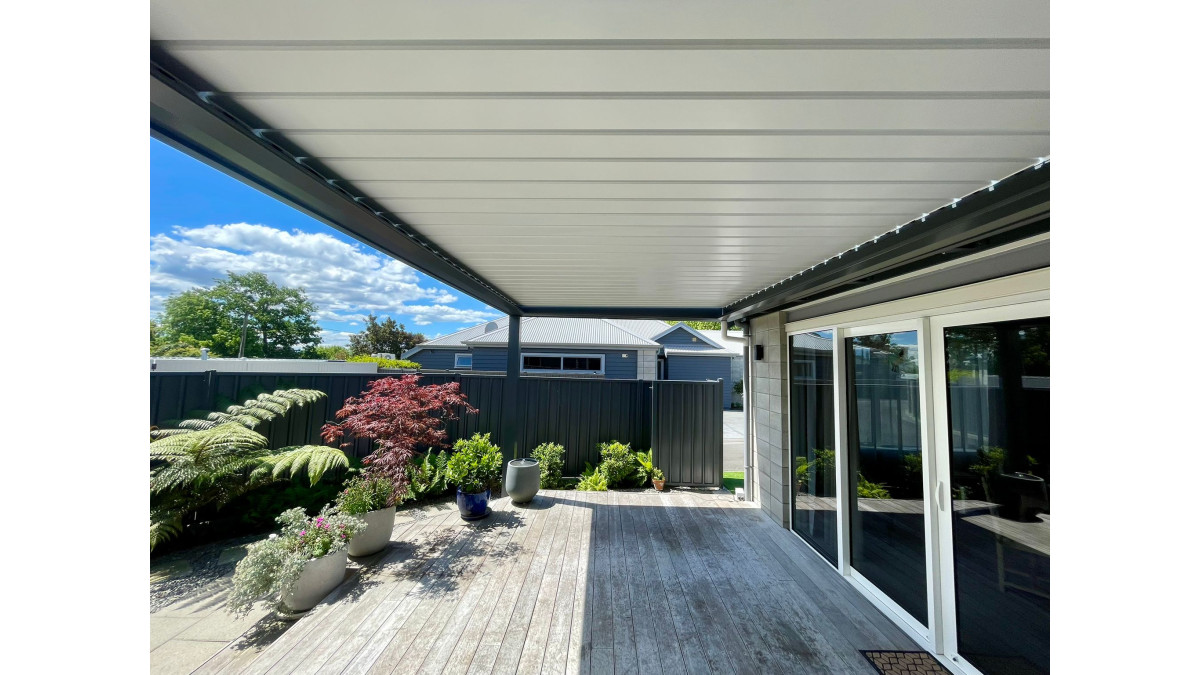

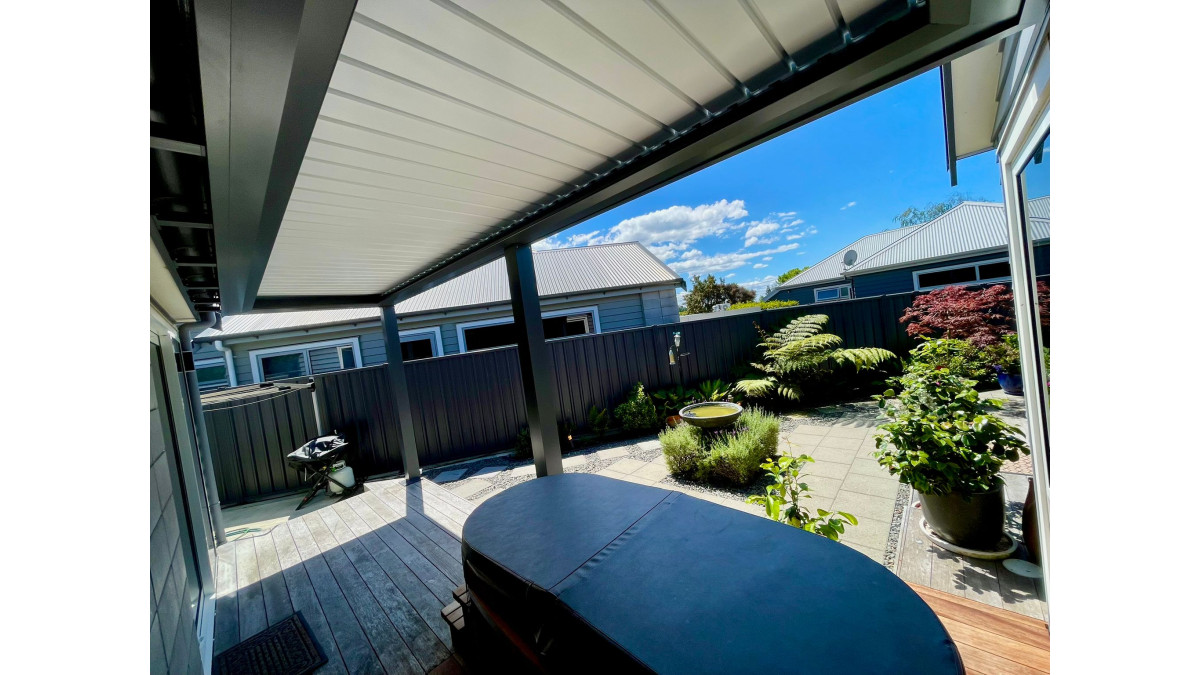

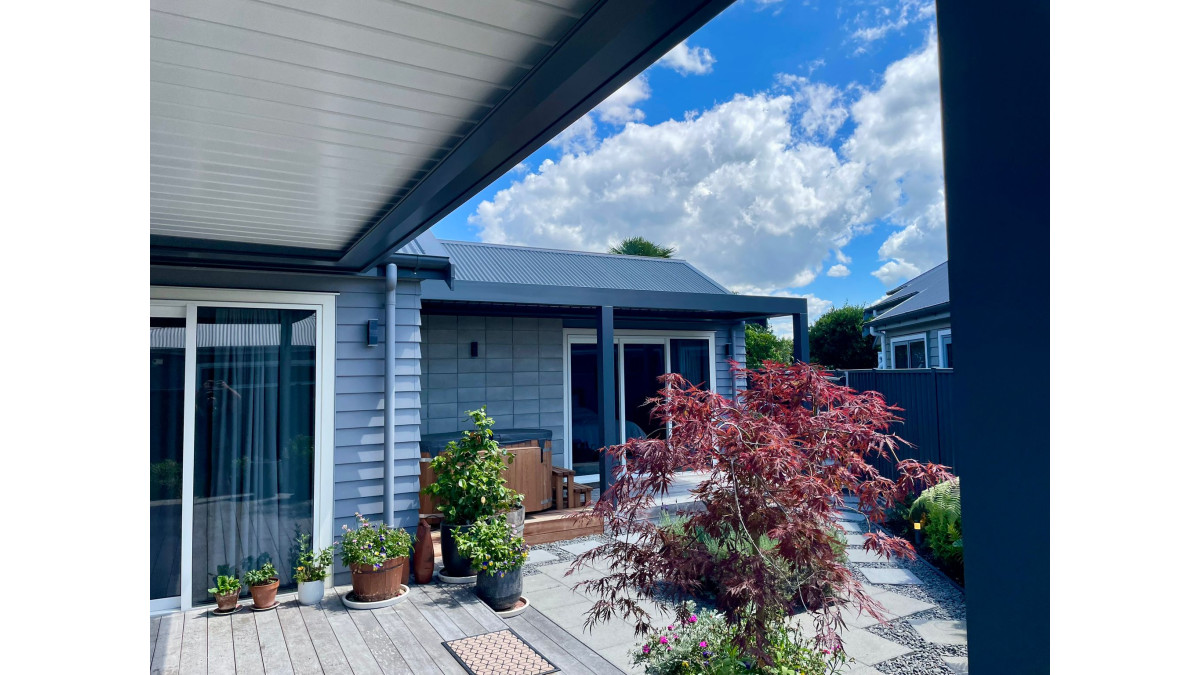

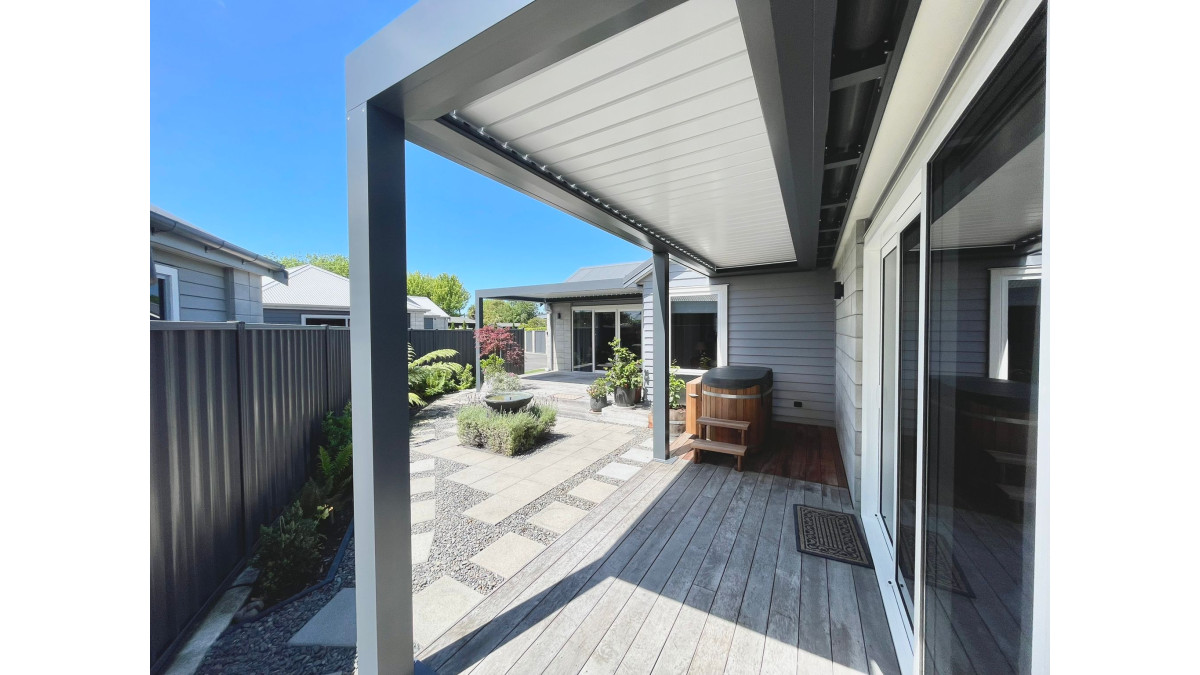

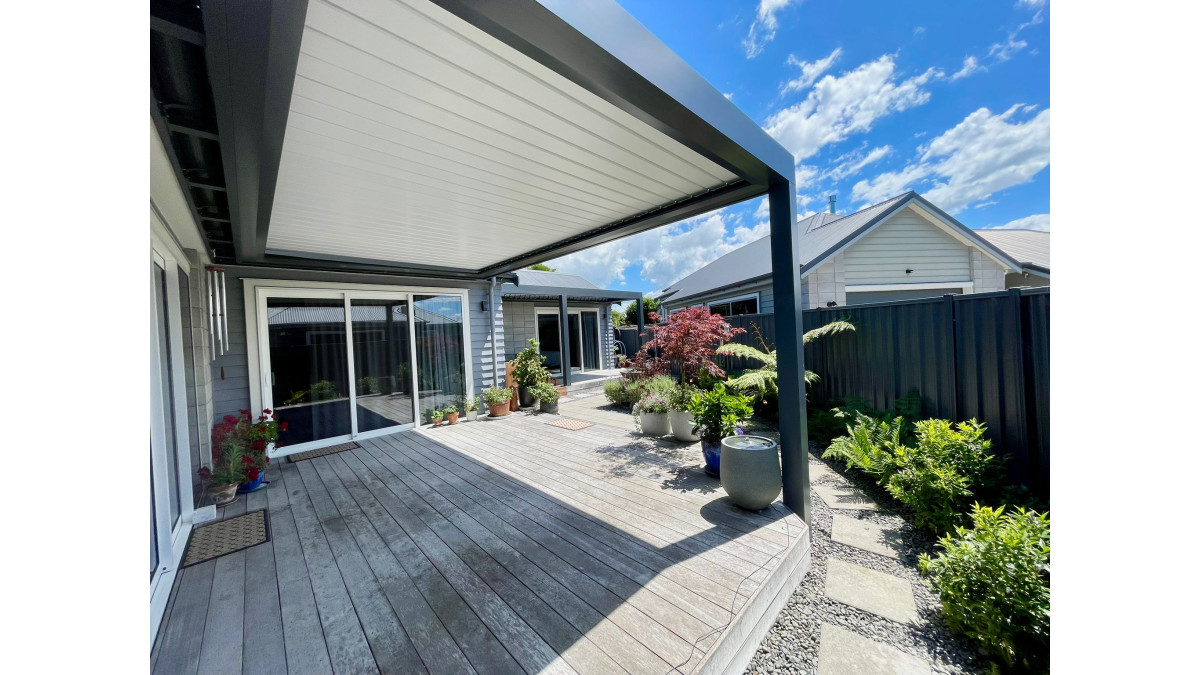

Slimline Roof by Louvretec

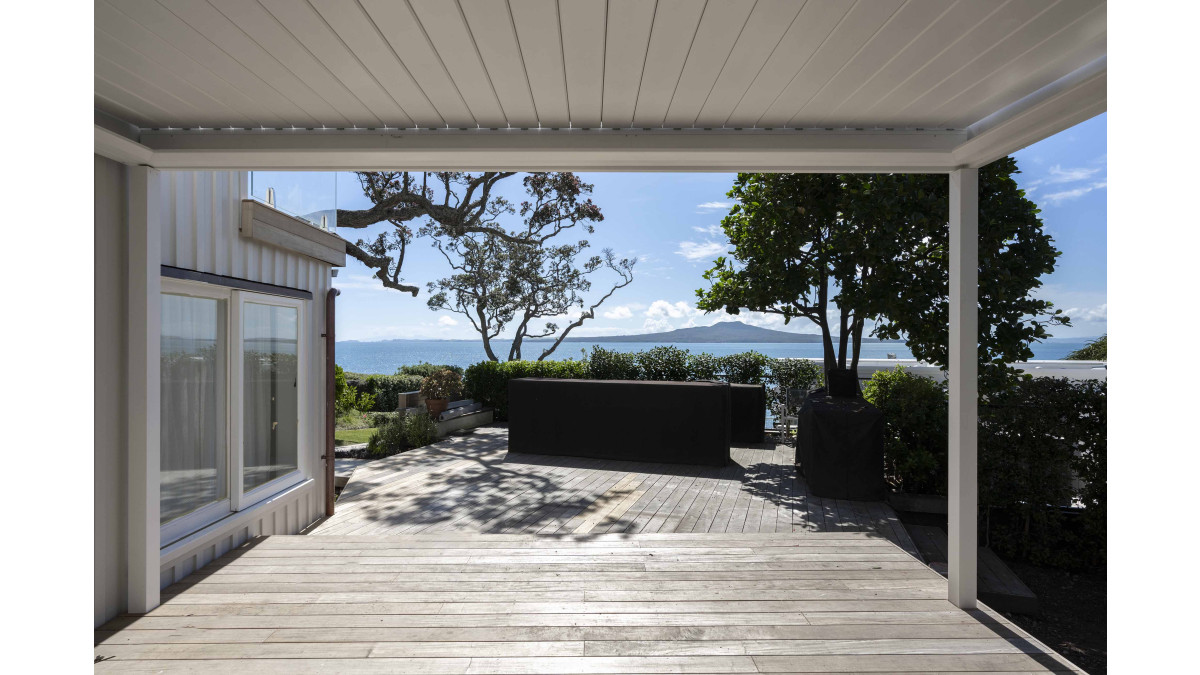

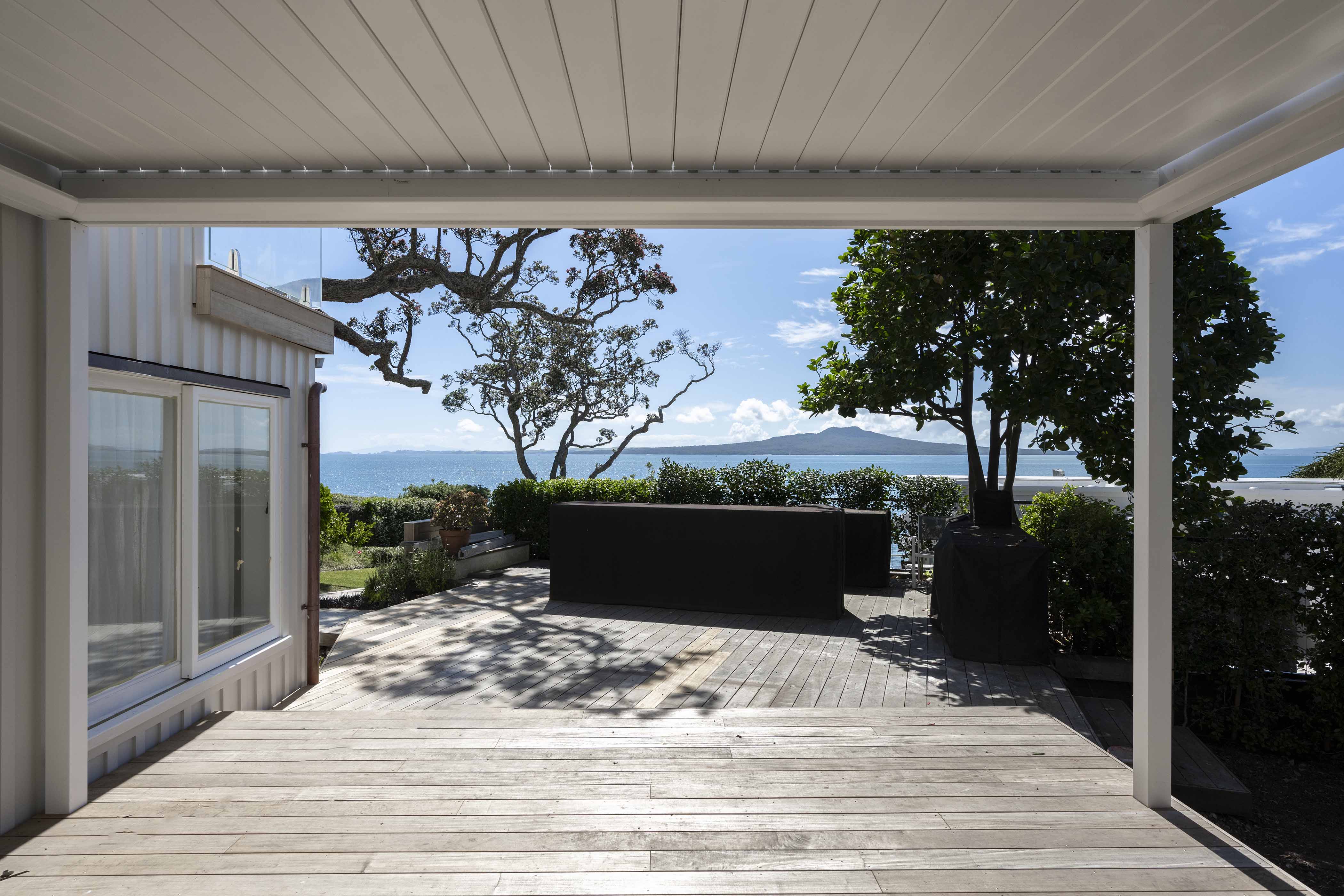

Louvretec Auckland
Description

New from Louvretec, the 180/30 Slimline Opening Roof replaces our 180 Linear and 180 Classic Opening Roofs. The modern slimline design works well with the narrower 180mm wide Louvres. Like the other 3 Slimline Roofs, the 180/30 Roof features a flat bottom with a sleek, tapering top. This Slimline Roof is the smallest in the series.

Maximum Spans in Wind Zones:

  • Extra High: 3350mm
  • Low:  4500mm
Key Features
  • The 180/30 Slimline Roof Louvre is the narrowest Roof in the range
  • This Roof is one of four new Slimline Opening Roofs by Louvretec
  • Ideal choice for smaller spanning Opening Roof projects
  • A flat bottom and a tapering topside brings a bigger sense of openness when blades are rotated
  • Blades can rotate through up to 180 degrees
  • Designed, manufactured and installed in NZ by Louvretec
  • Available Motorised or Hand-operable
  • Powered by world-renowned Somfy Motors
  • Award-winning Spiral Pivot System for smooth movement of the Louvre blades
  • Gearbox and motor are hidden from view
  • Louvretec Aluminium Structural Frames are included as standard
  • Louvres and Frames made from aluminium — no rusting
  • Available in a variety of powder coat and anodised colors
  • Available in a wood grain/timber-look, and other special finishes, such as Blistered Yakasugi
  • Engineered for quality and longevity
  • Provides sun, shade, and weather control — enjoy a comfortable haven below when the roof is closed; Open the Slimline Roof Louvre blades to follow the sun for adjustable overhead cover
  • Designed and manufactured locally for New Zealand and Australian conditions
  • Opening Roof Louvres can be motorised or manually adjustable
  • The 180/30 Slimline Louvres and Gutters can be fitted into a Louvretec frame and posts made of aluminium, or a timber, steel, concrete or fixed directly into a prepared opening in a roof structure by others. Frame and posts other than Aluminium are by others.
  • Engineered to meet relevant AS/NZS standards
  • All extrusions manufactured in an ISO quality assured environment to AS1866 and AS3902 standards
  • Plastic injected components (motorised and manual) are UV stabilised
  • Drive axles(motorised and manual) and all fixings are marine grade 316 stainless steel
  • Full site measure, design, shop drawing (if required) and installation service provided
  • All Louvretec Opening Roofs are custom made
Categories
Louvred and Pneumatic Roofing
Ranges
Opening Roofs
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Refer to wind zone chart for spans
  • Used as a weather resistant cover over decks/patios, outdoor dining areas of restaurants and bars, outdoor areas, school play areas, pool/spa covers.
  • Suitable for coastal, inland, residential & commercial installations.
  • Standard Spiral Pivot Opening Roofs are generally installed horizontally overhea but can be installed on an angle. They can be an irregular shape (refer Louvretec Design Team) and can be motorised or manually adjustable using the Louvretec Spiral Pivot system
  • The Spiral pivot system allows for up to 180° rotation of the louvres
  • Meets the requirements of AS/NZS 1170, NZS3604, AS/NZ1664
Limitations on Use
  • Refer to wind zone chart for spans. Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual
  • Opening Roof spans are restricted by wind zone. Refer relevant table in 2025 Louvretec Design Manual
  • Minimum depth of frame is required. Refer Louvretec Design Team
  • Opening Roofs cannot be used as a weather proofing solution to a building
  • All Louvretec systems must be installed by Louvretec's in-house installers
In-Service History
  • Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition
  • The Louvretec Spiral Pivot system for motorised and manual applications was introduced in 2003 and is used in most Louvretec motorised / manual systems
Other Performance Attributes
  • Compatible with Louvretec Sliding Glass Doors, Outdoor Blinds and Sun Louvre systems and Shutters
  • Fully engineered and warranted
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres and Frames are constructed of aluminium
Documents
Louvretec Design Manual - 180/30 Slimline Roof Bundle from Section 2

2025

pdf
Louvretec Design Manual - Opening Roof Entire Section 2

2025

pdf
Louvretec Opening Roofs Warranty

2025

pdf
Brochure

2025

pdf
Louvretec Lighting and Heating Brochure

2025

pdf
CAD/PDF Details
View full
Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 23
Typical Detail | 180/30 Slimline Roof - Hand Operable

2025

DWG

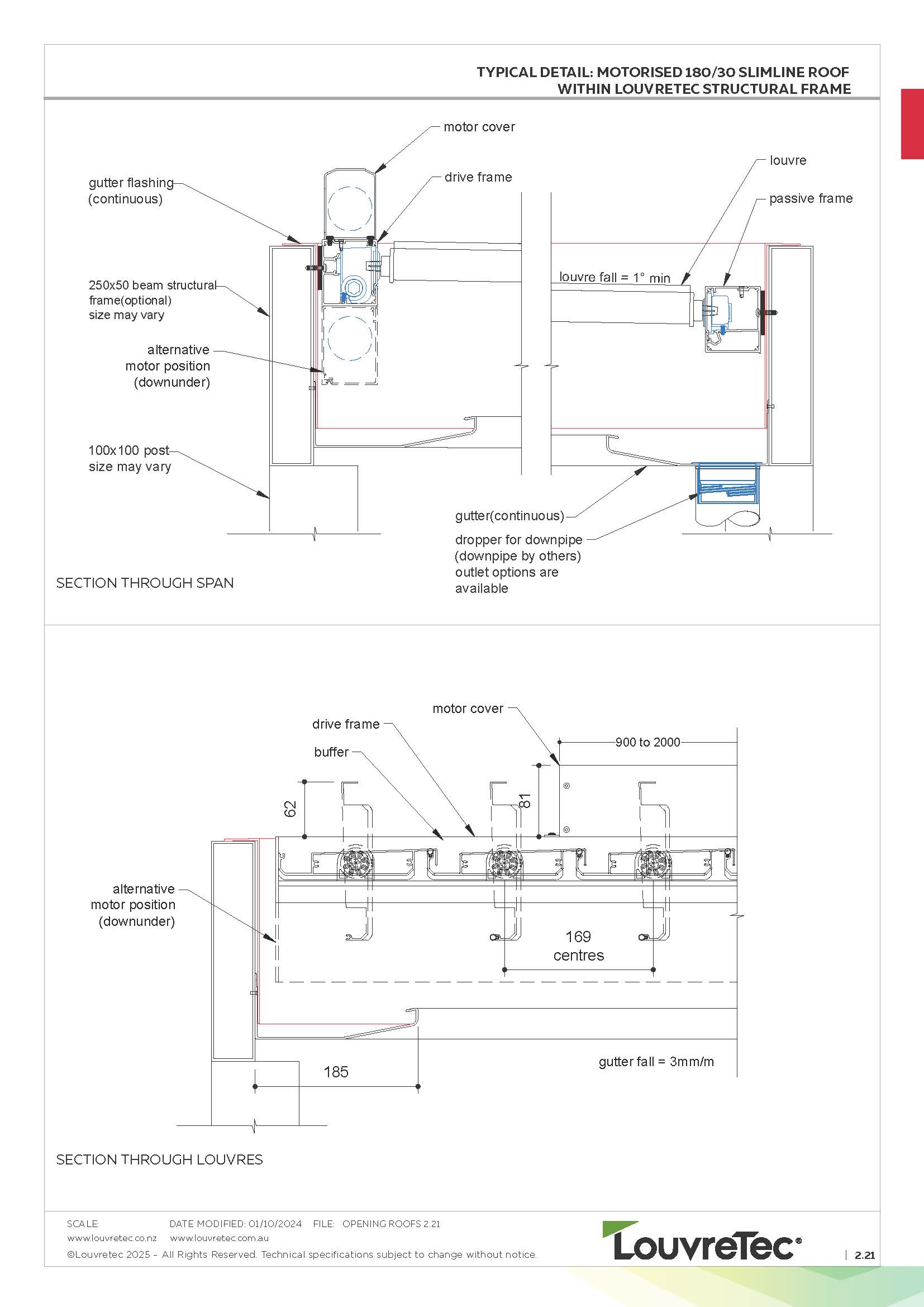

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 22
Typical Detail | 180/30 Slimline Roof - Motorised

2025

DWG
BIM
View full

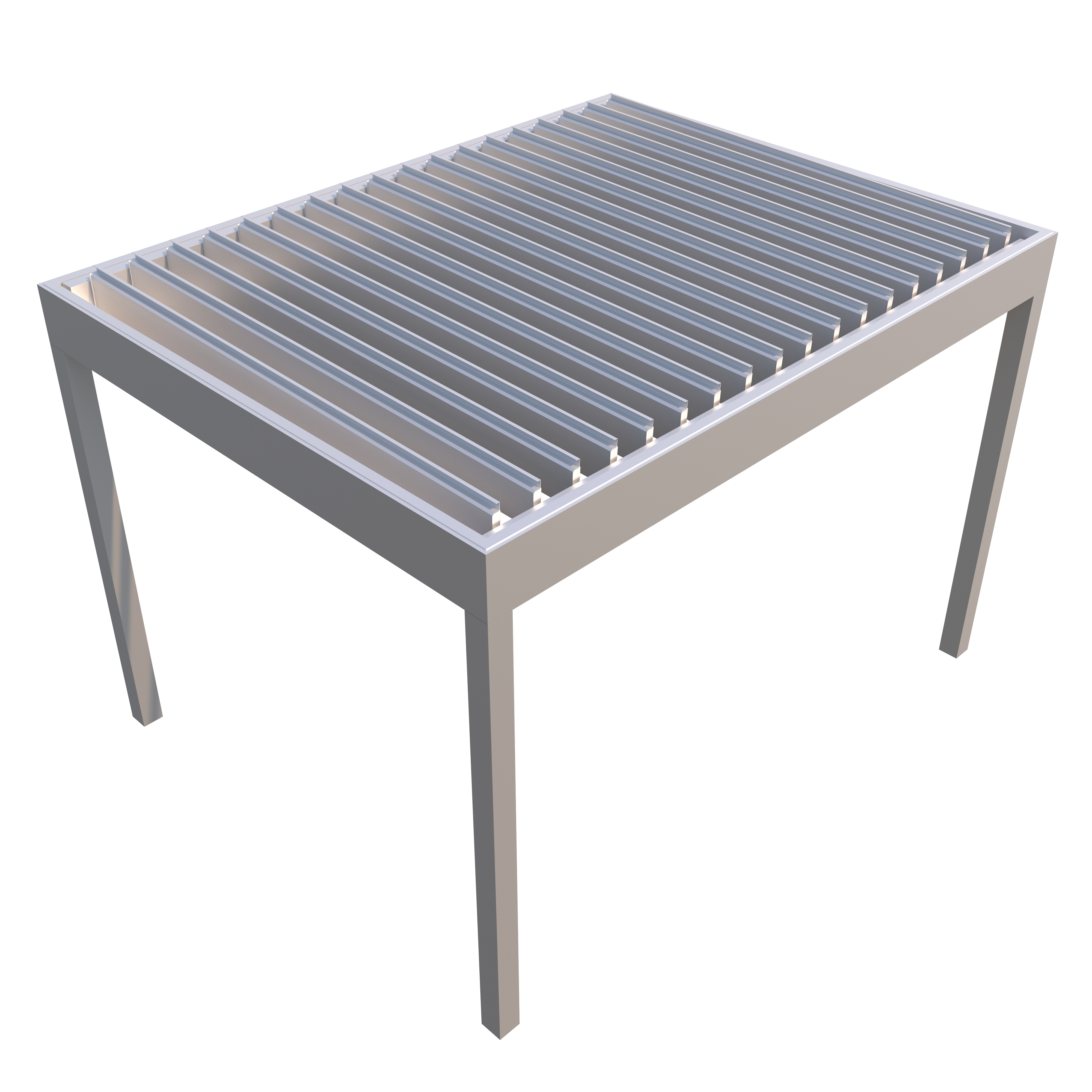

180 30 SLIMLINE OPENING ROOF
3D Model | 180/30 Slimline Roof - Motorised

2025

rfa
Lighting to Front face of Suburban Gutter
3D Model | Lighting to Front Face of Opening Roof Gutter

Louvretec 2025 Design Manual

rfa
