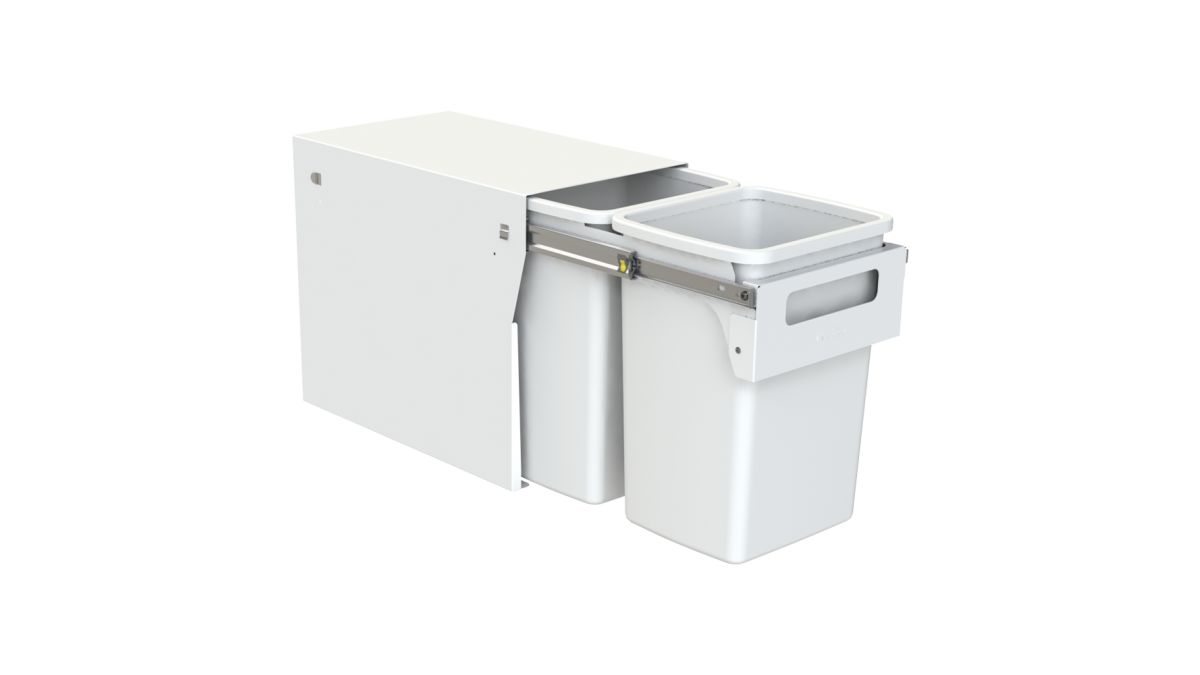

Hideaway Compact 2 x 20L Floor Mounted Handle Pull — White
Description

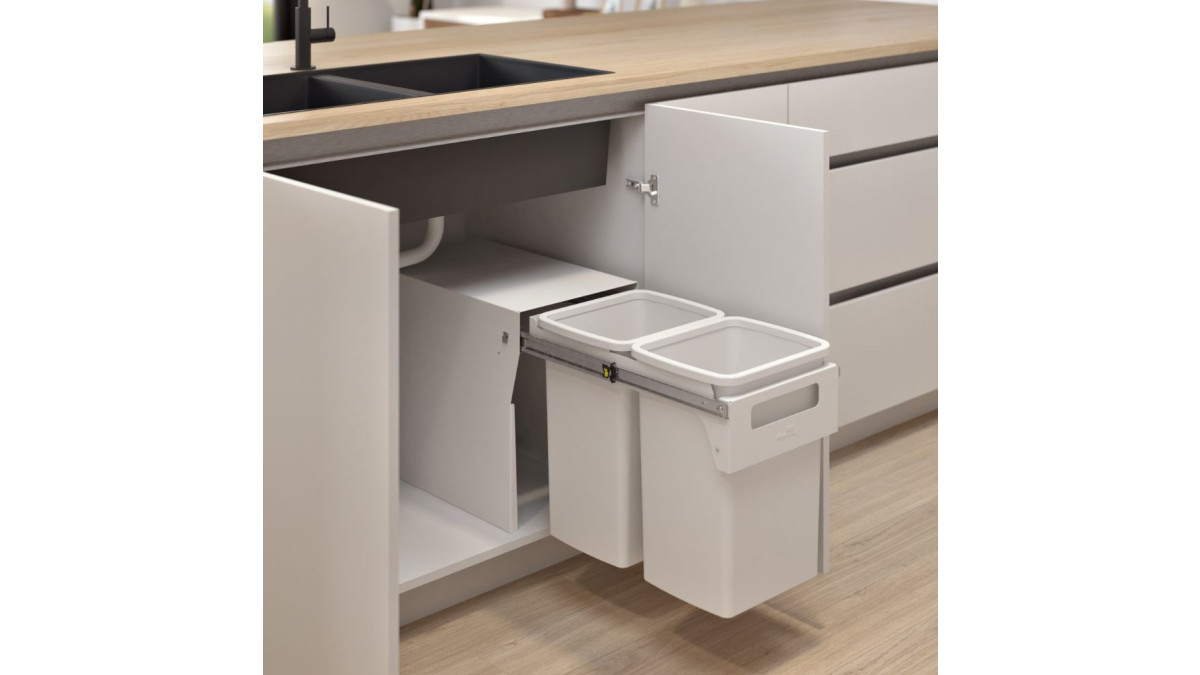

Hideaway Compact 2 x 20L Bins are compact in design making the range ideal for areas with limited space. The units are ideally suited to be installed on the base of a cabinet under the sink. The top panel acts as a cover for the bucket/s and can also be used as a shelf.



Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Colour — Arctic White
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold the bag in place
  • Handle Pull — Two step action. The unit is top mounted inside the cupboard. The bin is accessible by opening the cupboard door and pulling out the bin using the handle
  • Floor Mounted — Steel frame enables the unit to be screwed to the base of the cupboard under the sink
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Quality robust under the sink solution
  • Ideal for areas with limited space
  • Width: 300mm, Height: 408mm, Depth: 510mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Floor Mounted — Steel frame enables the unit to be screwed to the base of the cupboard under the sink
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications.
  • If hinges are used that do not allow the door to clear the opening fully, allow an extra 10mm width
  • Installation also requires that the top door hinge be 150mm from the top of the door to allow clearance for the bin handle
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic
  • Global GreenTag Certified — GreenRate Level C
Green Tag Certified
Green Tag Certified
Documents
Global GreenTag: GreenRate Level C

December 2023

Compact Floor Mount Installation Instructions

June 2025

Brochure: Concelo by Hideaway

April 2026

Installation Details
Installation Drawing

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
