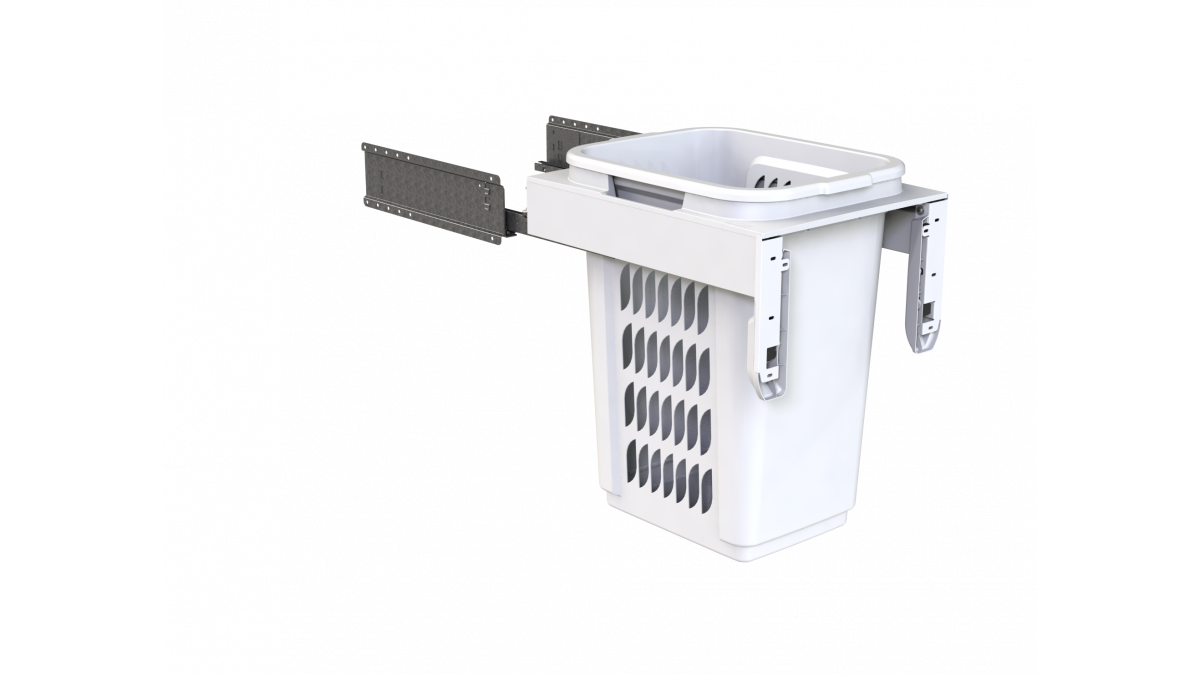

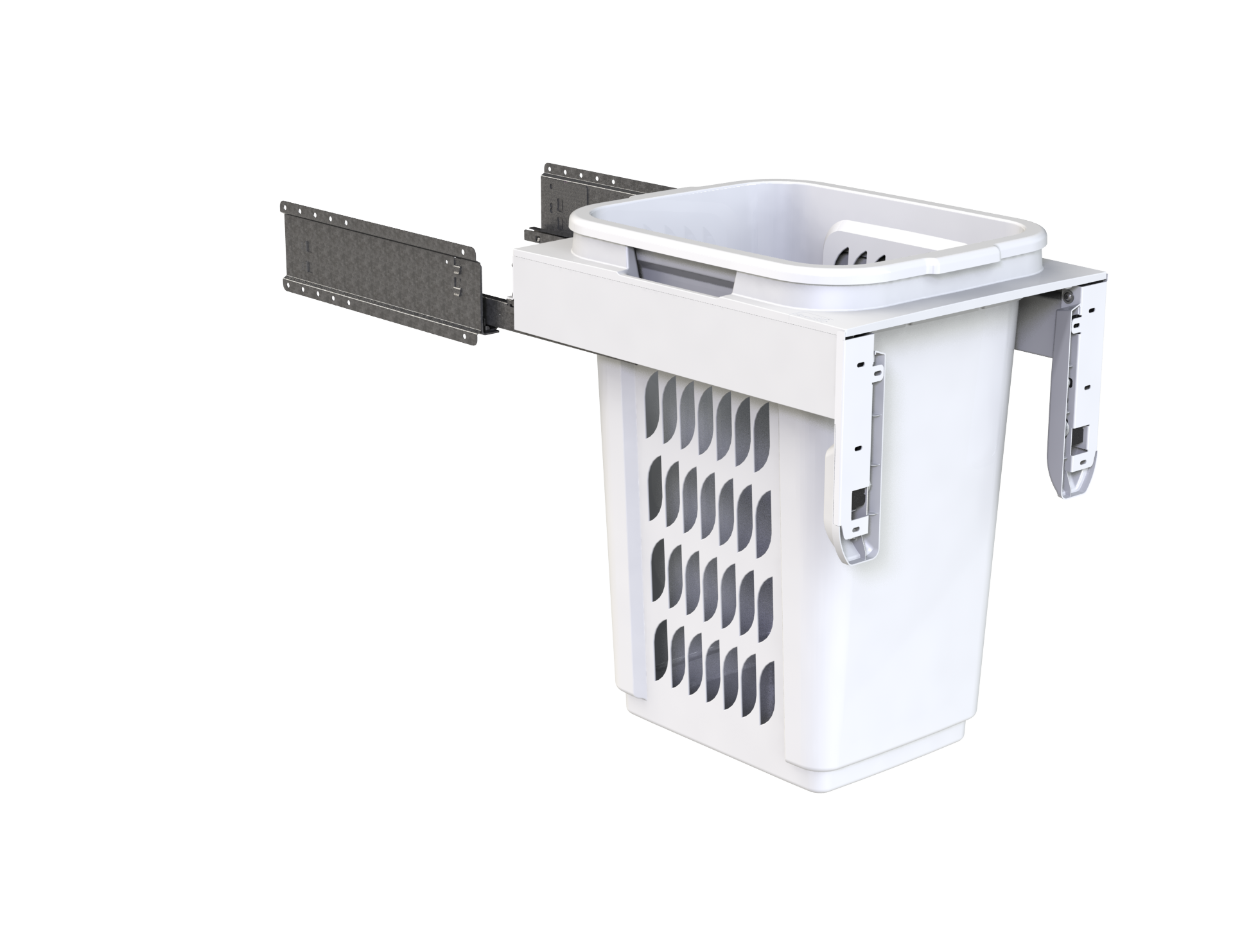

Concelo Laundry 1 x 60L Bucket — White
Description

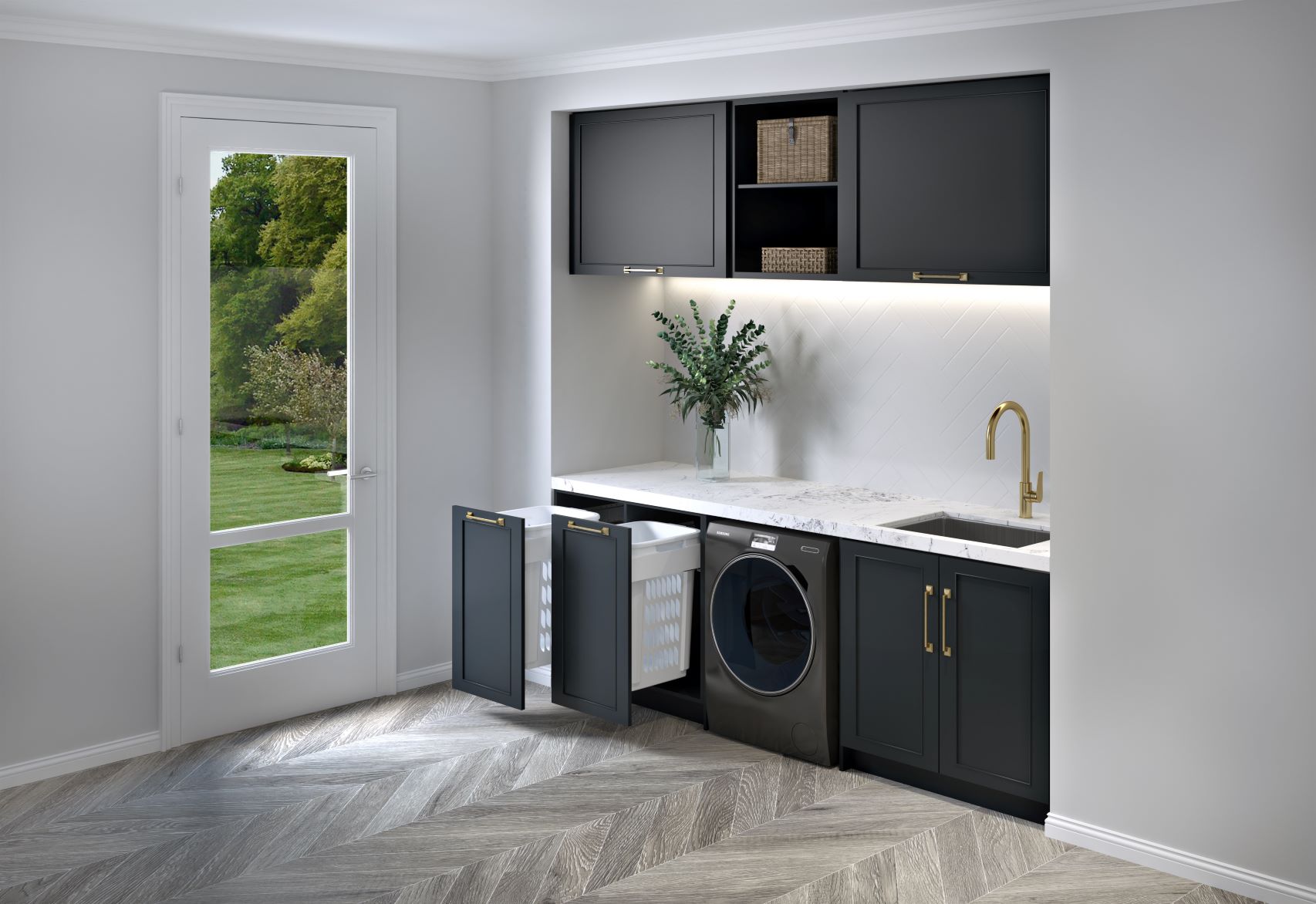

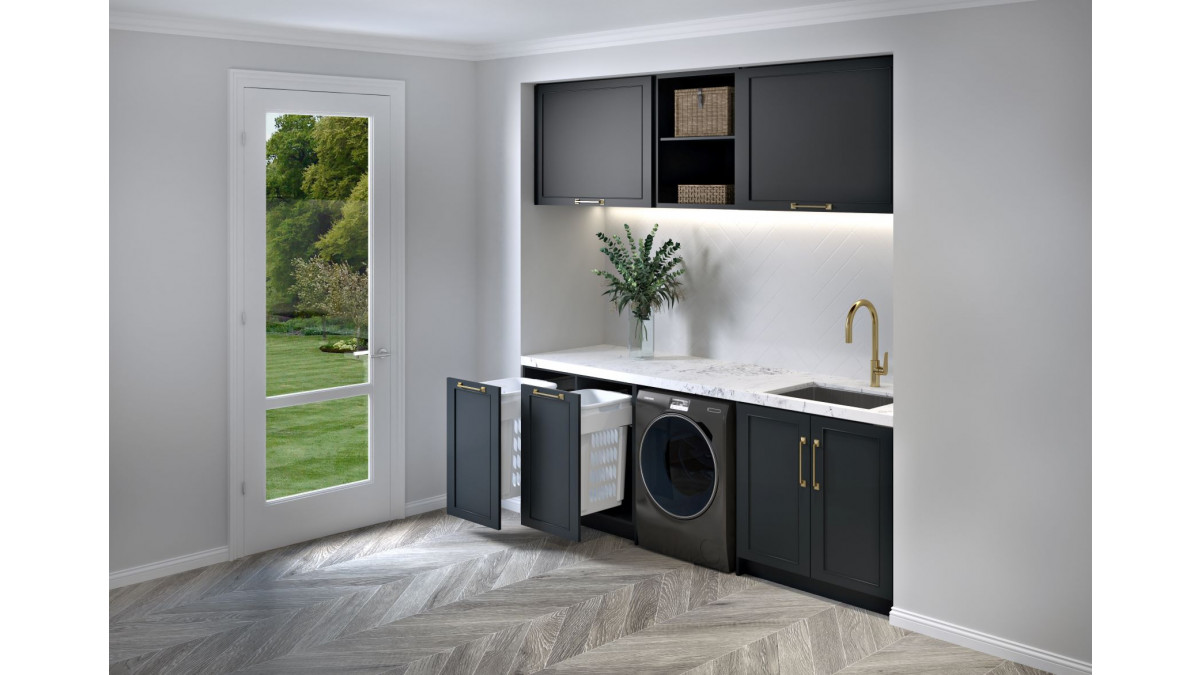

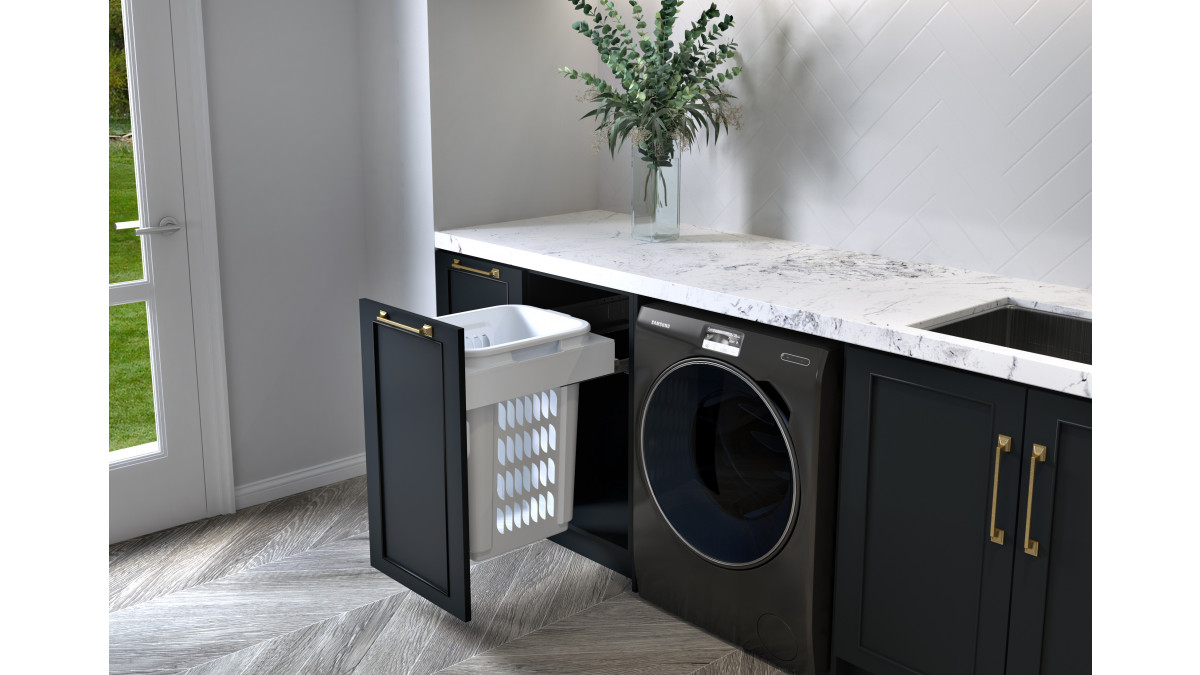

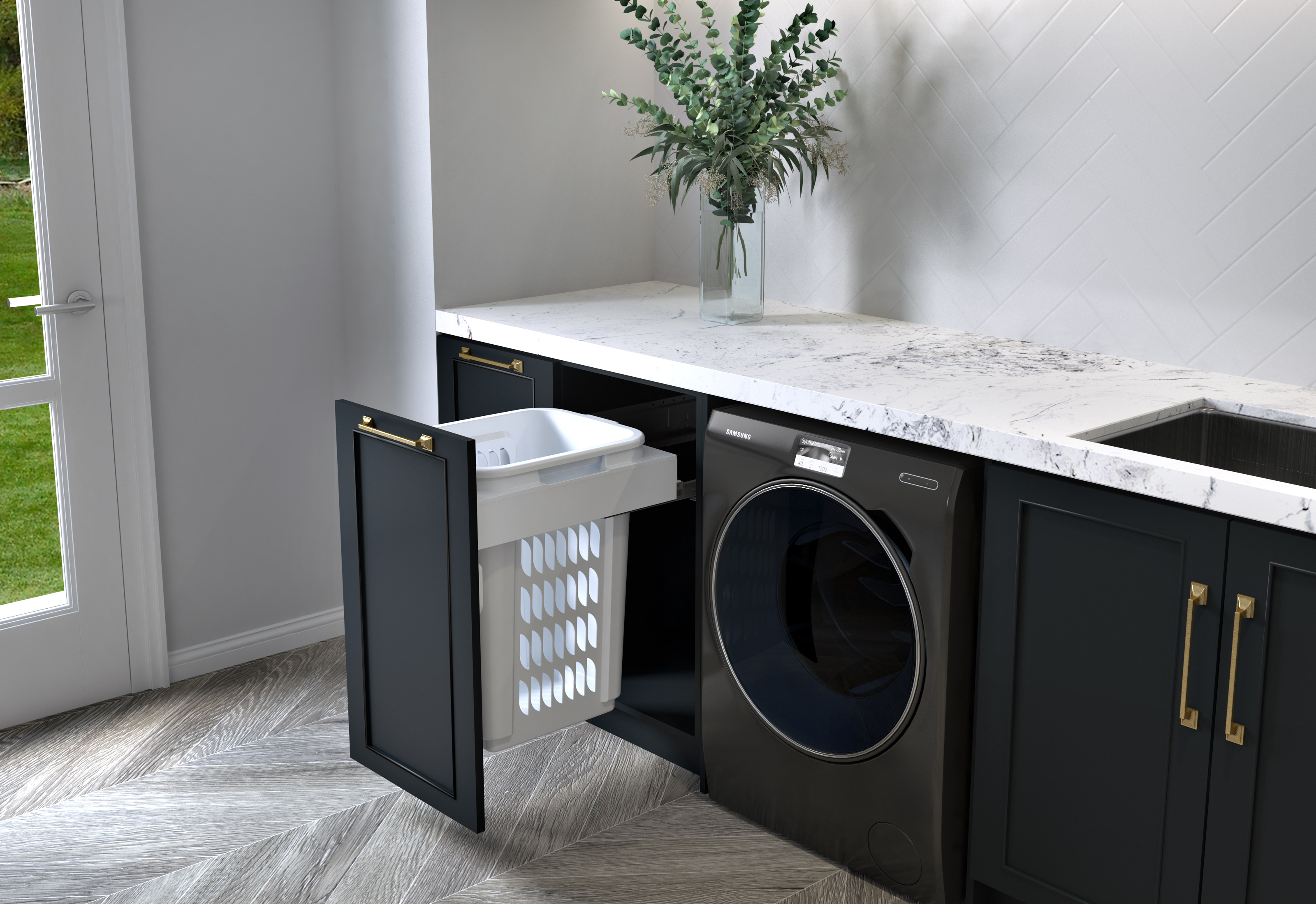

The Concelo Laundry Hamper offers a sophisticated storage solution, based on the same platform as the Red Dot award-winning Concelo Waste Bin. The new Concelo Laundry system is a high-quality storage solution — suitable as a concealed laundry hamper, to store extra linen, or as a removable washing basket. Two hampers can be installed side by side in to separate washing loads. Concelo Laundry Hampers can also be integrated into wardrobe or bathroom cabinetry to discreetly hide laundry.

The large 60L hamper is big enough to cope with a family load of washing and still be easy to remove and carry. Ergonomic in design, Concelo hampers are designed to withstand the weight of wet washing. Made from light-weight polypropylene, it features air vents to reduce moisture, moulded handles for easy grip and a solid base to prevent drips. New Zealand designed and made.

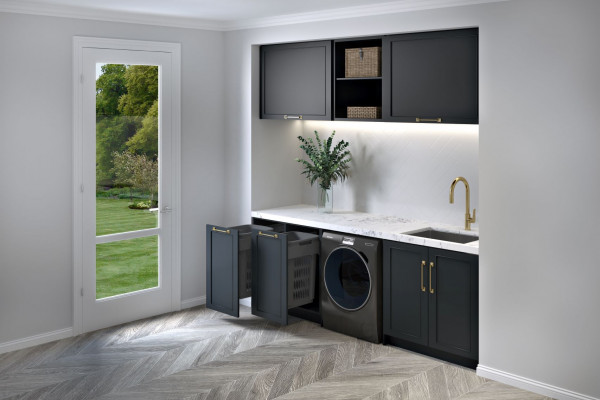

Two colour options are available: Arctic White and Cinder.

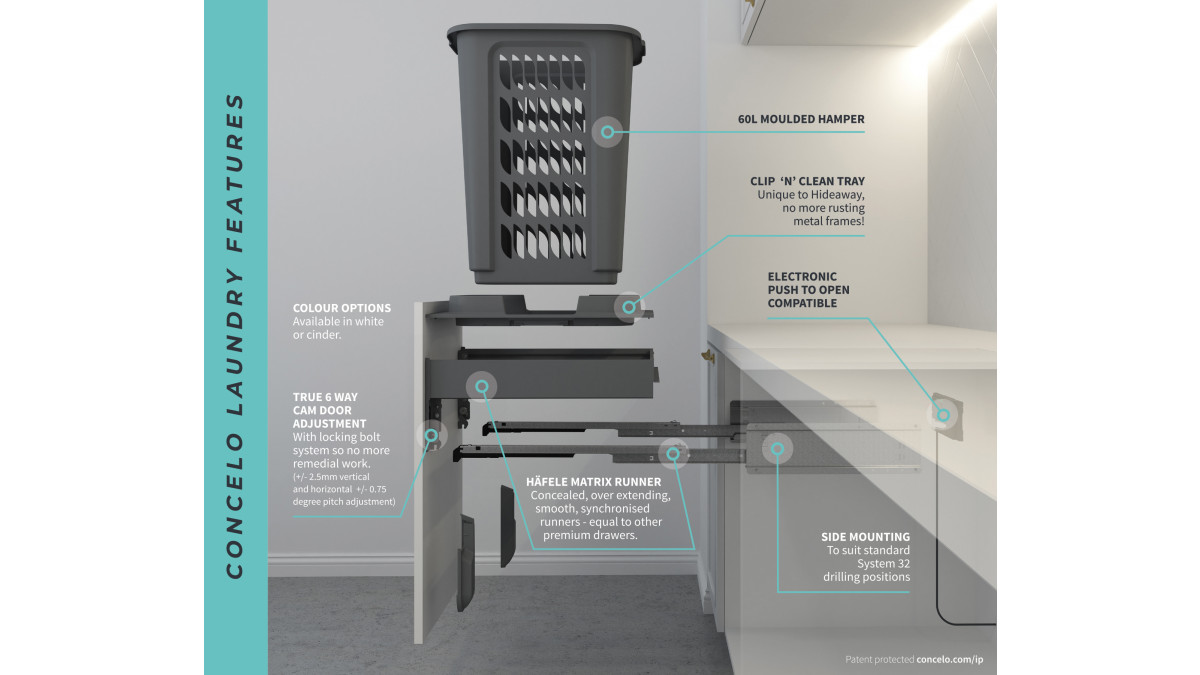

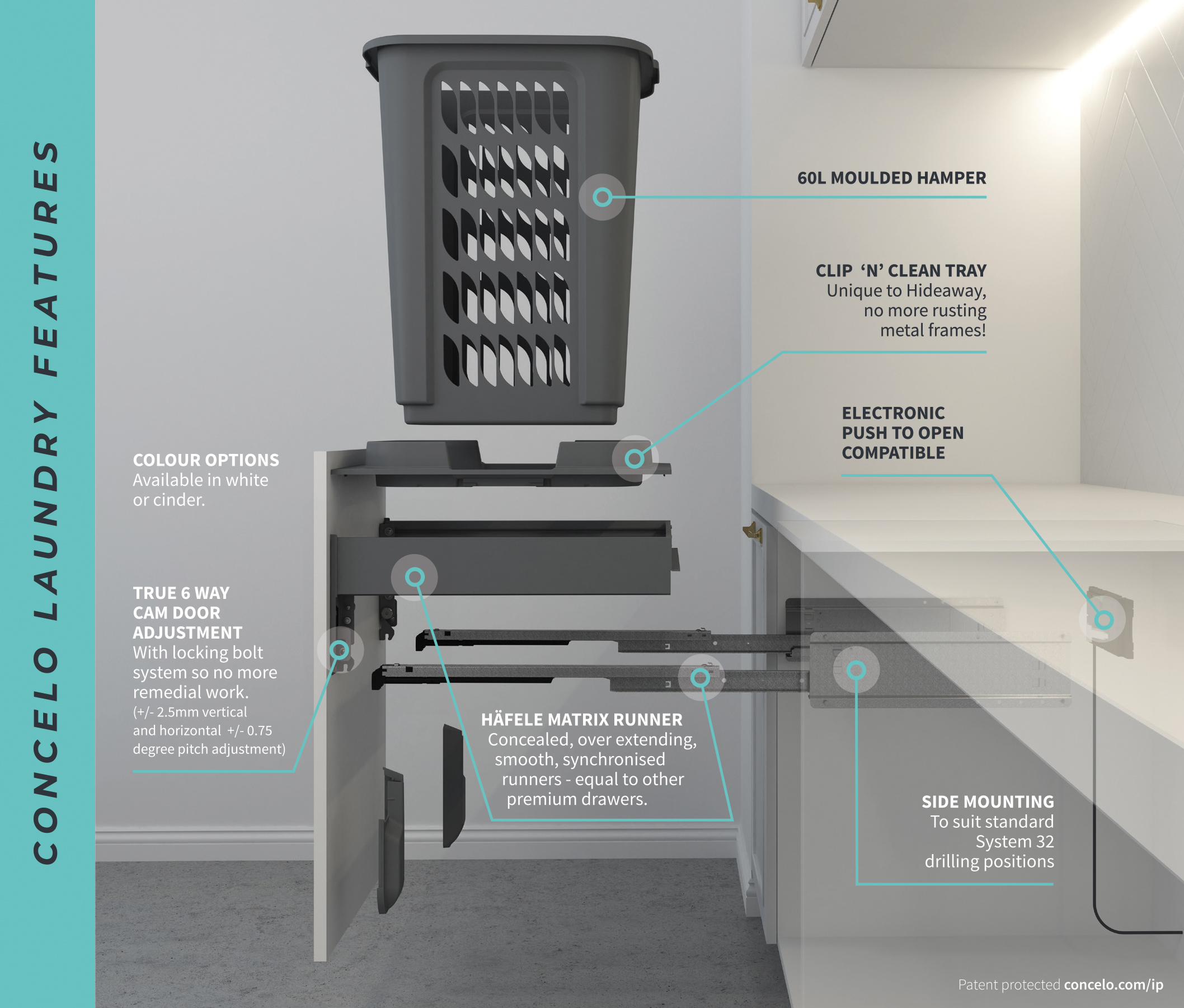

Key Features

Concelo Clip 'n' Clean Tray:

  • Tray designed for easy removal of the hamper and can be wiped clean effortlessly
  • Unique in the laundry hamper market
  • Allows the door front to be accessed and wiped. Eliminates risk of rust

6-Way Door Adjustment:

  • Precise door panel adjustment made simple using cams
  • Works with framed doors
  • Sleek covers clip over the adjustment
  • Fixed adjustment with the locking bolts
  • Horizontal adjustment +/- 2.5mm, Vertical +/- 2.5mm, Tilt/pitch;+/- 0.75°

Side Mounting:

  • To suit standard System 32 drilling positions

Häfele Matrix Runner:

  • Runs beautifully — the German made, Häfele Matrix runner is smooth, synchronised, and has over extension runners with fluid damper for seamless quiet closing action
  • 45kg dynamic weight loading
  • Equal running to premium drawers

Large 60L Moulded Hamper:

  • Handles for easy removal
  • Light weight and eliminates risk of rust
  • Ventilated sides with a solid base

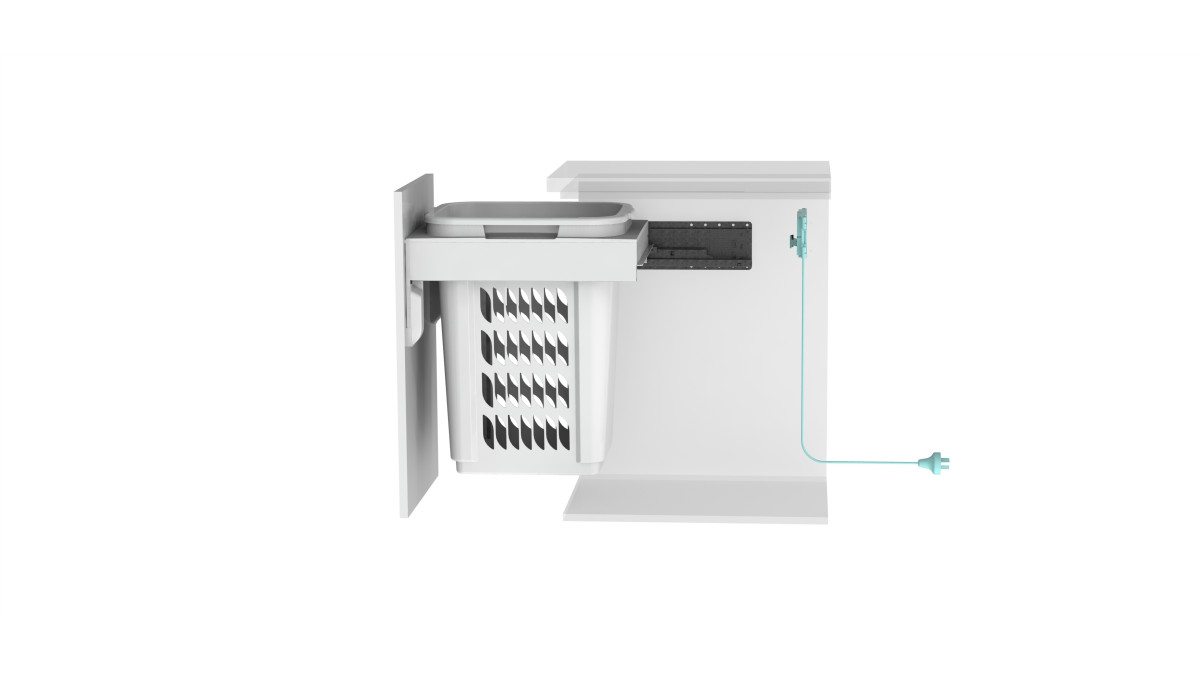

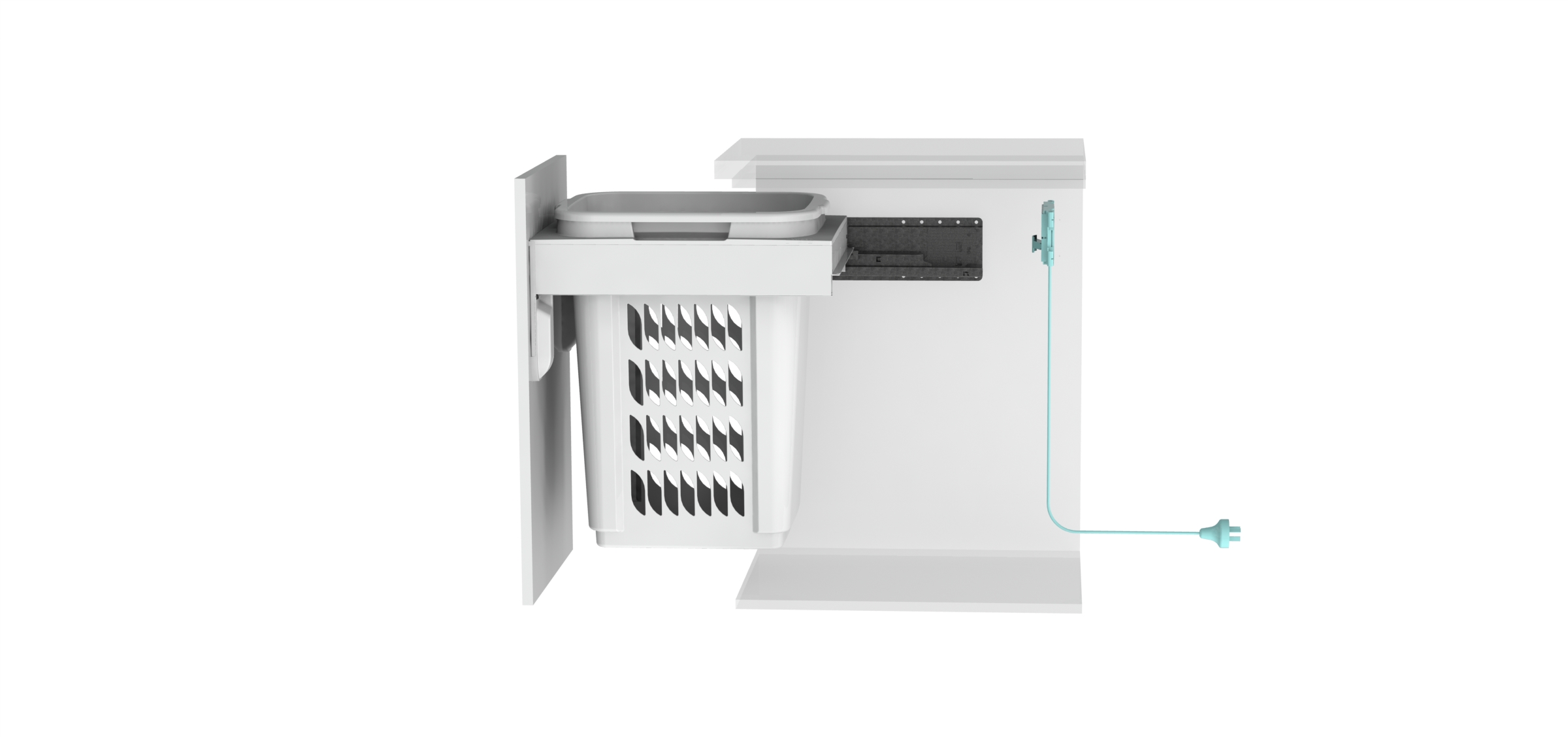

Electronic Push-to-Open Compatible:

  • Concelo is warranted for use with Häfele Grass Sensomatic and Blum Servo-Drive systems
  • Refer to the technical guides on the Hideaway website for installation of electronic systems
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for use as a family laundry system — to discreetly hide laundry, as a removable laundry basket, and for linen storage
  • Can also be integrated into wardrobe or bathroom cabinetry
  • Two hampers can be installed side by side, to allow separate loads

Mounting:

  • Suits cabinet width: 450mm
  • Bucket configuration
  • Pull type: Door
  • Runner specification: 45kg
  • Unit dimensions: (WxHxD)mm: 418 x 590 x 525mm
Limitations on Use
  • Bench Overhang Clearance — The CRL160 has been designed with over extension drawer runners which allow for a bench overhang of up to 50mm, allowing the back bucket to come clear independent of the front bucket. If more bench overhang clearance is required, mount the bin lower in the cabinet

Sizes:

  • Minimum cabinet width: 450mm — assumes 16mm carcass
  • Minimum internal width: 418mm
  • Minimum internal height: 590mm
  • Recommended minimum internal height: 630mm
  • Minimum internal depth: 525mm
Other Performance Attributes
  • 10 year warranty (residential applications)
  • 2 year warranty (commercial applications)
  • 45kg dynamic weight loading
  • German made, Häfele Matrix runner is smooth, synchronised, and has over extension runners with fluid damper for seamless quiet closing action
  • Fixed adjustment with locking bolts
  • Based on the Red Dot award-winning Concelo Waste Bin
Documents
Maintenance and Warranty
Installation and Operation
Brochure
