• Metal deck or concrete mount options.
• All mounting options are suitable for rope access and fall arrest.
• 2 trolleys per user is required for rope access. 1 trolley per user is required for fall arrest
• Used with both fixed and removable trolleys.
• Up to 2 users per span, allows for multiple users per system.
• Trolley capable of operating at 205° angle of lanyard operation.
• Custom radii bends available in any direction.

• Only to be used by competent persons with proof of training by a Registered Training Organisation (RTO) in the use of height safety and rope access systems.
• 200kg trolley maximum working load.
• 3000mm maximum span between rail mounting brackets.
• The OH12 metal deck mount system must be set up so that the operator’s lanyard does not exceed 45° causing excessive tension loading to the system, unless the fixing criteria is designed for greater angles. (OH10 and OH11 concrete mount systems allow up to 205º).
• This system is not to be used for tethering or lifting machinery or equipment.
• The safety system must be re-certified by a competent height safety inspector as recommended:

  • Non corrosive/mild environment – 12 monthly
  • Corrosive/harsh environment – 6 monthly (more frequent inspection may be required)

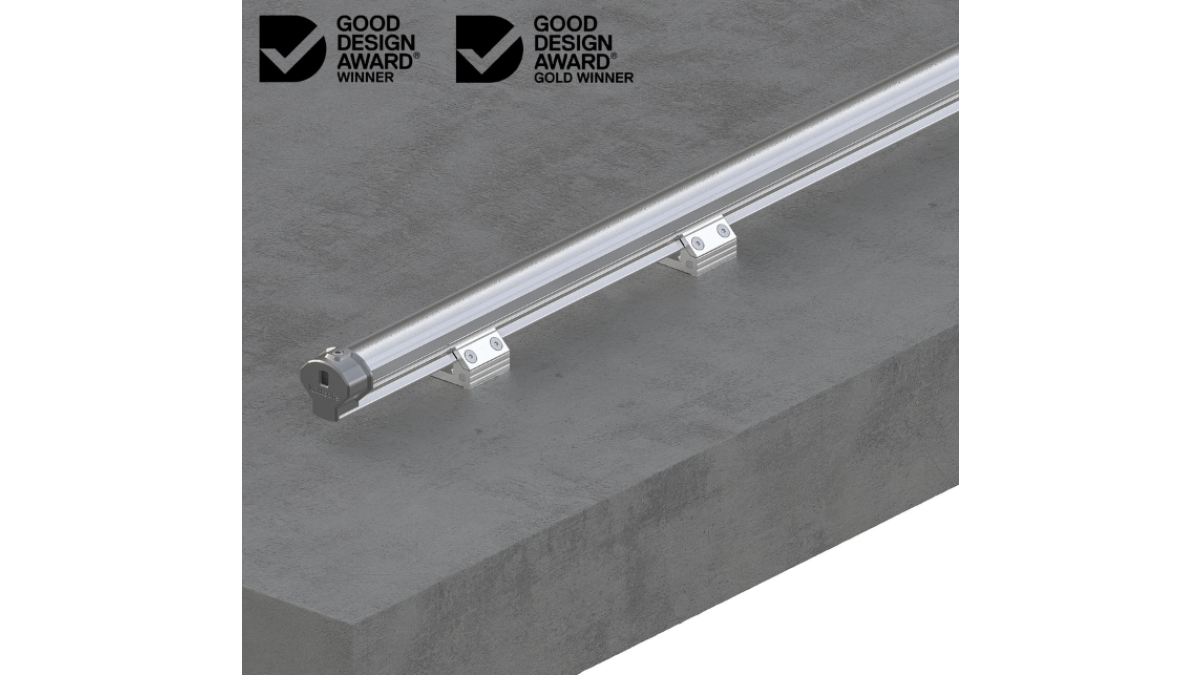

Stealth rigid rail is designed to conform with requirements of the Australian and New Zealand Standards:

• AS/NZS 5532:2013;
• AS/NZS/ISO22846 and;
• AS/NZS1891.

Warranty

• 10 years from date of purchase subject to correct installation.
• Use and maintenance to be in accordance with manufacturer’s specifications and recommendations.
• This excludes wearing parts.

The safety system must be re-certified by a competent height safety inspector as recommended:

• Non corrosive/mild environment – 12 monthly
• Corrosive/harsh environment – 6 monthly (more frequent inspection may be required).
