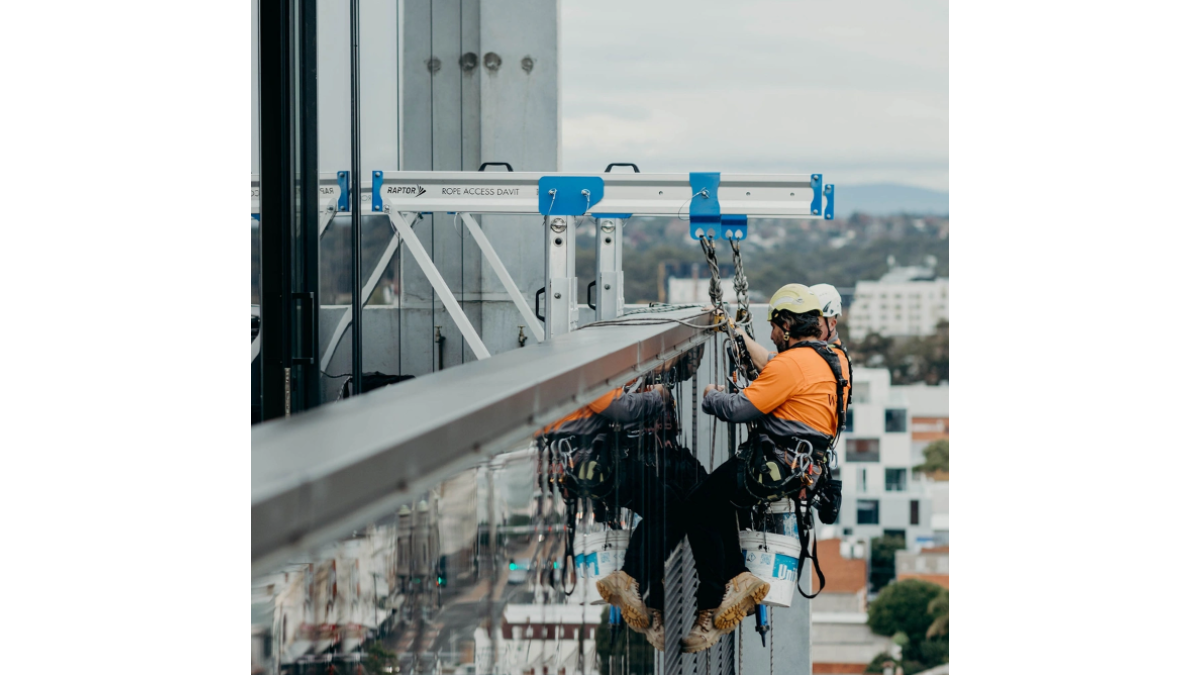

• Designed for rope access over non-load bearing parapets, curtain walls, and balustrades
• Suitable for façade maintenance, window cleaning, and exterior building inspections
• Ideal for commercial buildings with varying roof types, including metal deck and concrete
• Used where conventional fall protection systems are not feasible
• Compatible with multiple mounting options for fixed or relocatable access
• For use by certified rope access technicians only

• Concrete slab strengths to which the structural mount mega post is connected to be minimum of 32 MPa.
• Concrete thickness minimum 200mm for epoxy adhesive anchors when retrofitting the structural mount mega post and 300mm for cast-in base fixings.
• The structural mount mega post is designed for single person use when used for fall arrest and 2 persons when used for rope access attachment.
• The structural mount mega post is not designed for glass replacement or other lifting requirements unless specifically engineered and manufactured to suit the specific requirements. This is to be clearly identified on the anchor tagging system.
• When positioning the structural mount mega post, a minimum edge distance of 250mm is required to the closest fixing or structure edge.
  The structural mount mega post is rated to 18kN plus rescue.

Designed to conform with requirements of the Australian and New Zealand Standards:

• AS/NZS 5532:2013;
• AS/NZS/ISO22846;
• AS/NZS1891 and relevant codes of practices and guidelines.

• Testing and performance based on requirements of Australian and New Zealand Standards AS/NZS 1891 and AS/NZS 5532.
• Dynamic load test — 15kN
• Static load test — 12kN

Warranty

• 10 years from date of purchase subject to correct installation.
• Use and maintenance to be in accordance with manufacturer’s specifications and recommendations.
• This excludes wearing parts.

The safety system must be re-certified by a competent height safety inspector as recommended:

• Non corrosive/mild environment — 12 monthly
• Corrosive/harsh environment — 6 monthly (more frequent inspection may be required)
