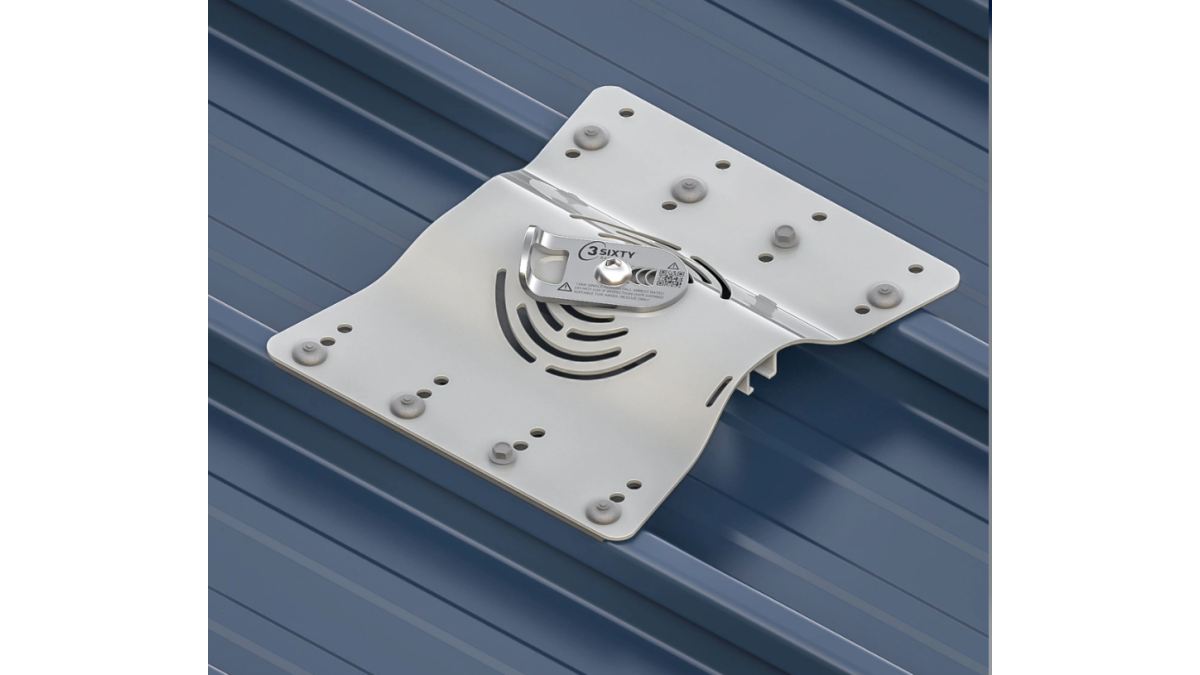

• Effective fall protection across roof surfaces and other elevated areas.
• The anchor is suitable for single (1) person use and rescue in the case of a fall incident (15kN).
• Suitable for both flat roofs and slopes up to 40° pitch.
• Low profile with an option for powder coating.

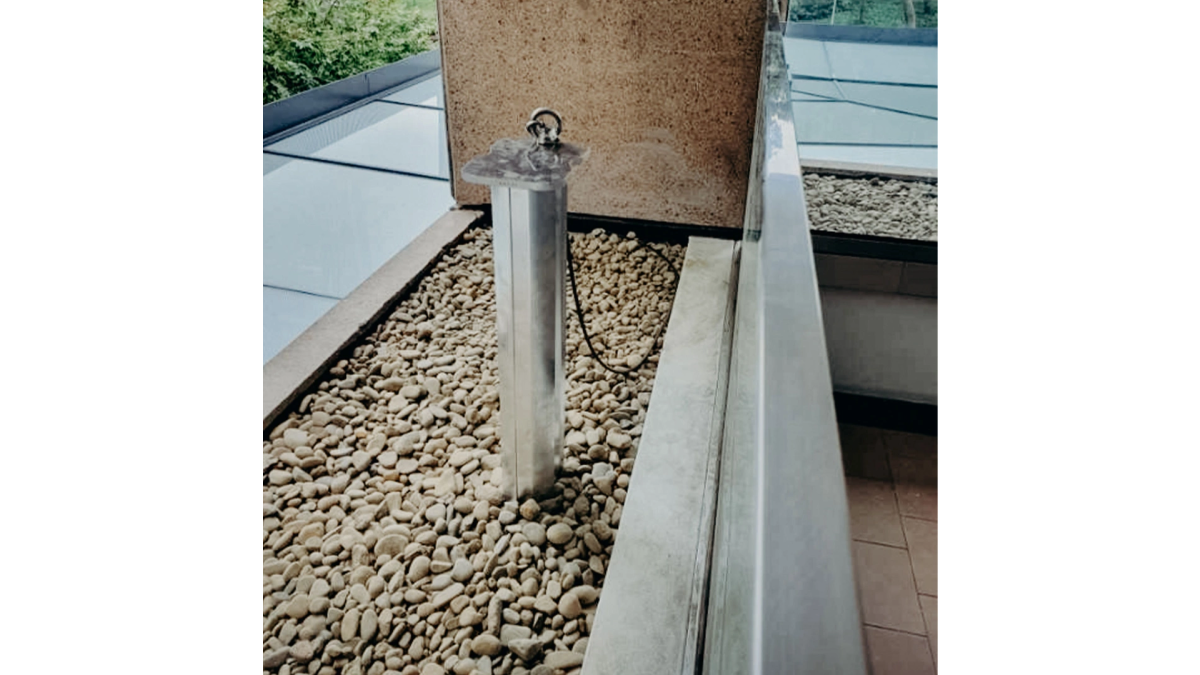

• Options to use Structural Mount Mega Post for raised fall arrest or rope access systems above garden beds and other areas.

• This anchor is not suitable for use as a primary rope access anchor, however in the event of an emergency rescue it is designed for use as a rope access anchor. It is recommended that two separate anchors should be used where possible.
• Only to be used by competent persons with proof of training by a Registered Training Organisation (RTO) in the use of height safety and fall protection systems.
• Where slopes exceed 40° the anchor must not be used as the energy absorbing eyelet may deform under constant load.
• The anchor is suitable for single (1) person use and rescue in the case of a fall incident. (15kN)
• Do not exceed the maximum number of users/persons per system. See specific system data plate for user configuration.
• This system is not to be used for tethering or lifting machinery or equipment.
• The safety system must be re-certified by a competent height safety inspector as recommended:
  • Non corrosive/mild environment — 12 monthly
  • Corrosive/harsh environment — 6 monthly (more frequent inspection may be required)

The Goleman fall arrest anchor is designed to conform with requirements of the Australian and New Zealand Standards:

• AS/NZS 5532:2013
• AS/NZS/ISO22846
• AS/NZS1891 and;
• Relevant codes of practices and guidelines.

Testing and performance based on requirements of Australian and New Zealand Standards:

• AS/NZS 1891 and;
• AS/NZS 5532

Warranty

• 10 years from date of purchase subject to correct installation.
• Use and maintenance to be in accordance with manufacturer’s specifications and recommendations.
• This excludes wearing parts.

The safety system must be re-certified by a competent height safety inspector as recommended:

• Non corrosive/mild environment — 12 monthly
• Corrosive/harsh environment — 6 monthly (more frequent inspection may be required)
