Metro Series ThermalHEART® Hinged & French Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

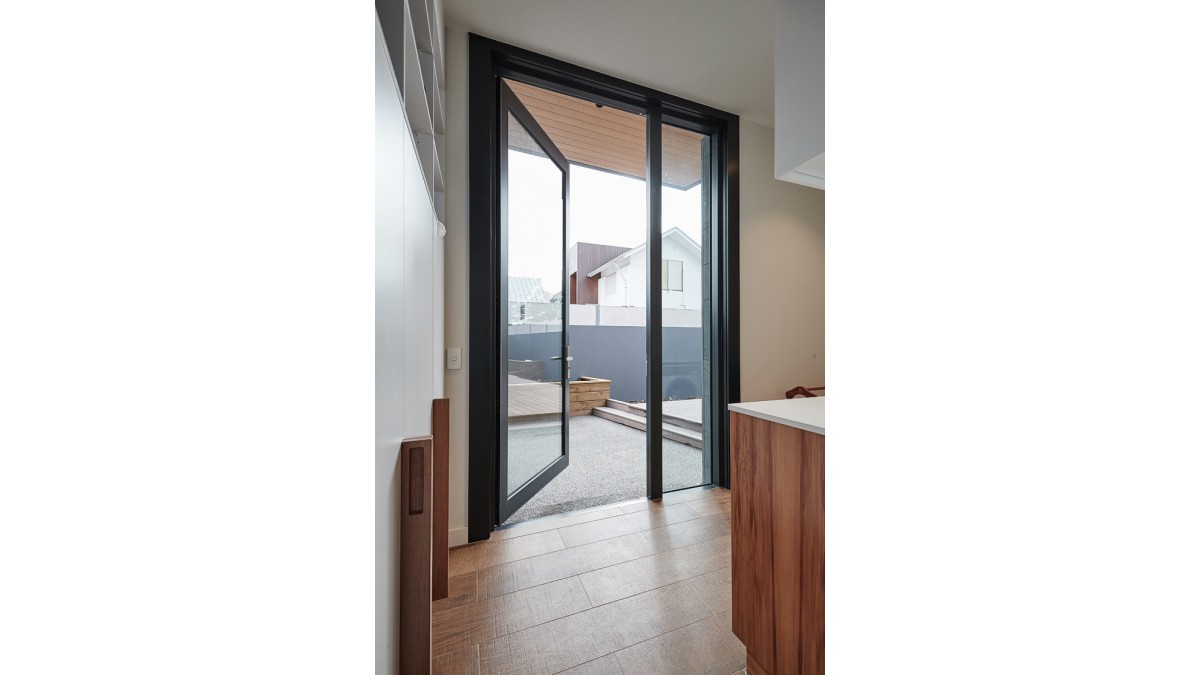

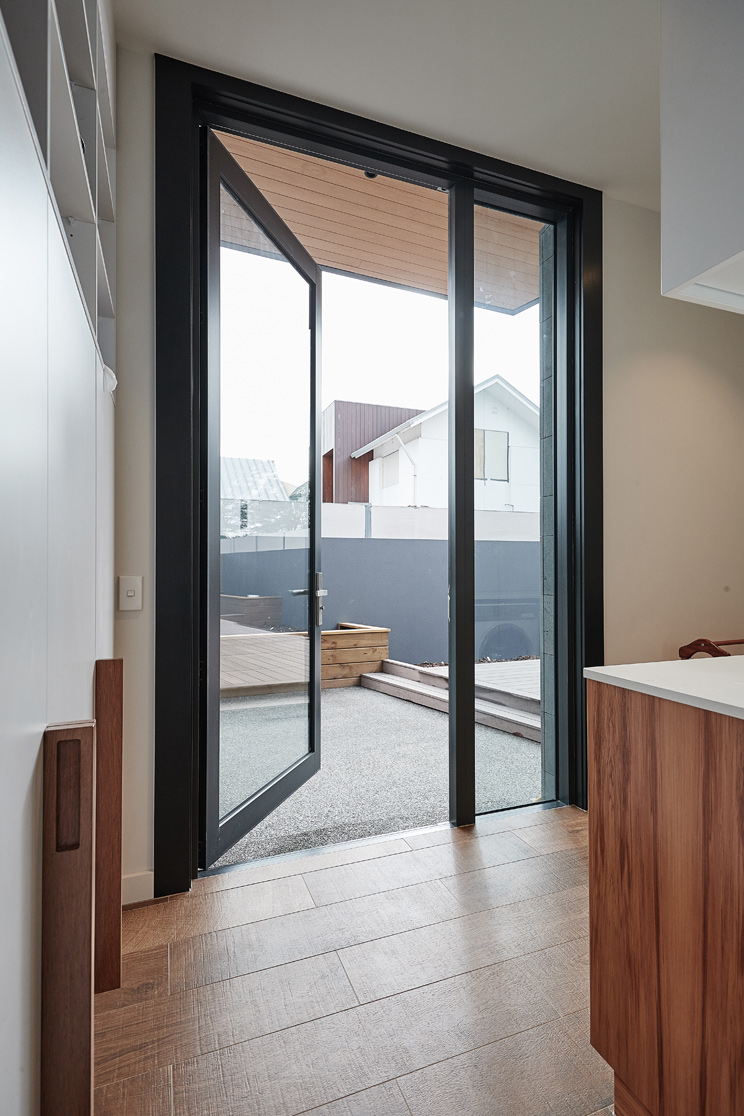

These are available in open-in and open-out formats. Doors are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Both open-in and open-out door systems are available with integrated or coupled sidelights and overlights, with or without opening sashes. French doors have flush meeting stiles for a clean look.

Key Features

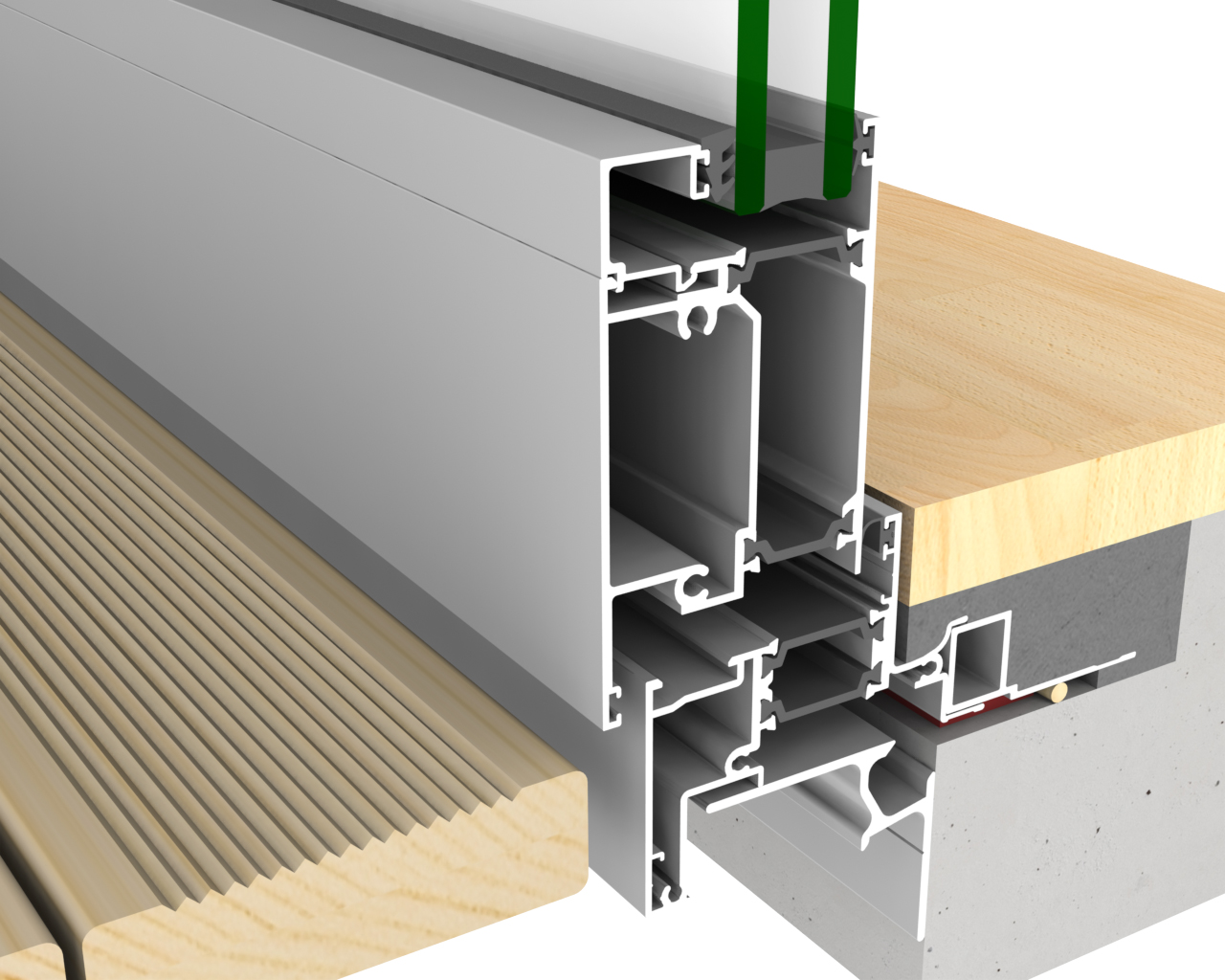

  • Door panels lap over frame for superior aesthetics, weather tightness and thermal performance
  • Lapped panels enhance security by hindering access to door latch

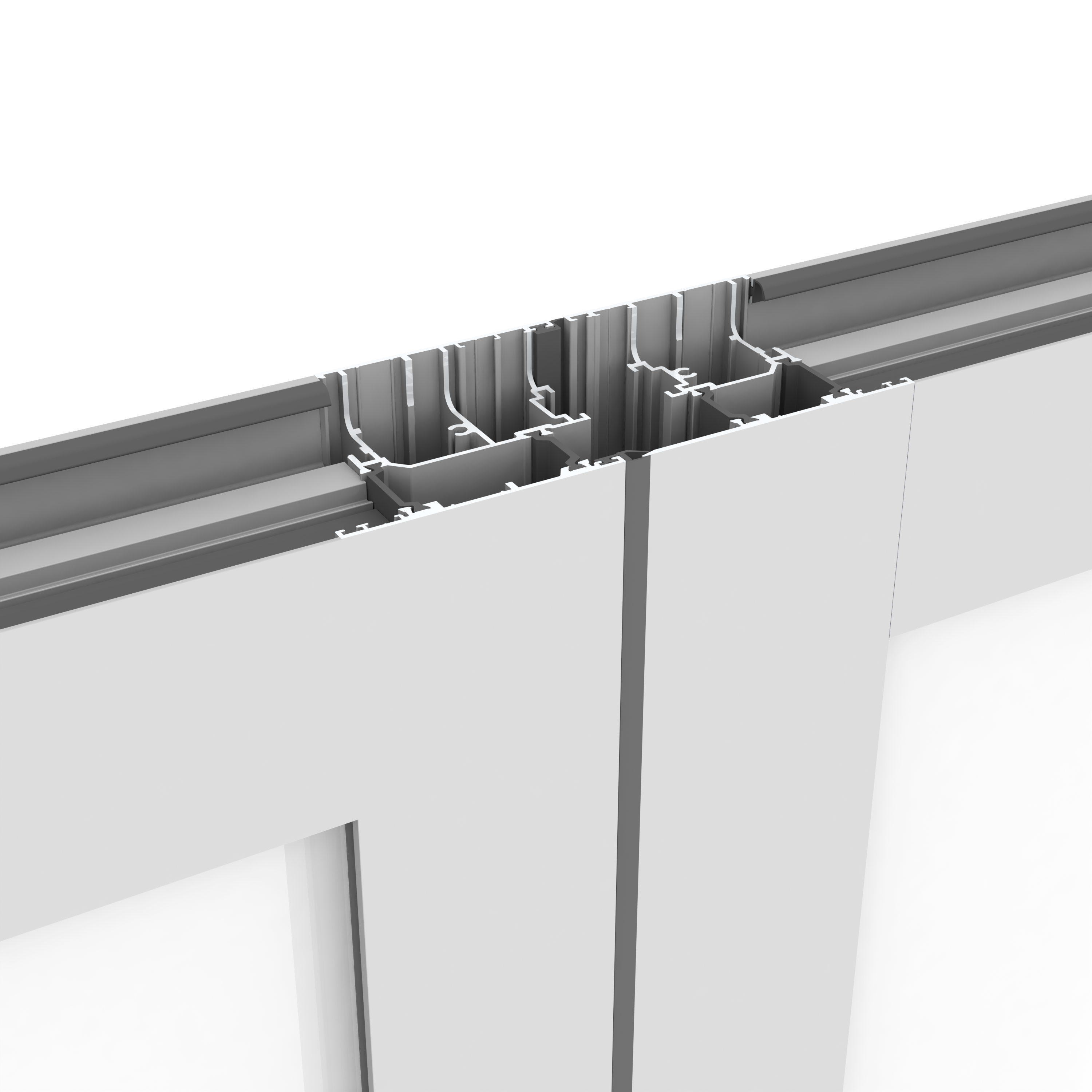

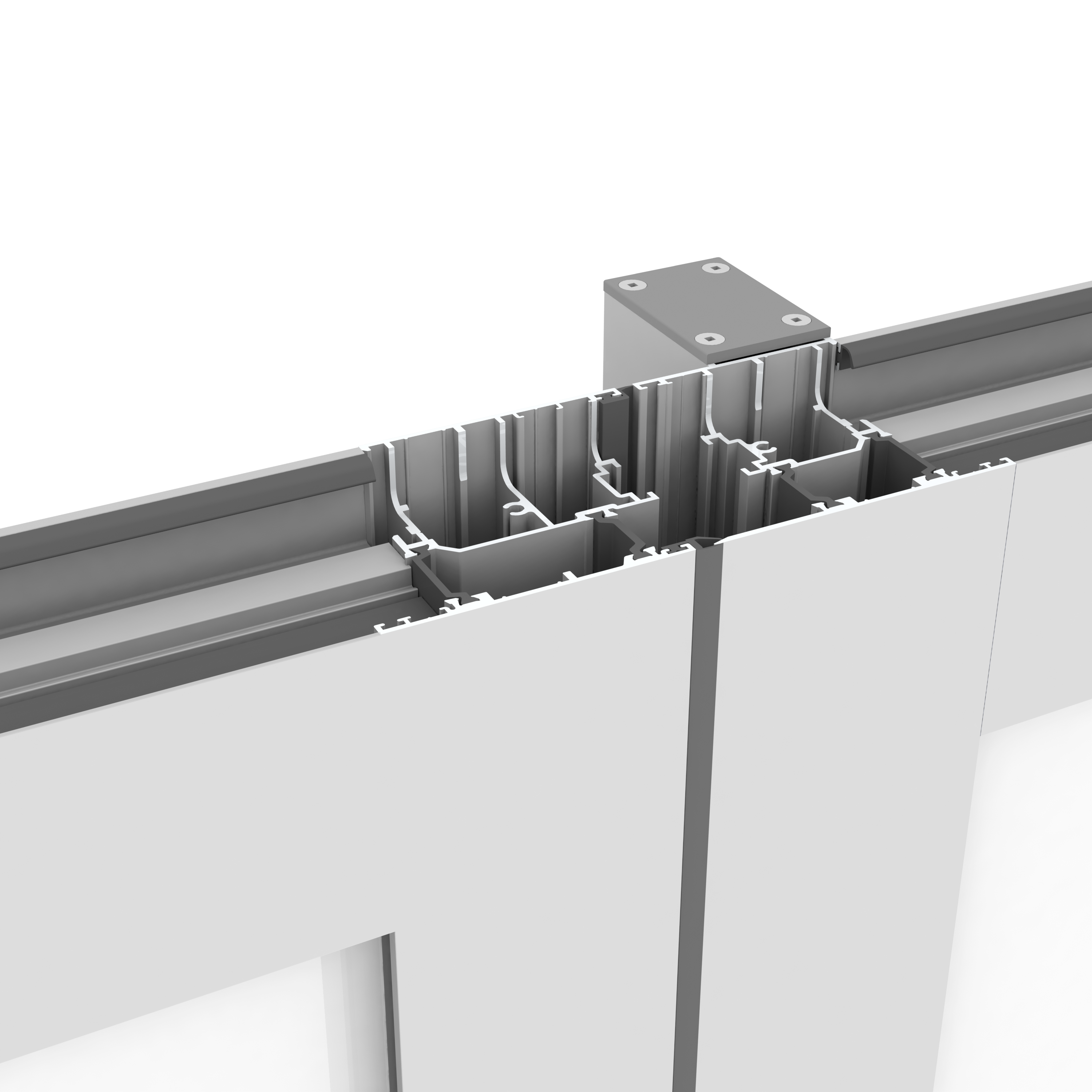

  • Flush meeting stiles give a clean appearance in French doors and provide superior weathering
  • Open-out and open-in frames available
  • Parliament hinges allow doors to open outwards a full 180° in brick veneer situations

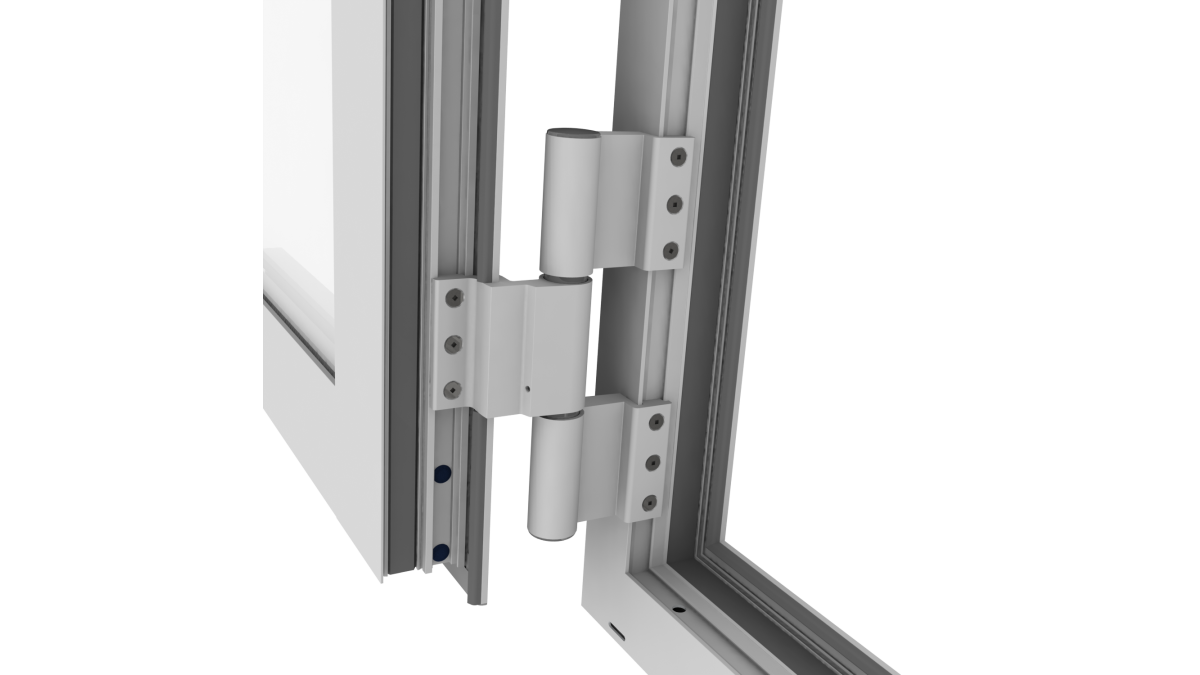

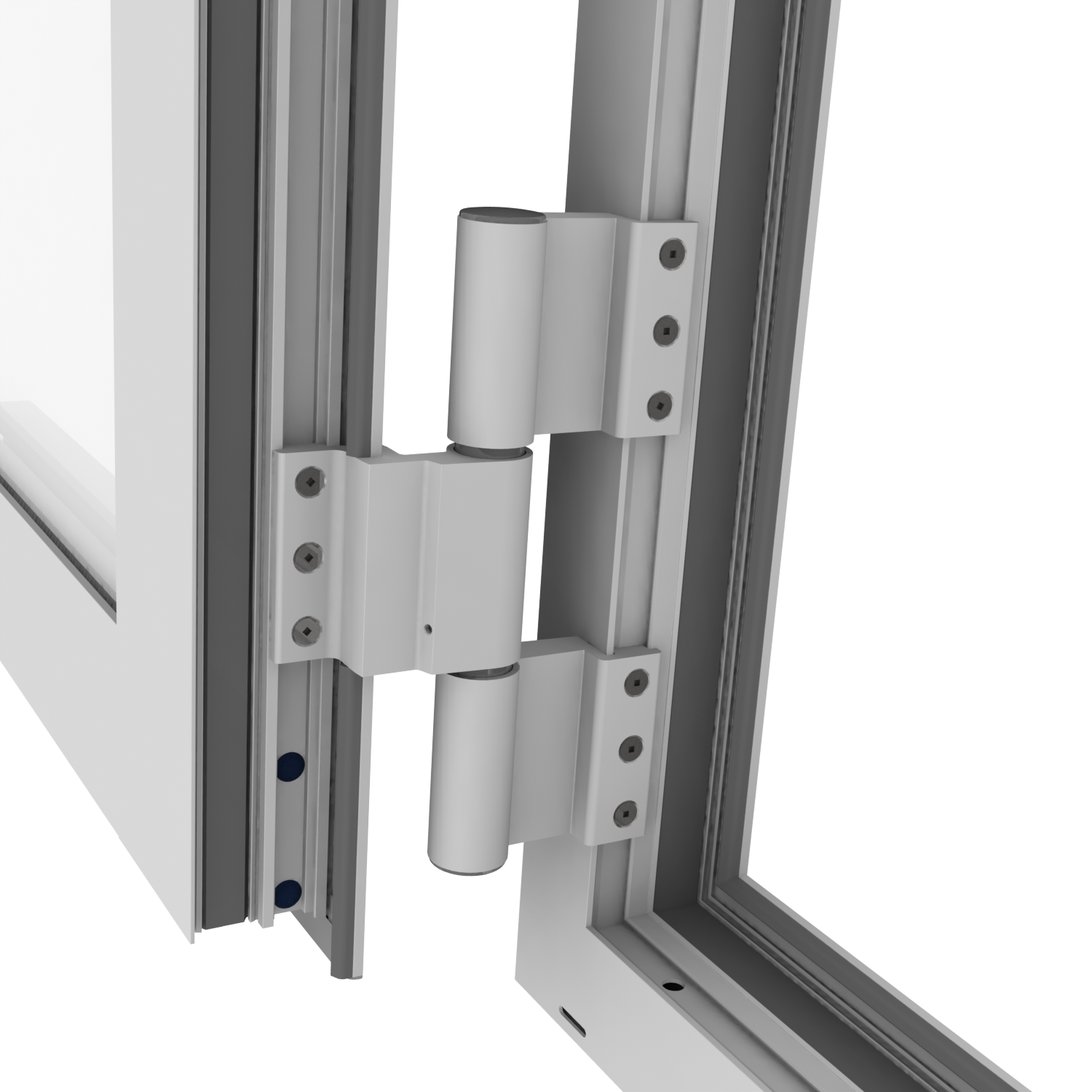

  • Three-way adjustable hinges for optimum installation and performance

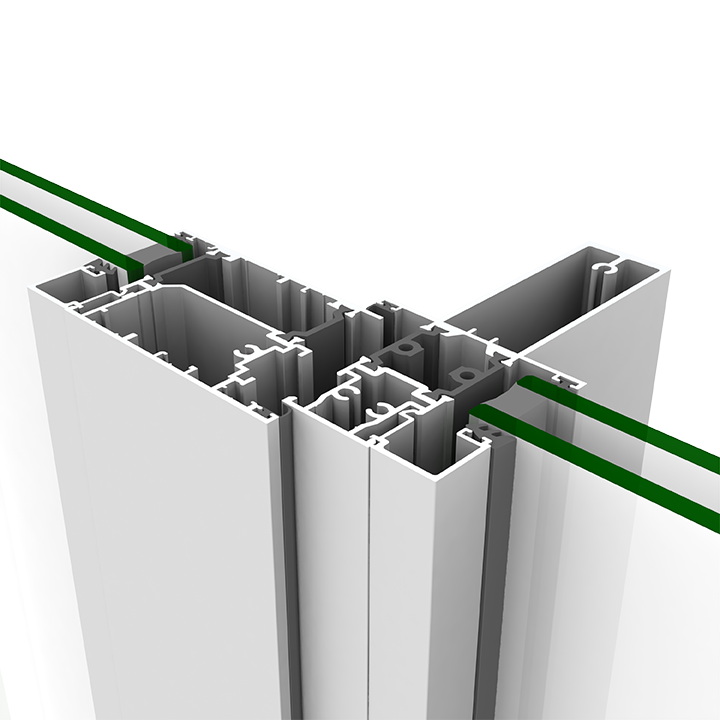

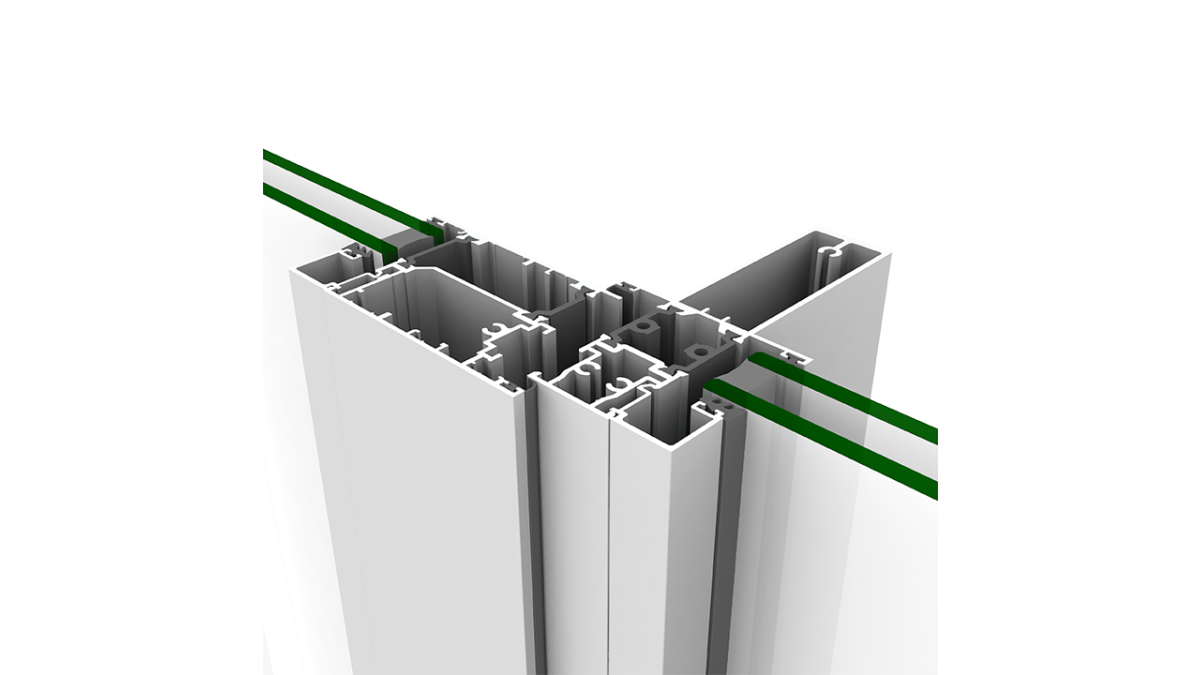

  • Overlights and sidelights are possible
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
  • A range of door handle and lock options are available, including multi-point locking
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2023 (previous version 2012)
  • New range rolling out nationally; previous version in use in residential projects, including medium rise, throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed


Documents
Data Sheet: Metro Series ThermalHEART® Doors

2023

Span Tables: Metro Series ThermalHEART® Hinged & French Doors

2023

Specifier Guide
FIRST on Masterspec
Full Specification Guide: Metro Series ThermalHEART®
Specification Guide: Metro Series ThermalHEART® Hinged & French Doors
Declare Label
Environmental Product Declaration (EPD) Report

2023

Specifier Guide

2023

WGANZ Guide to E2/AS1

2022

Manufacturer Contact List
AGP Cleaning & Maintenance
FIRST Care, Maintenance & Warranty Brochure (with AGP)
FIRST Brochure
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details
Metro Series ThermalHEART® Hinged Doors

FULL SET

PDF and ZIP (contains all DWGs)

Metro Series ThermalHEART® Hinged Doors — Open Out with Rail Option

TMHD01

Metro Series ThermalHEART® Hinged Doors — Open Out Overlight with Flushrail Options

TMHD02

Metro Series ThermalHEART® Hinged Doors — Open Out Coupler with Awning Window

TMHD03

Metro Series ThermalHEART® Hinged Doors — Open Out Hinge Options

TMHD04

Metro Series ThermalHEART® French Doors — Open Out French Stile

TMHD05

Metro Series ThermalHEART® Hinged Doors — Open Out Sidelight Mullion Option

TMHD06

Metro Series ThermalHEART® French Doors — Open Out Sidelight Coupler Option

TMHD07

Metro Series ThermalHEART® Hinged Doors — Open In with Rail Option

TMHD10

Metro Series ThermalHEART® Hinged Doors — Open In Overlight with Flushrail Options

TMHD11

Metro Series ThermalHEART® Hinged Doors — Open In Coupler with Awning Window

TMHD12

Metro Series ThermalHEART® Hinged Doors — Open In Hinge Options

TMHD13

Metro Series ThermalHEART® French Doors — Open In Meeting Stiles

TMHD14

Metro Series ThermalHEART® Hinged Doors — Open In Sidelight Mullion

TMHD15

Metro Series ThermalHEART® Hinged Doors — Sidelight Coupler Option

TMHD16

Installation Details
Metro Series ThermalHEART® Hinged Door Open In on Board & Batten

TMHIBB

Metro Series ThermalHEART® Hinged Door Open In on Brick Veneer

TMHIBV

Metro Series ThermalHEART® Hinged Door Open In on Flat Sheet

TMHIFS

Metro Series ThermalHEART® Hinged Door Open In on Profile Metal

TMHIPM

Metro Series ThermalHEART® Hinged Door Open In on Rusticated Weatherboard

TMHIRW

Metro Series ThermalHEART® Hinged Door Open In on Stucco

TMHIST

Metro Series ThermalHEART® Hinged Door Open Out on Brick Veneer

TMHOBV

Metro Series ThermalHEART® Hinged Door Open Out on Bevelback Weatherboard

TMHOBW

Metro Series ThermalHEART® Hinged Door Open Out on Flat Sheet

TMHOFS

Metro Series ThermalHEART® Hinged Door Open Out on Profile Metal

TMHOPM

Metro Series ThermalHEART® Hinged Door Open Out on Rusticated Weatherboard

TMHORW

Metro Series ThermalHEART® Hinged Door Open Out on Stucco

TMHOST

Metro Series ThermalHEART® Hinged Door Open In on Bevelback Weatherboard

TMHIBW

Metro Series ThermalHEART® Hinged Door Open Out on Board & Batten

TMHOBB
