Latitude Plus Entrance Door
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

Latitude Plus doors feature vertical or horizontal 100mm tongue-and-groove boards framed by thermally improved aluminium rails and stiles. With a 56mm thick, foam-filled core, they offer strong thermal and acoustic performance, plus high impact resistance. Dual sealing via a flanged frame enhances efficiency, and optional triple-glazed inserts add design versatility. Available in dual-colour finishes with hinged or pivot options, including French doors and flush sills, all compatible with Eurogroove hardware.

Key Features
  • High thermal performance with 56mm overall thickness
  • Flanged frame allows for dual sealing increasing thermal performance
  • Dense, rigid construction means Latitude Plus doors rate highly for impact resistance and low maintenance

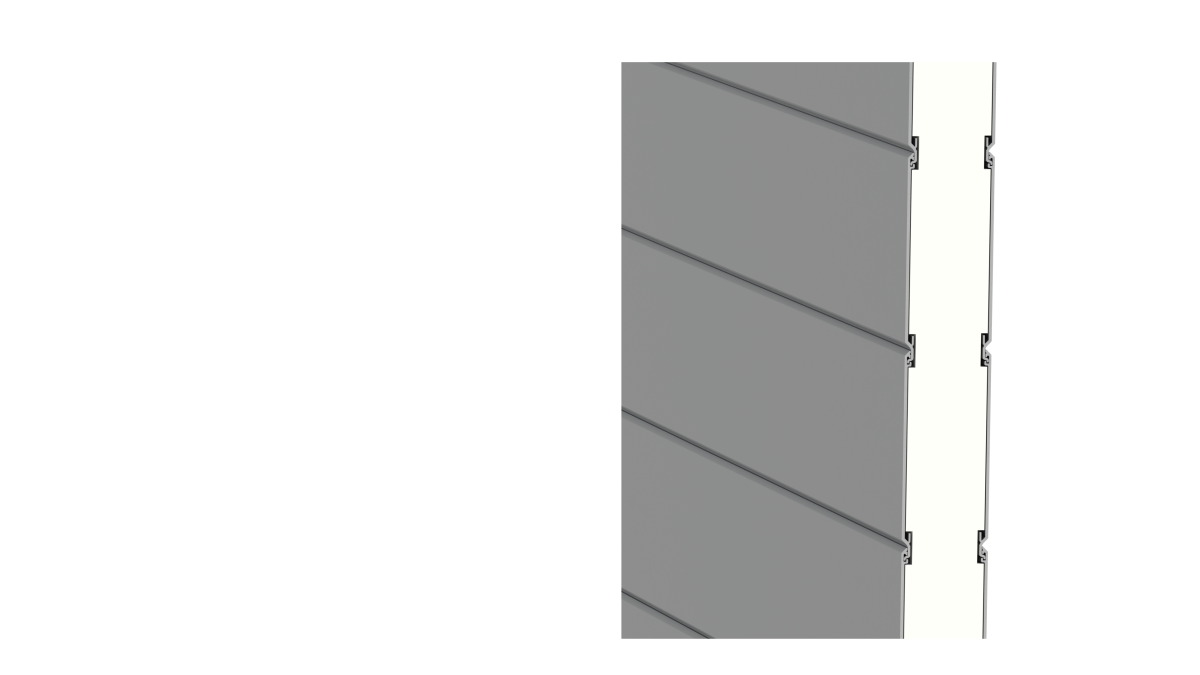

  • Aluminium clad doors combining tongue and groove boards (100mm wide) within a border of thermally improved rails and stiles

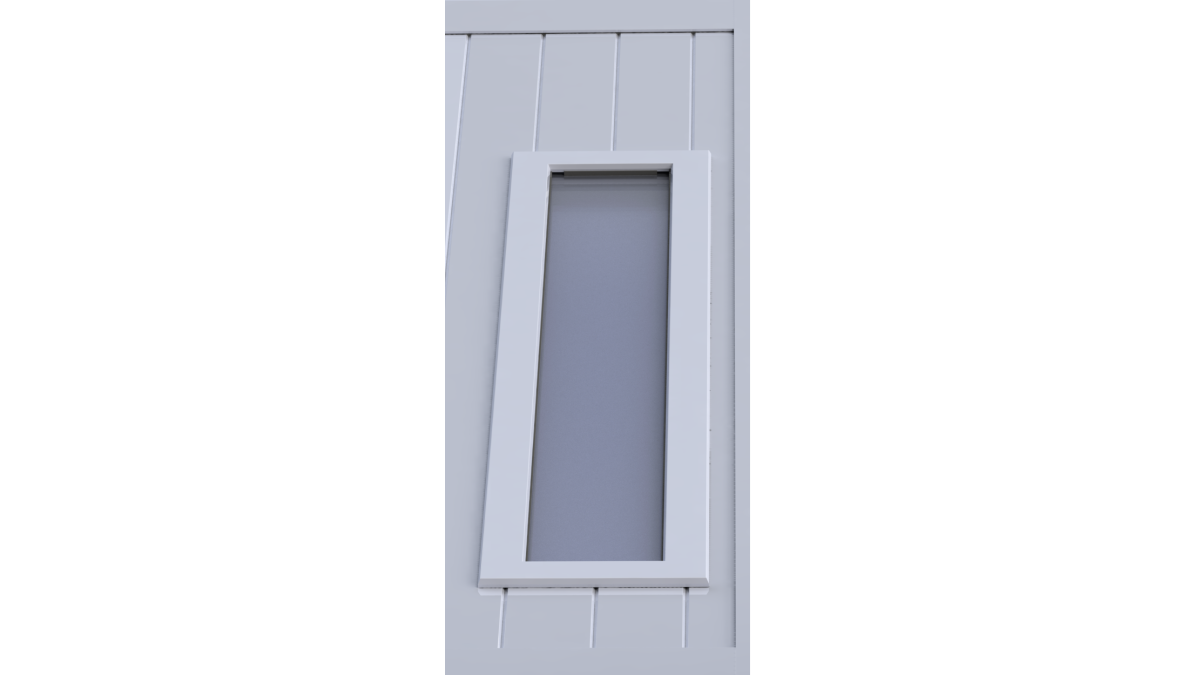

  • Glass inserts (40mm triple glazing only) are available with a flat-faced contemporary moulding
  • Boards can be vertically or horizontally orientated
  • Doors are filled with high density foam for thermal efficiency and sound dampening
  • French Doors are possible with rebated meeting stiles
  • Dual colour door options available
  • Compatible with either hinges or pivot gear
  • Flush sill options available
  • A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available.
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
Limitations on Use
  • Maximum panel size 2250mm x 1060mm
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Released in 2024
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet

2025

Plus Entrance Door R Values

2025

FIRST on Masterspec
Specifier Guide

2025

WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

First Entrance Door Brochure

2024

Latitude configuration options
APL and Sustainability

2024

Manufacturer Contact List
CAD/PDF Details
Metro ThermalHEART® with Centrafix Latitude+ Entrance Door

TCFXLD

Metro ThermalHEART® Latitude+ Entrance Door

TMLD

Residential ThermalHEART® Latitude+ Entrance Door

TRLD
