Latitude Core Entrance Doors

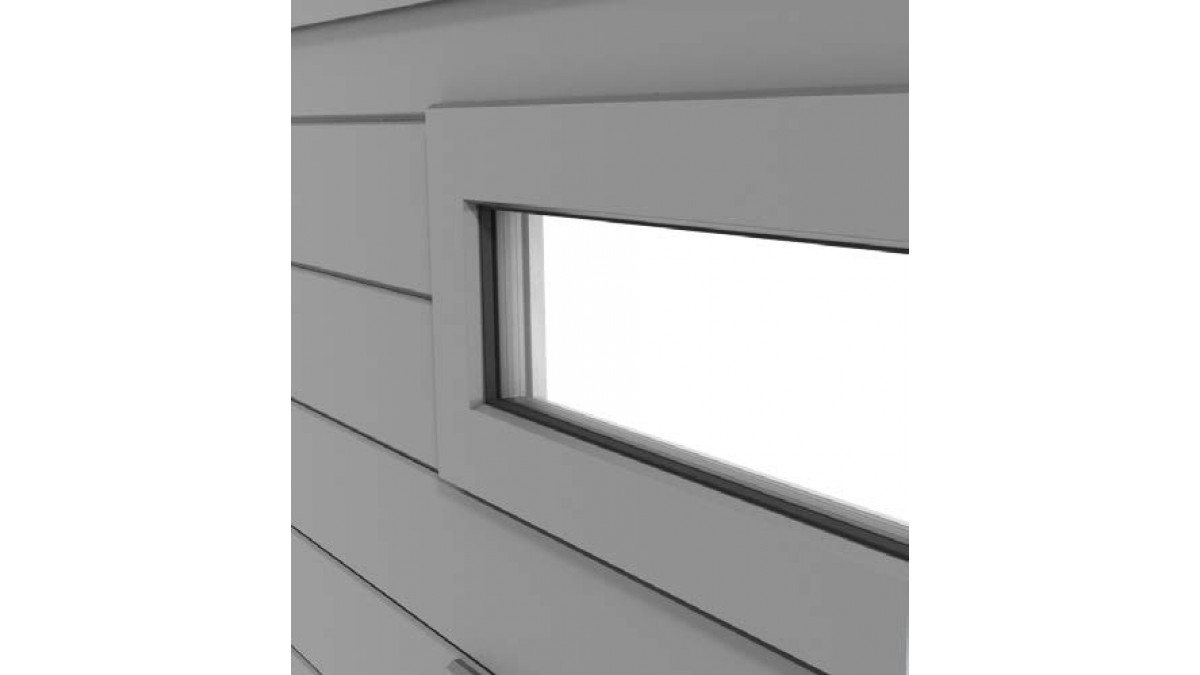

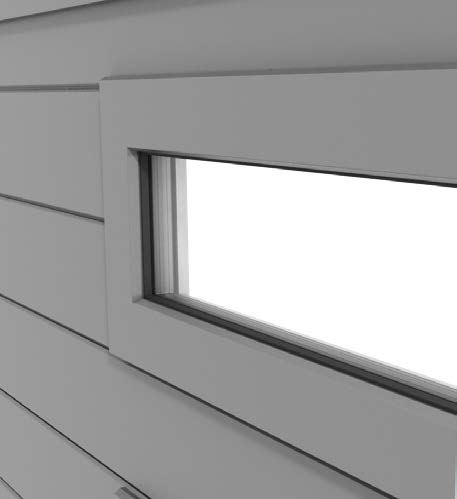

Contemporary flat faced glazing bead is used

Product Enquiries

Description

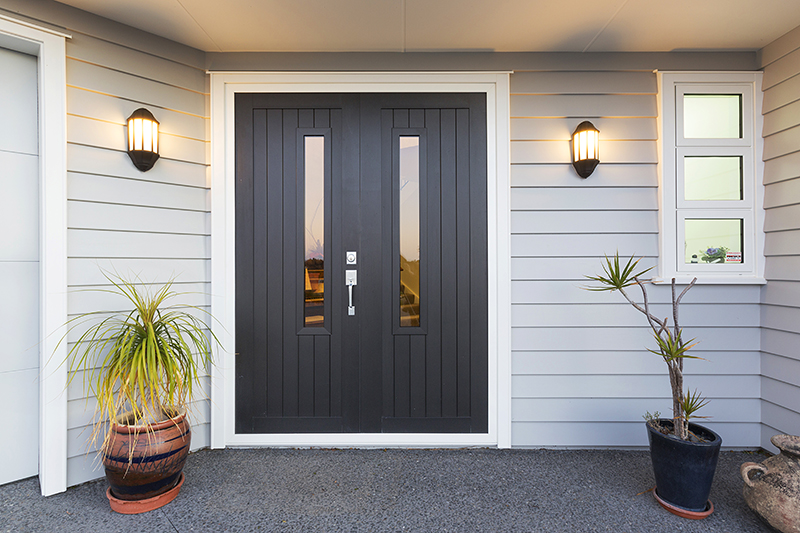

Latitude Core doors blend linear tongue and groove (vertical or horizontal) with a border of strong rails and stiles. Glazed inserts are available with a flat-faced contemporary moulding as standard.

Key Features

For mainstream residential use

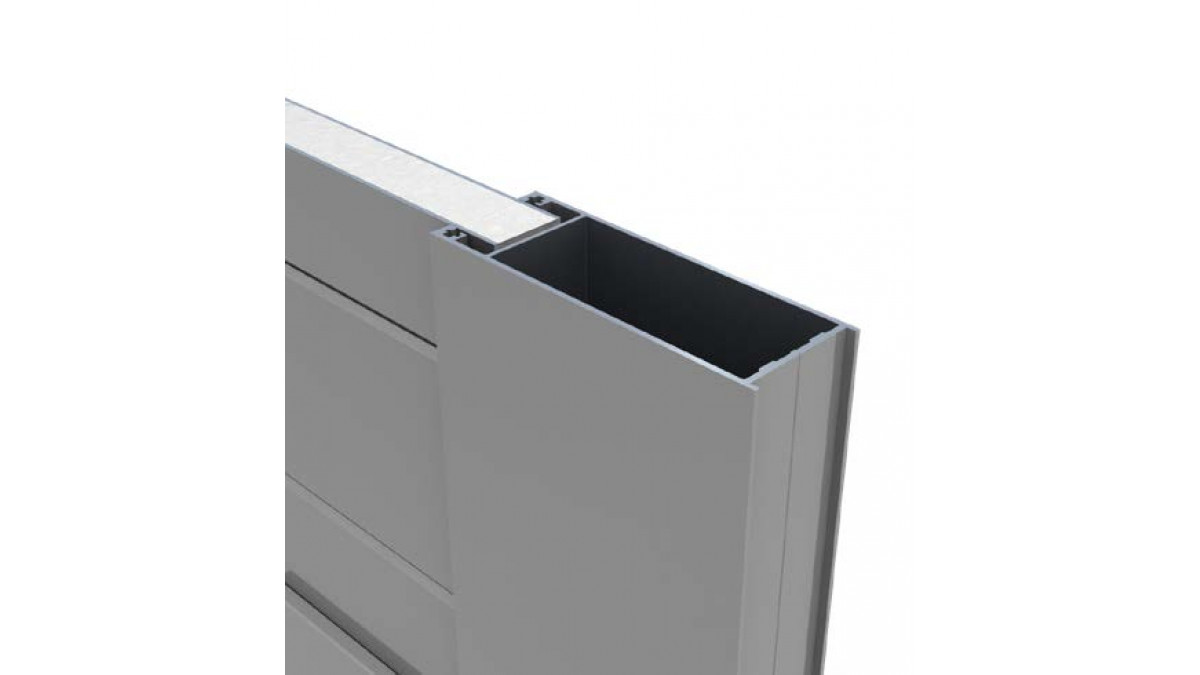

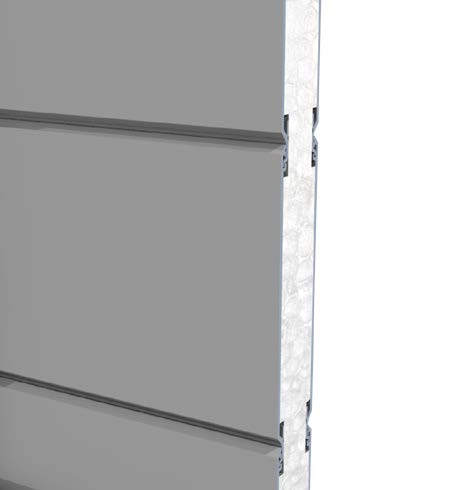

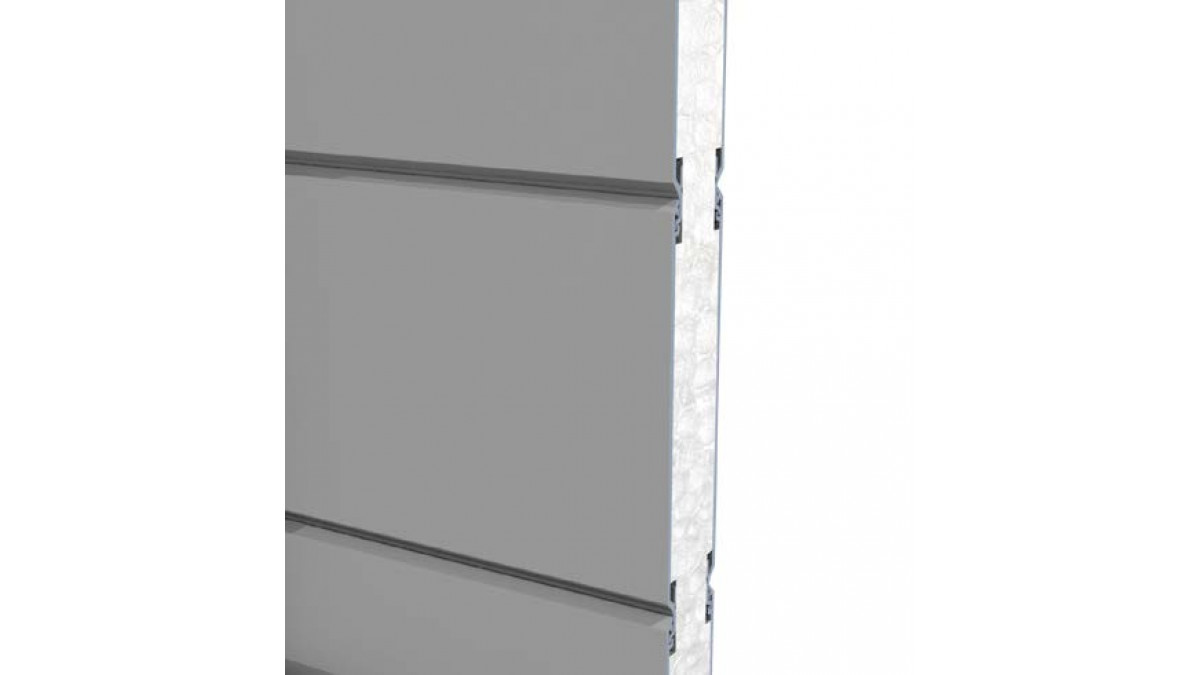

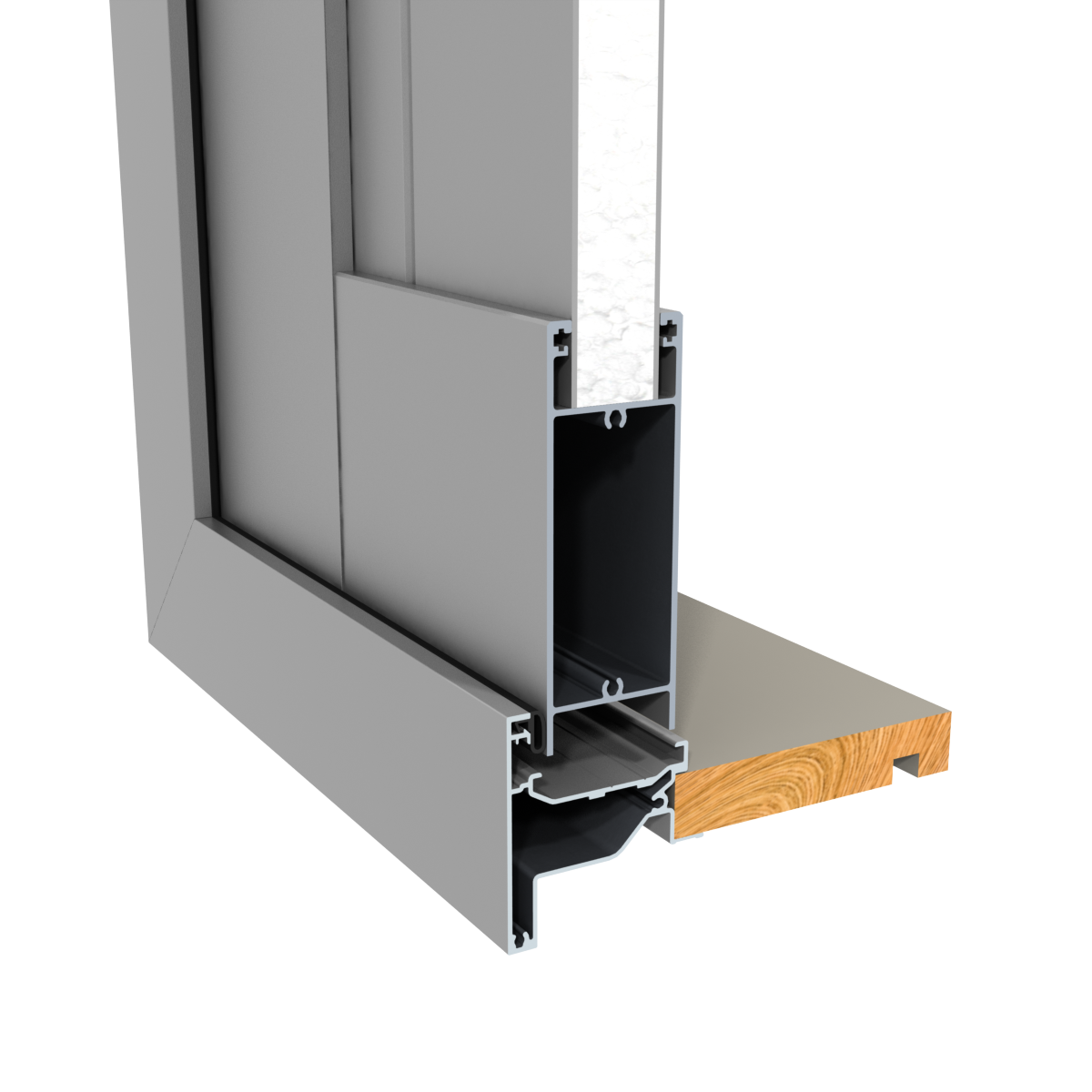

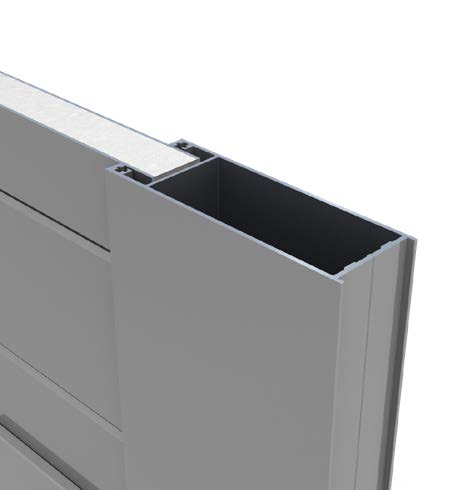

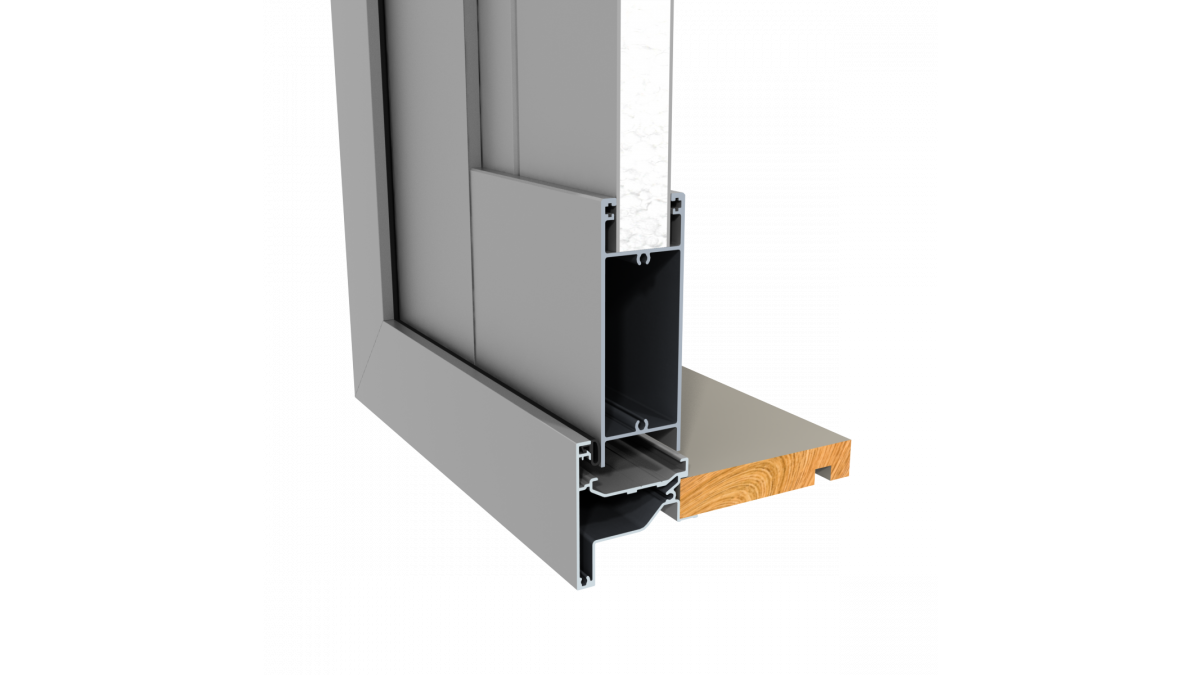

Aluminium clad doors combining tongue and groove boards (100mm wide) within a border of strong rails and stiles
Glass inserts (18mm double glazing only) are available with a flat-faced contemporary moulding as standard
Boards can be vertically or horizontally aligned
Doors are filled with high density polystyrene for thermal efficiency and sound dampening
Maximum panel size 2250mm x 1060mm
Latitude panels can be supplied with extra thermal efficiency on request
Can be dual coloured when thermally enhanced stiles are applied, to match interior and exterior colour schemes

Ranges

Entrance Doors

Scope of Use

Generally installed in protected entranceways and sheltered environments
Inward opening option is usually recommended

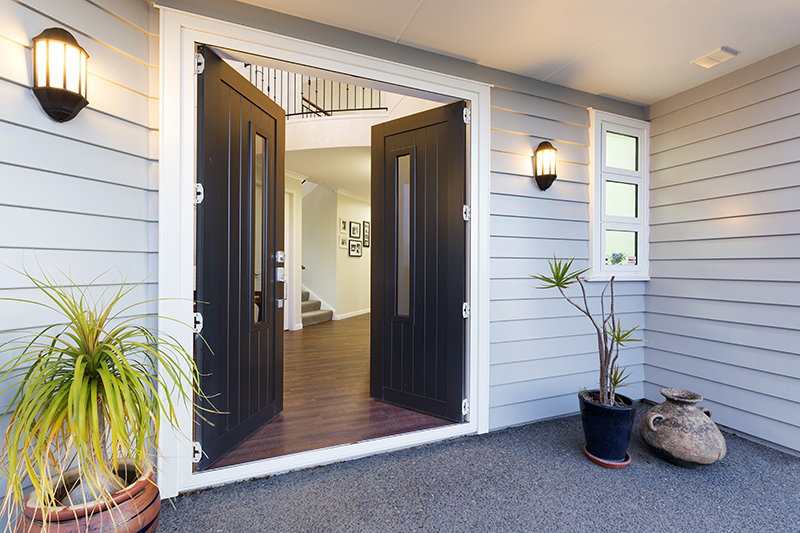

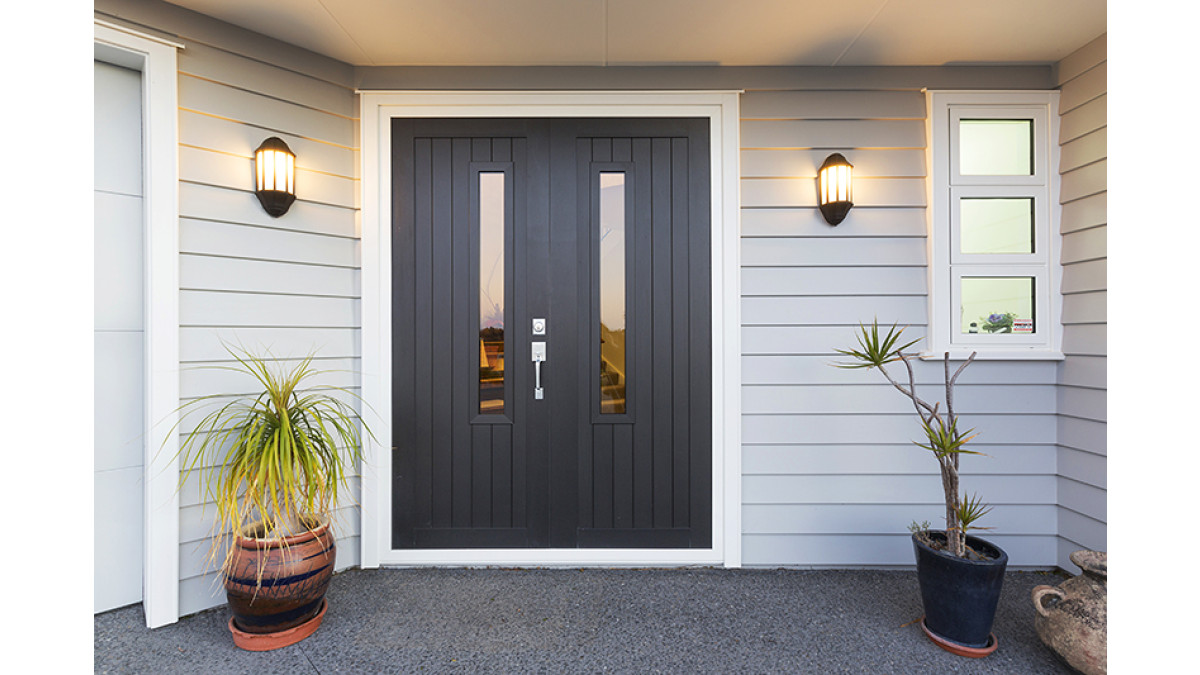

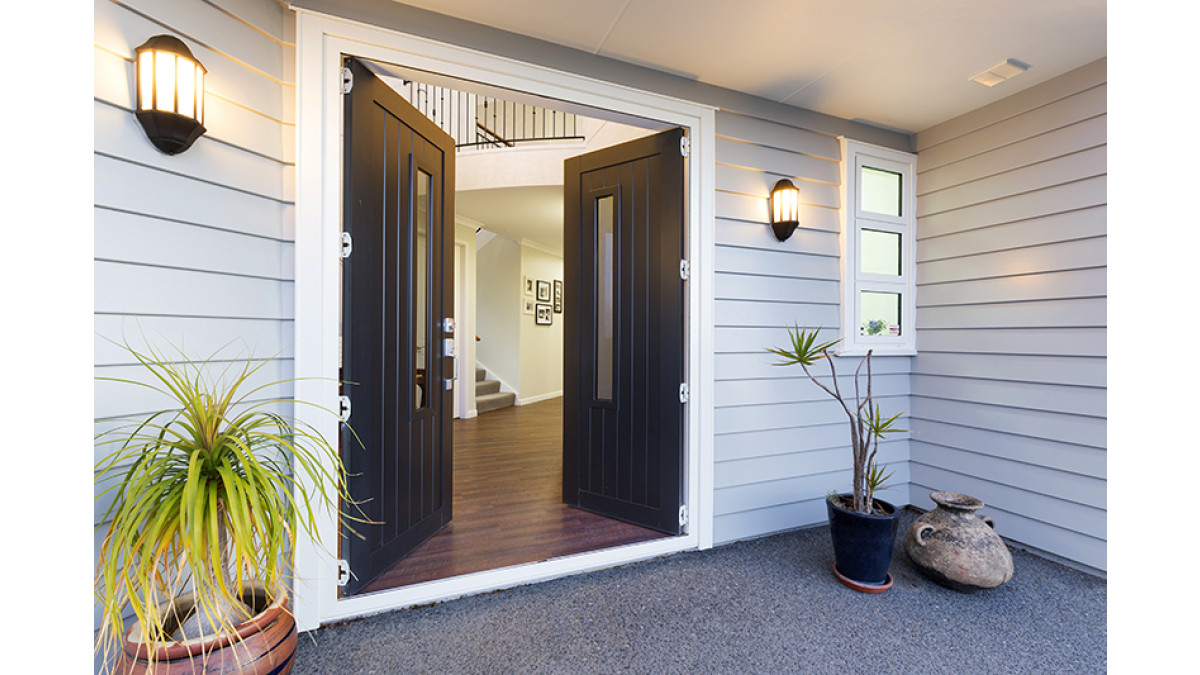

Double opening doors (French style) or opening sidelights possible for full-width access

Limitations on Use

Maximum panel size 2250mm x 1060mm
Installation in sheltered environments recommended — away from full sun exposure
Hardware type must be advised at time of door order
Dark colours not recommended for doors exposed to prolonged direct sunlight

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2.

In-Service History

Released in 2006
Widely used by homeowners, builders, Group home builders and specifiers.

Other Performance Attributes

Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed.

Documents

Entrance Door R Values

2024

pdf

Data Sheet

2025

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

First Brochure

2014

URL

First Entrance Door Brochure

2024

URL

Latitude configuration options

pdf

APL and Sustainability

2024

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full


Full Set of Drawings

pdf

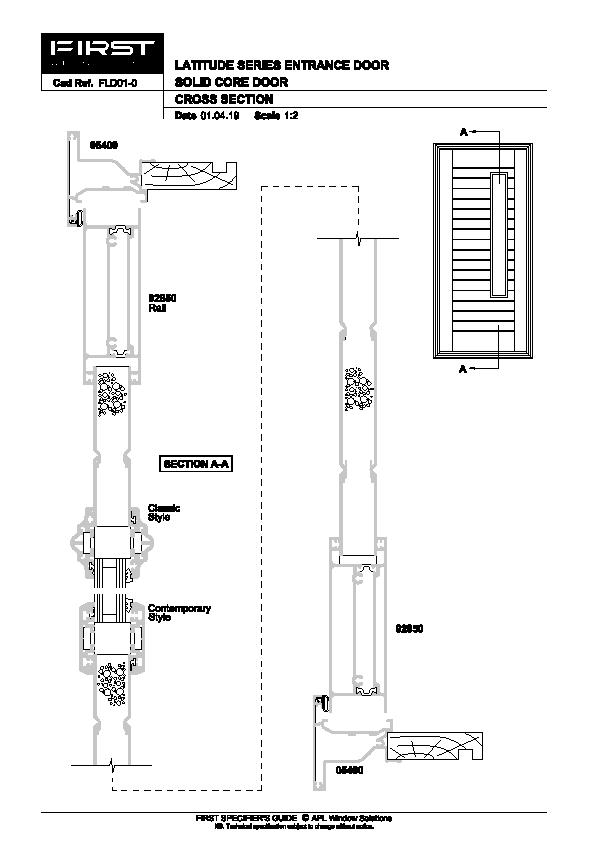

FIRST Residential Latitude Series Entrance Door Solid Core Panel

FLD01-0

dwf

dwg

dxf

pdf

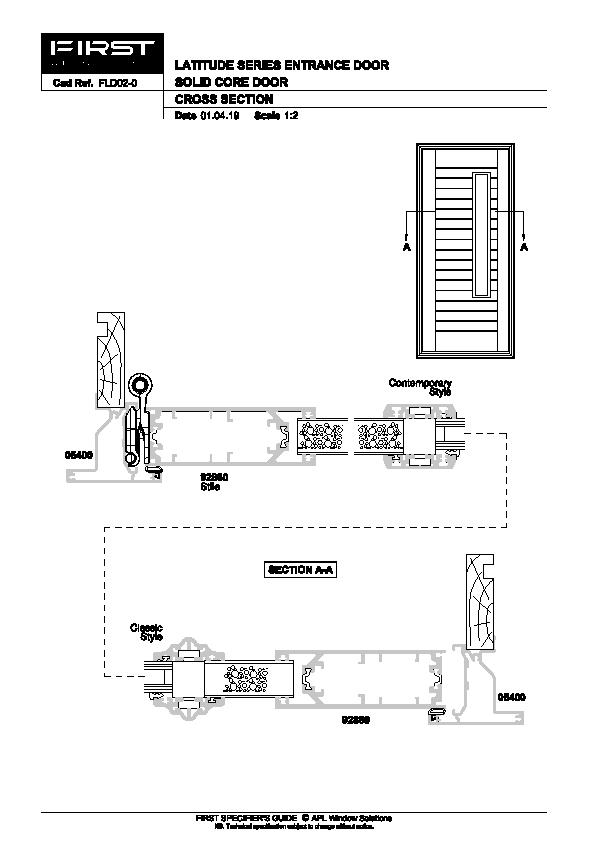

FIRST Residential Latitude Series Entrance Door Solid Core Panel

FLD02-0

dwf

dwg

dxf

pdf

First Windows & Doors deliver a wide variety of high-performing solutions for residential and commercial projects. Available as a complete window system with AGP glass.
