Axis Core Entrance Doors
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

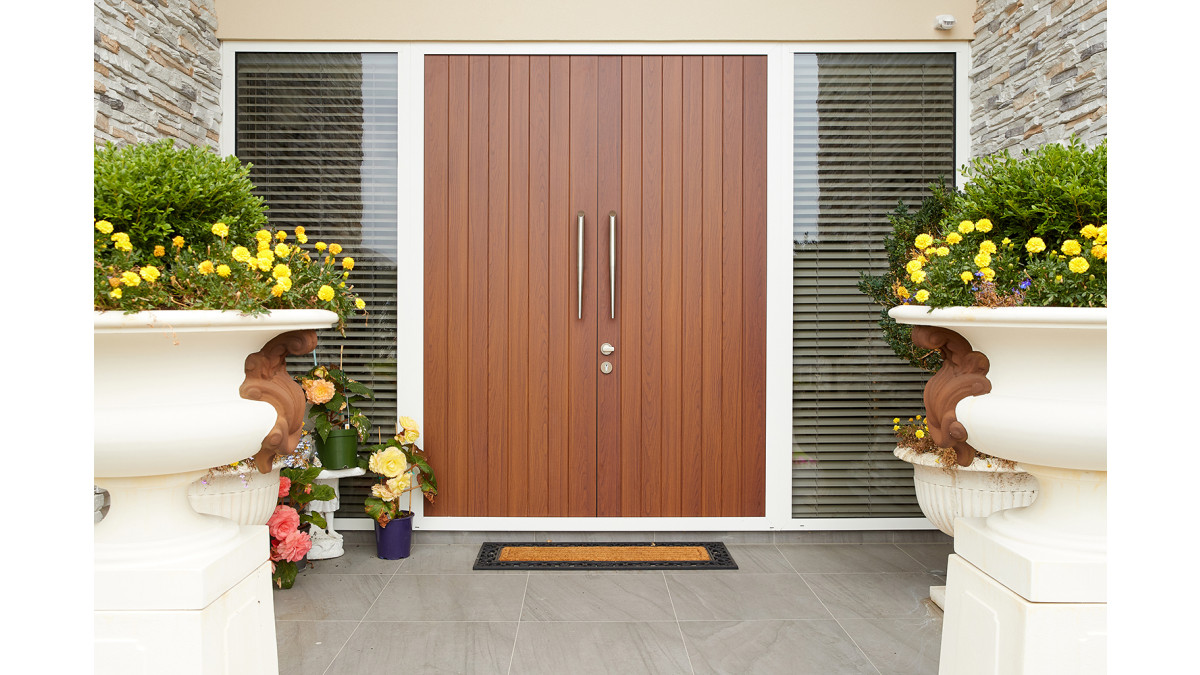

Made from aluminium with a full height, vertical tongue and groove panel design. Axis doors offer the opportunity for a totally clean aesthetic or a door with glazed inserts for vision or light entry.

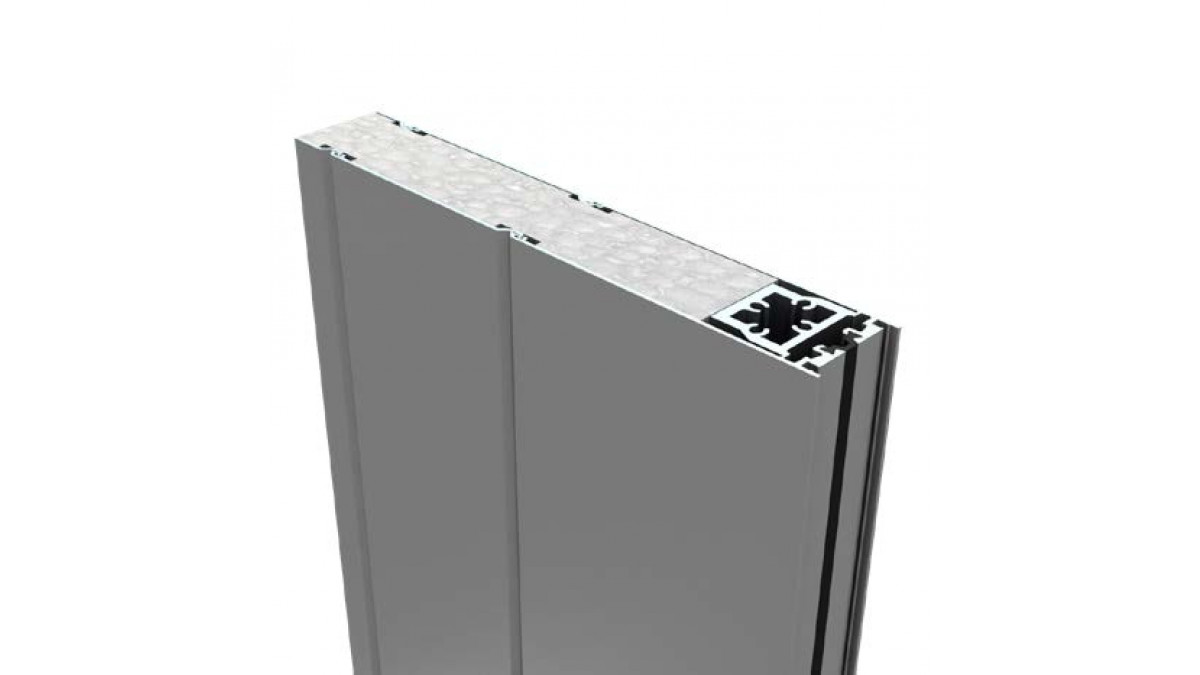

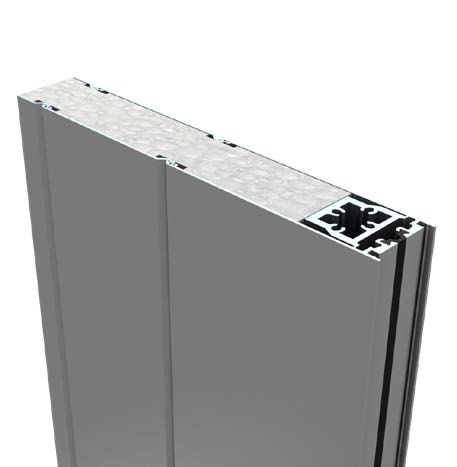

The two-part construction offers the opportunity for a dual colour panel — one colour for the outside and a different one for the inside to match interior colour schemes. The solid, foam-filled construction imparts high strength and maximum stability.

Key Features
  • For mainstream residential use
  • Tongue and groove panel doors clad in aluminium for low maintenance
  • Panels are 41mm thick and tall heights of 2.6m are possible depending on the site exposure
  • Due to the plank construction, Axis door panels are created in total sizes of 50mm increments starting at 710mm with a maximum width of 1210mm
  • Can be dual coloured to match interior and exterior colour schemes

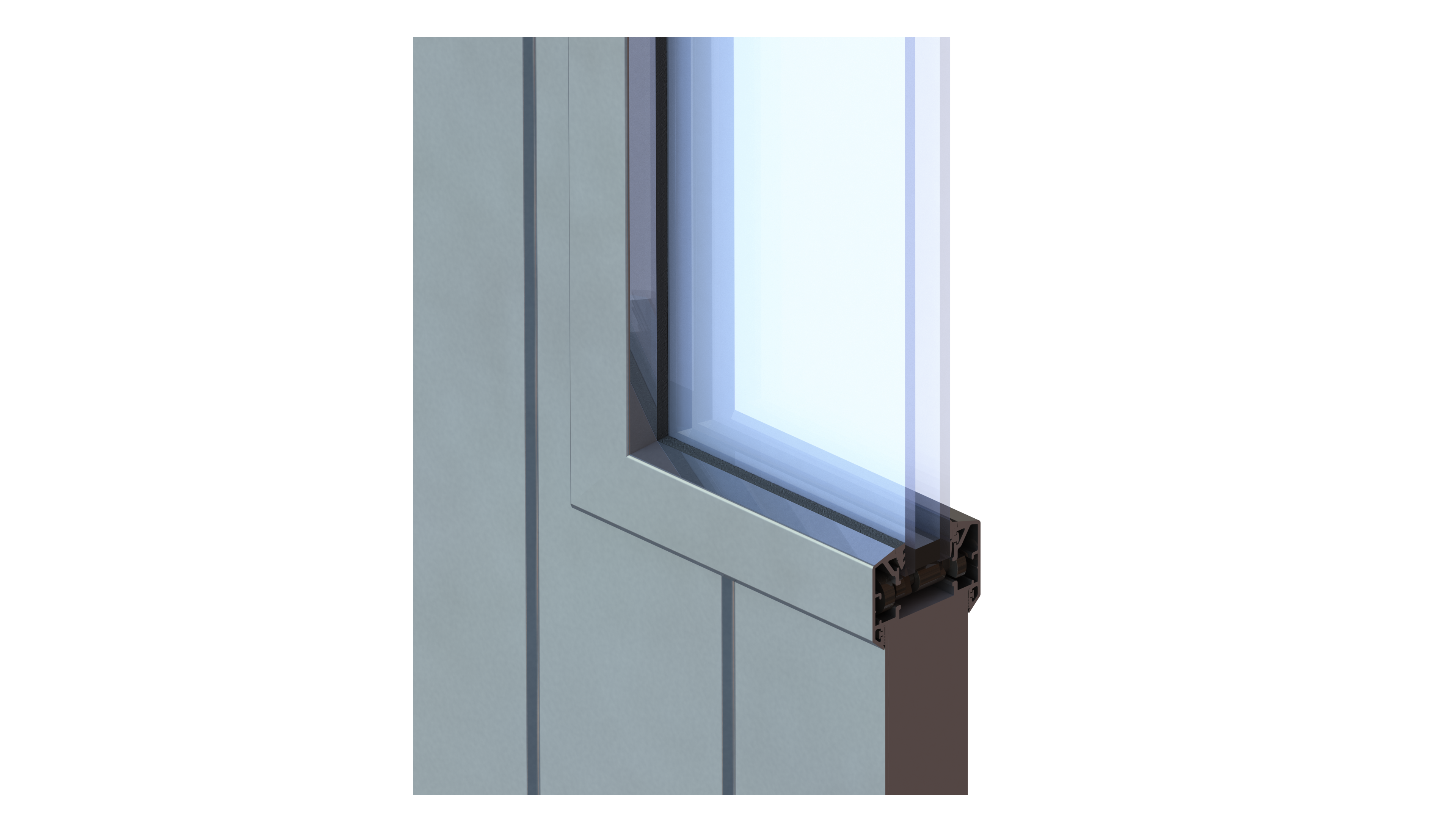

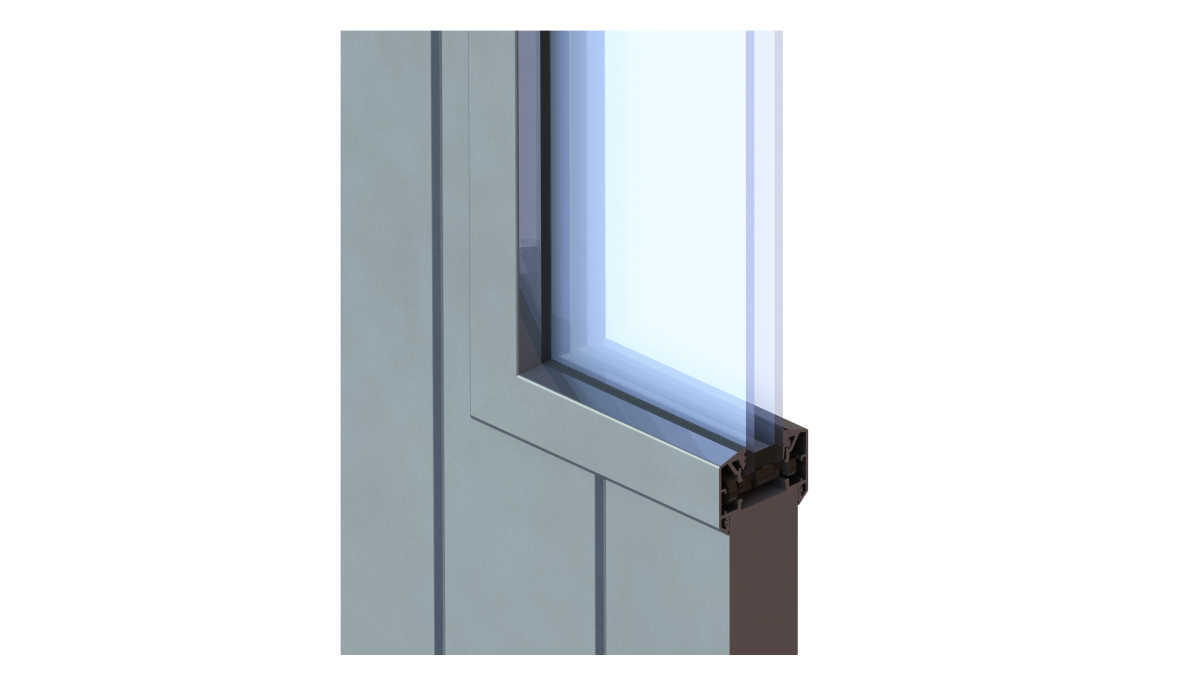

  • Glass inserts (22mm IGUs) are possible
  • Polyamide thermal strip and polystyrene fill included in the door construction enhance thermal efficiency
  • Authentic and hard wearing wood grain appearance available, as well as powder coat and anodised finishes
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended

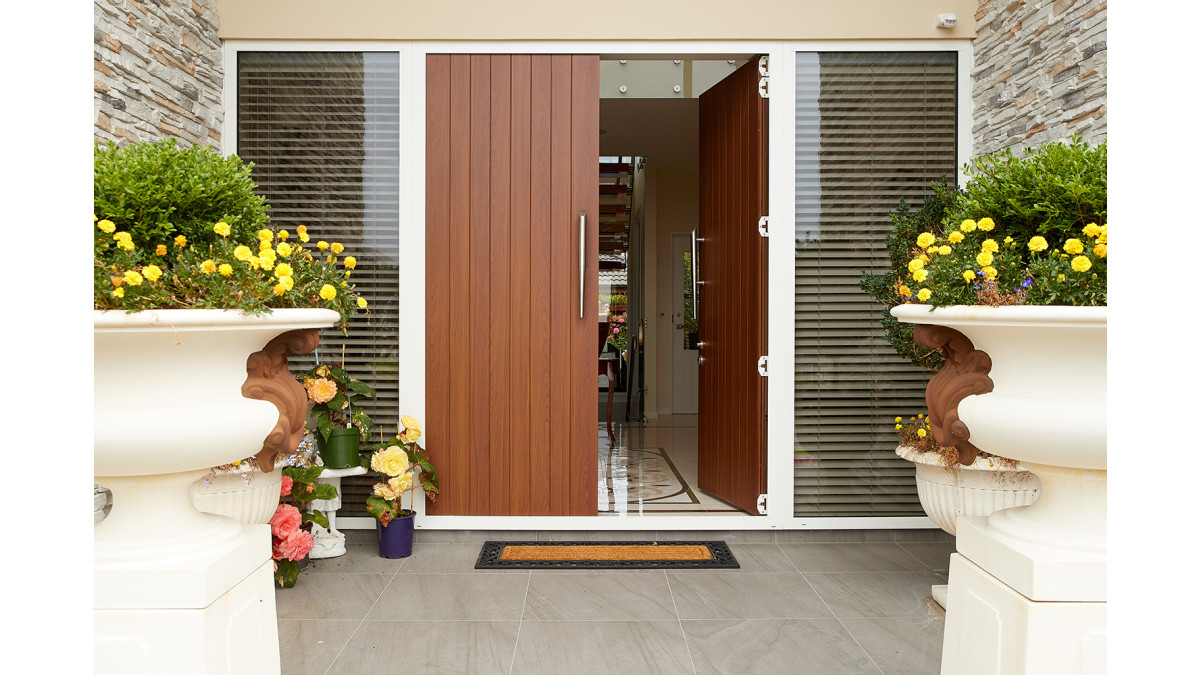

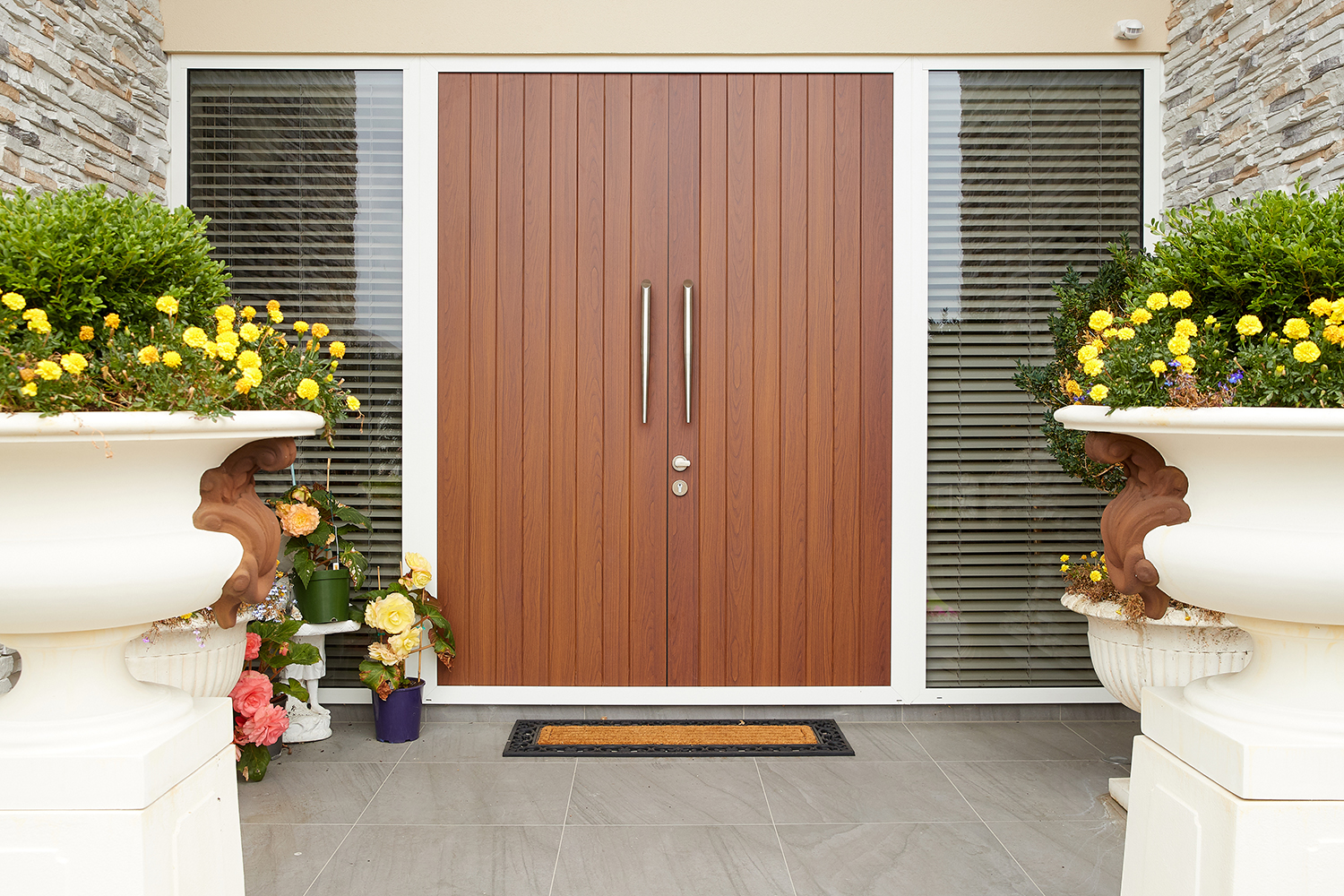

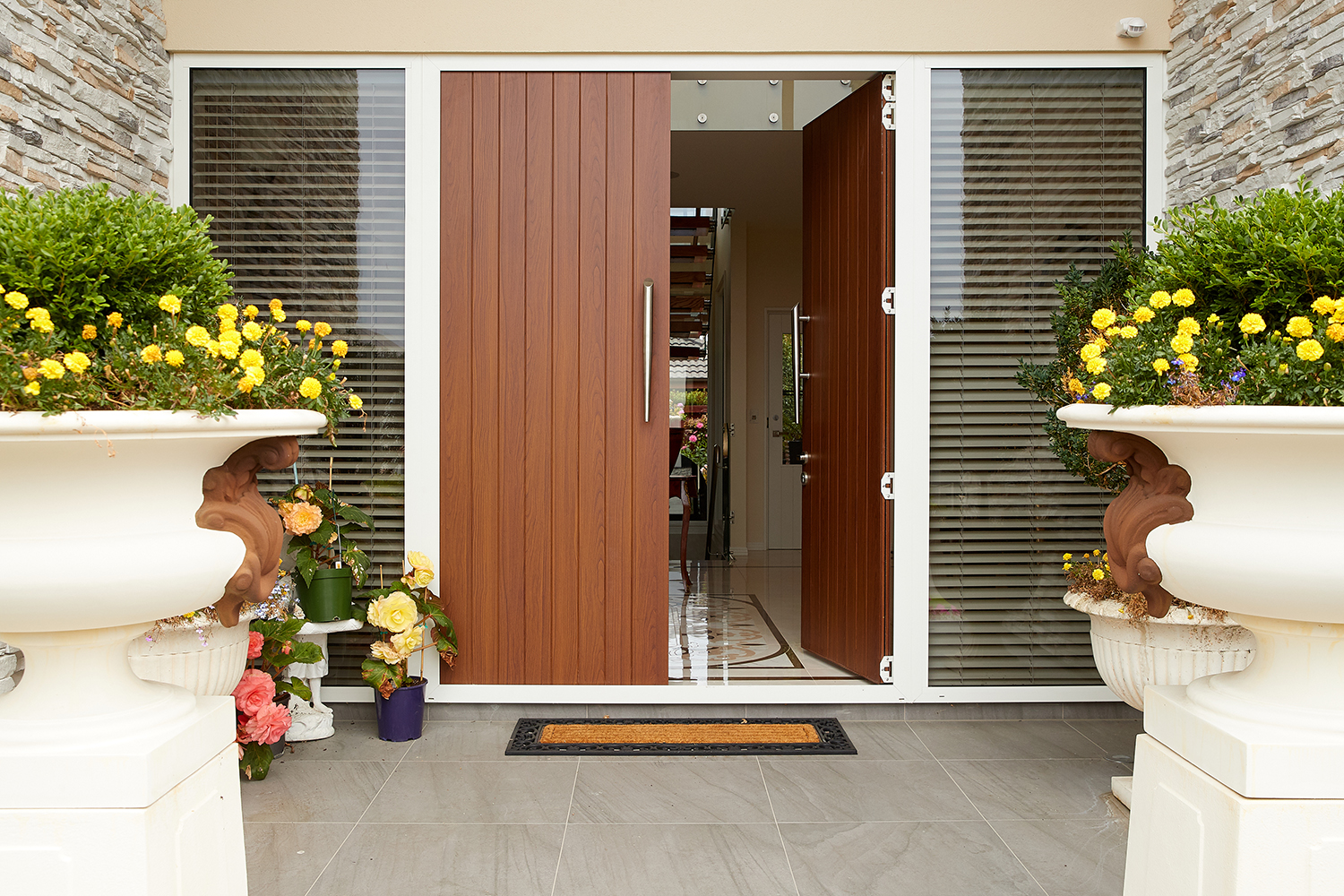

  • Double opening doors (French style) or opening sidelights possible for full-width access
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
  • Dark colours not recommended for doors exposed to prolonged direct sunlight
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2005
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Documents
Entrance Door R Values

2024

Data Sheet

2025

FIRST on Masterspec
Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

First Entrance Door Brochure

2024

Axis configuration options
APL and Sustainability

2024

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

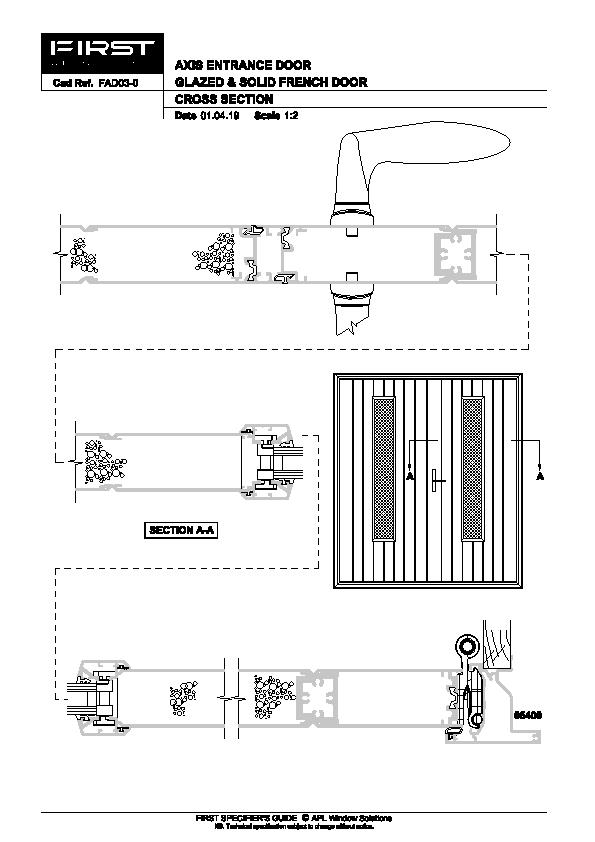

FIRST Residential Axis Entrance Door Glazed & Solid French Door

FAD01-0

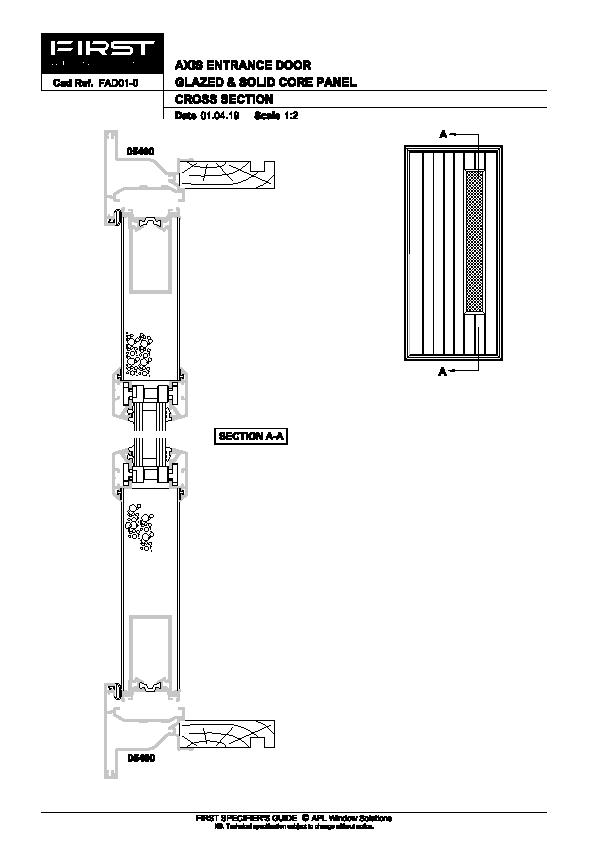

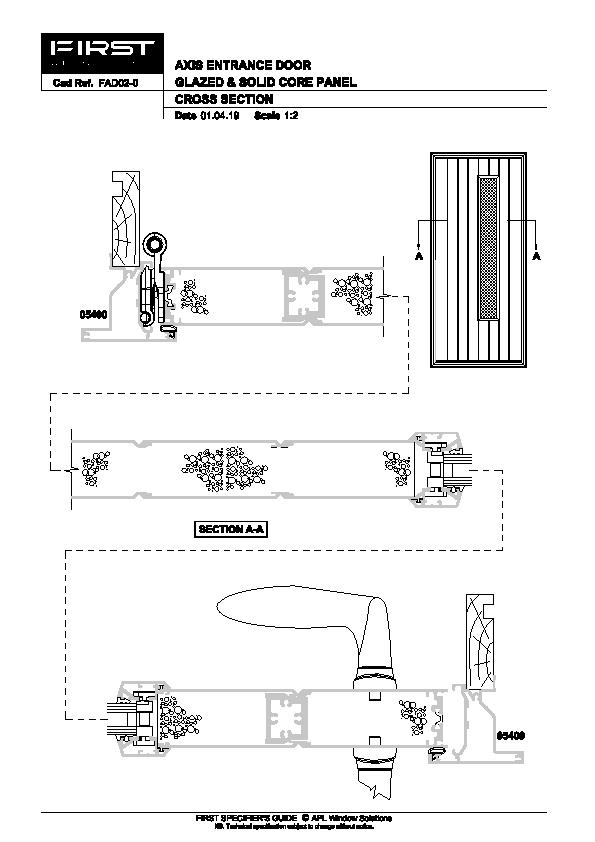

FIRST Residential Axis Entrance Door Glazed & Solid Core Panel

FAD02-0

FIRST Residential Axis Entrance Door Glazed & Solid Core Panel

FAD03-0
