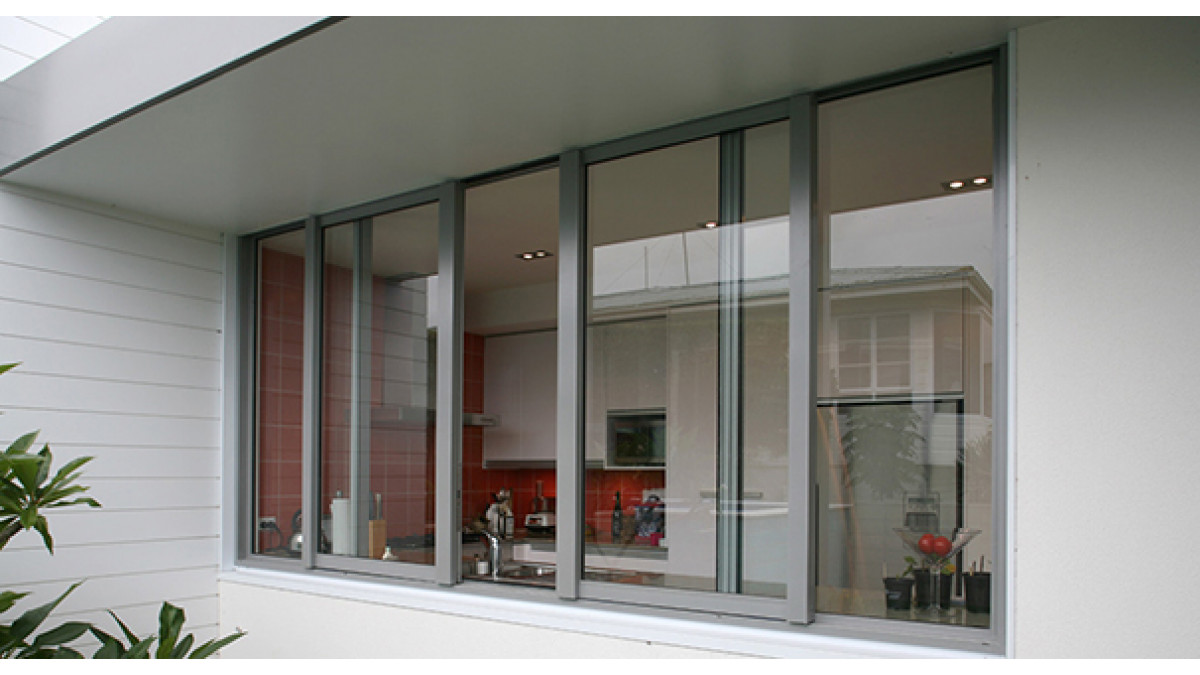

Metro Series Sliding Windows
New APL 2019 Specifier Guide now available Order now
Description

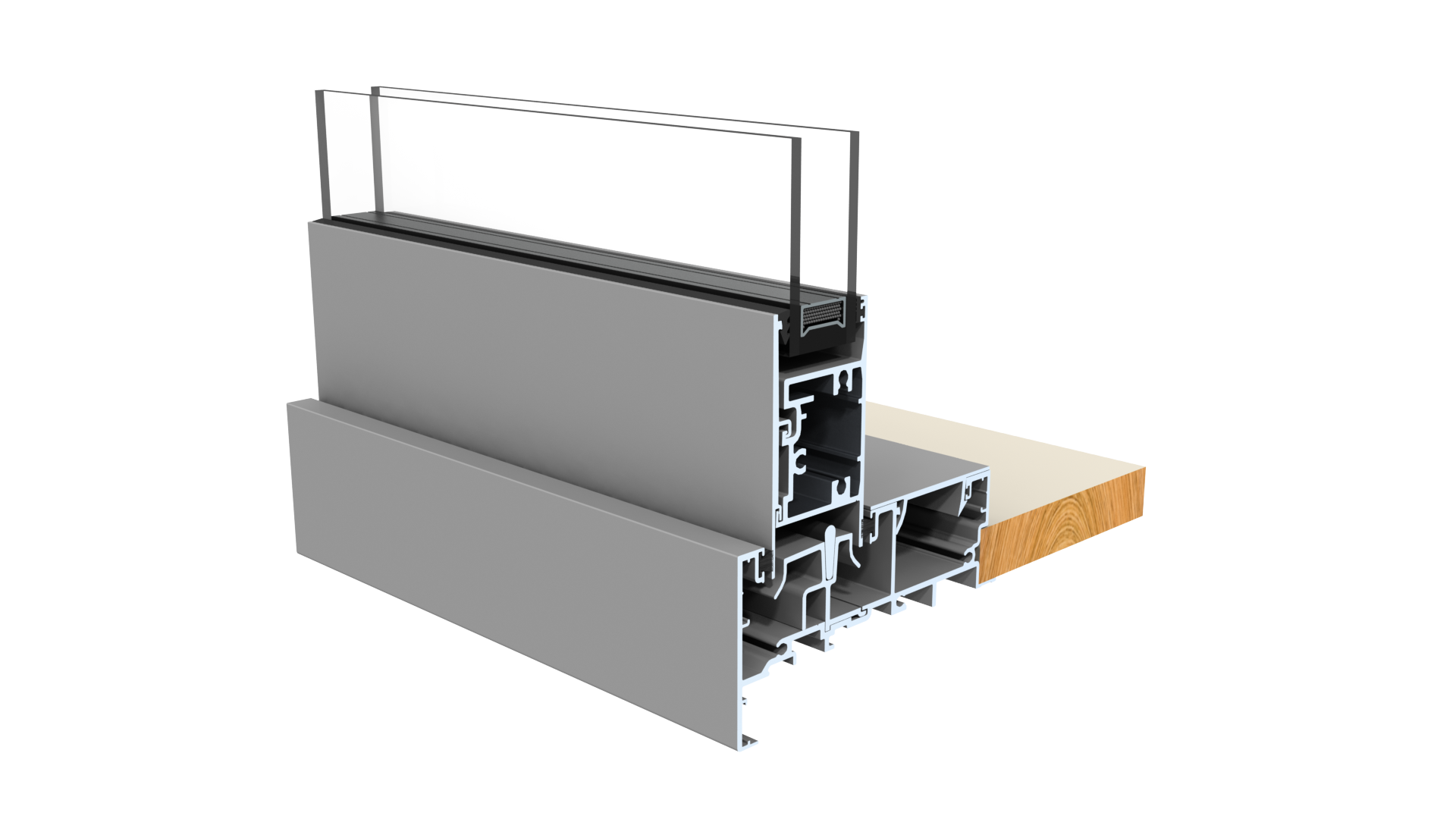

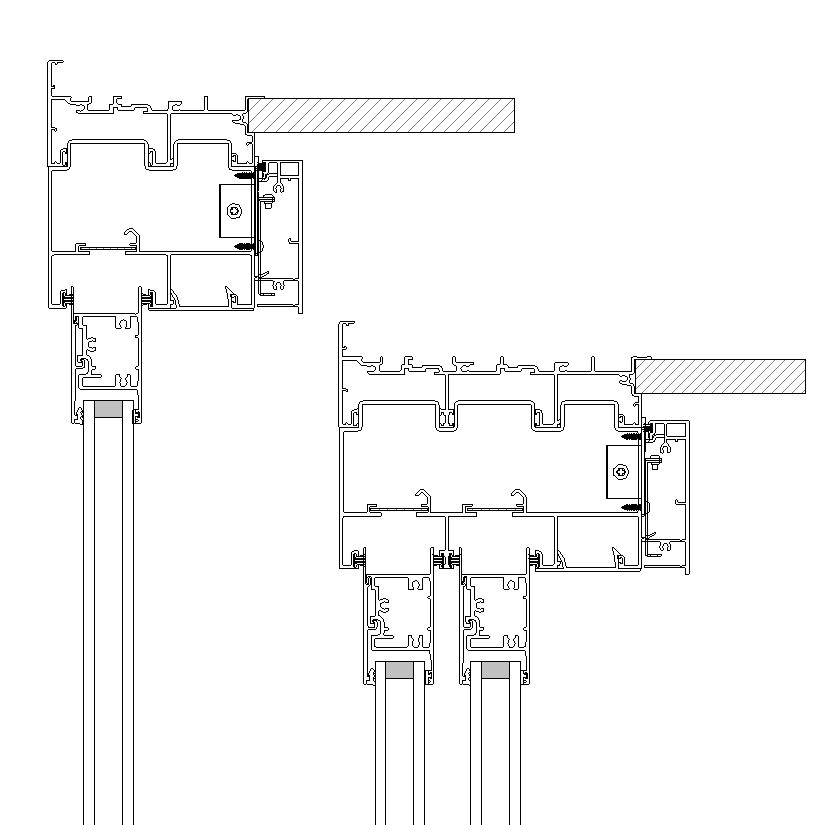

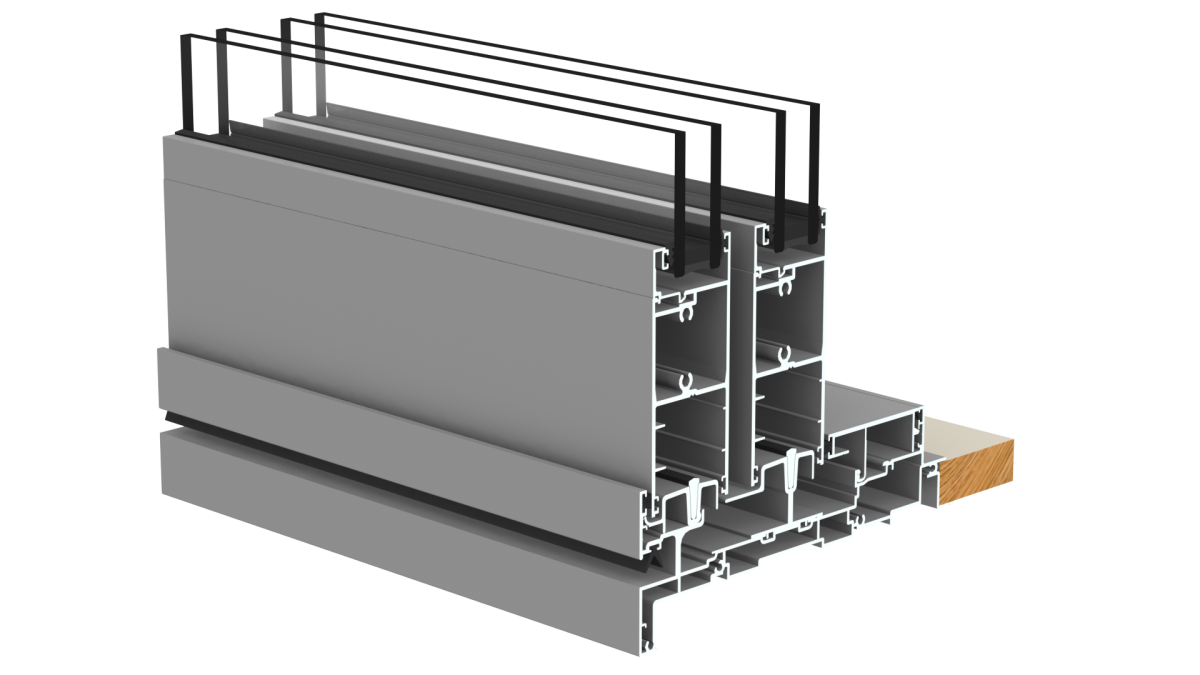

Metro Series sliding windows use the sliding door frame but have smaller sliding panel rails, inter-locker stiles and mullions. Stiffening boxes on inter-locker stiles and mullions are flush in the closed position.

Wide formats are possible with a maximum of six panels — two stacking towards one jamb and two stacking the other way.

Key Features
  • Metro Series occupies an intermediate position between First Residential and the APL Architectural Series

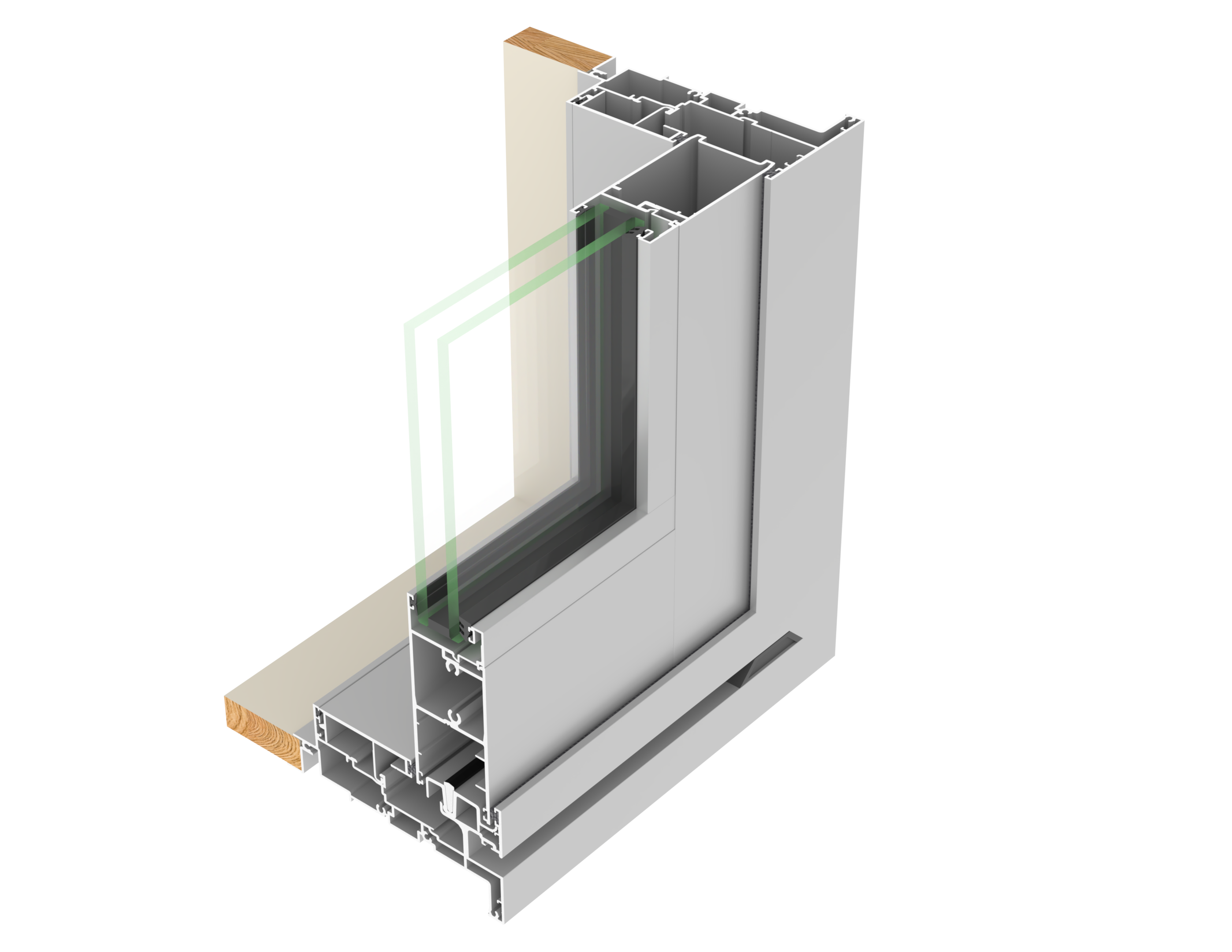

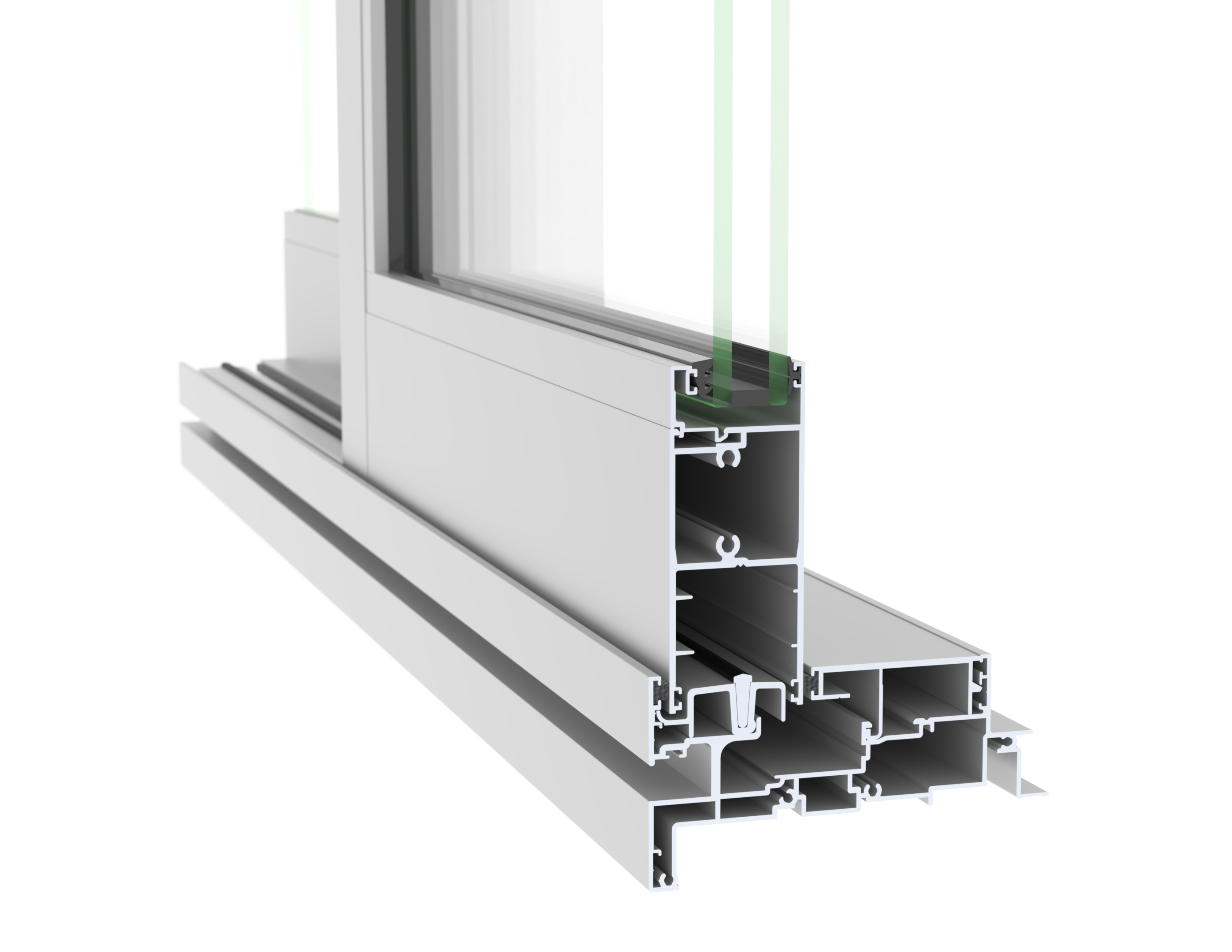

  • Metro sliding windows use the sliding door system frame but have smaller interlocker stiles, mullions and bi-parting meeting stiles

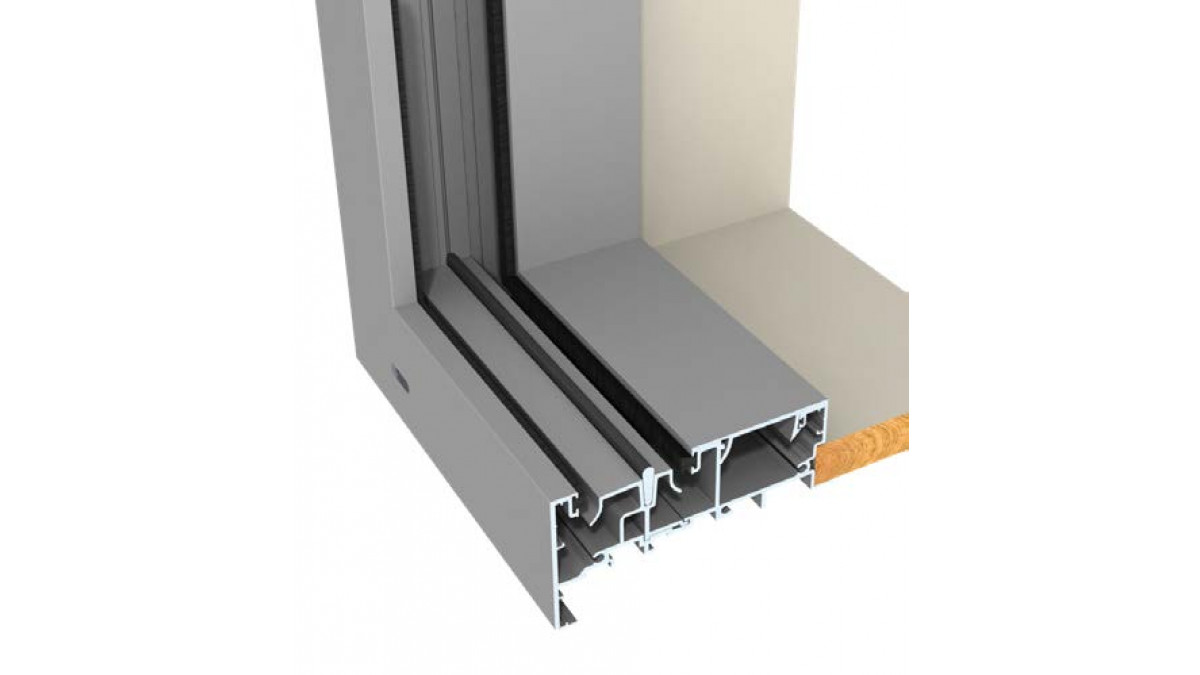

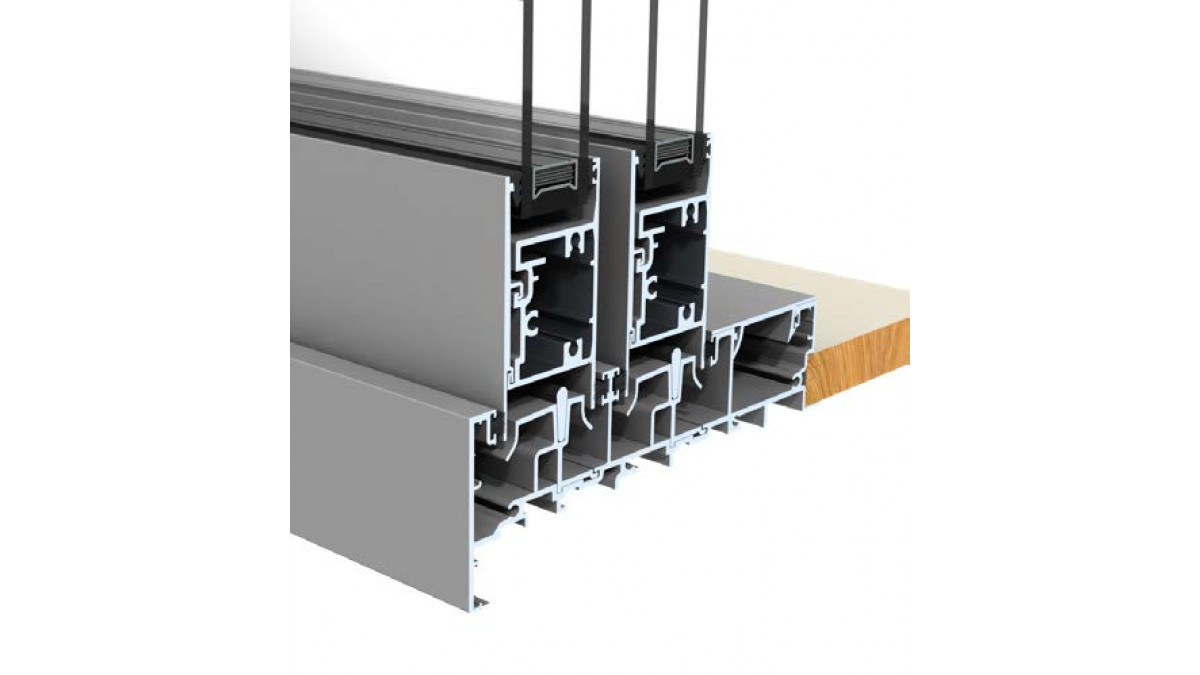

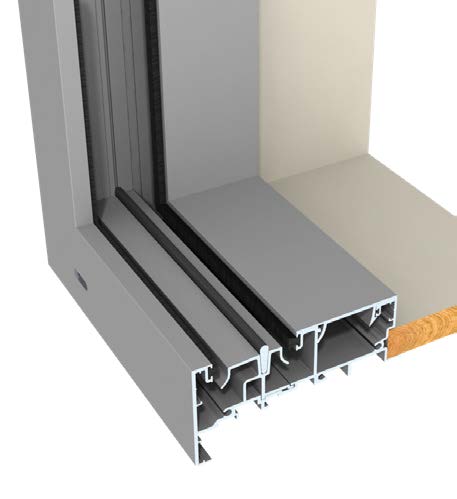

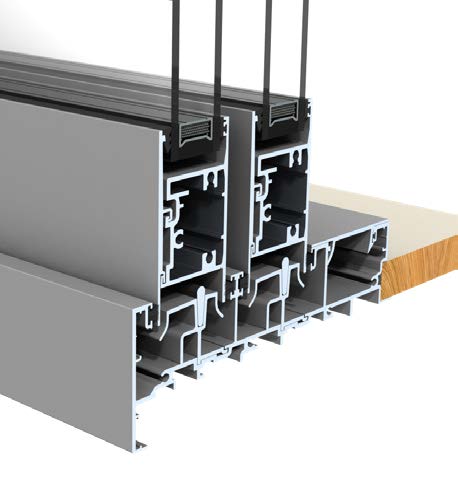

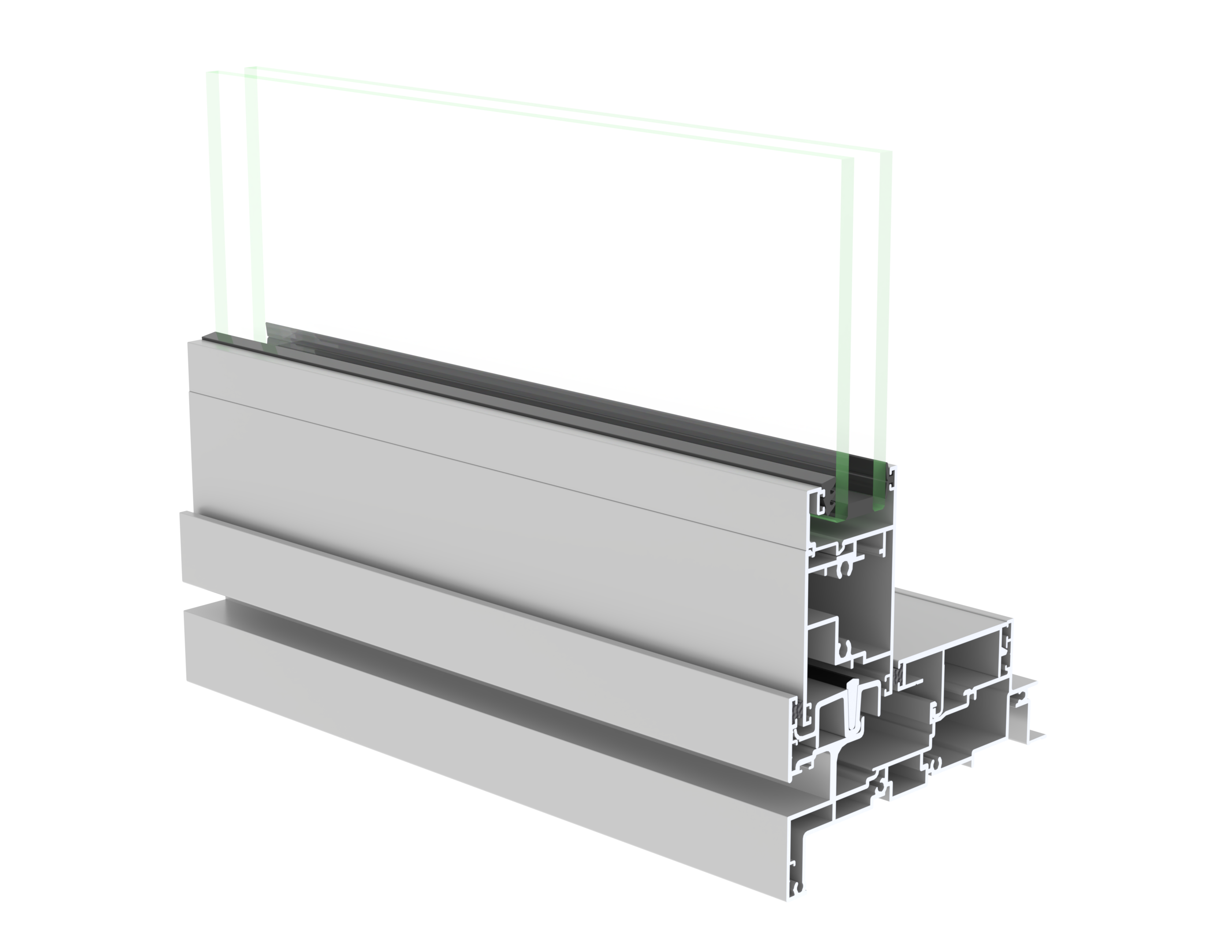

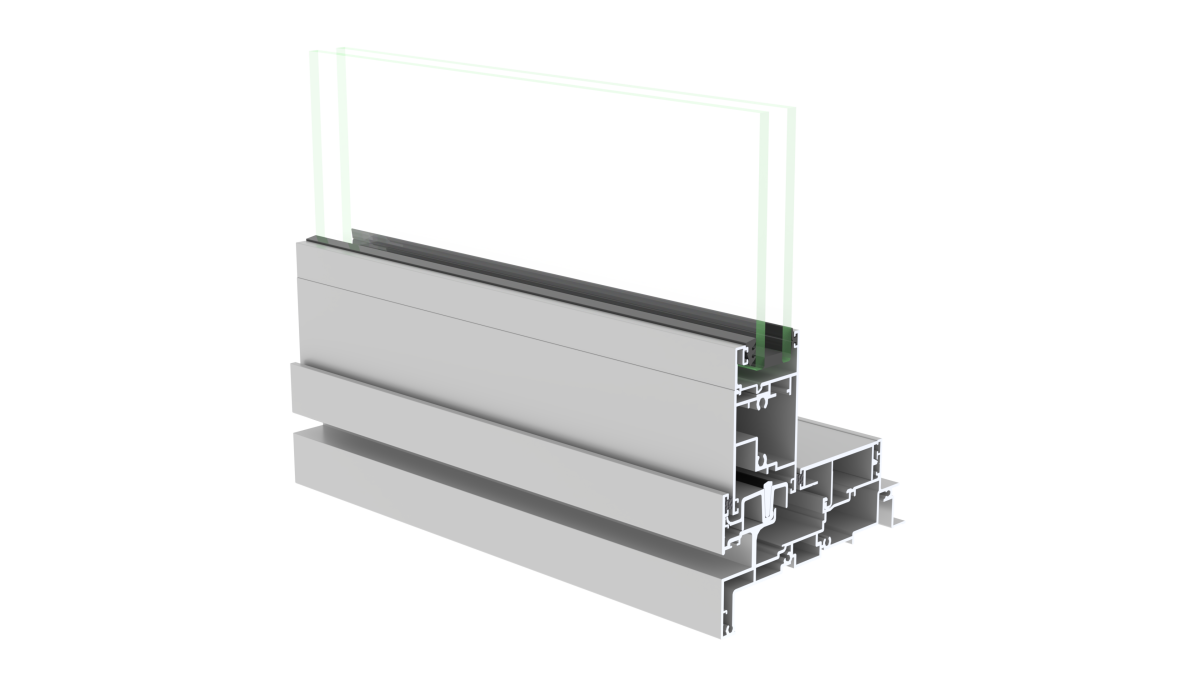

  • The sill frame has a flush track

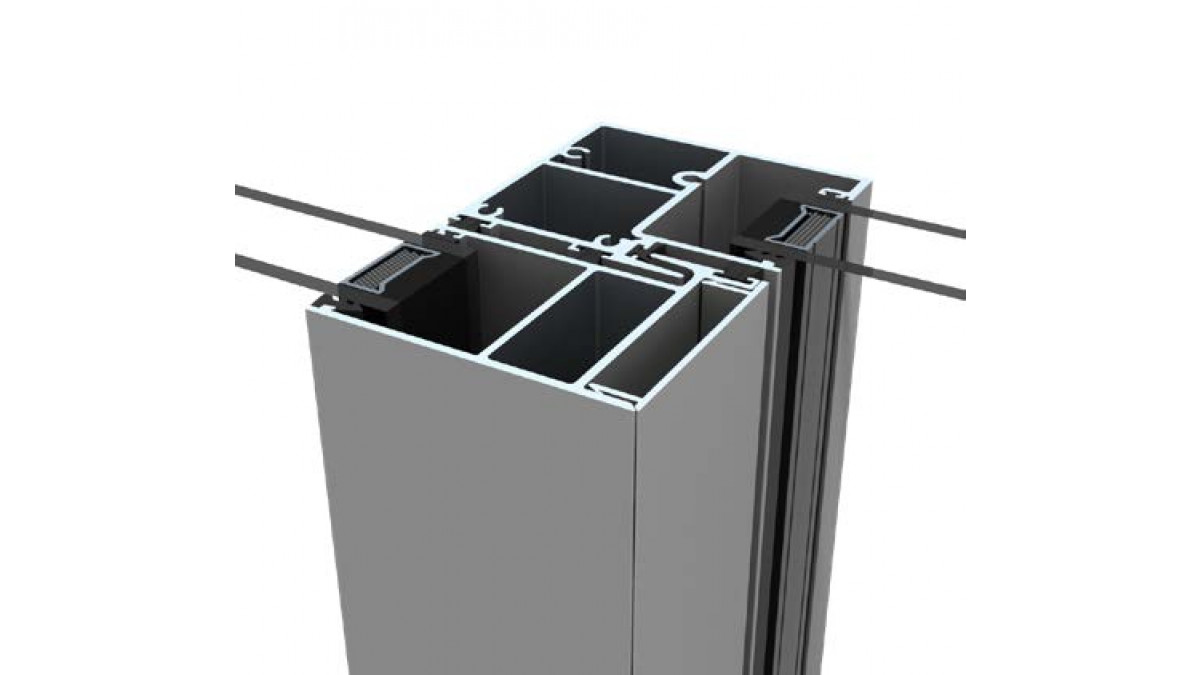

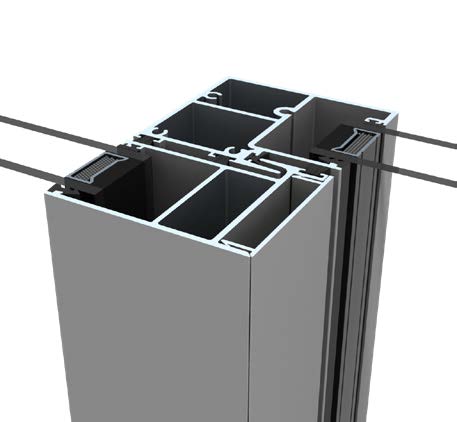

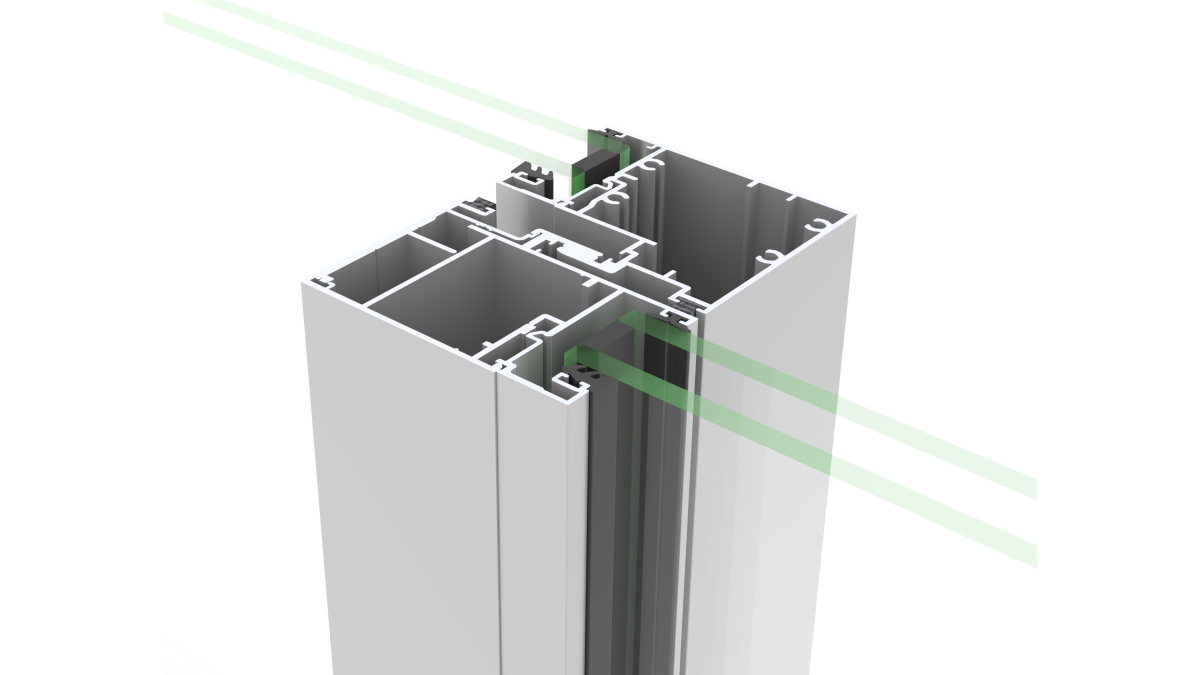

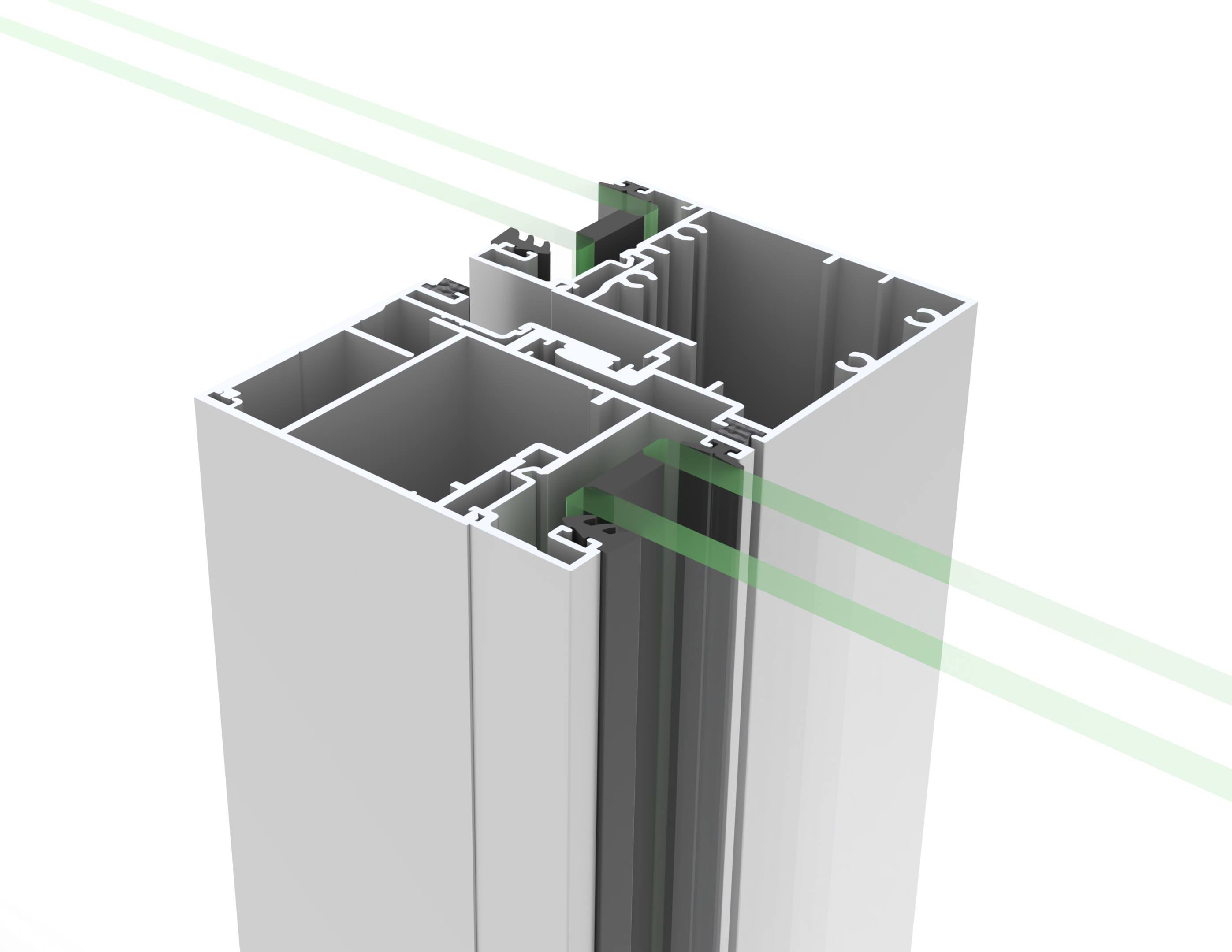

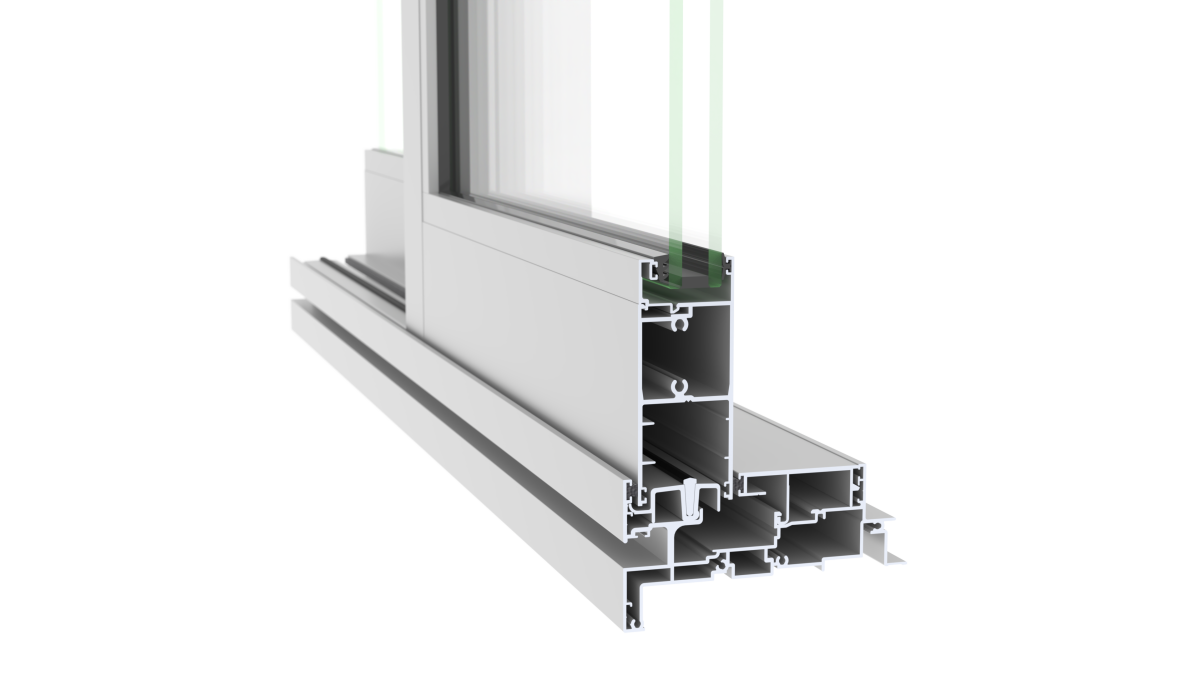

  • Interlocker stiles and mullions are flush in the closed position
  • Corner sliders (90º) are available with no corner post (exterior and interior corners)

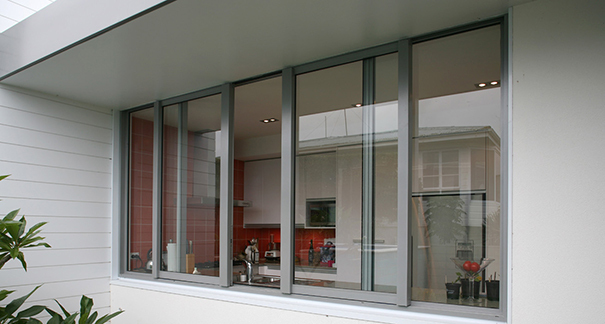

  • Ideal for non-projecting or servery windows
  • Wide opening is possible in bi-parting or stacking configurations
Categories / Ranges
Sliding Windows FIRST Metro Series
Scope of Use
  • Suitable for most applications where non-projecting windows are desired
  • Need to be used in defined maximum sizes according to the wind exposure
  • A good option for servery windows
  • Work well with insect screens
Limitations on Use
  • Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
  • Some weather protection above e.g. wide eaves recommended to protect open windows
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet

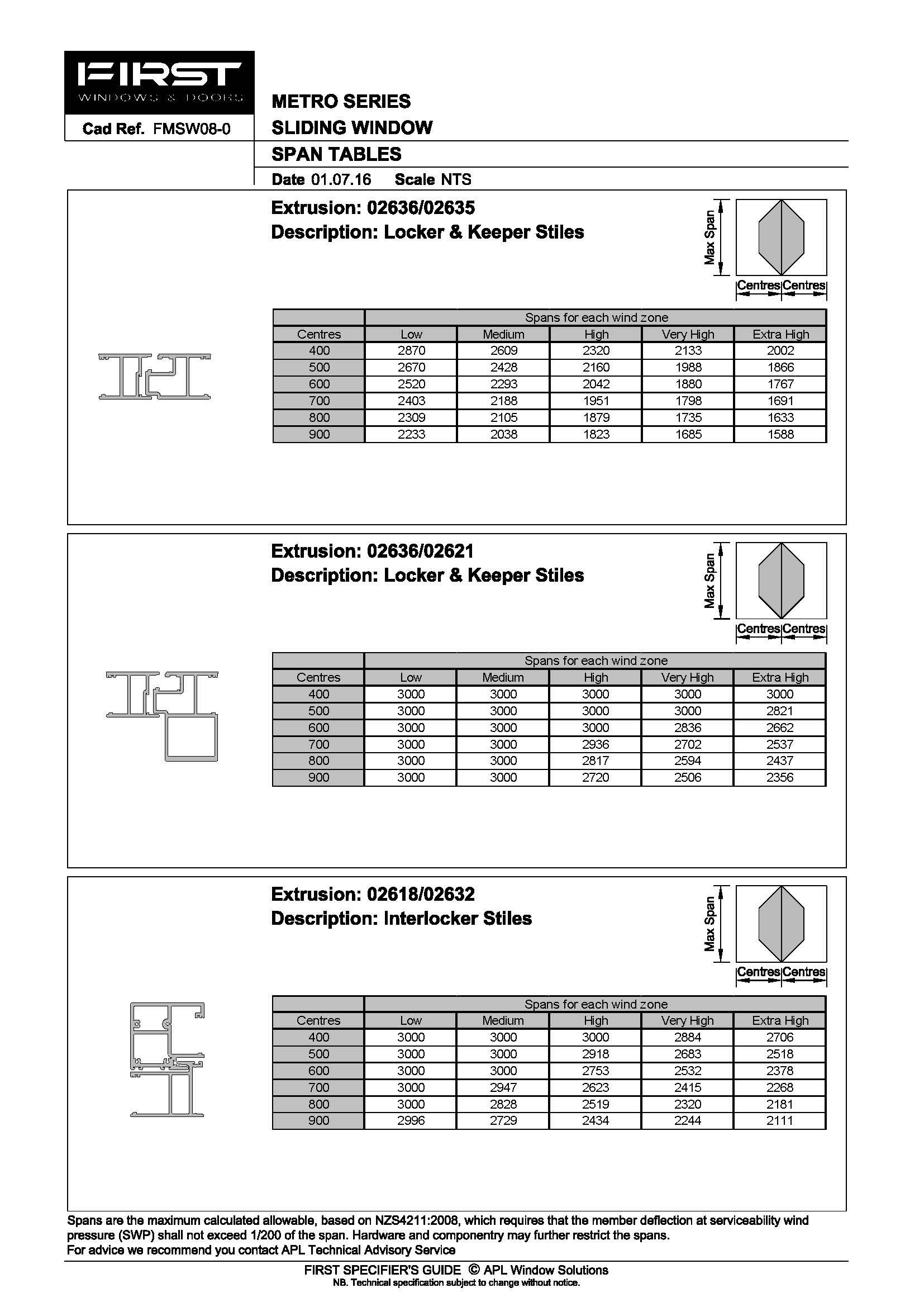

Span Tables
First Care & Maintenance Brochure

2017

Producer Statement / Warranty

2017

Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

FMSW

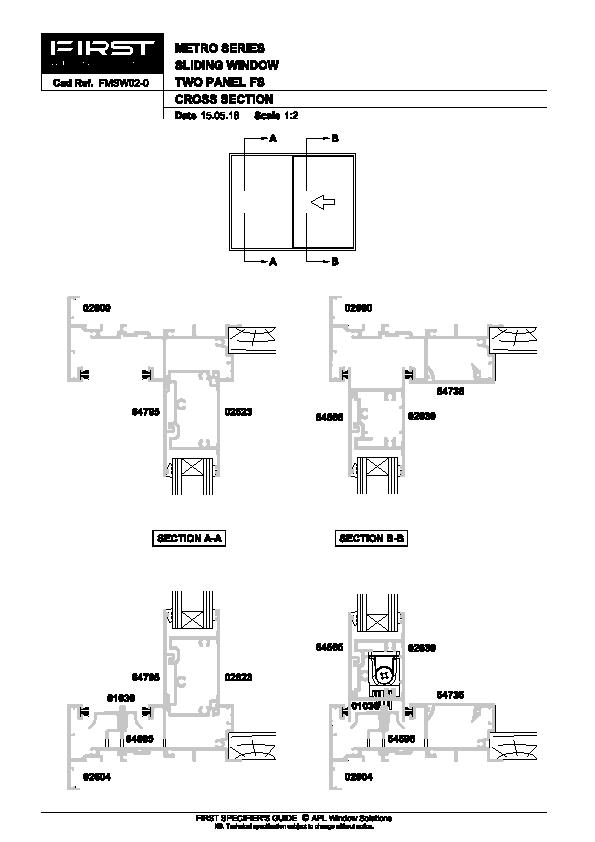

FIRST Metro Series Sliding Window Two Panel SF

FMSW02-0

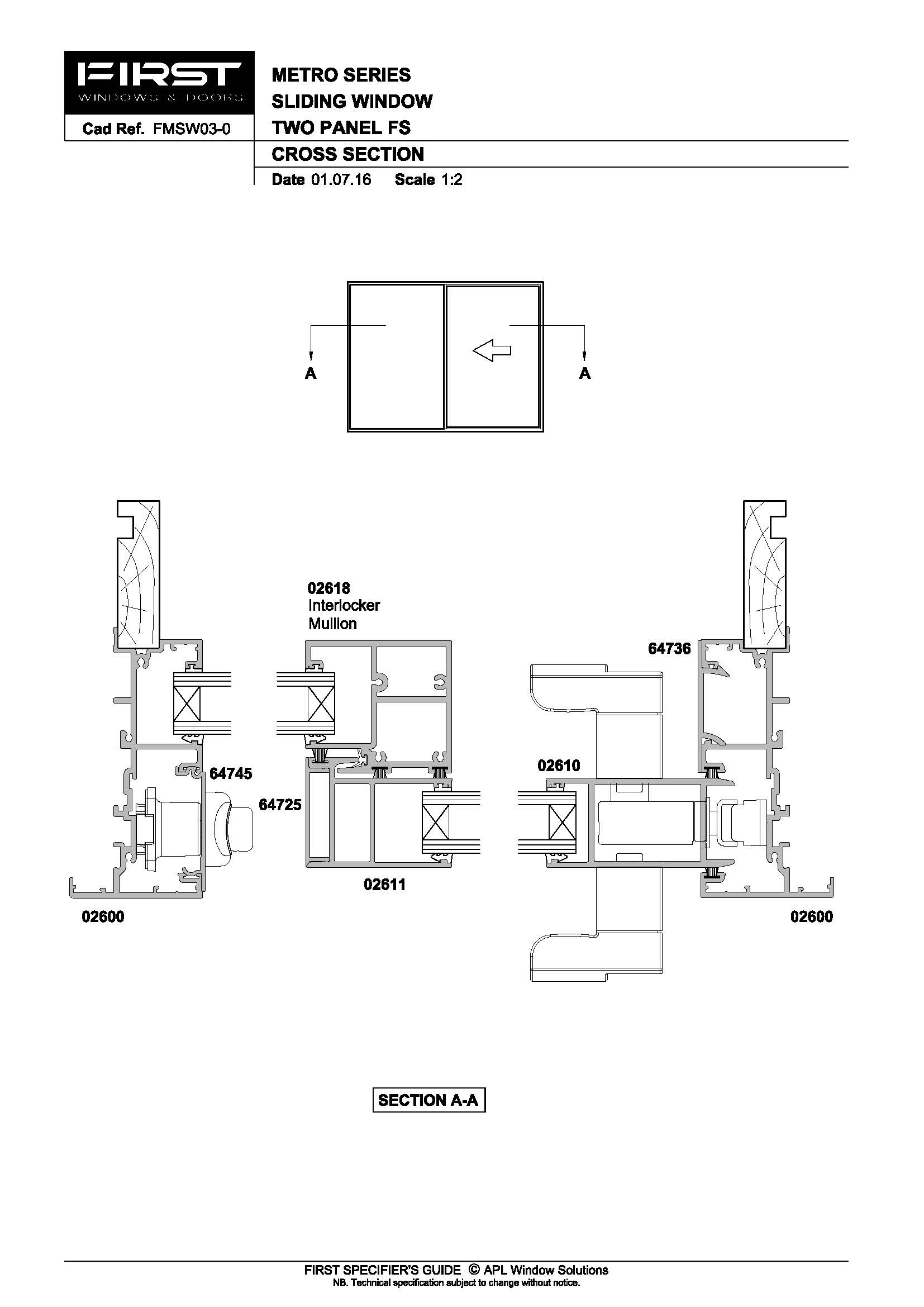

FIRST Metro Series Sliding Window Two Panel SF

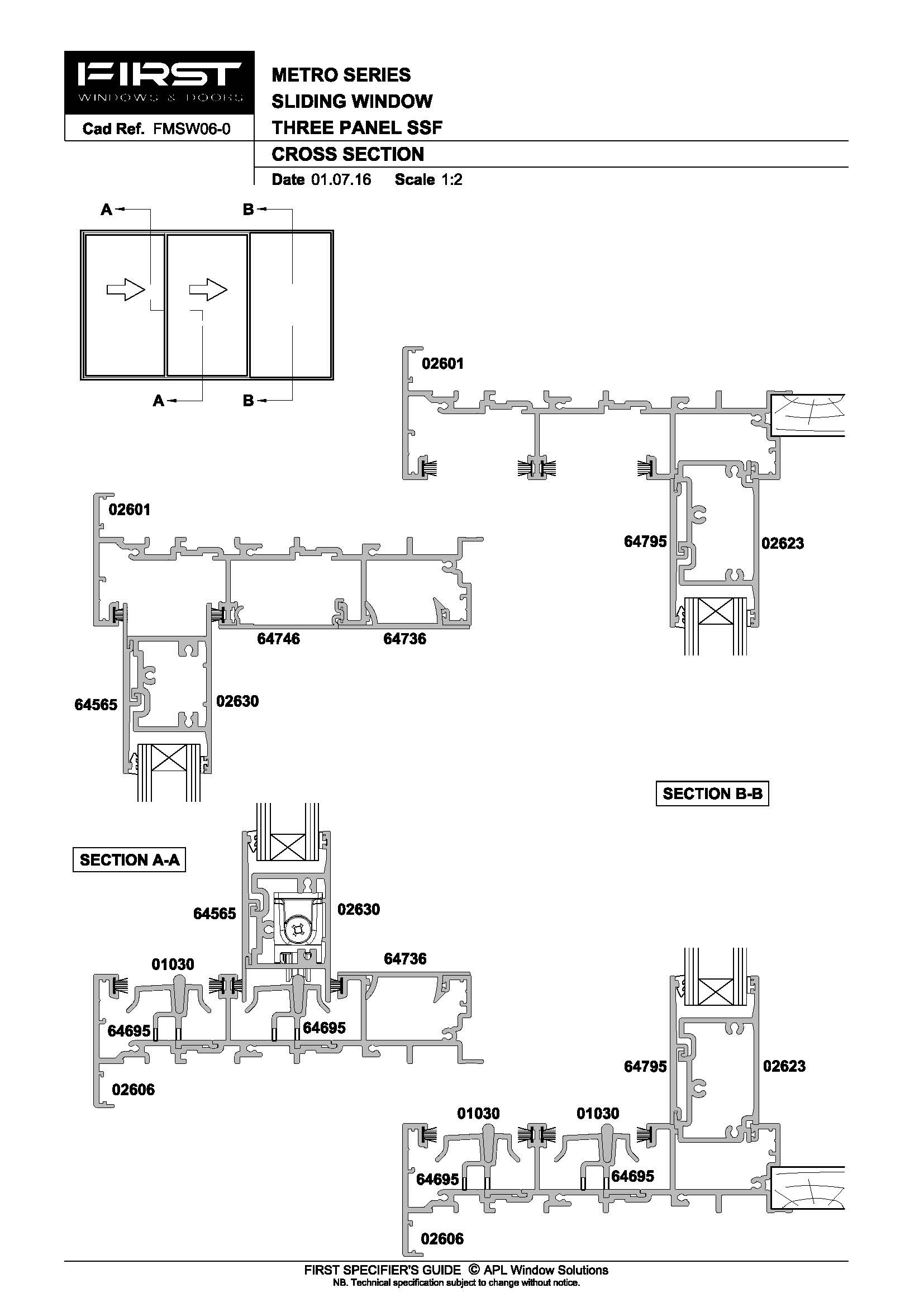

FMSW03-0

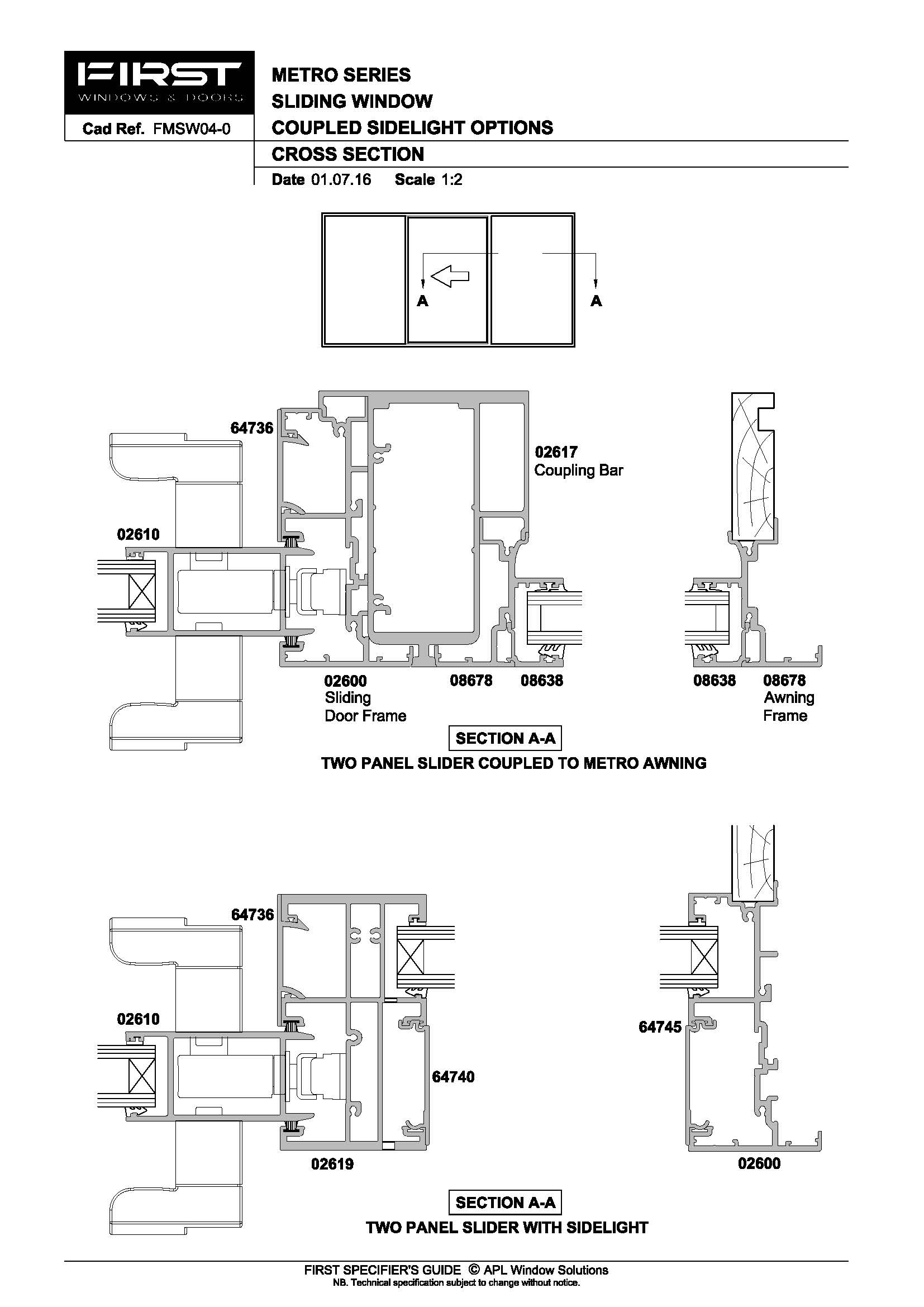

FIRST Metro Series Sliding Window Three Panel SSF

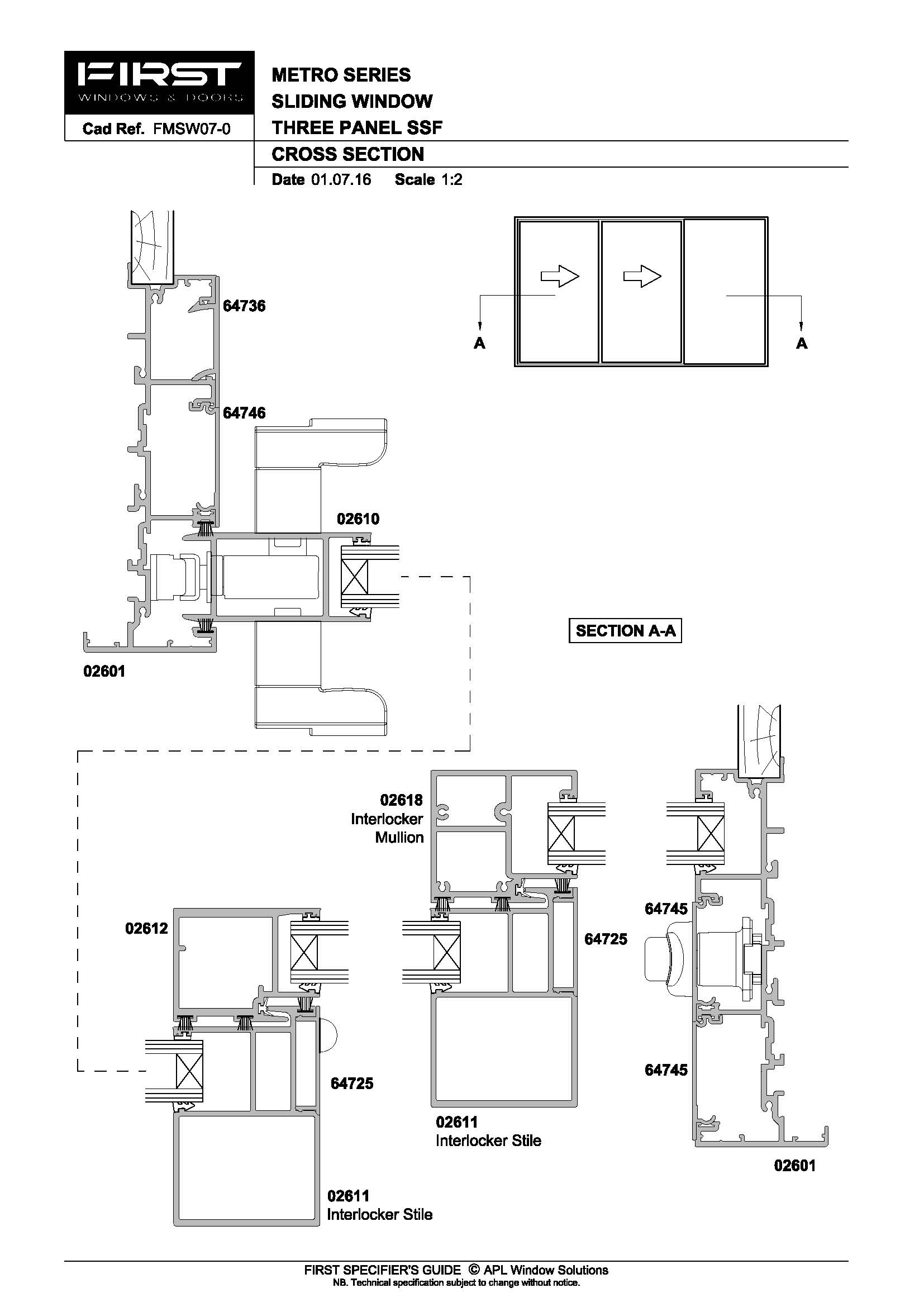

FMSW04-0

FIRST Metro Series Sliding Window Three Panel SSF

FMSW05-0

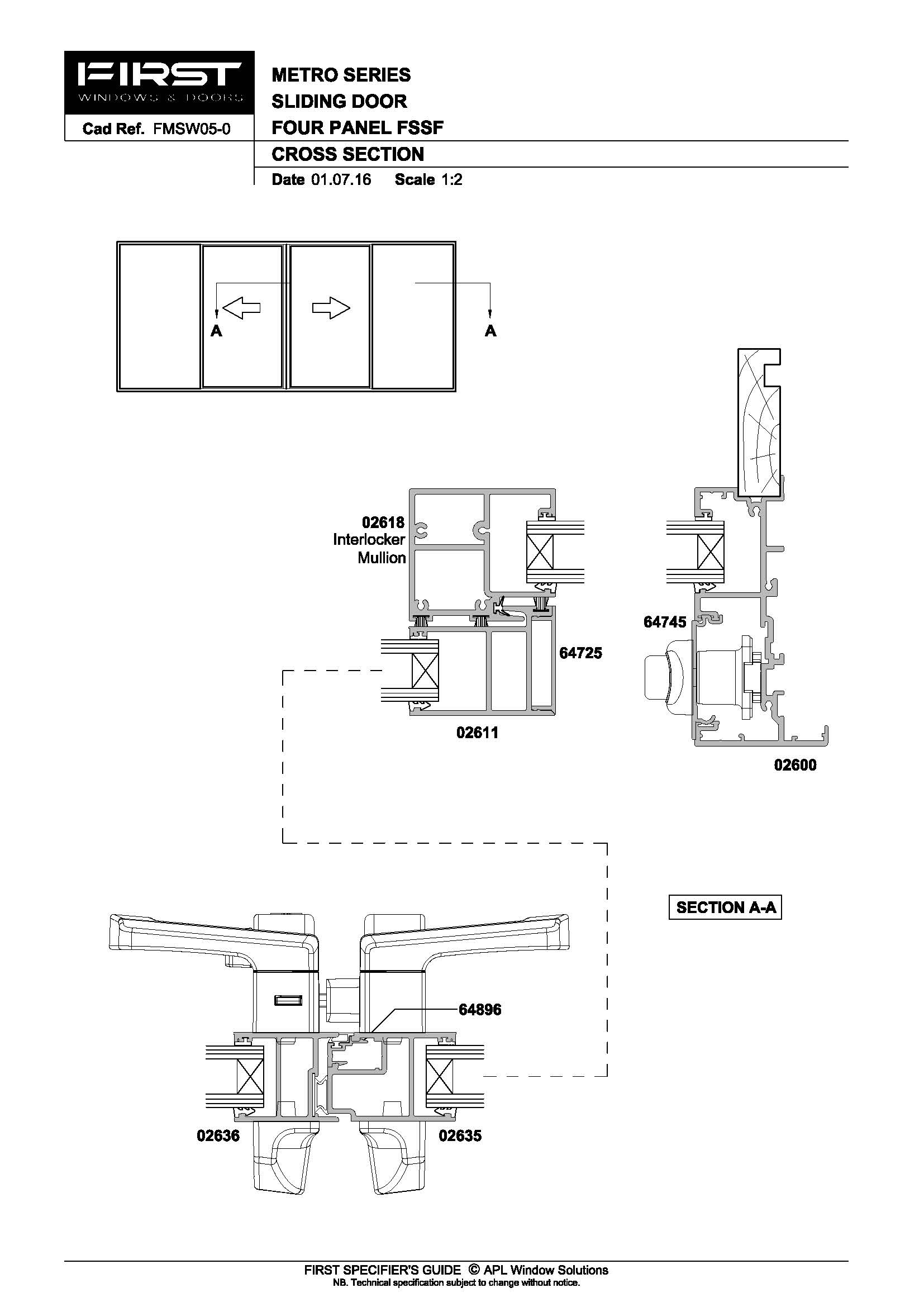

FIRST Metro Series Sliding Window Four Panel FSSF

FMSW06-0

FIRST Metro Series Sliding Window Six Panel FSSSSF

FMSW07-0

Installation Details

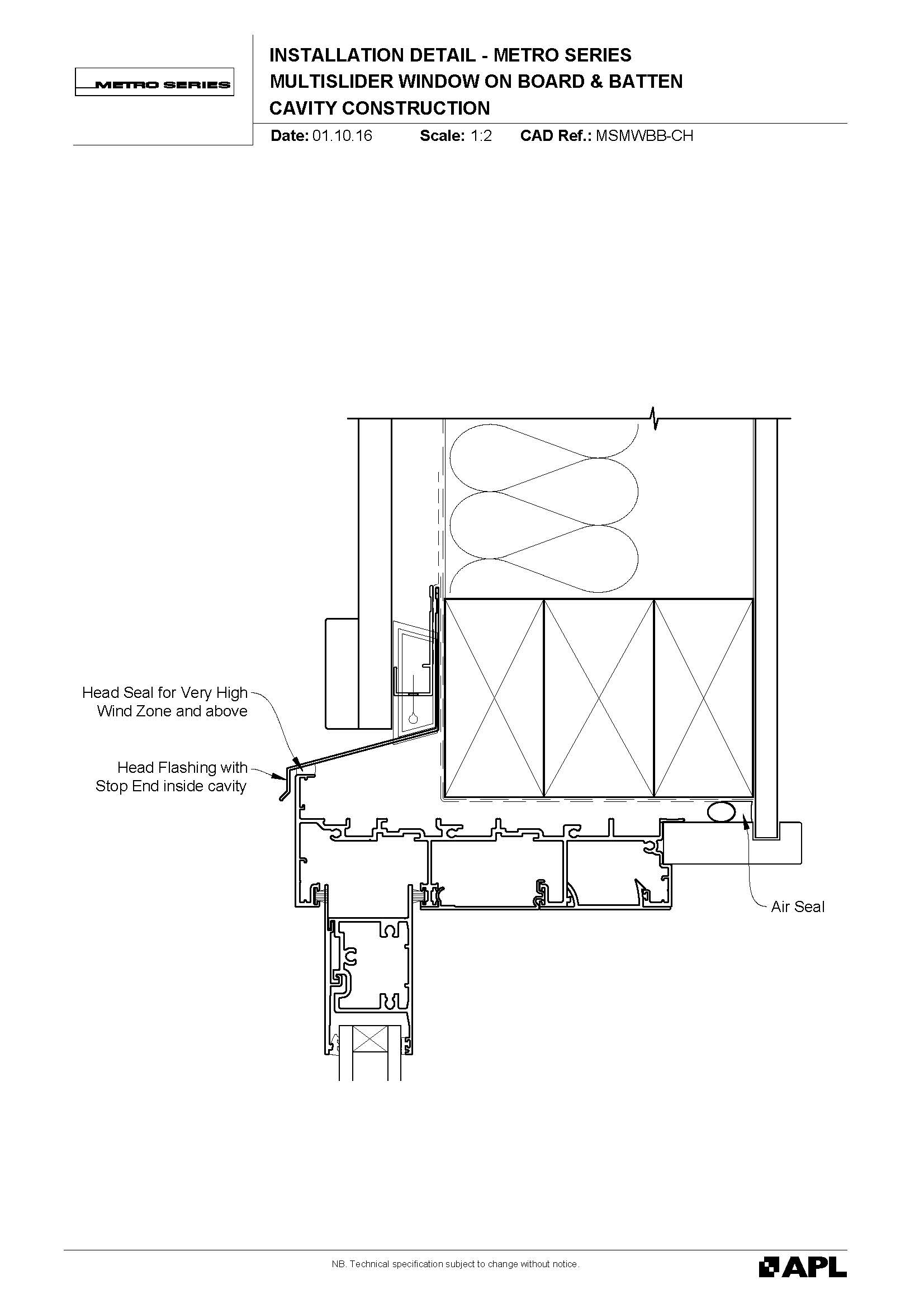

FIRST Metro Series Multislider Window on Board and Batten

MSMWBB

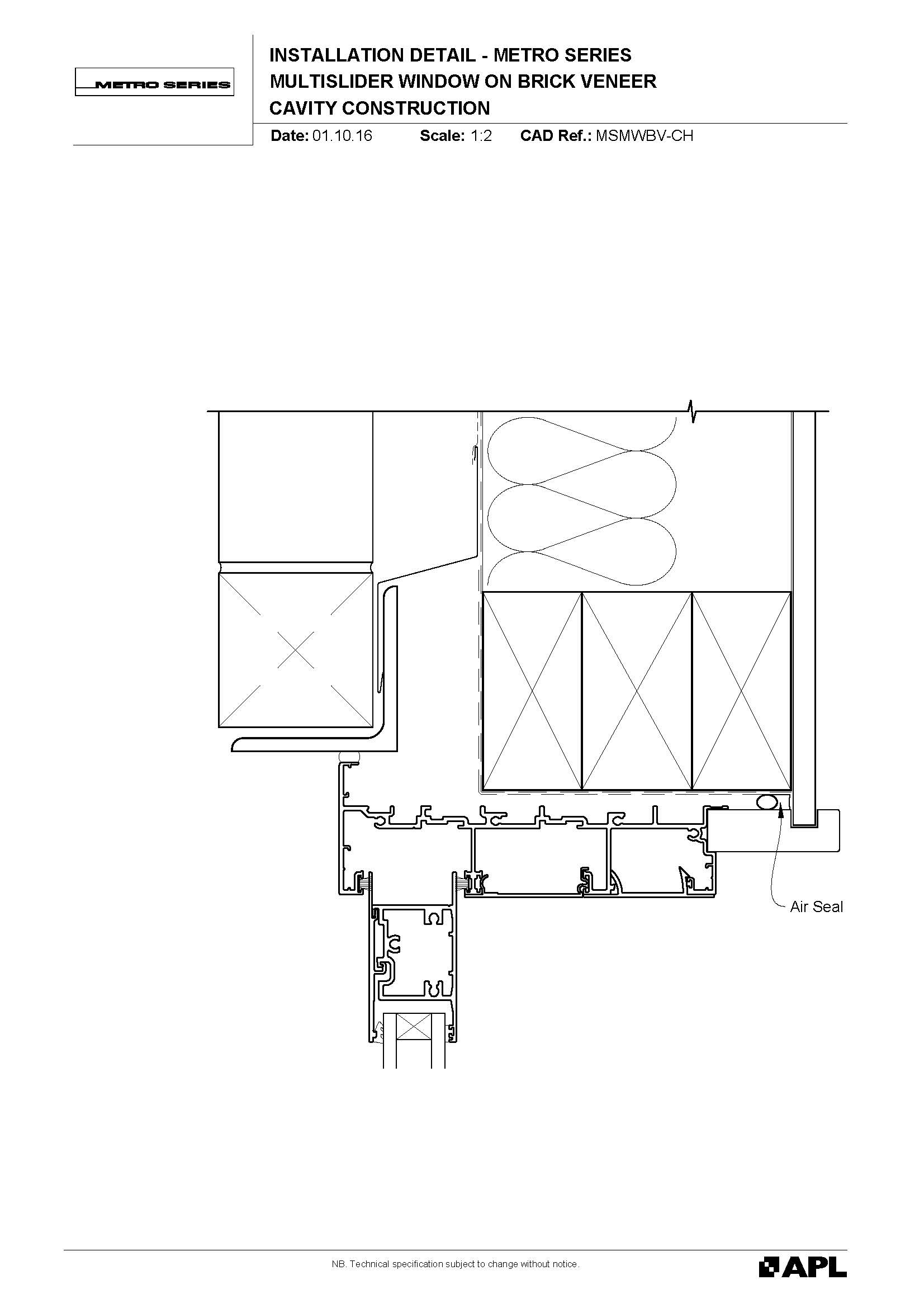

FIRST Metro Series Multislider Window on Brick Veneer

MSMWBV

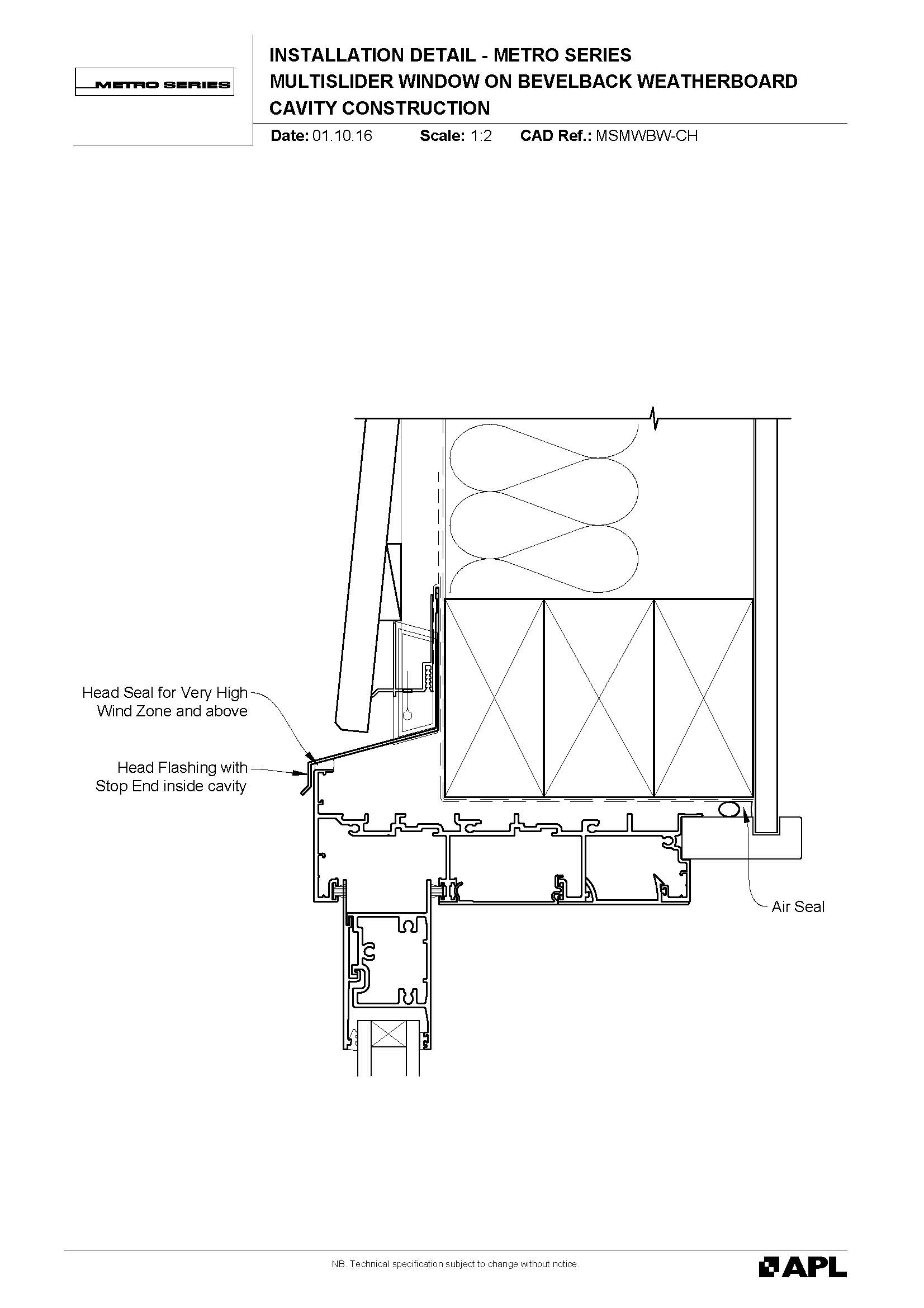

FIRST Metro Series Multislider Window on Bevelback Weatherboard

MSMWBW

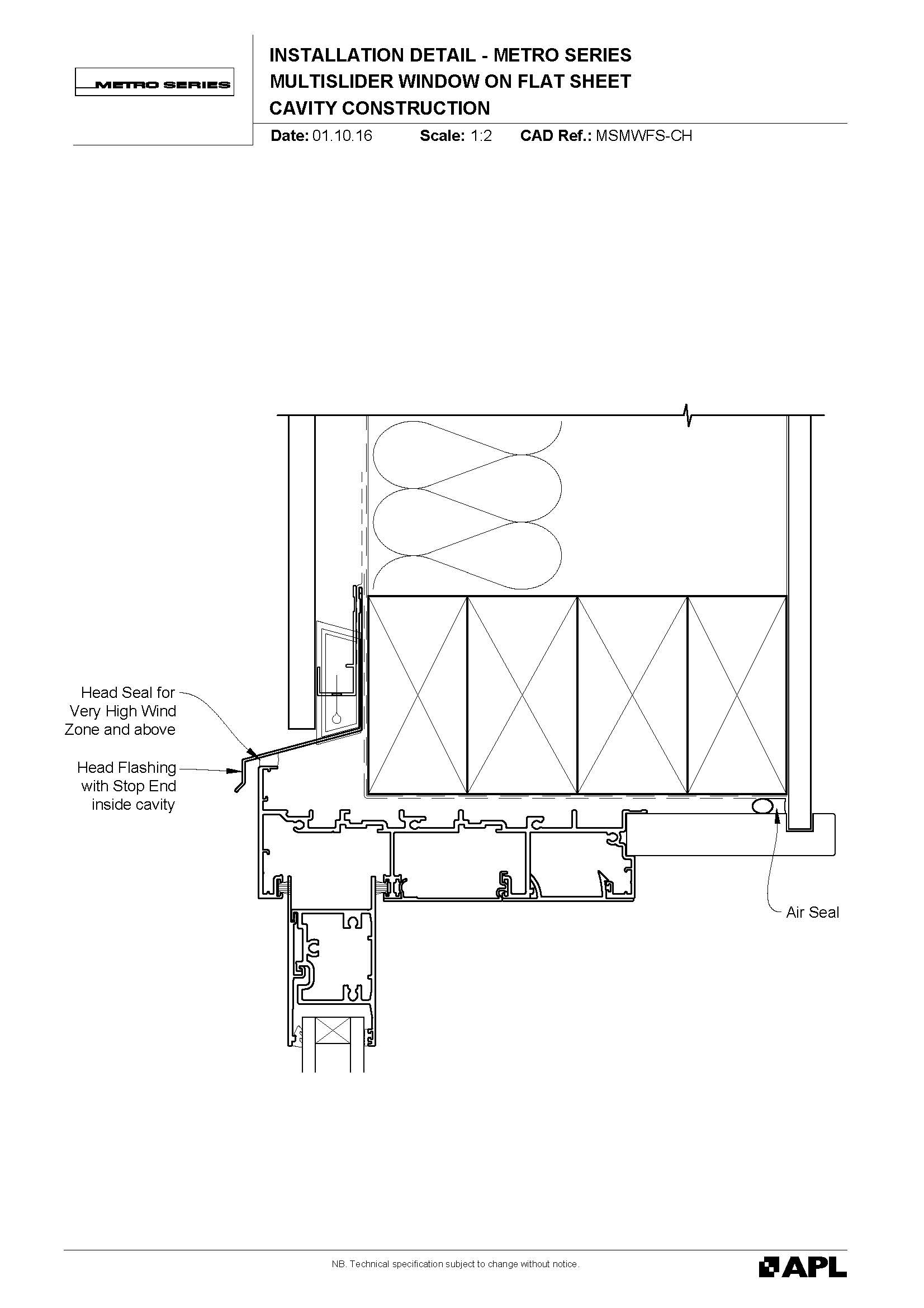

FIRST Metro Series Multislider Window on Flat Sheet

MSMWFS

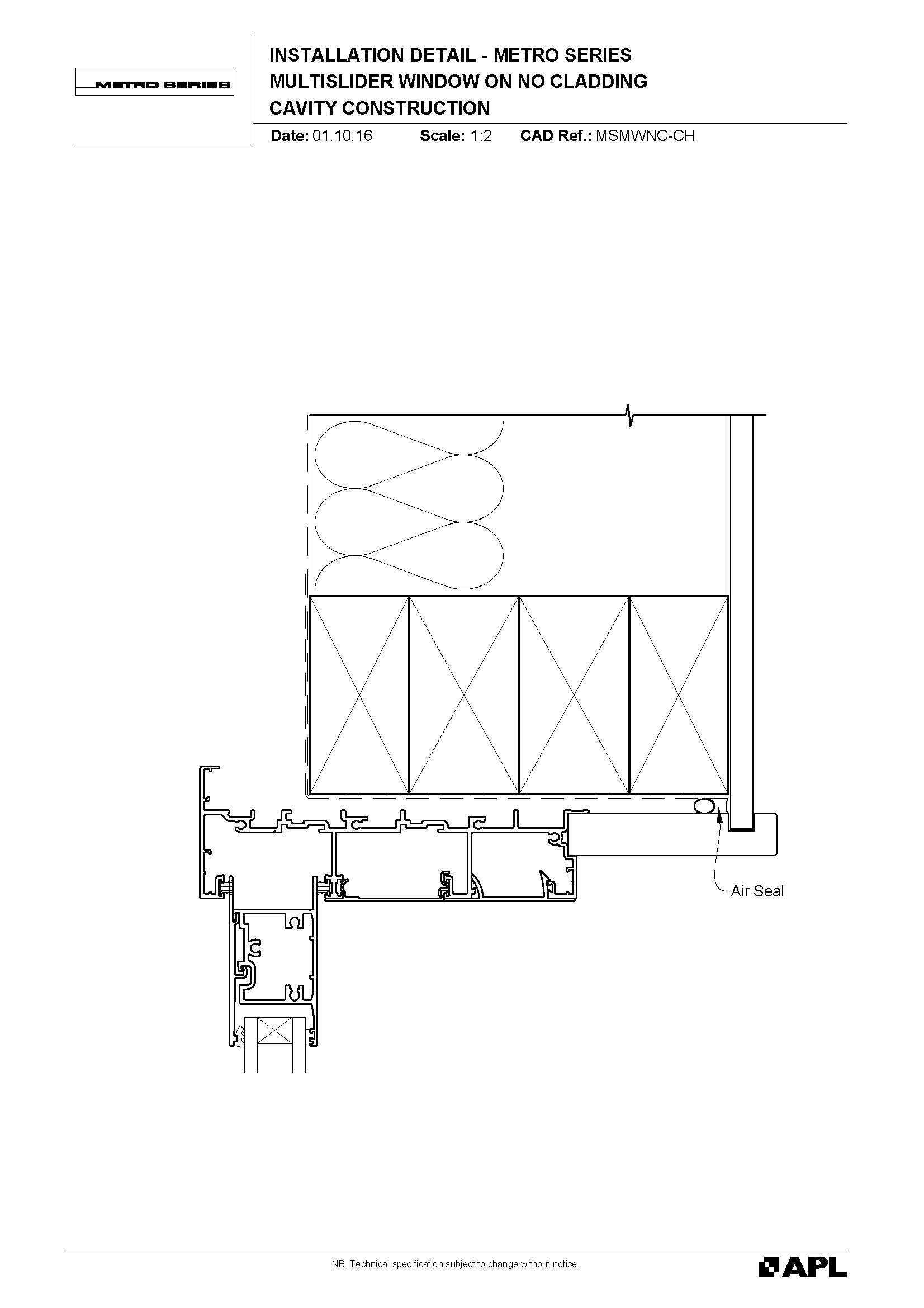

FIRST Metro Series Multislider Window on No Cladding

MSMWNC

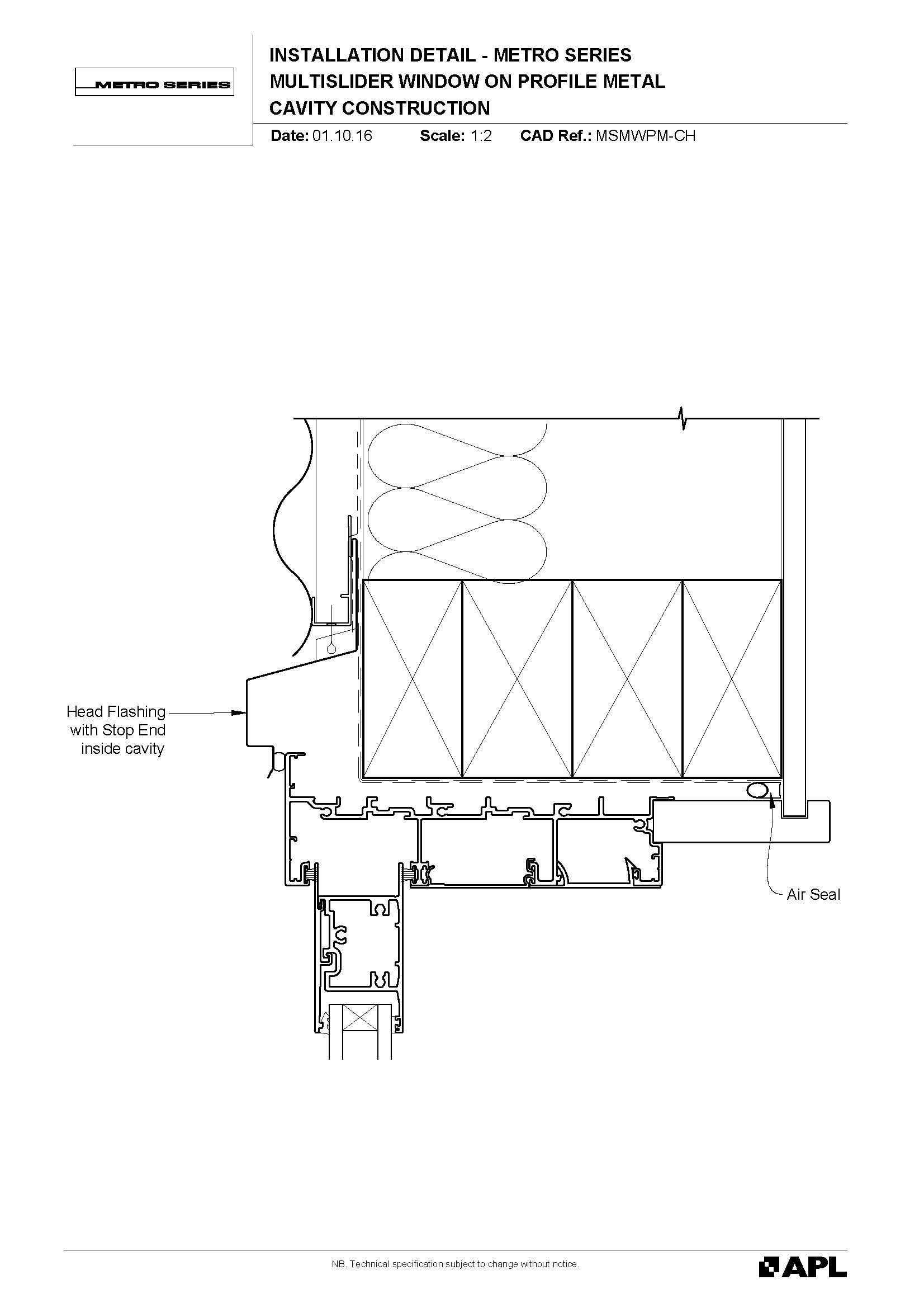

FIRST Metro Series Multislider Window on Profile Metal

MSMWPM

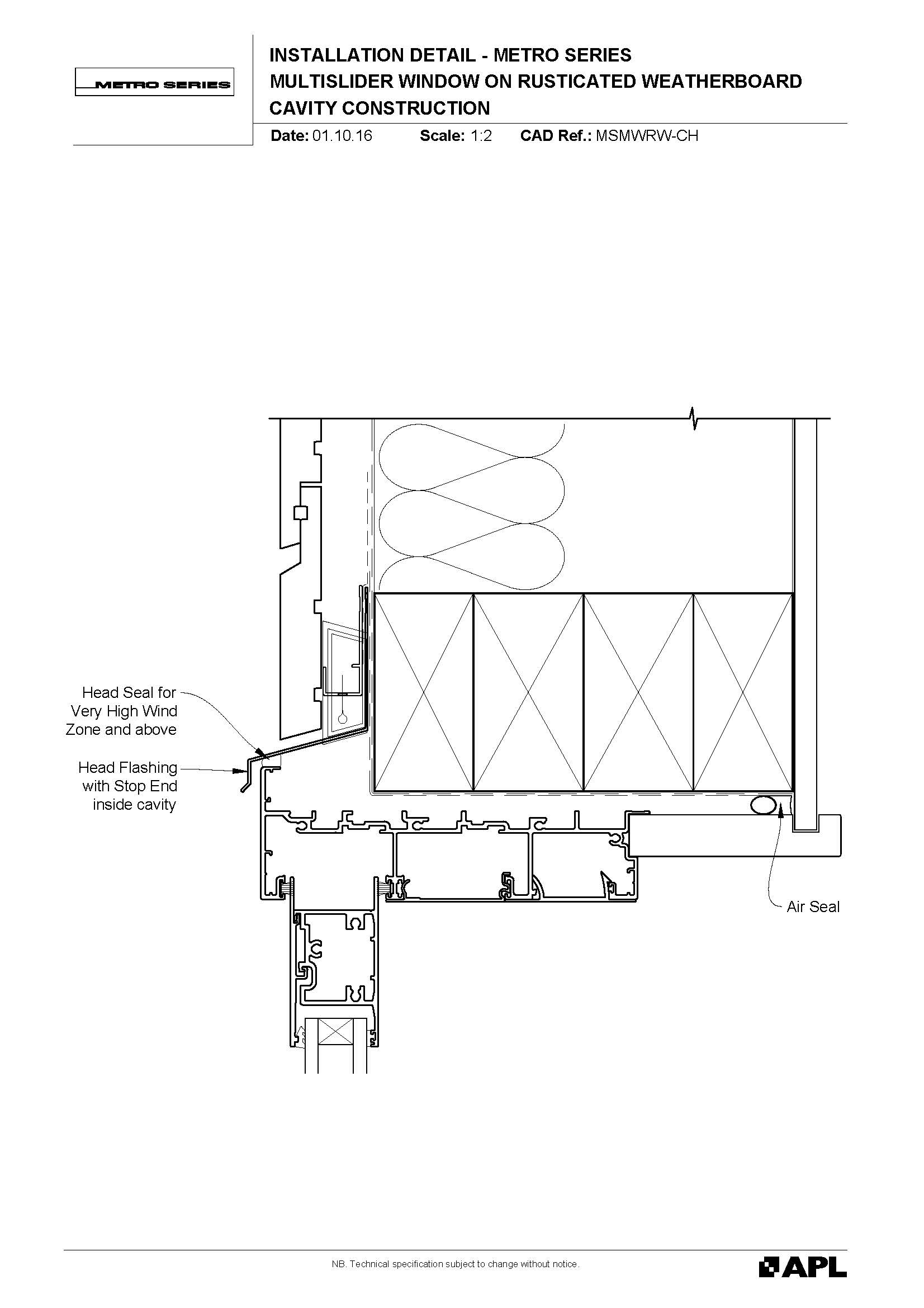

FIRST Metro Series Multislider Window on Rusticated Weatherboard

MSMWRW

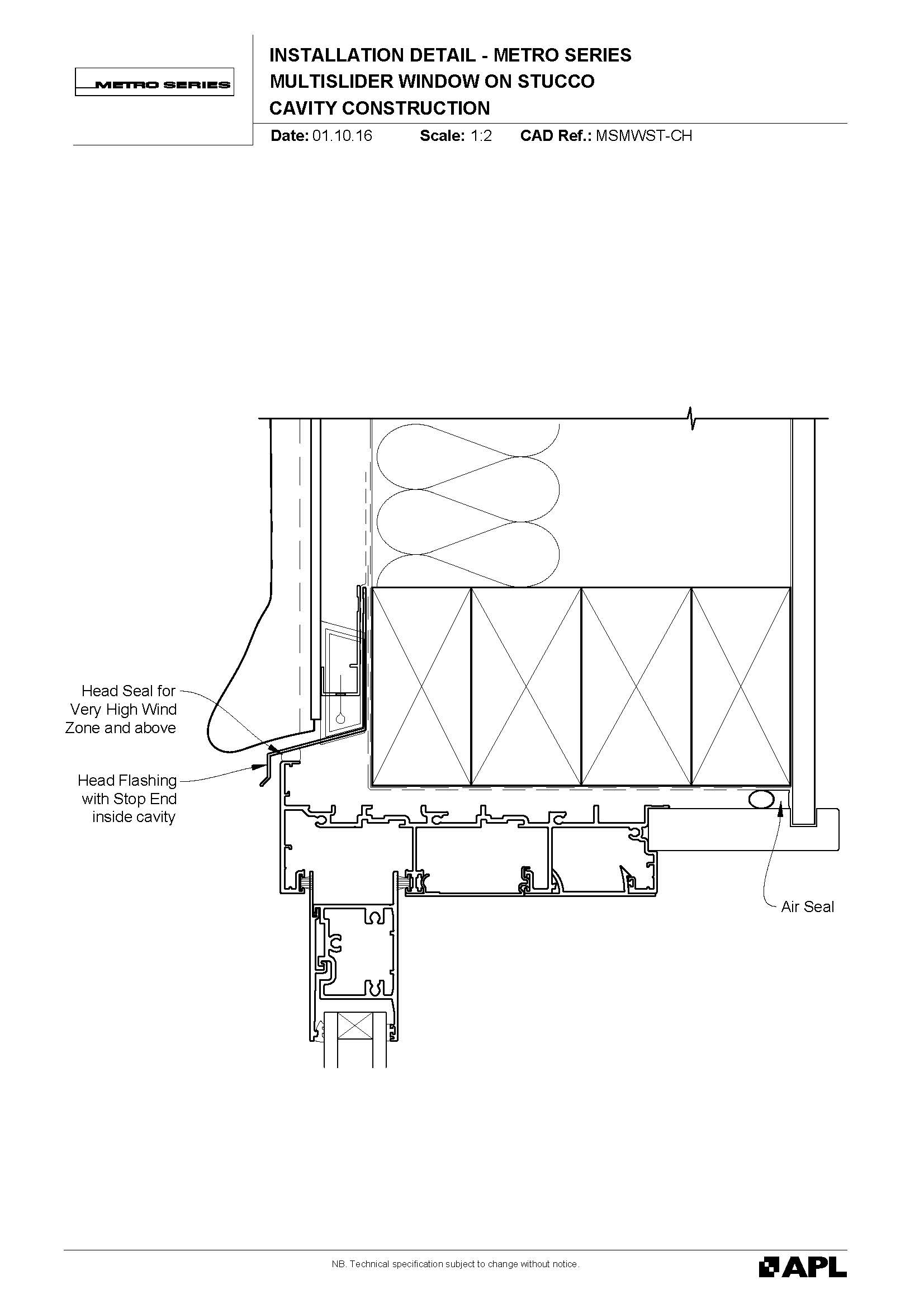

FIRST Metro Series Multislider Window on Stucco

MSMWST

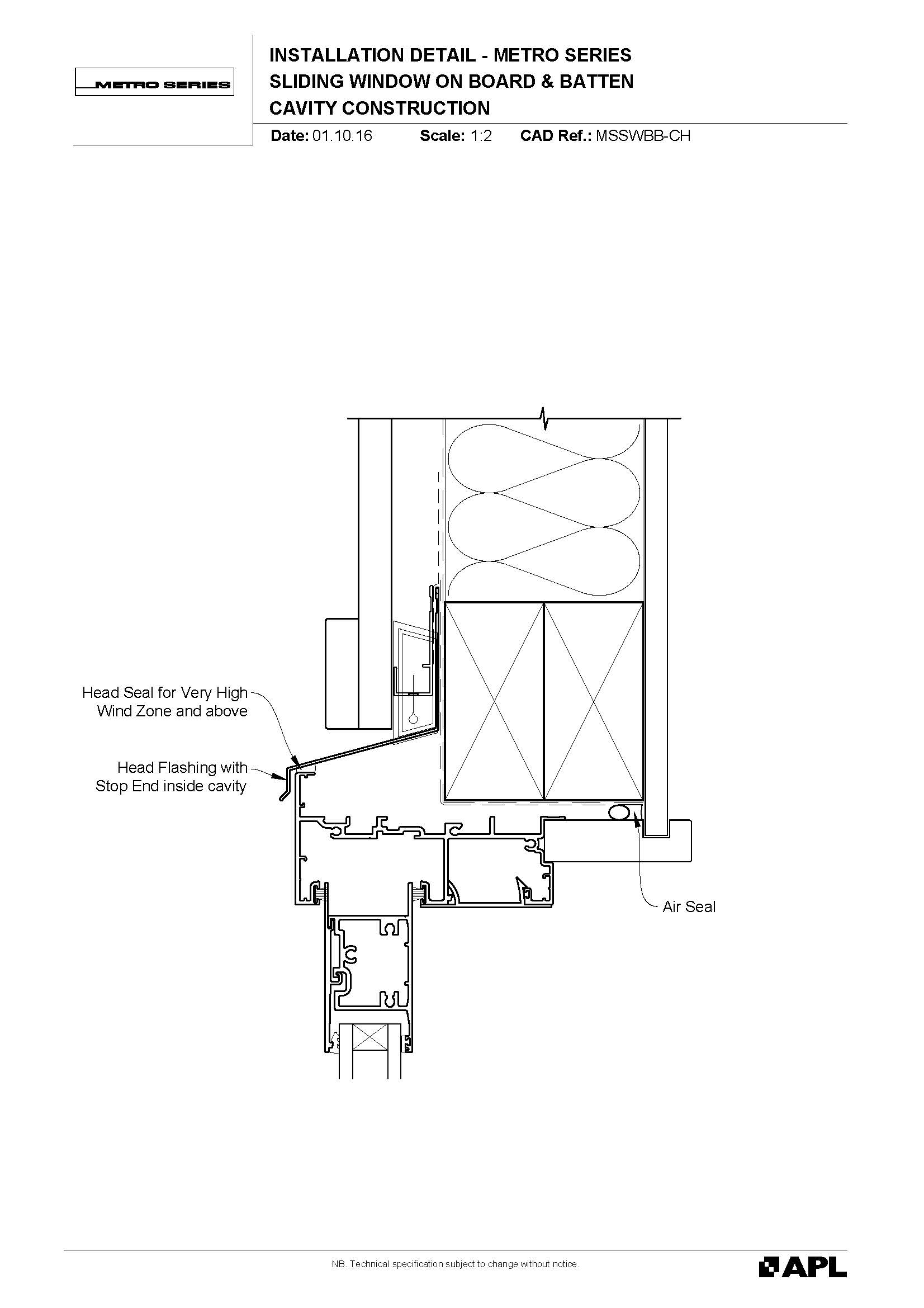

FIRST Metro Series Sliding Window on Board and Batten

MSSWBB

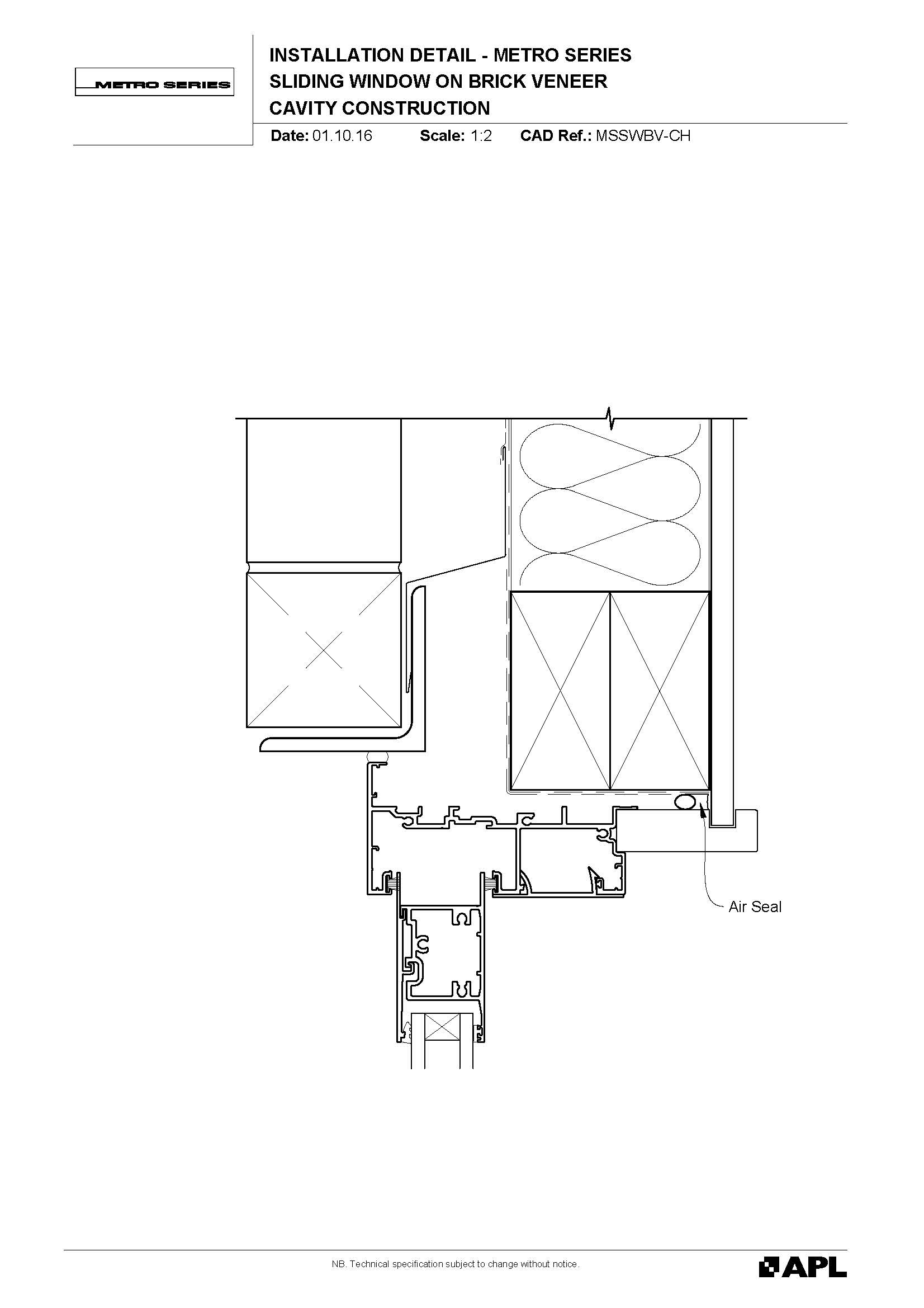

FIRST Metro Series Sliding Window on Brick Veneer

MSSWBV

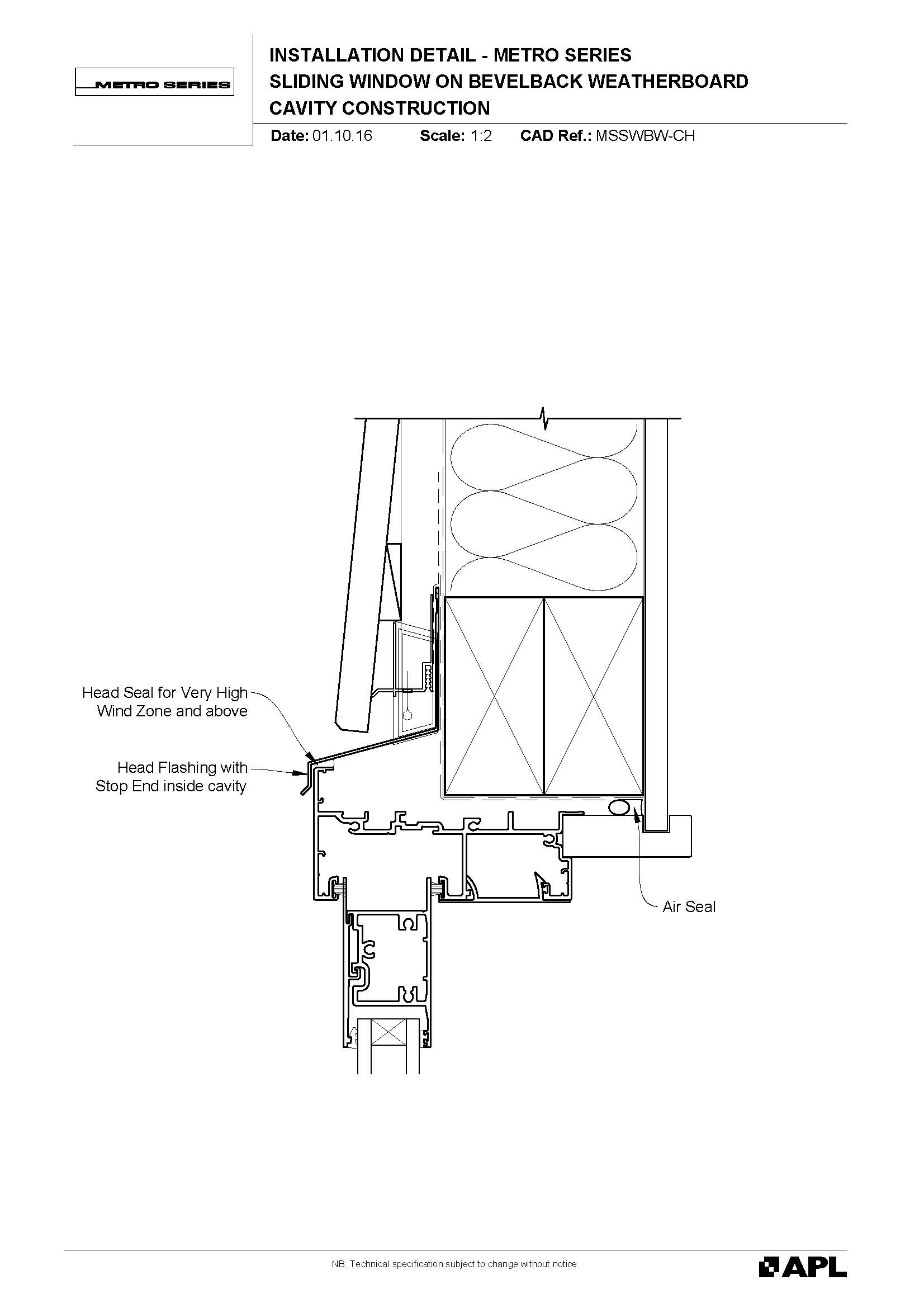

FIRST Metro Series Sliding Window on Bevelback Weatherboard

MSSWBW

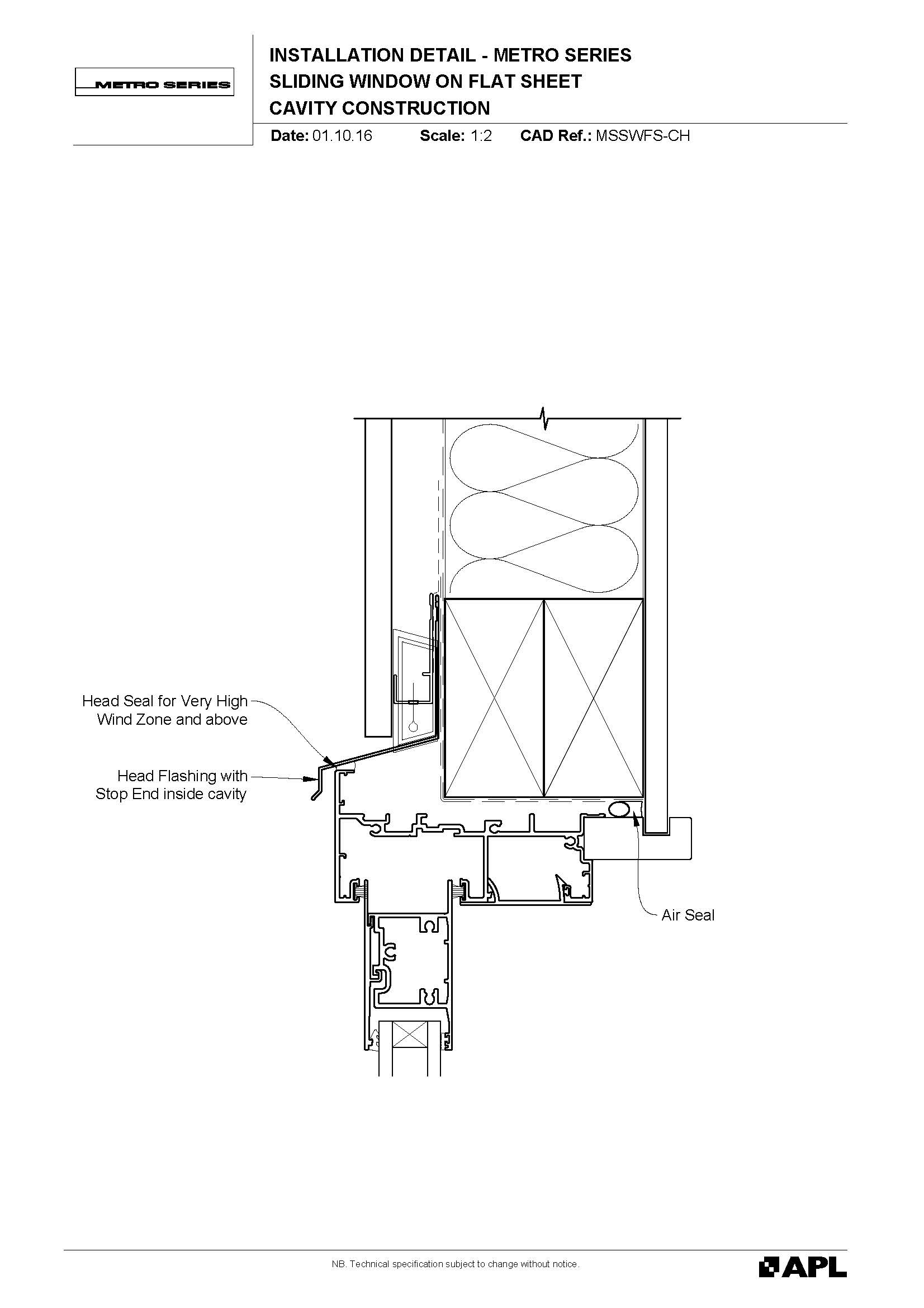

FIRST Metro Series Sliding Window on Flat Sheet

MSSWFS

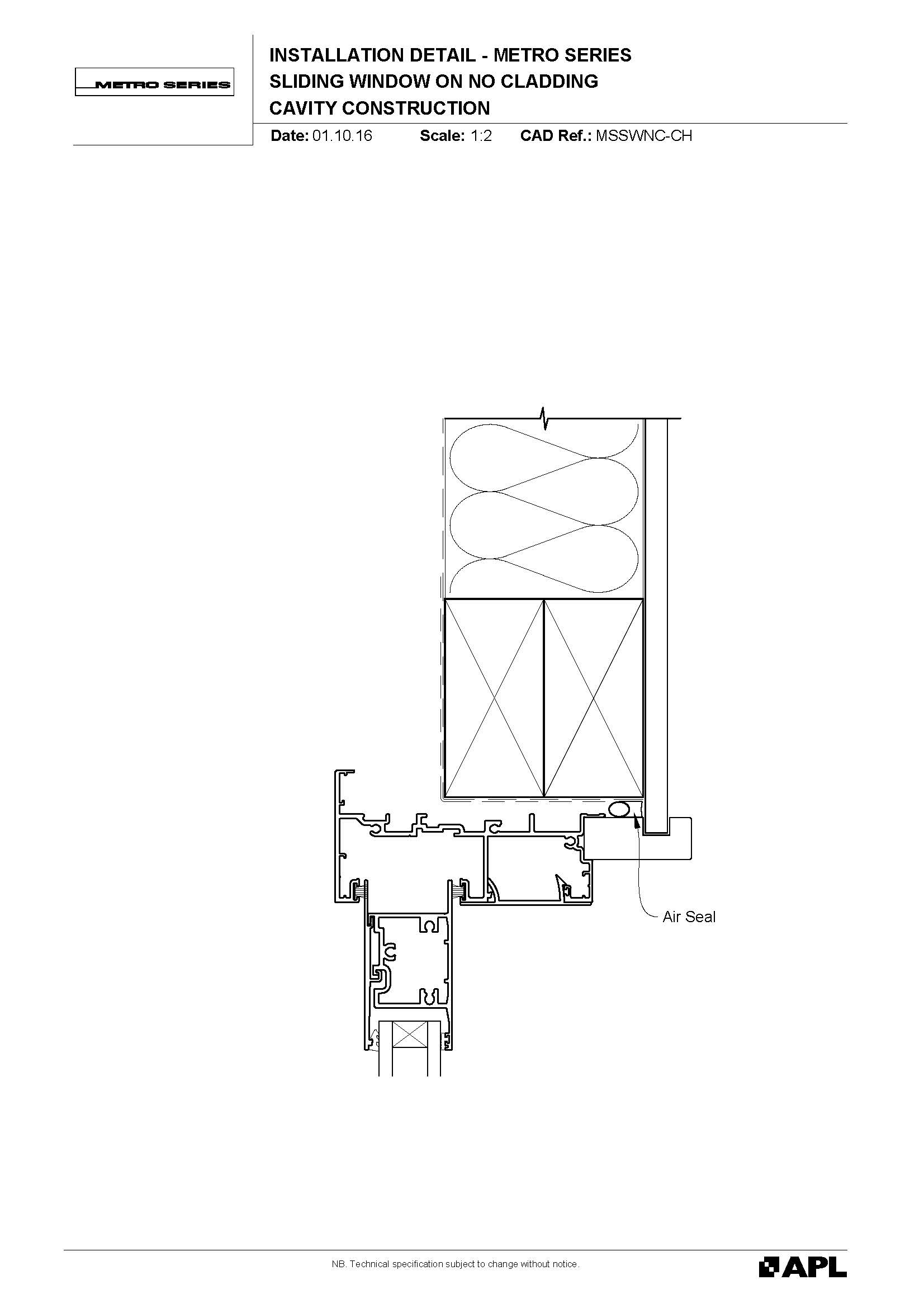

FIRST Metro Series Sliding Window on No Cladding

MSSWNC

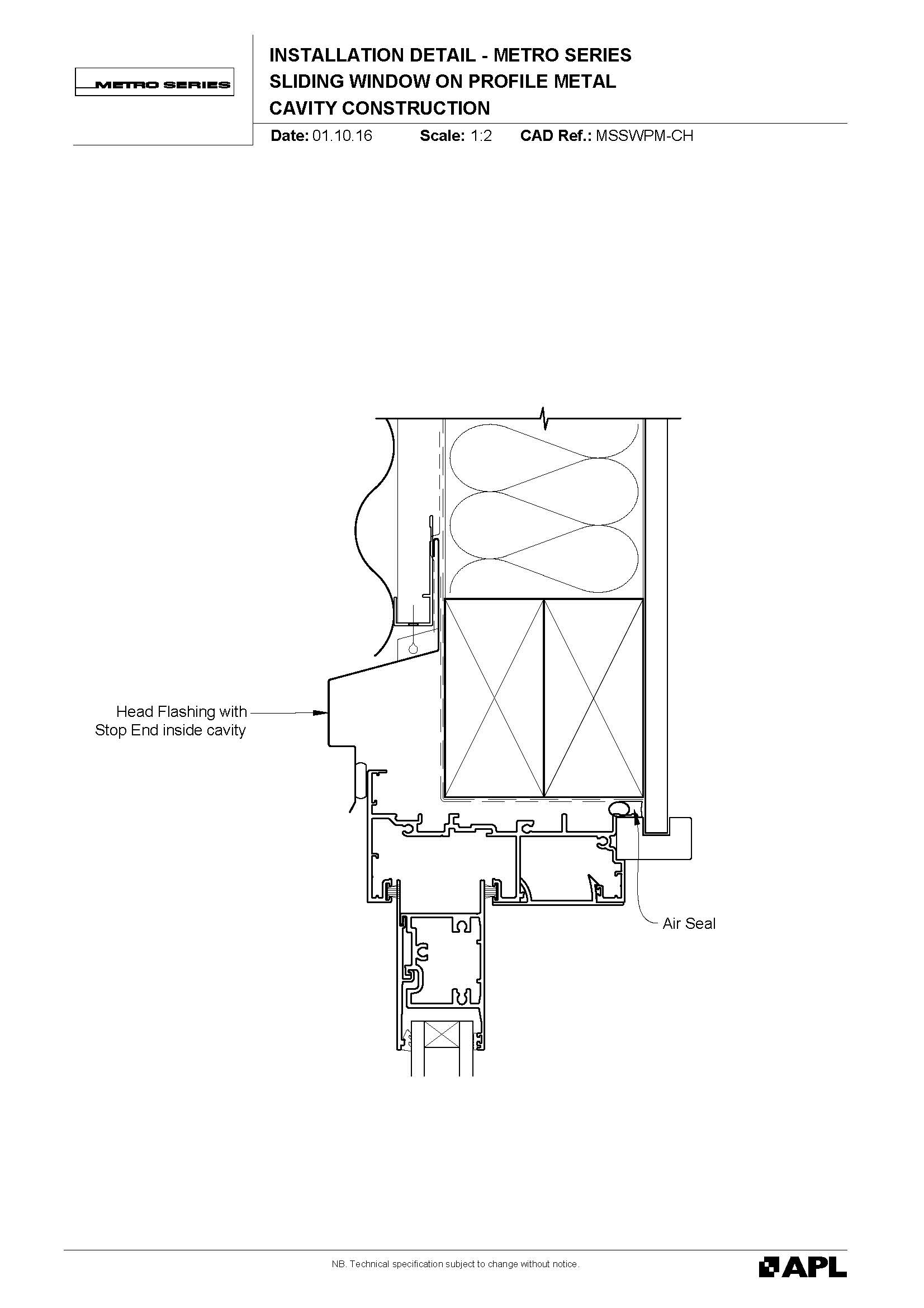

FIRST Metro Series Sliding Window on Profile Metal

MSSWPM

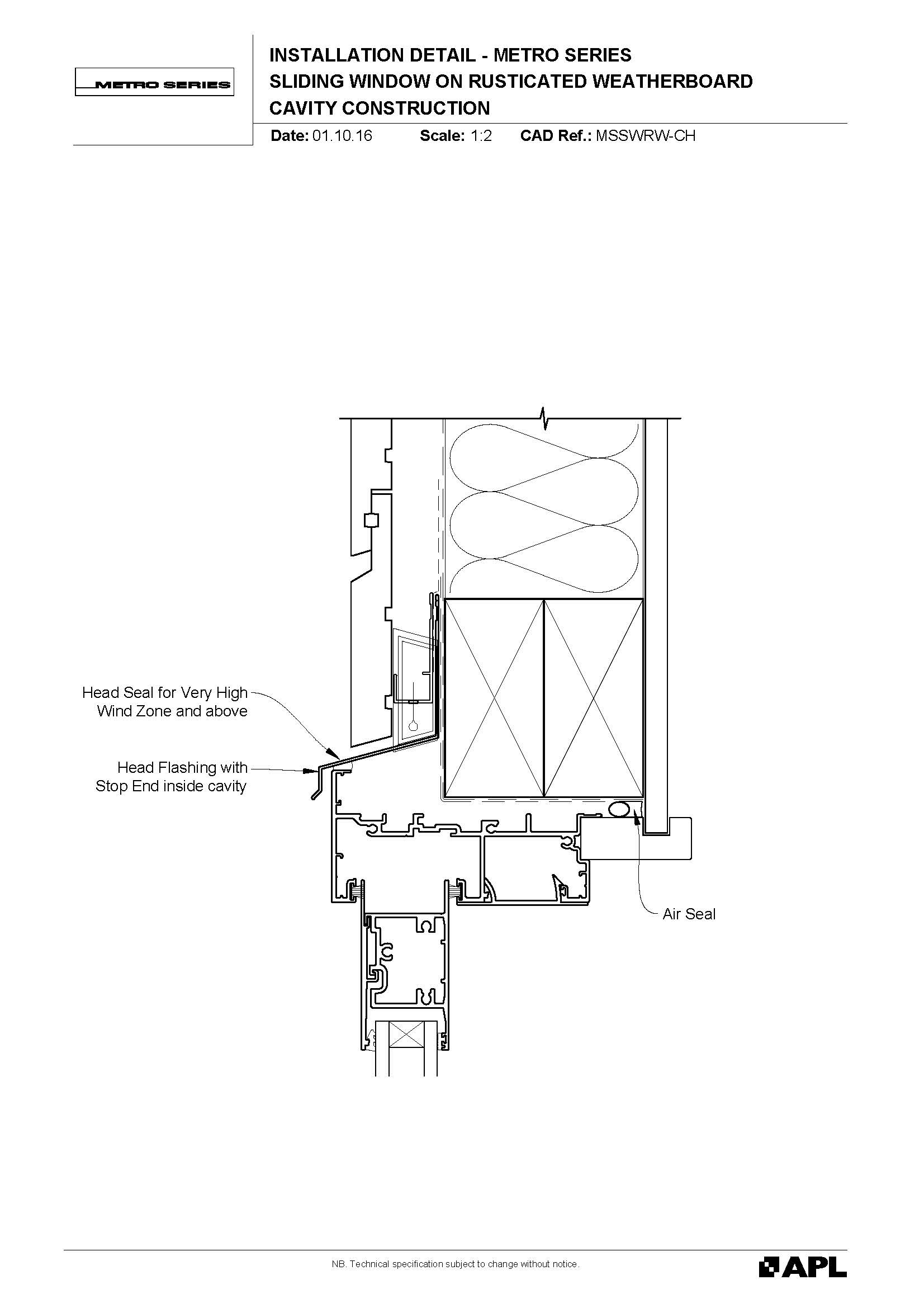

FIRST Metro Series Sliding Window on Rusticated Weatherboard

MSSWRW

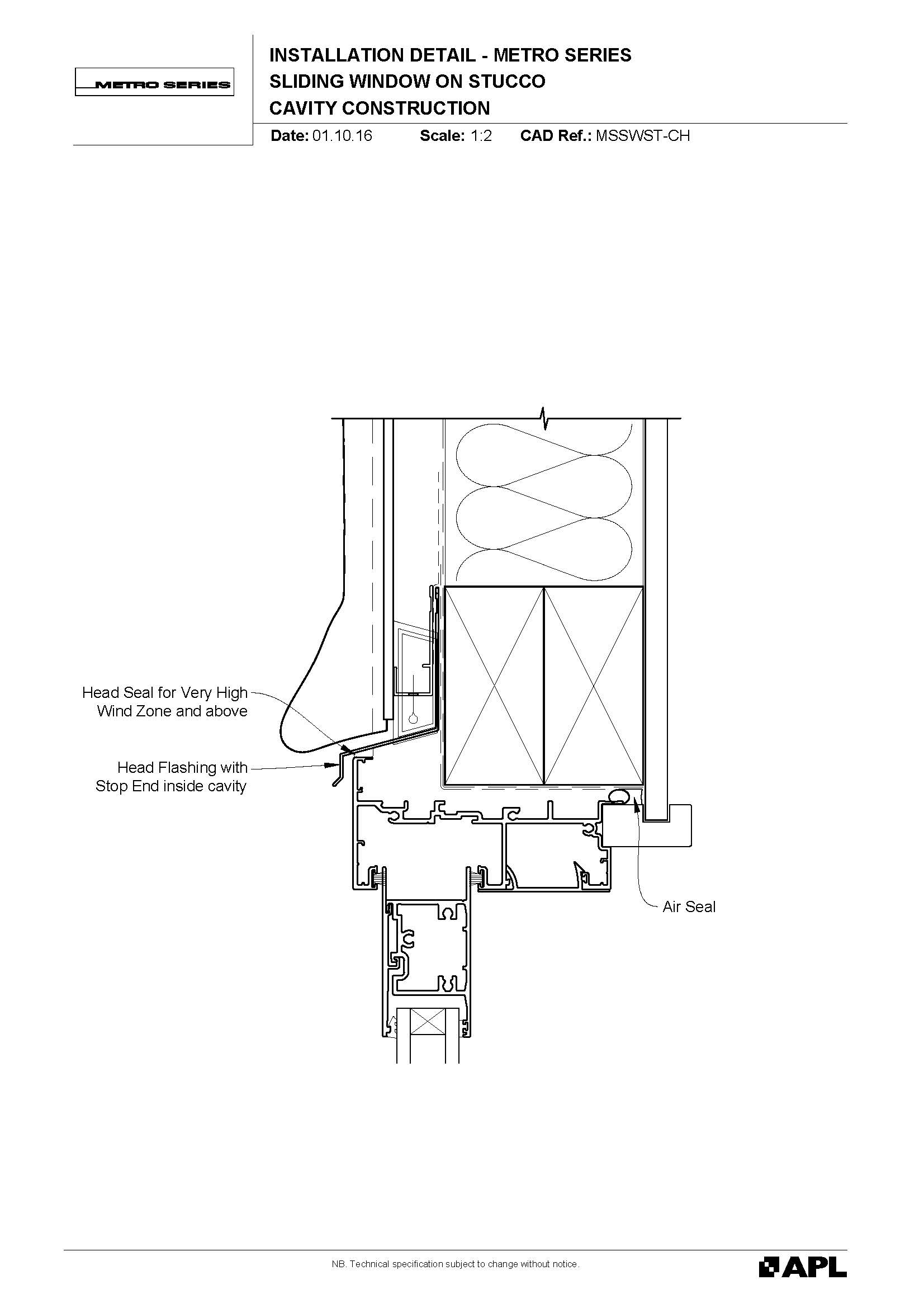

FIRST Metro Series Sliding Window on Stucco

MSSWST

BIM

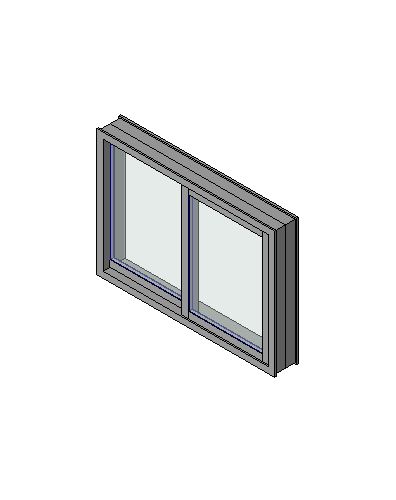

FIRST Metro Series Sliding Window FS

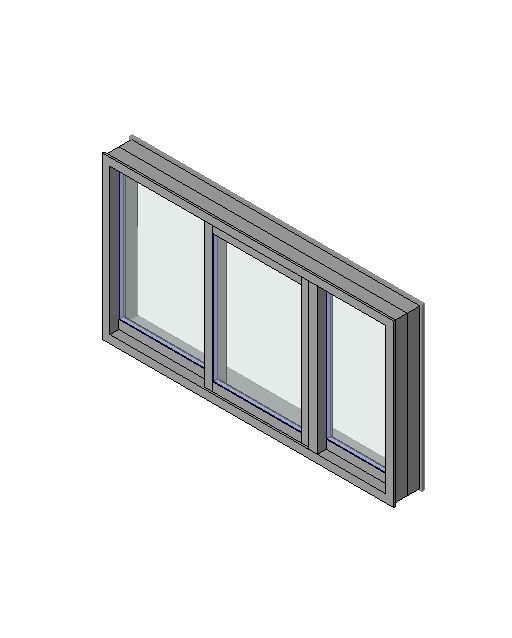

FIRST Metro Series Sliding Window FSF

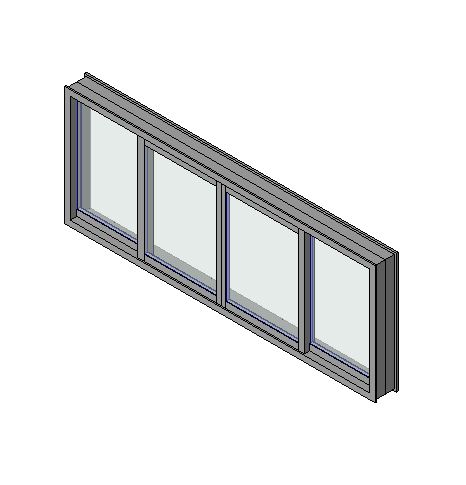

FIRST Metro Series Sliding Window FSSF

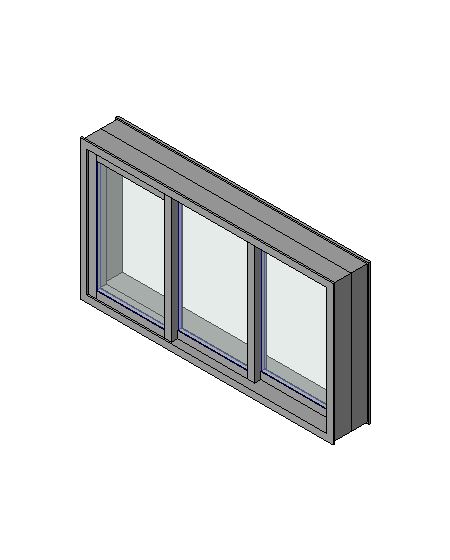

FIRST Metro Series Sliding Window SSF
