Metro Series Bi-Fold Doors & Windows

FIRST Windows & Doors

All products

Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

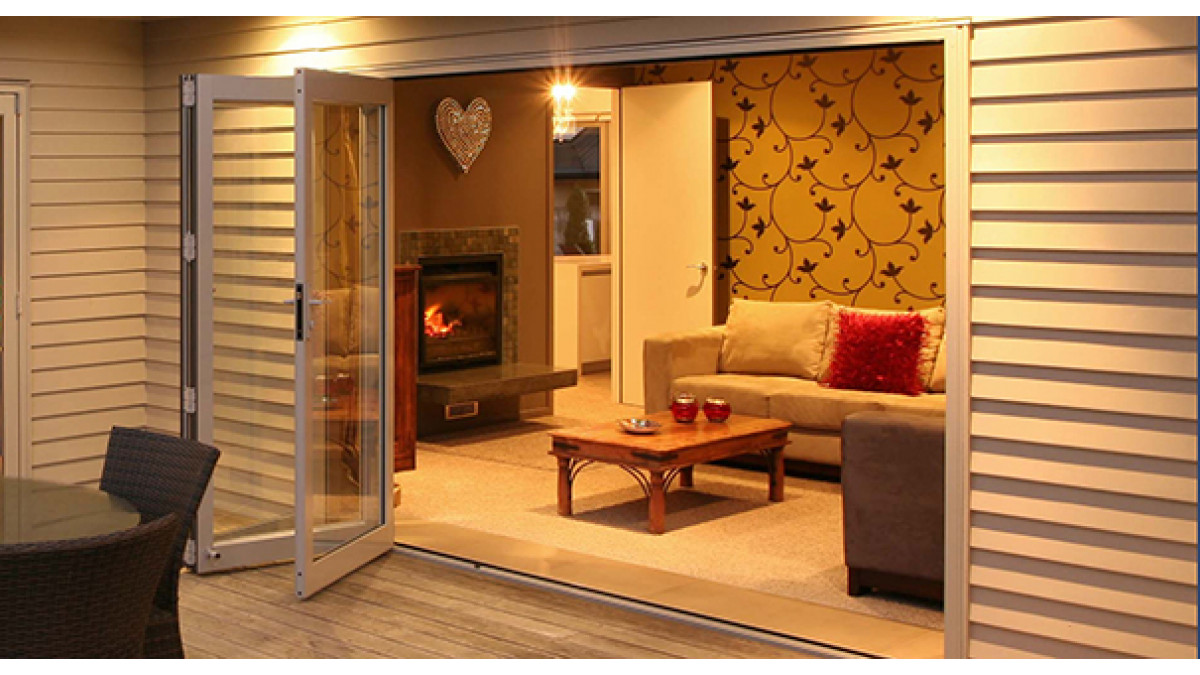

Bifold doors completely open up for non-interrupted views

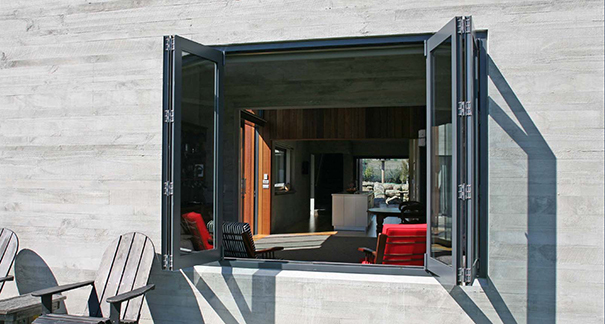

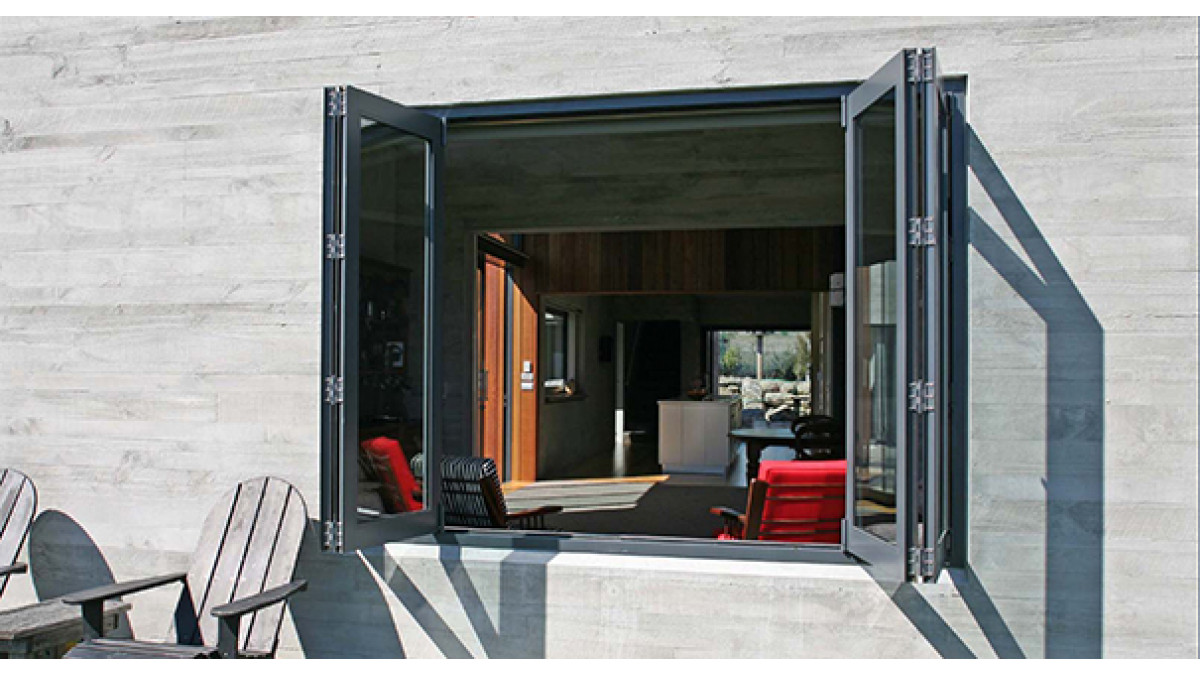

Living room bifold windows

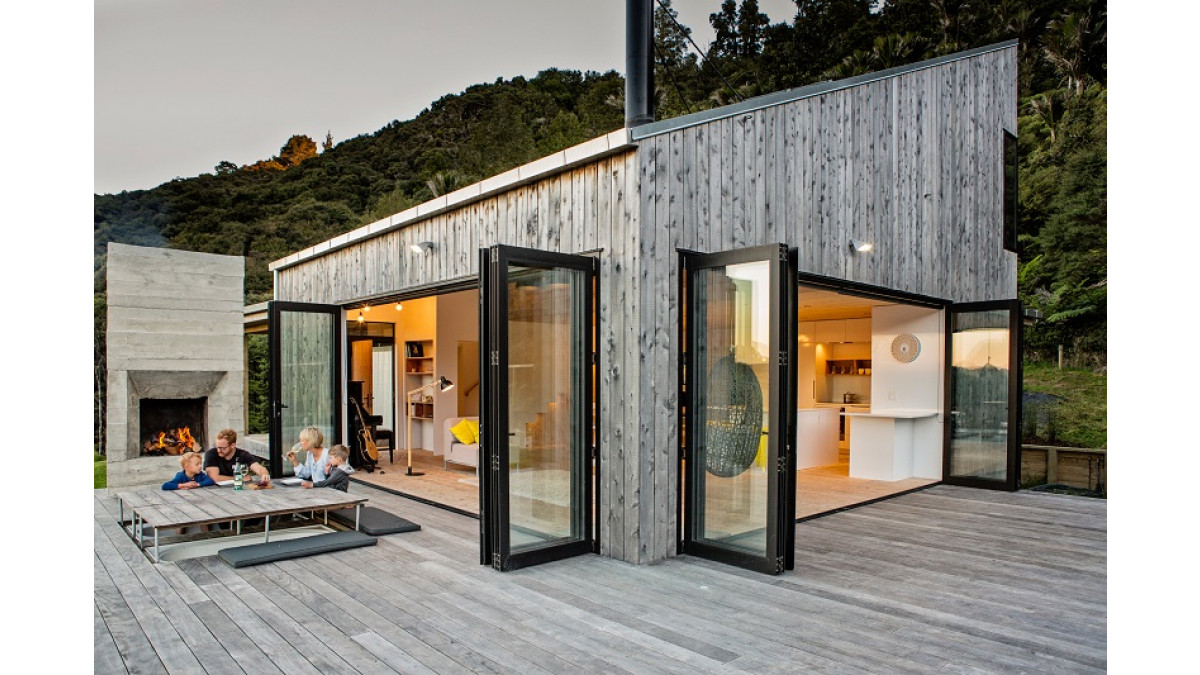

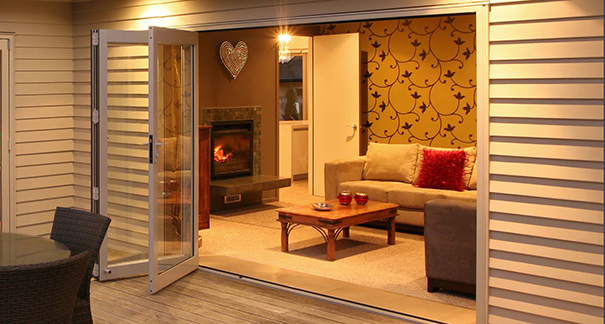

Exterior view of open bifold doors

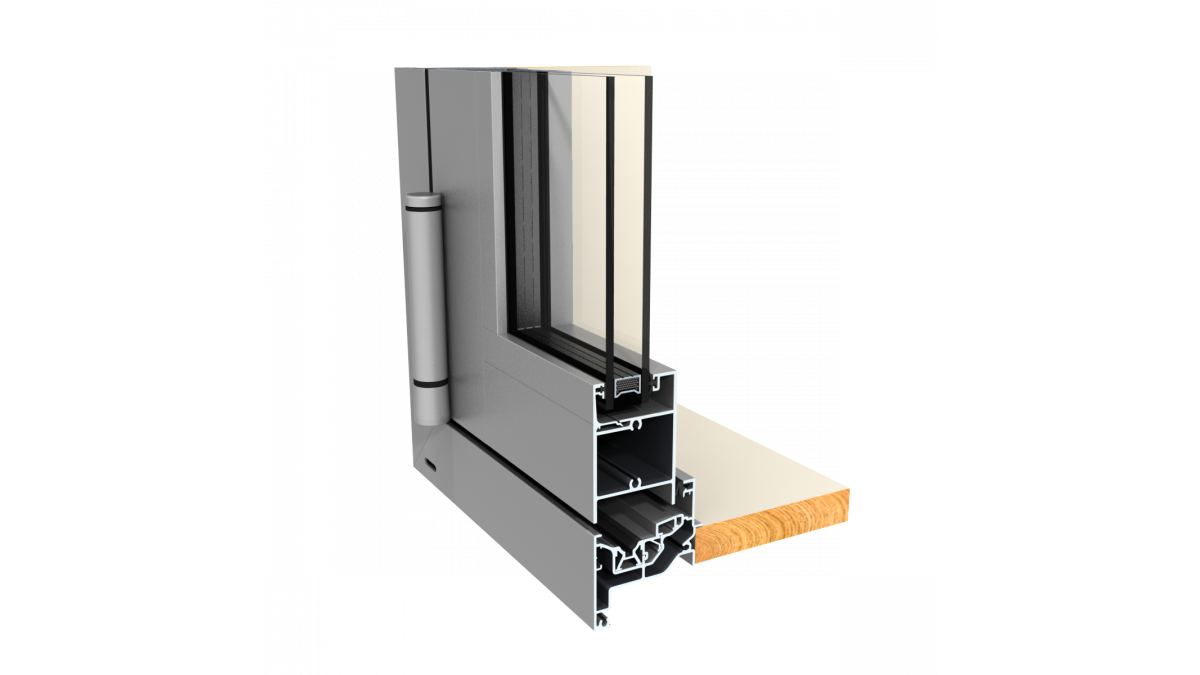

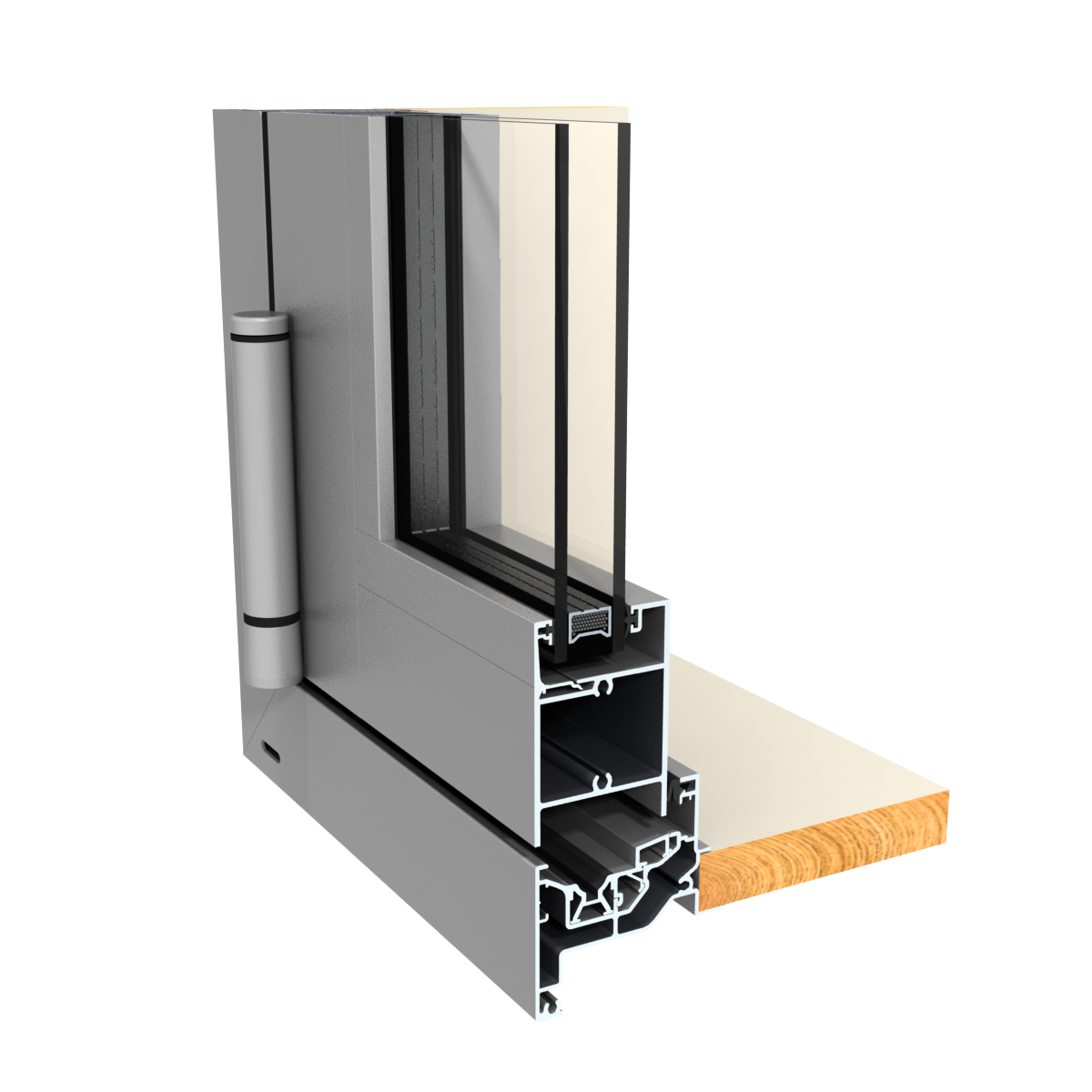

Sill frame and panel section

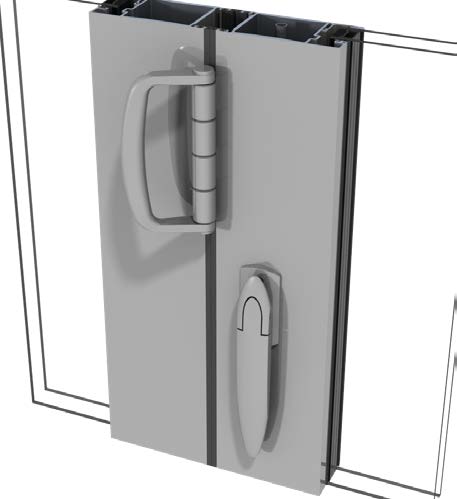

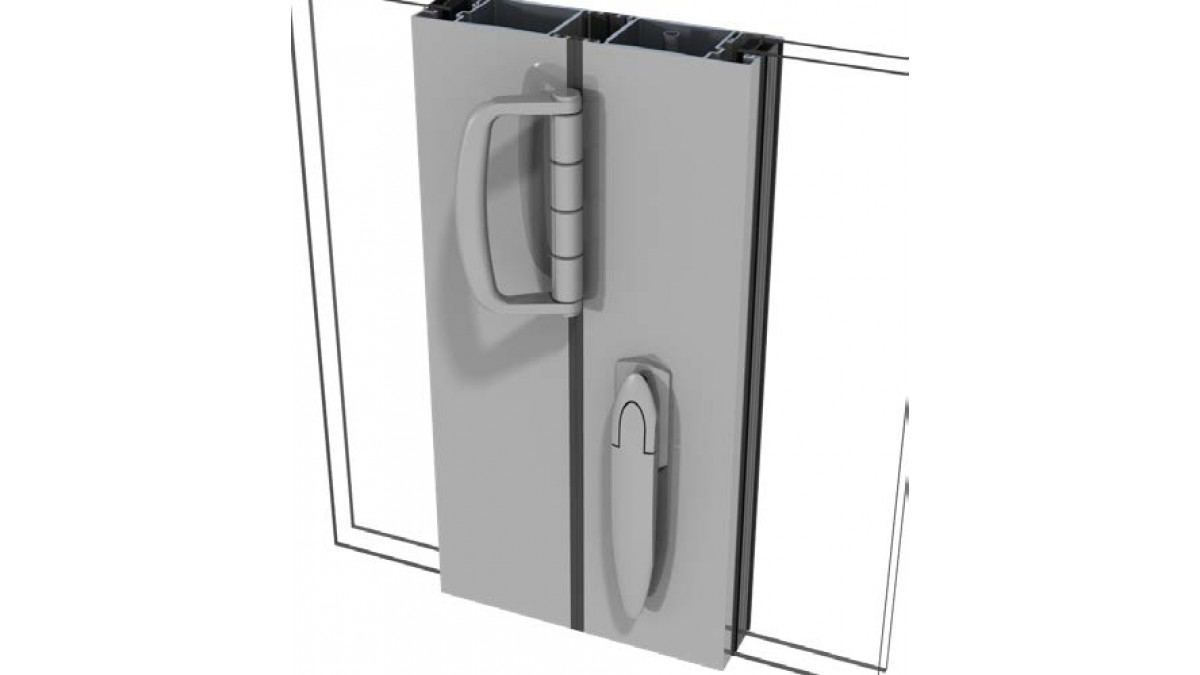

Bi-fold hinged stiles and Miro handle with hinge/handle

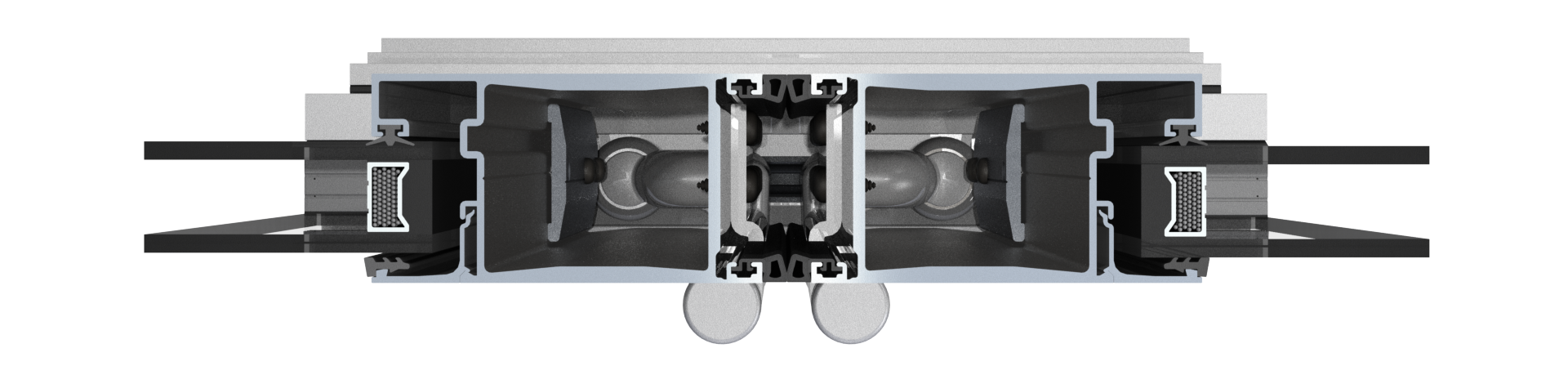

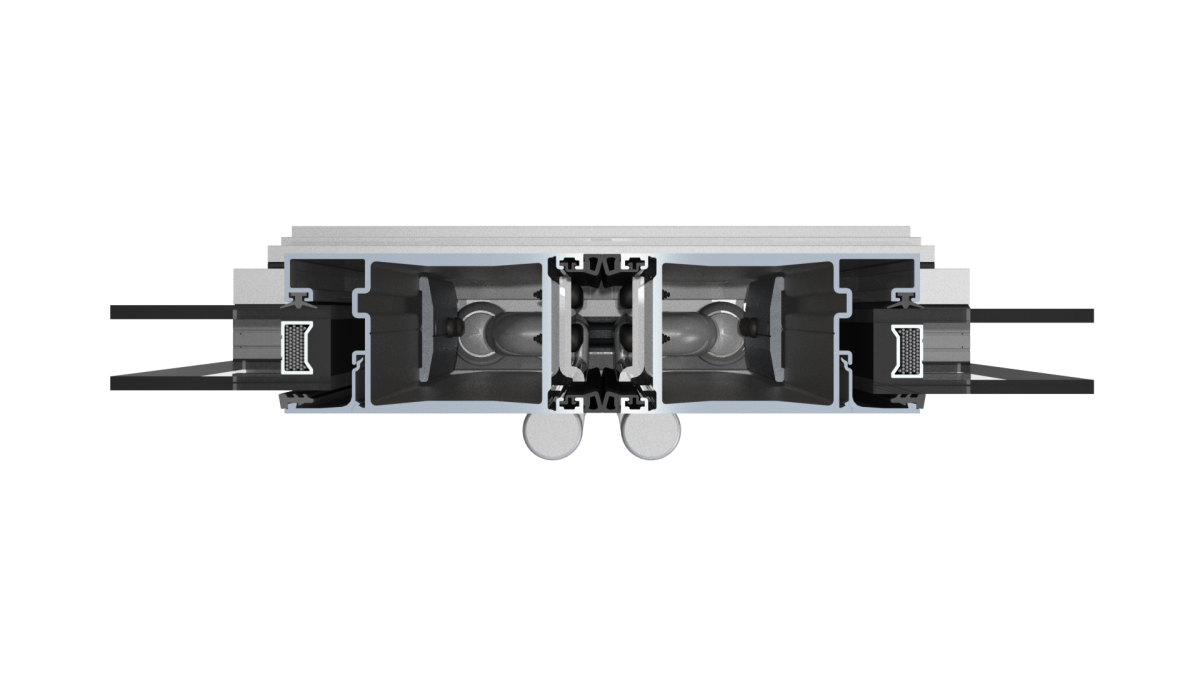

Bi-fold window meeting stiles

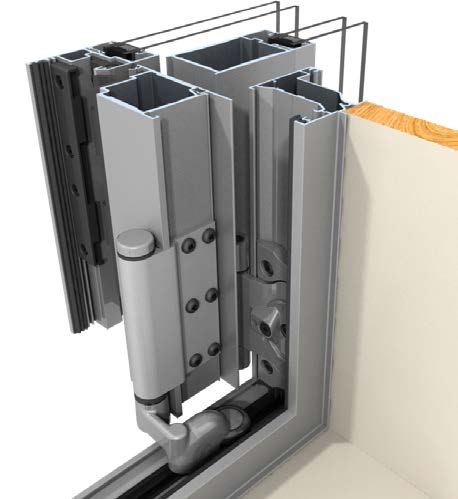

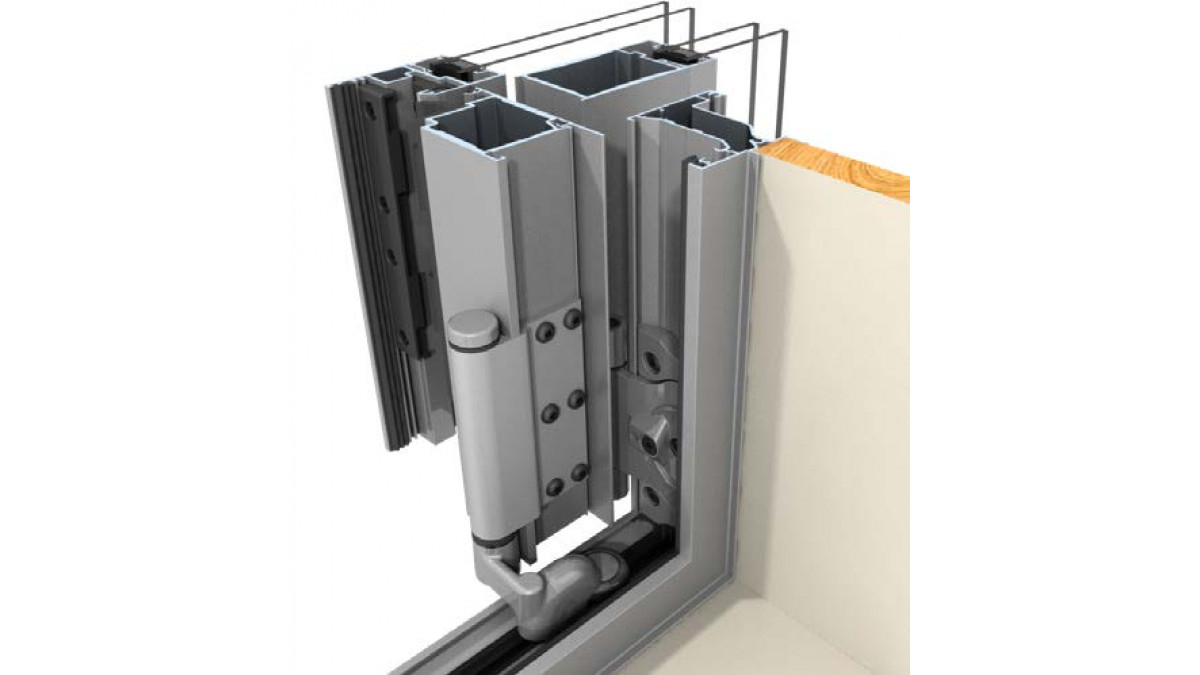

Lay-back fully open

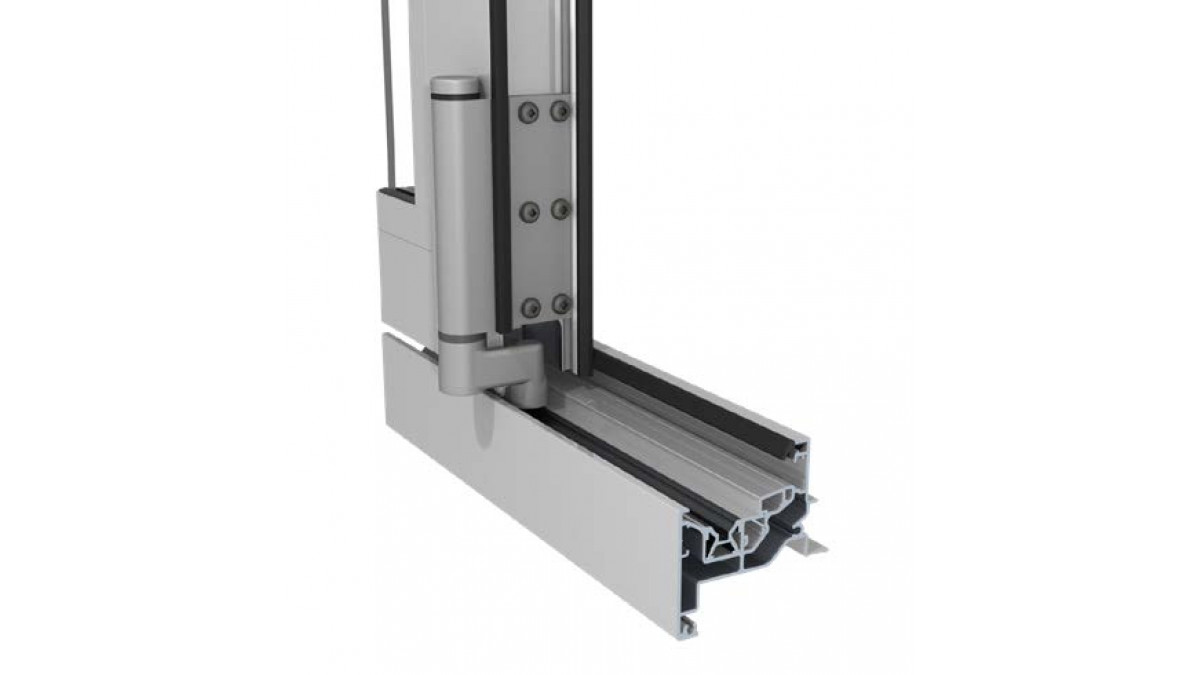

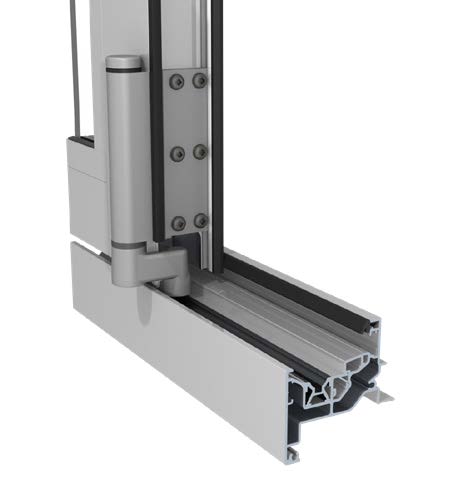

Sill track and panel roller

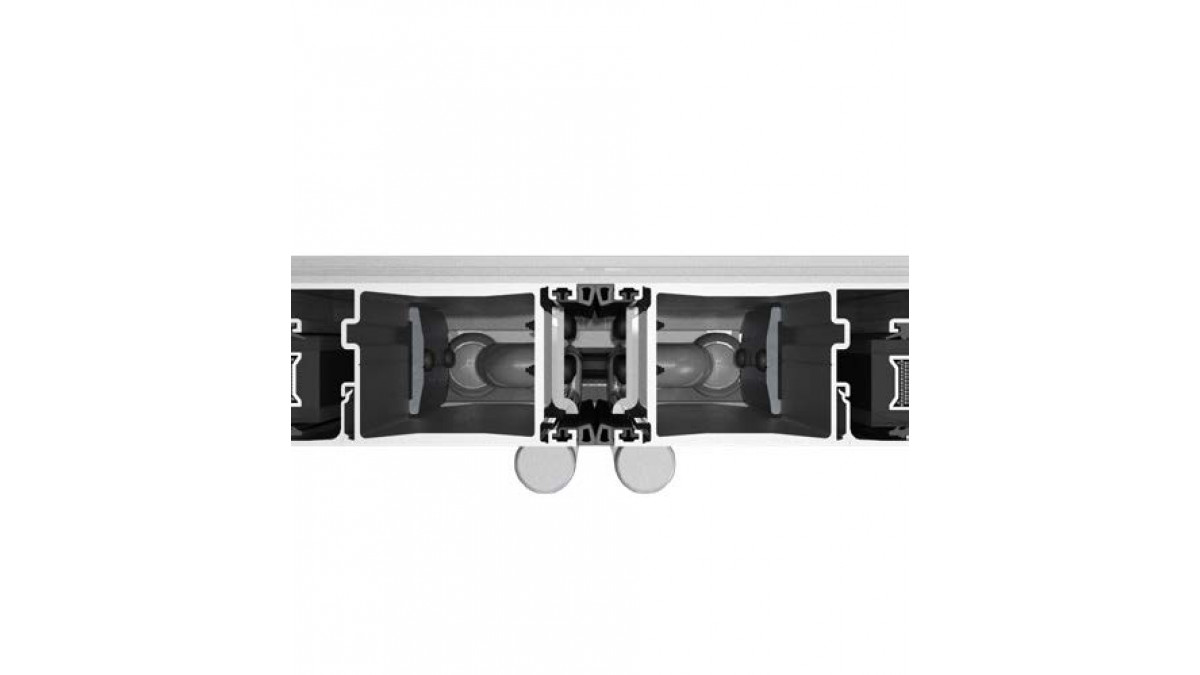

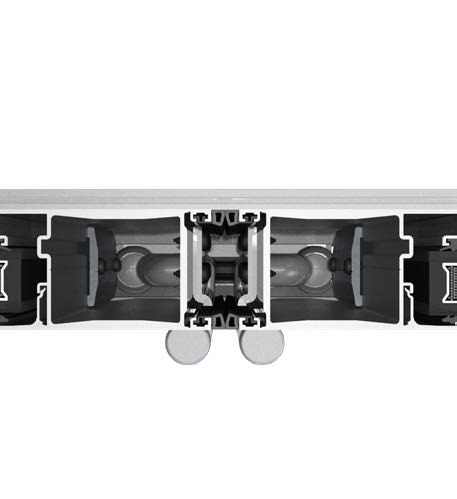

Bi-fold door meeting stiles

Product Enquiries

Description

Both doors and windows use the same system, which is bottom-rolling with an in-frame track.

A lay-back option is available for certain configurations — 2-panel, 2+2 and 2+1, where the open panels fold back against an adjoining wall for an unobstructed deck.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features

Maximum 2400mm high doors in very high wind zones — for larger sizes consider using the APL Architectural Series
Maximum glass panel thickness of 27mm
Corner bi-folds are available that do not require a corner post
The efficient bottom roller system allows optimum load capacity and increased panel width
Single panel access door can be used in conjunction with bi-fold doors
Lay-back panels require the facing to be within 15mm of final finished cladding line in order to achieve 180° opening
A wide range of configurations available
A rebated sill track option is available in sheltered locations
Overlights possible
Open-in frame available.

Ranges

Metro Series

Scope of Use

Suitable for broad residential use
Maximise views and ventilation but need to be monitored if windy conditions occur
Available in defined maximum sizes

Limitations on Use

Maximum 2100mm high doors in very high wind zones — For larger sizes consider using the Metro ThermalHEART Series
Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas
In closed position bi-fold window and door stiles impact views

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2006
Design upgrades regularly released
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies
News

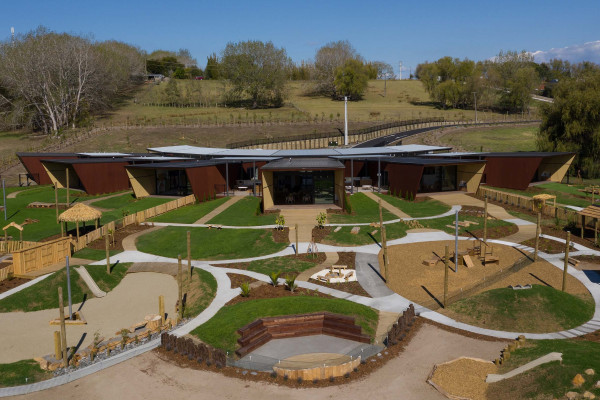

First Windows Role in a Striking Early Childhood Centre by CASA

FIRST Windows & Doors

August 2020

Case Studies

Revit Details Now Available for Metro Series Windows

FIRST Windows & Doors

December 2017

Product News

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2025

pdf

Calculate R-Value and Ug-Value

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide (Doors)

pdf

Specifier Guide (Windows)

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

AGP Care & Maintenance

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

AGP State of the Art Glass Brochure

URL

First Brochure

2014

URL

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2024

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full

Full Set of Drawings

pdf

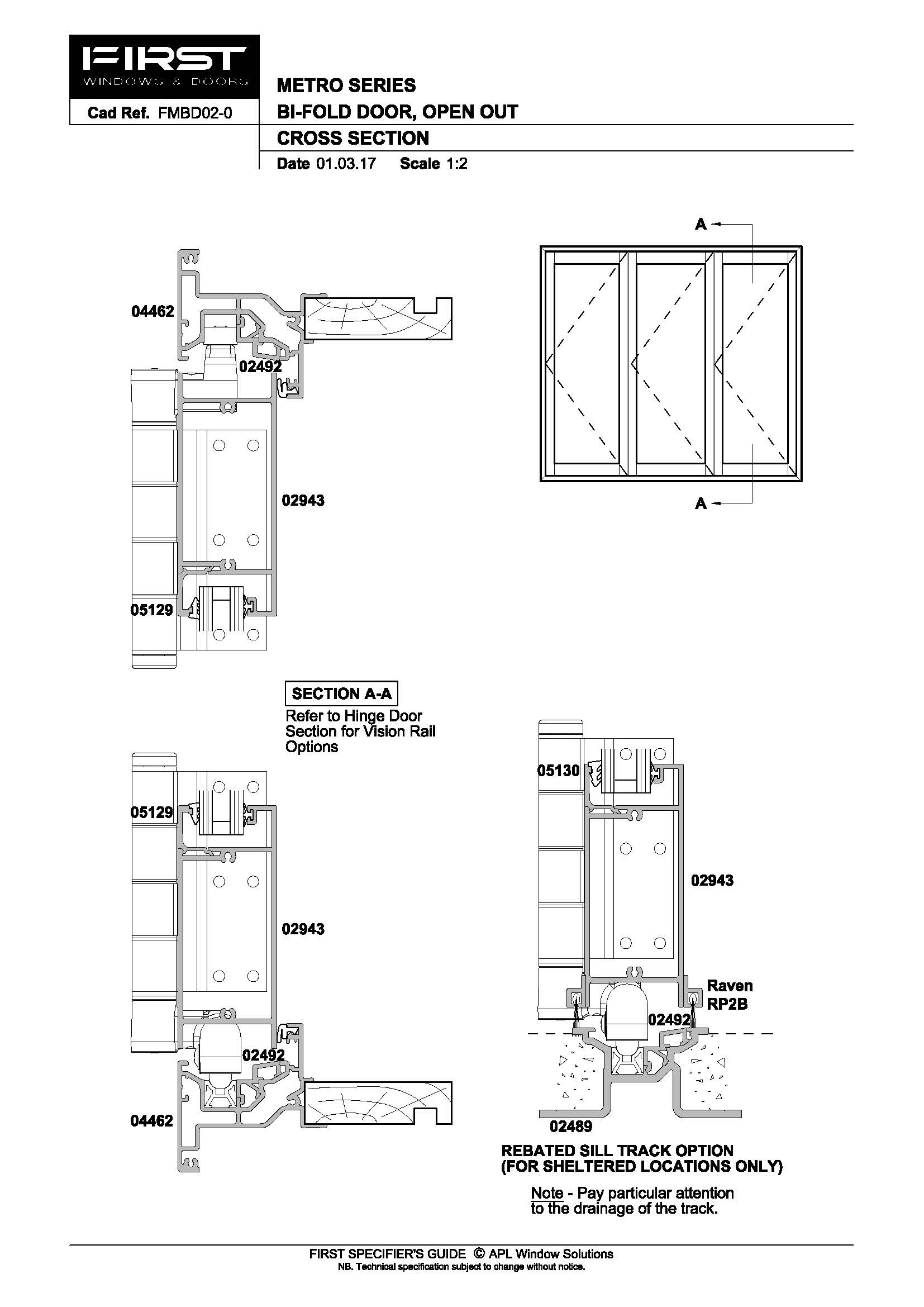

FIRST Metro Series Bi-Fold Door, Open Out

FMBD02-0

dwf

dwg

dxf

pdf

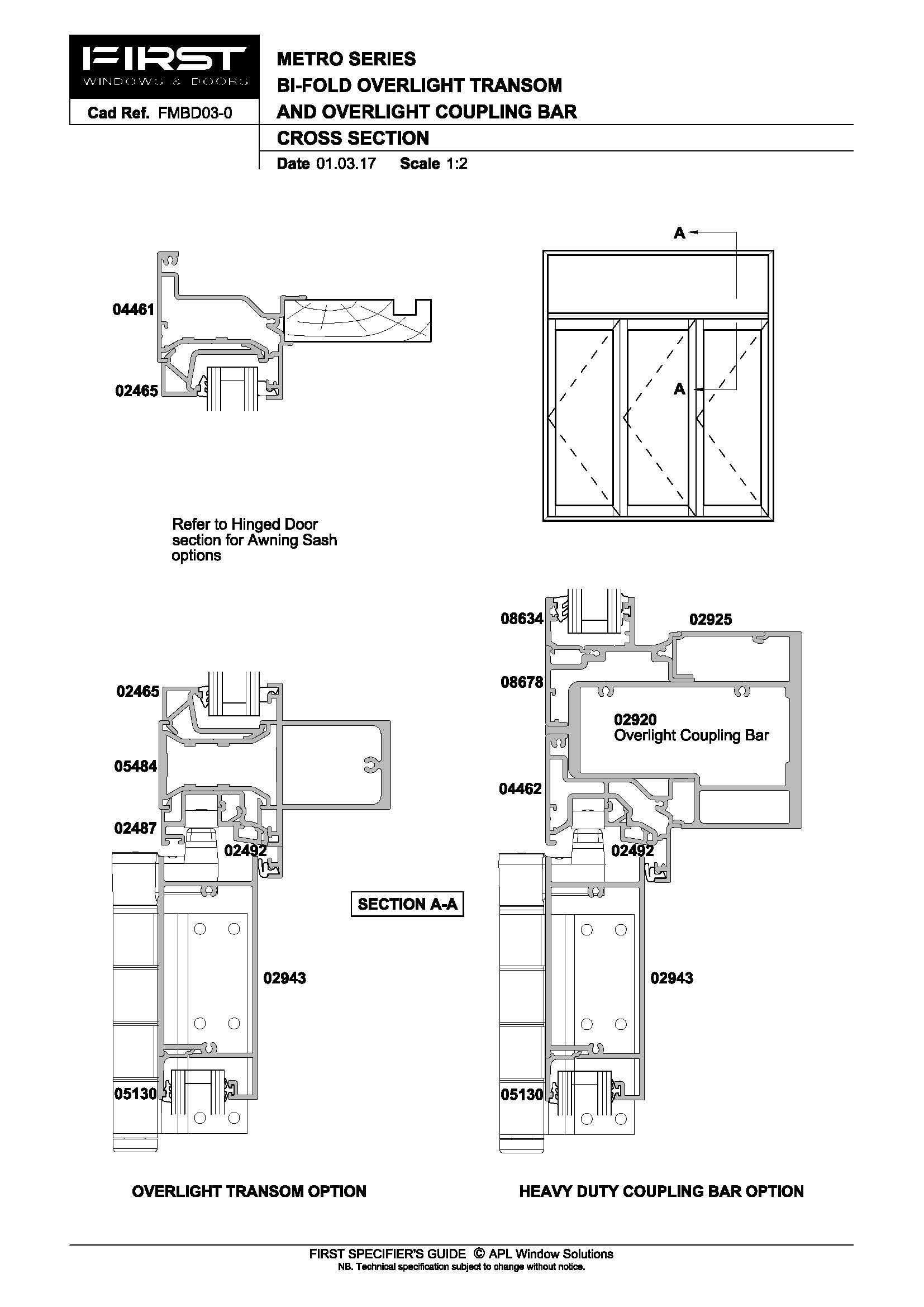

FIRST Metro Series Bi-Fold Overlight Transom and Overlight Coupling Bar

FMBD03-0

dwf

dwg

dxf

pdf

FIRST Metro Series Bi-Fold Door, Three Panel Open Out Door Showing Panel Glazing Options

FMBD04-0

dwf

dwg

dxf

pdf

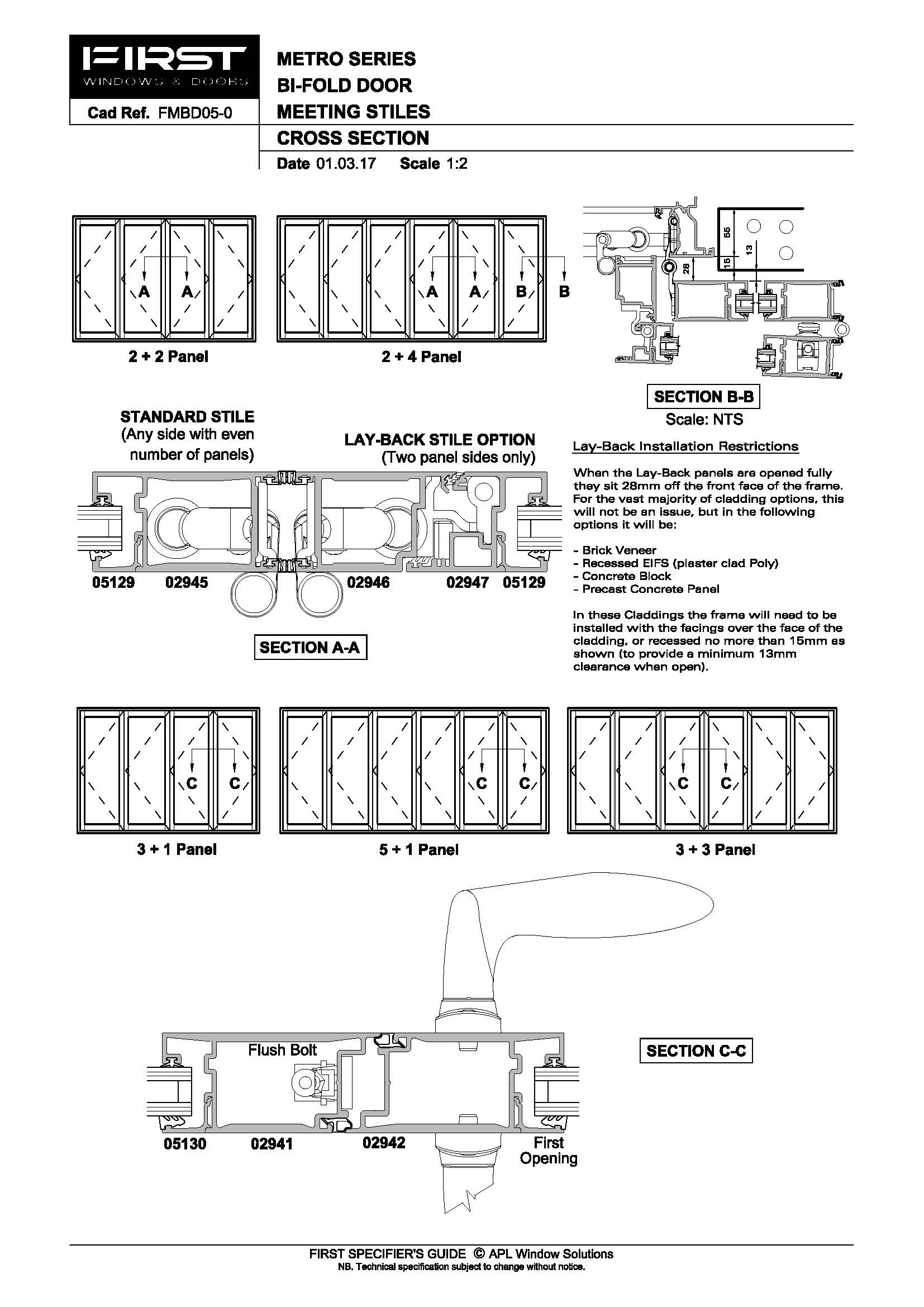

FIRST Metro Series Bi-Fold Door Meeting Stiles

FMBD05-0

dwf

dwg

dxf

pdf

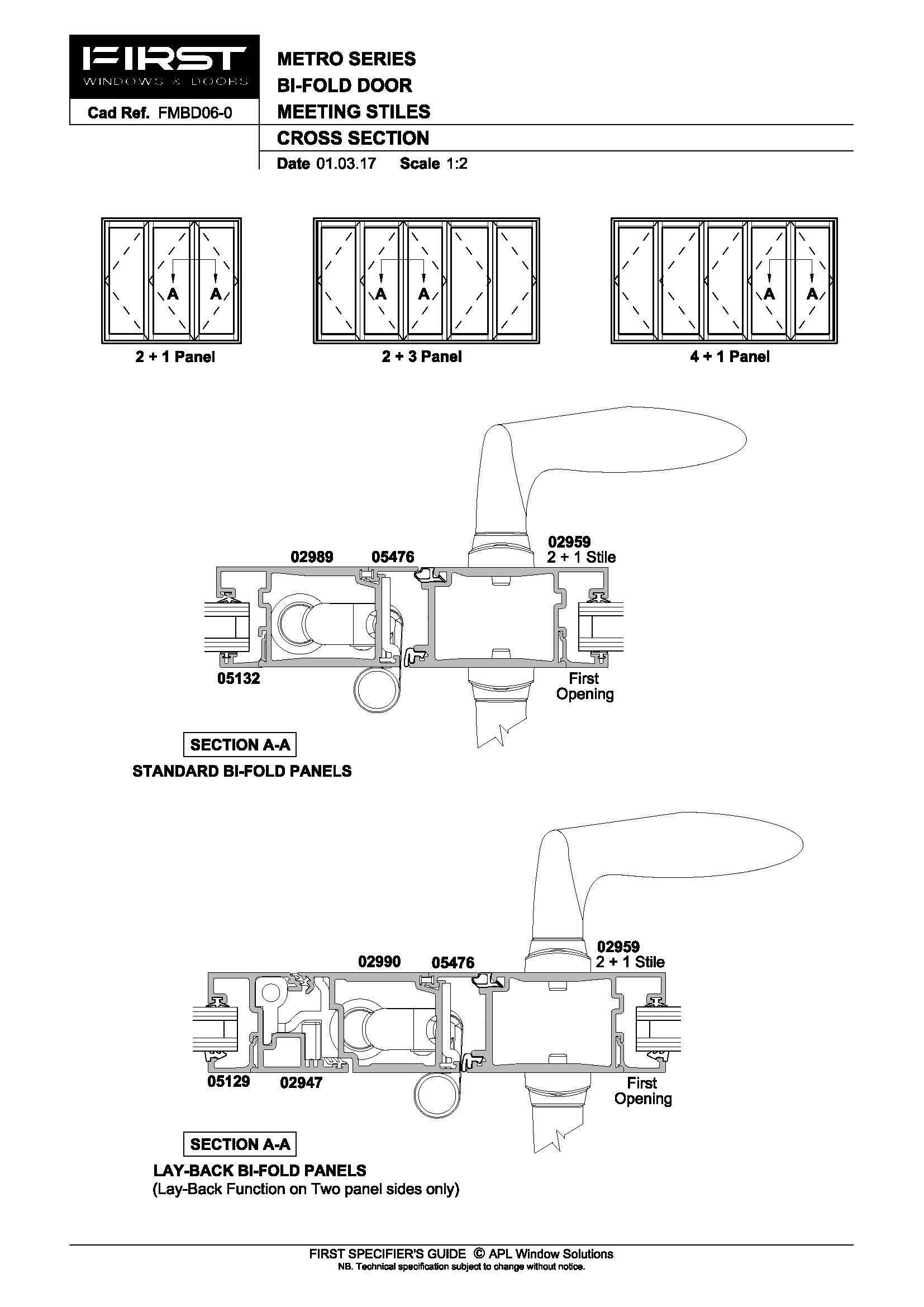

FIRST Metro Series Bi-Fold Door Meeting Stiles

FMBD06-0

dwf

dwg

dxf

pdf

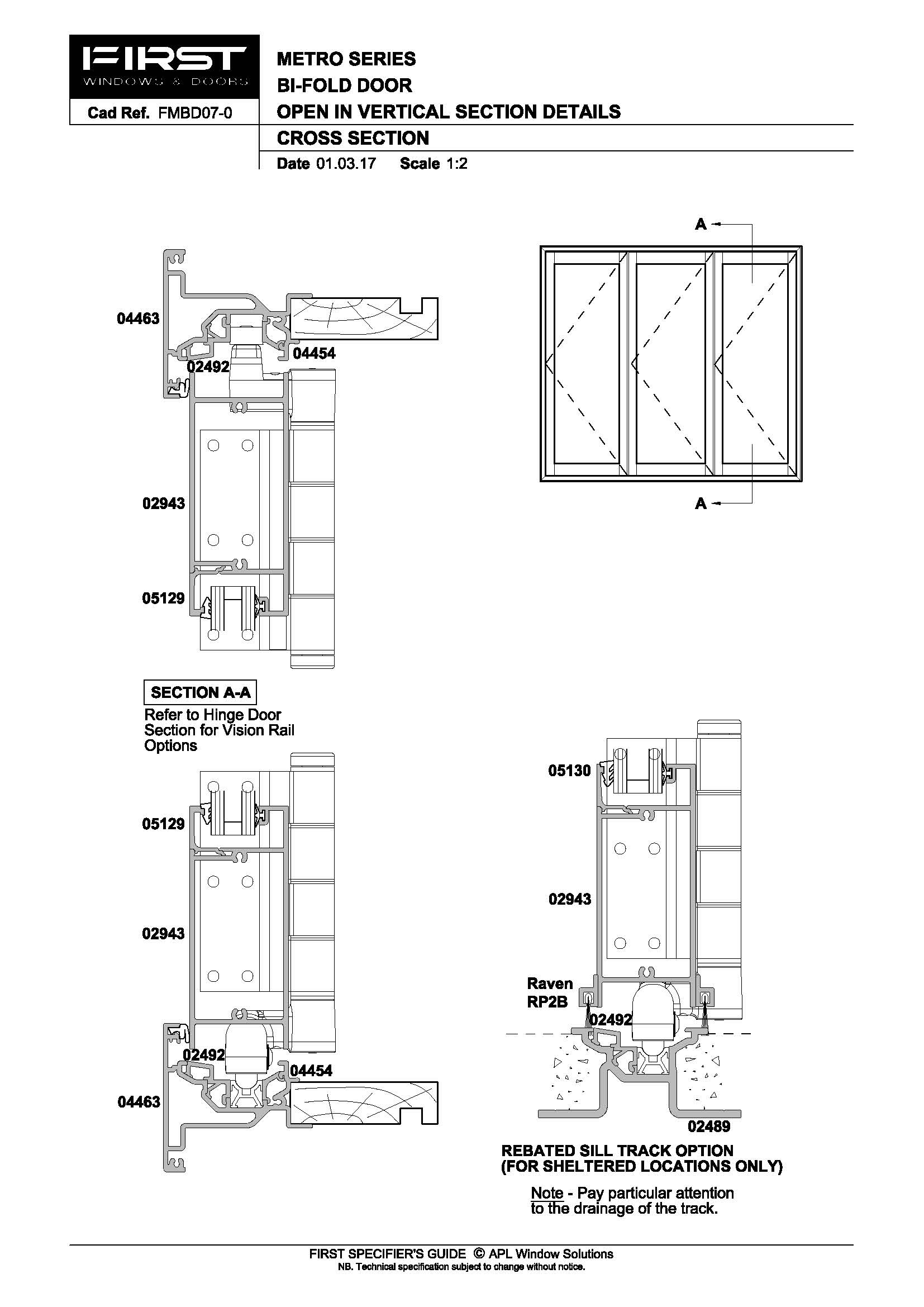

FIRST Metro Series Bi-Fold Door Open In Vertical Section Details

FMBD07-0

dwf

dwg

dxf

pdf

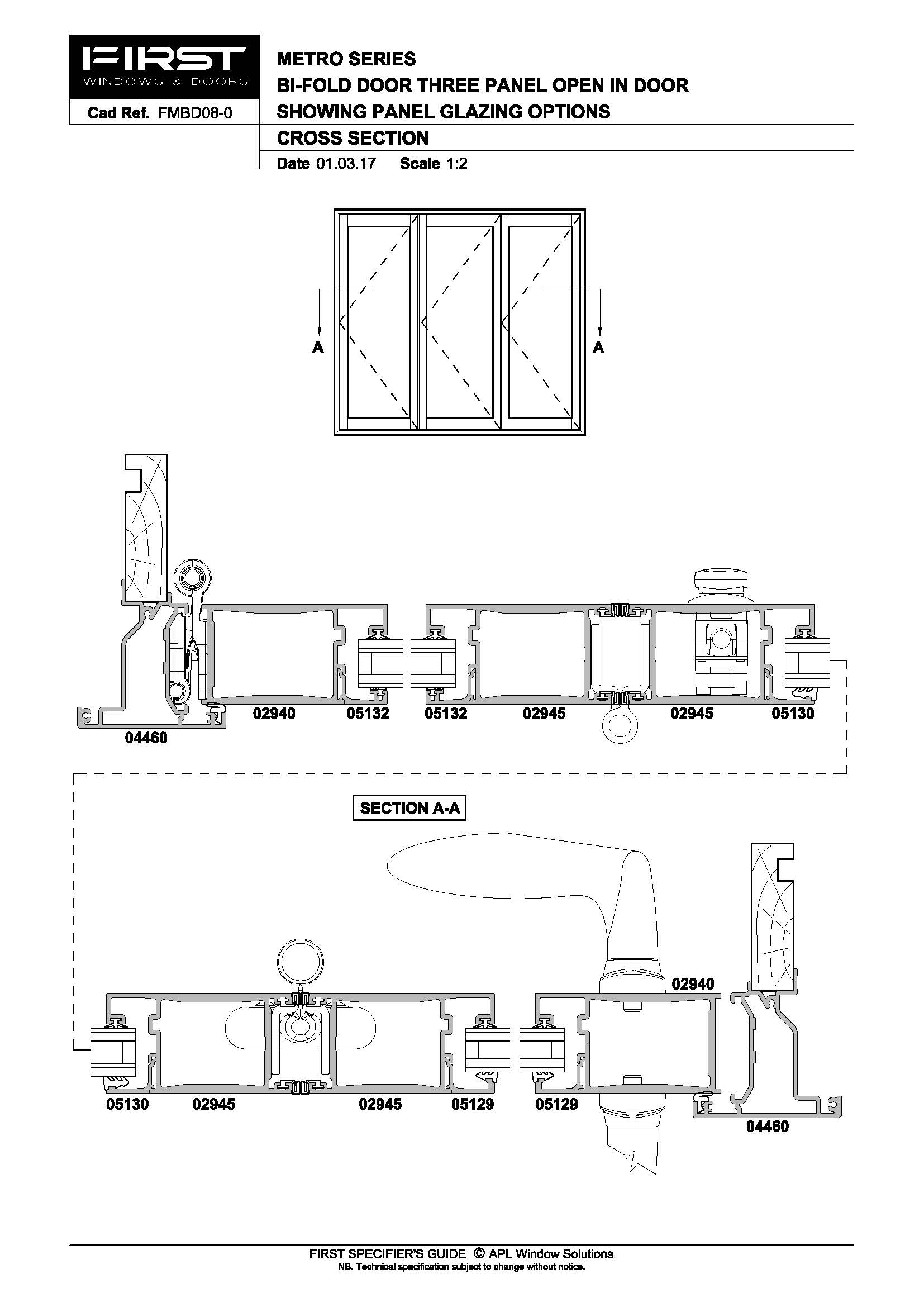

FIRST Metro Series Bi-Fold Door Three Panel Open In Door Showing Panel Glazing Options

FMBD08-0

dwf

dwg

dxf

pdf

Installation Details

View full

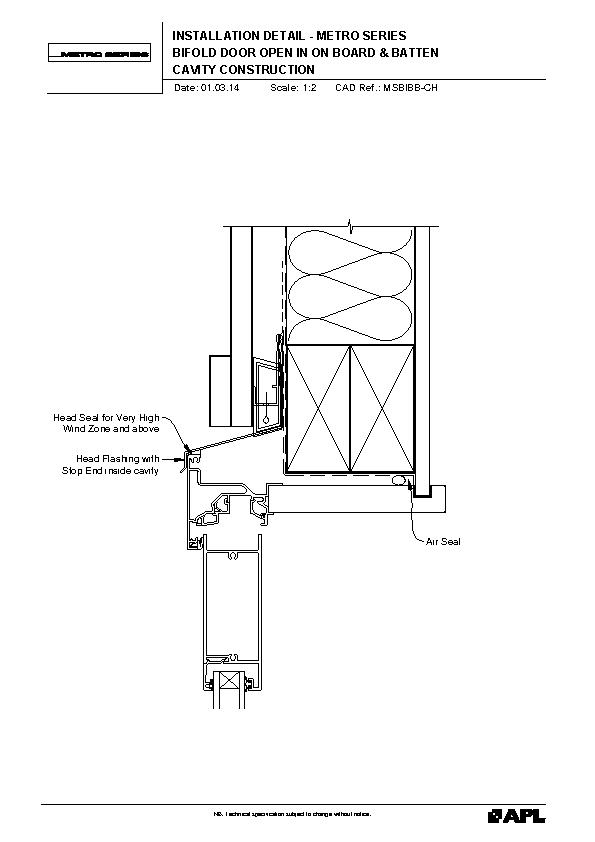

FIRST Metro Series Bifold Door Open In on Board and Batten

MSBIBB

dwg

pdf

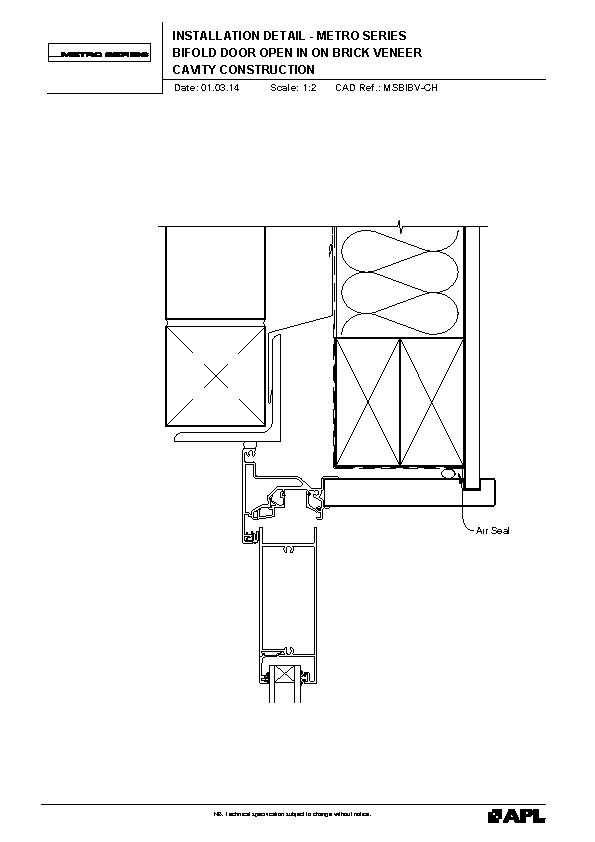

FIRST Metro Series Bifold Door Open In on Brick Veneer

MSBIBV

dwg

pdf

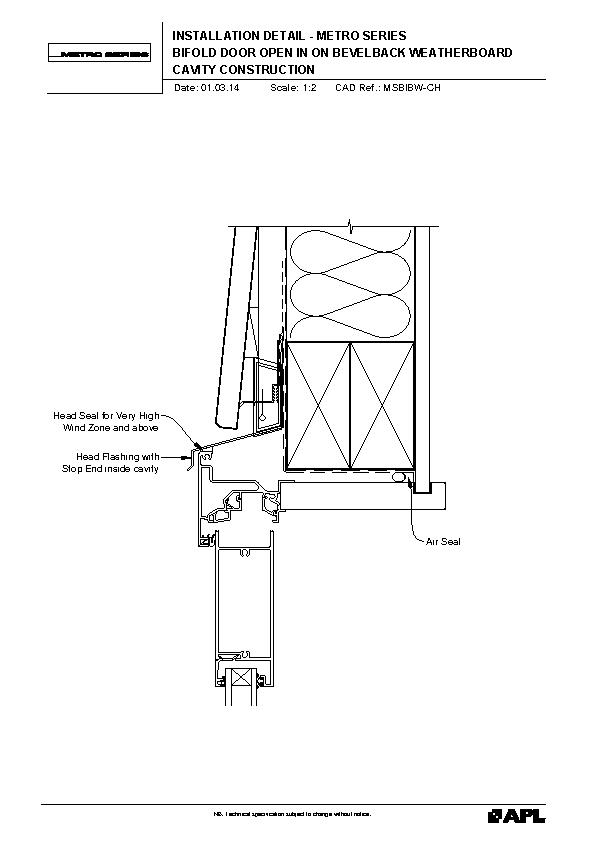

FIRST Metro Series Bifold Door Open In on Bevelback Weatherboard

MSBIBW

dwg

pdf

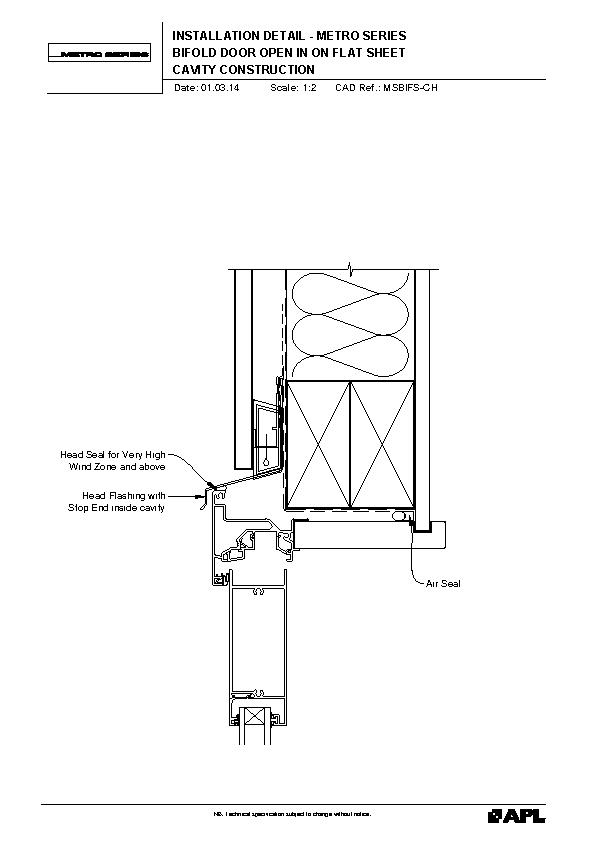

FIRST Metro Series Bifold Door Open In on Flat Sheet

MSBIFS

dwg

pdf

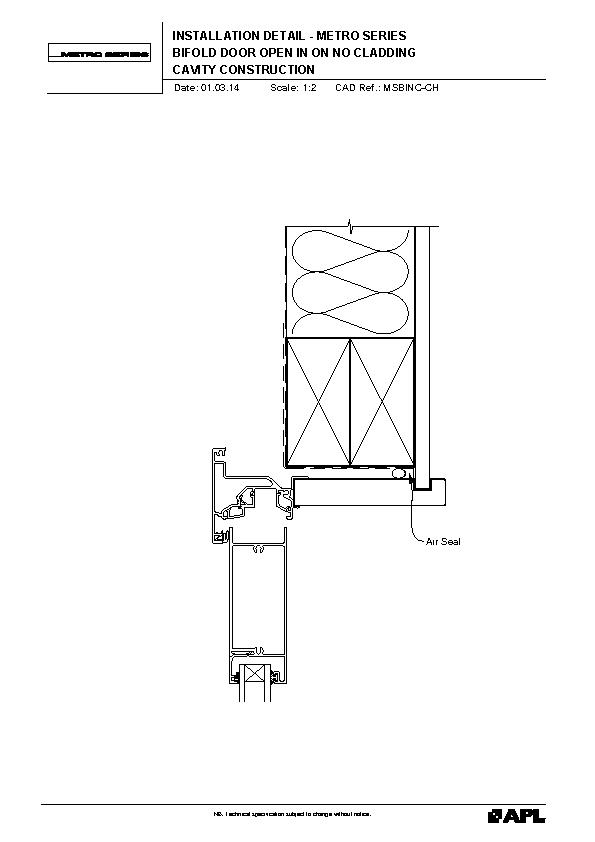

FIRST Metro Series Bifold Door Open In on No Cladding

MSBINC

dwg

pdf

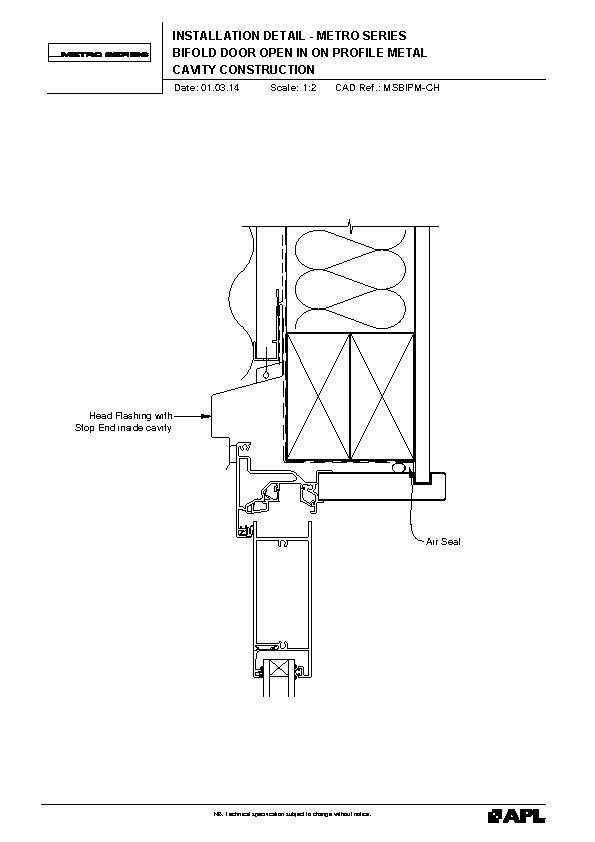

FIRST Metro Series Bifold Door Open In on Profile Metal

MSBIPM

dwg

pdf

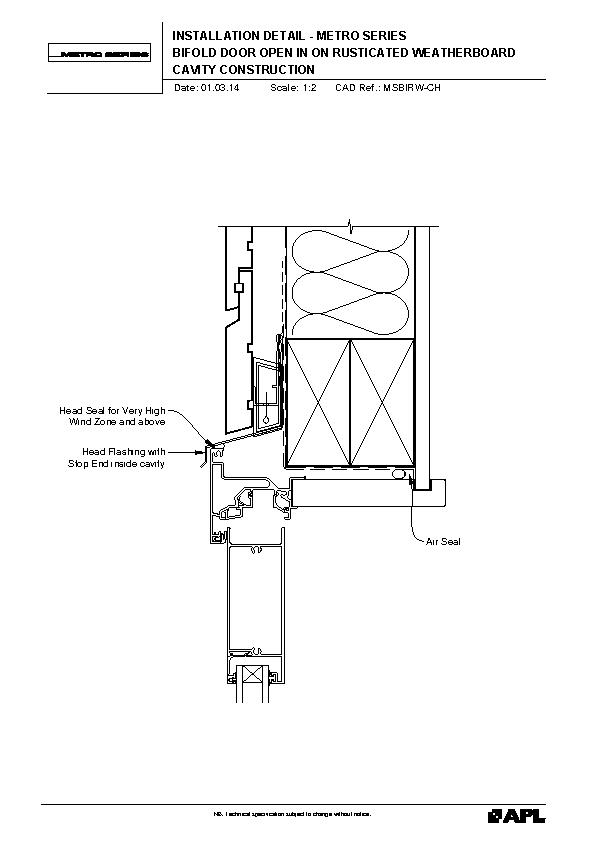

FIRST Metro Series Bifold Door Open In on Rusticated Weatherboard

MSBIRW

dwg

pdf

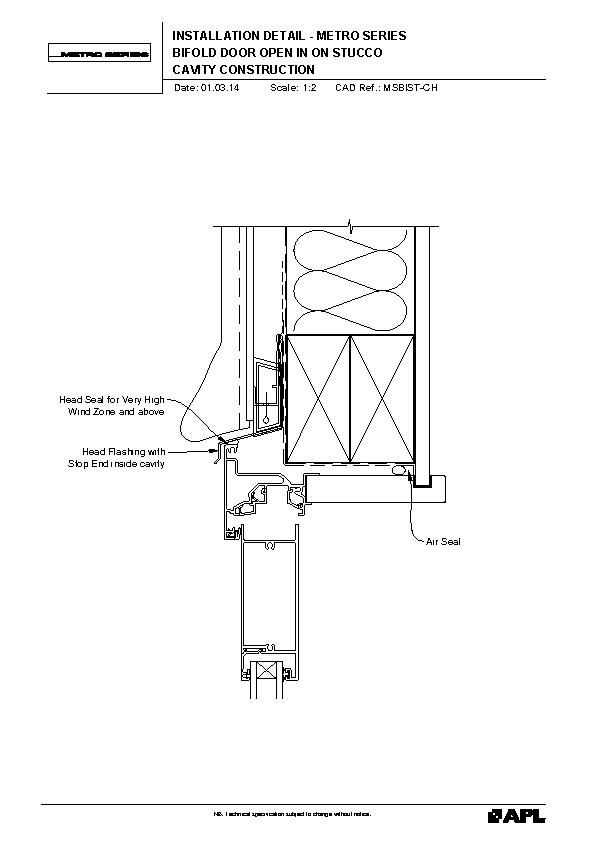

FIRST Metro Series Bifold Door Open In on Stucco

MSBIST

dwg

pdf

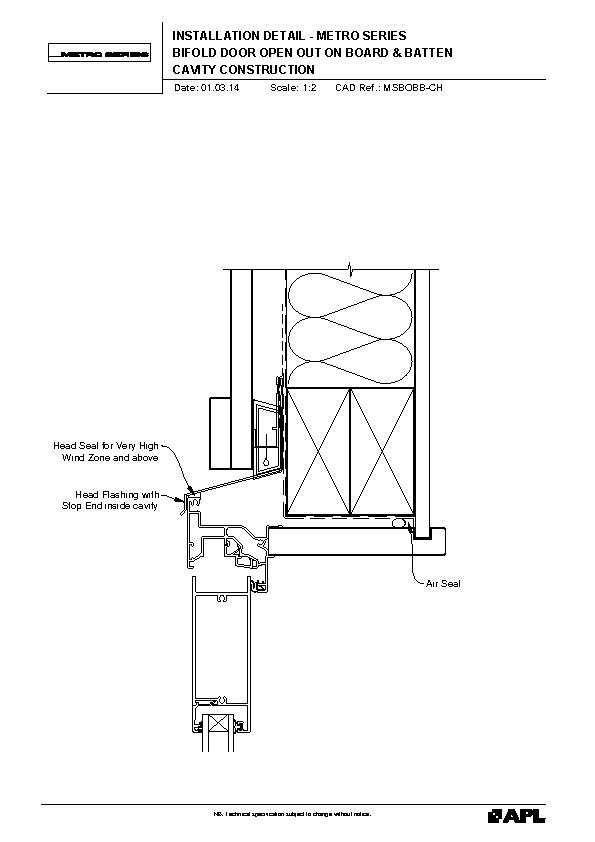

FIRST Metro Series Bifold Door Open Out on Board and Batten

MSBOBB

dwg

pdf

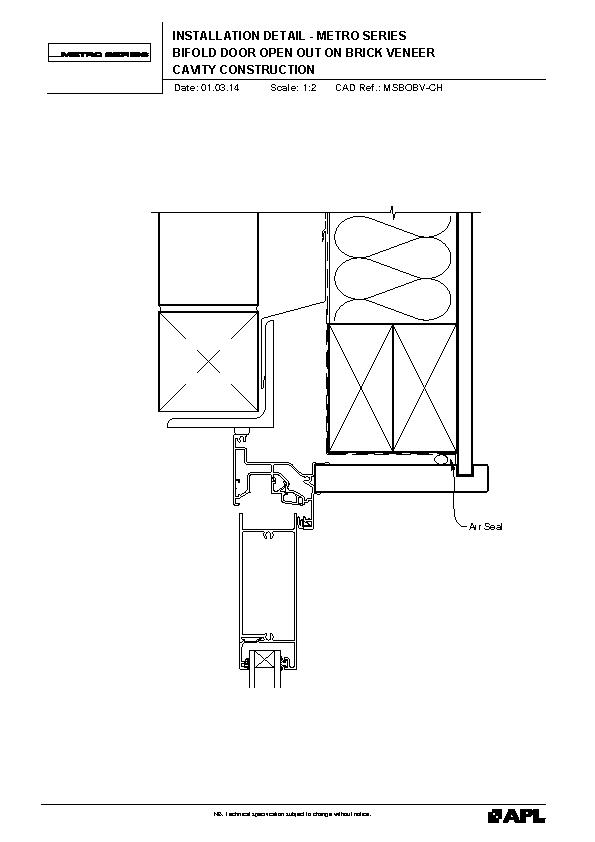

FIRST Metro Series Bifold Door Open Out on Brick Veneer

MSBOBV

dwg

pdf

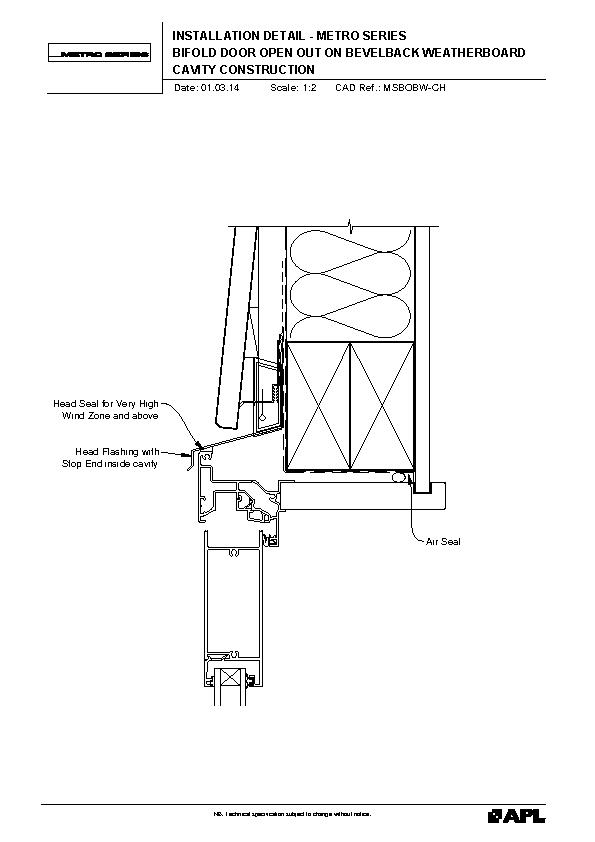

FIRST Metro Series Bifold Door Open Out on Bevelback Weatherboard

MSBOBW

dwg

pdf

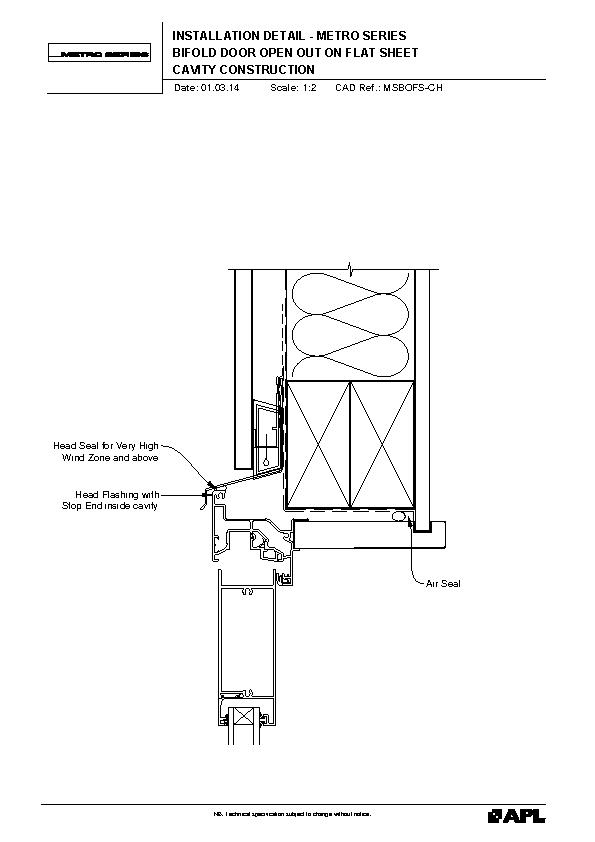

FIRST Metro Series Bifold Door Open Out on Flat Sheet

MSBOFS

dwg

pdf

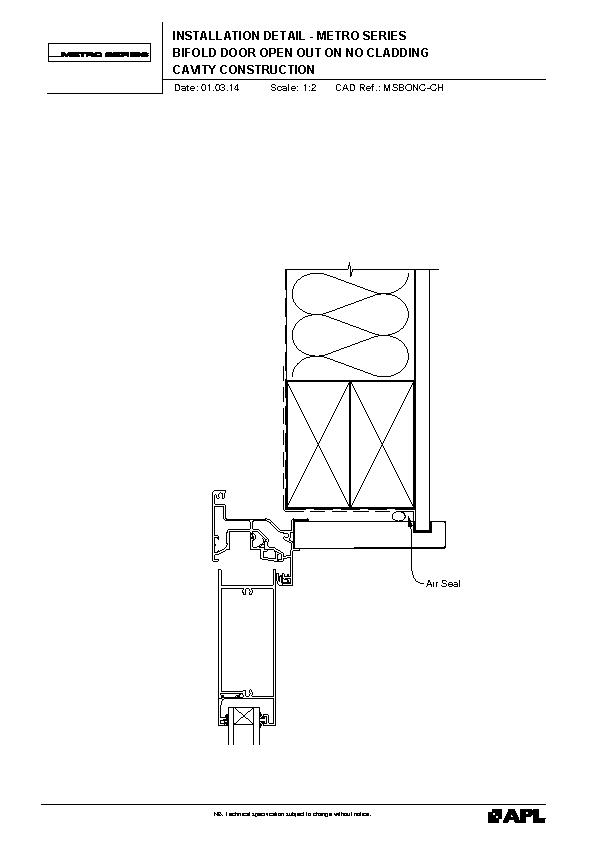

FIRST Metro Series Bifold Door Open Out on No Cladding

MSBONC

dwg

pdf

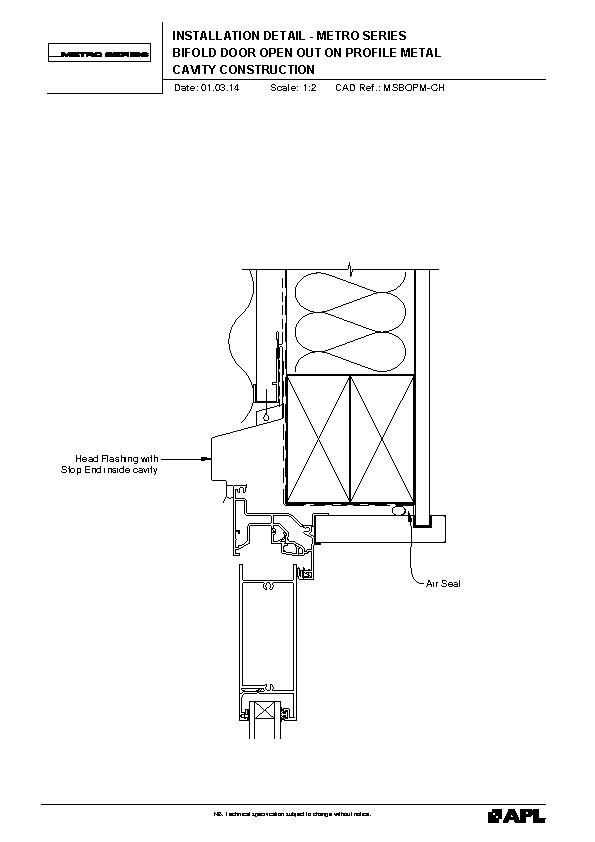

FIRST Metro Series Bifold Door Open Out on Profile Metal

MSBOPM

dwg

pdf

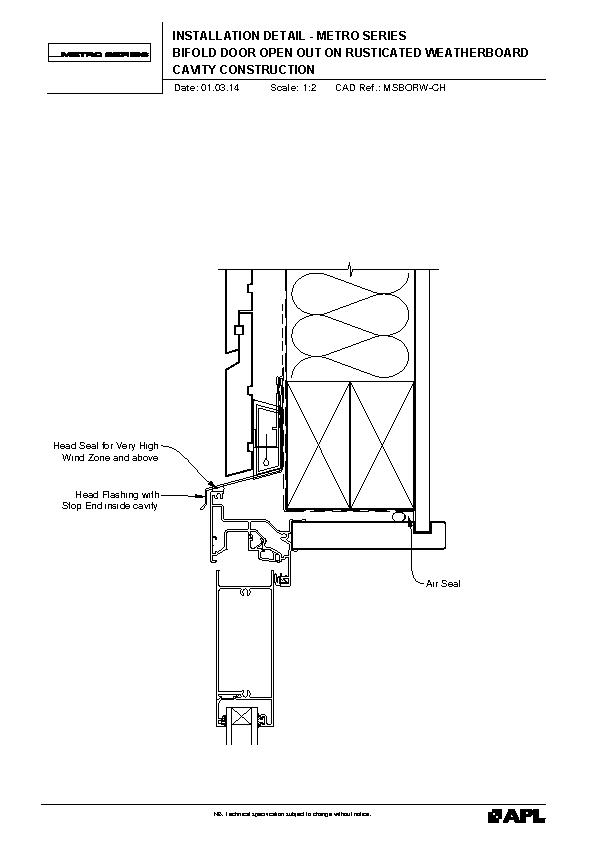

FIRST Metro Series Bifold Door Open Out on Rusticated Weatherboard

MSBORW

dwg

pdf

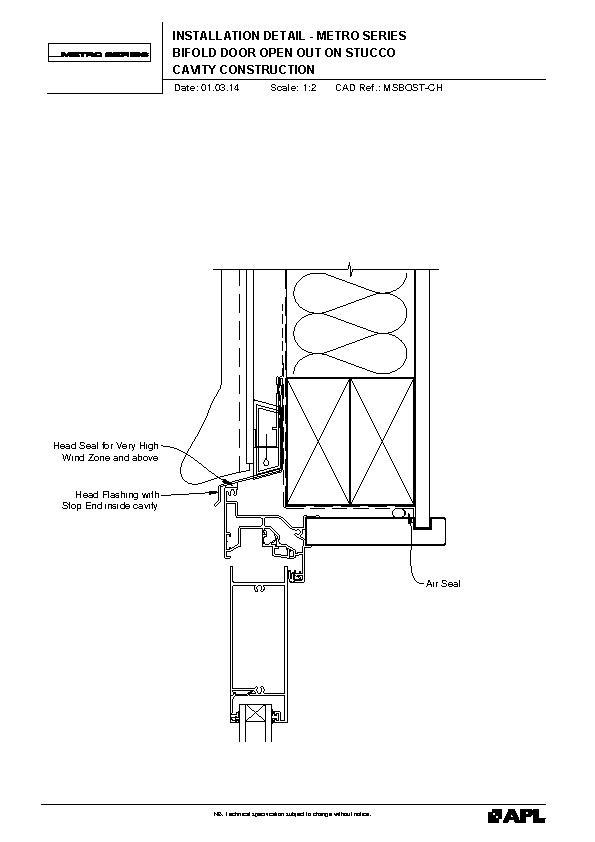

FIRST Metro Series Bifold Door Open Out on Stucco

MSBOST

dwg

pdf

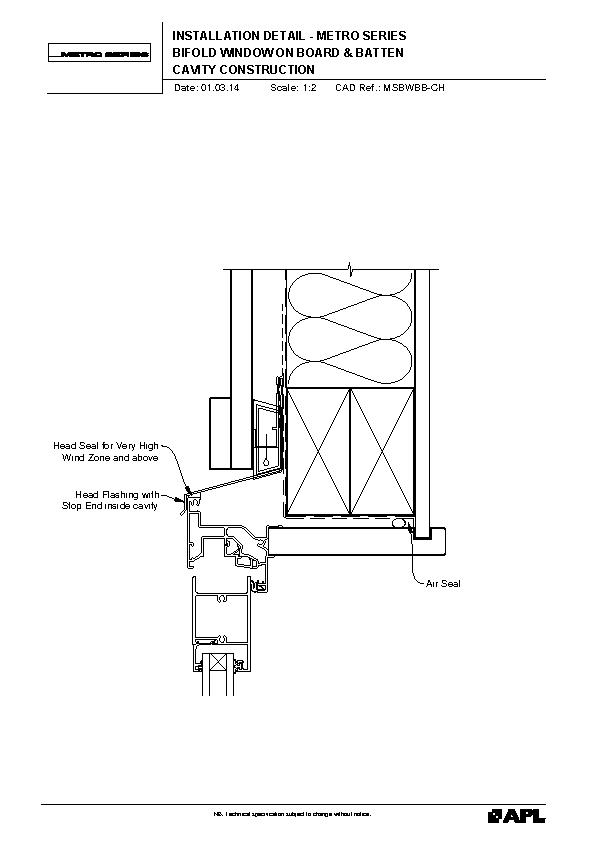

FIRST Metro Series Bifold Window on Board and Batten

MSBWBB

dwg

pdf

FIRST Metro Series Bifold Window on Brick Veneer

MSBWBV

dwg

pdf

FIRST Metro Series Bifold Window on Bevelback Weatherboard

MSBWBW

dwg

pdf

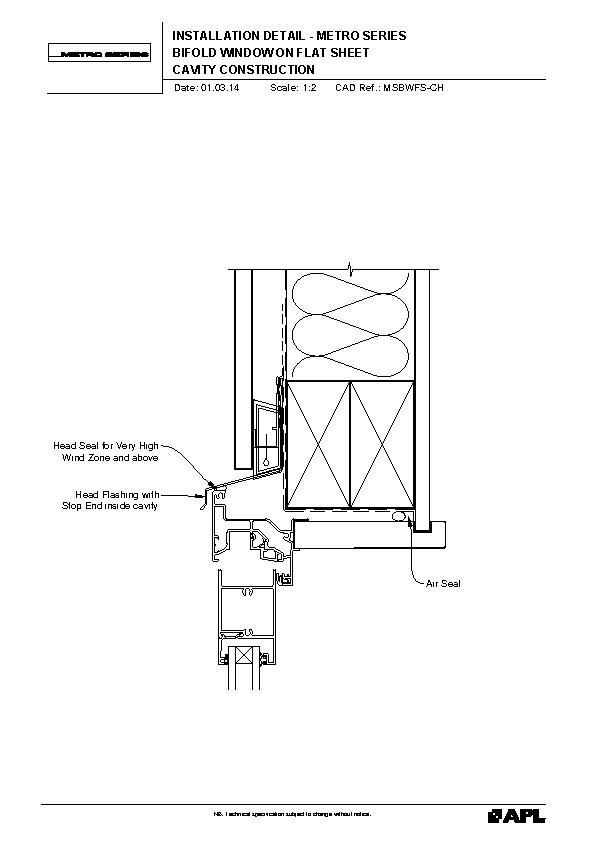

FIRST Metro Series Bifold Window on Flat Sheet

MSBWFS

dwg

pdf

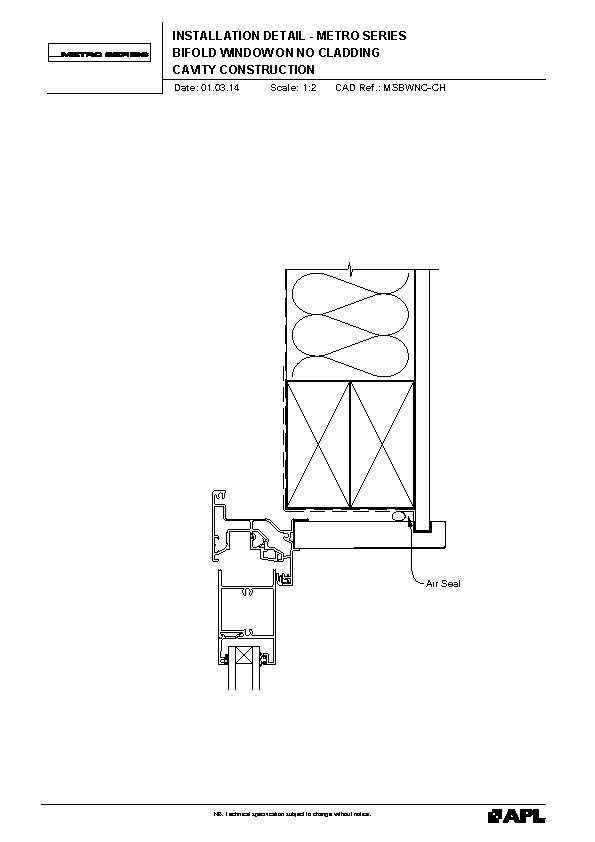

FIRST Metro Series Bifold Window on No Cladding

MSBWNC

dwg

pdf

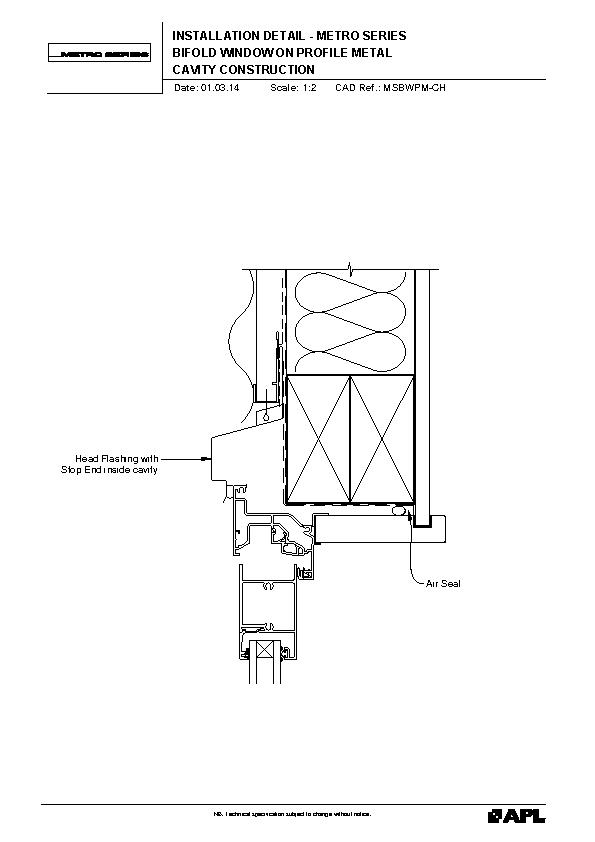

FIRST Metro Series Bifold Window on Profile Metal

MSBWPM

dwg

pdf

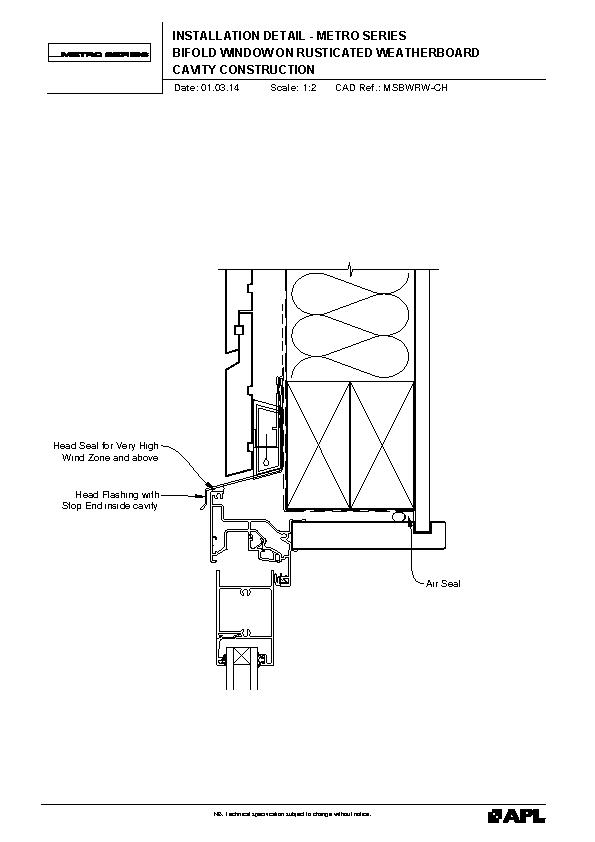

FIRST Metro Series Bifold Window on Rusticated Weatherboard

MSBWRW

dwg

pdf

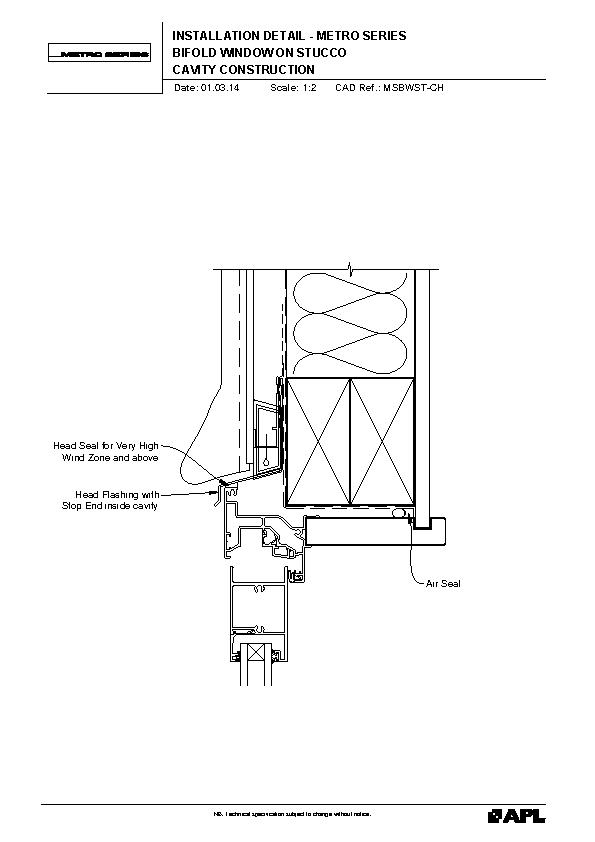

FIRST Metro Series Bifold Window on Stucco

MSBWST

dwg

pdf

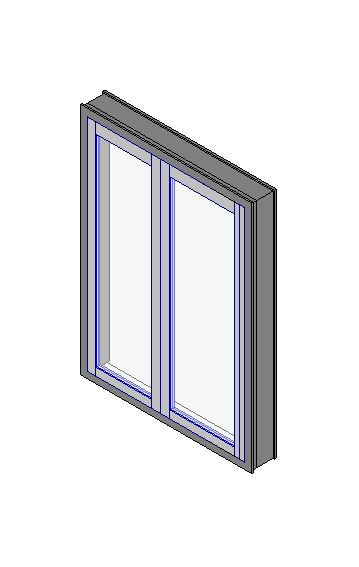

BIM

View full

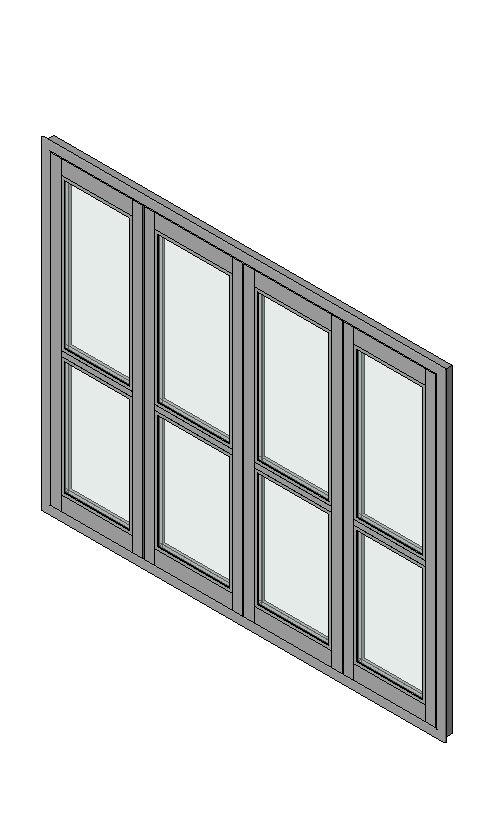

APL Metro Series Bifold Door 4 Panel Open Out

Revit LT 2020

zip

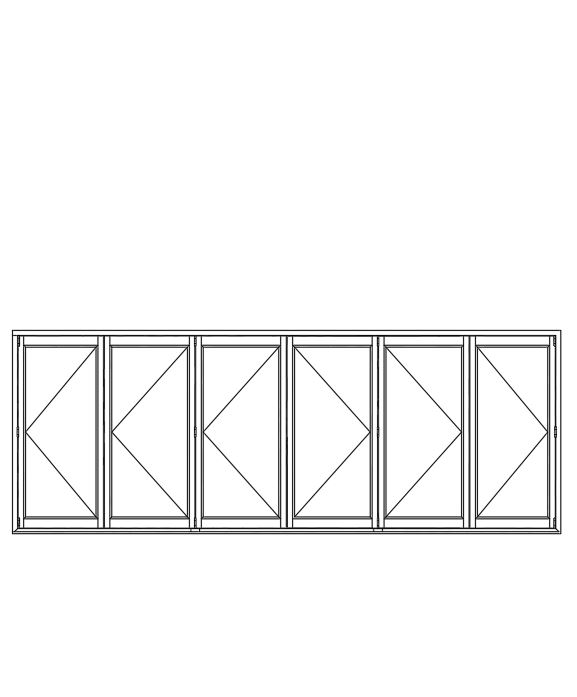

Metro Series Bifold Door Open Out 3+3

Revit LT 2020

rfa

First Windows & Doors deliver a wide variety of high-performing solutions for residential and commercial projects. Available as a complete window system with AGP glass.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

The Creative Art of Downsizing

Creating a Distinctive Architectural Feature with Mario Romano Walls

AvanTech YOU Illumination: Customisation in a New Light

SECTIONS

Surface Water Sumps: Their Location, Sizing and Function

Passive Over-Heating of Homes

One Thing You Can Do to Improve Your Business

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

FIRST Metro Series Bi-Fold Door, Open Out

FIRST Metro Series Bi-Fold Overlight Transom and Overlight Coupling Bar

FIRST Metro Series Bi-Fold Door, Three Panel Open Out Door Showing Panel Glazing Options

FIRST Metro Series Bi-Fold Door Meeting Stiles

FIRST Metro Series Bi-Fold Door Meeting Stiles

FIRST Metro Series Bi-Fold Door Open In Vertical Section Details

FIRST Metro Series Bi-Fold Door Three Panel Open In Door Showing Panel Glazing Options

FIRST Metro Series Bifold Door Open In on Board and Batten

FIRST Metro Series Bifold Door Open In on Brick Veneer

FIRST Metro Series Bifold Door Open In on Bevelback Weatherboard

FIRST Metro Series Bifold Door Open In on Flat Sheet

FIRST Metro Series Bifold Door Open In on No Cladding

FIRST Metro Series Bifold Door Open In on Profile Metal

FIRST Metro Series Bifold Door Open In on Rusticated Weatherboard

FIRST Metro Series Bifold Door Open In on Stucco

FIRST Metro Series Bifold Door Open Out on Board and Batten

FIRST Metro Series Bifold Door Open Out on Brick Veneer

FIRST Metro Series Bifold Door Open Out on Bevelback Weatherboard

FIRST Metro Series Bifold Door Open Out on Flat Sheet

FIRST Metro Series Bifold Door Open Out on No Cladding

FIRST Metro Series Bifold Door Open Out on Profile Metal

FIRST Metro Series Bifold Door Open Out on Rusticated Weatherboard

FIRST Metro Series Bifold Door Open Out on Stucco

FIRST Metro Series Bifold Window on Board and Batten

FIRST Metro Series Bifold Window on Brick Veneer

FIRST Metro Series Bifold Window on Bevelback Weatherboard

FIRST Metro Series Bifold Window on Flat Sheet

FIRST Metro Series Bifold Window on No Cladding

FIRST Metro Series Bifold Window on Profile Metal

FIRST Metro Series Bifold Window on Rusticated Weatherboard

FIRST Metro Series Bifold Window on Stucco

APL Metro Series Bifold Door 4 Panel Open Out

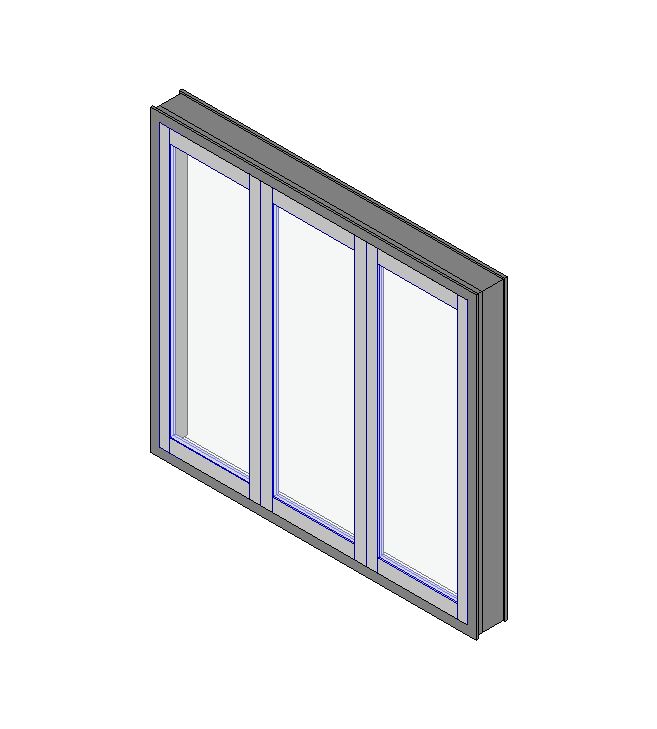

FIRST Metro Series Bi-Fold Door 2+1 Panel Open Out

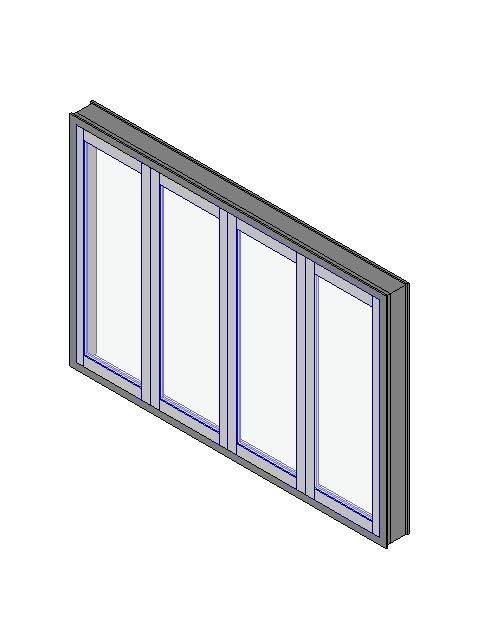

FIRST Metro Series Bi-Fold Door 2+2 Panel Open Out

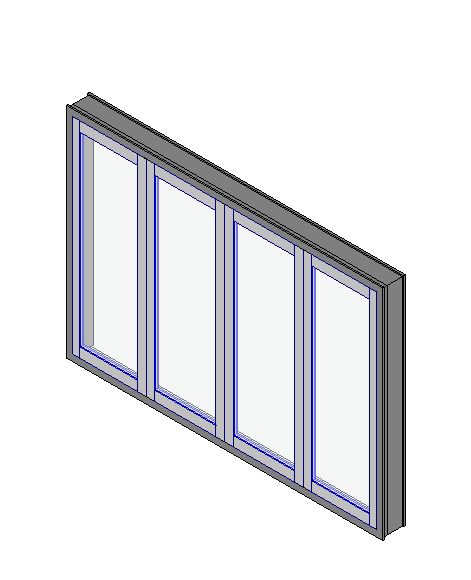

FIRST Metro Series Bi-Fold Door 3+1 Open Out

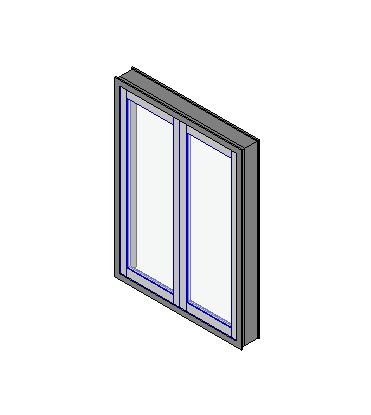

FIRST Metro Series Bi-Fold Door Open In
