Klima Series Sliding Windows and Doors
APL Specifier Guide available Order now
Description

Klima is an innovative range of uPVC windows and doors optimised for New Zealand conditions. Based on the German Kommerling 76mm Series, Klima features thick profiles for thermal insulation and hidden steel reinforcing to ensure shape stability and structural excellence. Klima windows and doors are made from a highly durable, 'hot country' uPVC — an environmentally-friendly, lead-free formulation.

Klima's product range comprises sliding, hinged and French doors and awning, casement and sliding windows. A tilt-n-turn window with inward opening casement/hopper sash is also offered.

Klima is rated to the maximum 6 energy stars under WEERS when used with Low-E double glazing.

Key Features
  • The Klima uPVC sliding window system uses the sliding door extrusions
  • Maximum 2100mm high doors in very high wind zones
  • Klima uPVC sliders have been designed for New Zealand conditions

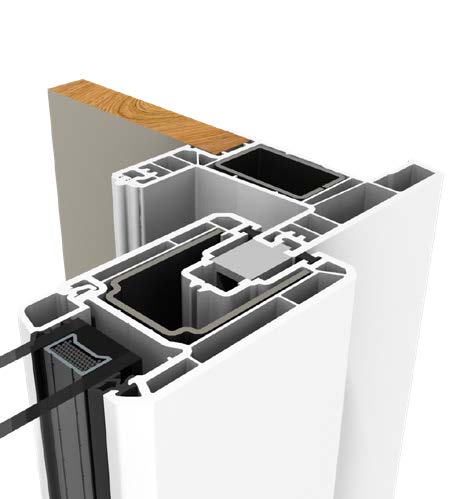

  • Hidden steel reinforcing is included in all uPVC profiles to ensure shape stability and structural excellence

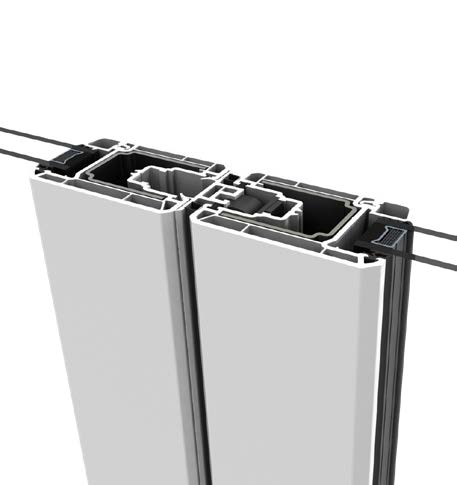

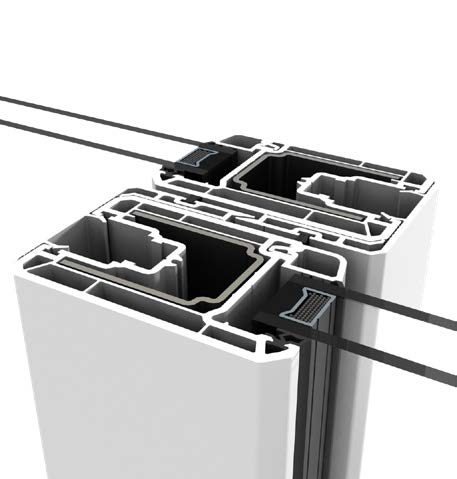

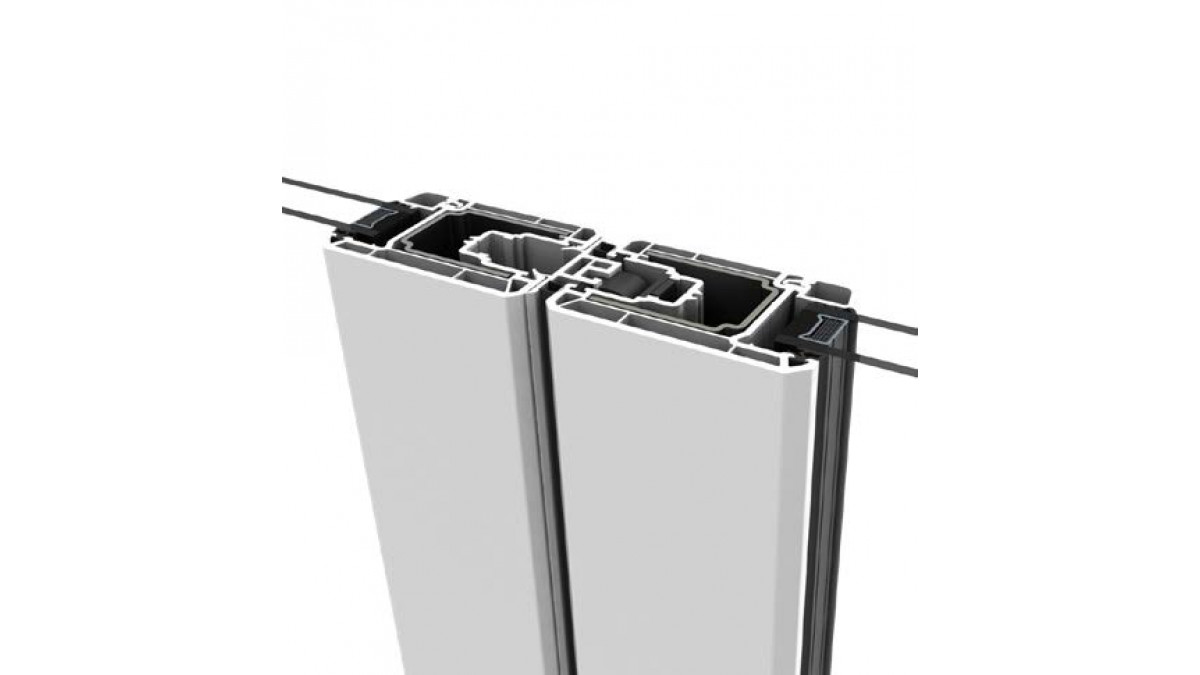

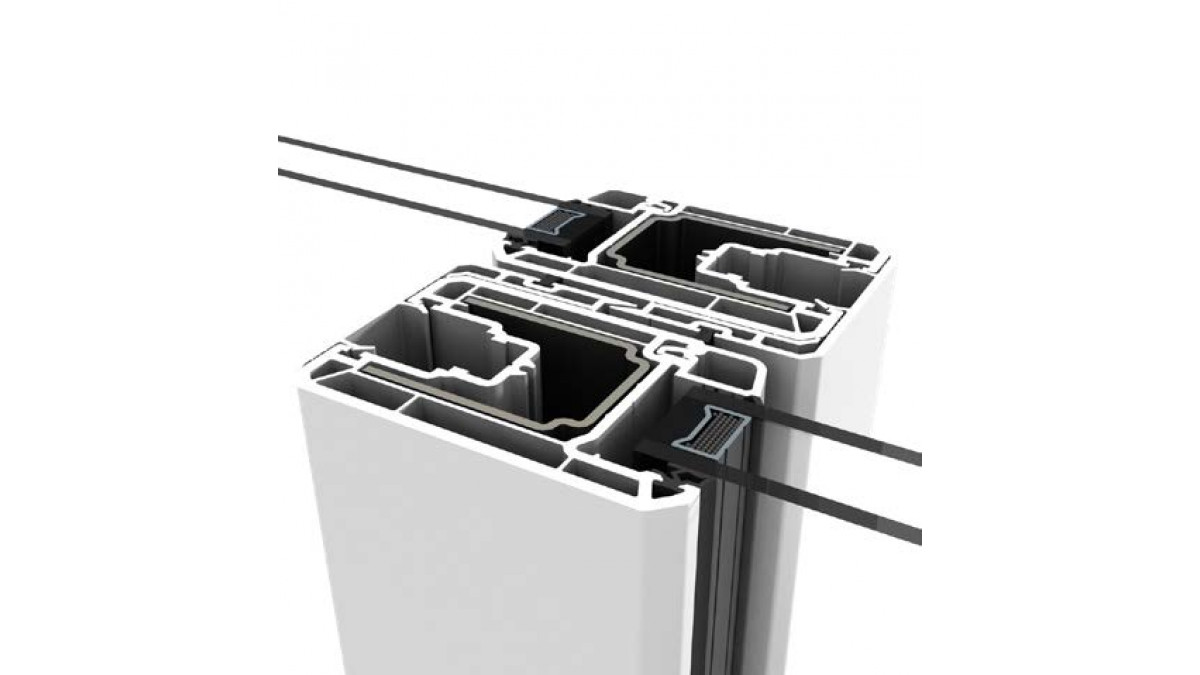

  • Interlocker stiles and mullions are flush in the closed position
  • Opening sidelight windows are not available
  • Glazing beads are applied from the inside
  • Available as standard in white but can also be supplied with other exterior colours using the ‘AluClip’ system where an exterior aluminium facing is used
  • Opening sidelight sashes are not available beside sliding doors.
Categories
Sliding Doors
Ranges
Klima Series
Energy Star
Energy Star
Scope of Use
  • Suitable for most residential environments
  • Multi Sliders allow approximately two-thirds opening
  • Narrow stiles and large glass expanses maximise views in the closed position
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Opening sidelight windows not available for sliding doors
  • Klima sliding windows are a good option for servery windows
  • Flush sills not offered.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2.
In-Service History
  • Launched in 2017
  • Widely used by homeowners, builders and specifiers
  • Statement of Building Code Compliance
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed.
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Data Sheet: Klima Range
Span Tables
First Care, Maintenance & Warranty Brochure (with AGP)

2020

Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

First Brochure

2014

Klima Series Brochure

2019

Hardware
AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

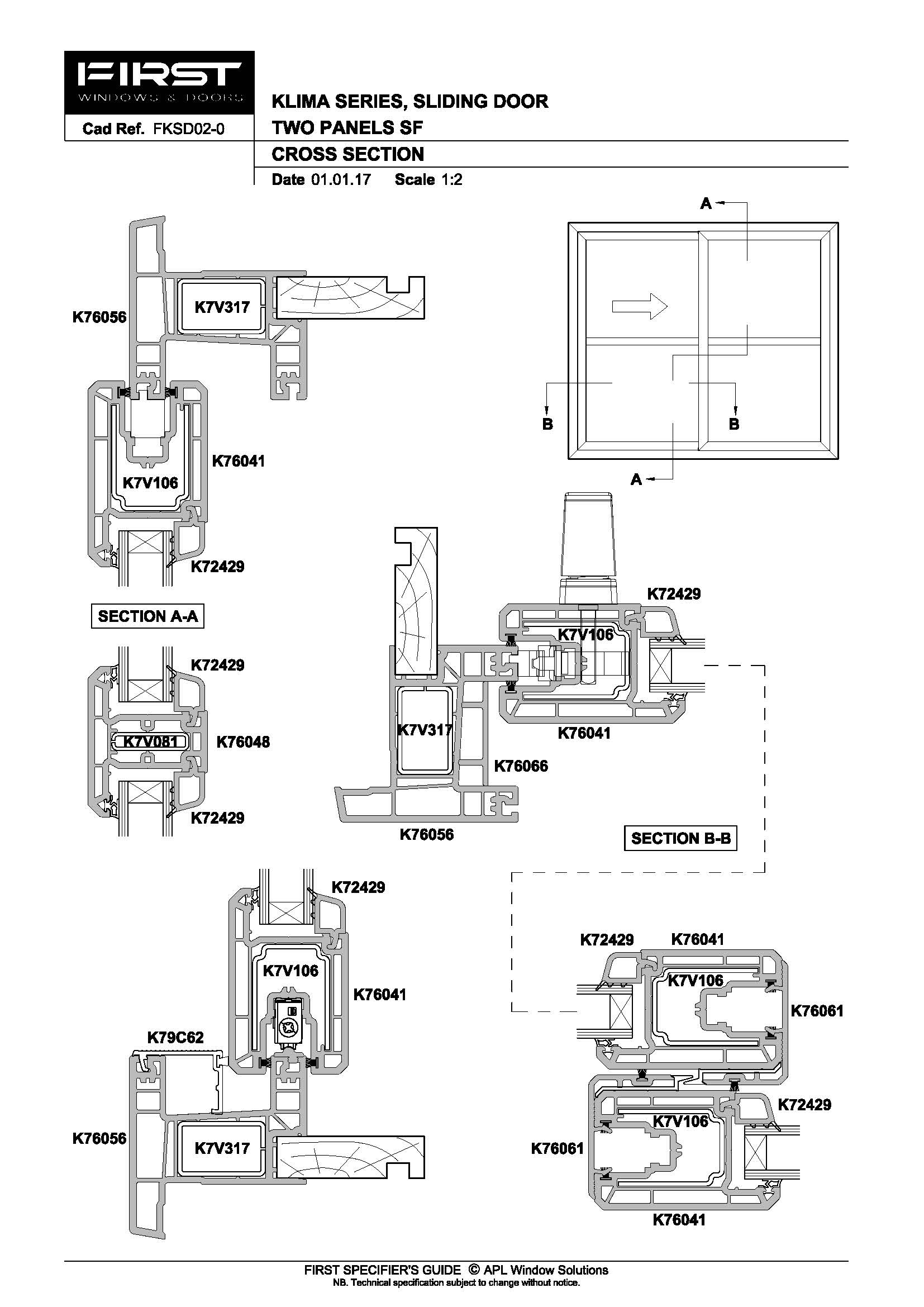

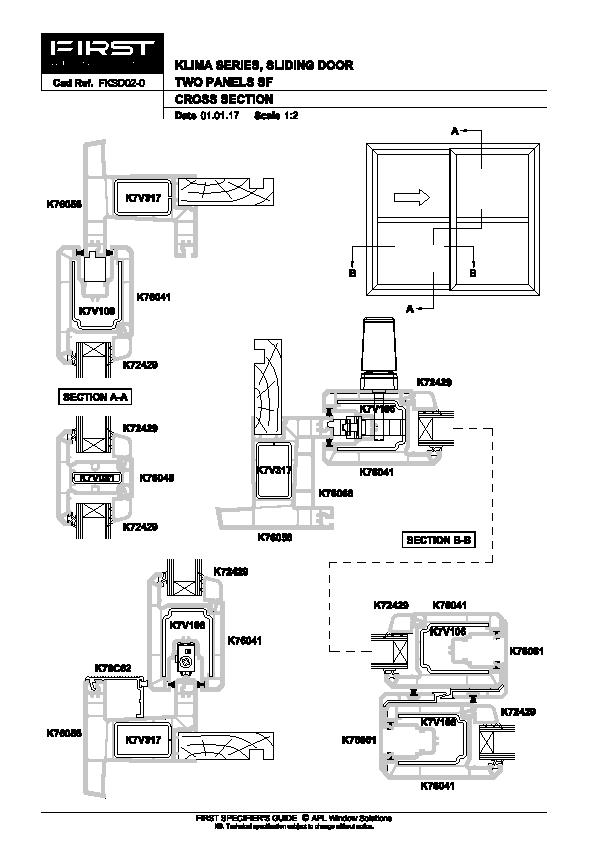

First Klima Series Sliding Door, Two Panels SF

FKSD02-0

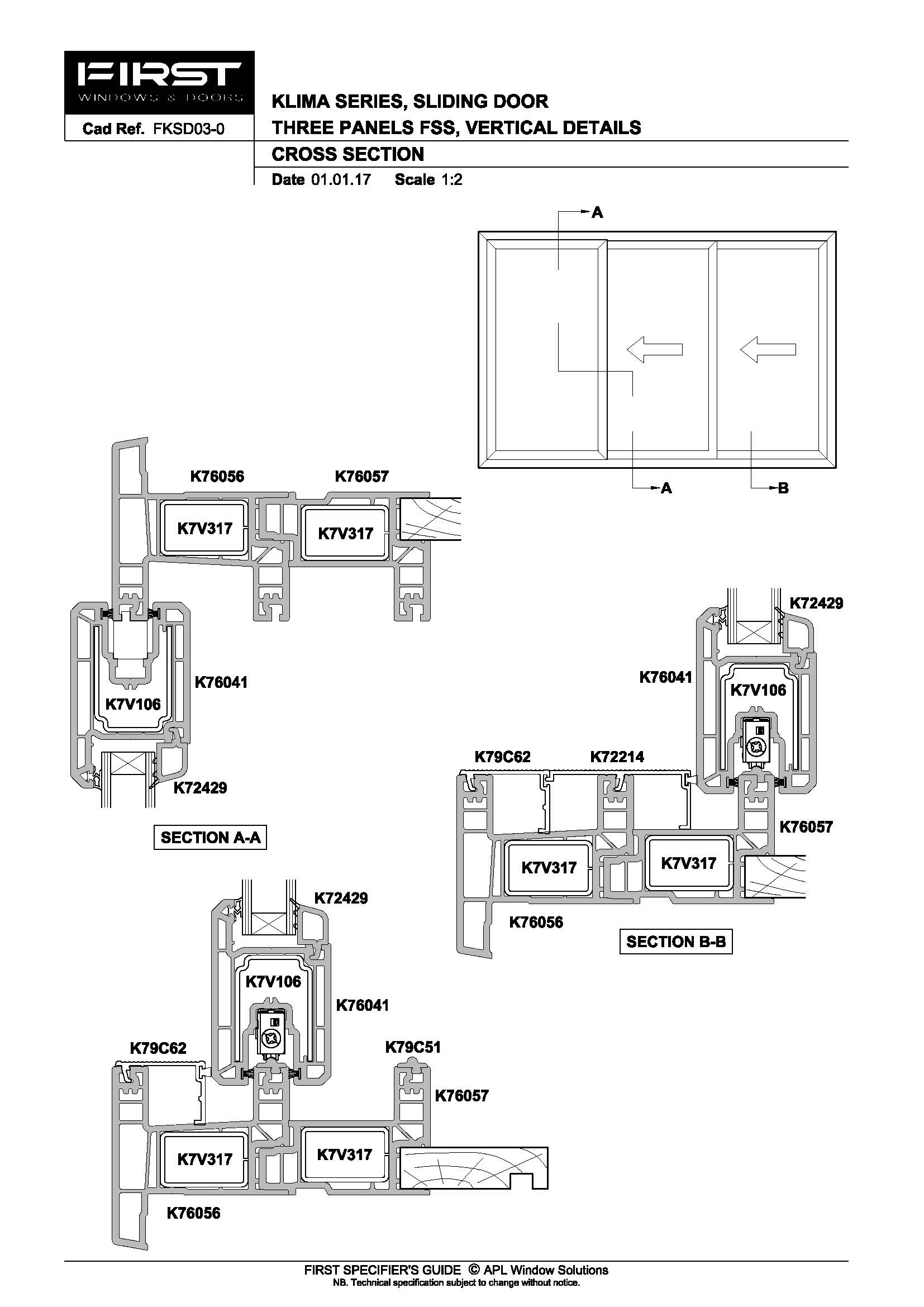

First Klima Series Sliding Door, Three Panels FSS

FKSD03-0

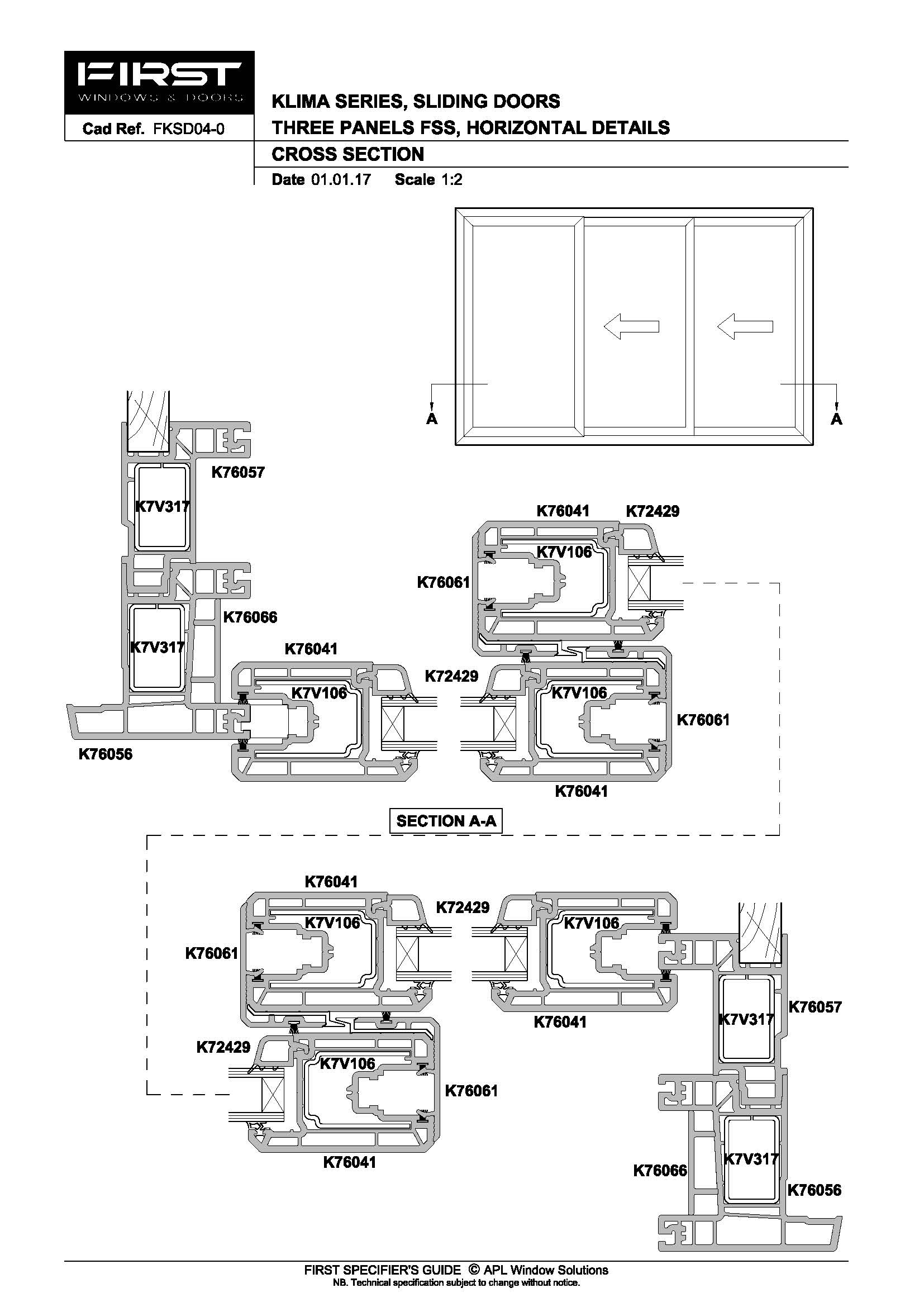

First Klima Series Sliding Doors, Three Panels FSS

FKSD04-0

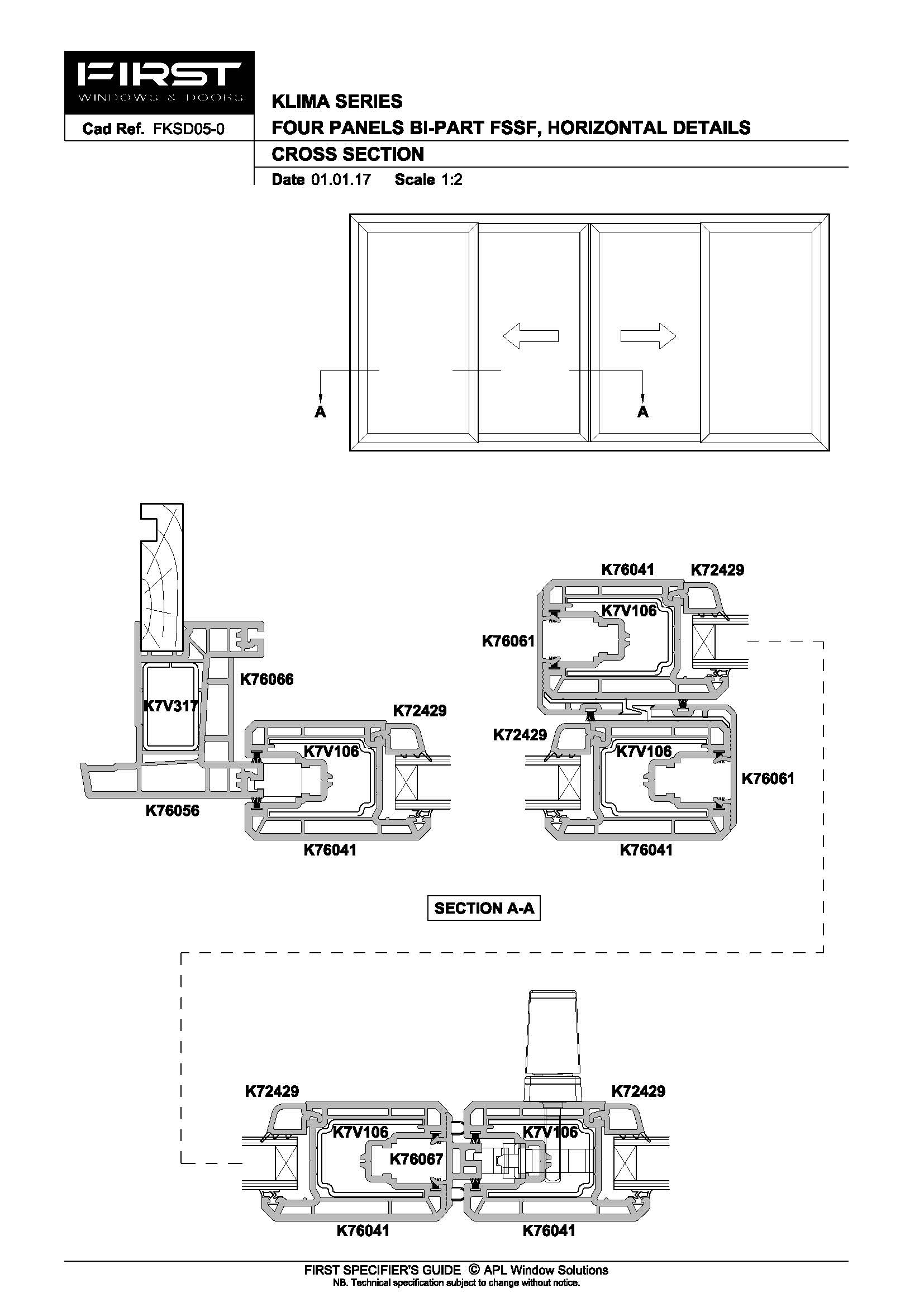

First Klima Series Sliding Door, Four Panels Bi-Part FSSF

FKSD05-0

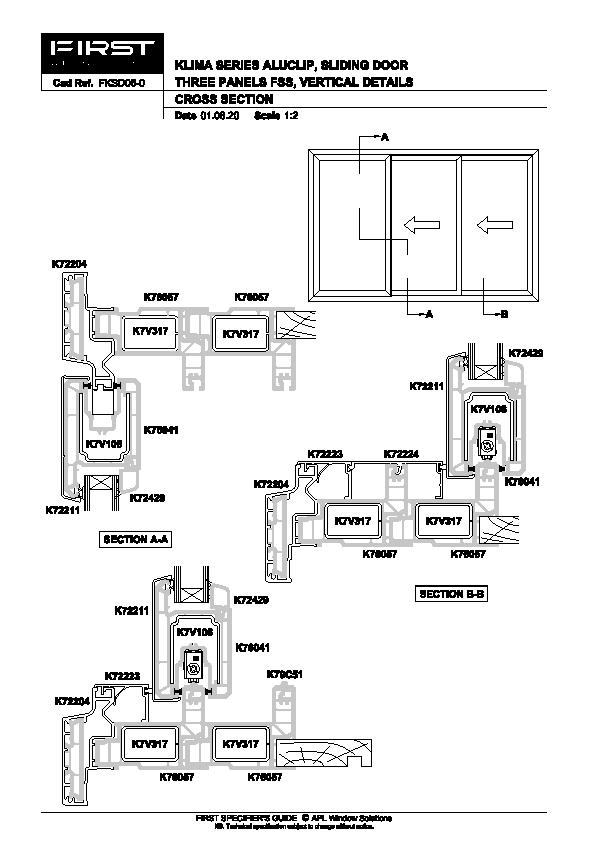

First Klima Series, Aluclip - Sliding Door Three Panels FSS

FKSD06-0

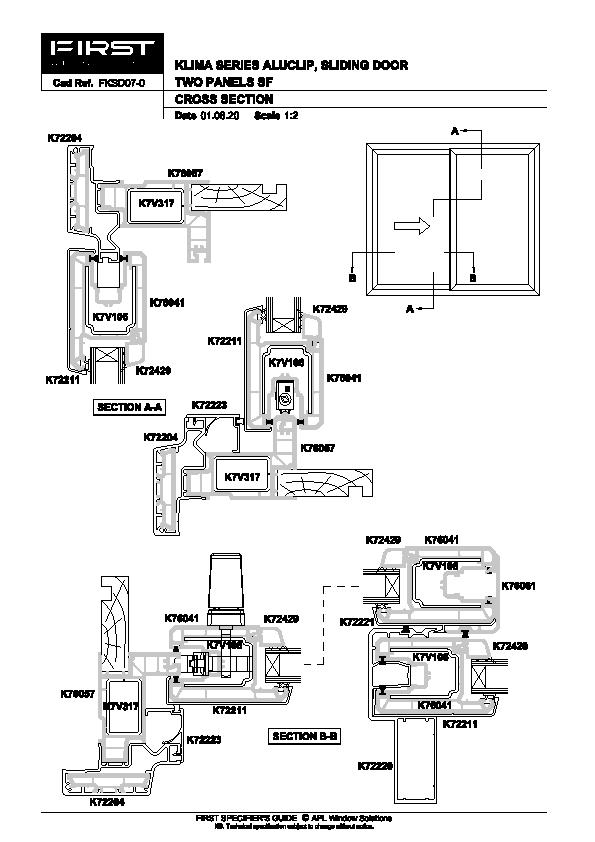

First Klima Series, Aluclip - Sliding Door Two Panels SF

FKSD07-0

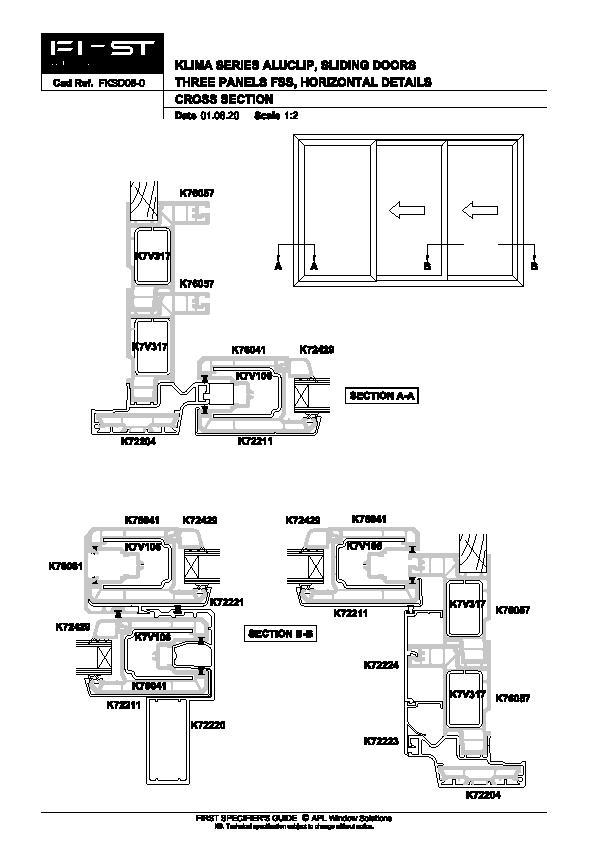

First Klima Series, Aluclip - Sliding Doors Three Panels FSS Horizontal

FKSD08-0

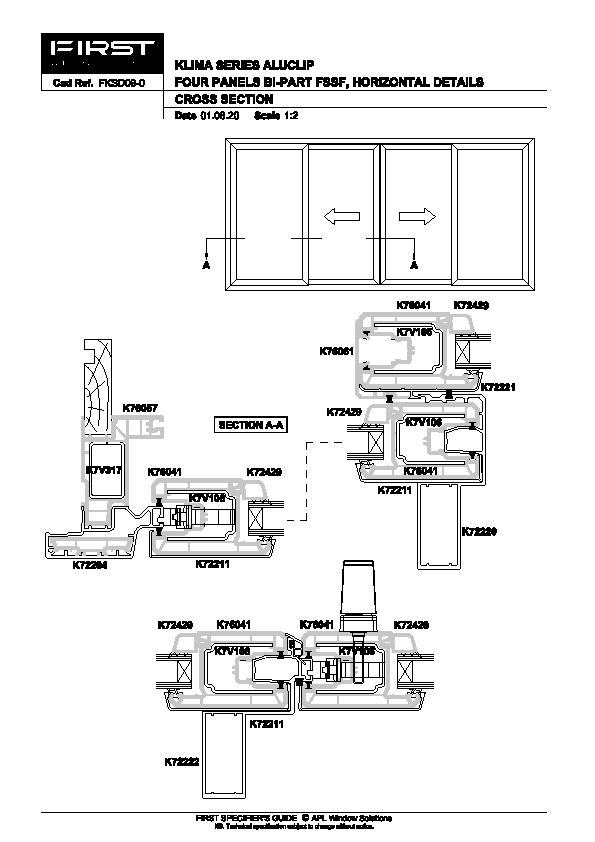

First Klima Series, Aluclip - Sliding Doors Four Panels Bi-Part FSSF Horizontal

FKSD09-0

Installation Details

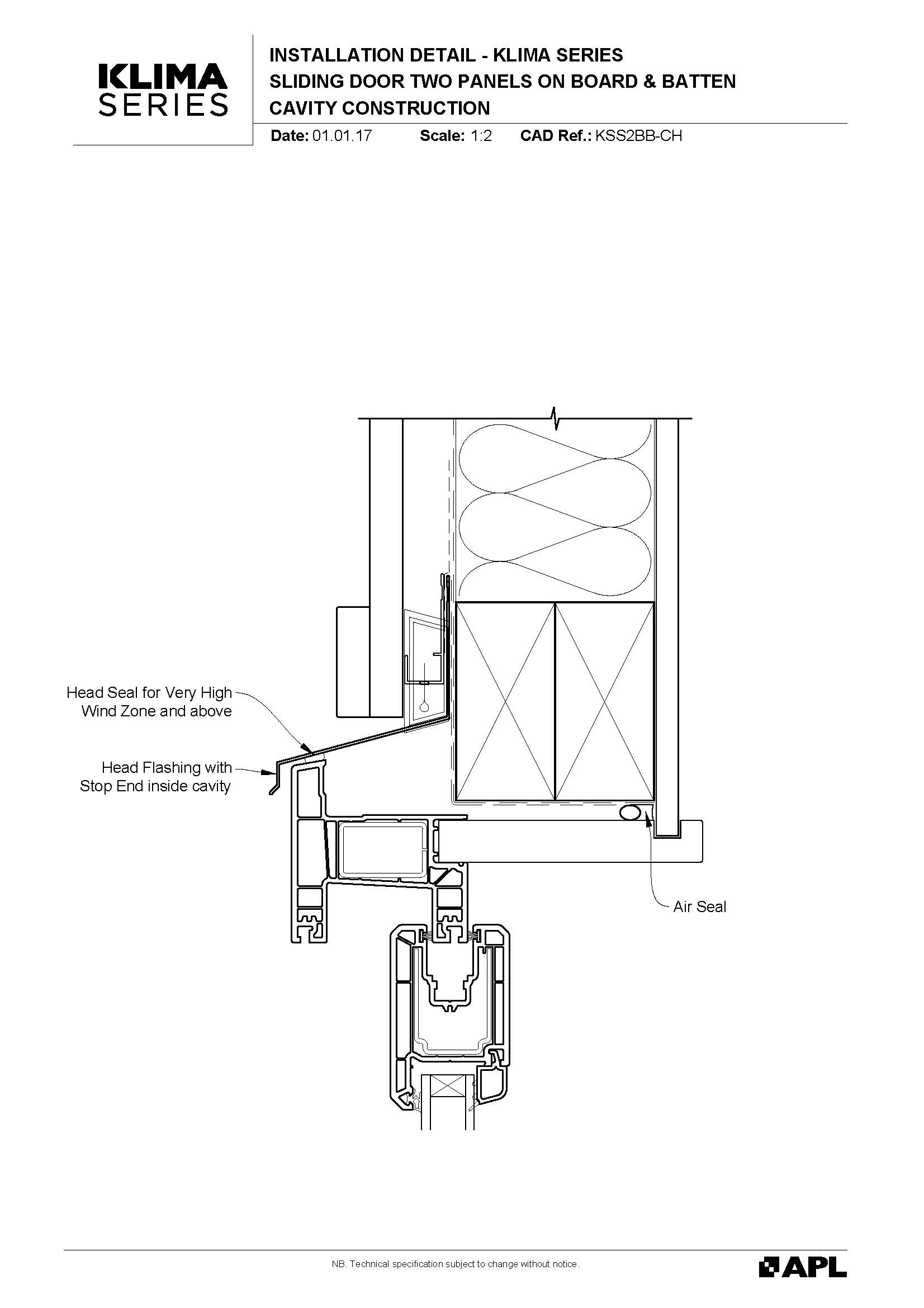

First Klima Series Sliding Door Two Panels on Board & Batten

KSS2BB

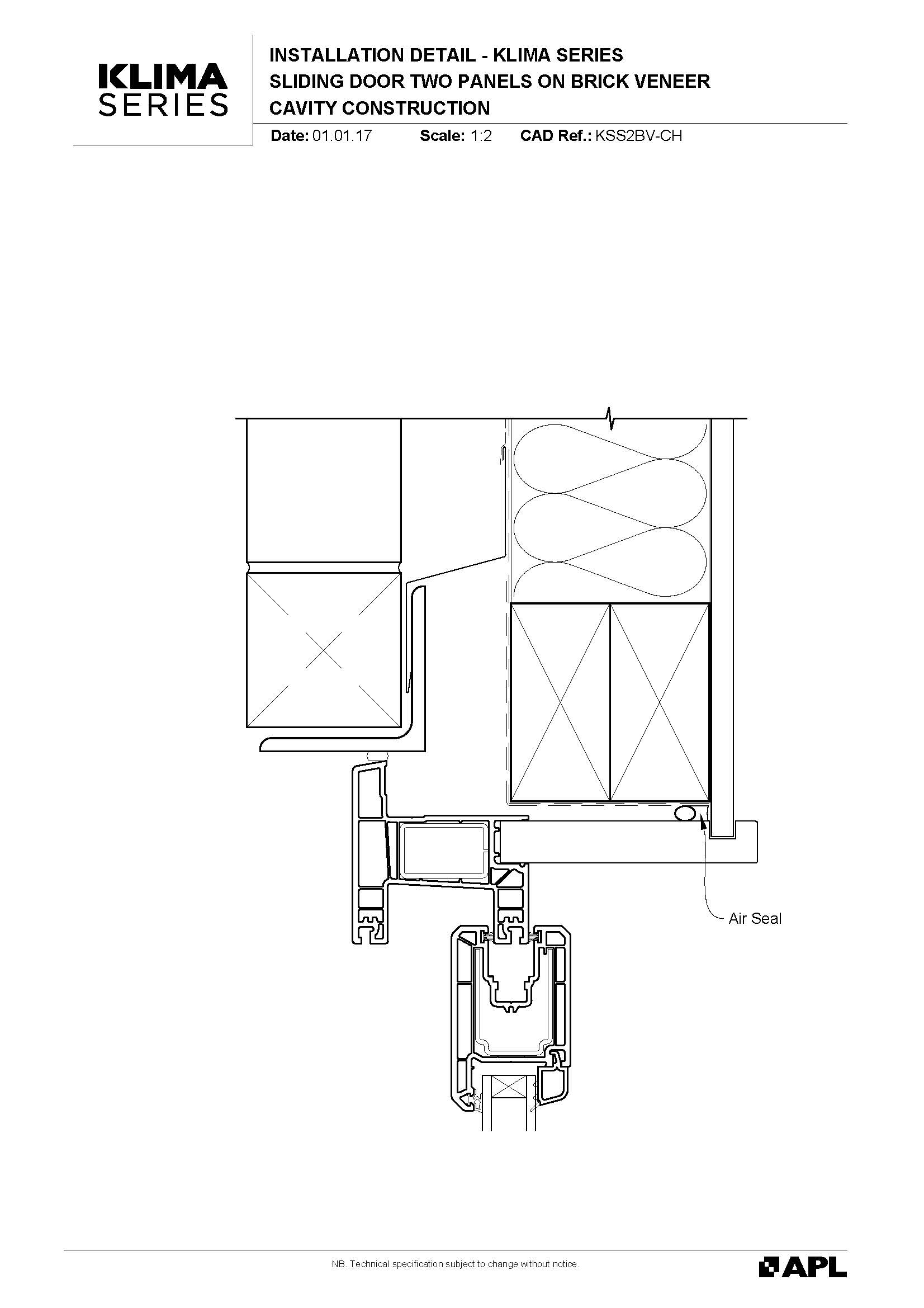

First Klima Series Sliding Door Two Panels on Brick Veneer

KSS2BV

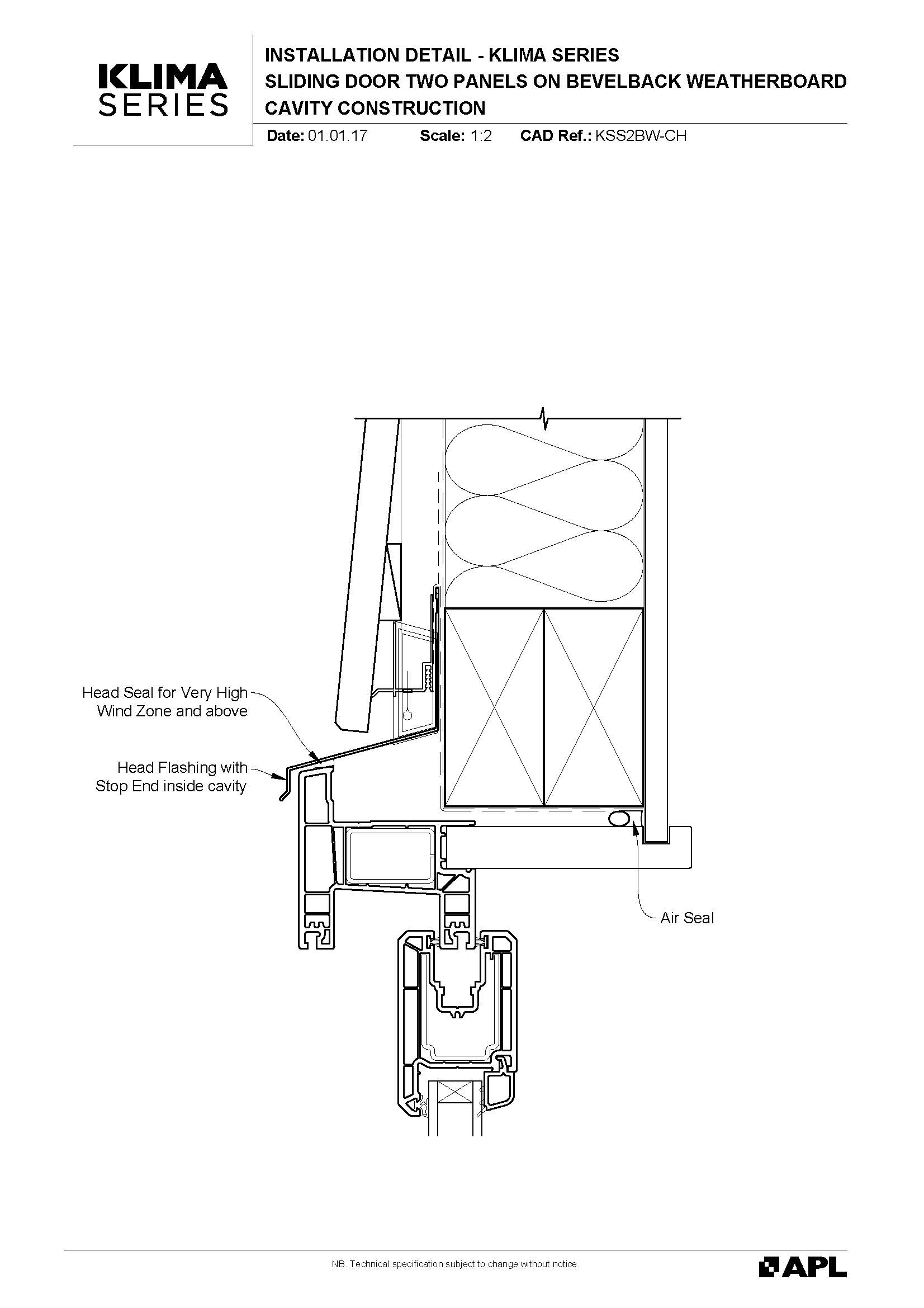

First Klima Series Sliding Door Two Panels on Beveback Weatherboard

KSS2BW

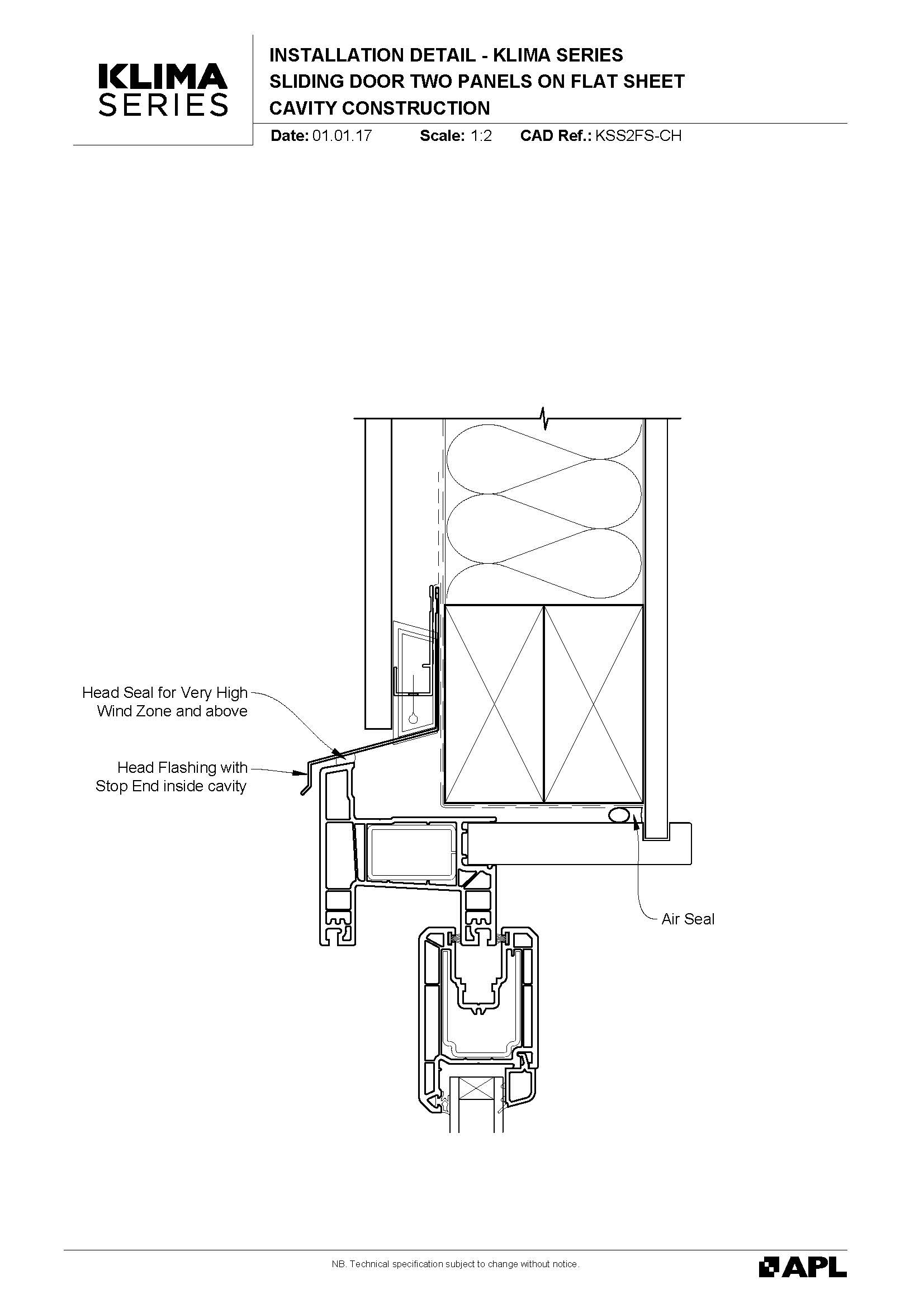

First Klima Series Sliding Door Two Panels on Flat Sheet

KSS2FS

First Klima Series Sliding Door Two Panels on No Cladding

KSS2NC

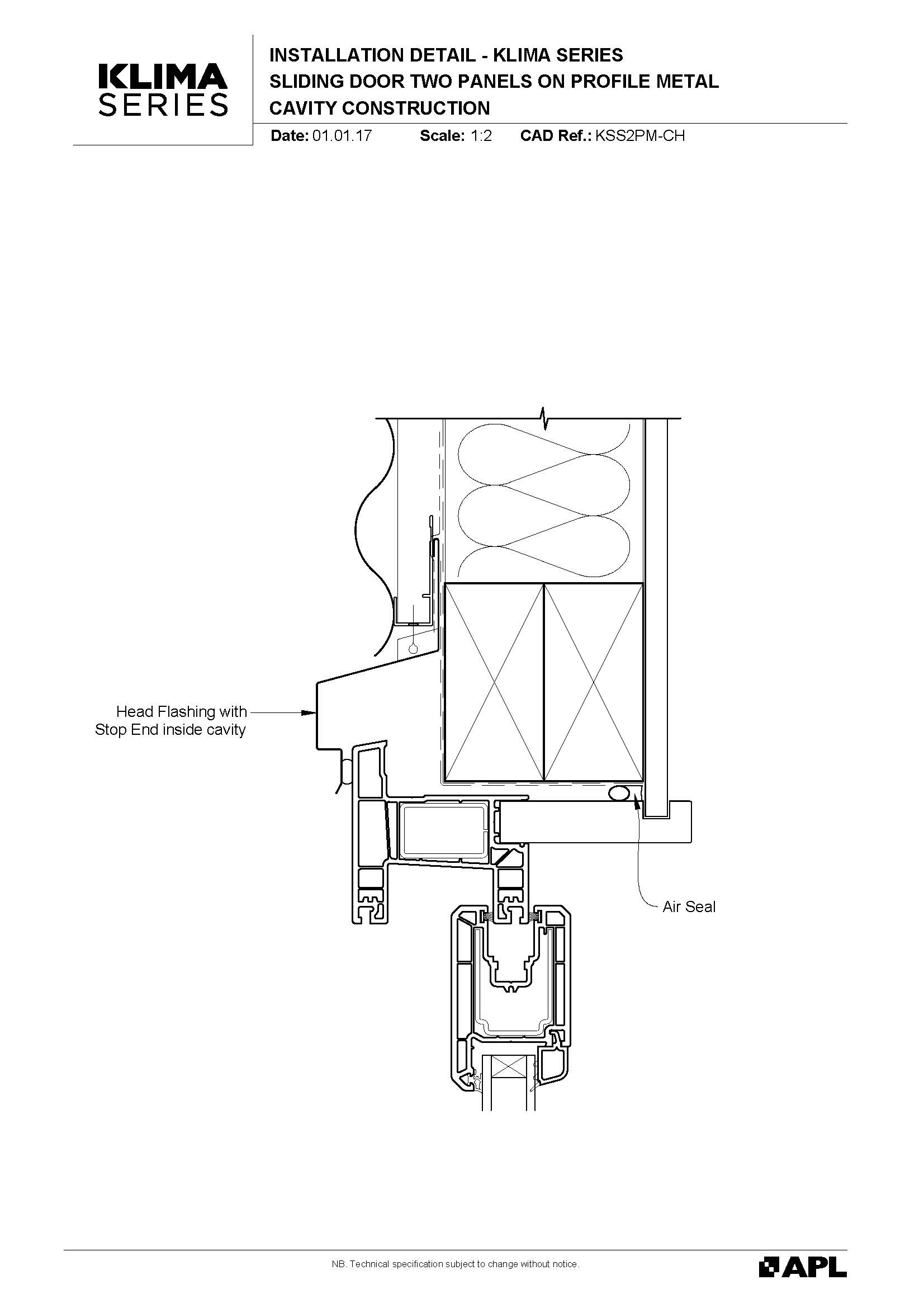

First Klima Series Sliding Door Two Panels on Profile Metal

KSS2PM

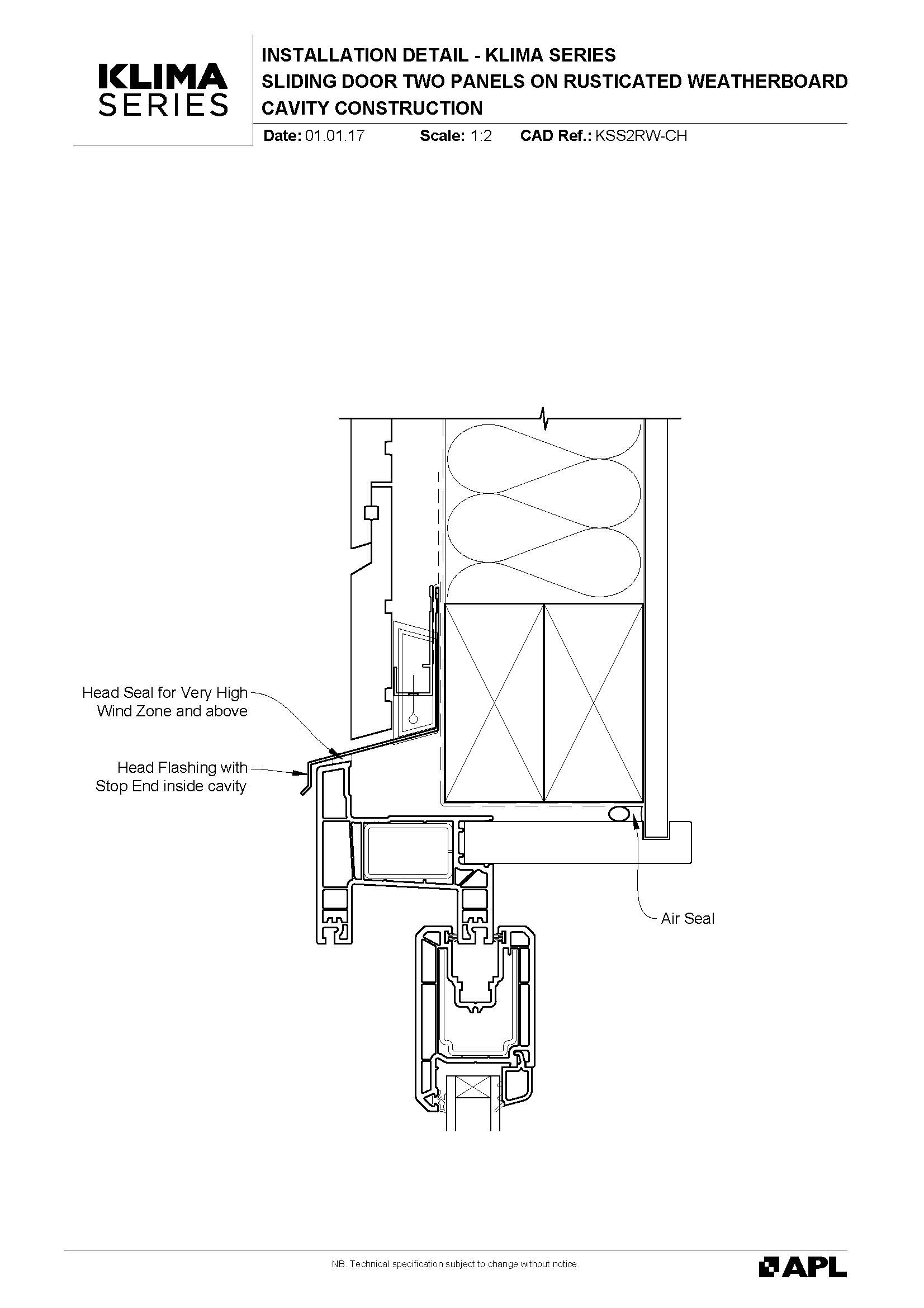

First Klima Series Sliding Door Two Panels on Rusticated Weatherboard

KSS2RW

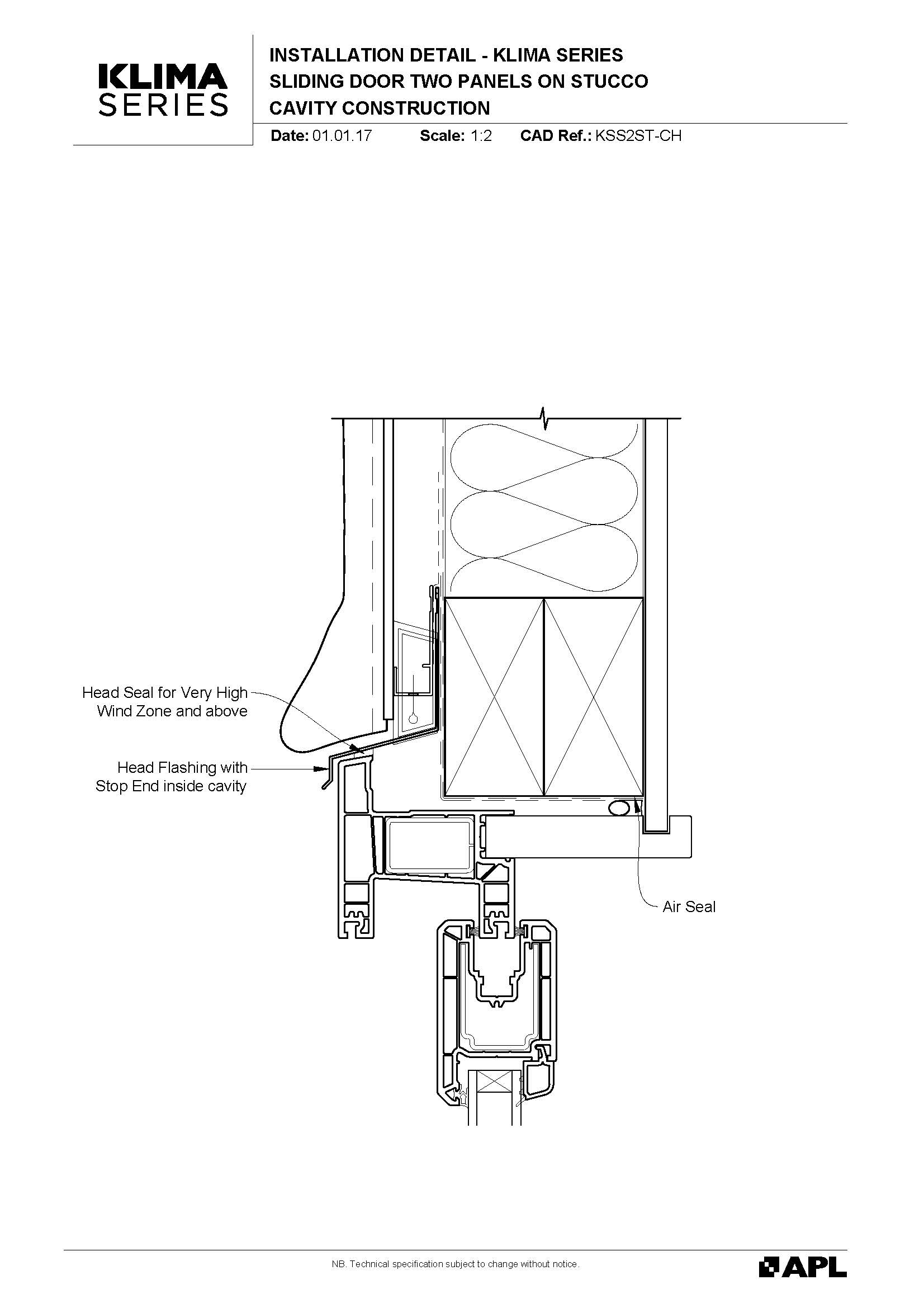

First Klima Series Sliding Door Two Panels on Stucco

KSS2ST

First Klima Series Sliding Door Three Panels on Board & Batten

KSS3BB

First Klima Series Sliding Door Three Panels on Brick Veneer

KSS3BV

First Klima Series Sliding Door Three Panels on Bevelback Weatherboard

KSS3BW

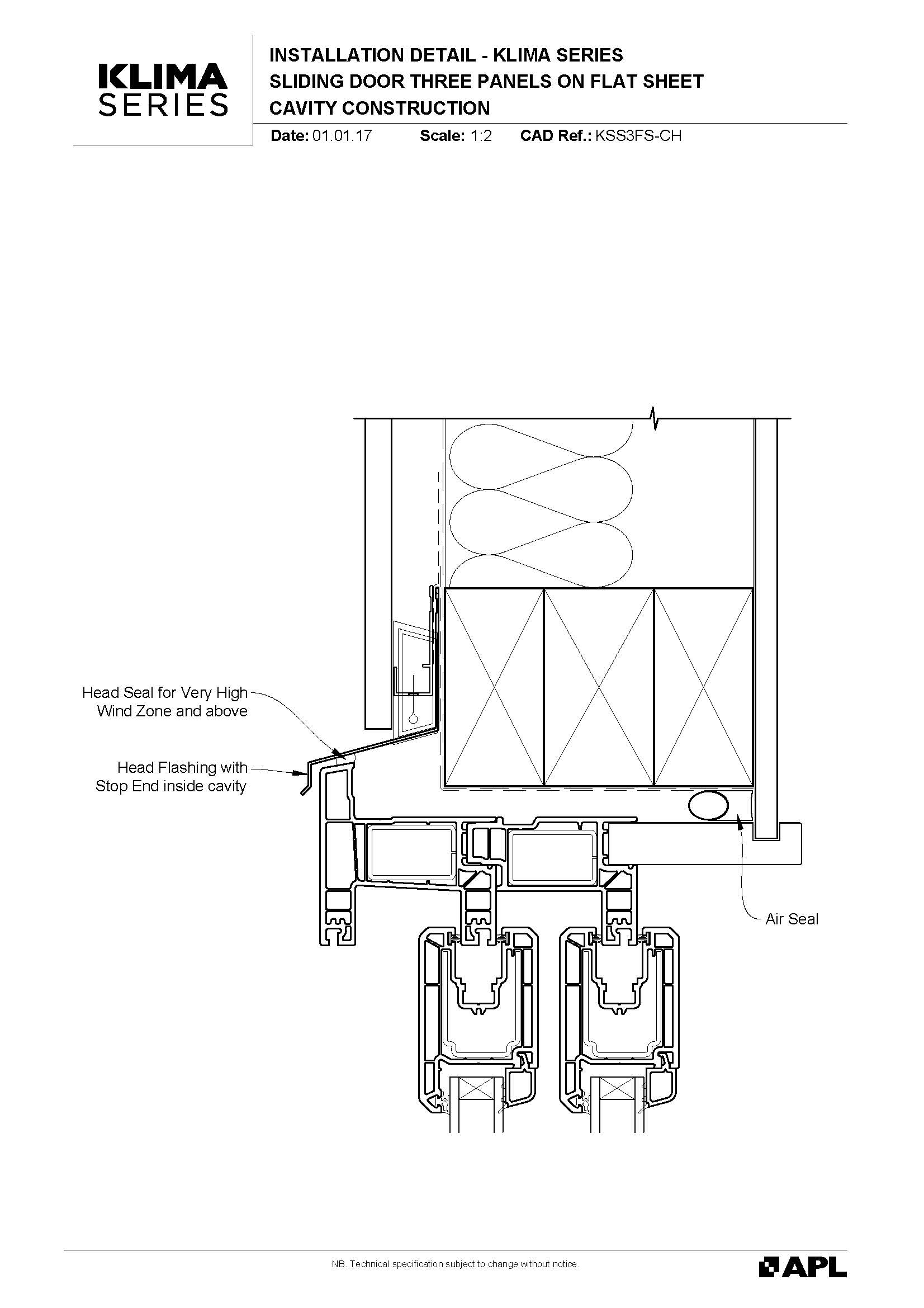

First Klima Series Sliding Door Three Panels on Flat Sheet

KSS3FS

First Klima Series Sliding Door Three Panels on No Cladding

KSS3NC

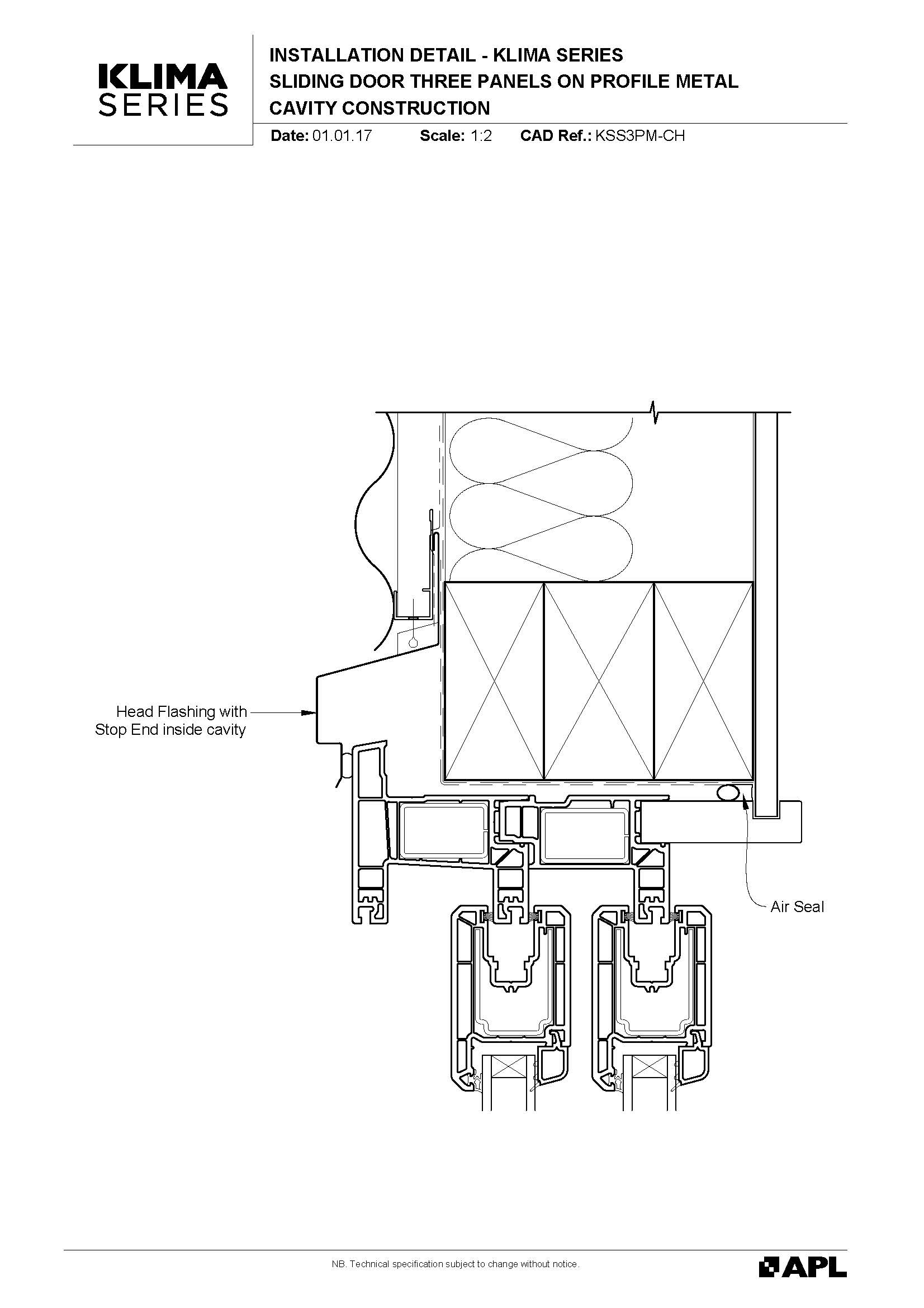

First Klima Series Sliding Door Three Panels on Profile Metal

KSS3PM

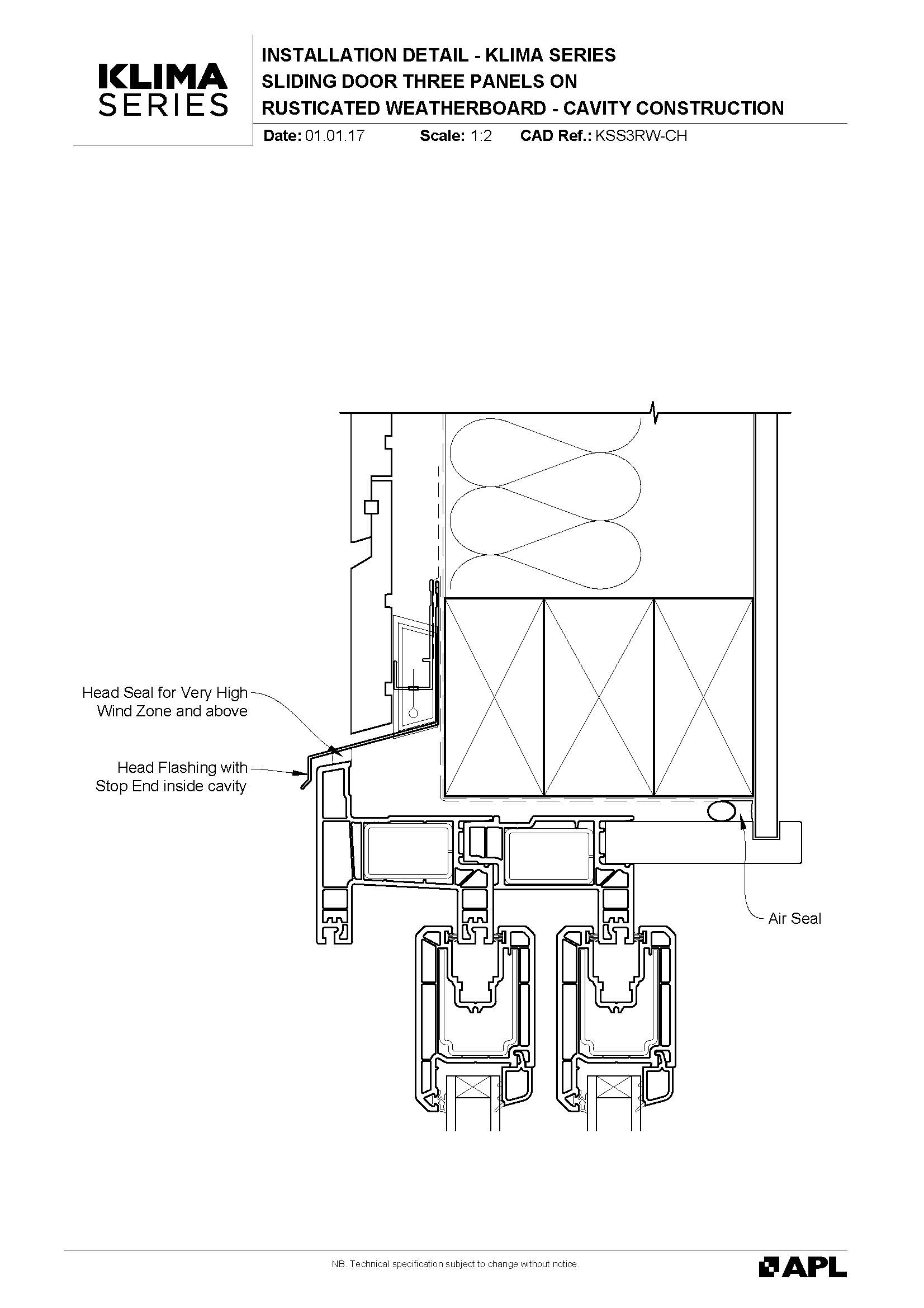

First Klima Series Sliding Door Three Panels on Rusticated Weatherboard

KSS3RW

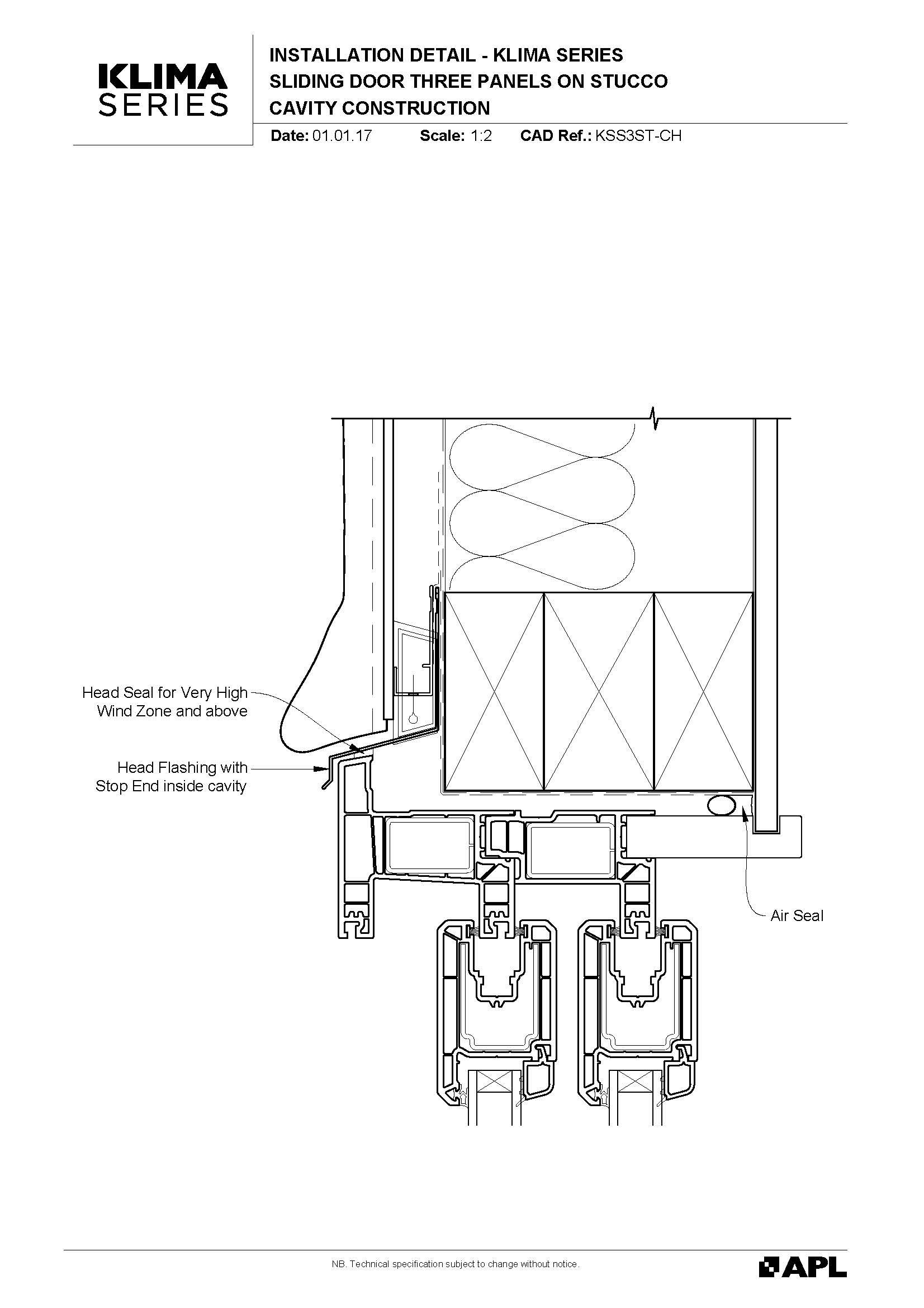

First Klima Series Sliding Door Three Panels on Stucco

KSS3ST

BIM

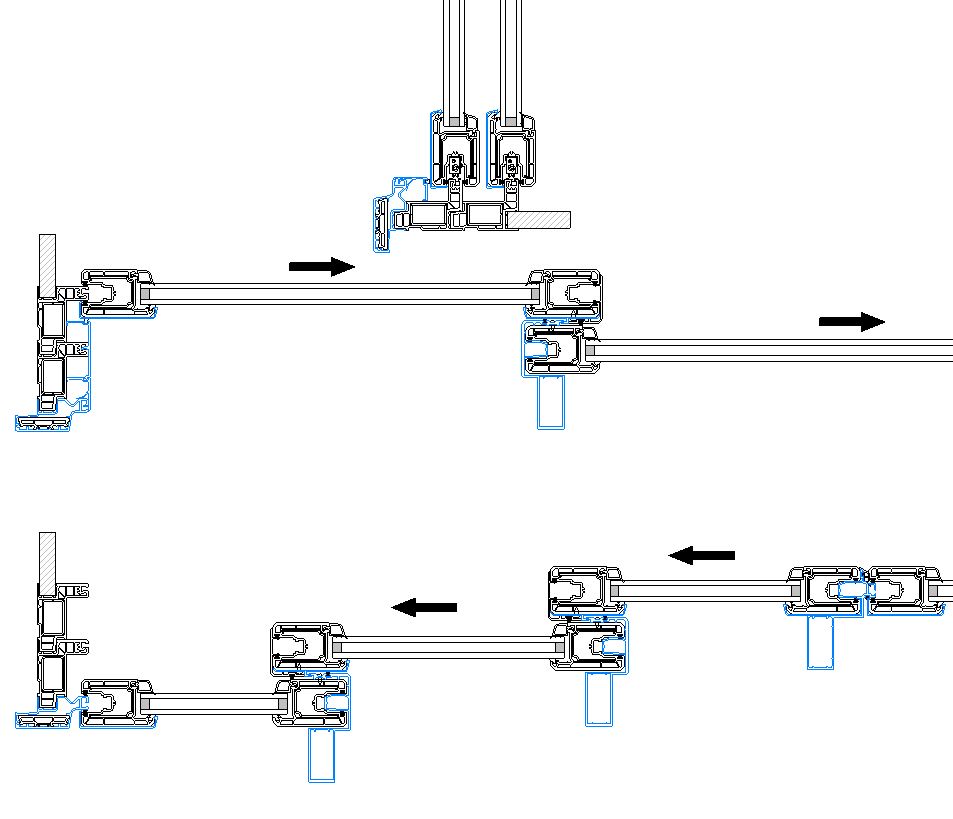

Klima Series ALUCLIP Sliding Door Multislider

Revit LT 2020

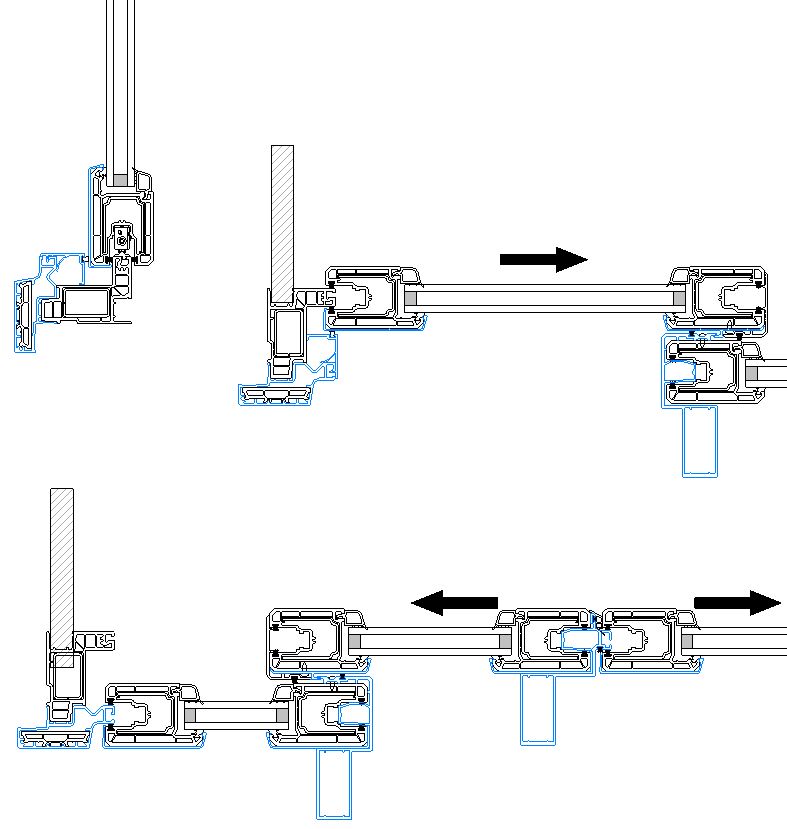

Klima Series ALUCLIP Sliding Door Single Slider

Revit LT 2020

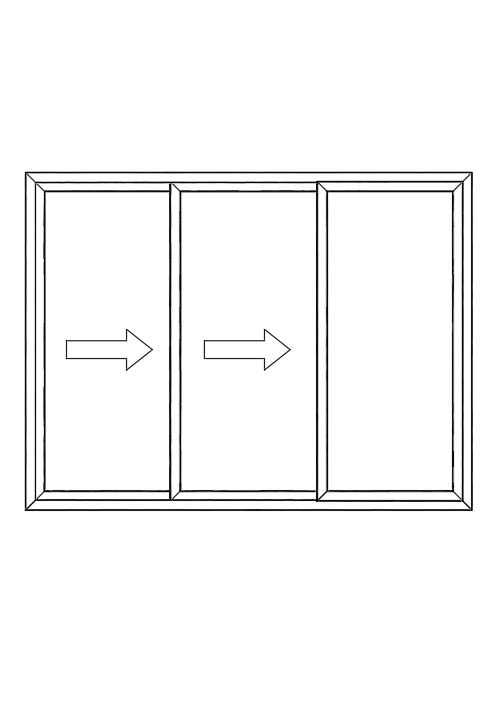

Klima Series Sliding Door Multislider

Revit LT 2020

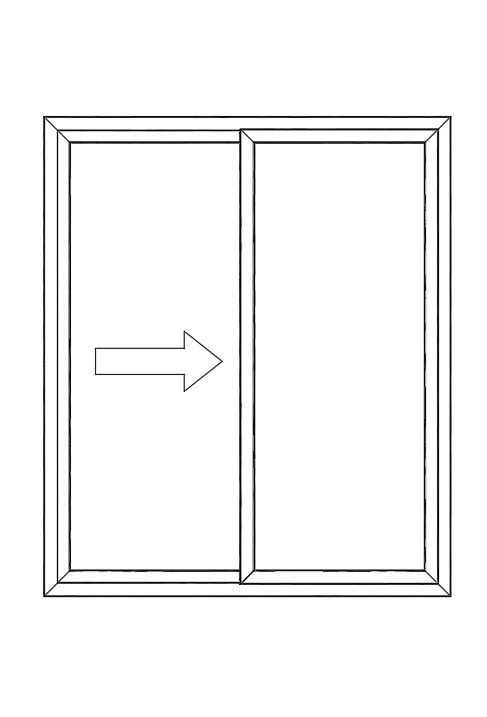

Klima Series Sliding Door Single Slider

Revit LT 2020
