Klima Series Awning Windows
APL Specifier Guide available Order now
Description

Klima is an innovative range of uPVC windows and doors optimised for New Zealand conditions. Based on the German Kommerling 76mm Series, Klima features thick profiles for thermal insulation and hidden steel reinforcing to ensure shape stability and structural excellence. Klima windows and doors are made from a highly durable, 'hot country' uPVC — an environmentally-friendly, lead-free formulation.

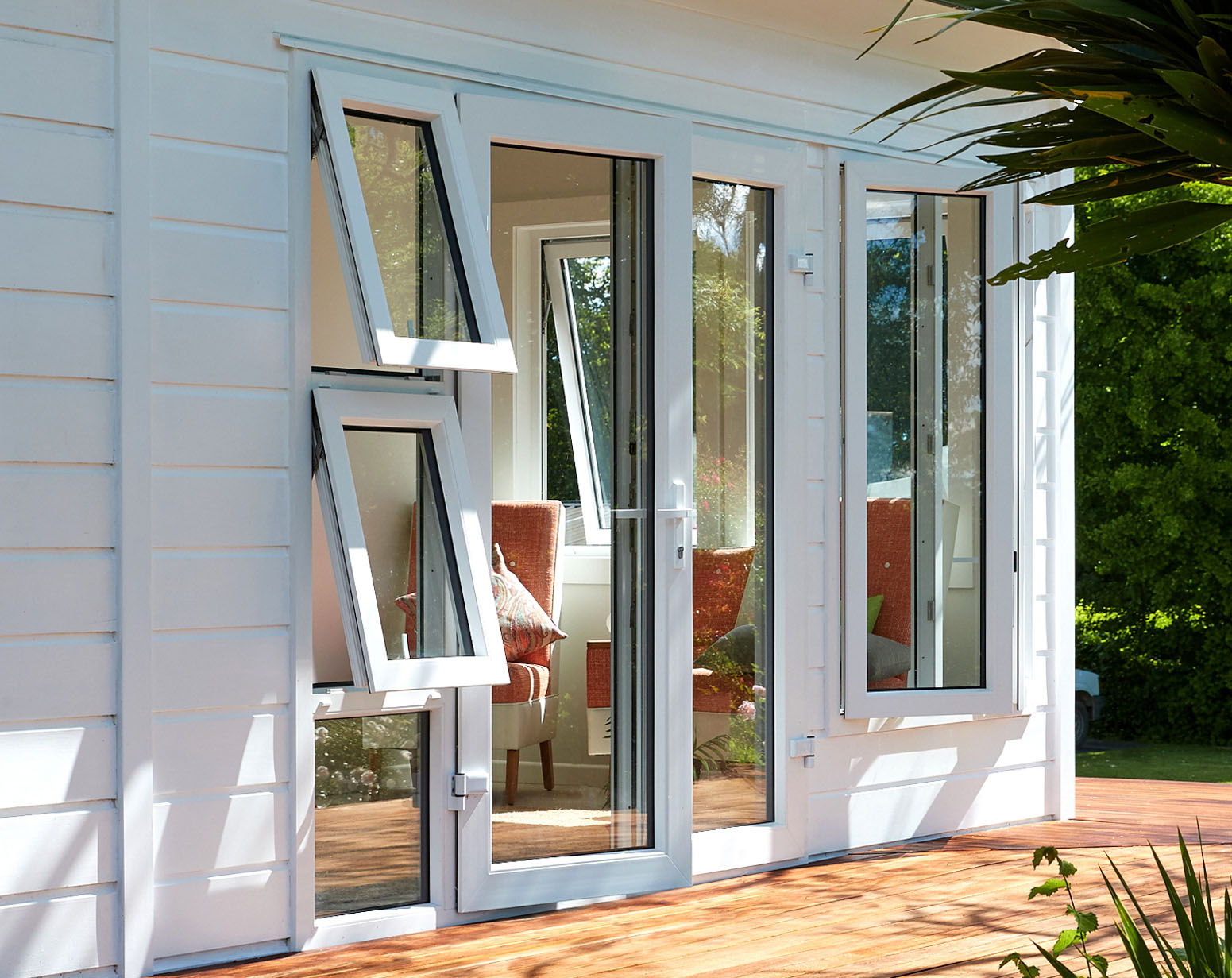

Klima's product range comprises sliding, hinged and French doors and awning, casement and sliding windows. A tilt-n-turn window with inward opening casement/hopper sash is also offered.

Klima is rated to the maximum 6 energy stars under WEERS when used with Low-E double glazing.

Key Features

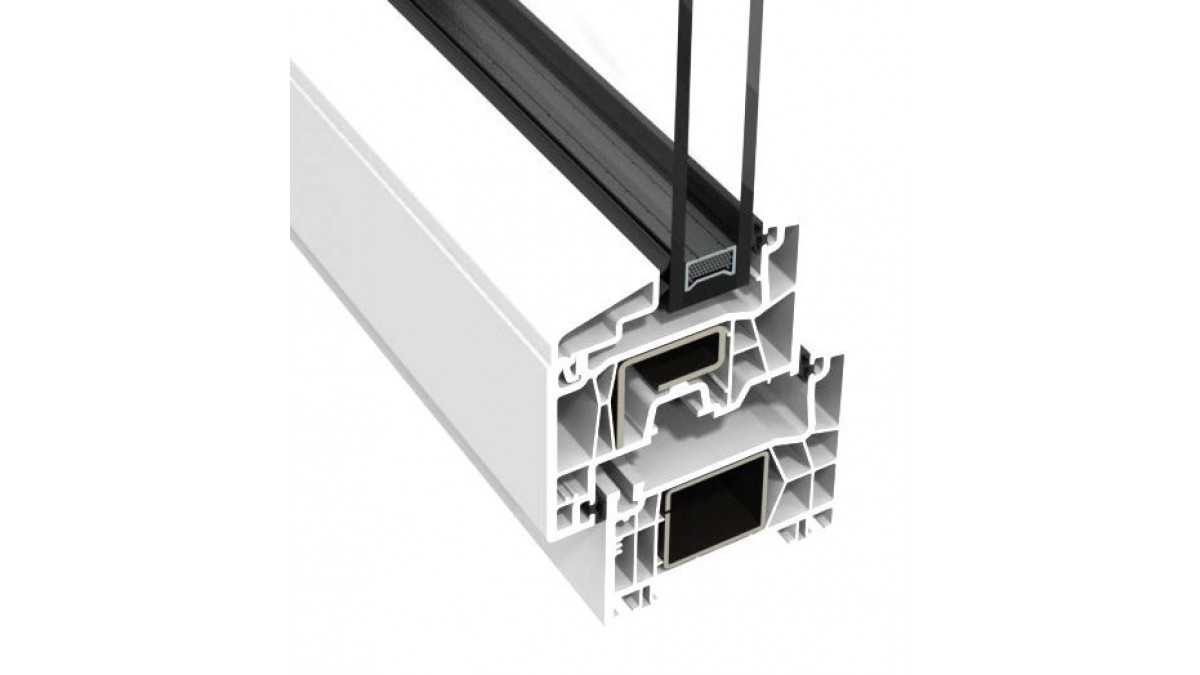

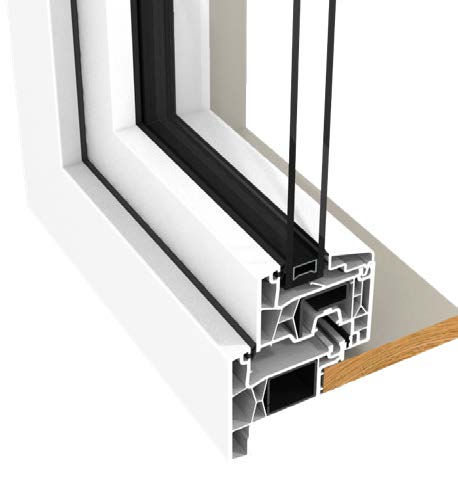

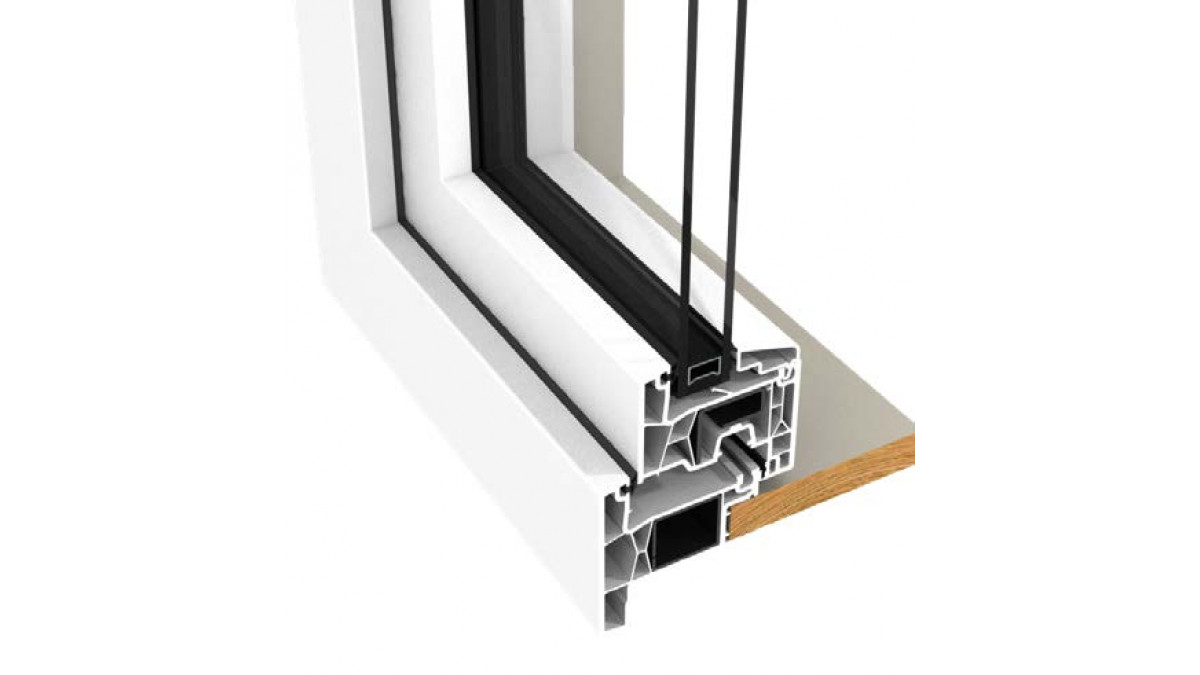

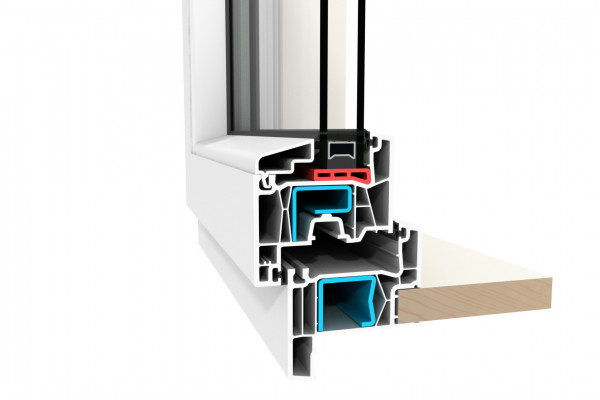

  • Based on the German Kömmerling uPVC 76mm Series with thick profiles for maximum thermal insulation
  • Optimised for New Zealand conditions

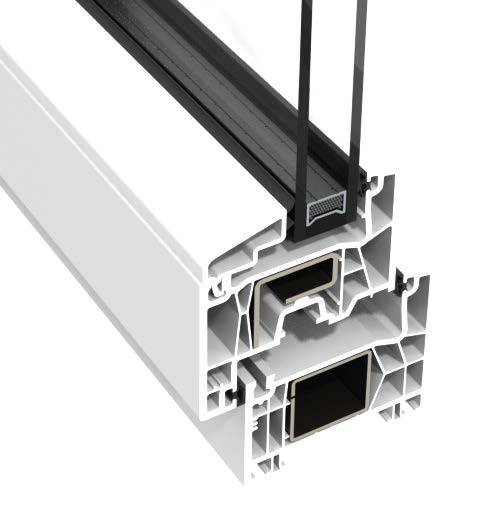

  • Hidden steel reinforcing is included in all uPVC profiles to ensure shape stability and structural excellence

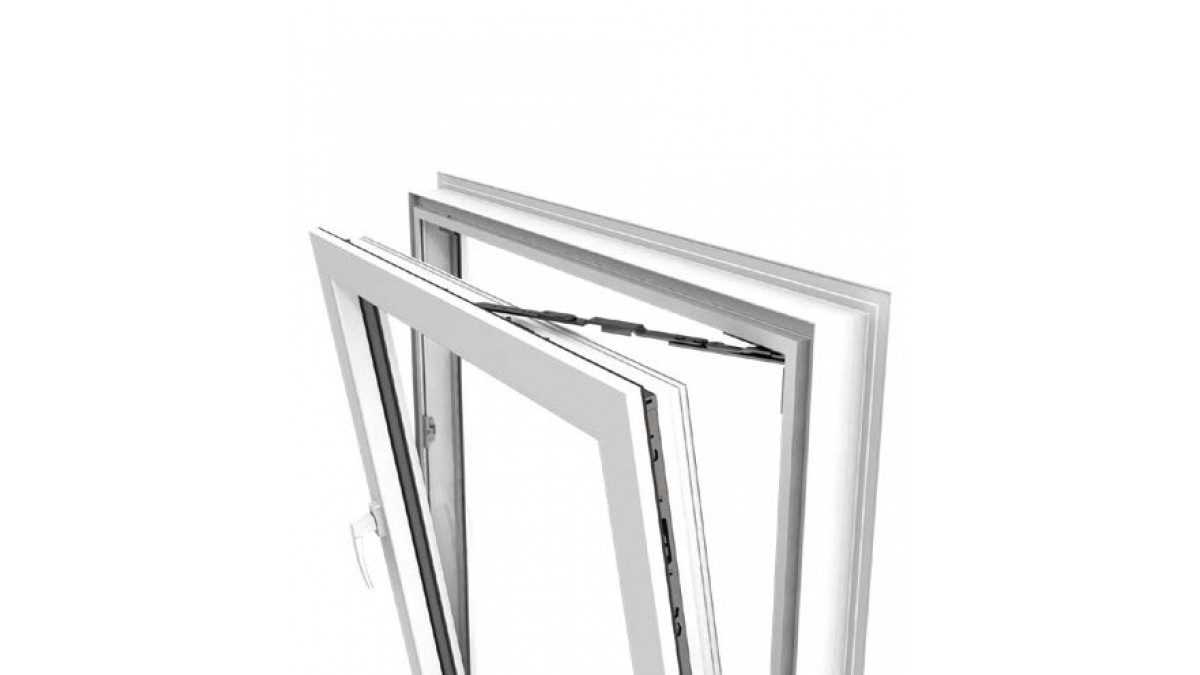

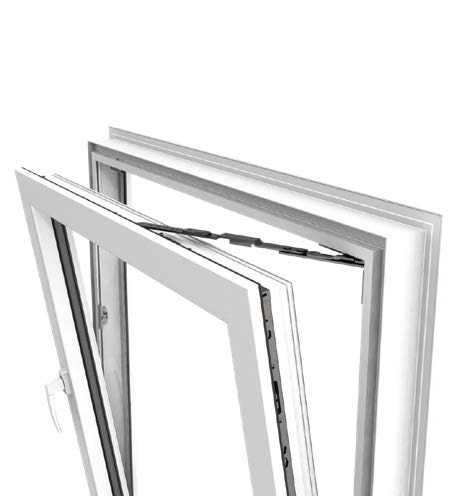

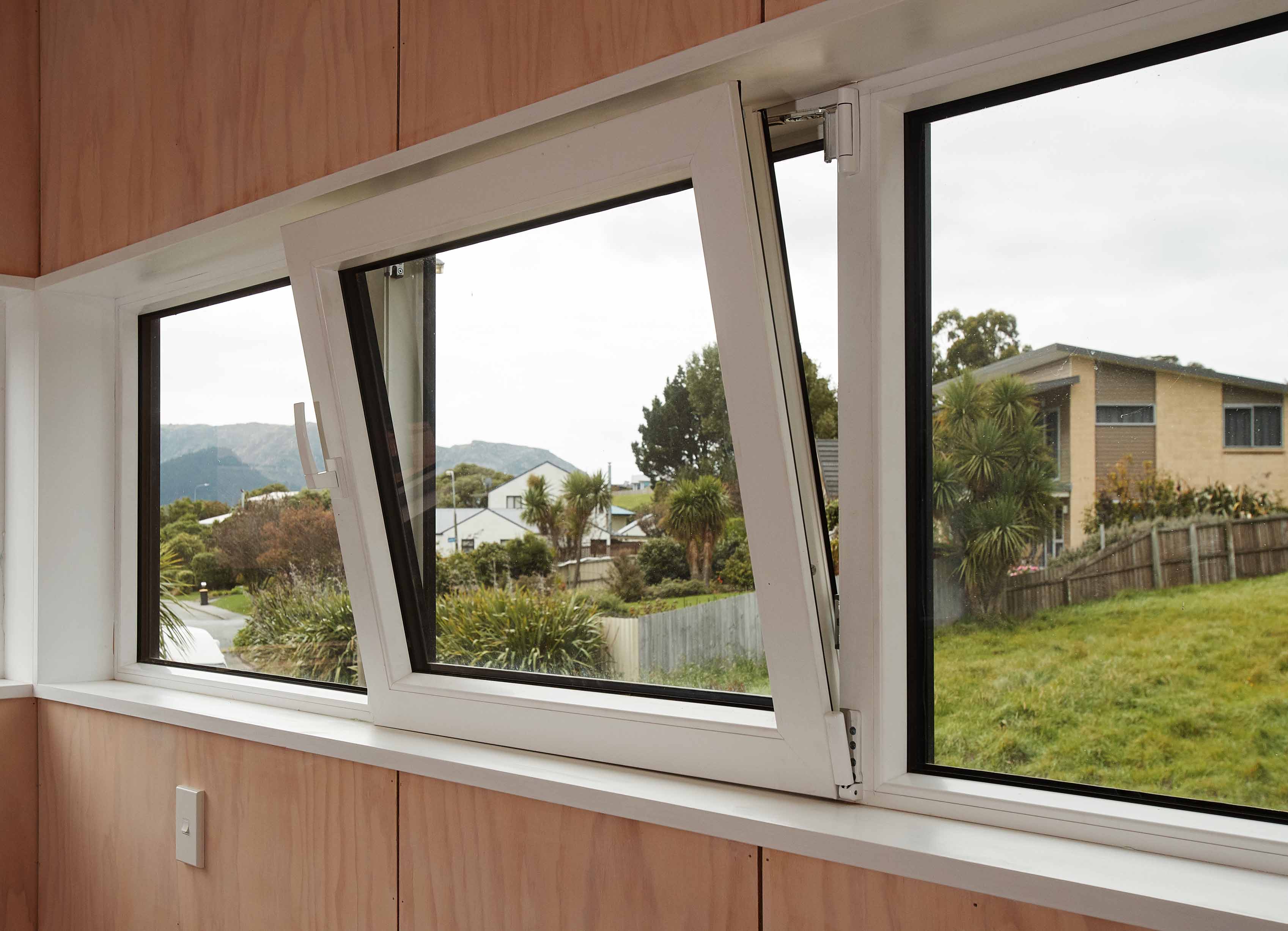

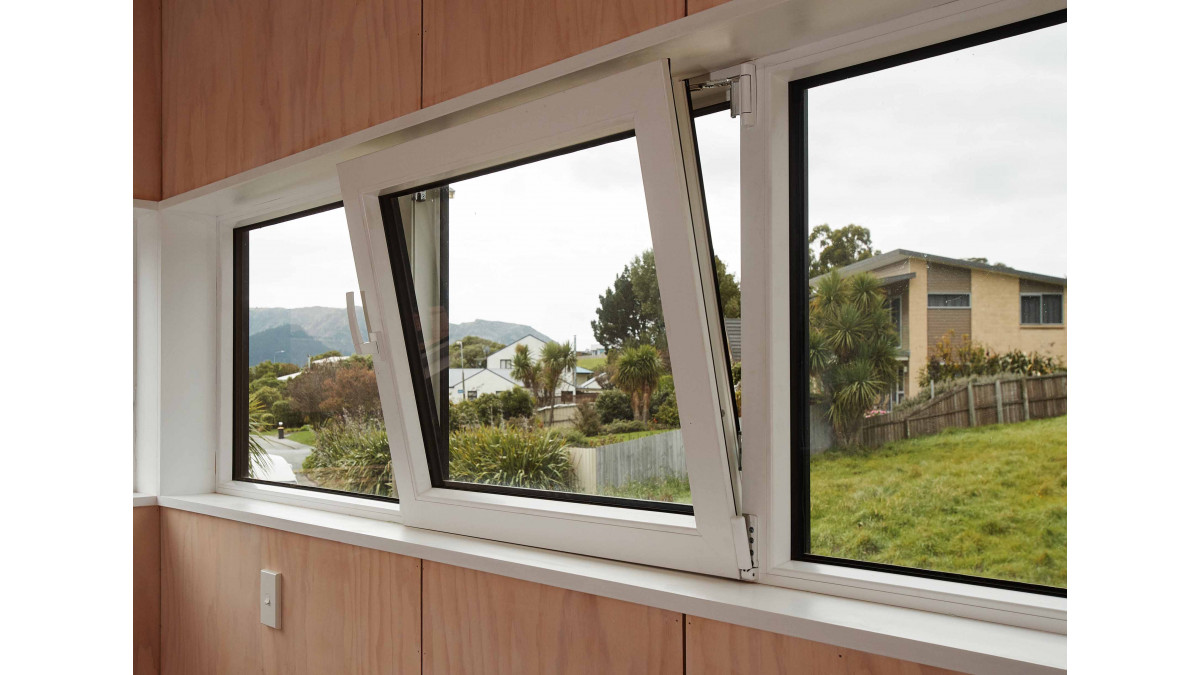

  • Standard outward opening windows available as well as a tilt-and-turn window with inward opening casement and hopper window feature
  • Available as standard in white but can also be supplied with other exterior colours using the 'AluClip' system where an exterior aluminium facing is used
Energy Star
Energy Star
Scope of Use
  • Suitable for most residential environments
  • Awning windows and inward opening hopper windows provide versatile ventilation with a good degree of weather protection
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Care needed if projecting on to walkways and decks
  • Inward opening casement windows need favourable weather conditions in the open position
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2.
In-Service History
  • Launched in 2017
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Klima product conforms to the NZ Building Code, including clause B2. The AluClip surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Data Sheet: Klima Range
Span Tables
First Care, Maintenance & Warranty Brochure (with AGP)

2020

Specifier Guide
WGANZ Guide to E2/AS1

1 August 2019

First Brochure

2014

Klima Series Brochure

2019

Hardware
AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details

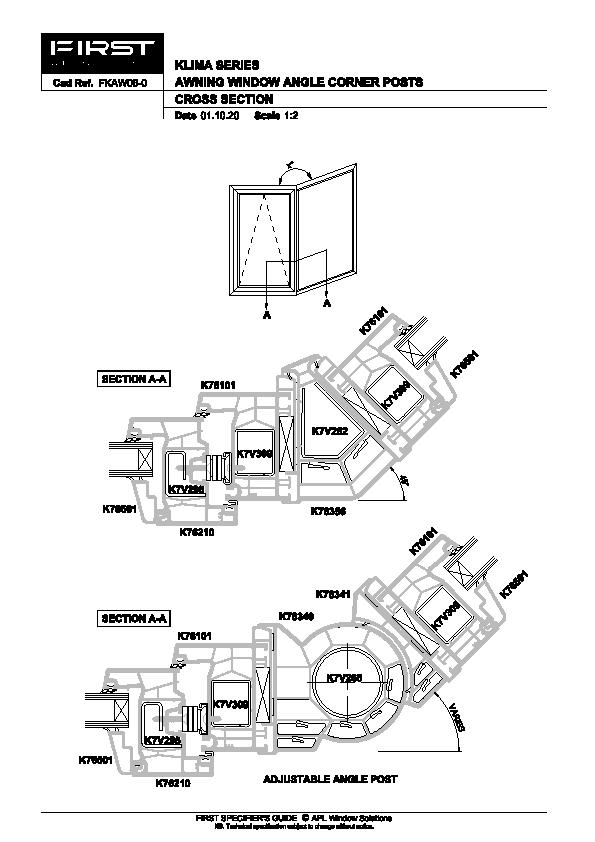

Full Set of Drawings

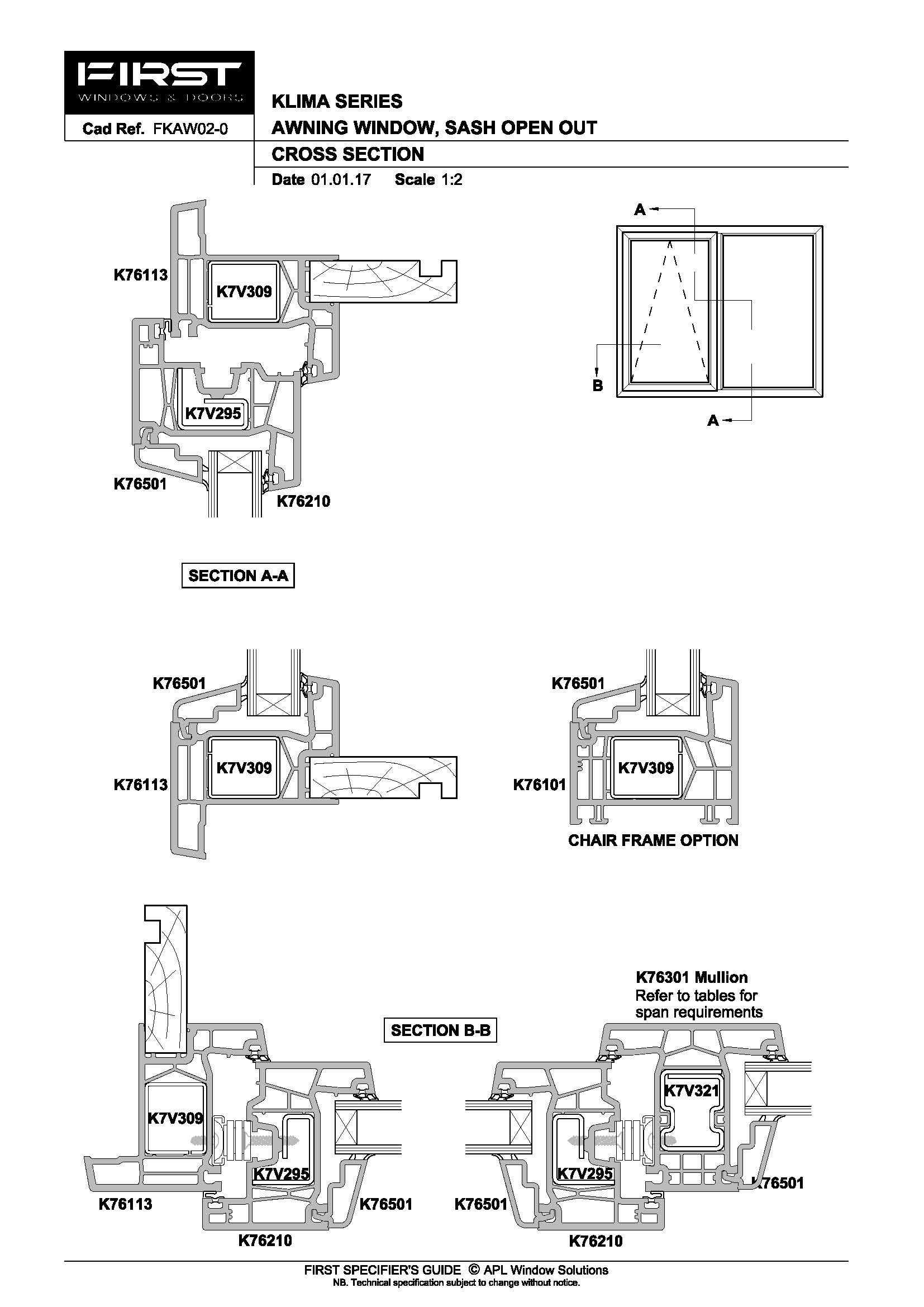

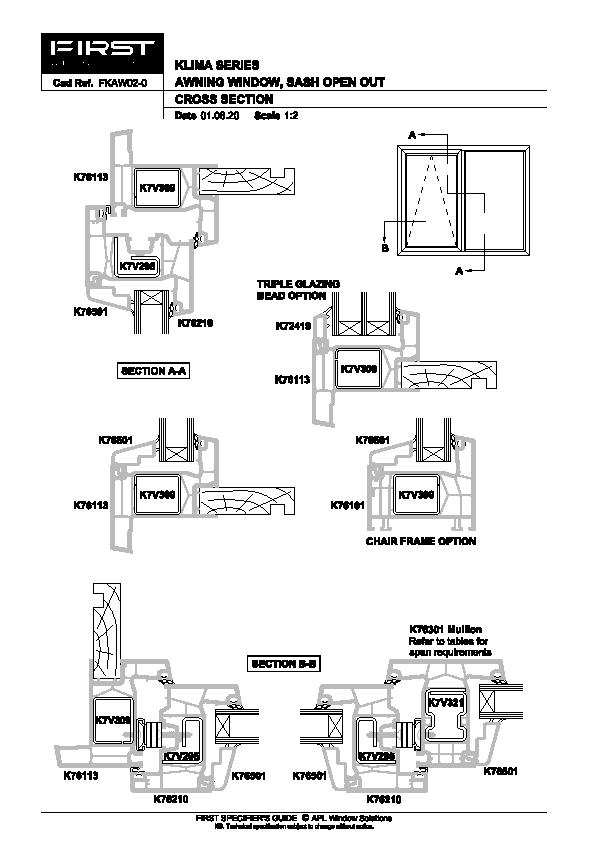

First Klima Series Awning Window, Sash Open Out

FKAW02-0

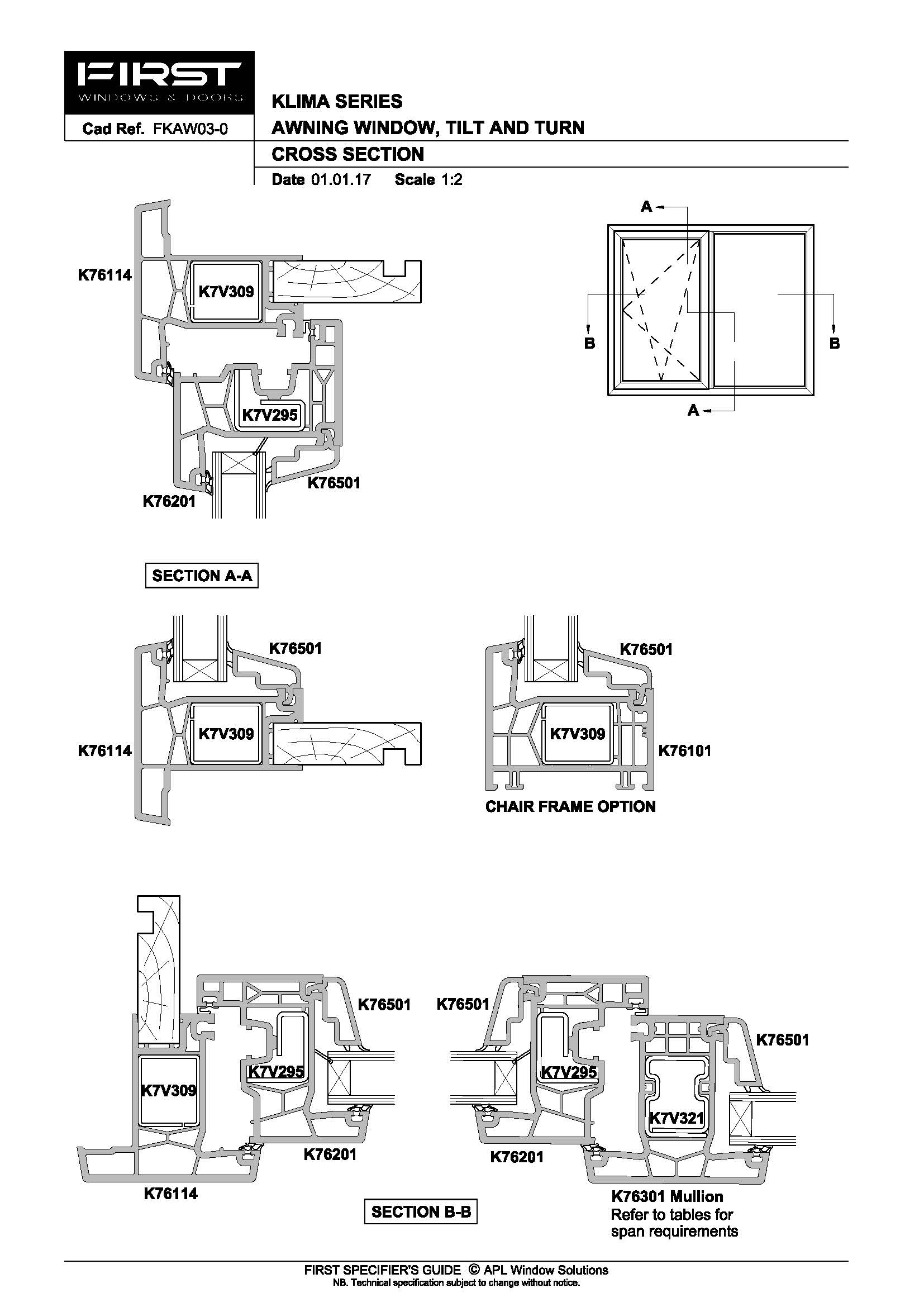

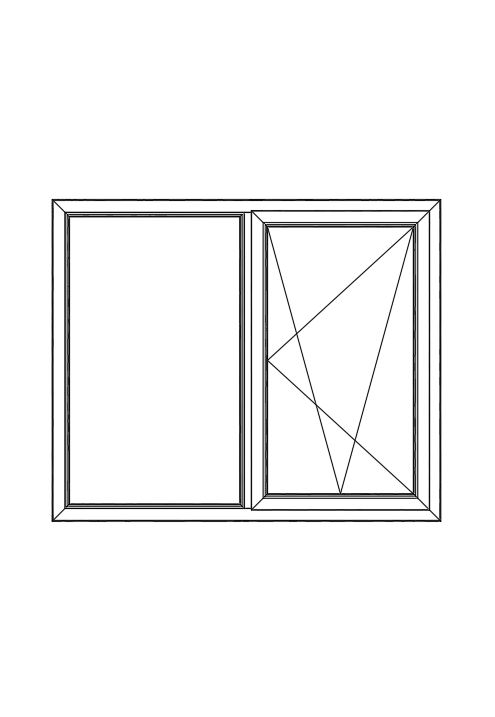

First Klima Series Awning Window, Tilt and Turn

FKAW03-0

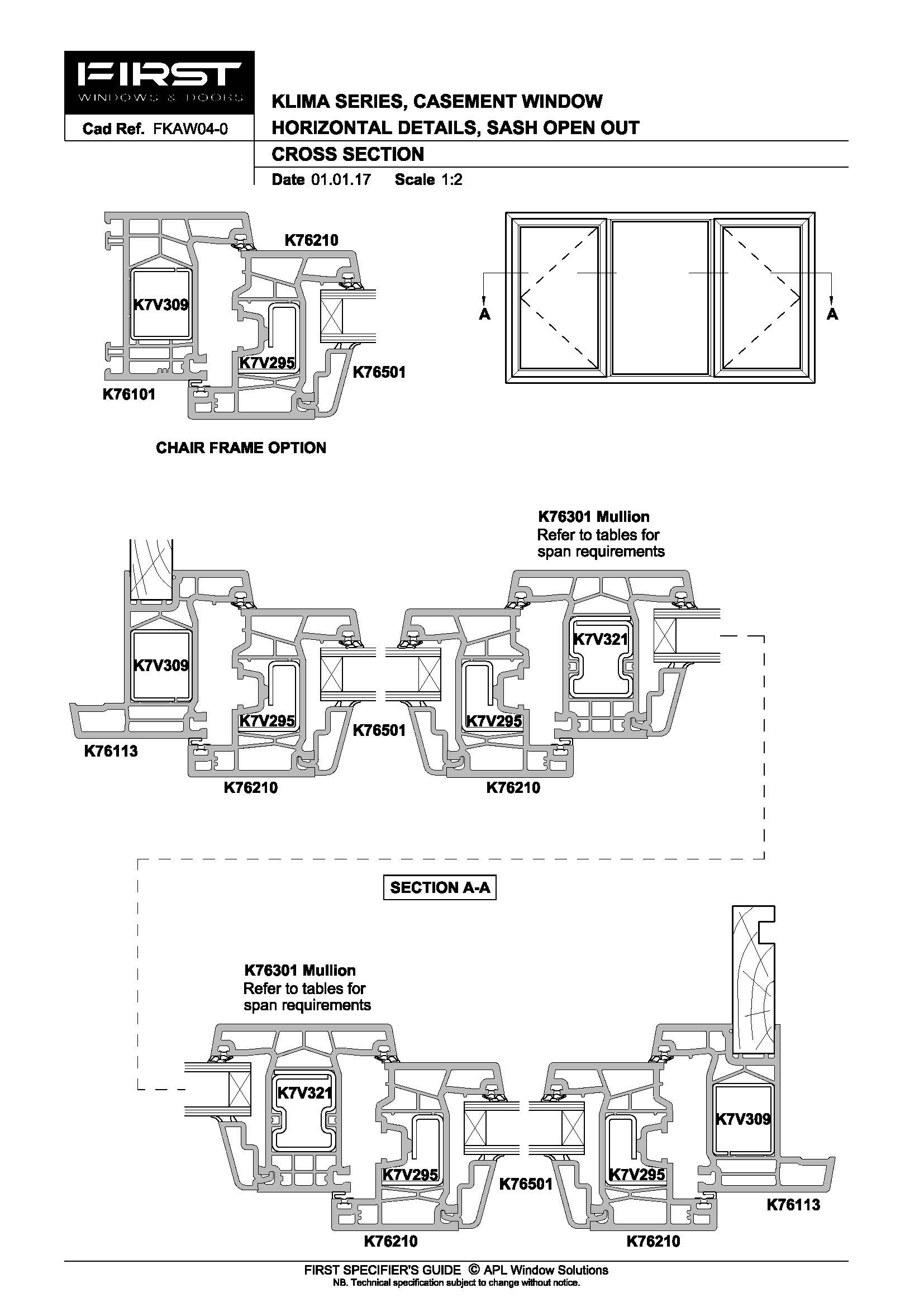

First Klima Series Casement Window, Sash Open Out

FKAW04-0

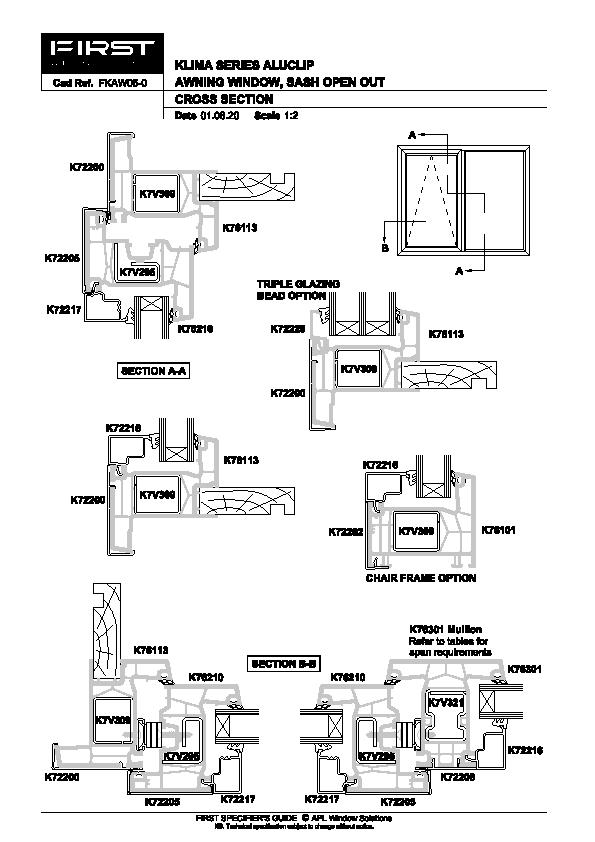

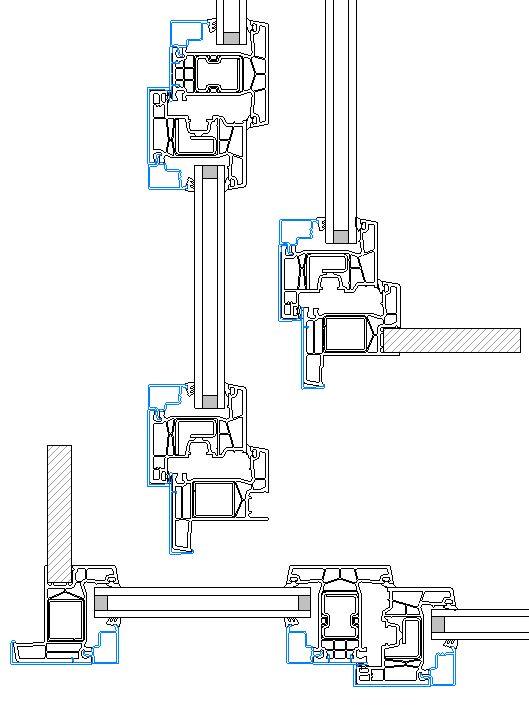

First Klima Series, Aluclip - Awning Window, Sash Open Out

FKAW05-0

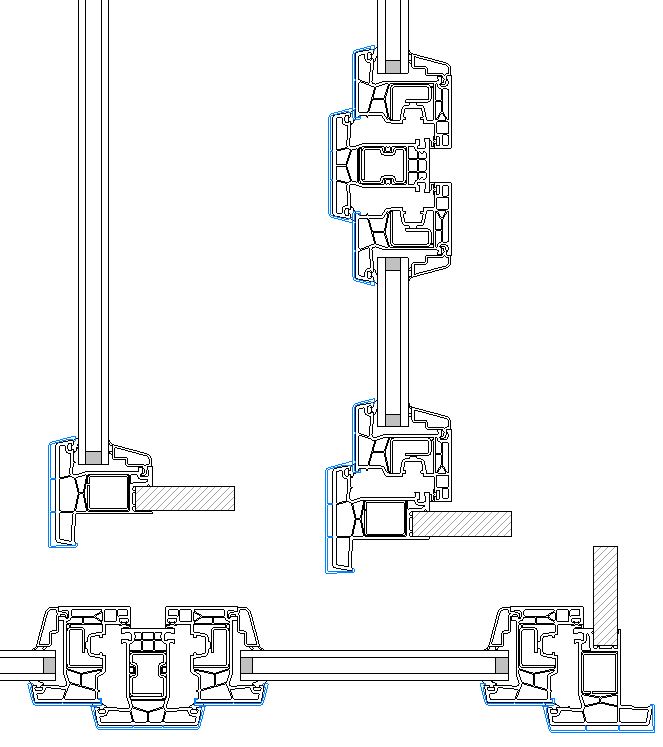

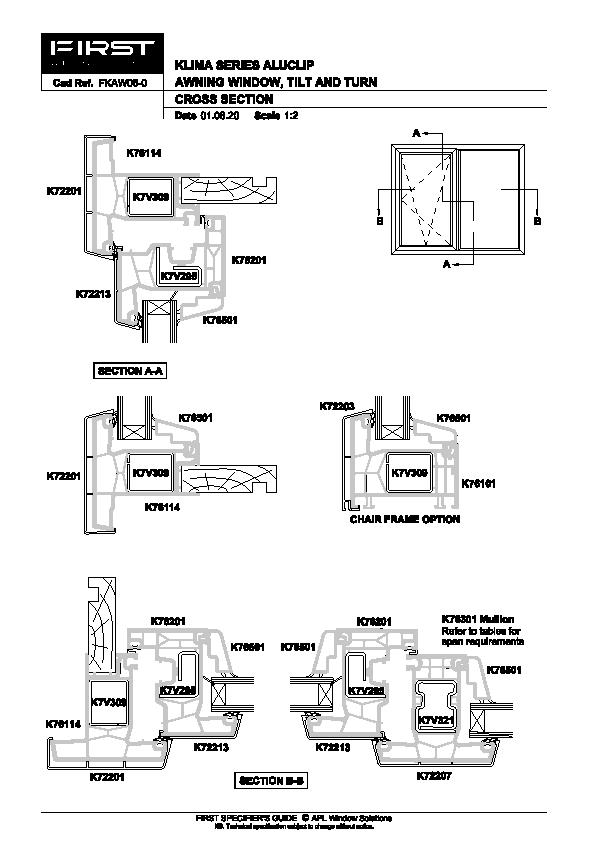

First Klima Series, Aluclip - Awning Window, Tilt and Turn

FKAW06-0

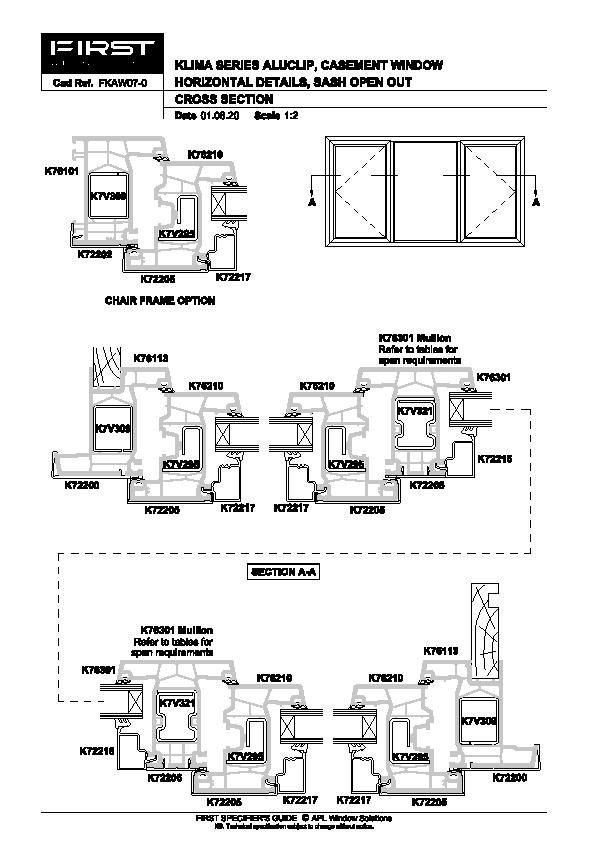

First Klima Series, Aluclip - Casement Window Sash Open Out

FKAW07-0

Installation Details

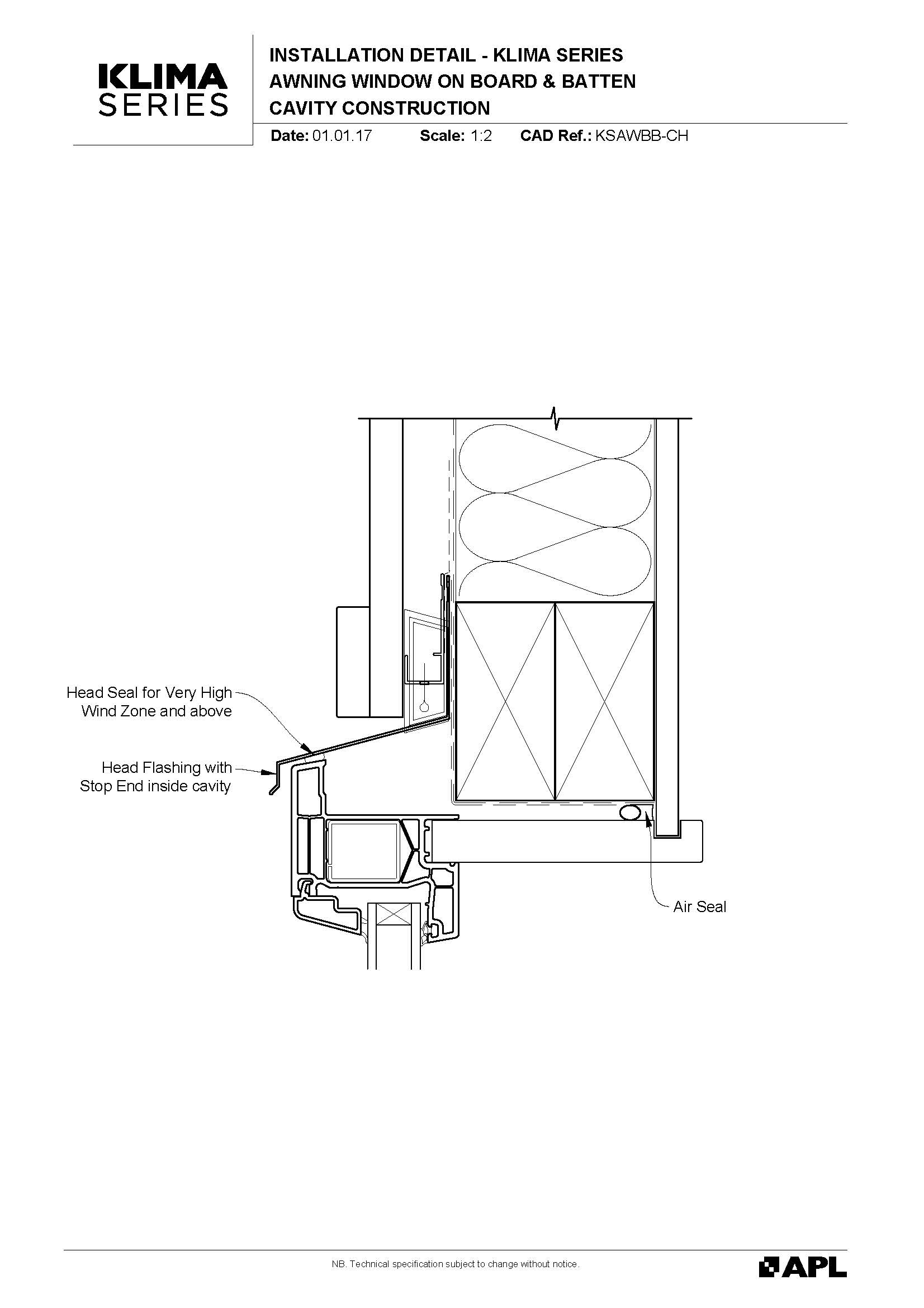

First Klima Series Awning Window on Board & Batten

KSAWBB

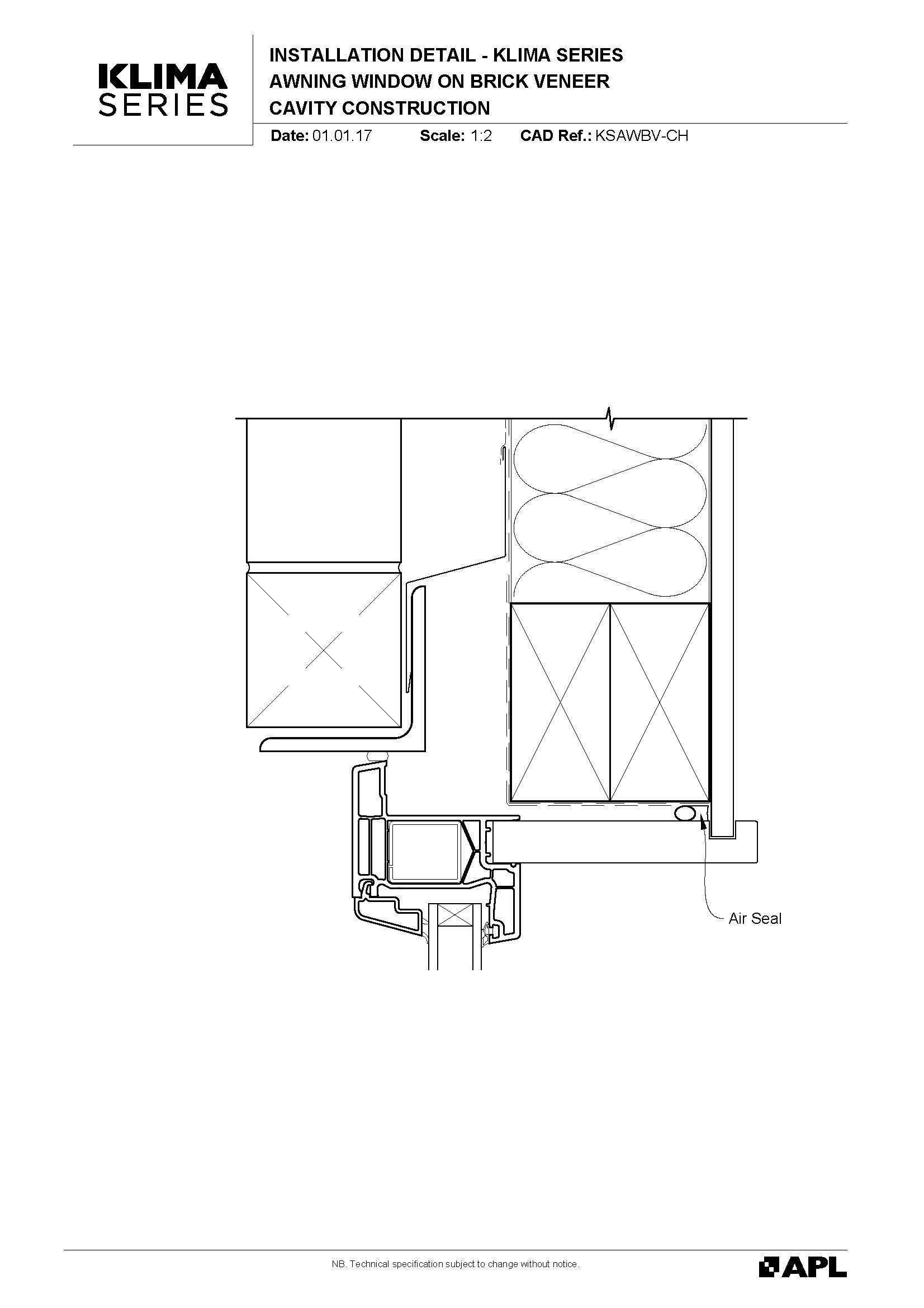

First Klima Series Awning Window on Brick Veneer

KSAWBV

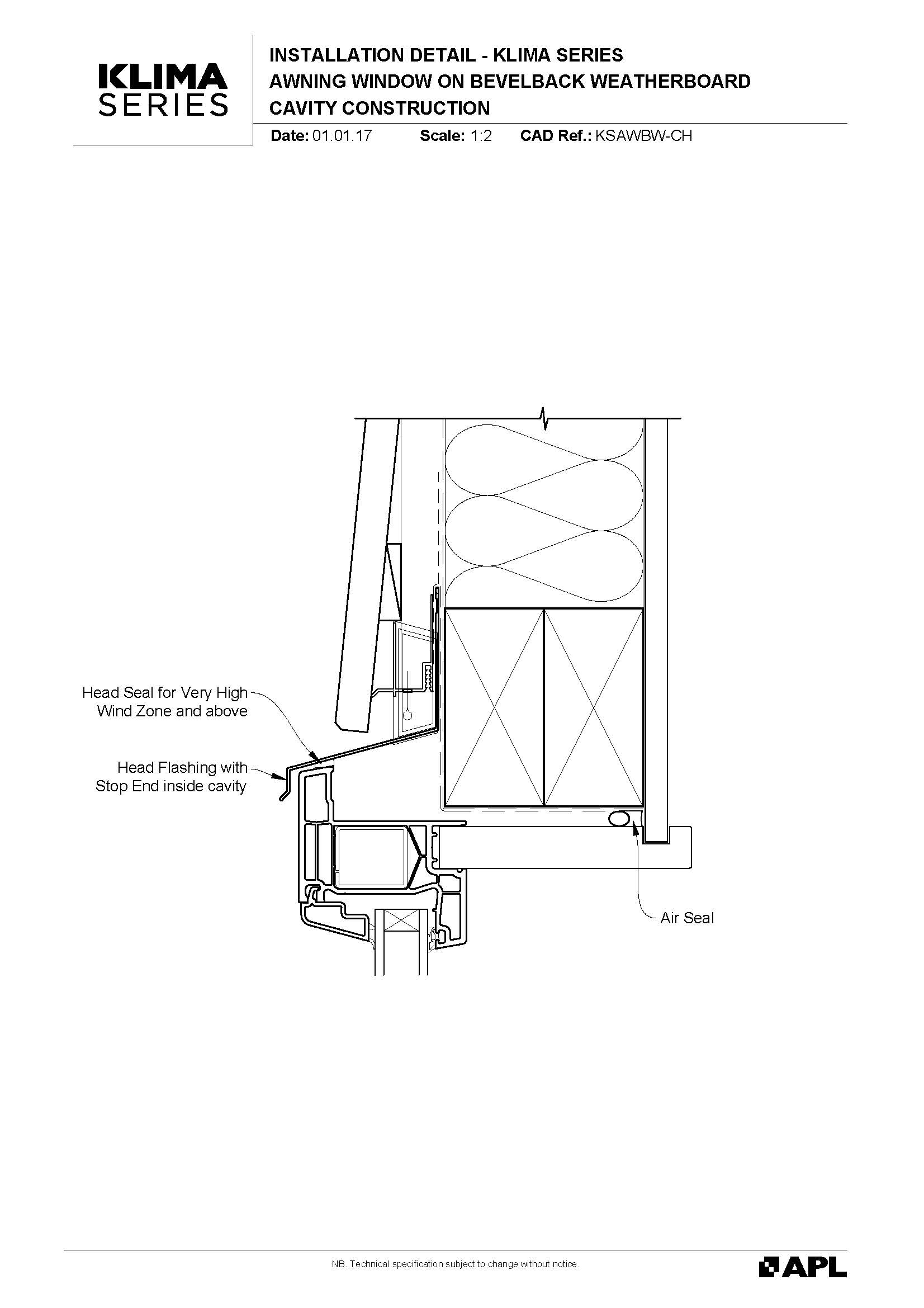

First Klima Series Awning Window on Bevelback Weatherboard

KSAWBW

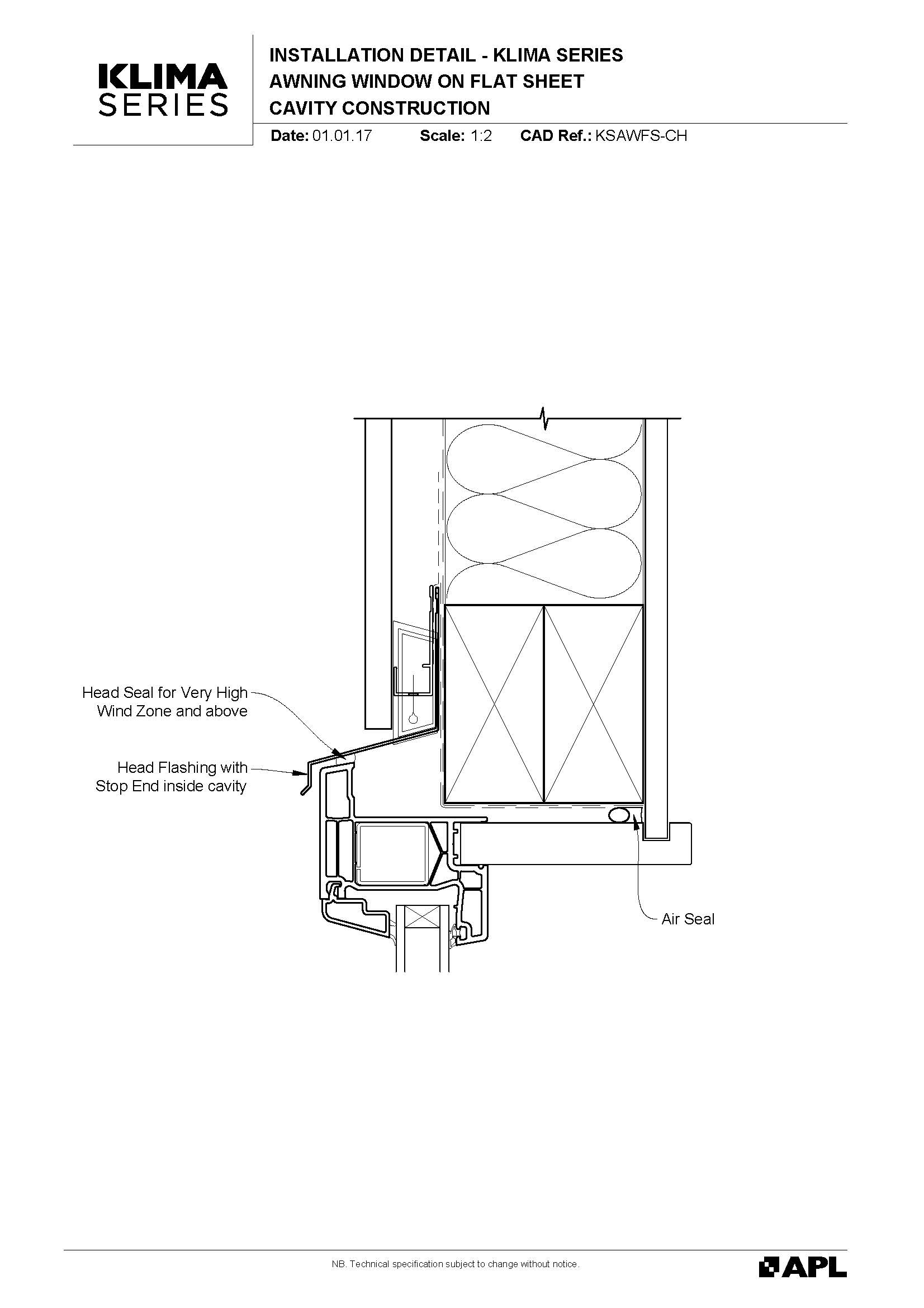

First Klima Series Awning Window on Flat Sheet

KSAWFS

First Klima Series Awning Window on No Cladding

KSAWNC

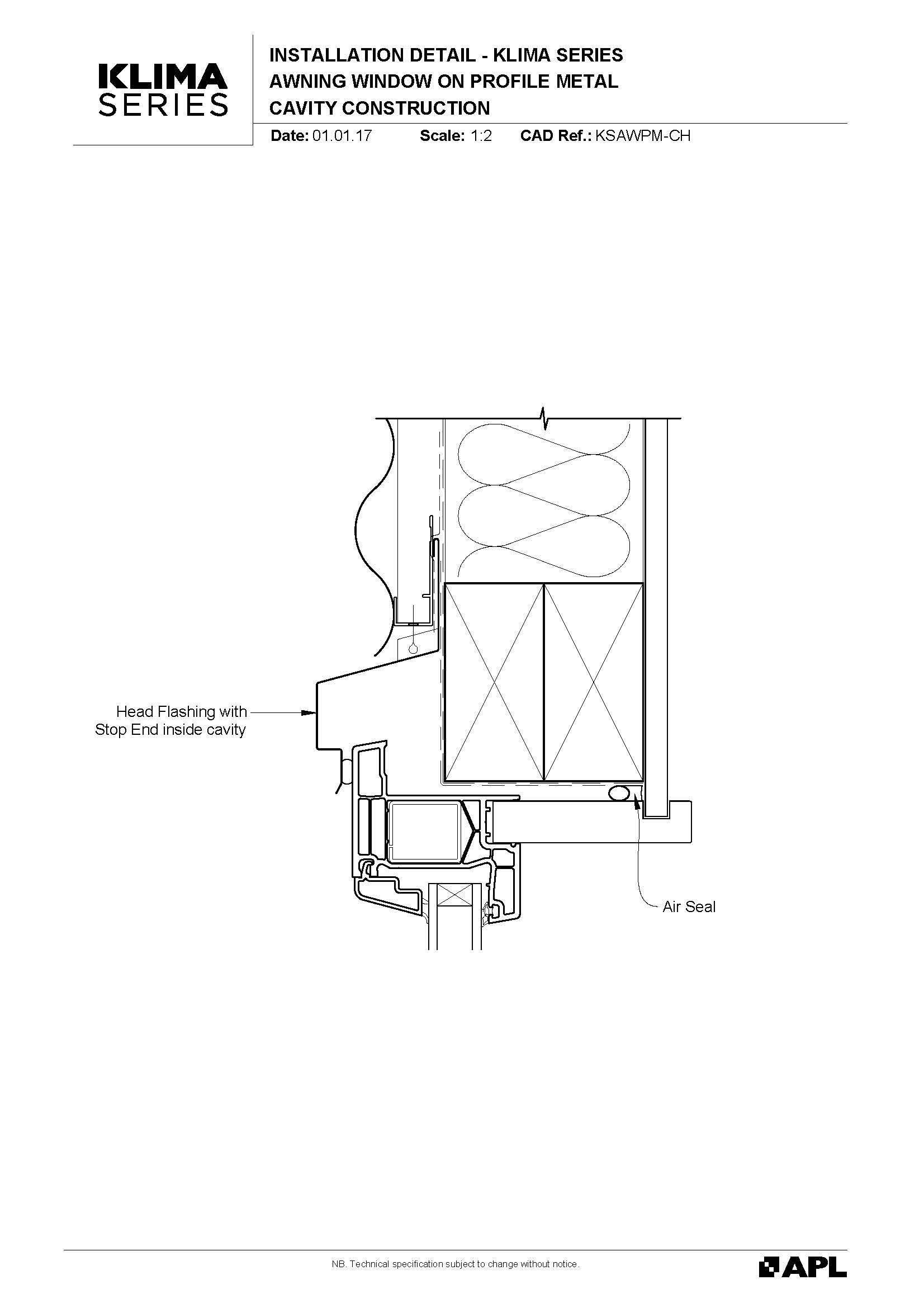

First Klima Series Awning Window on Profile Metal

KSAWPM

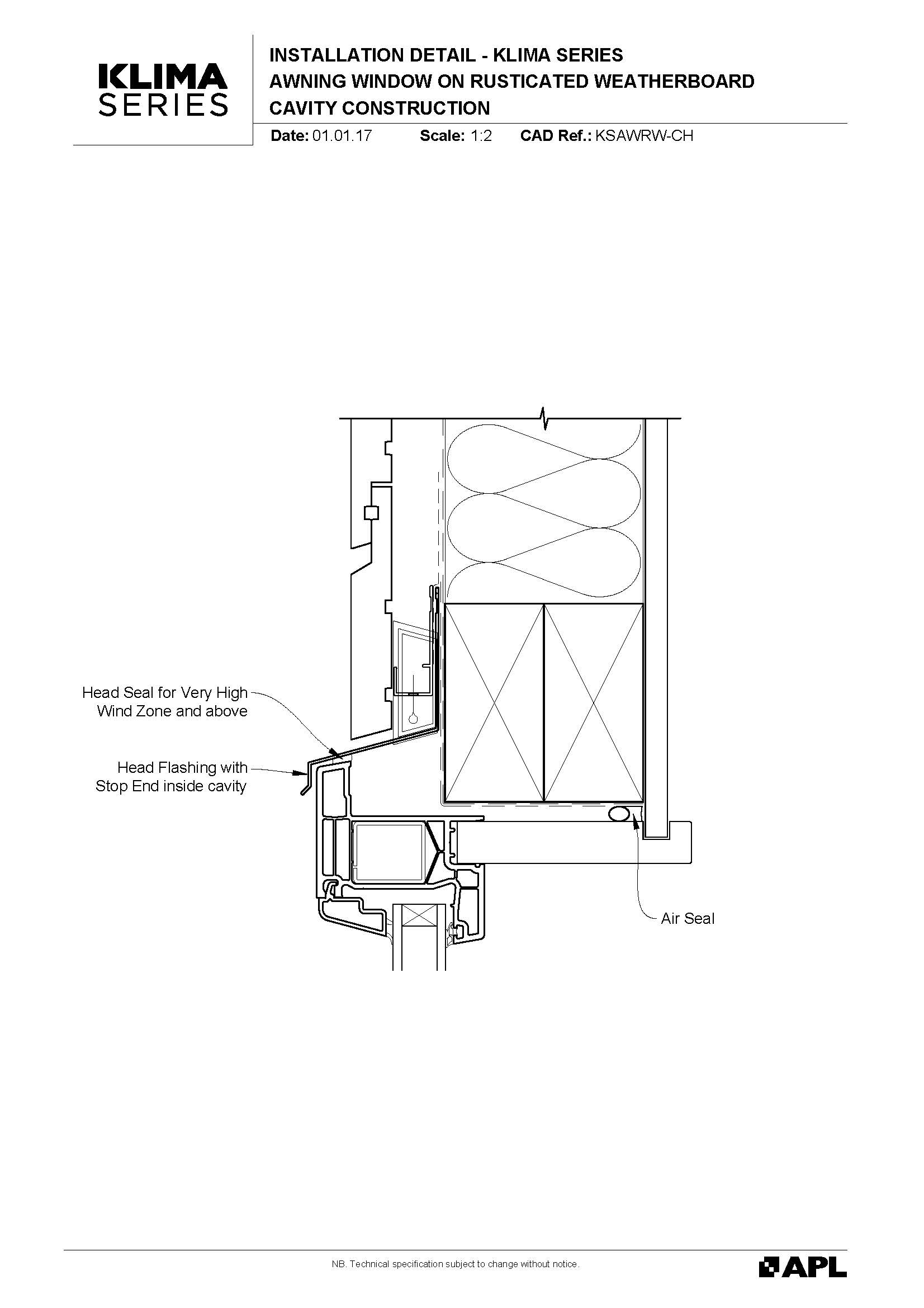

First Klima Series Awning Window on Rusticated Weatherboard

KSAWRW

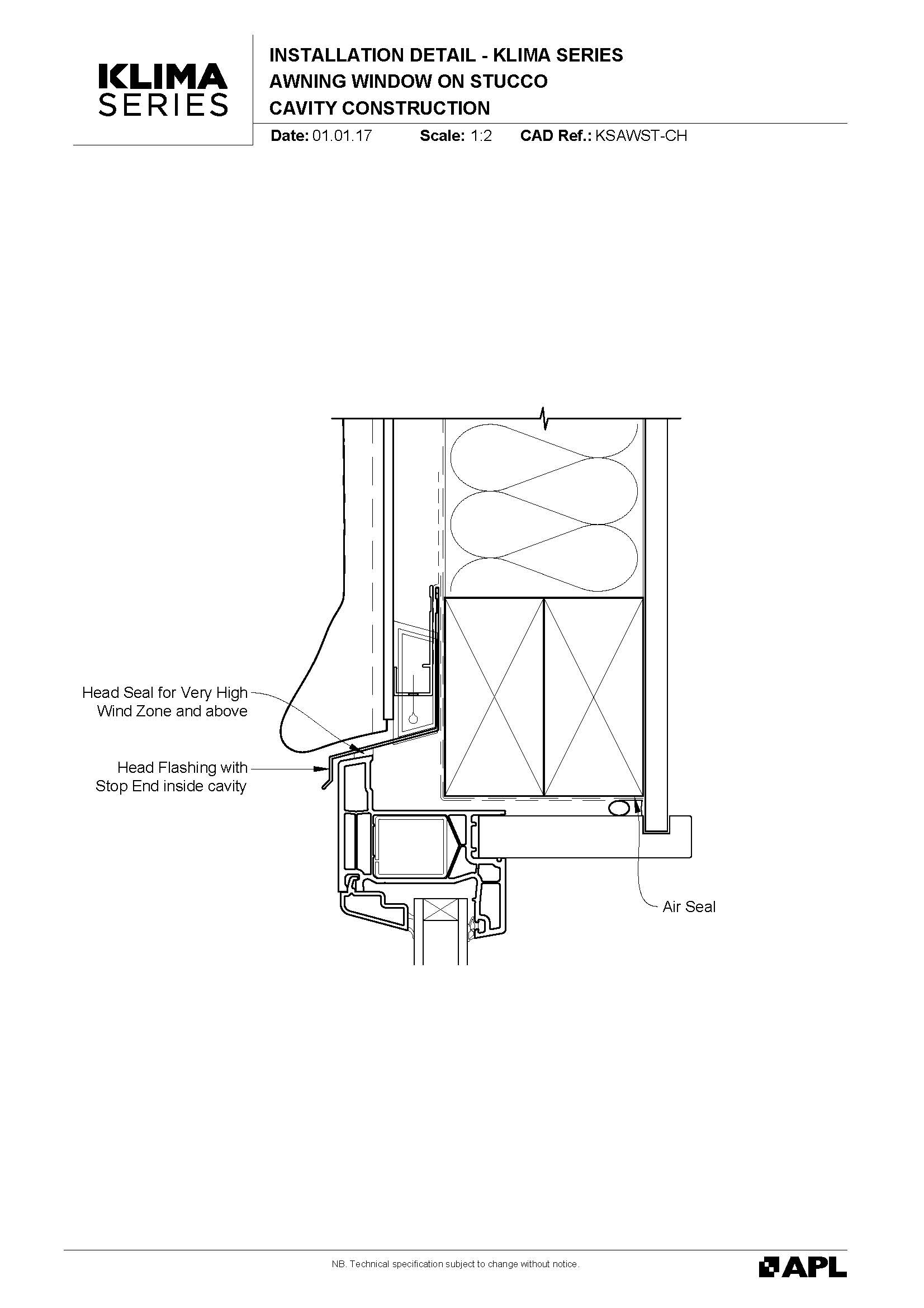

First Klima Series Awning Window on Stucco

KSAWST

BIM
Klima Series ALUCLIP Awning Window

Revit LT 2020

Klima Series ALUCLIP Tilt & Turn Window

Revit LT 2020

Klima Series Awning Window

Revit LT 2020

Klima Series Tilt & Turn Window

Revit LT 2020
