Commercial 80mm & 100mm Shopfront
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

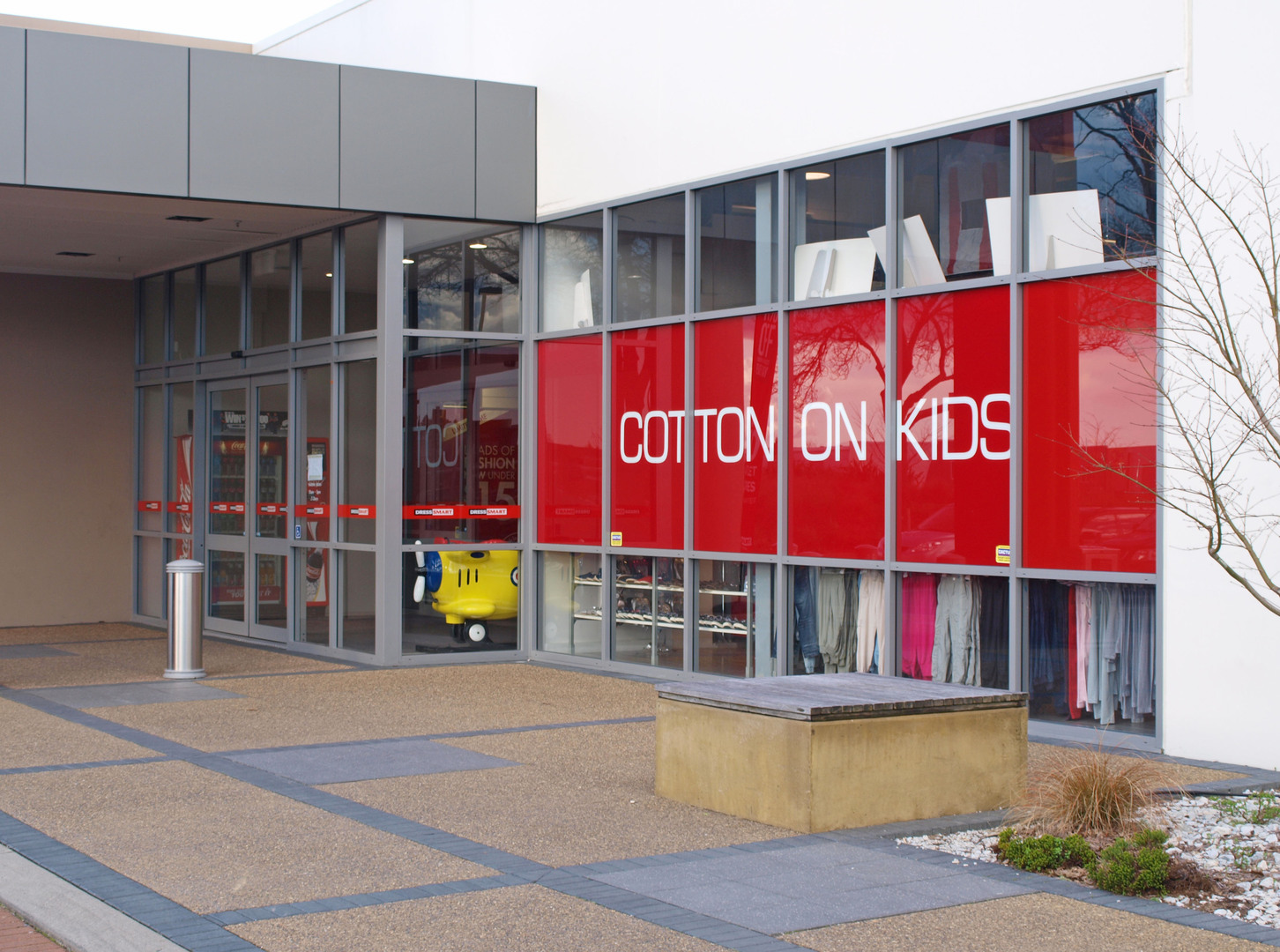

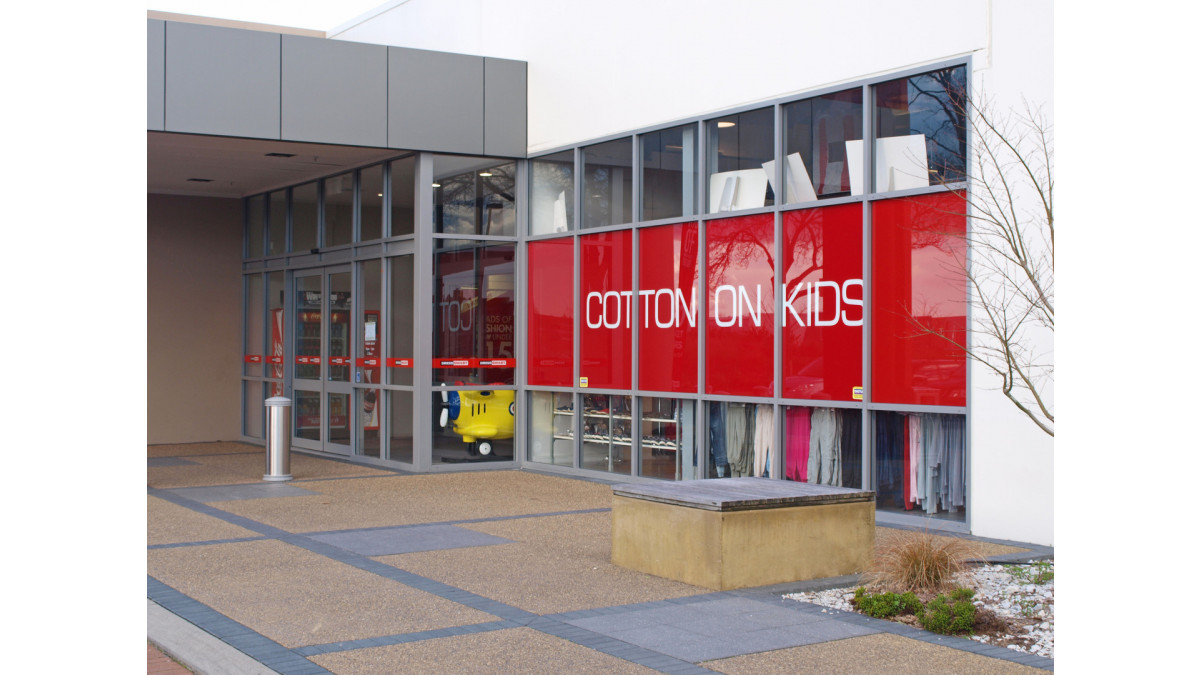

These window systems are designed for shopfront locations, generally at ground level and in protected situations.

The glazing pocket lies in a central position in the frame and mullion in the 100mm suite and in an offset position in the 80mm suite, giving the windows an appearance of solidity in a setting of robust aluminium profiles.

Key Features
  • For shopfront locations, generally at ground level and in protected situations up to 6m in height
  • The glazing pocket lies in a central position in the frame and mullion for the 100mm suite, and in an offset position in the 80mm suite
  • Can incorporate opening sashes from the 40mm Window Series using an inserted sash adapter

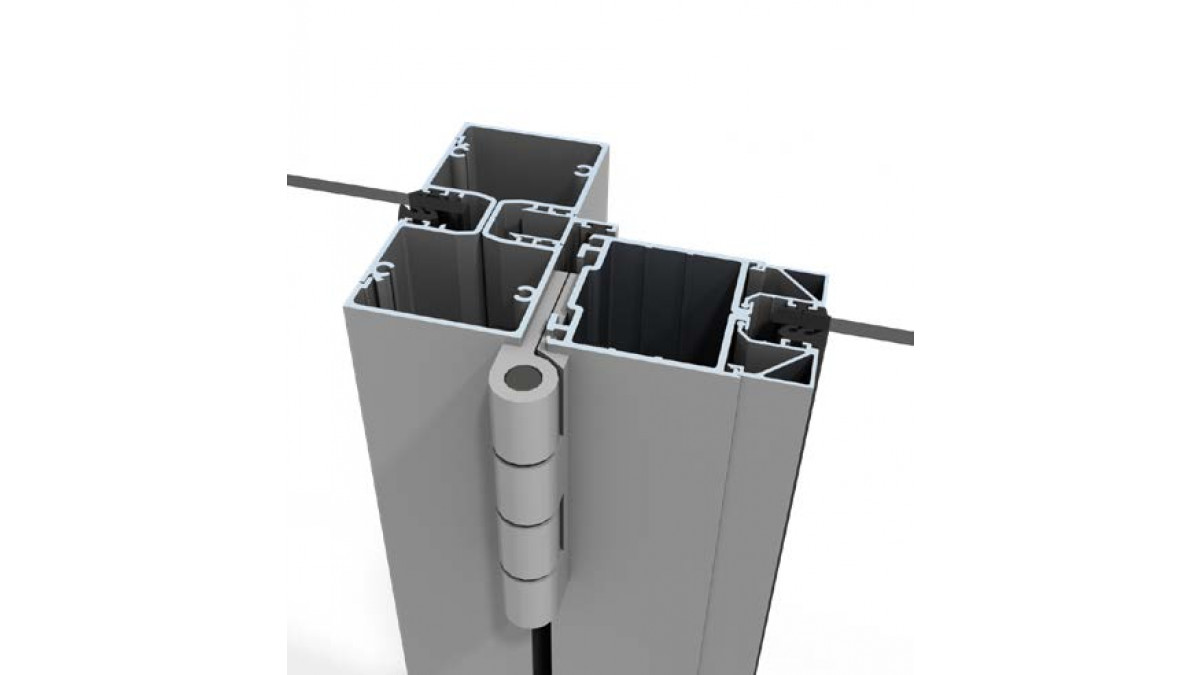

  • Compatible with Magnum commercial doors
  • Incorporates individually drained transoms

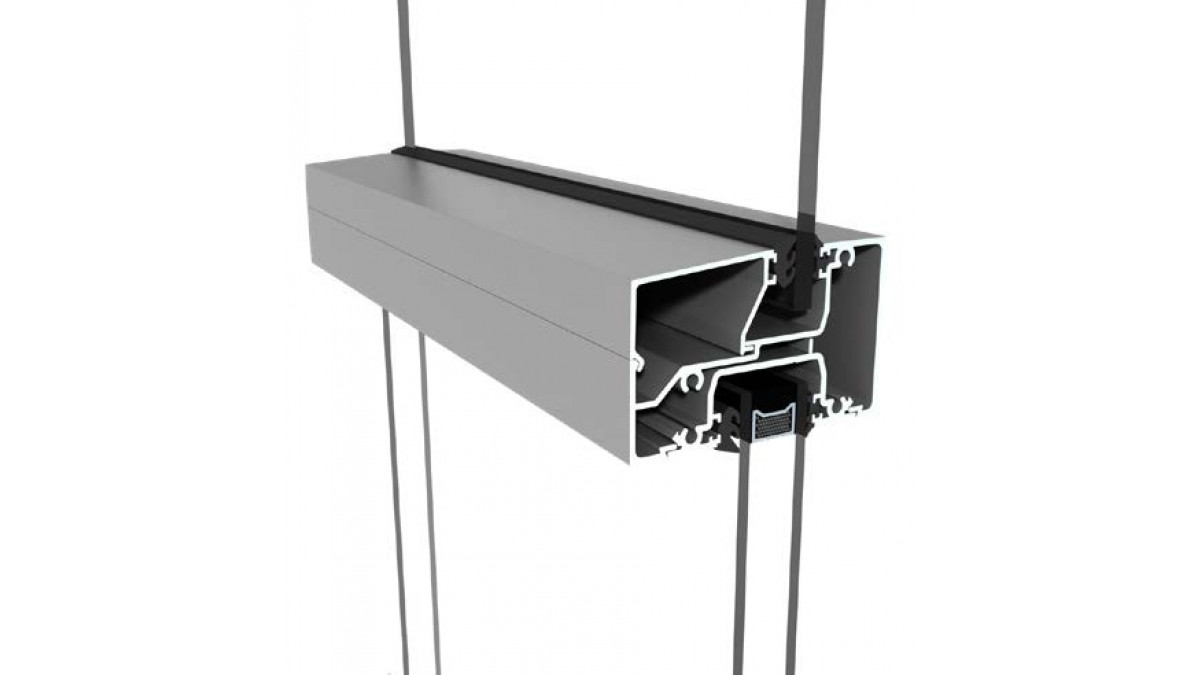

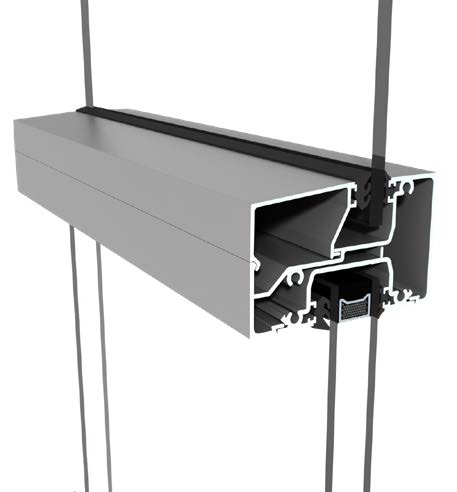

  • Can accept double glazing

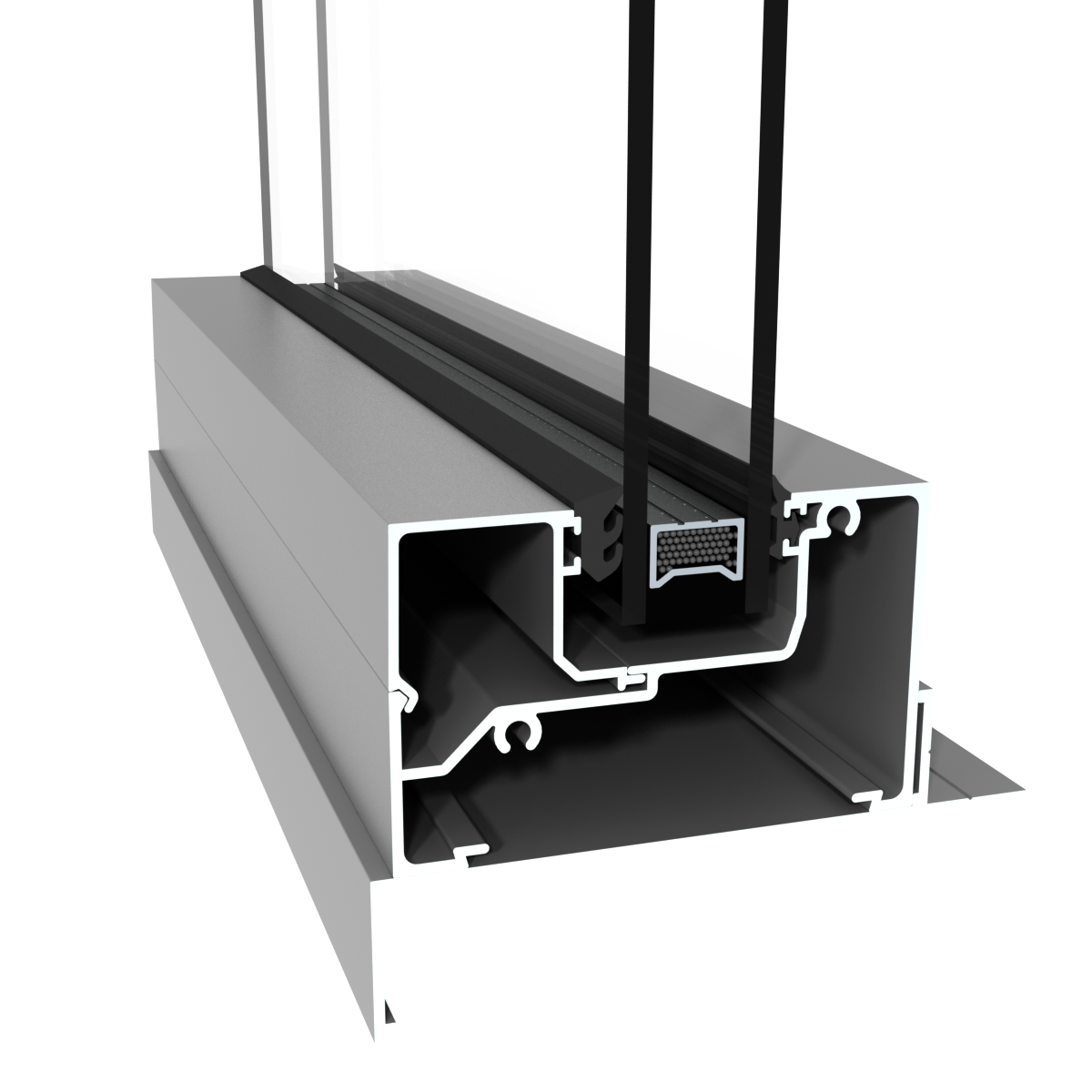

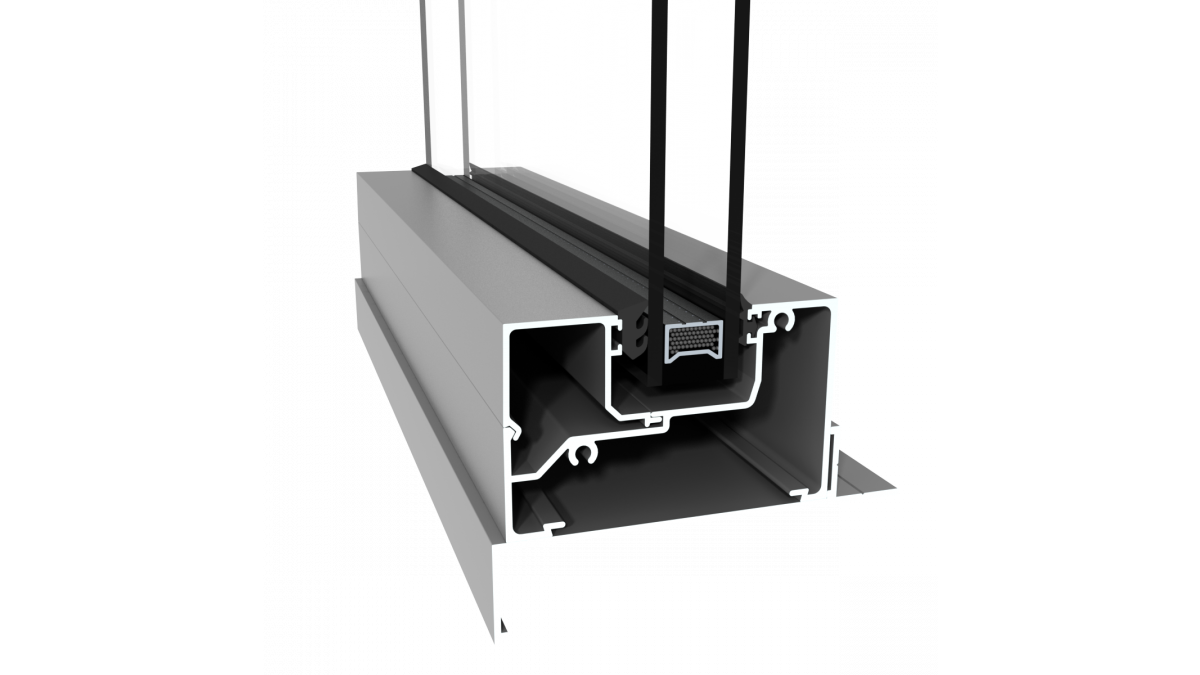

  • Sill tray available
Scope of Use
  • Designed for ground level environments in weather protected situations
  • Need to be used in defined maximum sizes according to the wind exposure

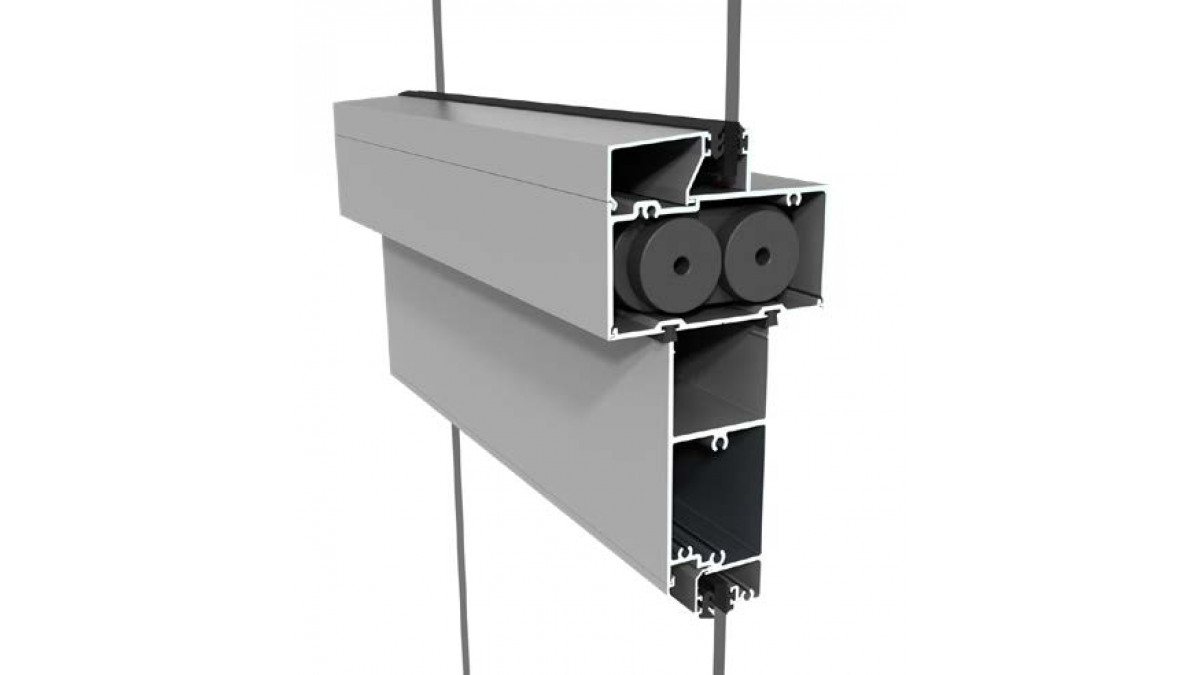

  • Compatible with opening sashes or Magnum commercial doors mounted in a range of styles — conventional hinged, floor sprung, with concealed transom closer, manual sliding and automatic
Limitations on Use
  • Not suitable for multi-storey or exposed locations
  • Generally preassembled in sections at the factory and joined and sealed on site; glazing is also usually done on site
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1993
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



Documents
Data Sheet
Span Tables
FIRST on Masterspec
Specifier Guide
Environmental Product Declaration (EPD) Report

2023

WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

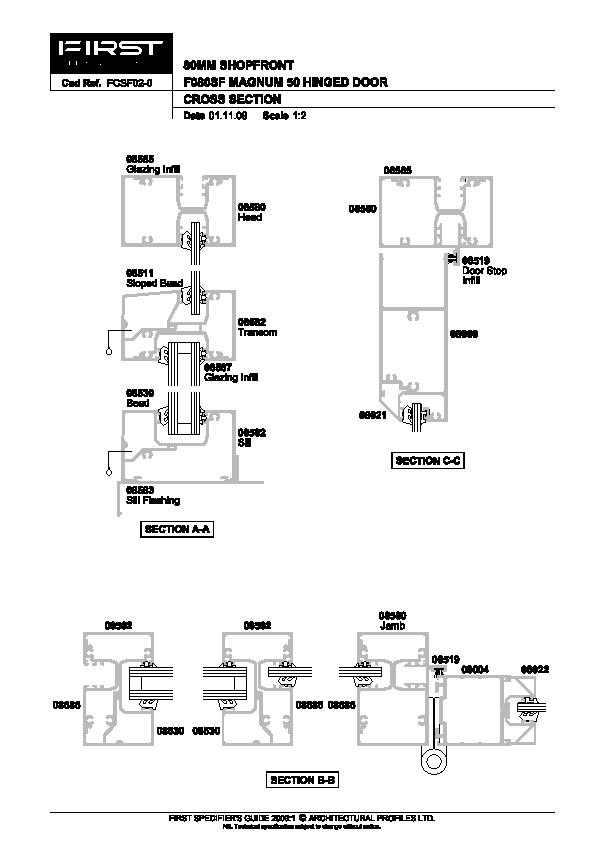

FIRST Commercial 80mm Shopfront F080SF Magnum 50 Hinged Door

FCSF02-0

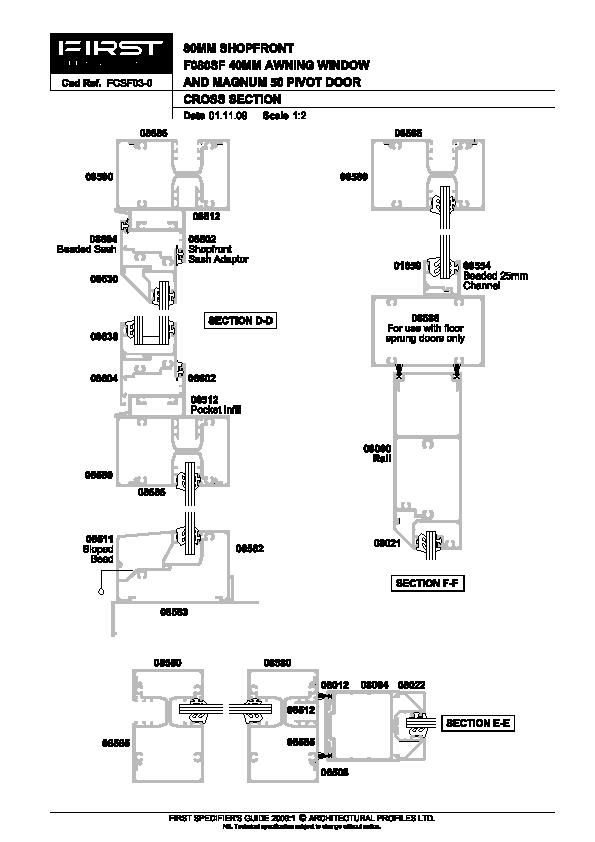

FIRST Commercial 80mm Shopfront F080SF 40mm Awning Window and Magnum 50 Pivot

FCSF03-0

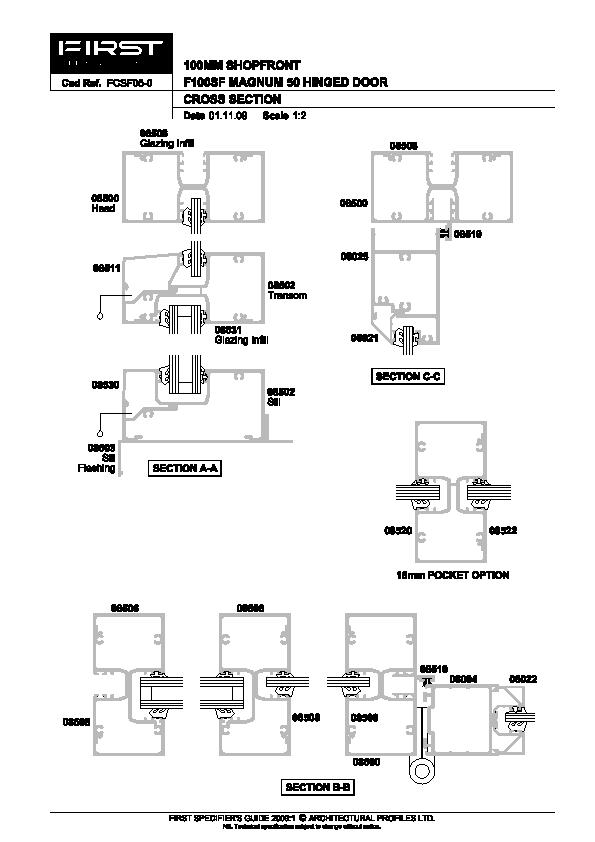

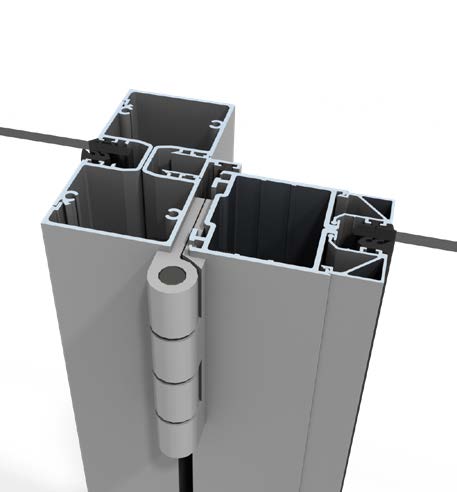

FIRST Commercial 100mm Shopfront F100SF Magnum 50 Hinged Door

FCSF05-0

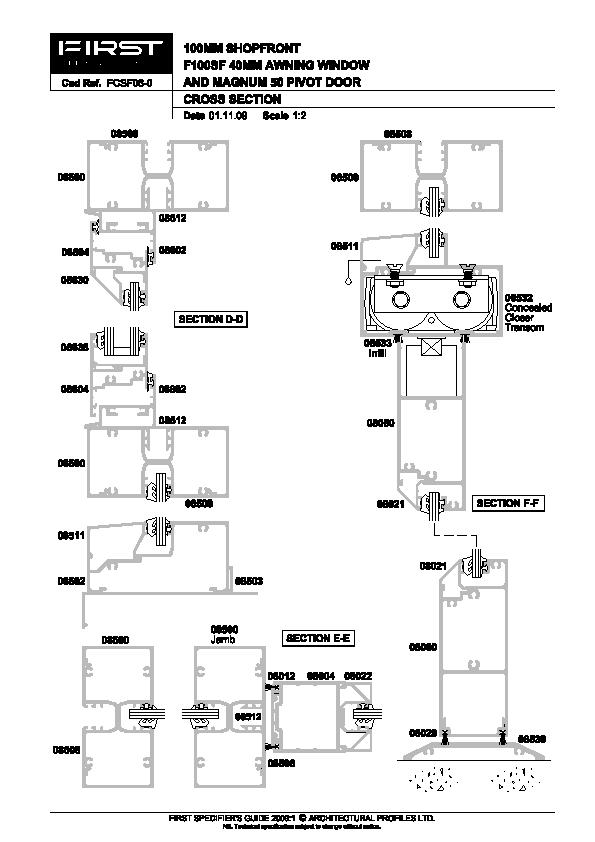

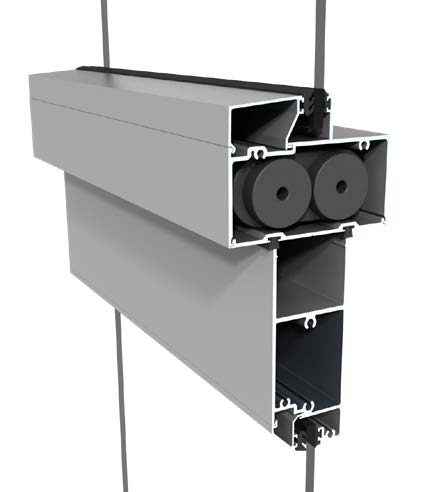

FIRST Commercial 100mm Shopfront F100SF 40mm Awning Window and Magnum 50 Pivot Door

FCSF06-0

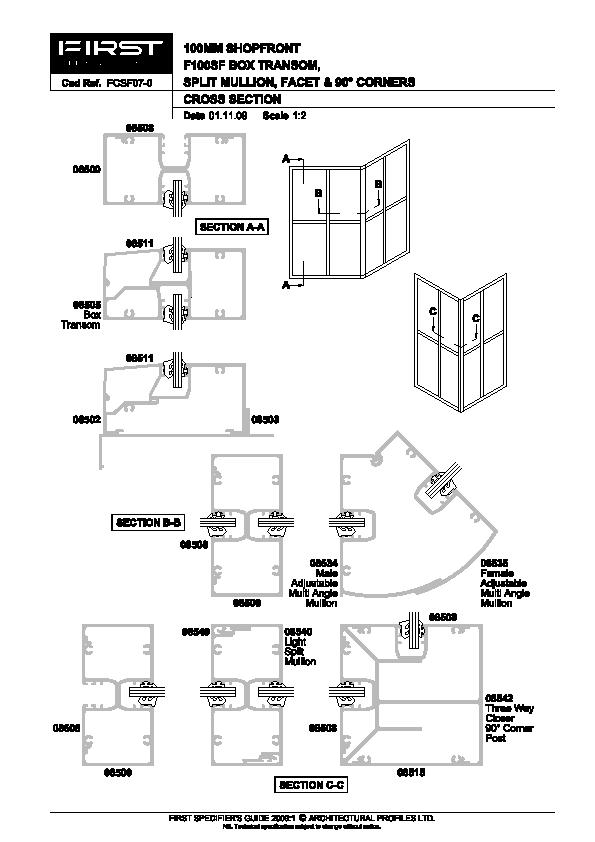

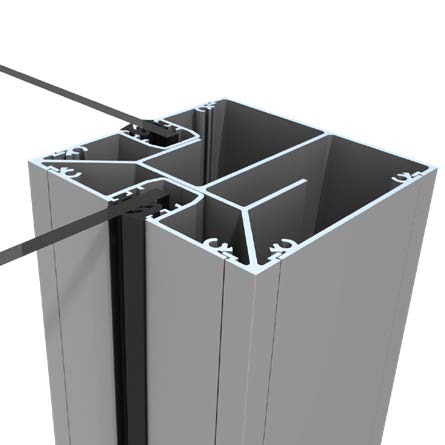

FIRST Commercial 100mm Shopfront F100SF Box Mullion Split Mullion, Facet & 90º Corners

FCSF07-0

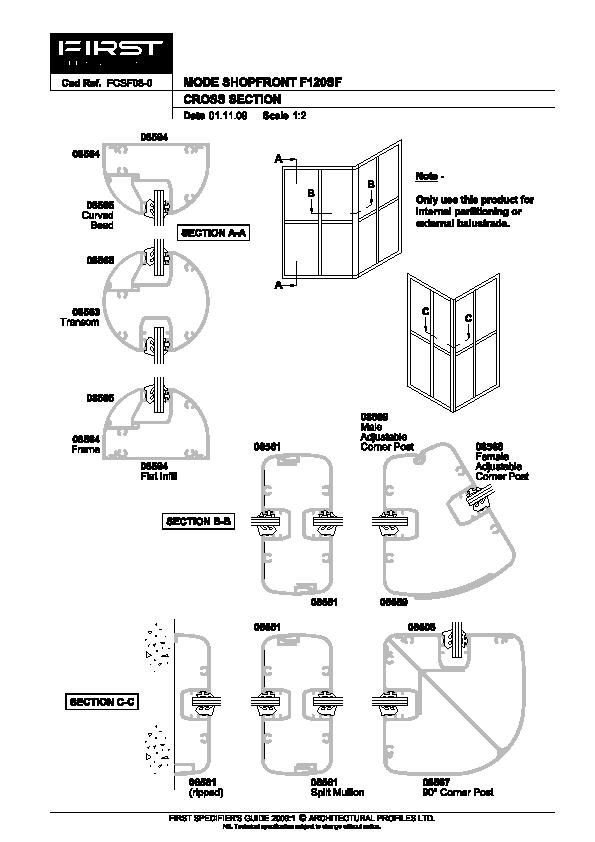

FIRST Commercial 80mm & 100mm Shopfront Mode Shopfront F120SF

FCSF08-0

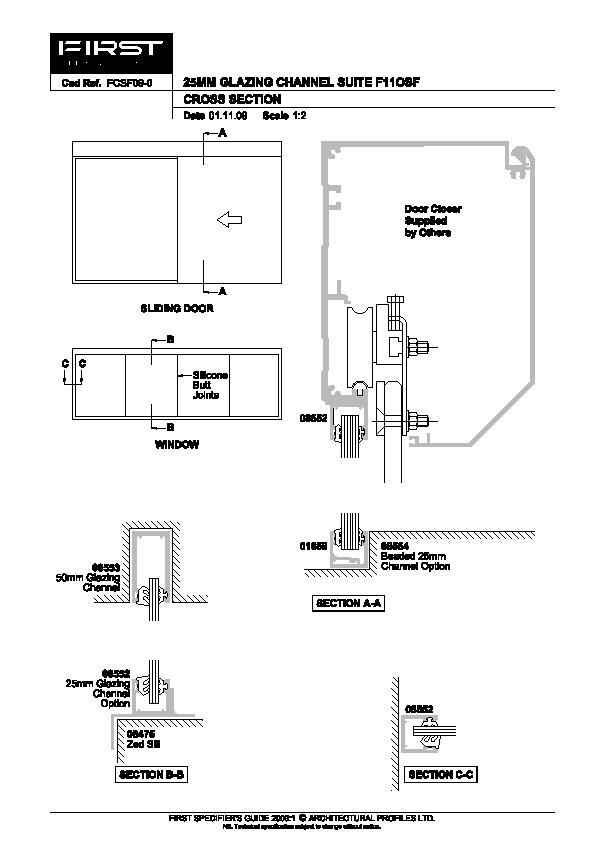

FIRST Commercial 80mm & 100mm Shopfront 25mm Glazing Channel Suite F110SF

FCSF09-0

BIM

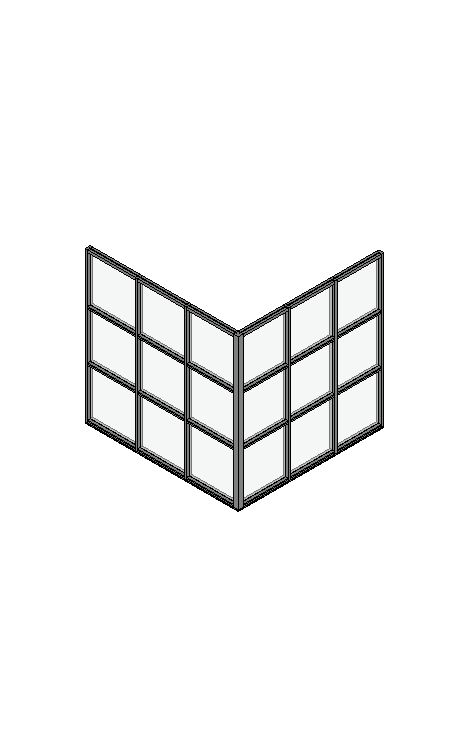

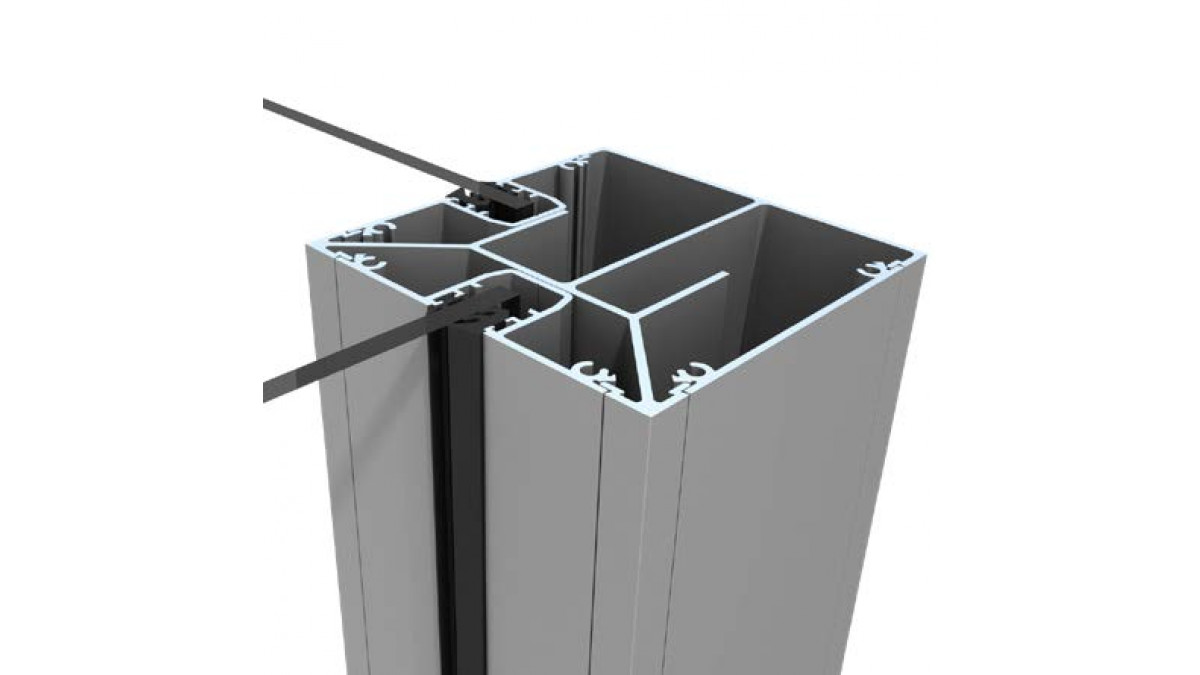

FIRST Commercial 100mm Shopfront, 90° Corner (Curtain Wall)

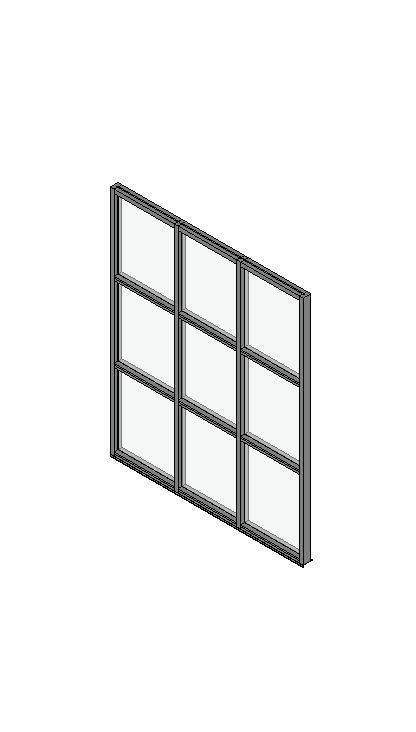

FIRST Commercial 100mm Shopfront, Fixed System (Curtain Wall)

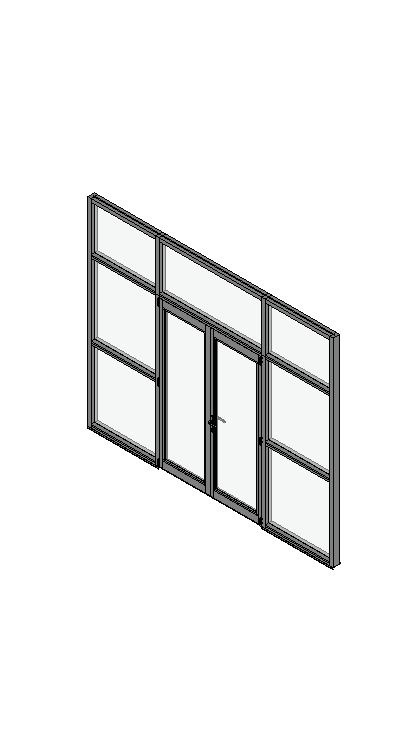

FIRST Commercial 100mm Shopfront, Magnum 50 French Door (Curtain Wall)

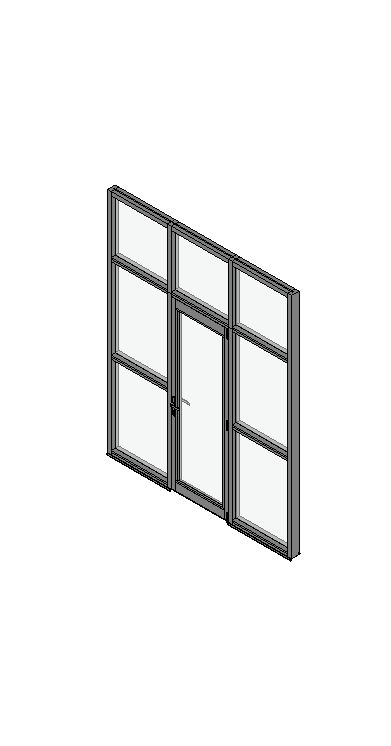

FIRST Commercial 100mm Shopfront, Magnum 50 Hinged Door (Curtain Wall)

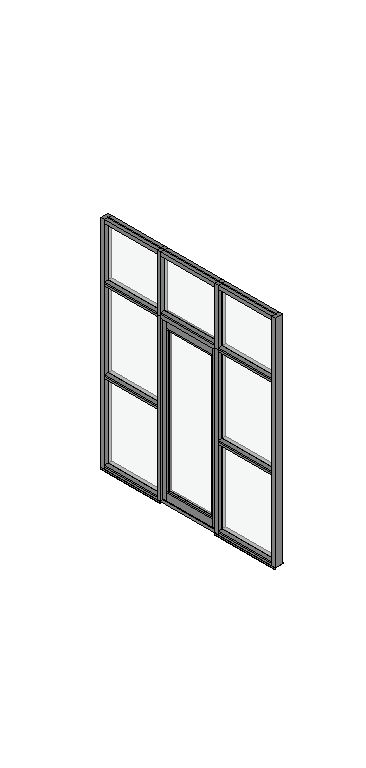

FIRST Commercial 100mm Shopfront, Magnum 50 Pivot Door One Panel (Curtain Wall)
FIRST Commercial 100mm Shopfront, Magnum 50 Pivot Door Two Panel (Curtain Wall)

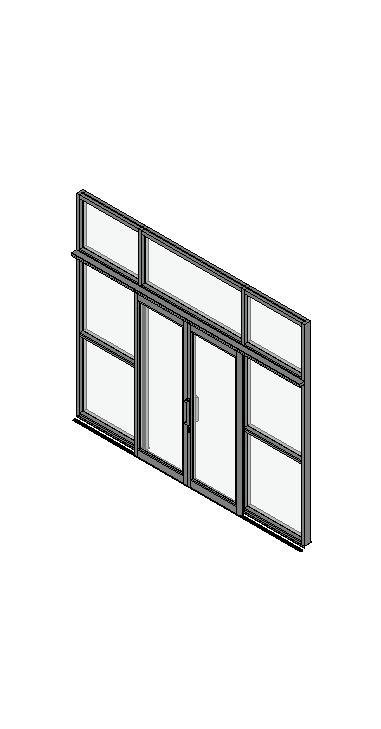

FIRST Commercial 100mm Shopfront, Magnum 50 Sliding Door 4 Panel (Curtain Wall)
