Commercial 100mm, 125mm & 150mm Flushglaze System
New APL 2019 Specifier Guide now available Order now
Description

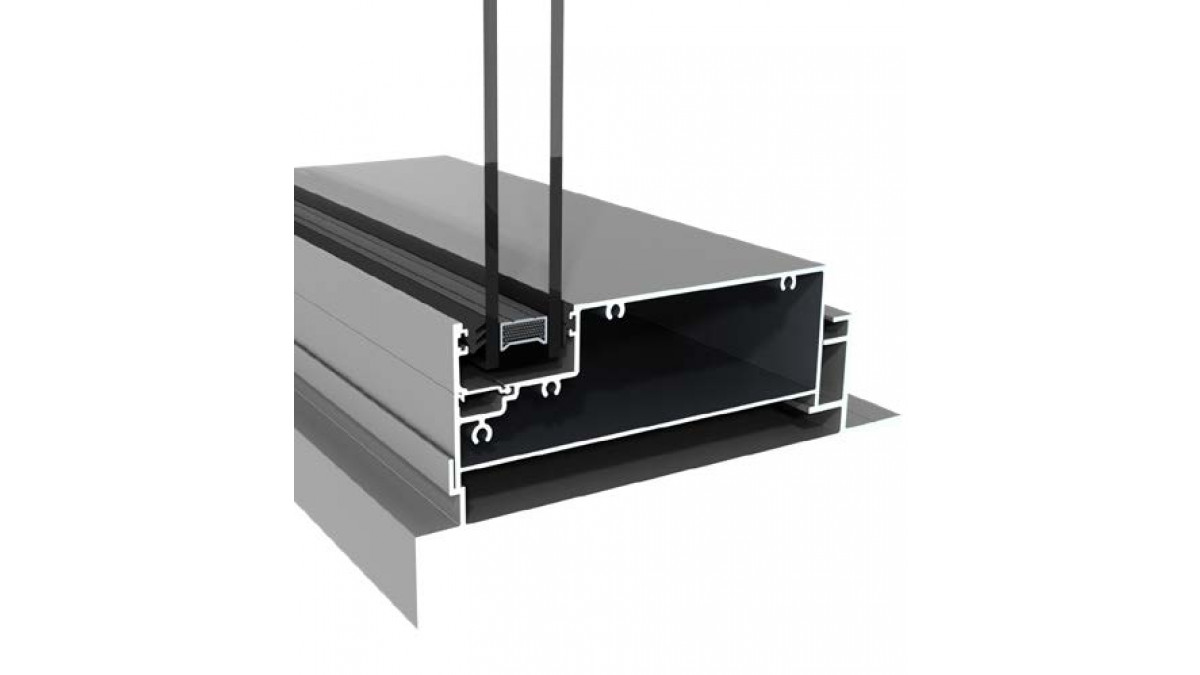

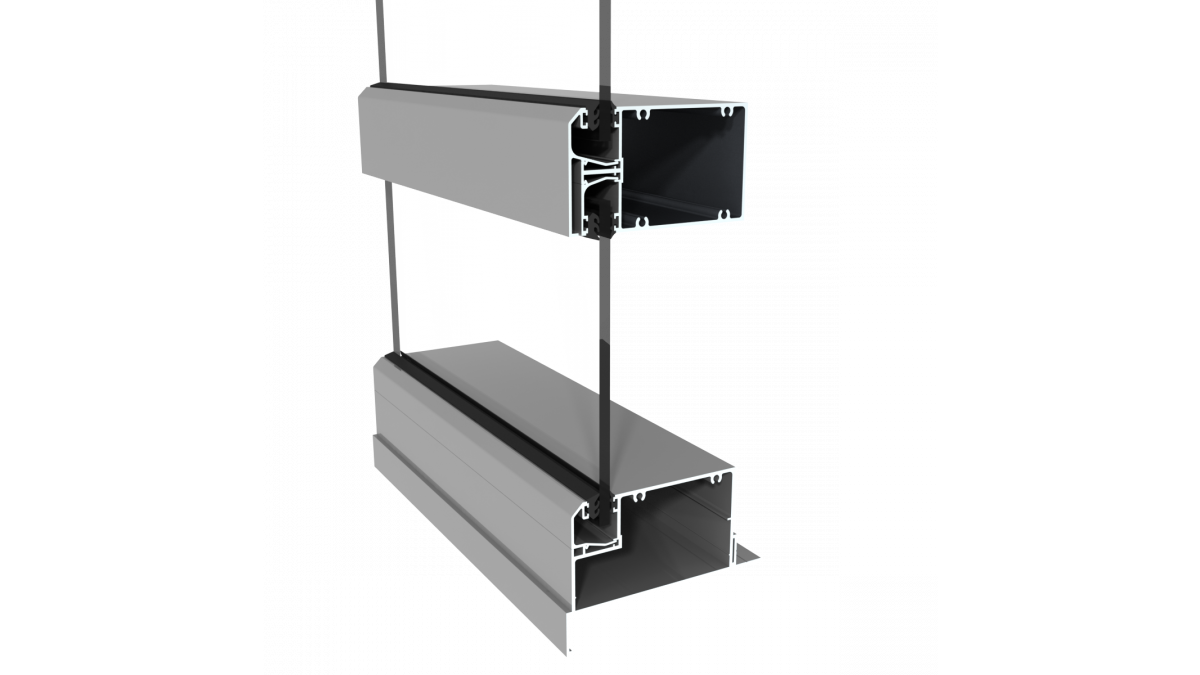

This system is suitable for medium rise and shopfront use. Glazing is nearly flush with the outside face reducing the visual effect of aluminium profiles as viewed from the outside.

Two sash options can be incorporated. The flushglaze system can be used as a curtain wall. Provision can be made for seismic and thermal movement.

Key Features
  • Suitable for shopfront and medium rise commercial applications
  • Three systems with different levels of performance available
  • Glazing is near flush with the outside face reducing the visual effect of aluminium as viewed from the outside

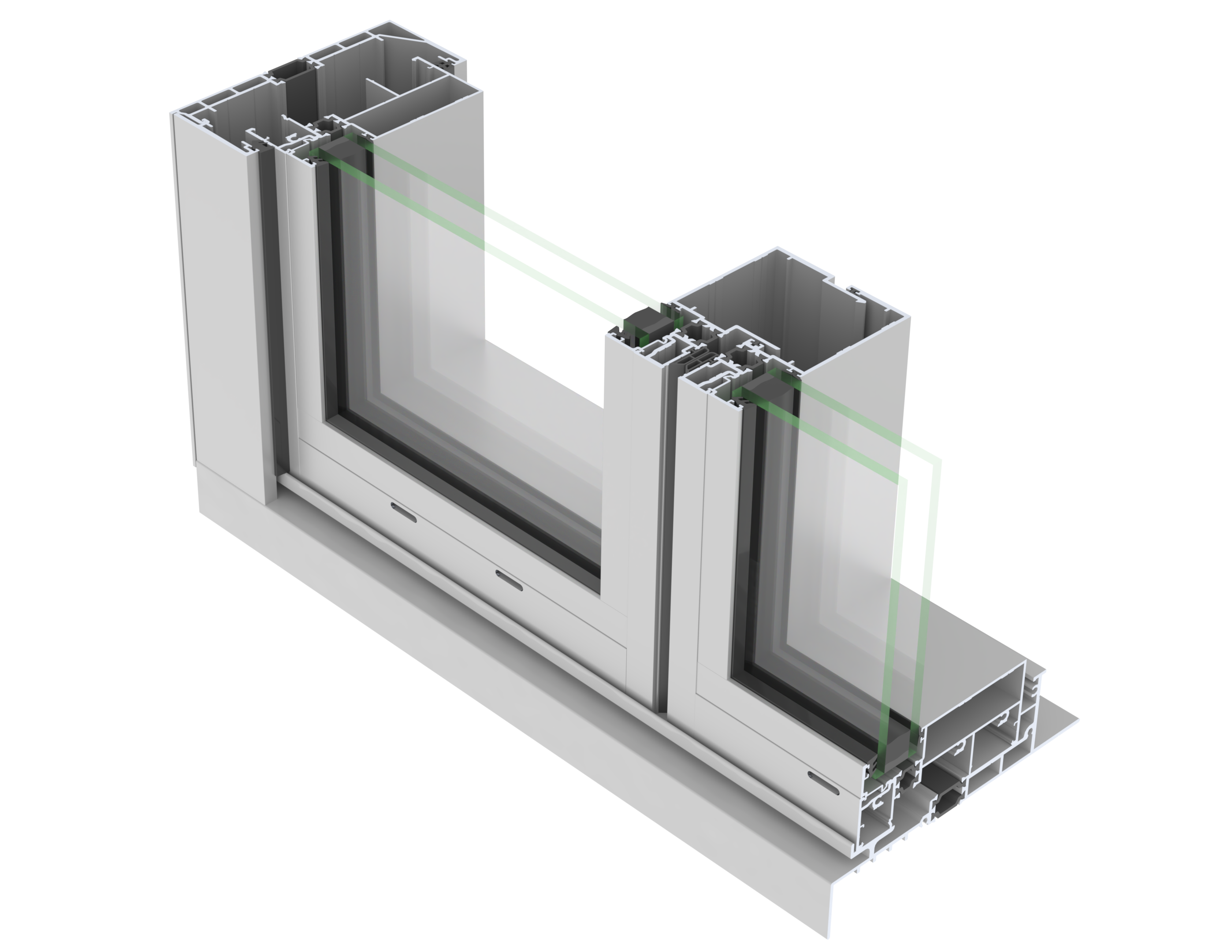

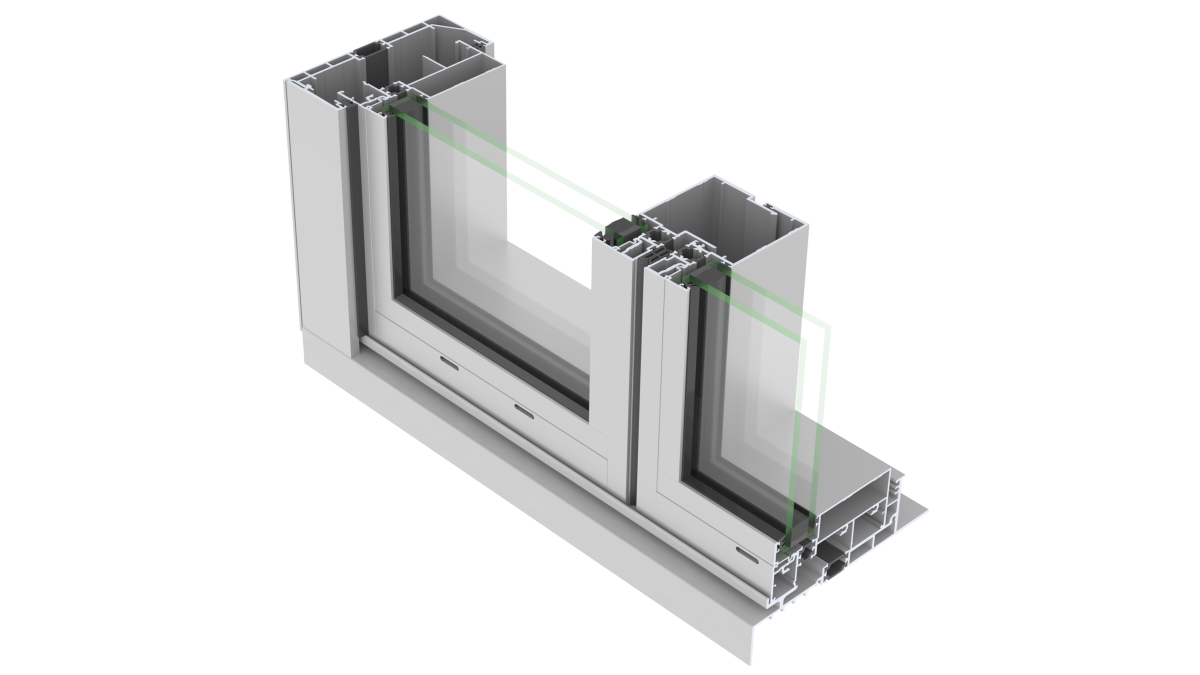

  • Provision can be made for seismic and thermal movement
  • Can incorporate matching opening sashes, including an unobtrusive structurally glazed sash
  • Includes internal drainage which allows this system to be used with confidence on multi-storey buildings
  • Single and double glazing options including mixed within the same façade

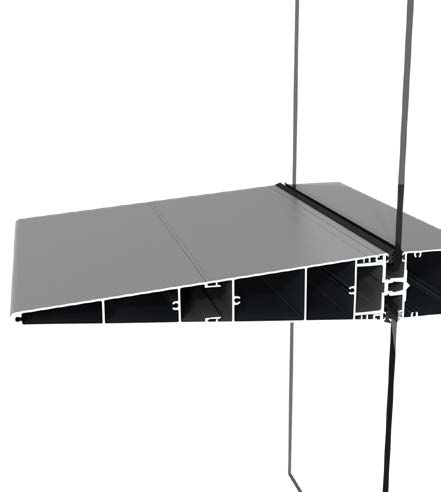

  • Sun control fins can be applied to the outside of transoms to aid solar control and accentuate the horizontal line
  • Can be used as a strip curtain wall system and can be structurally glazed vertically to minimise the impact of aluminium beads

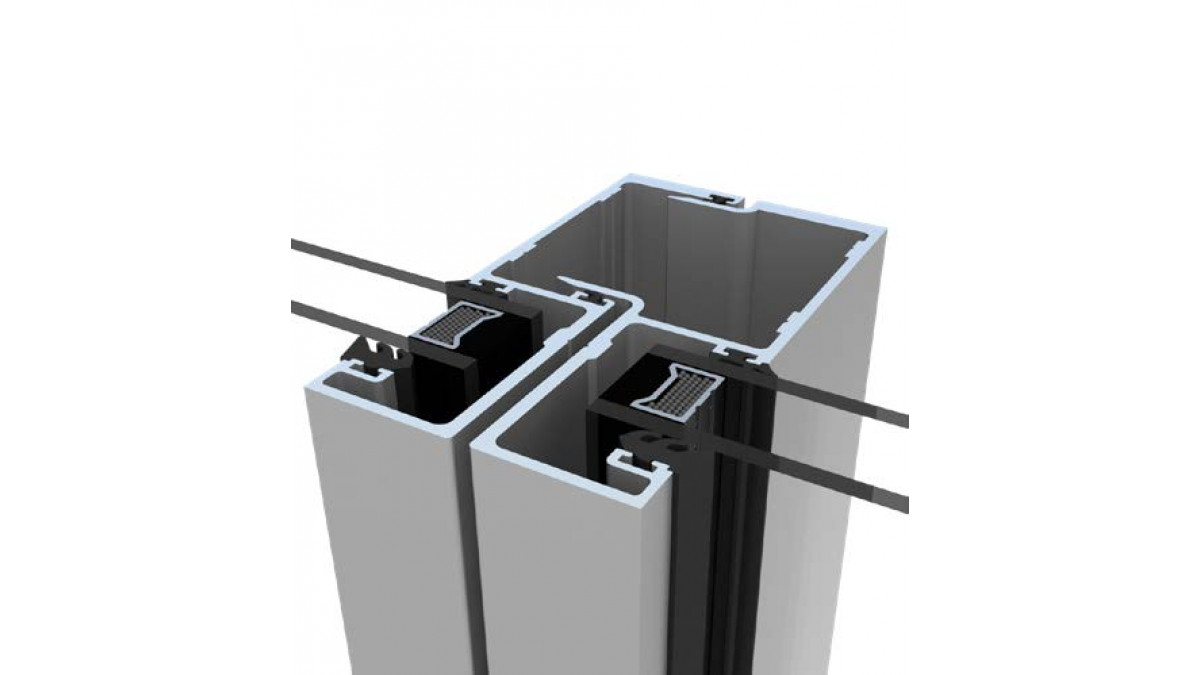

  • Structural glazed mullions can be included in the system
Scope of Use
  • Suitable for shopfront and medium rise commercial applications
  • Capable of a range of spans depending on aspect ratio, mullion spacing and wind pressure. Consult FIRST for specific information
  • Compatible with Magnum commercial doors
Limitations on Use
  • Tested to Very High wind zones and beyond but projects may require project-specific testing
  • Shop drawings can be supplied when specified
  • Project-specific flashings and brackets are often required and are supplied by the window manufacturer
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2001
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
Span Tables
Specifier Guide
First Care & Maintenance Brochure

2017

Producer Statement / Warranty

2017

Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

APL and Sustainability

2019

CAD/PDF Details
Full Set of Drawings

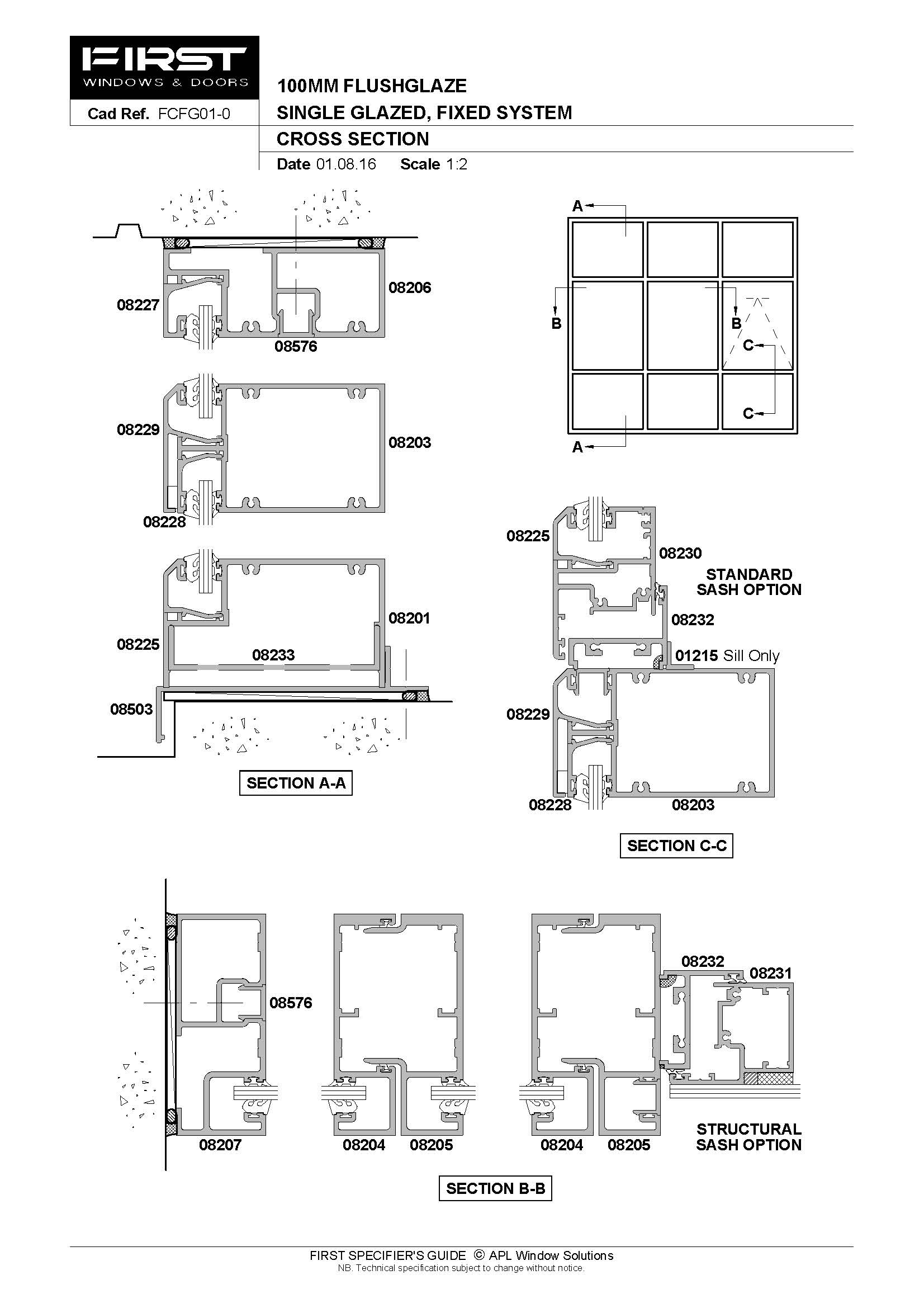

First Commercial 100mm Flushglaze, Fixed System

FCFG01-0

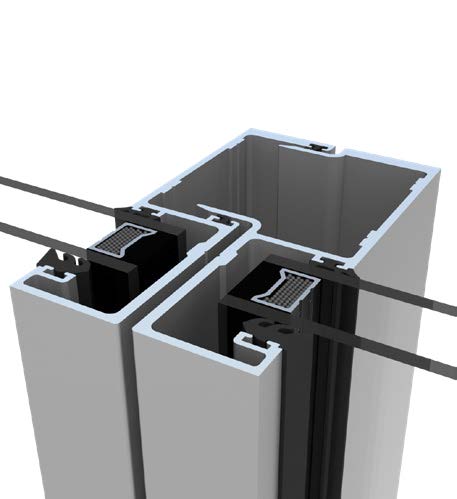

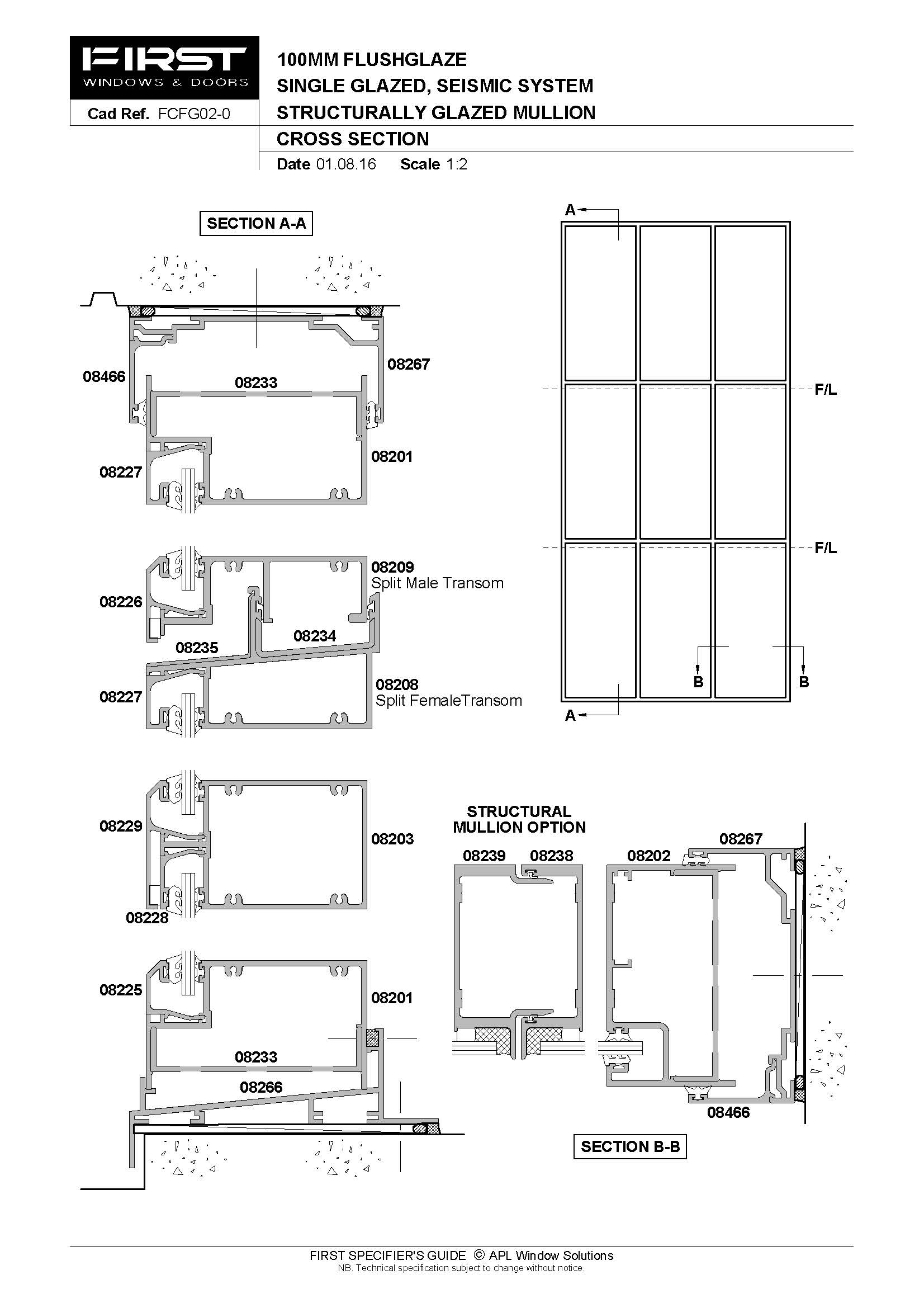

FIRST Commercial 100mm Flushglaze, Seismic System Structurally Glazed Mullion

FCFG02-0

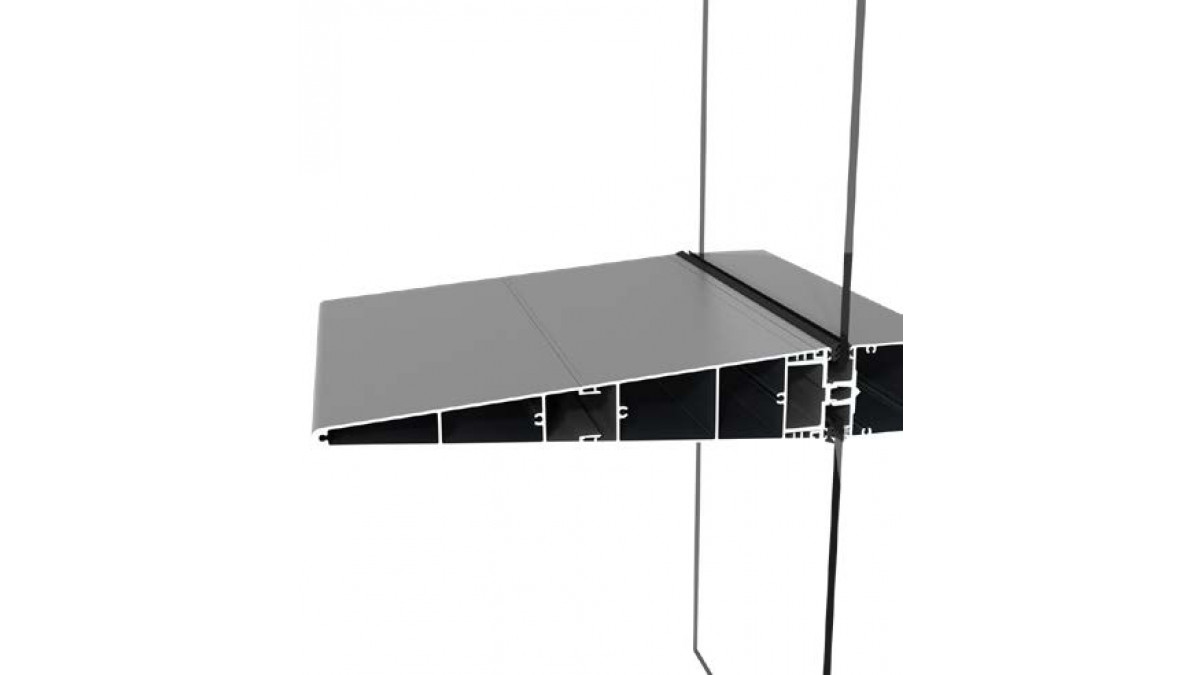

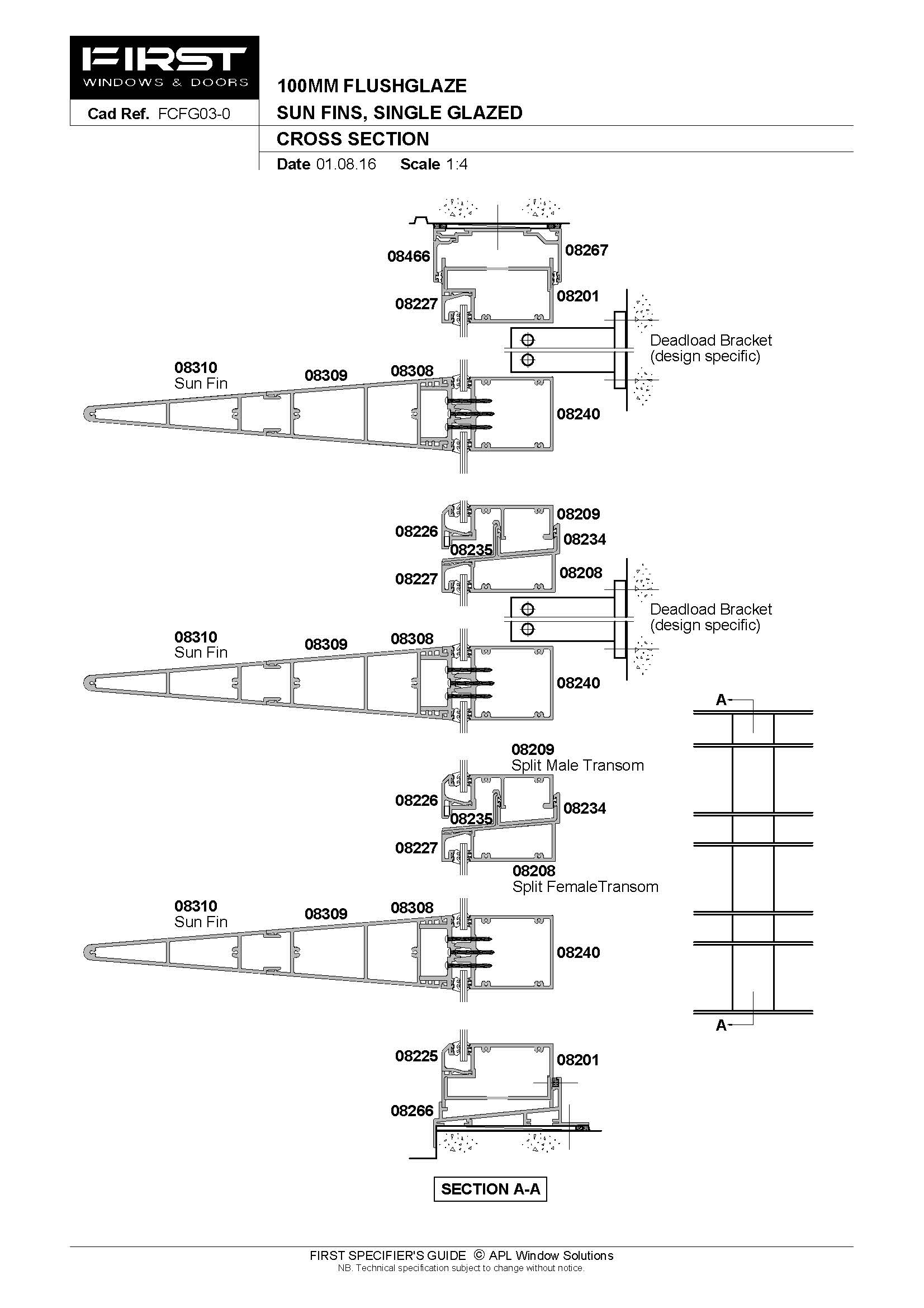

FIRST Commercial 100mm Flushglaze, Sun Fins

FCFG03-0

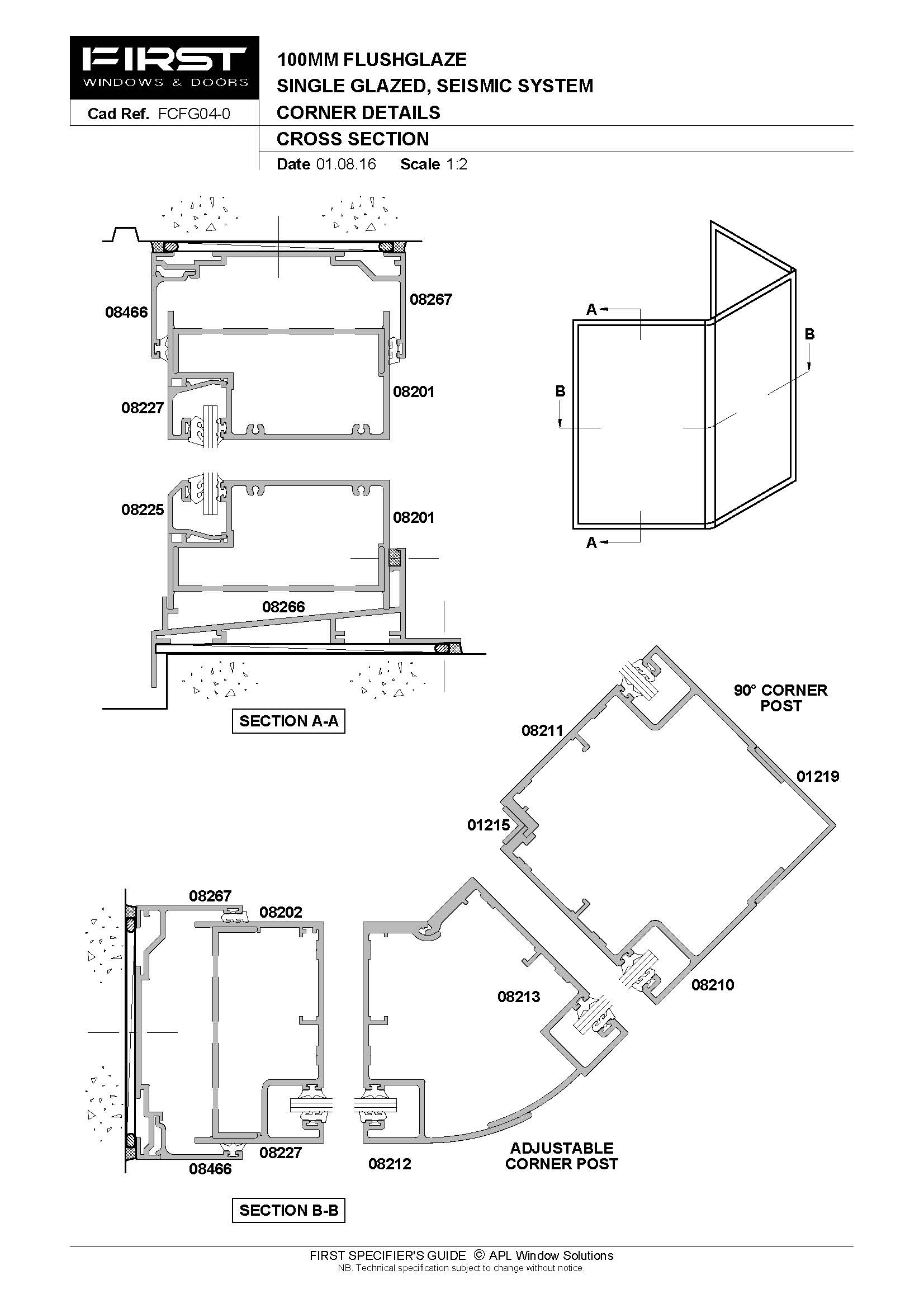

FIRST Commercial 100mm Flushglaze, Seismic System Corner Details

FCFG04-0

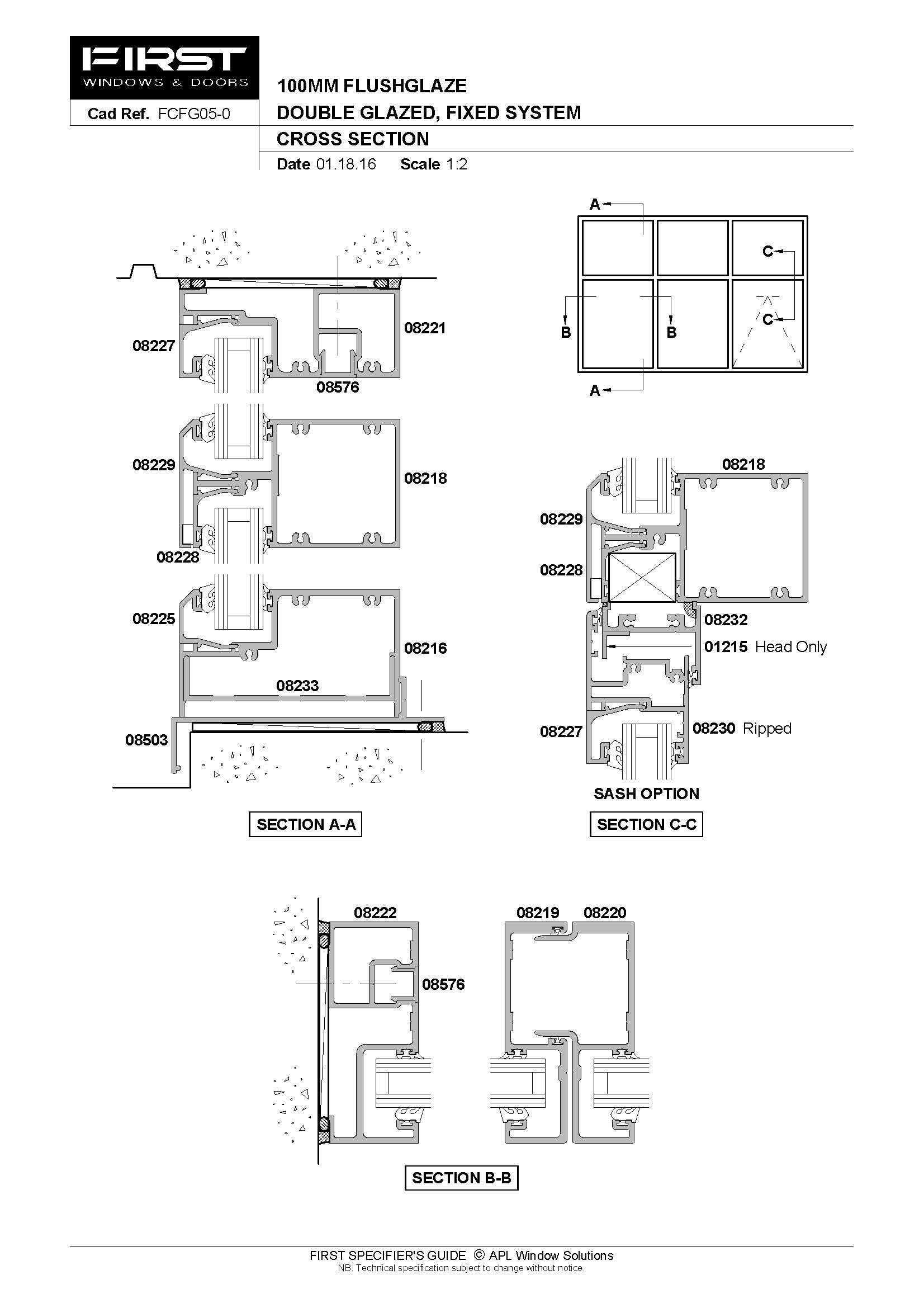

FIRST Commercial 100mm Flushglaze, DG Fixed System

FCFG05-0

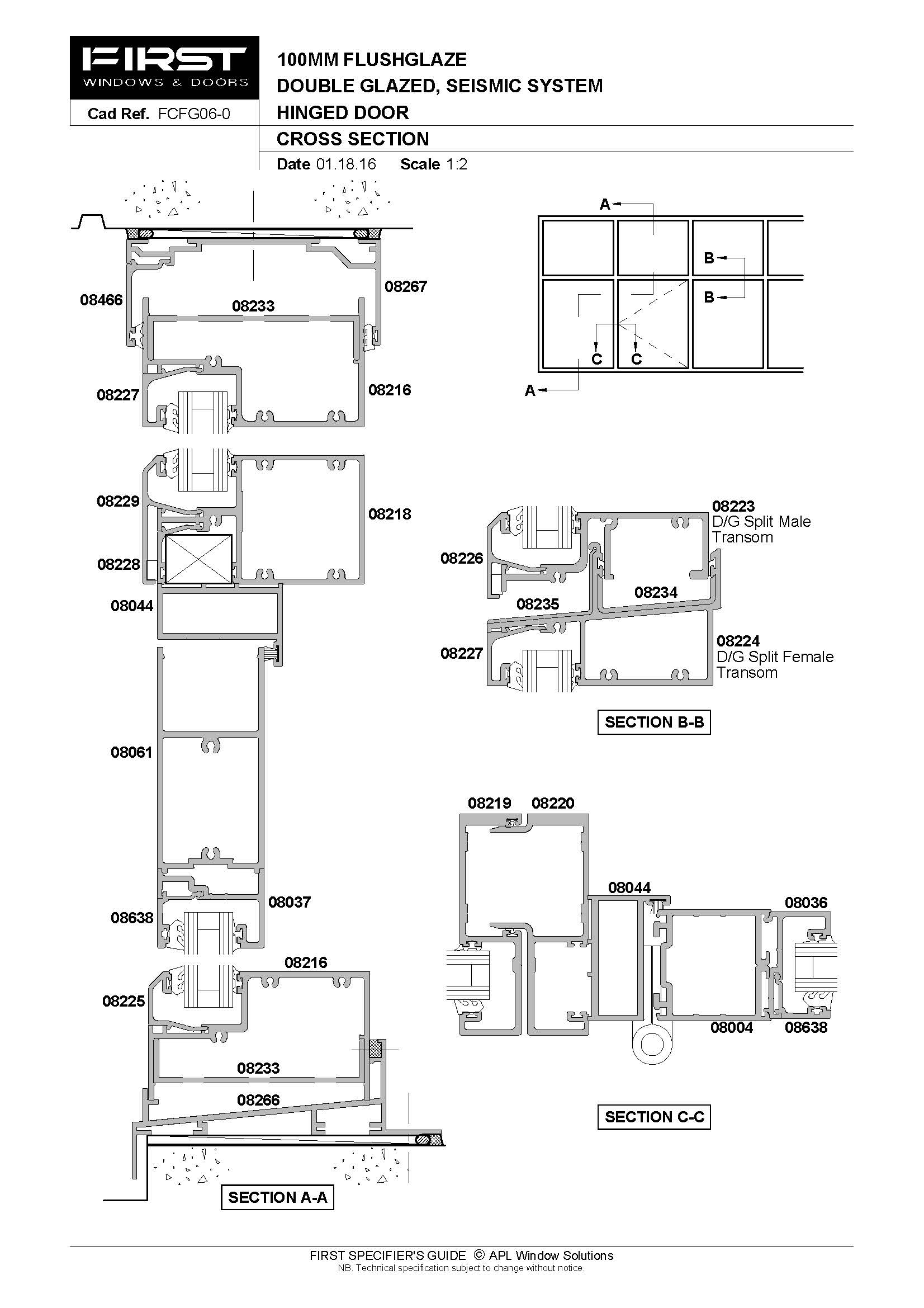

FIRST Commercial 100mm Flushglaze, Seismic System Double Glazed Hinged Door

FCFG06-0

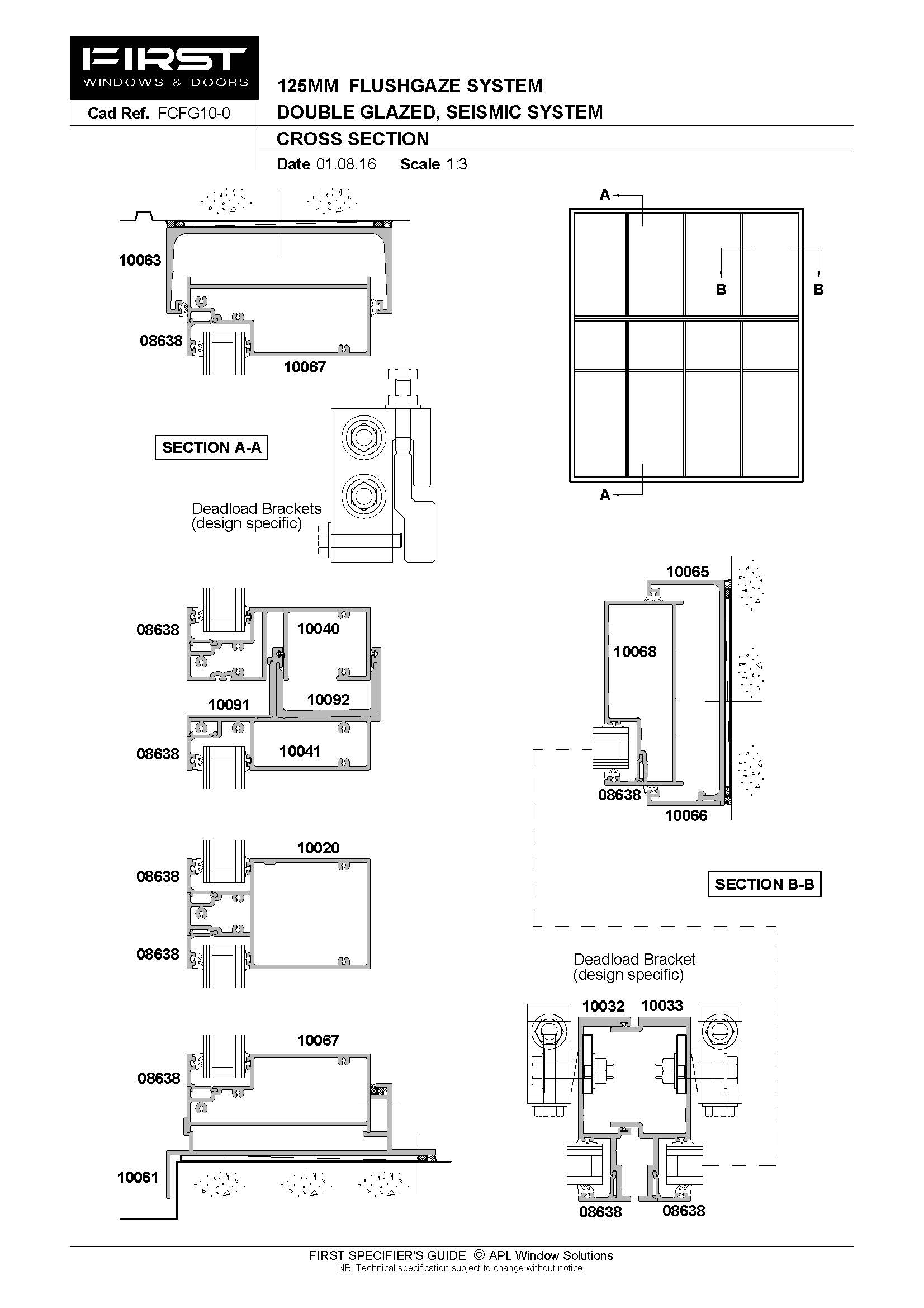

FIRST Commercial 125mm Flushglaze, Seismic System

FCFG10-0

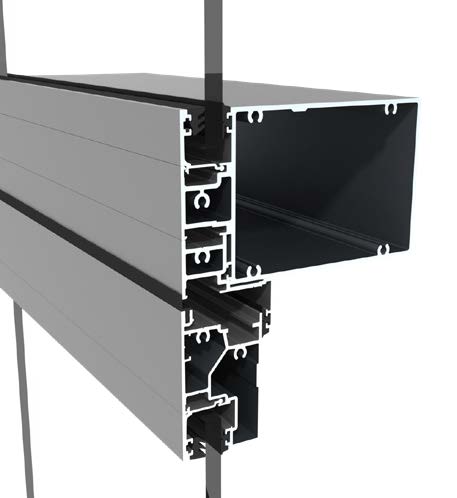

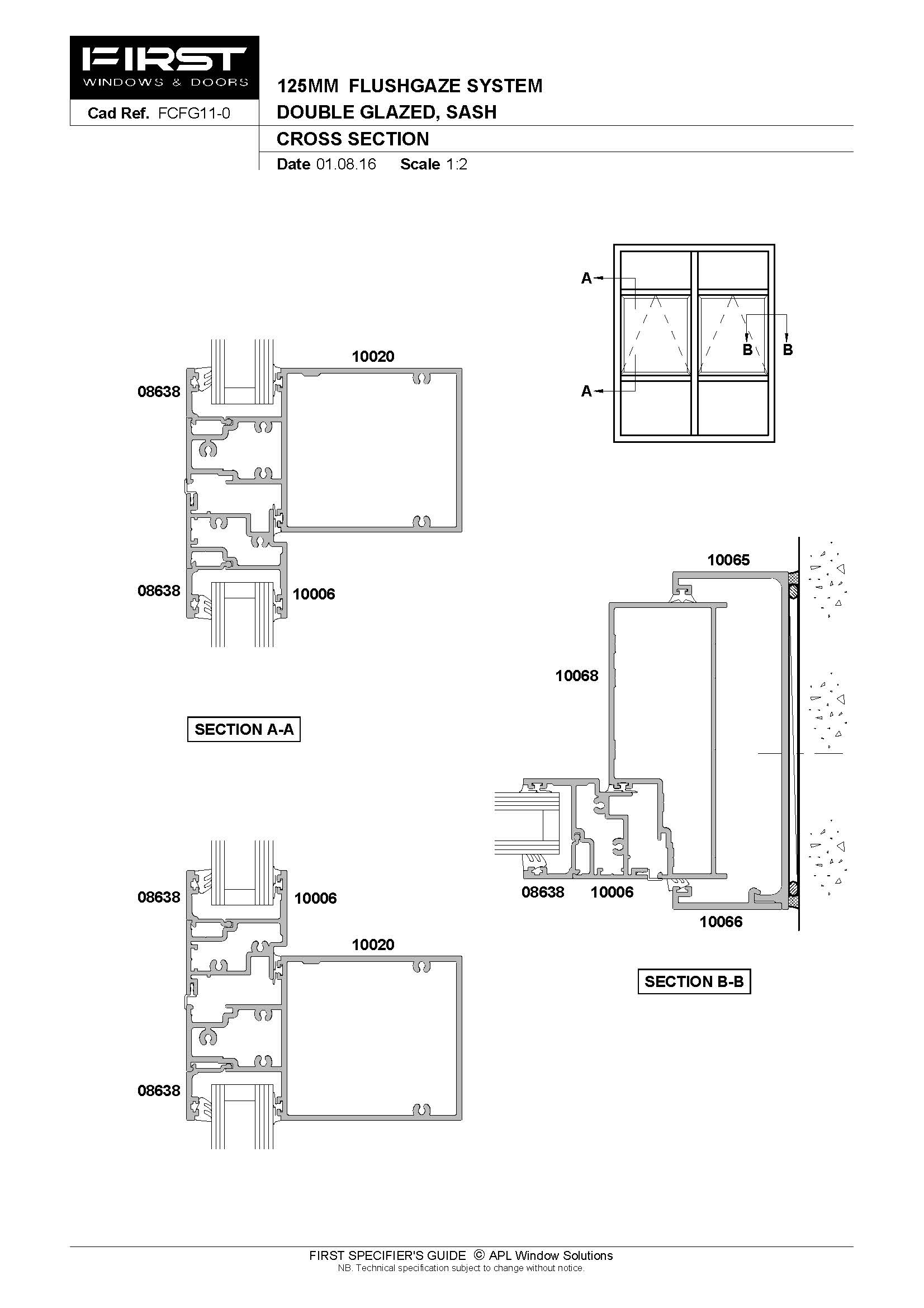

FIRST Commercial 125mm Flushglaze, Double Glazed Sash

FCFG11-0

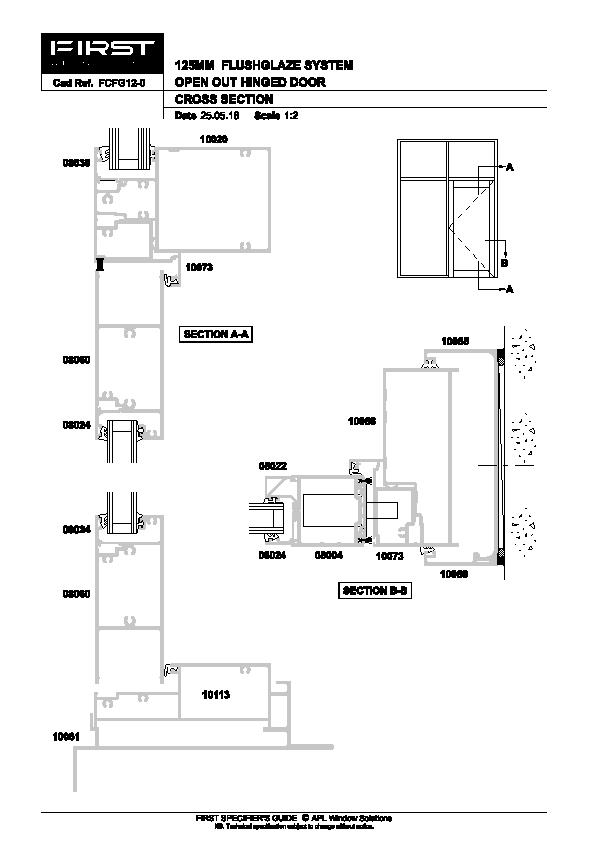

FIRST Commercial 125mm Flushglaze, Open Out Hinged Door

FCFG12-0

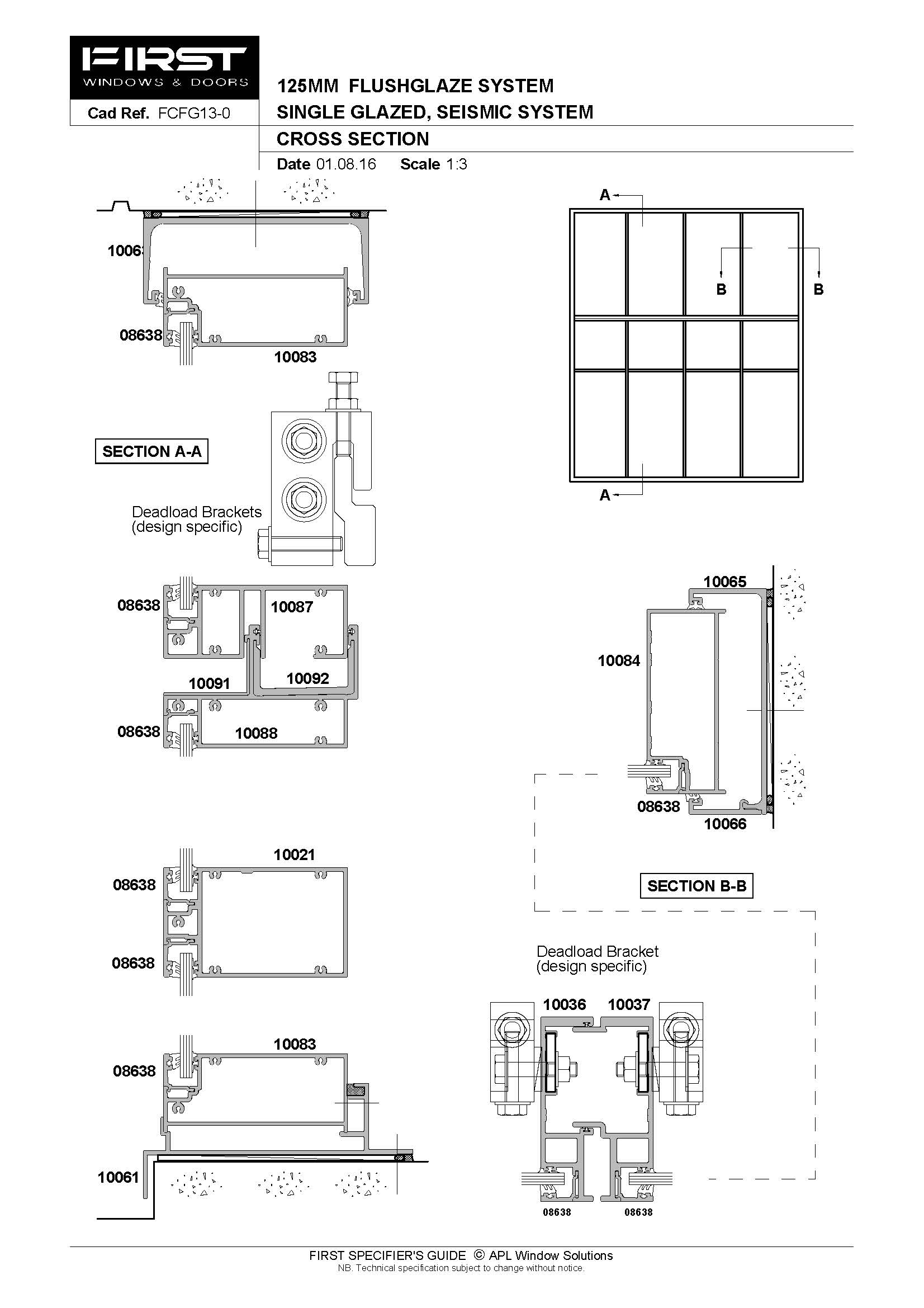

FIRST Commercial 125mm Flushglaze, Single Glazed Seismic System

FCFG13-0

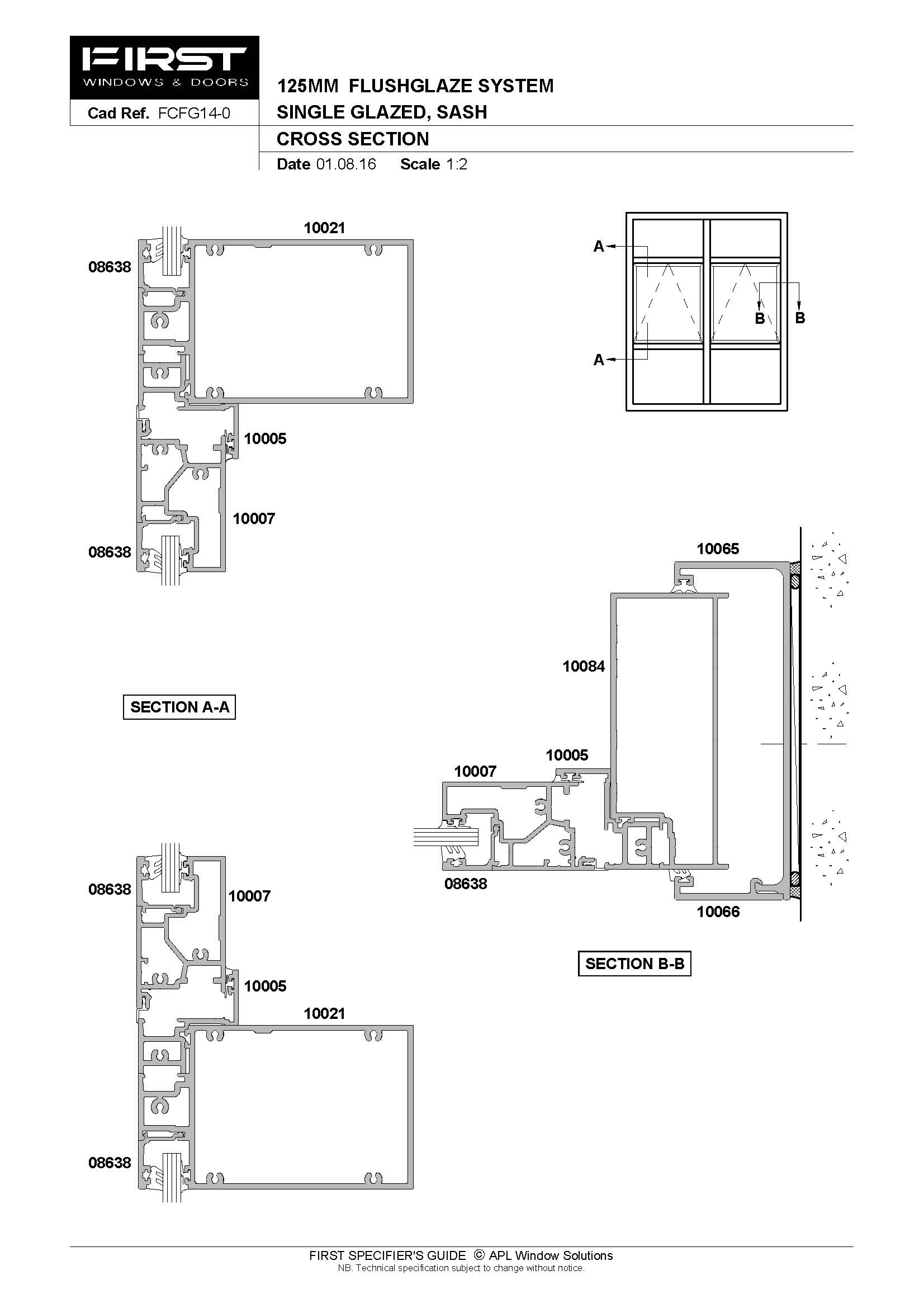

FIRST Commercial 125mm Flushglaze, Single Glazed Sash

FCFG14-0

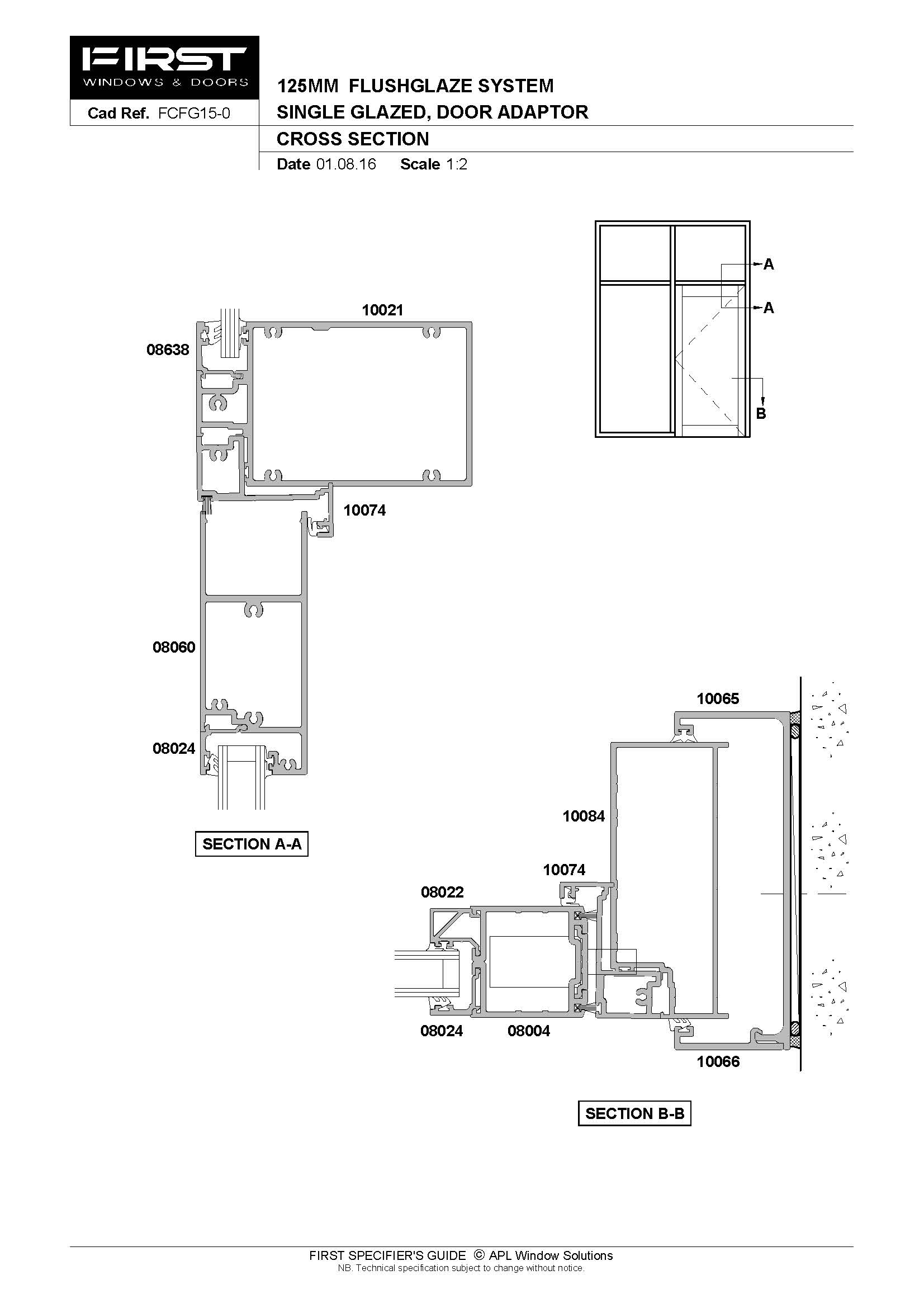

FIRST Commercial 125mm Flushglaze, Single Glazed Door Adaptor

FCFG15-0

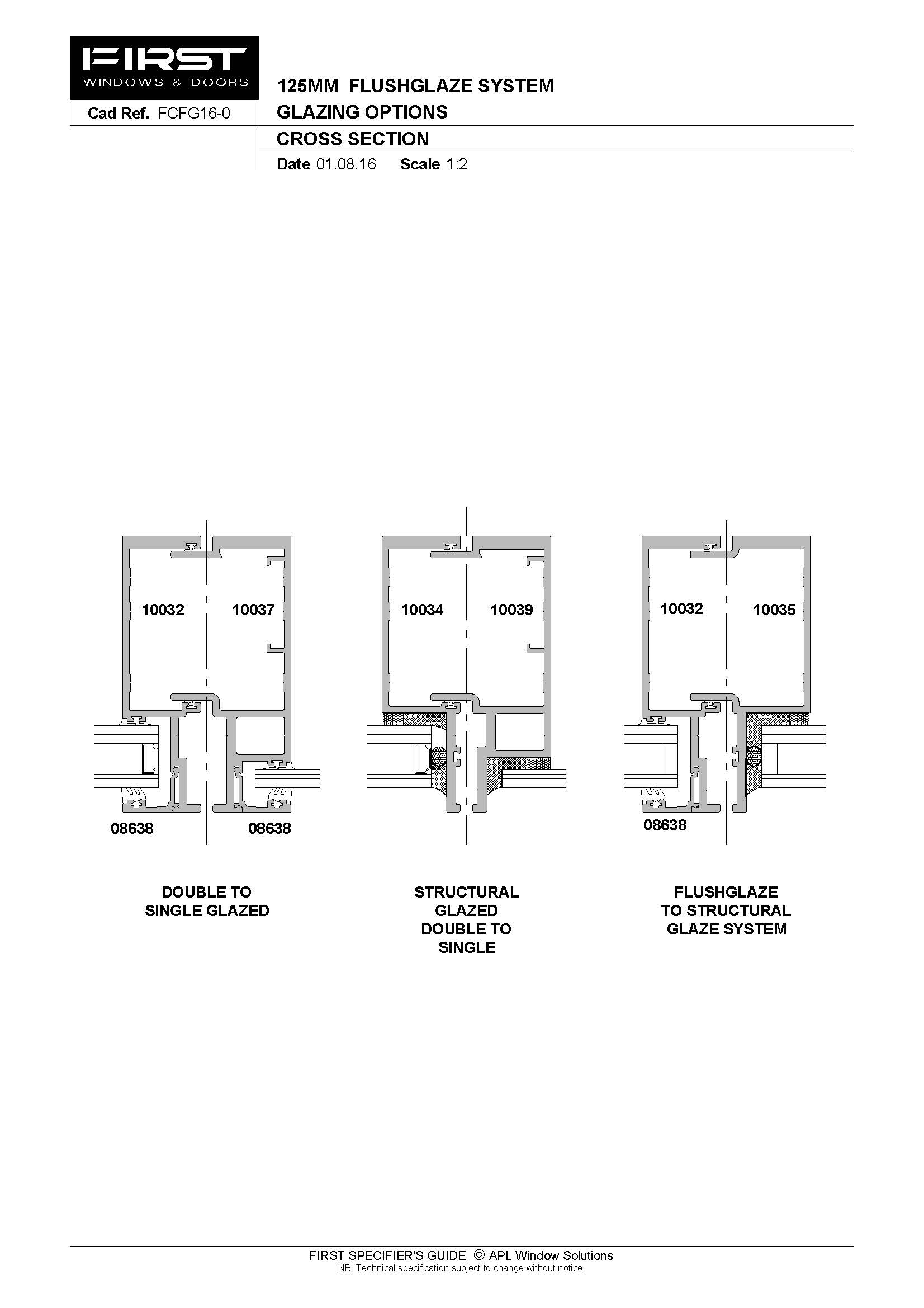

FIRST Commercial 125mm Flushglaze, Glazing Options

FCFG16-0

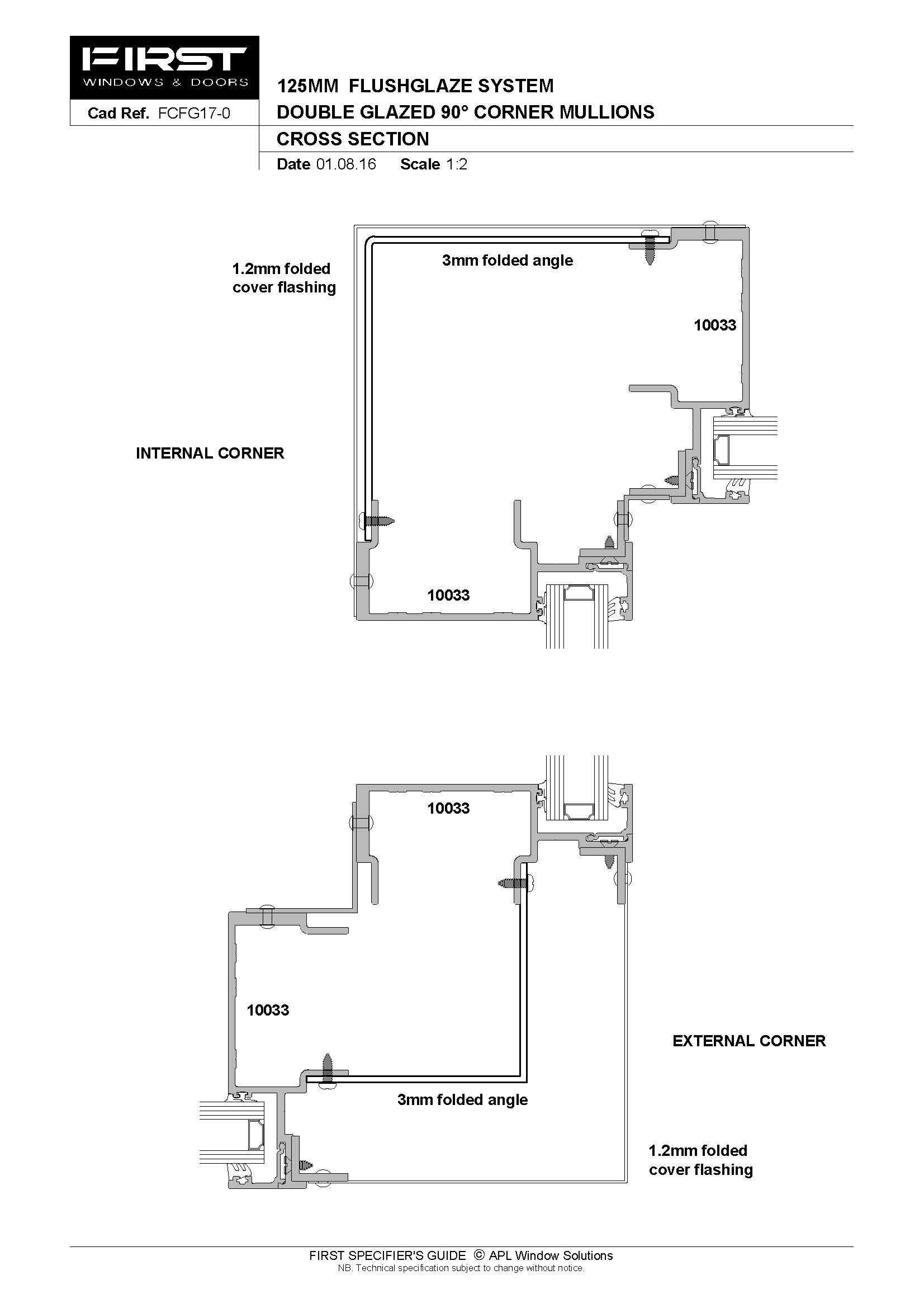

FIRST Commercial 125mm Flushglaze, Corner Mullions

FCFG17-0

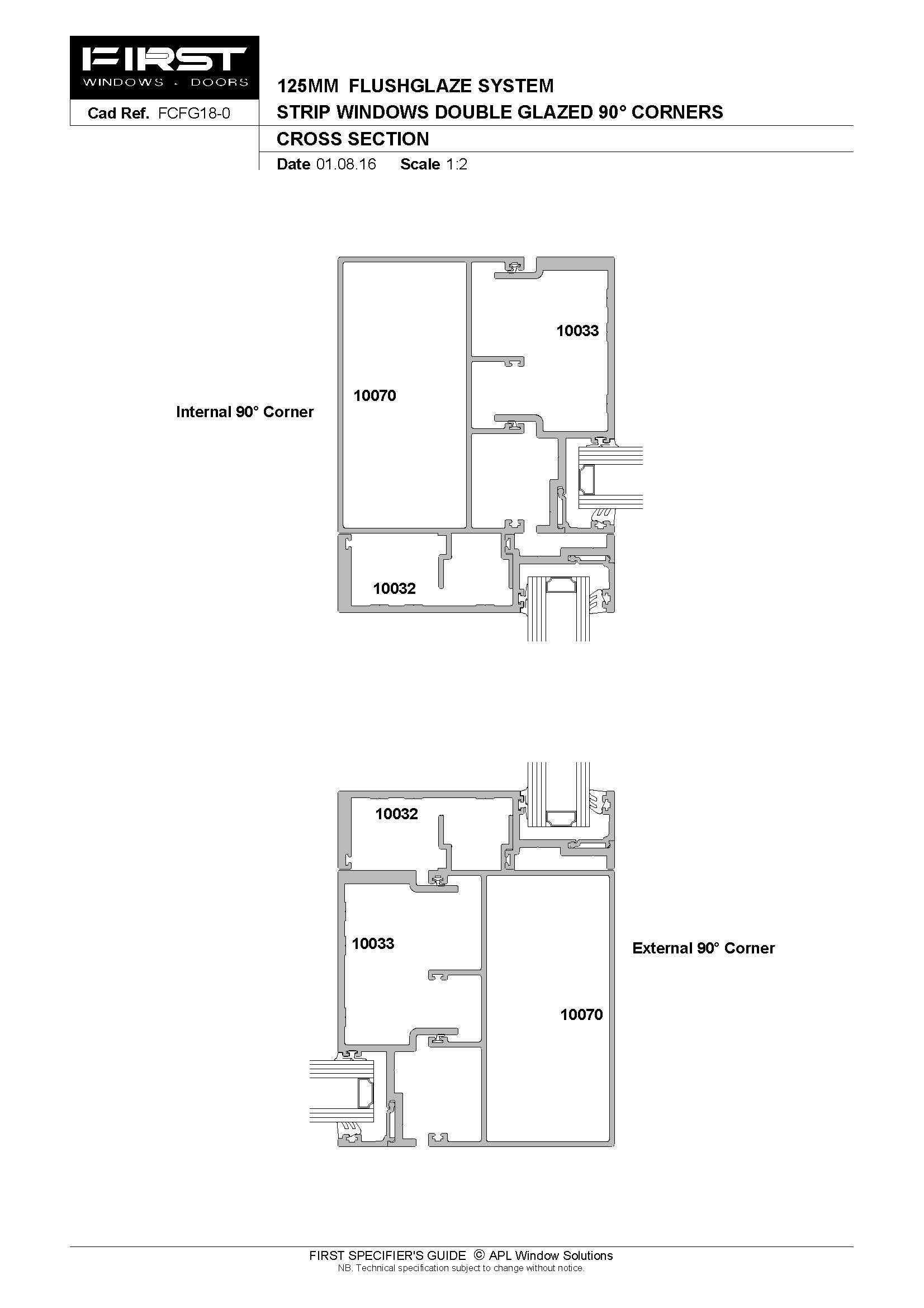

FIRST Commercial 125mm Flushglaze, Strip Windows

FCFG18-0

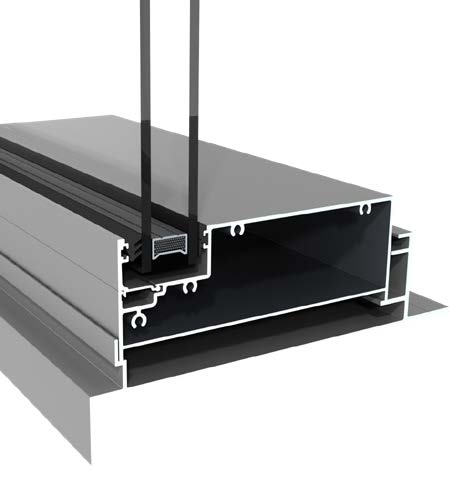

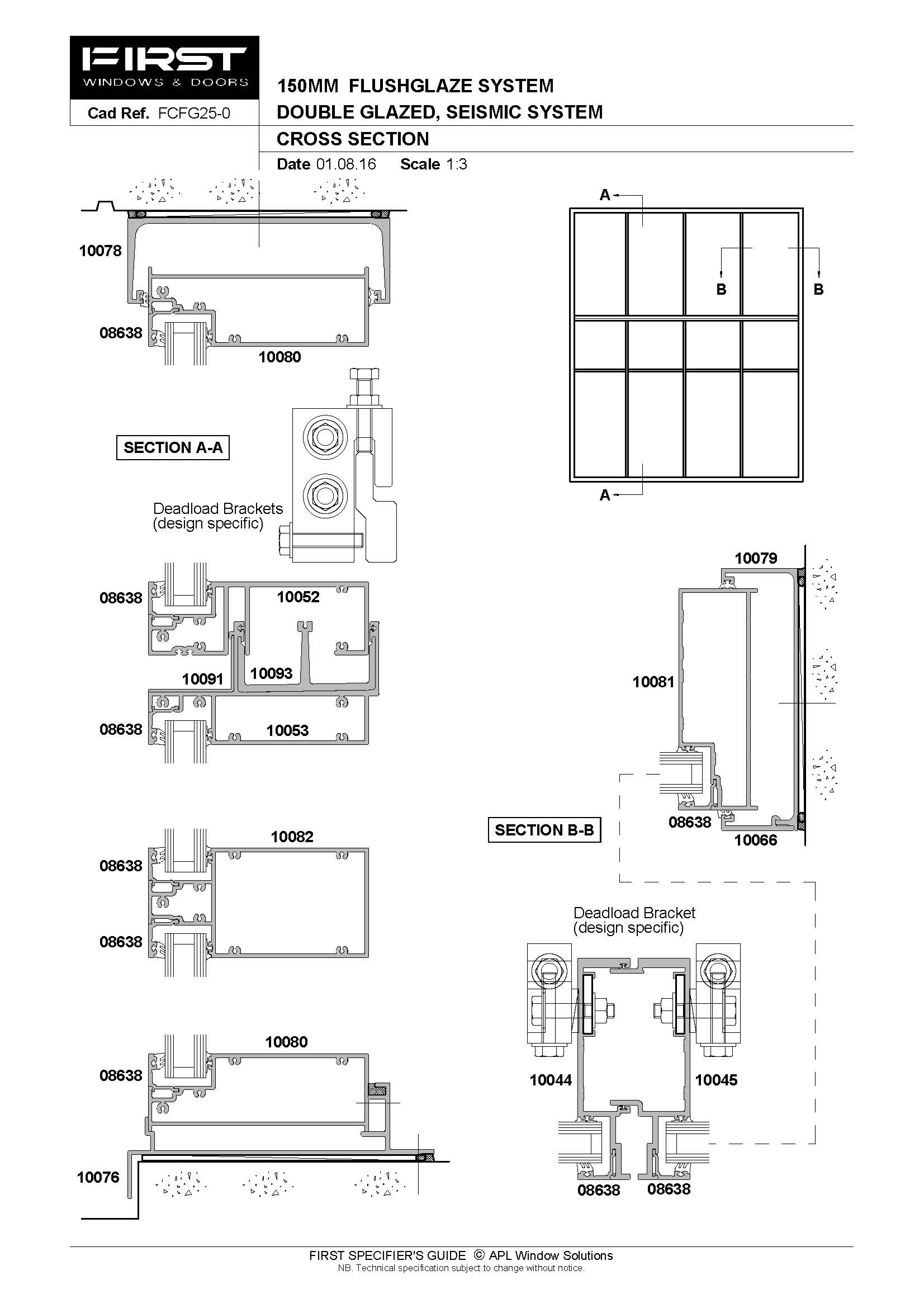

FIRST Commercial 150mm Flushglaze, Double Glazed Seismic System

FCFG25-0

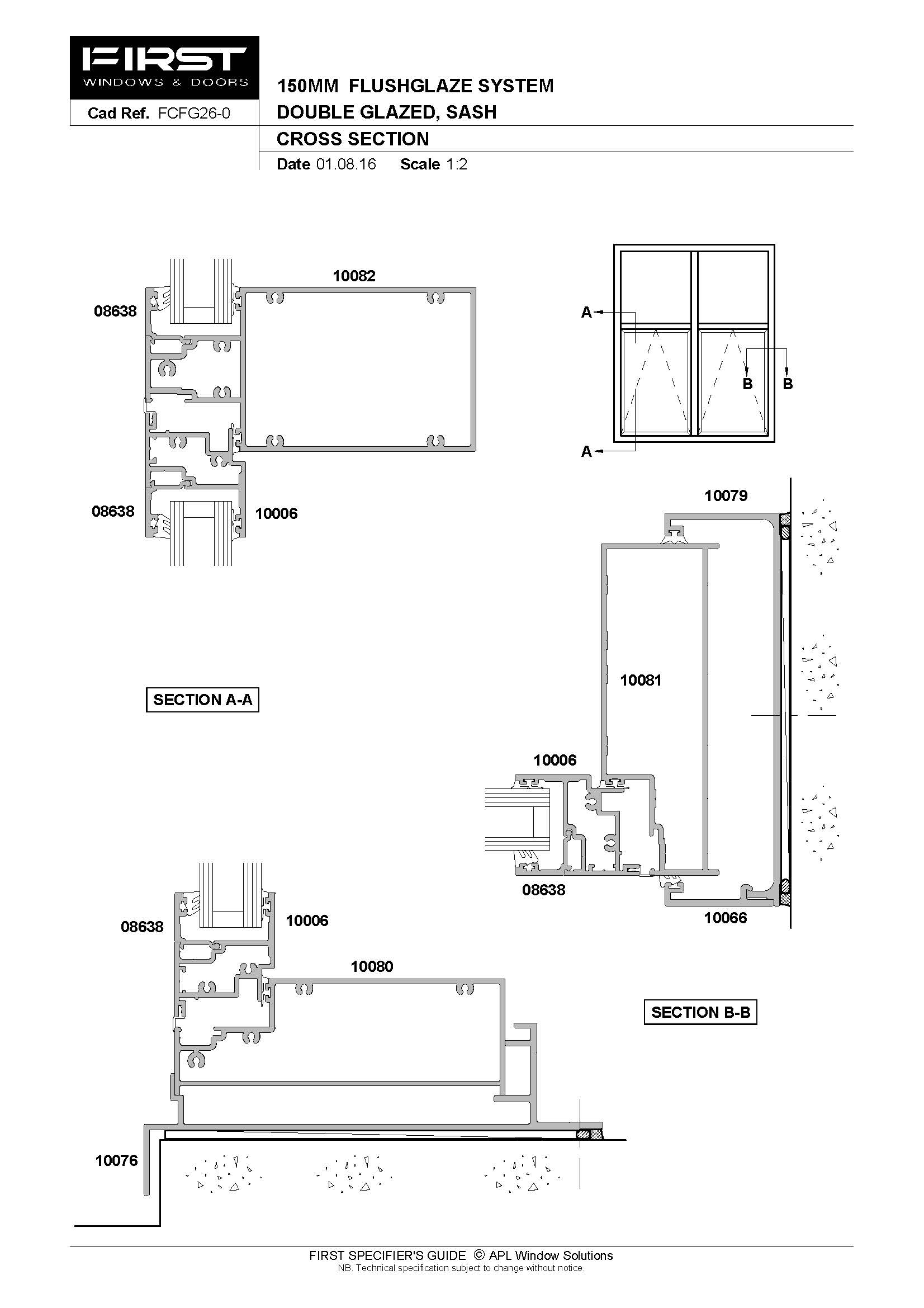

FIRST Commercial 150mm Flushglaze, Double Glazed Sash

FCFG26-0

FIRST Commercial 150mm Flushglaze, Open Out Hinged Door

FCFG27-0

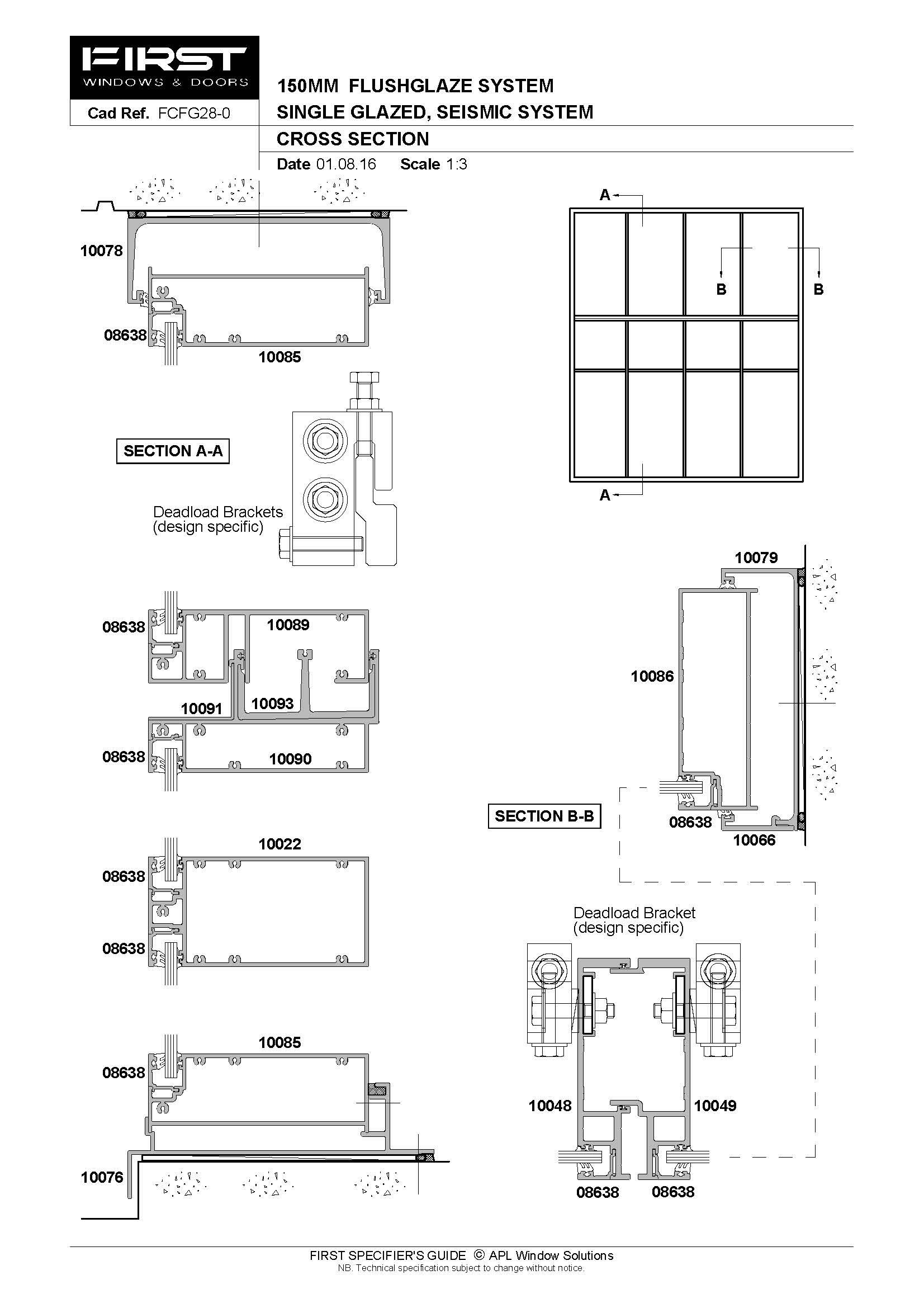

FIRST Commercial 150mm Flushglaze, Single Glazed Seismic System

FCFG28-0

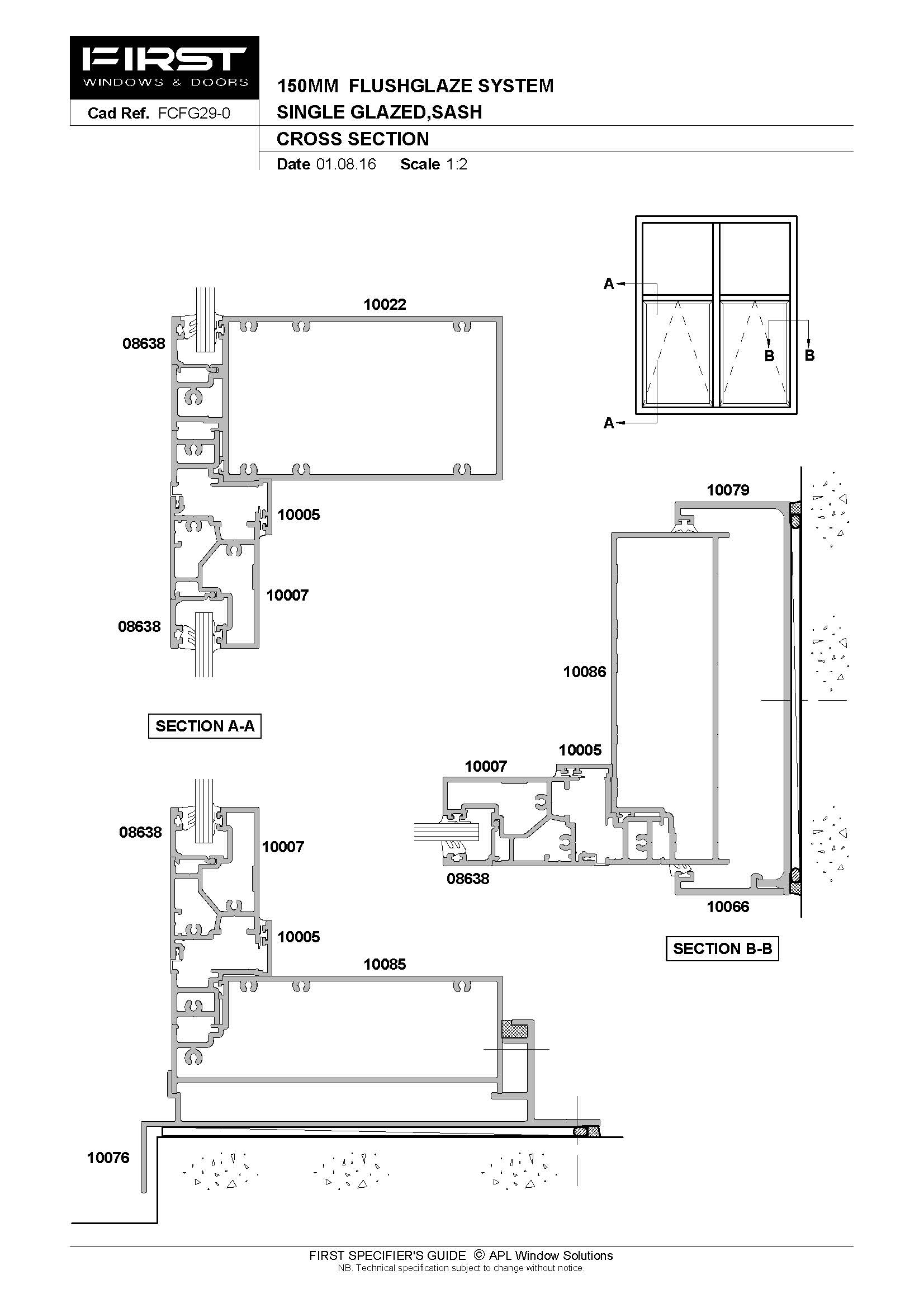

FIRST Commercial 150mm Flushglaze, Single Glazed Sash

FCFG29-0

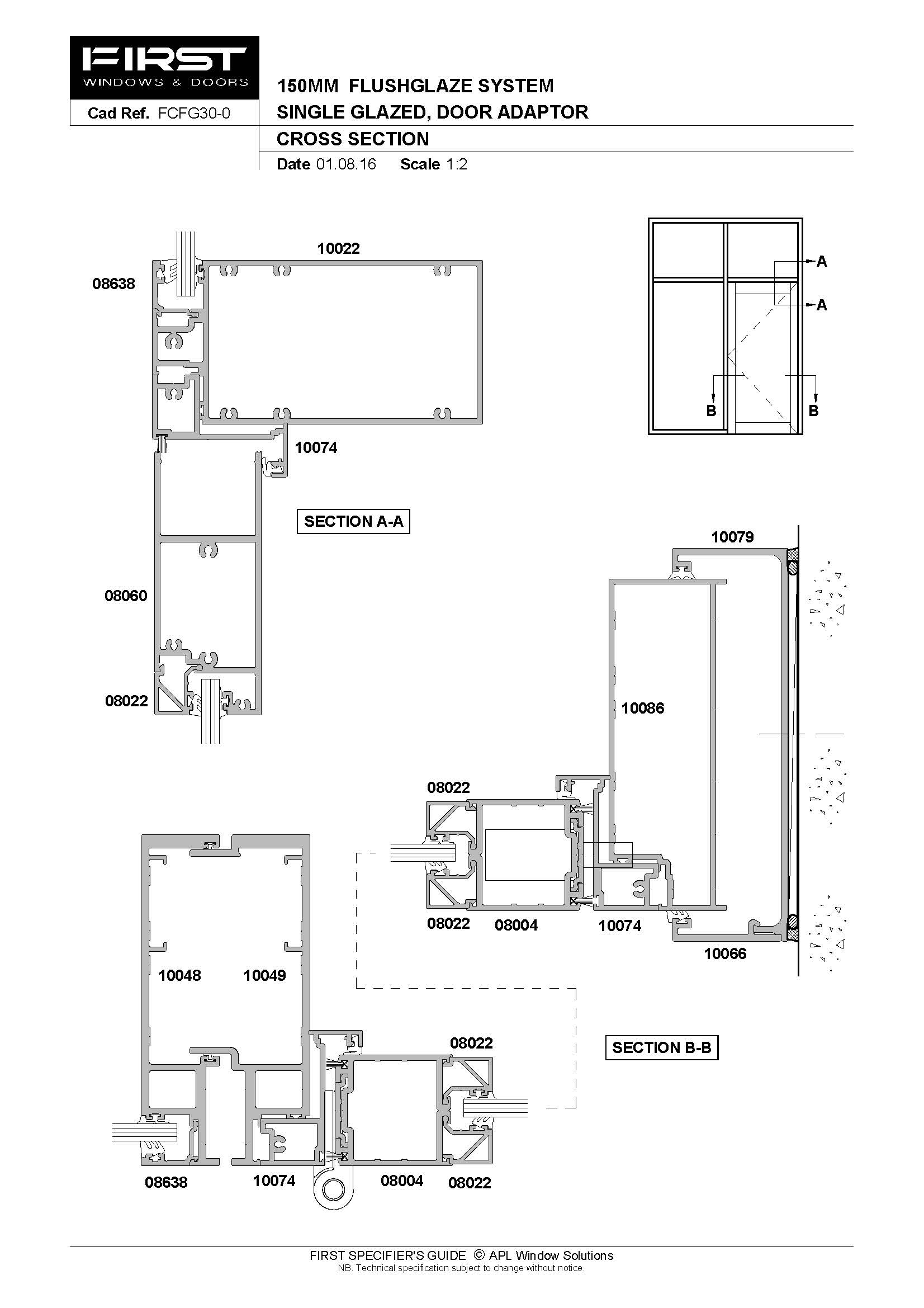

FIRST Commercial 150mm Flushglaze, Single Glazed Door Adaptor

FCFG30-0

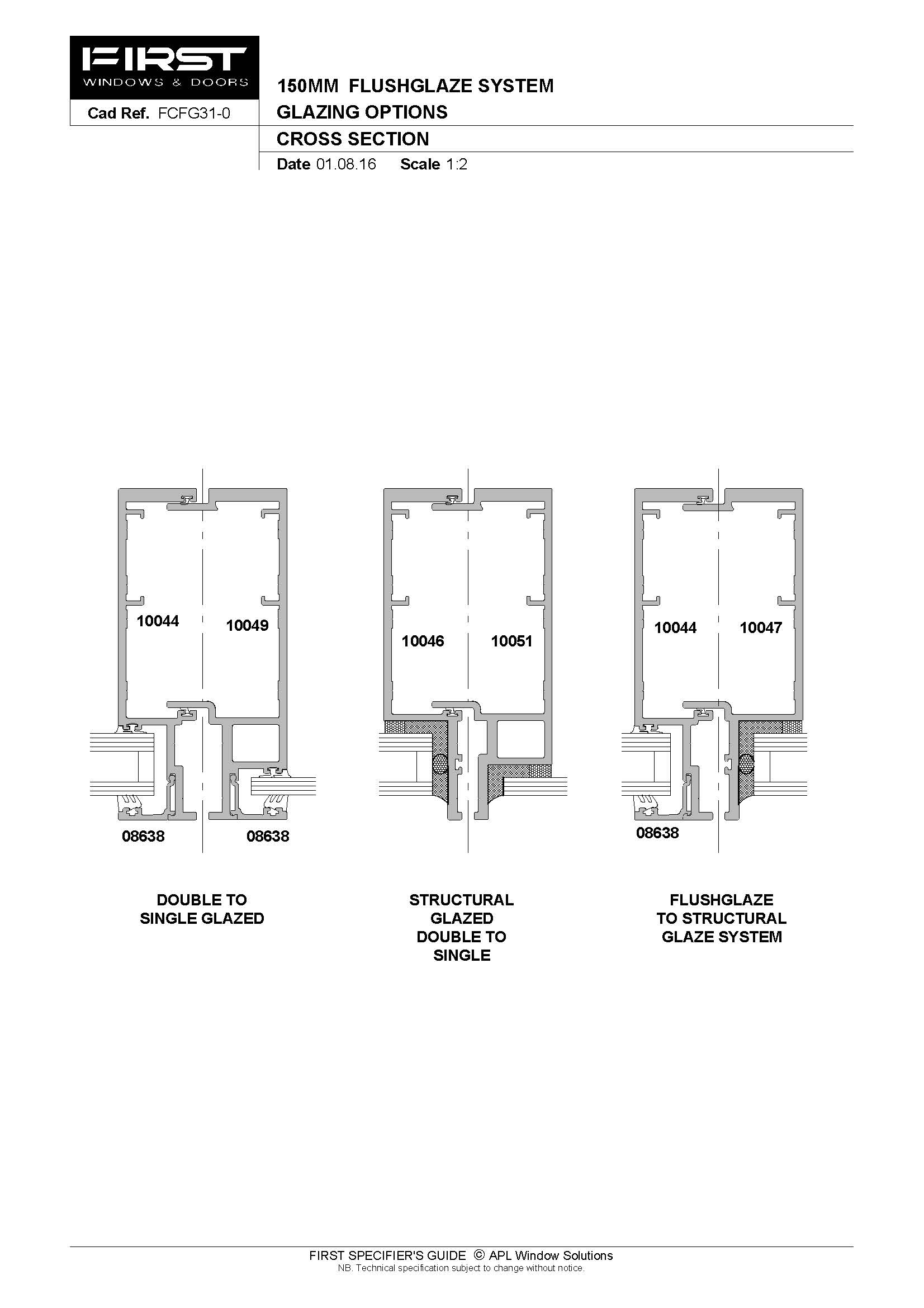

FIRST Commercial 150mm Flushglaze, Glazing Options

FCFG31-0

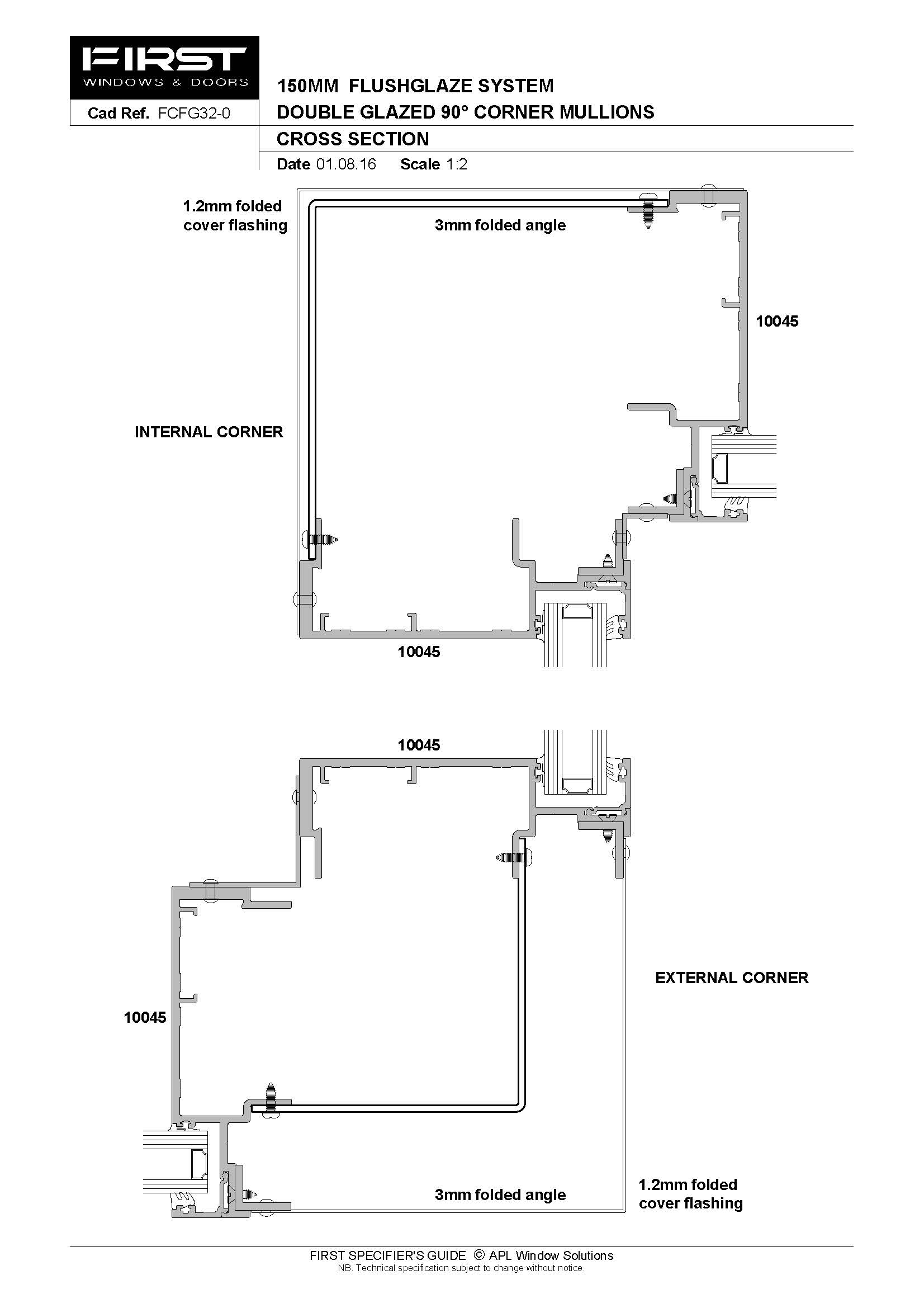

FIRST Commercial 150mm Flushglaze, Corner Mullions

FCFG32-0

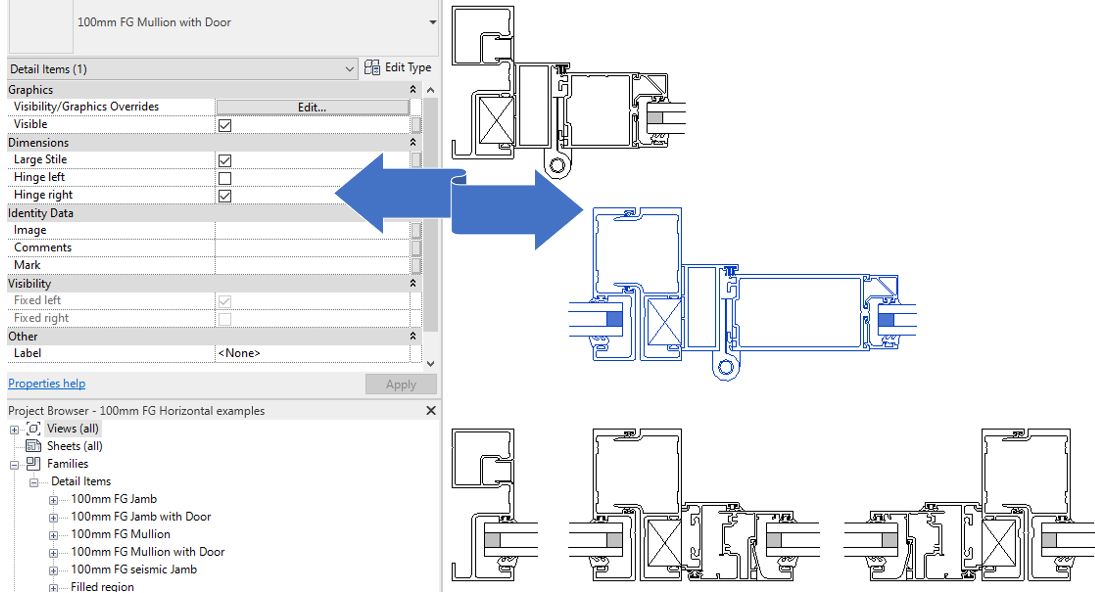

BIM

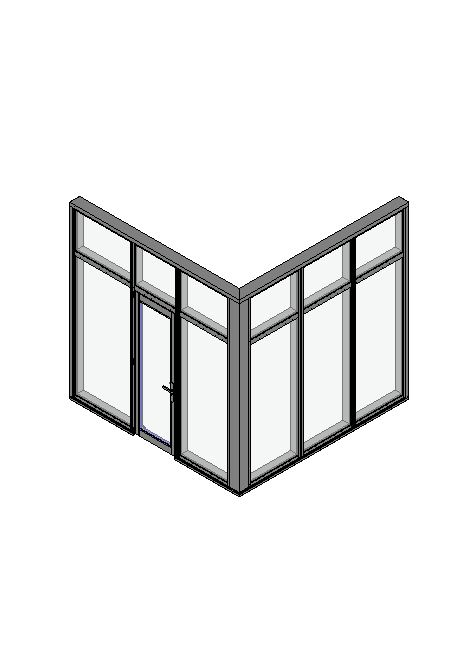

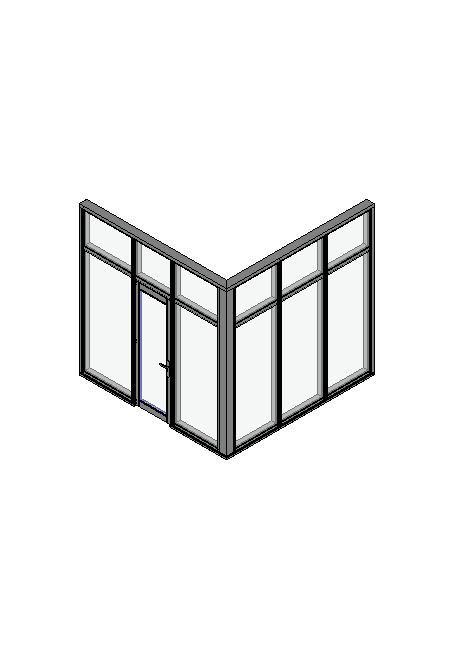

FIRST Commercial 125mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)

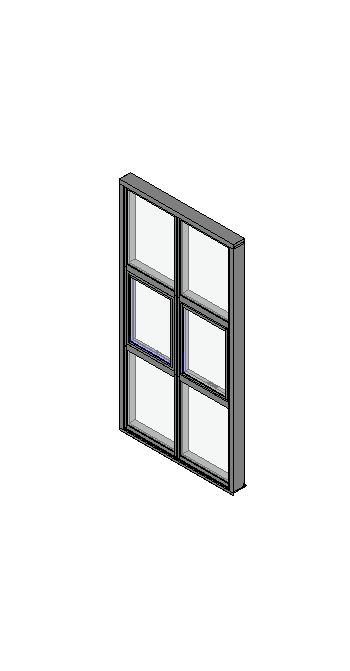

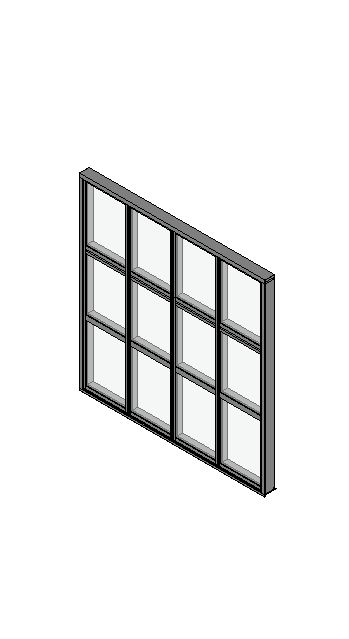

FIRST Commercial 125mm Flushglaze System (Curtain Wall)

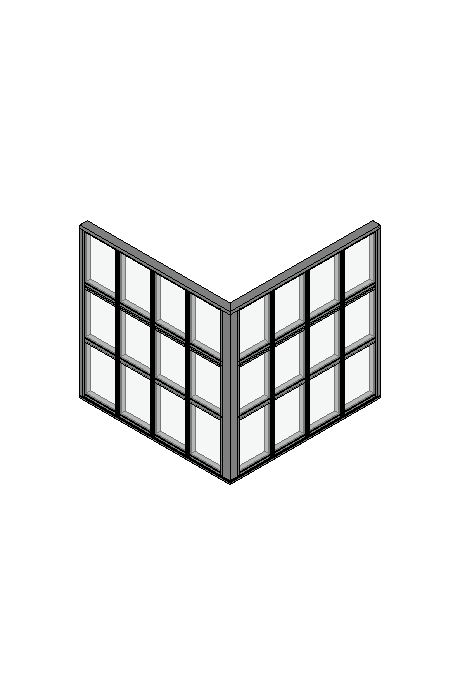

FIRST Commercial 125mm Flushglaze System, External Corner (Curtain Wall)
FIRST Commercial 125mm Flushglaze System, Fixed System With Awning (Curtain Wall)

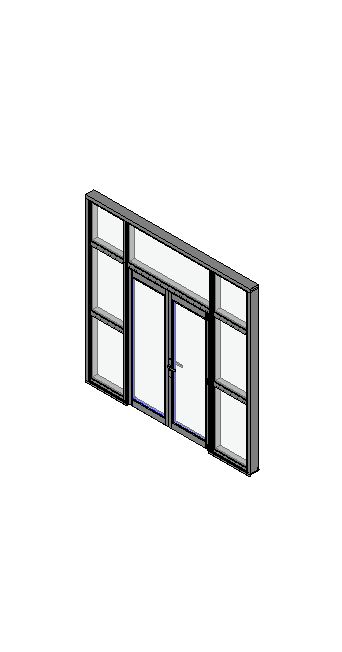

FIRST Commercial 125mm Flushglaze System, French Door (Curtain Wall)

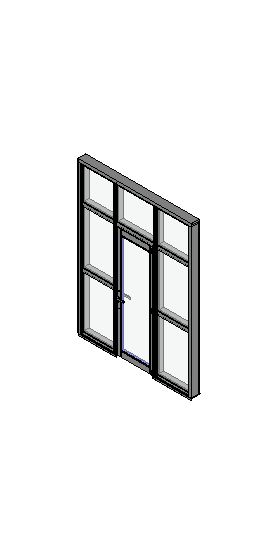

FIRST Commercial 125mm Flushglaze System, Hinged Door (Curtain Wall)

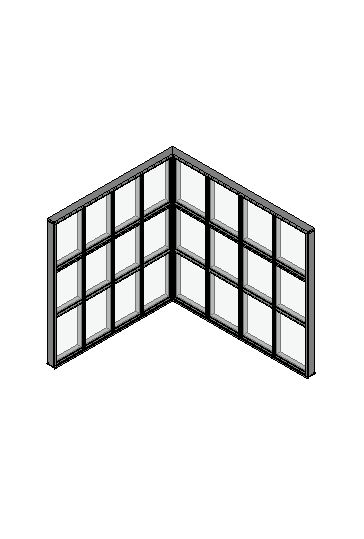

FIRST Commercial 125mm Flushglaze System, Internal Corner (Curtain Wall)

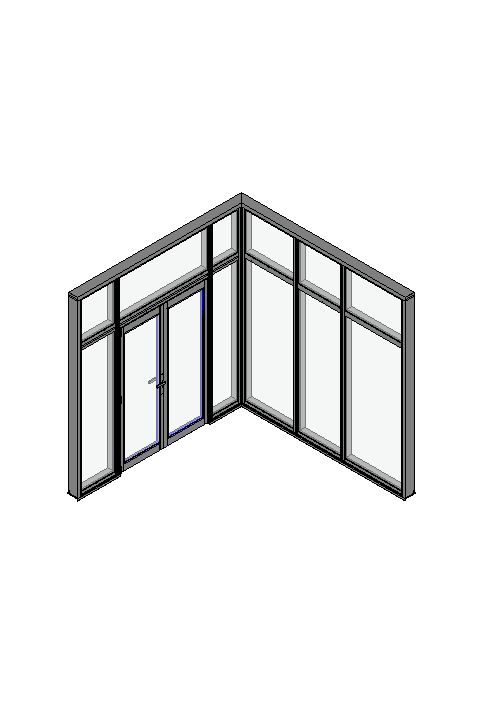

FIRST Commercial 125mm Flushglaze System, Internal Corner With French Door (Curtain Wall)

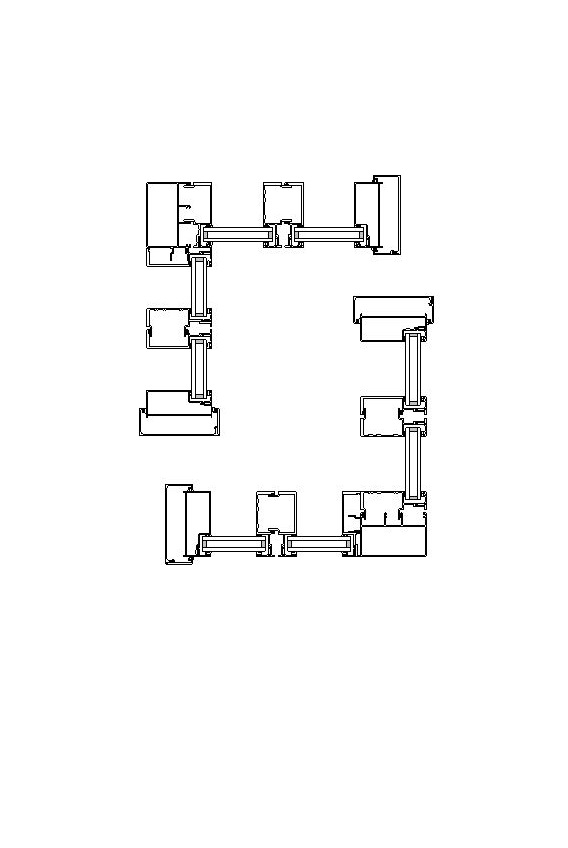

FIRST Commercial 125mm Flushglaze System, Strip Windows Corners (2D)
FIRST Commercial 150mm Flushglaze System (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, External Corner (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, External Corner With Hinged Door (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, Fixed System With Awning (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, French Door (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, Hinged Door (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, Internal Corner (Curtain Wall)
FIRST Commercial 150mm Flushglaze System, Internal Corner With French Door (Curtain Wall)
