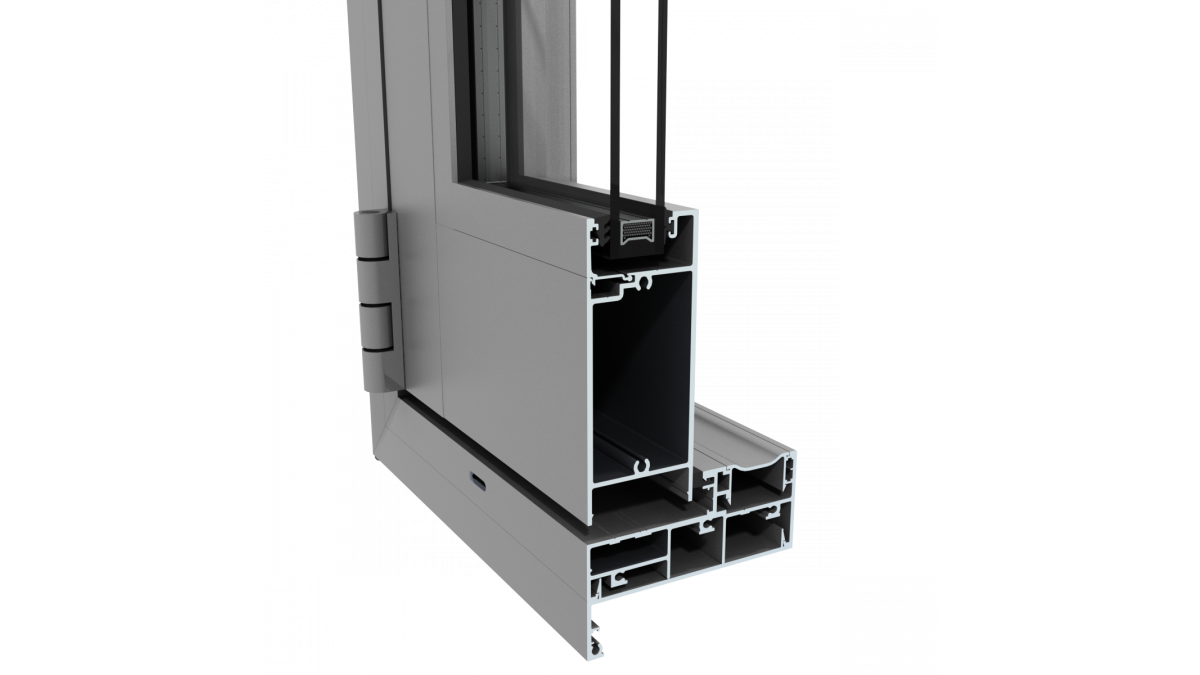

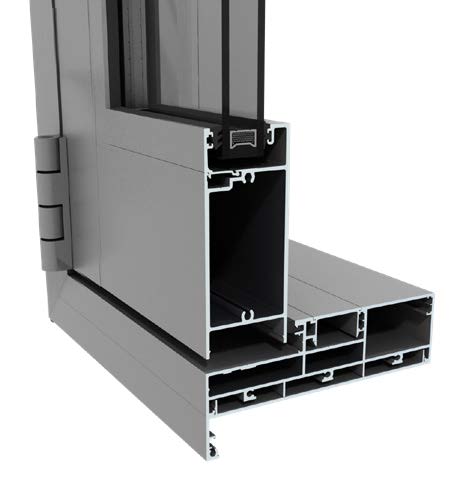

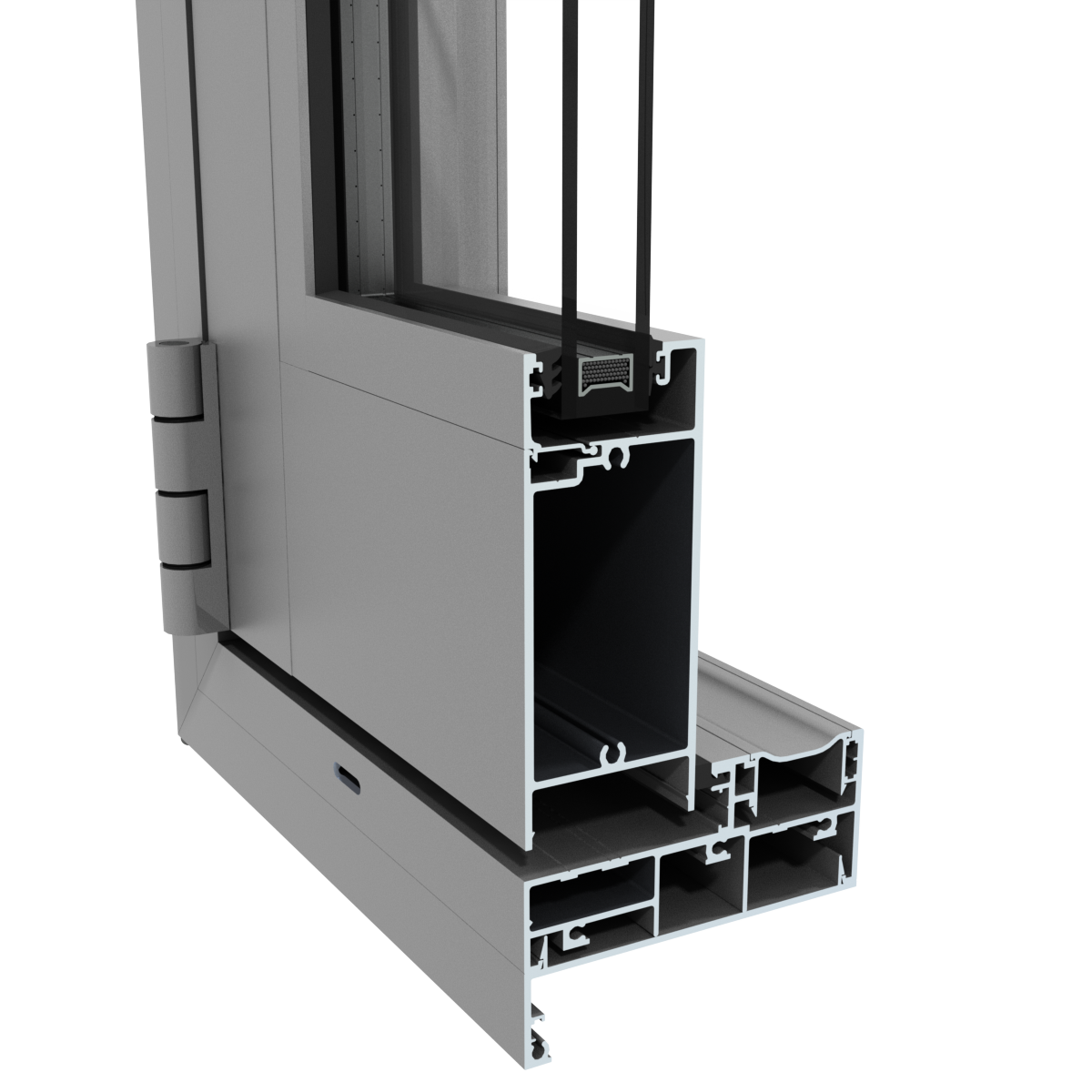

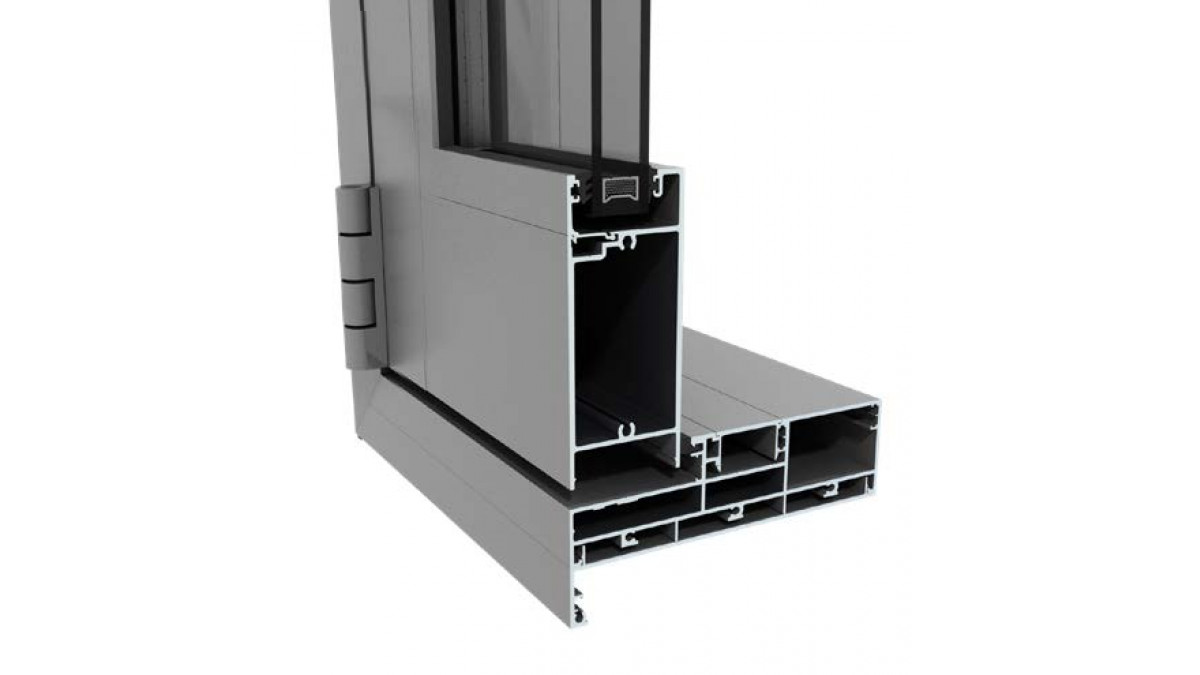

Hinged door frame (158mm) – open-out

Hinged door frame (106mm) – open-out

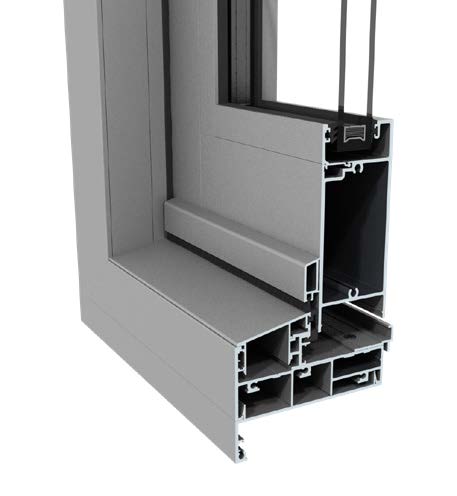

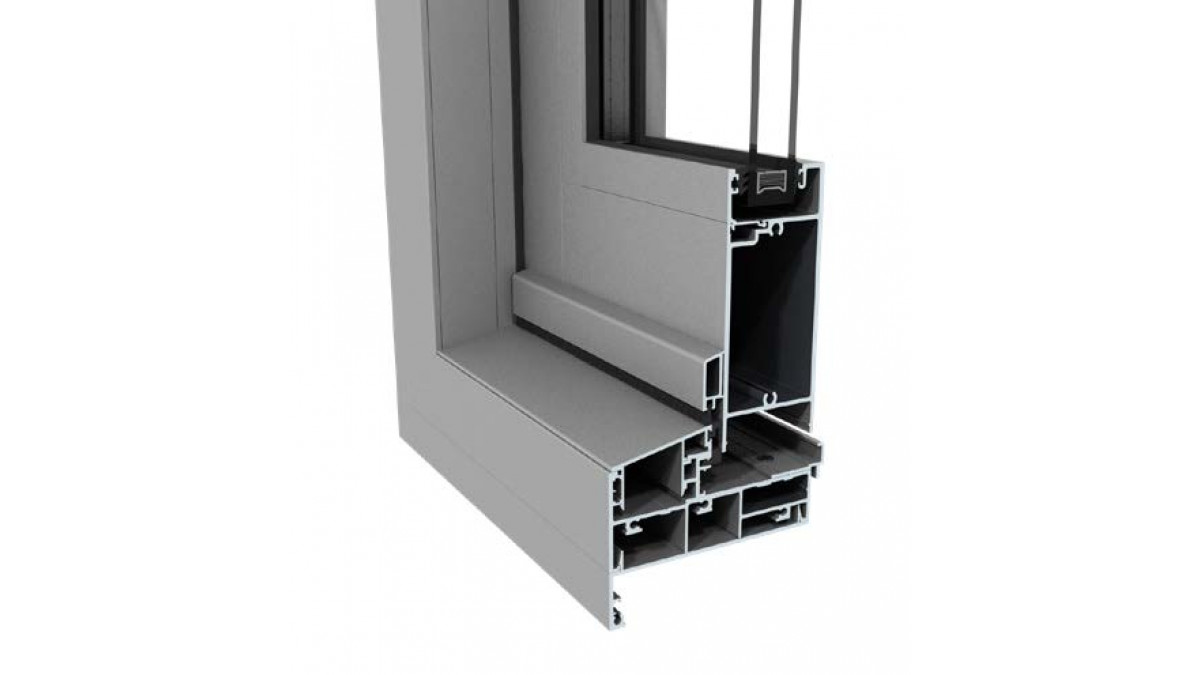

Open-in door with weather bar on door rail

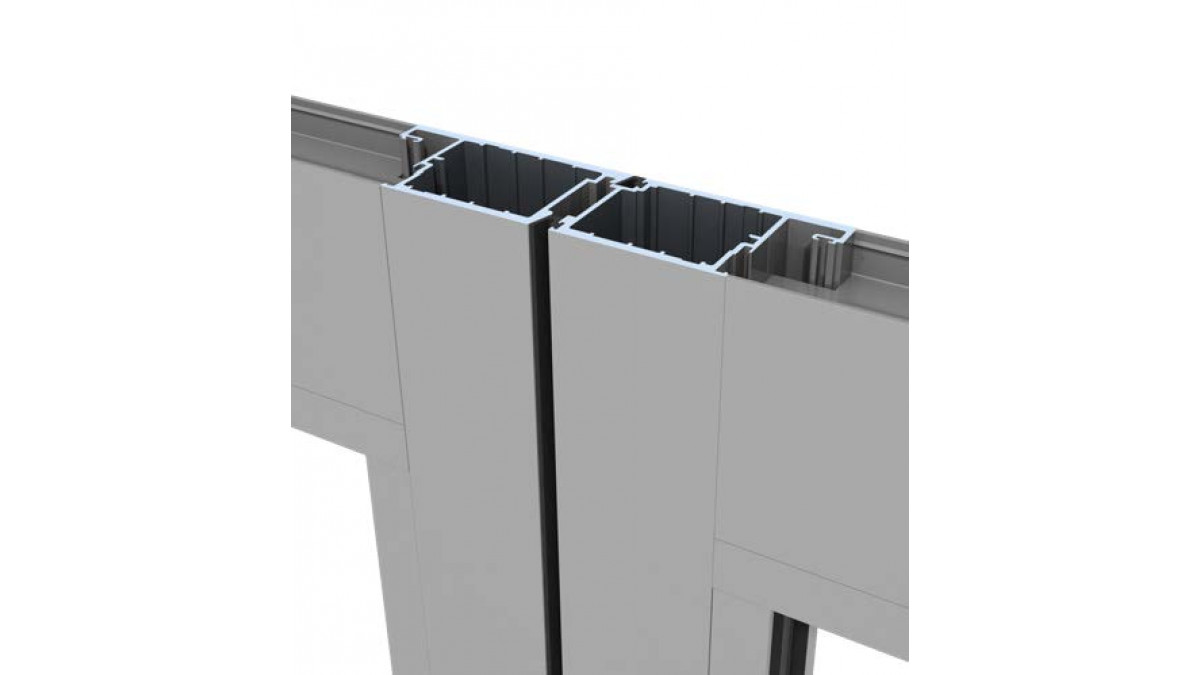

French door meeting stiles

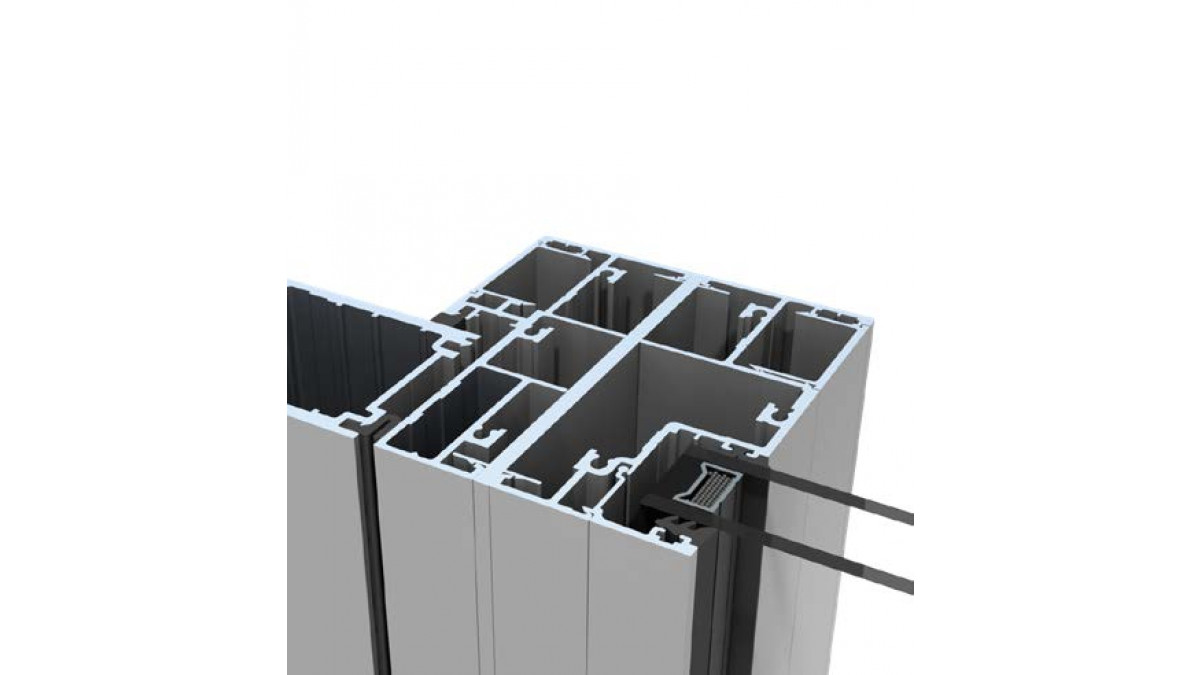

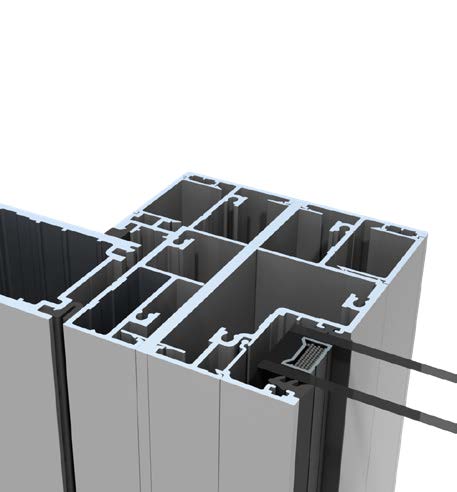

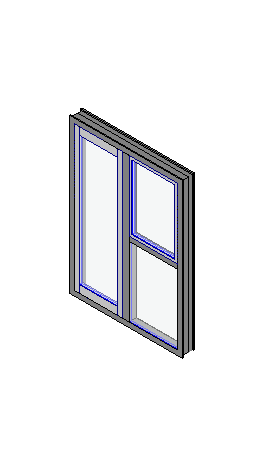

Hinged door, coupling bar and sidelight on right

Product Enquiries

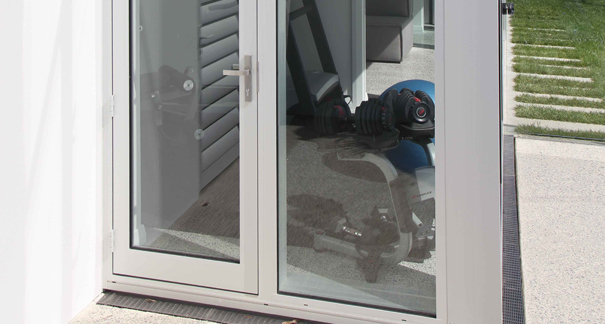

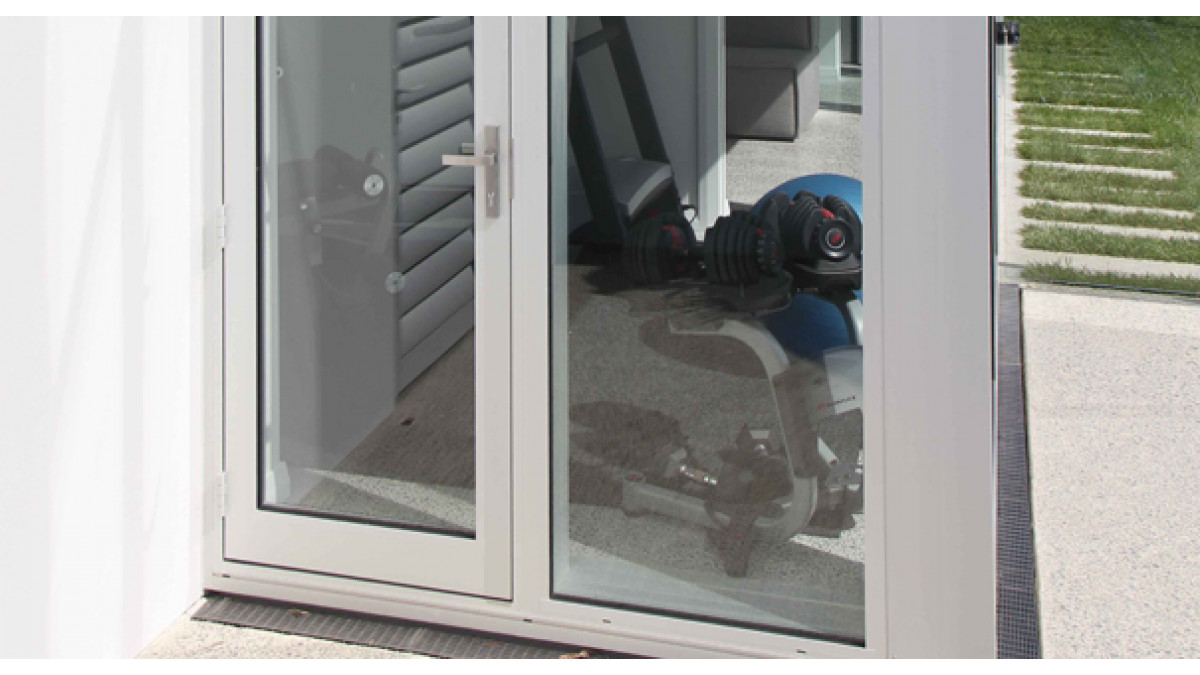

Description

Hinged door panels are 50mm deep and are bead glazed externally on all sides.

Hinged doors are open-out and open-in. The open-out door is available in the two frame options while the open-in door is available in one frame only. French doors have rebated meeting stiles for a flush look.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features

Recommended maximum 2700mm high doors in Extra High wind zones
Flush meeting stiles for French doors
Open-out and open-in frames available
Frame facing adaptors available
Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
Overlights and sidelights are possible

Ranges

APL Architectural Series

Scope of Use

Suitable for most residential environments in larger sizes
Need to be used in defined maximum sizes according to the wind exposure
Single panels ideal as utility doors
Overlights and sidelights are possible

Limitations on Use

Open-in frame available but open-out applications will generally be preferred for utility and French doors
Recommended maximum 2700mm high doors in Extra High wind zones

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2004
Design upgrades regularly released
Widely used by homeowners, builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2025

pdf

Calculate R-Value and Ug-Value

pdf

FIRST on Masterspec

URL

Full Specification

docx

Specification Clause

docx

Specifier Guide

pdf

WGANZ Guide to E2/AS1

1 August 2019

pdf

AGP Care & Maintenance

pdf

First Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

AGP State of the Art Glass Brochure

URL

First Brochure

2014

URL

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2024

URL

Manufacturer Contact List

URL

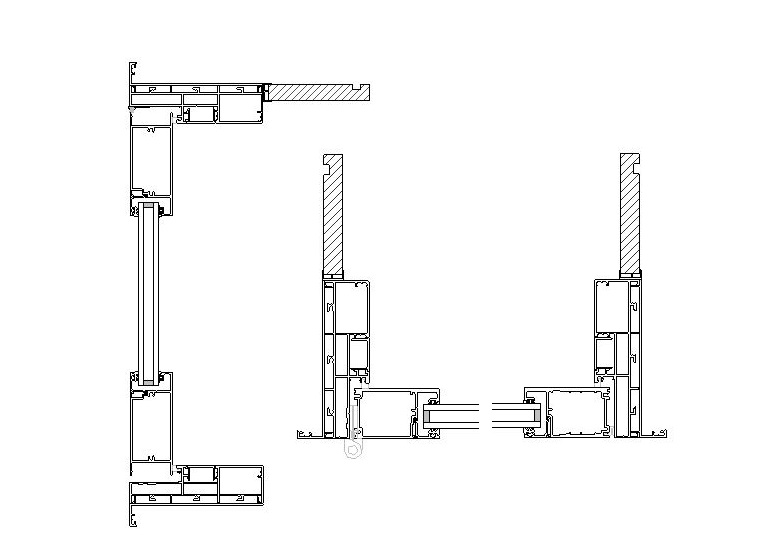

CAD/PDF Details

View full

Altherm APL Architectural Series Hinged Doors Drawings pdf v2

Full Set of Drawings

pdf

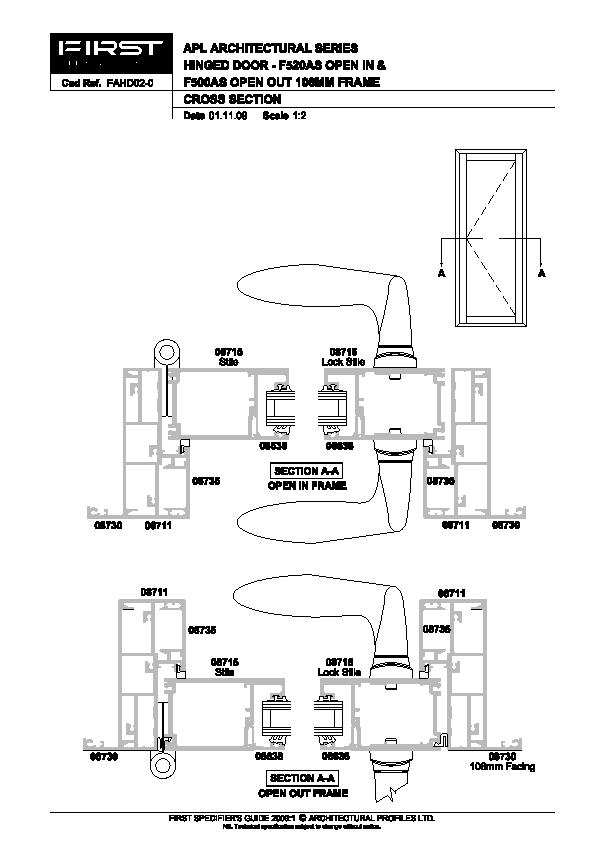

FIRST APL Architectural Series Hinged Door - F520AS Open In & F500AS Open Out 106mm Frame

FAHD02-0

dwf

dwg

dxf

pdf

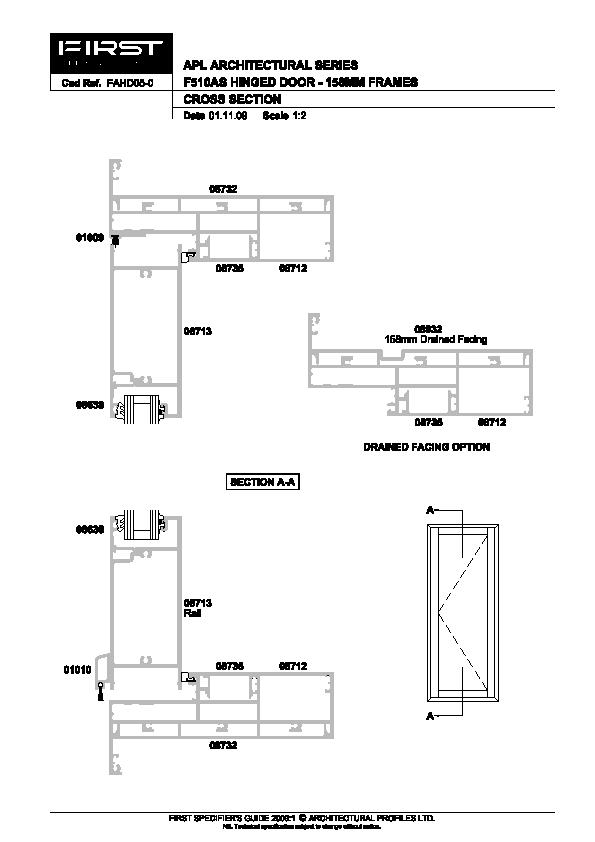

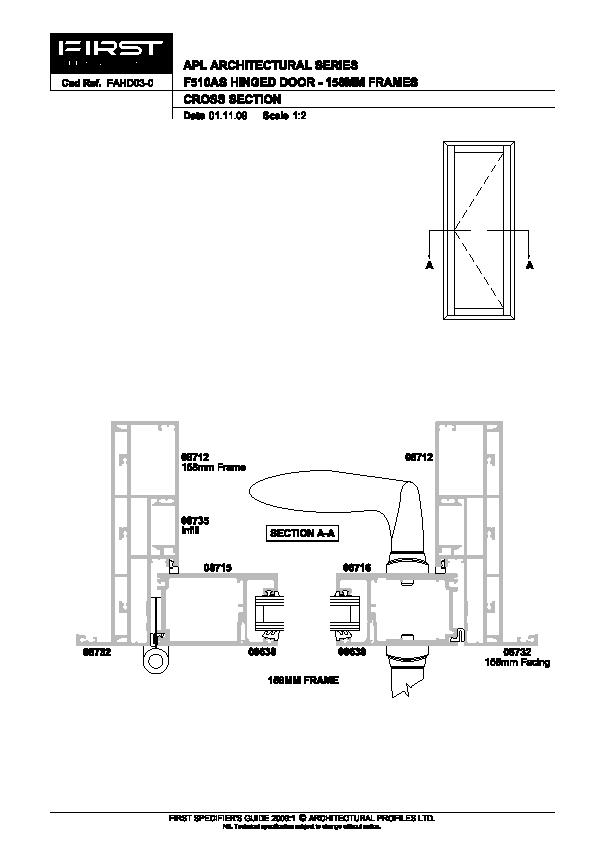

FIRST APL Architectural Series F510AS Hinged Door - 158mm Frames

FAHD03-0

dwf

dwg

dxf

pdf

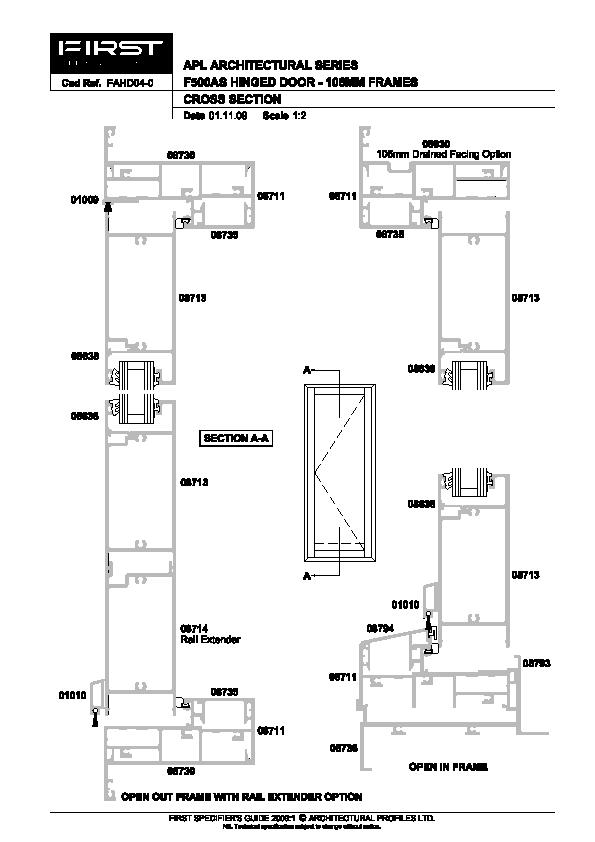

FIRST APL Architectural Series F500AS Hinged Door - 106mm Frames

FAHD04-0

dwf

dwg

dxf

pdf

FIRST APL Architectural Series F510AS Hinged Door - 158mm Frames

FAHD05-0

dwf

dwg

dxf

pdf

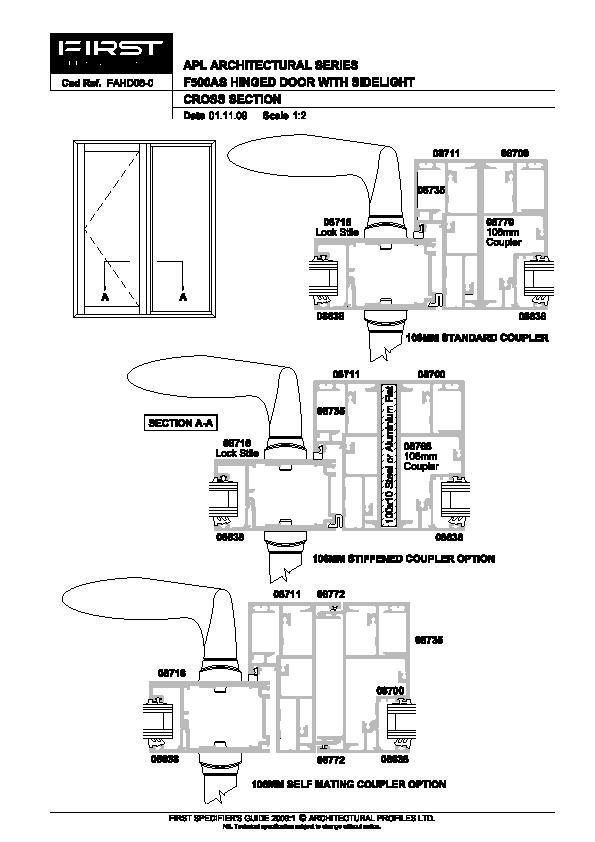

FIRST APL Architectural Series F500AS Hinged Door with Sidelight

FAHD06-0

dwf

dwg

dxf

pdf

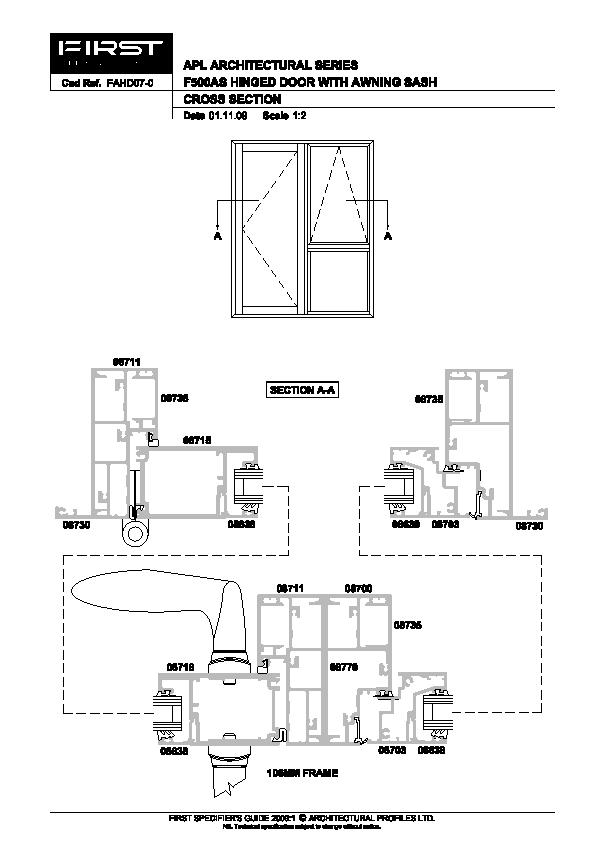

FIRST APL Architectural Series F500AS Hinged Door with Awning Sash

FAHD07-0

dwf

dwg

dxf

pdf

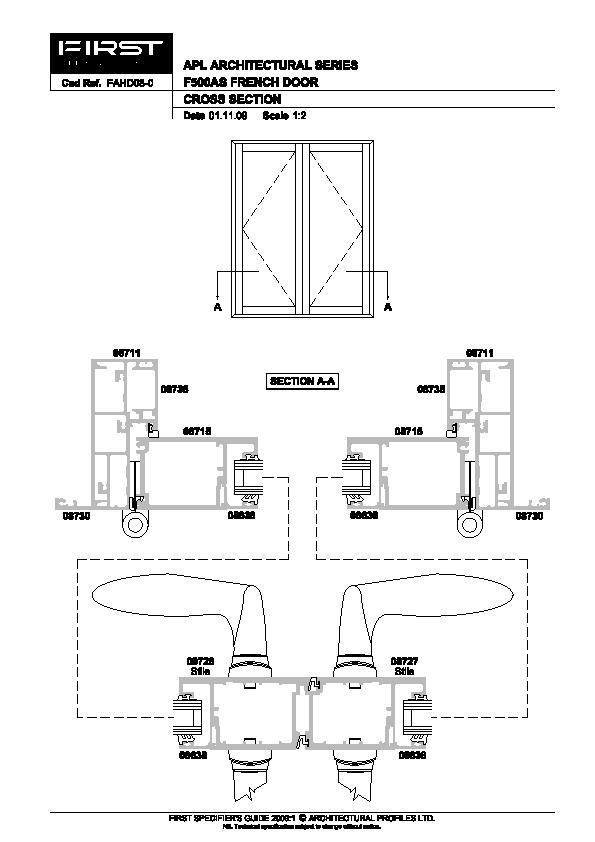

FIRST APL Architectural Series F500AS Hinged Door with Awning Sash

FAHD08-0

dwf

dwg

dxf

pdf

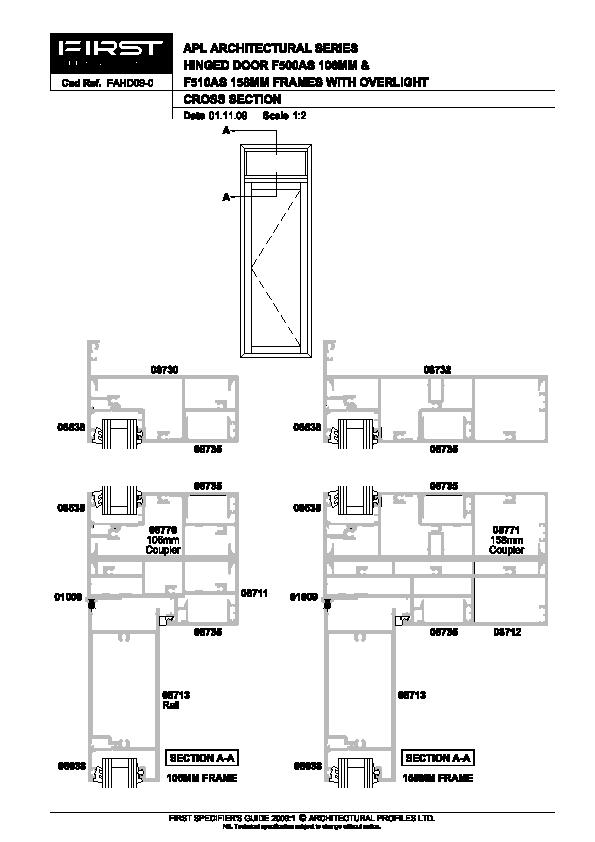

FIRST APL Architectural Series Hinged Door F500AS 106mm & F510AS 158mm Frames with Overlight

FAHD09-0

dwf

dwg

dxf

pdf

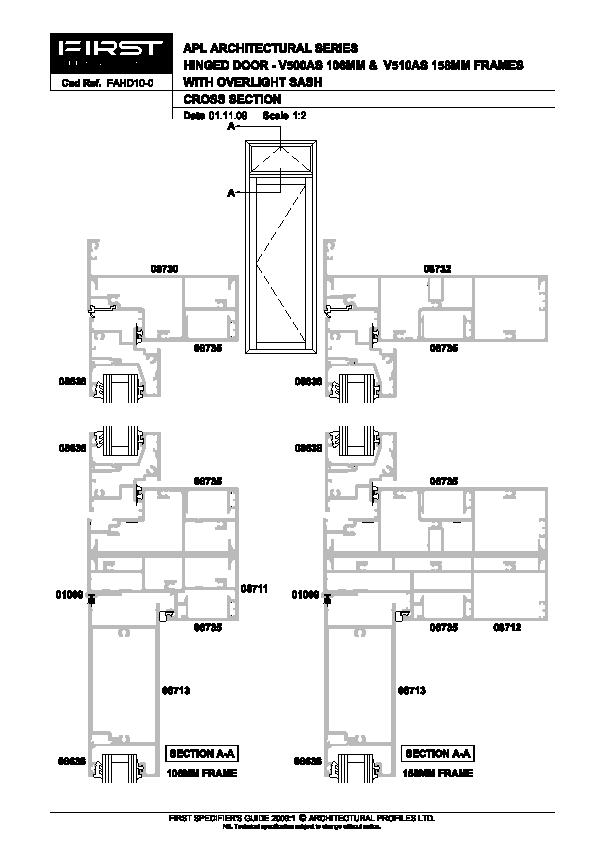

FIRST APL Architectural Series Hinged Door V500AS 106mm & V510AS 158mm Frames with Overlight Sash

FAHD10-0

dwf

dwg

dxf

pdf

Installation Details

View full

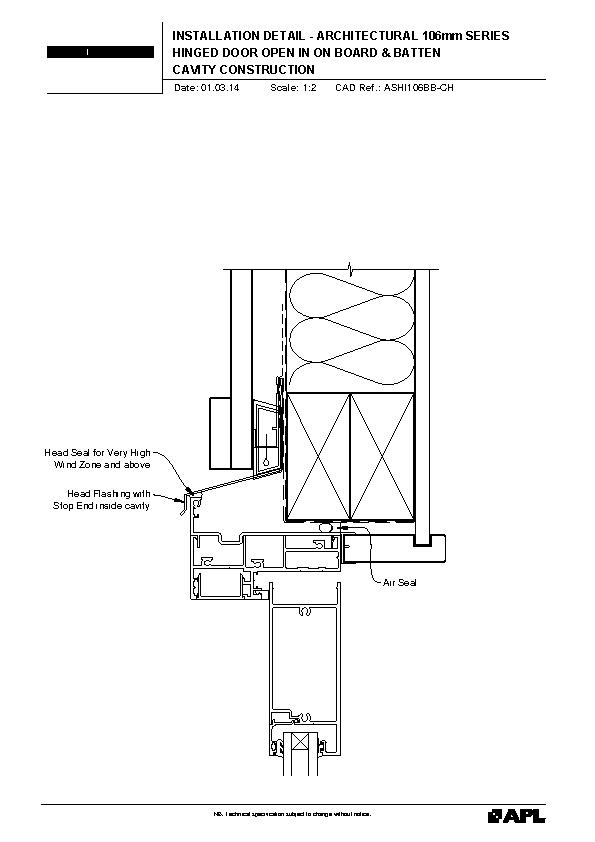

FIRST APL Architectural Series 106mm Hinged Door Open In on Board and Batten

ASHI106BB

dwg

pdf

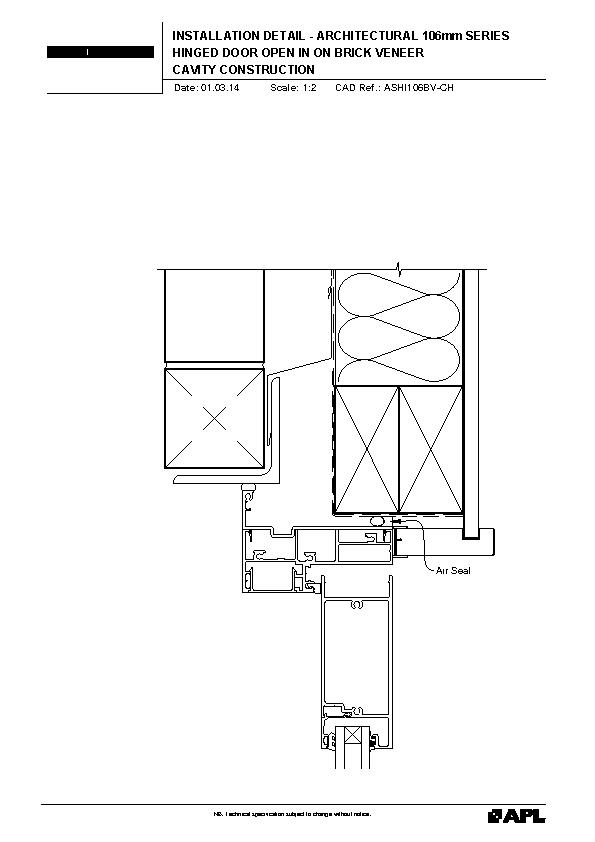

FIRST APL Architectural Series 106mm Hinged Door Open In on Brick Veneer

ASHI106BV

dwg

pdf

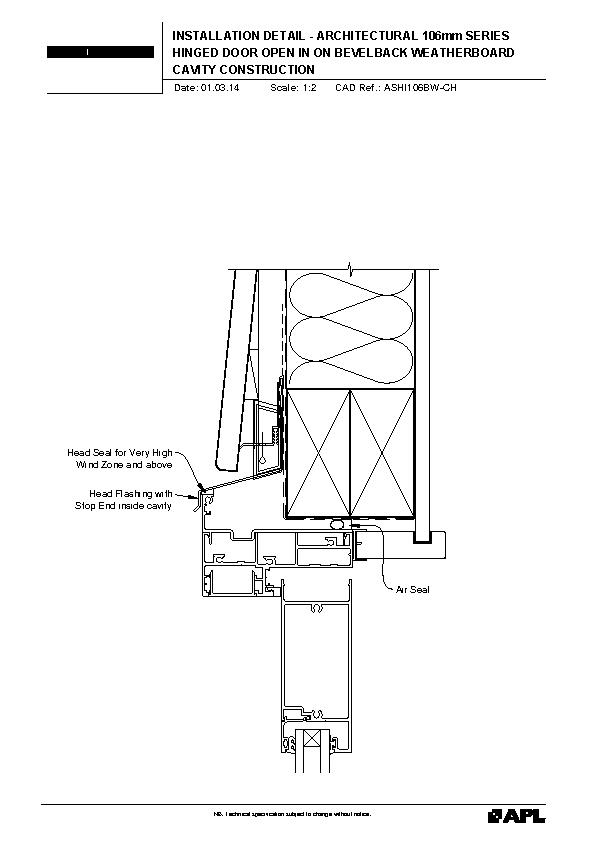

FIRST APL Architectural Series 106mm Hinged Door Open In on Bevelback Weatherboard

ASHI106BW

dwg

pdf

FIRST APL Architectural Series 106mm Hinged Door Open In on Flat Sheet

ASHI106FS

dwg

pdf

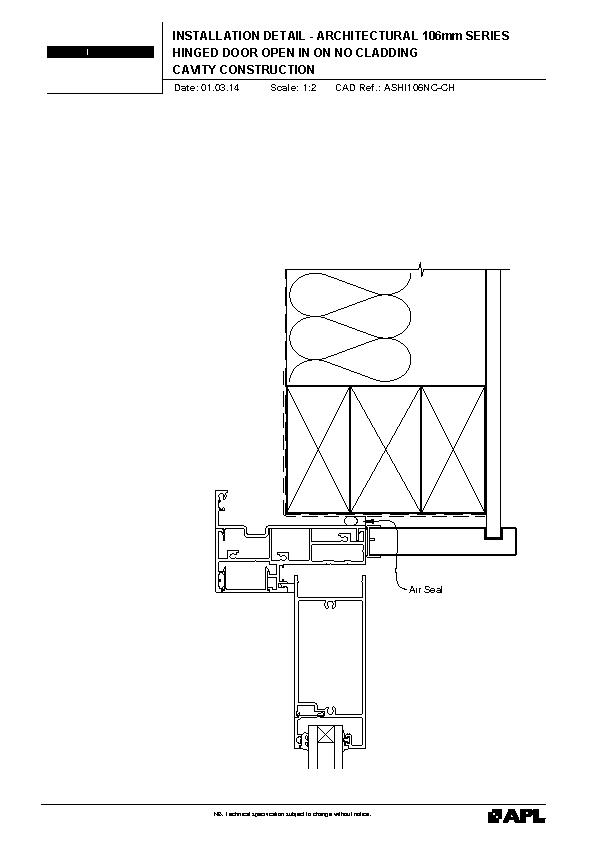

FIRST APL Architectural Series 106mm Hinged Door Open In on No Cladding

ASHI106NC

dwg

pdf

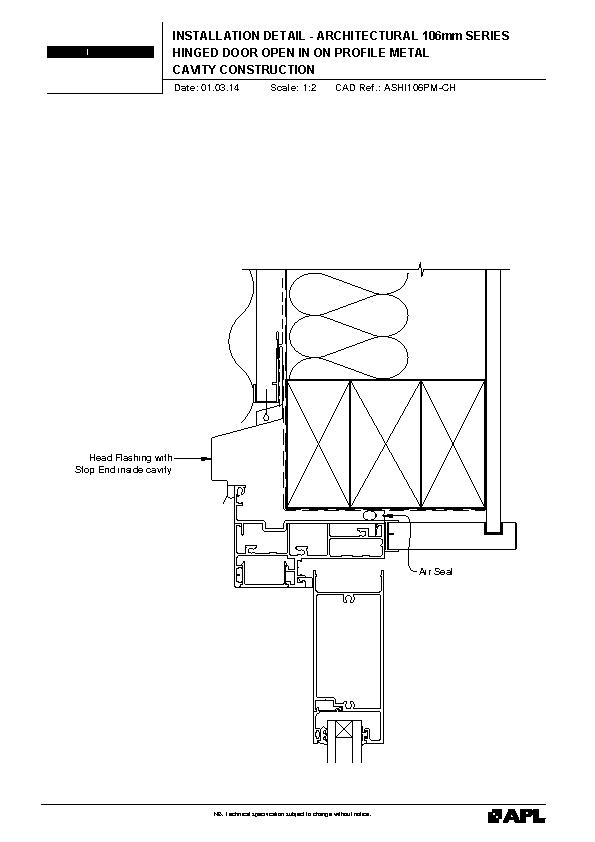

FIRST APL Architectural Series 106mm Hinged Door Open In on Profile Metal

ASHI106PM

dwg

pdf

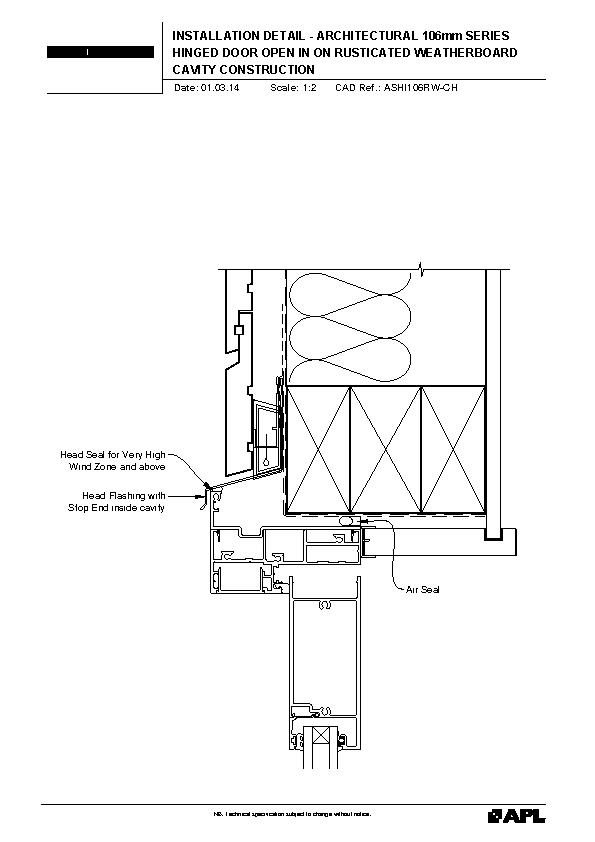

FIRST APL Architectural Series 106mm Hinged Door Open In on Rusticated Weatherboard

ASHI106RW

dwg

pdf

FIRST APL Architectural Series 106mm Hinged Door Open In on Stucco

ASHI106ST

dwg

pdf

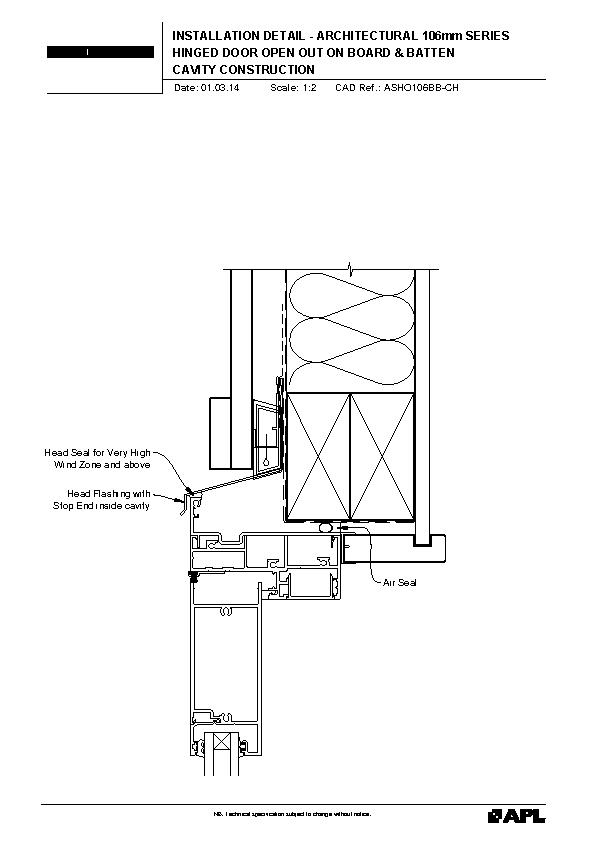

FIRST APL Architectural Series 106mm Hinged Door Open Out on Board and Batten

ASHO106BB

dwg

pdf

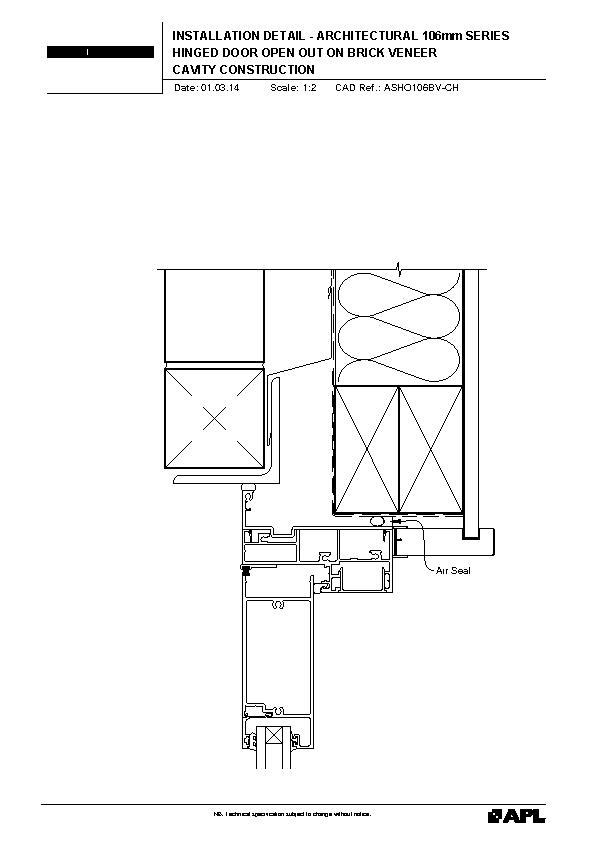

FIRST APL Architectural Series 106mm Hinged Door Open Out on Brick Veneer

ASHO106BV

dwg

pdf

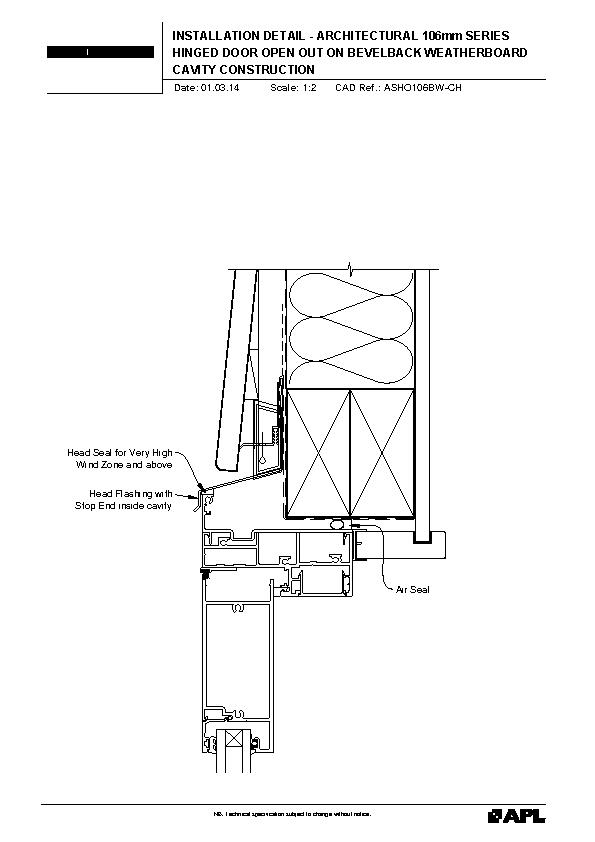

FIRST APL Architectural Series 106mm Hinged Door Open Out on Bevelback Weatherboard

ASHO106BW

dwg

pdf

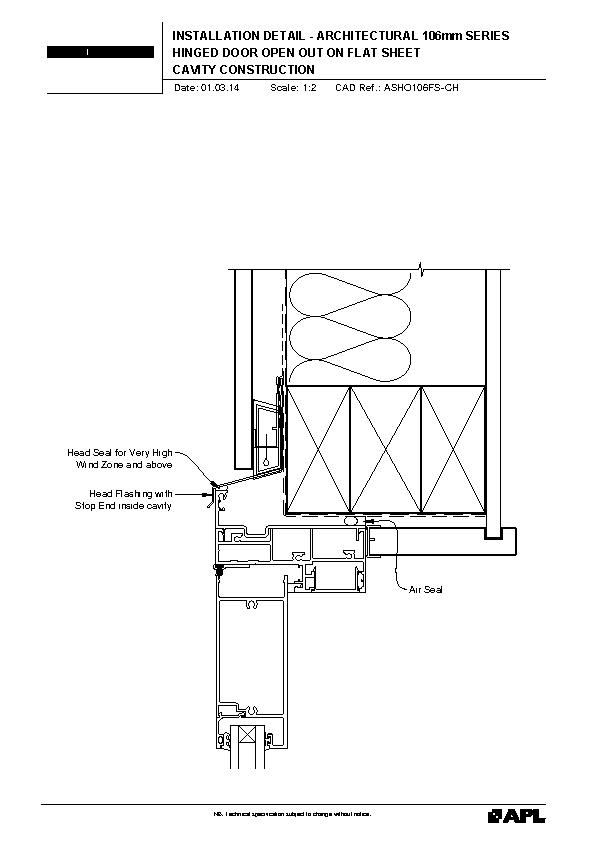

FIRST APL Architectural Series 106mm Hinged Door Open Out on Flat Sheet

ASHO106FS

dwg

pdf

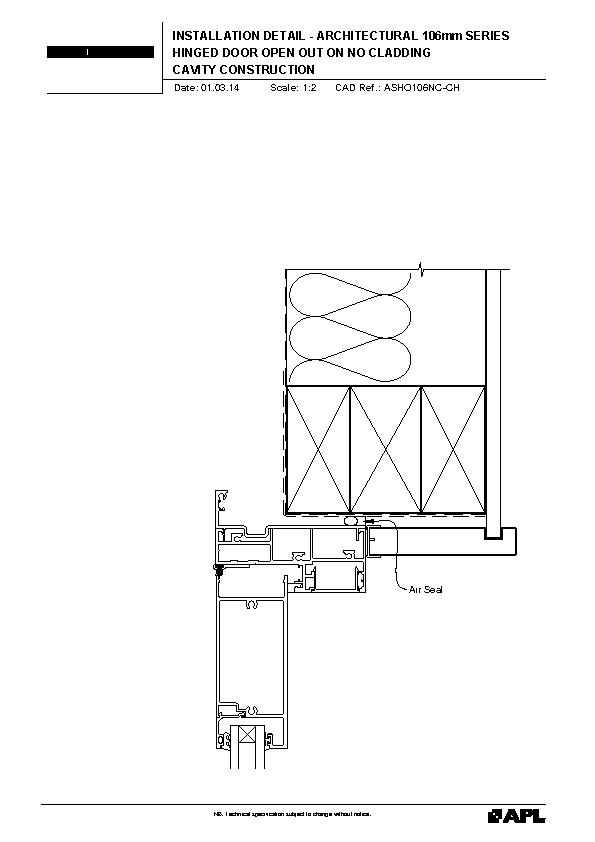

FIRST APL Architectural Series 106mm Hinged Door Open Out on No Cladding

ASHO106NC

dwg

pdf

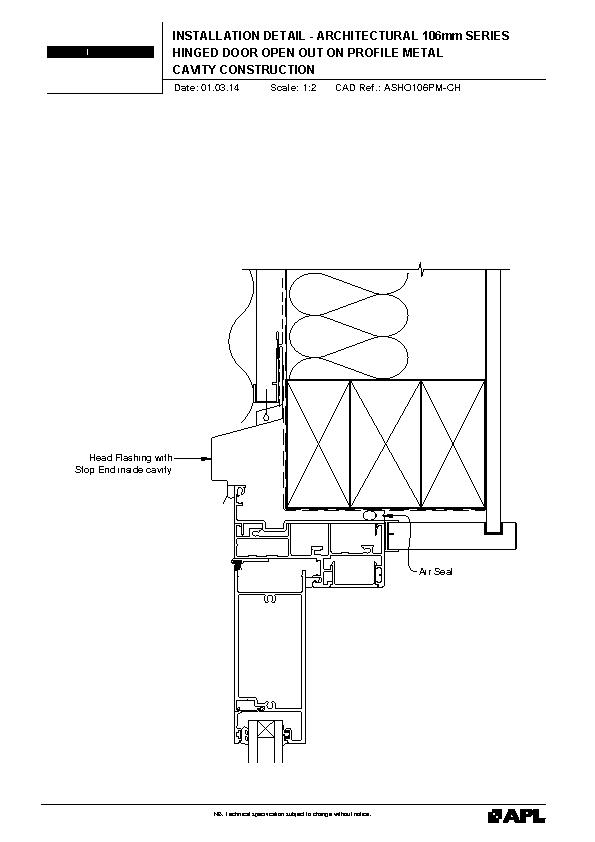

FIRST APL Architectural Series 106mm Hinged Door Open Out on Profile Metal

ASHO106PM

dwg

pdf

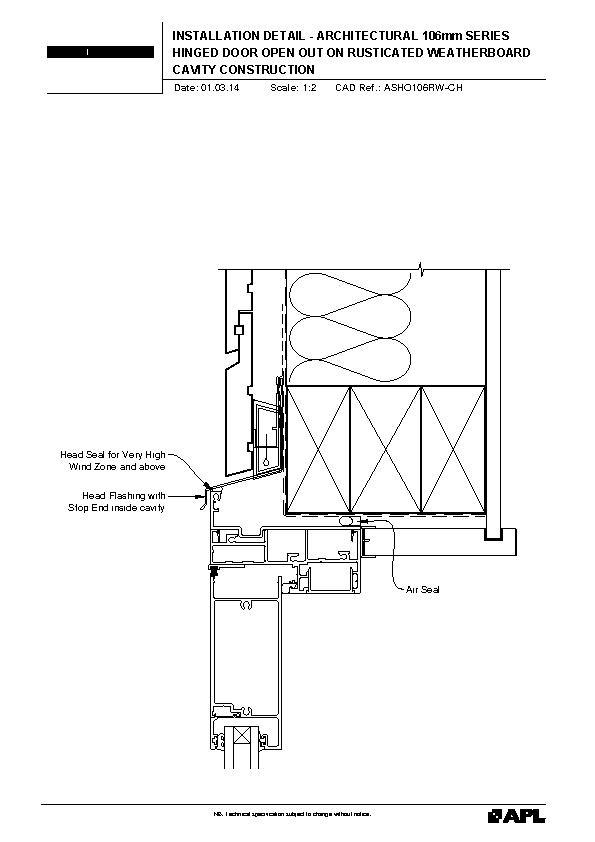

FIRST APL Architectural Series 106mm Hinged Door Open Out on Rusticated Weatherboard

ASHO106RW

dwg

pdf

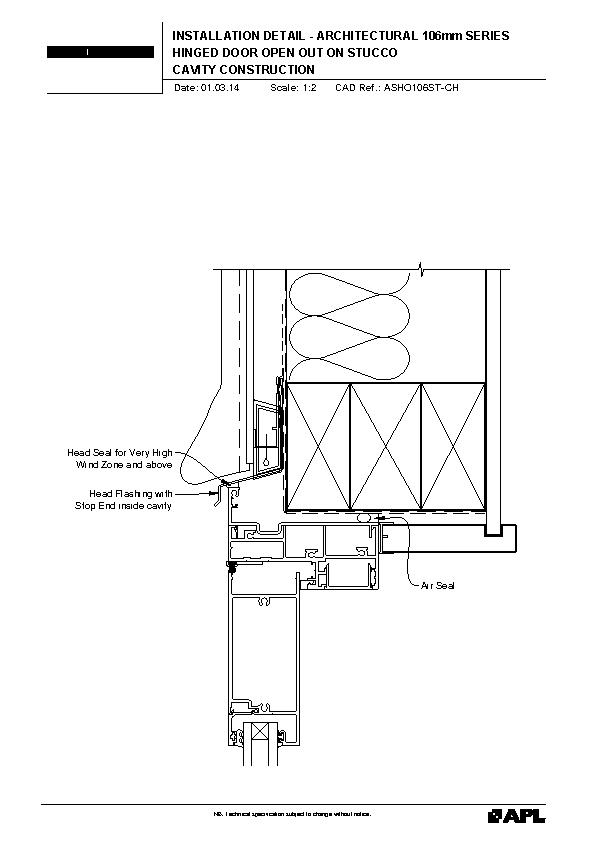

FIRST APL Architectural Series 106mm Hinged Door Open Out on Stucco

ASHO106ST

dwg

pdf

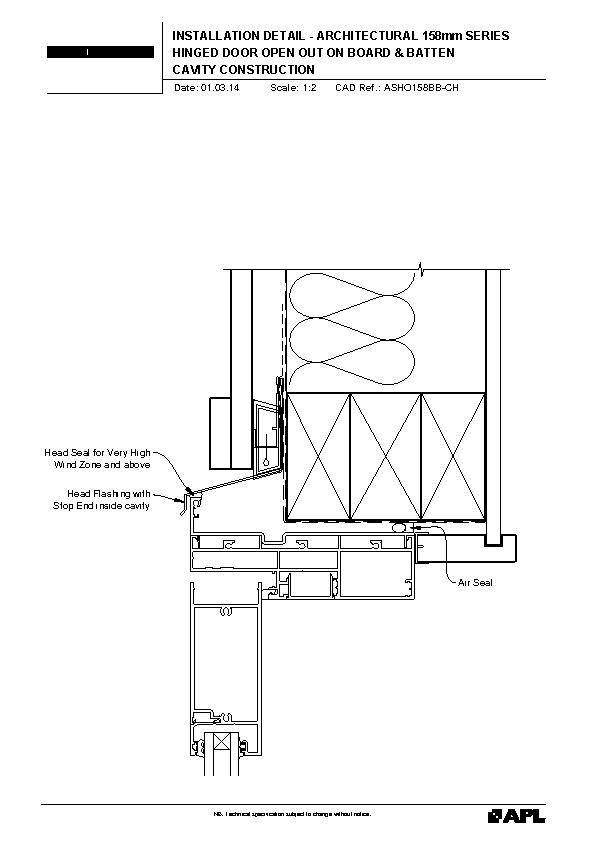

FIRST APL Architectural Series 158mm Hinged Door Open Out on Board and Batten

ASHO158BB

dwg

pdf

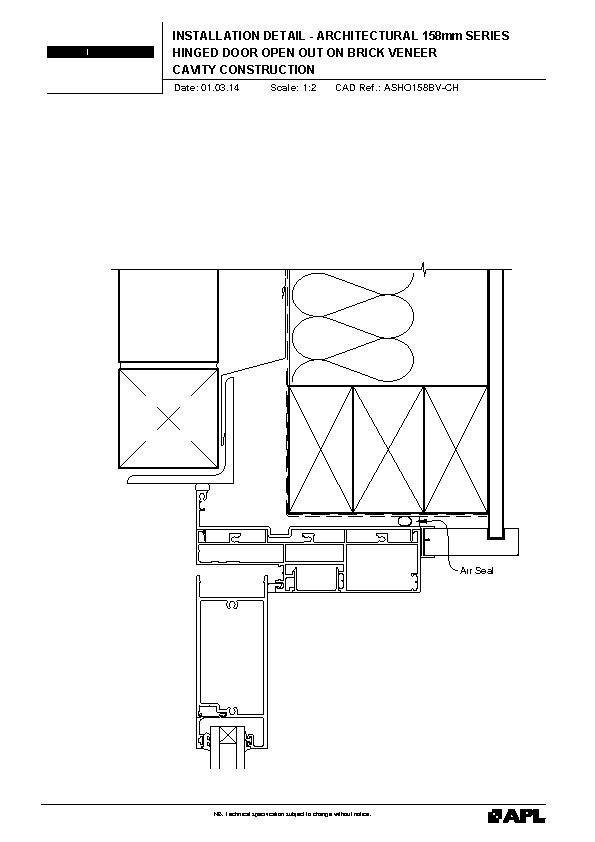

FIRST APL Architectural Series 158mm Hinged Door Open Out on Brick Veneer

ASHO158BV

dwg

pdf

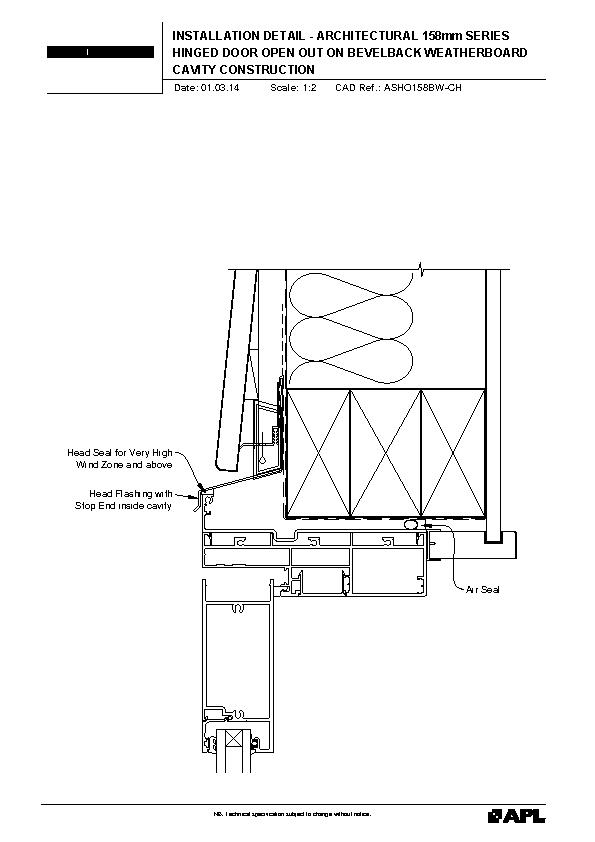

FIRST APL Architectural Series 158mm Hinged Door Open Out on Bevelback Weatherboard

ASHO158BW

dwg

pdf

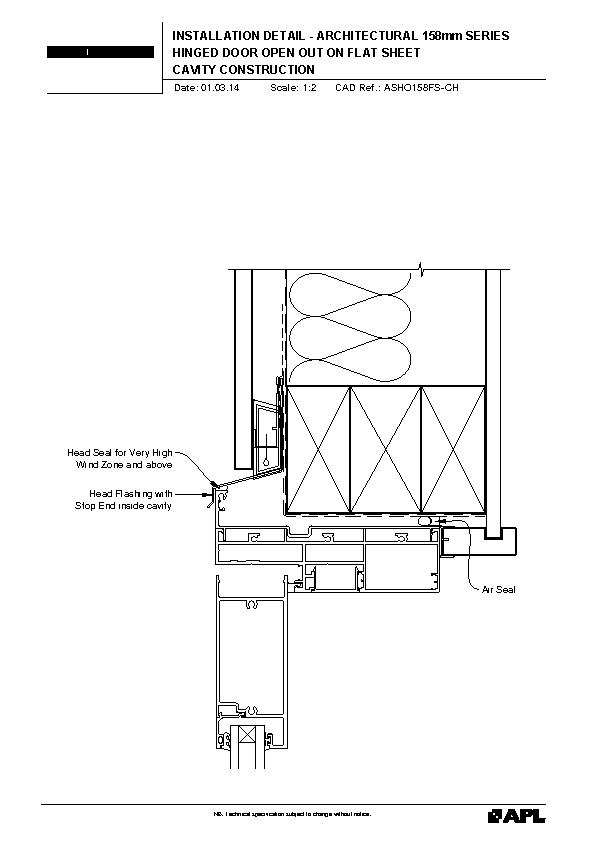

FIRST APL Architectural Series 158mm Hinged Door Open Out on Flat Sheet

ASHO158FS

dwg

pdf

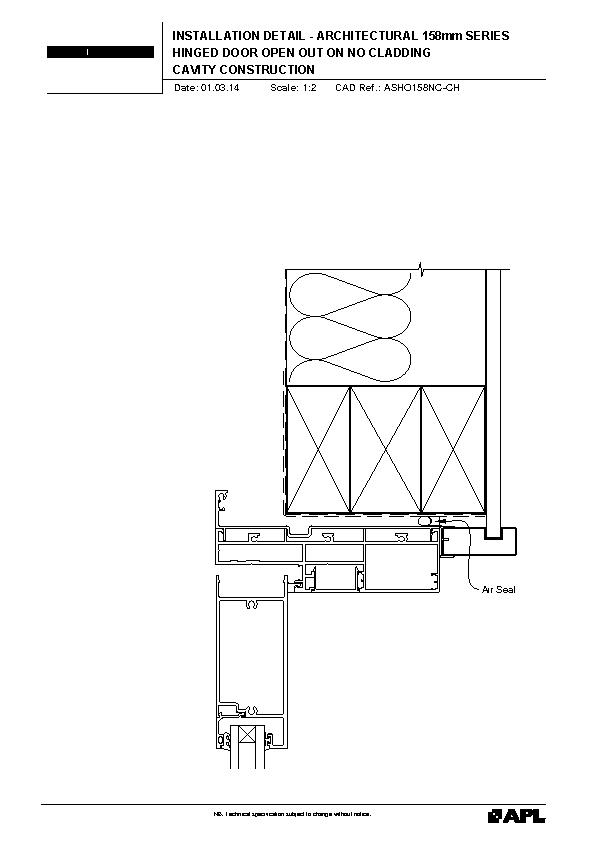

FIRST APL Architectural Series 158mm Hinged Door Open Out on No Cladding

ASHO158NC

dwg

pdf

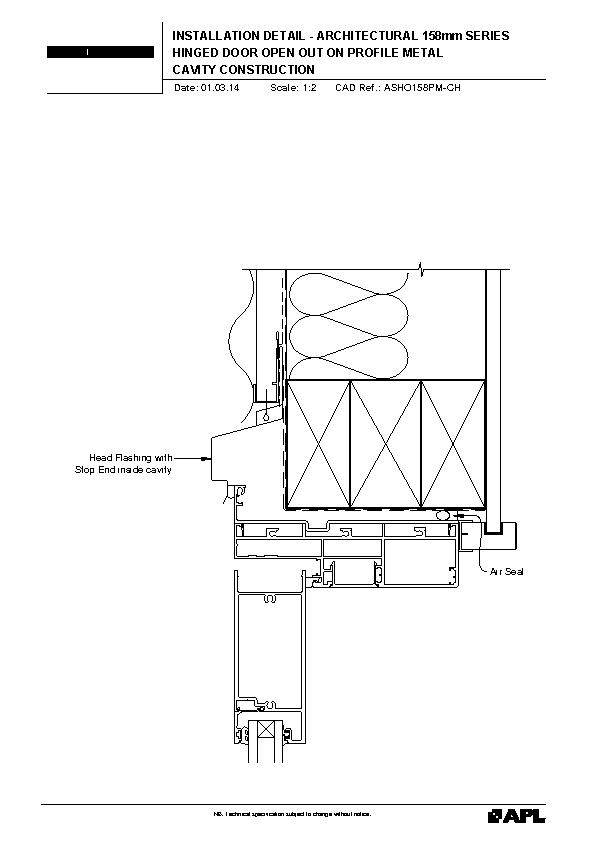

FIRST APL Architectural Series 158mm Hinged Door Open Out on Profile Metal

ASHO158PM

dwg

pdf

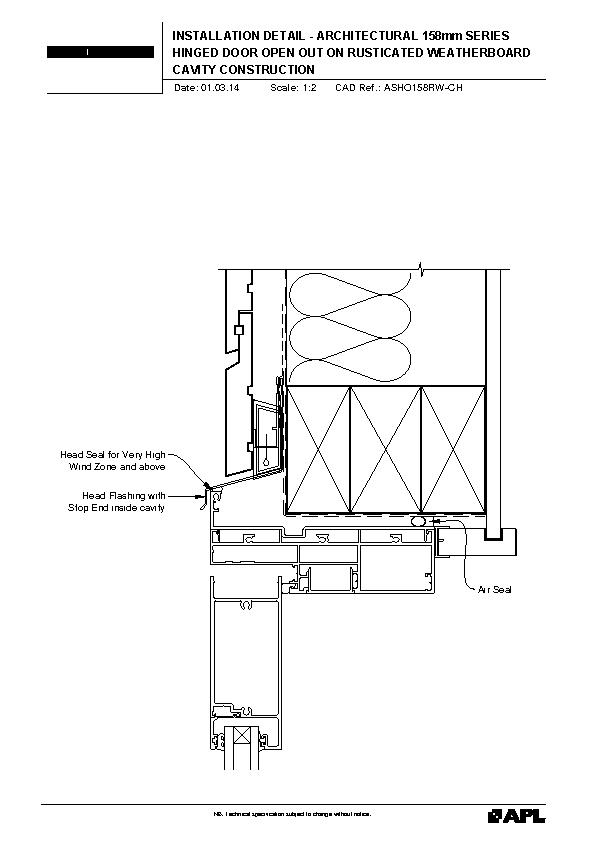

FIRST APL Architectural Series 158mm Hinged Door Open Out on Rusticated Weatherboard

ASHO158RW

dwg

pdf

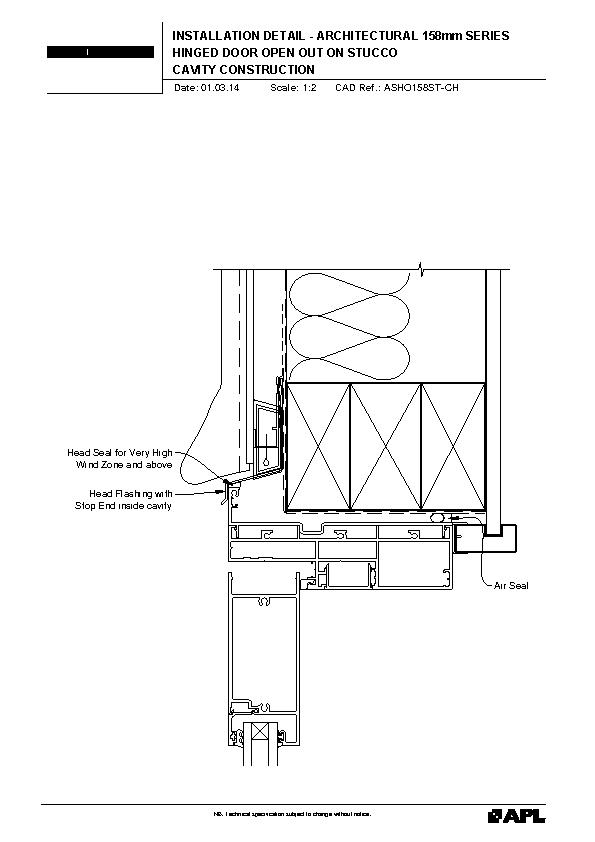

FIRST APL Architectural Series 158mm Hinged Door Open Out on Stucco

ASHO158ST

dwg

pdf

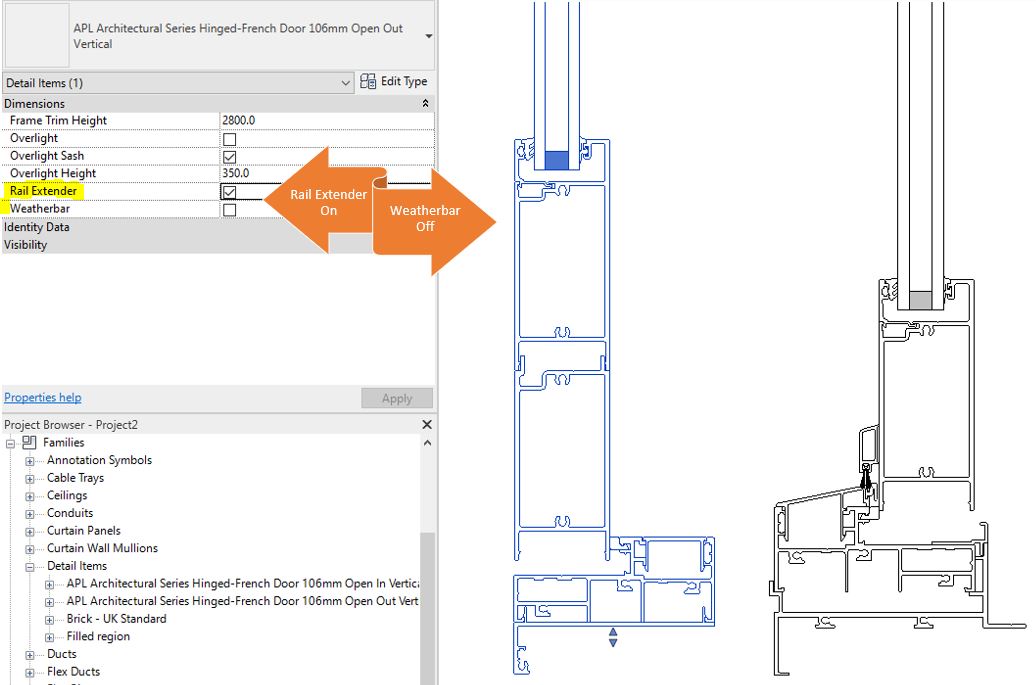

BIM

View full

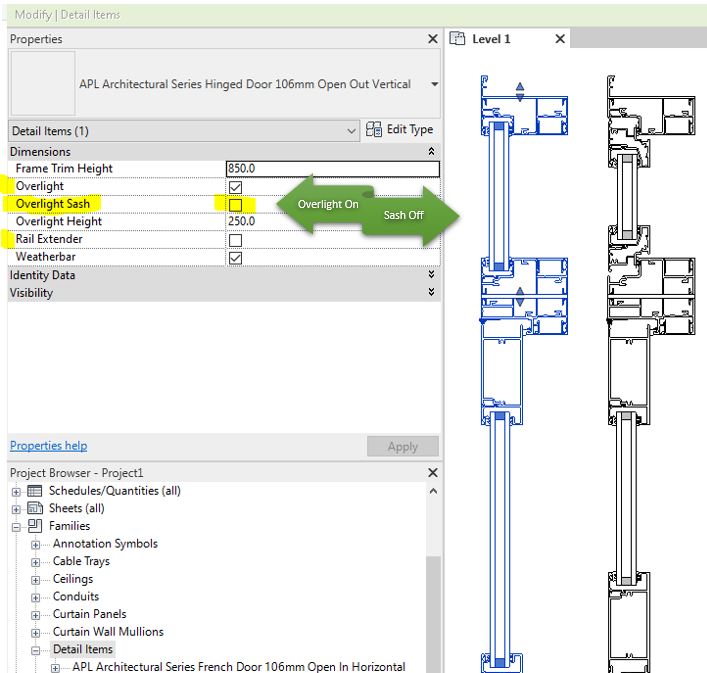

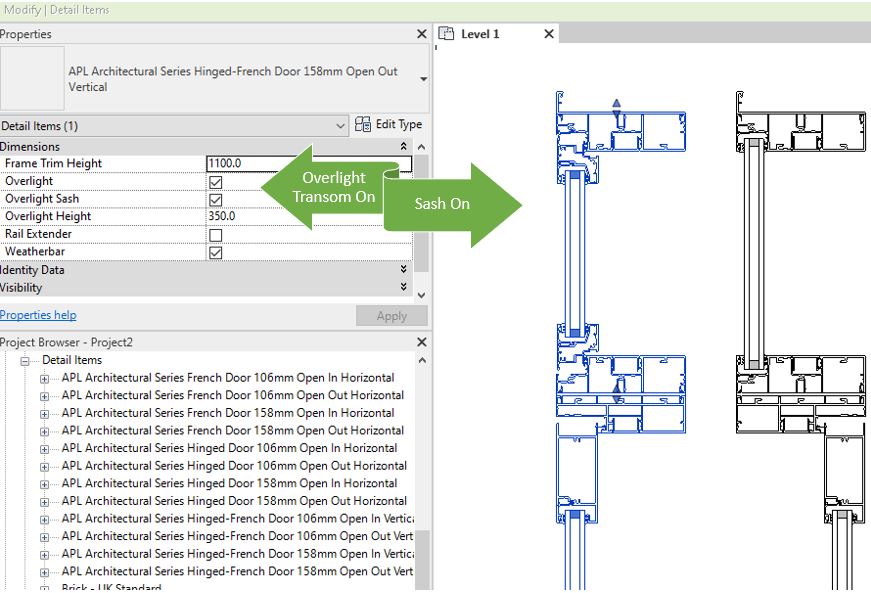

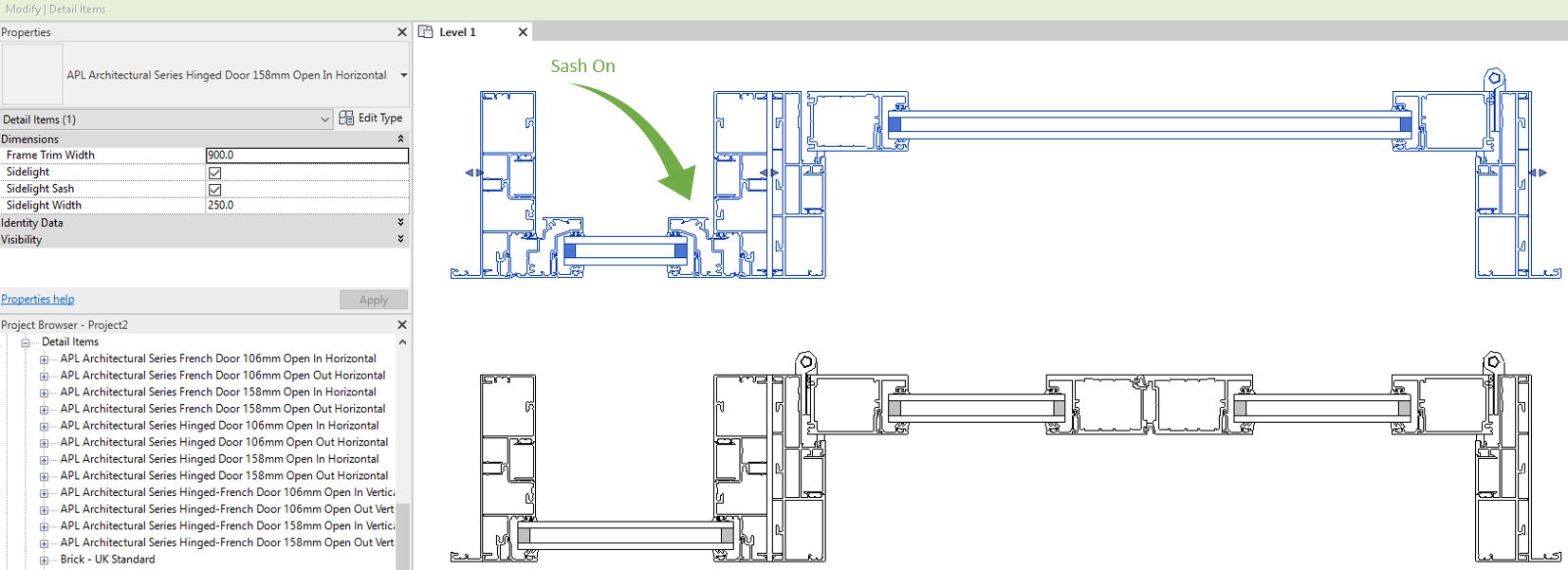

Architectural Series 106mm French Door Sectional Details

Revit LT 2020

zip

Architectural Series 106mm Hinge Door Sectional Details

Revit LT 2020

zip

Architectural Series 158mm French Door Sectional Details

Revit LT 2020

zip

Architectural Series 158mm Hinged Door Sectional Details

Revit LT 2020

zip

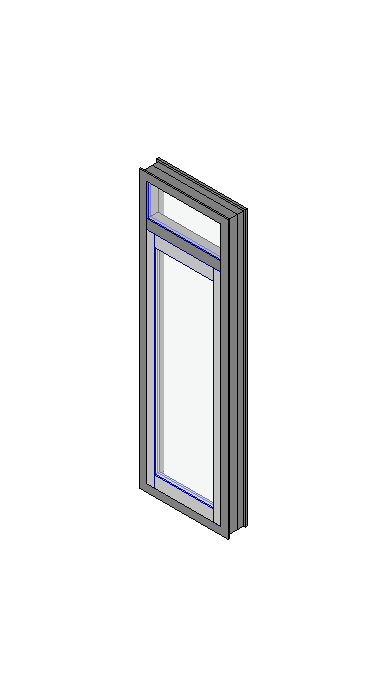

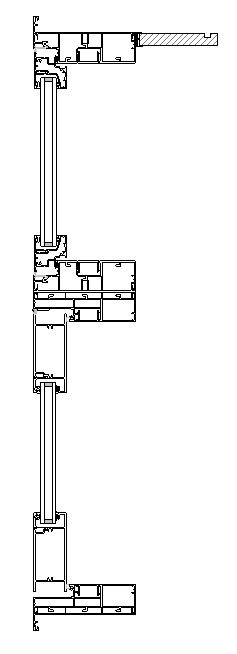

FIRST APL 158mm Architectural Series Hinged Door, Open Out with Overlight (2D only)

zip

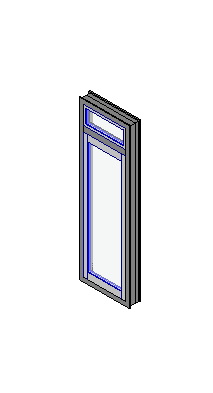

FIRST APL 158mm Architectural Series Hinged Door, Open Out with Overlight Sash (2D only)

zip

First Windows & Doors deliver a wide variety of high-performing solutions for residential and commercial projects. Available as a complete window system with AGP glass.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Prolam Glulam Helps Shape an Award-Winning Architect’s Low-Carbon Home

Designing Timeless Yet Contemporary Townhouse Facades with Alpine Brick

Achieving a Low Maintenance Woodgrain Facade for a Remote Outdoor Education Campus

SECTIONS

Surface Water Sumps: Their Location, Sizing and Function

Passive Over-Heating of Homes

One Thing You Can Do to Improve Your Business

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

FIRST APL Architectural Series Hinged Door - F520AS Open In & F500AS Open Out 106mm Frame

FIRST APL Architectural Series F510AS Hinged Door - 158mm Frames

FIRST APL Architectural Series F500AS Hinged Door - 106mm Frames

FIRST APL Architectural Series F510AS Hinged Door - 158mm Frames

FIRST APL Architectural Series F500AS Hinged Door with Sidelight

FIRST APL Architectural Series F500AS Hinged Door with Awning Sash

FIRST APL Architectural Series F500AS Hinged Door with Awning Sash

FIRST APL Architectural Series Hinged Door F500AS 106mm & F510AS 158mm Frames with Overlight

FIRST APL Architectural Series Hinged Door V500AS 106mm & V510AS 158mm Frames with Overlight Sash

FIRST APL Architectural Series 106mm Hinged Door Open In on Board and Batten

FIRST APL Architectural Series 106mm Hinged Door Open In on Brick Veneer

FIRST APL Architectural Series 106mm Hinged Door Open In on Bevelback Weatherboard

FIRST APL Architectural Series 106mm Hinged Door Open In on Flat Sheet

FIRST APL Architectural Series 106mm Hinged Door Open In on No Cladding

FIRST APL Architectural Series 106mm Hinged Door Open In on Profile Metal

FIRST APL Architectural Series 106mm Hinged Door Open In on Rusticated Weatherboard

FIRST APL Architectural Series 106mm Hinged Door Open In on Stucco

FIRST APL Architectural Series 106mm Hinged Door Open Out on Board and Batten

FIRST APL Architectural Series 106mm Hinged Door Open Out on Brick Veneer

FIRST APL Architectural Series 106mm Hinged Door Open Out on Bevelback Weatherboard

FIRST APL Architectural Series 106mm Hinged Door Open Out on Flat Sheet

FIRST APL Architectural Series 106mm Hinged Door Open Out on No Cladding

FIRST APL Architectural Series 106mm Hinged Door Open Out on Profile Metal

FIRST APL Architectural Series 106mm Hinged Door Open Out on Rusticated Weatherboard

FIRST APL Architectural Series 106mm Hinged Door Open Out on Stucco

FIRST APL Architectural Series 158mm Hinged Door Open Out on Board and Batten

FIRST APL Architectural Series 158mm Hinged Door Open Out on Brick Veneer

FIRST APL Architectural Series 158mm Hinged Door Open Out on Bevelback Weatherboard

FIRST APL Architectural Series 158mm Hinged Door Open Out on Flat Sheet

FIRST APL Architectural Series 158mm Hinged Door Open Out on No Cladding

FIRST APL Architectural Series 158mm Hinged Door Open Out on Profile Metal

FIRST APL Architectural Series 158mm Hinged Door Open Out on Rusticated Weatherboard

FIRST APL Architectural Series 158mm Hinged Door Open Out on Stucco

Architectural Series 106mm French Door Sectional Details

Architectural Series 106mm Hinge Door Sectional Details

Architectural Series 158mm French Door Sectional Details

Architectural Series 158mm Hinged Door Sectional Details

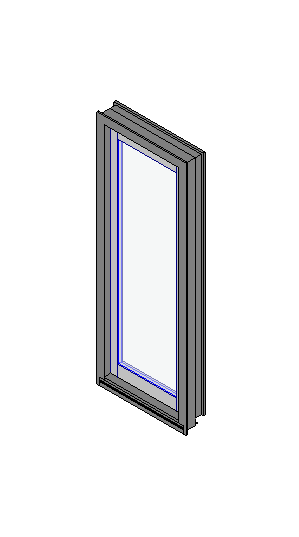

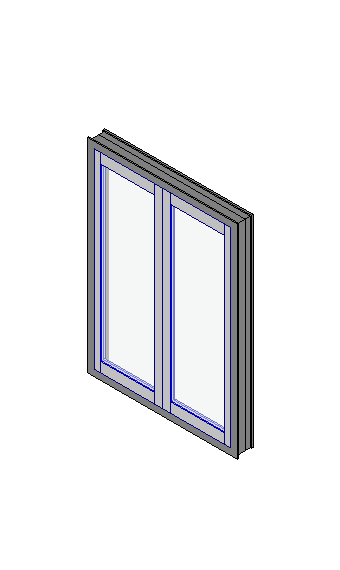

FIRST APL 106mm Architectural Series French Door, Open Out

FIRST APL 106mm Architectural Series Hinged Door Open In

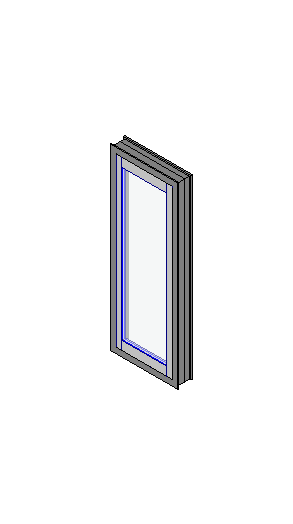

FIRST APL 106mm Architectural Series Hinged Door Open Out

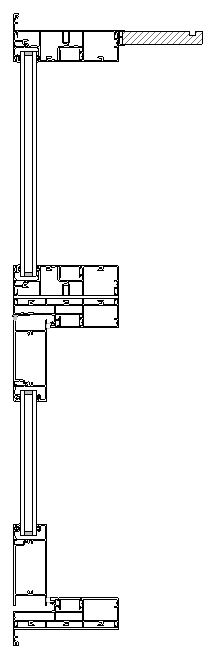

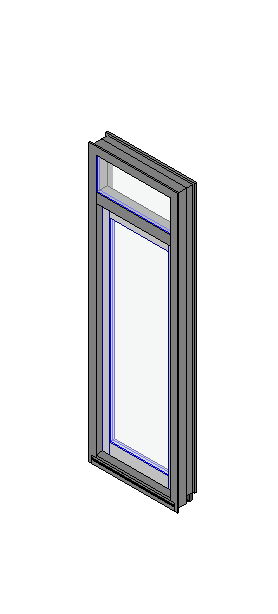

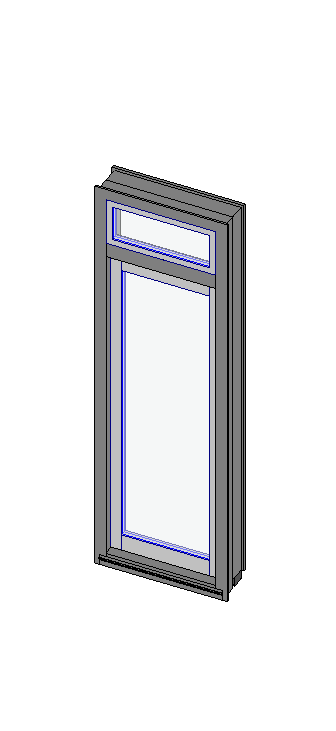

FIRST APL 106mm Architectural Series Hinged Door, Open In with Overlight

FIRST APL 106mm Architectural Series Hinged Door, Open In with Overlight Sash

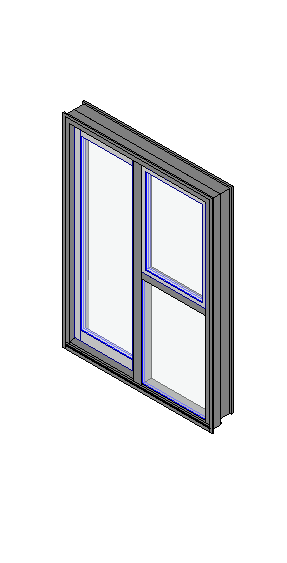

FIRST APL 106mm Architectural Series Hinged Door, Open In with Sidelight
