Axis Plus Entrance Door
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
Description

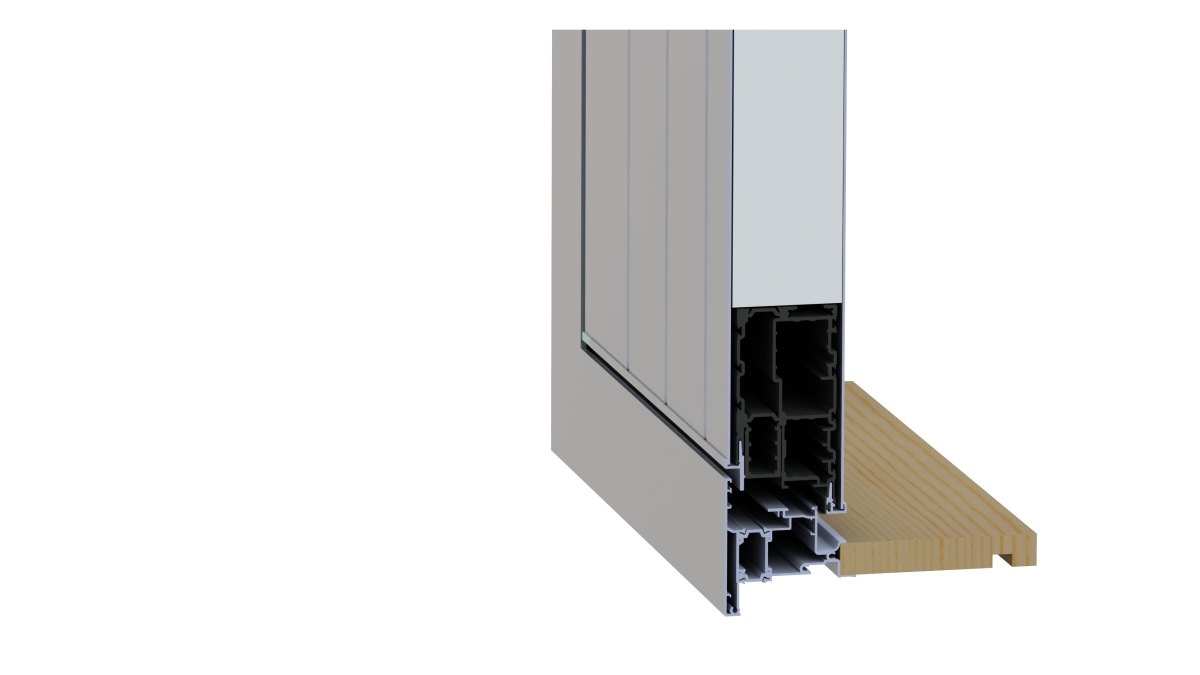

Crafted from durable aluminium, Axis Plus doors feature a full-height vertical tongue-and-groove panel design for a clean, modern aesthetic, with optional triple-glazed inserts for light and vision. With a solid, foam-filled core and 74mm overall thickness, Axis doors deliver excellent strength, thermal insulation, and stability. A flanged frame allows for dual sealing to enhance thermal performance.

Key Features
  • High thermal performance with 74mm overall thickness
  • Flanged frame allows for dual sealing increasing thermal performance
  • Vertical tongue and groove panel doors
  • Two-part (interior/exterior) construction allows a different colour each side to match interior and exterior colour schemes
  • Thermal insulation and high density foam fill included in the door construction enhance thermal efficiency
  • Glass inserts (50mm triple glazing only) design options available
  • Maximum door size supplied 2600mm high x 1460mm wide (50mm width increments)
  • Compatible with either hinges or pivot gear
  • Matching sidelight options – equal and unequal French doors
  • Flush sill options available
  • A range of door handle and lock options compatible with Eurogroove technology for a seamless fit are available
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
  • Dark colours not recommended for doors exposed to prolonged direct sunlight
  • Maximum door size supplied 2600mm high x 1460mm wide (50mm width increments)
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2024
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet

2025

Plus Entrance Door R Values

2025

FIRST on Masterspec
Specifier Guide

2025

WGANZ Guide to E2/AS1

1 August 2019

First Care, Maintenance & Warranty Brochure (with AGP)

2020

First Brochure

2014

First Entrance Door Brochure

2024

Axis configuration options
APL and Sustainability

2024

Manufacturer Contact List
CAD/PDF Details
Architectural ThermalHEART® Axis+ Entrance Door

FULL SET

Metro ThermalHEART® Axis+ Entrance Door

FULL SET

Metro ThermalHEART® with Centrafix Axis+ Entrance Door

FULL SET

Residential ThermalHEART® Axis+ Entrance Door

FULL SET
