Vibo Karlo Pull Down System
Description

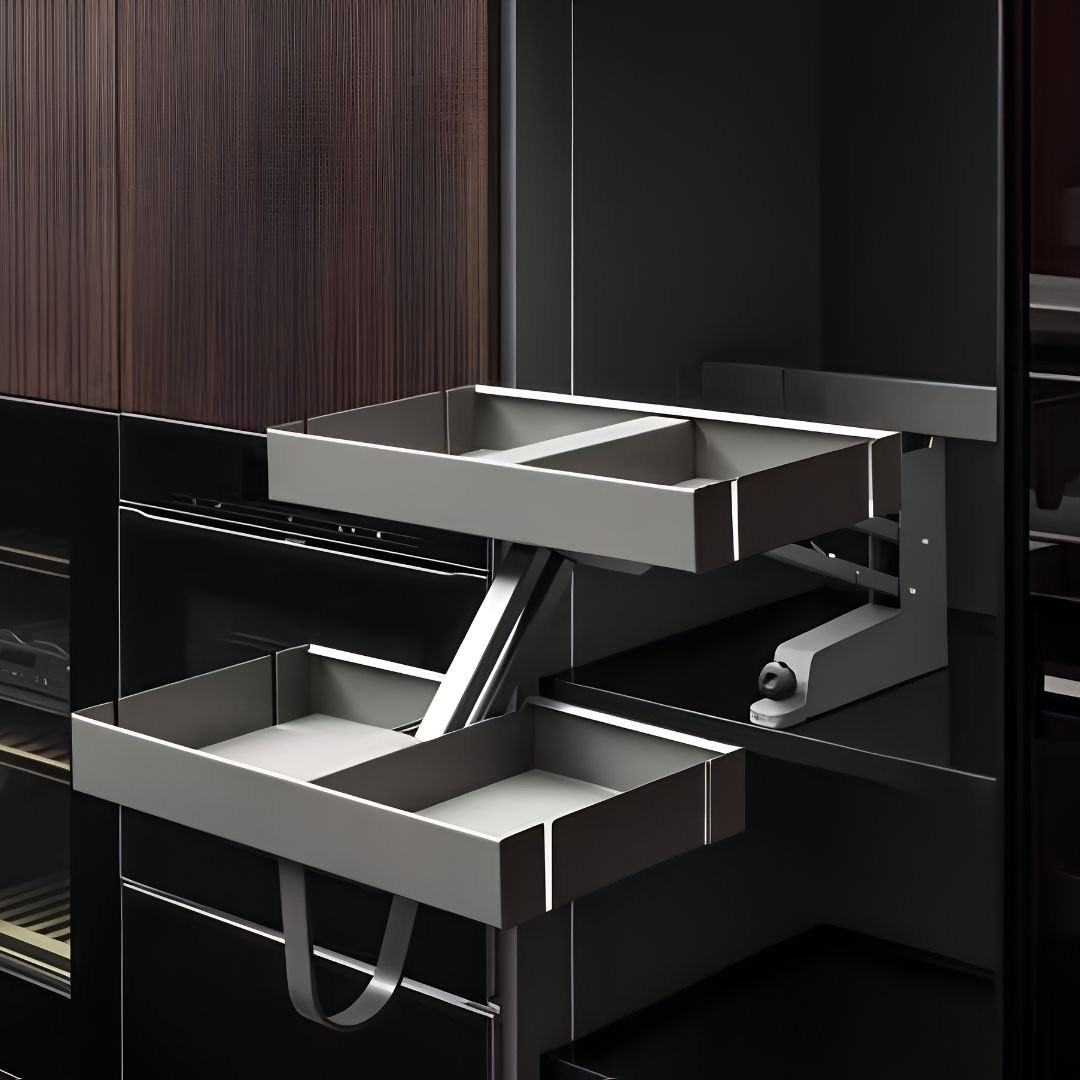

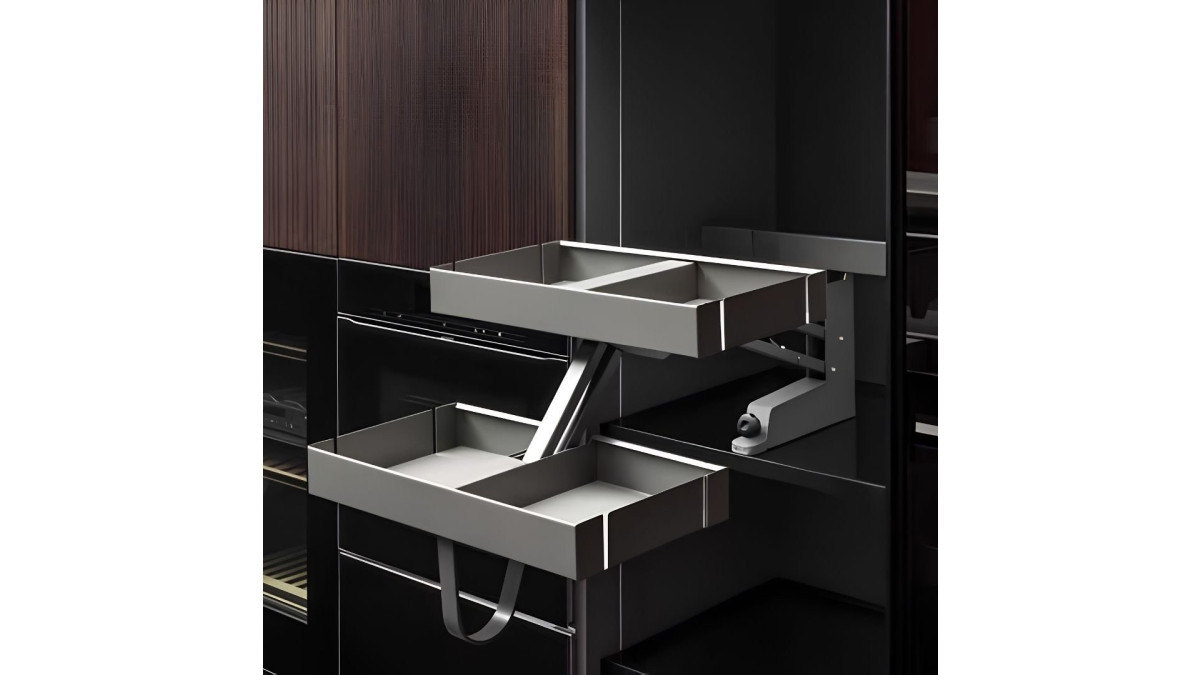

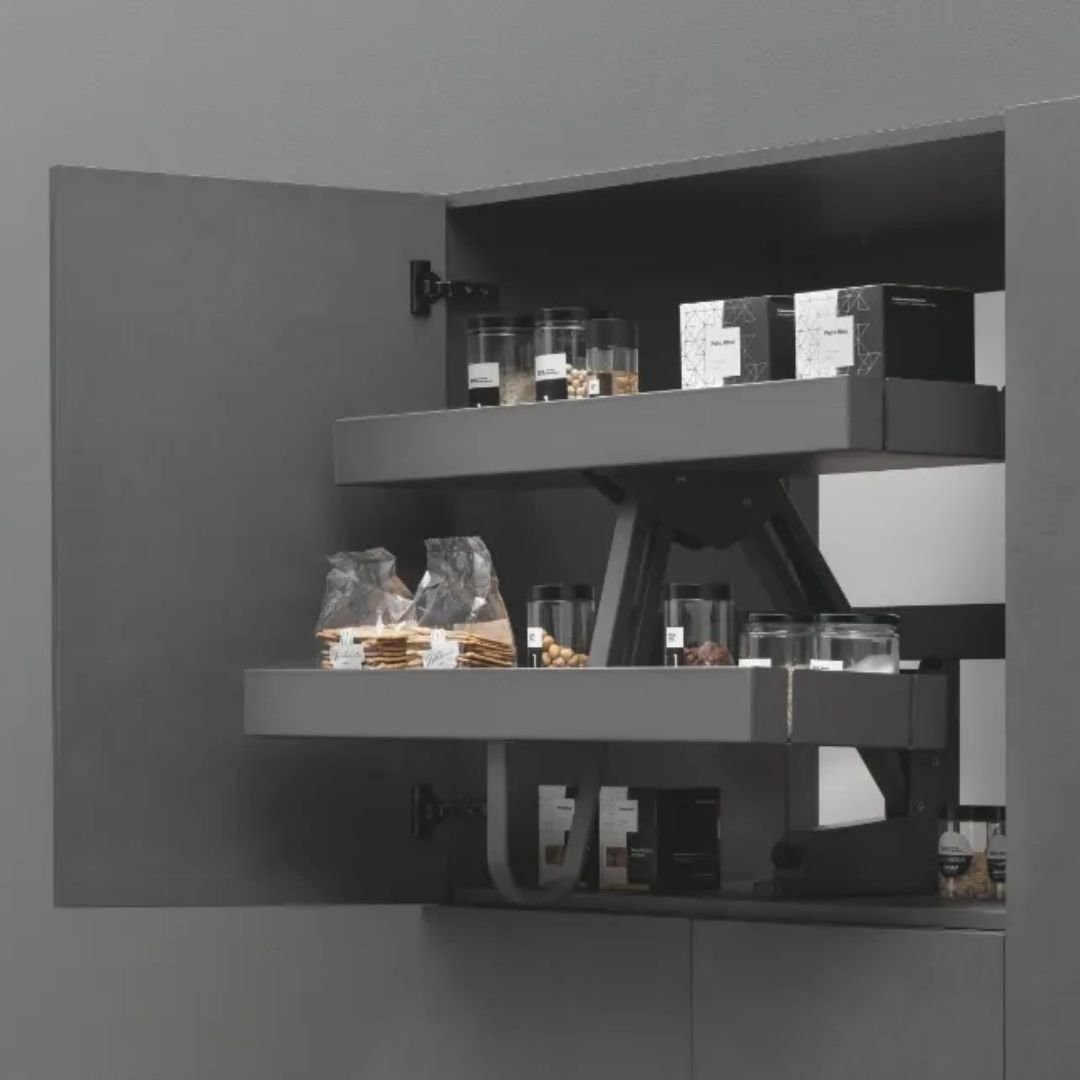

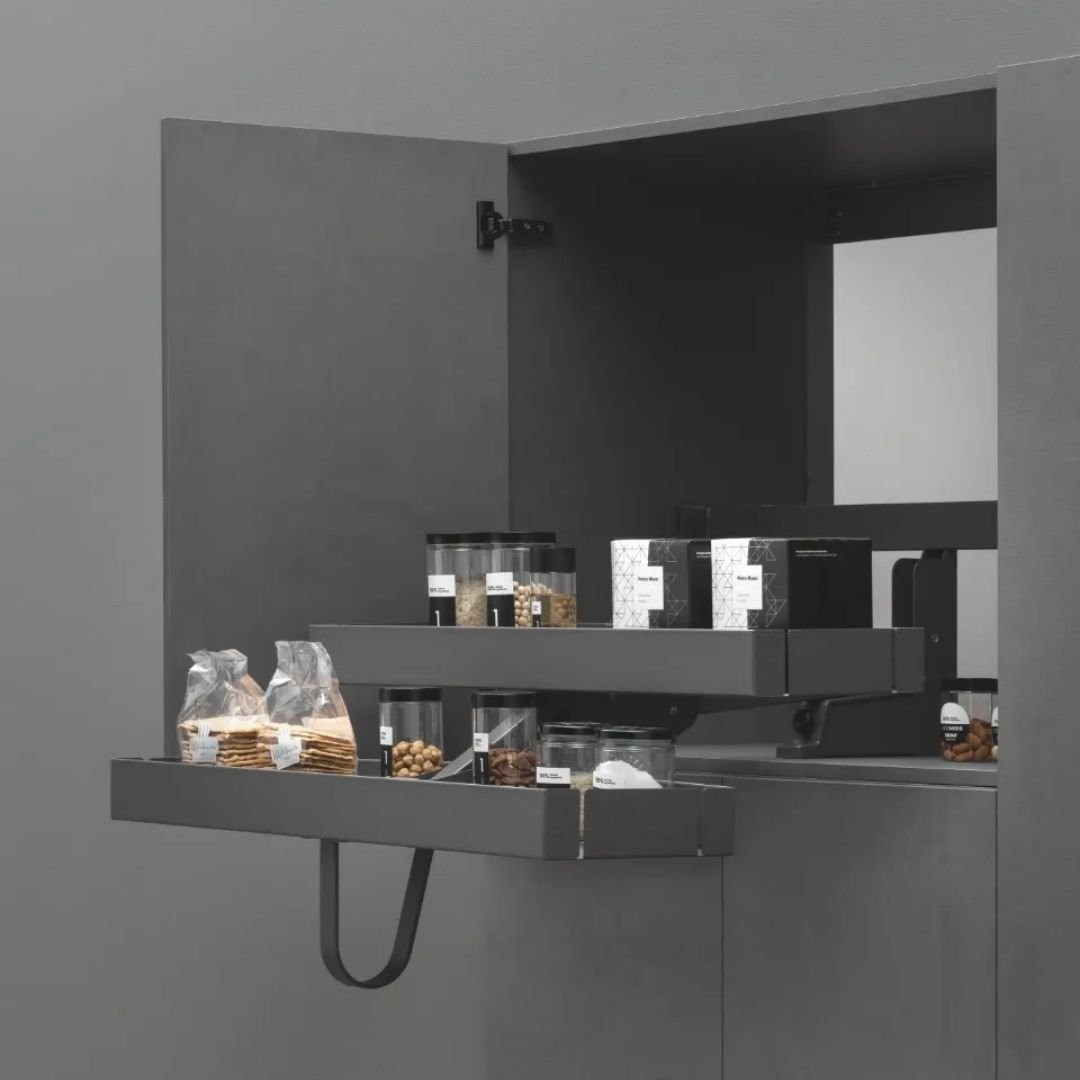

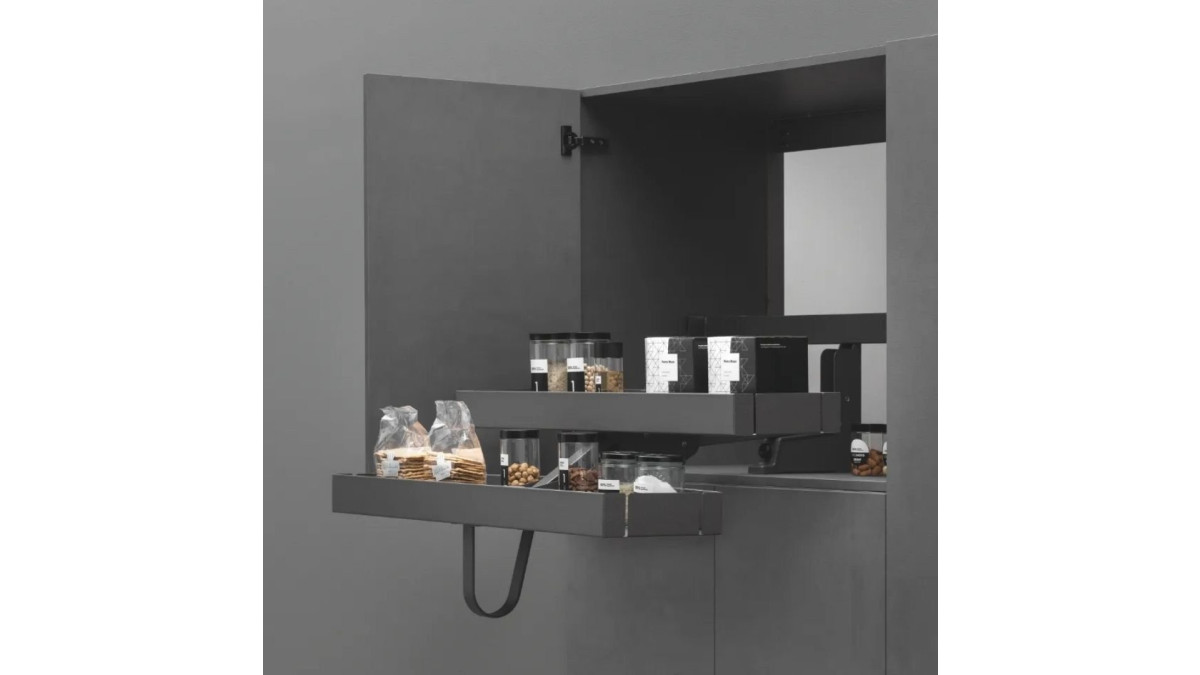

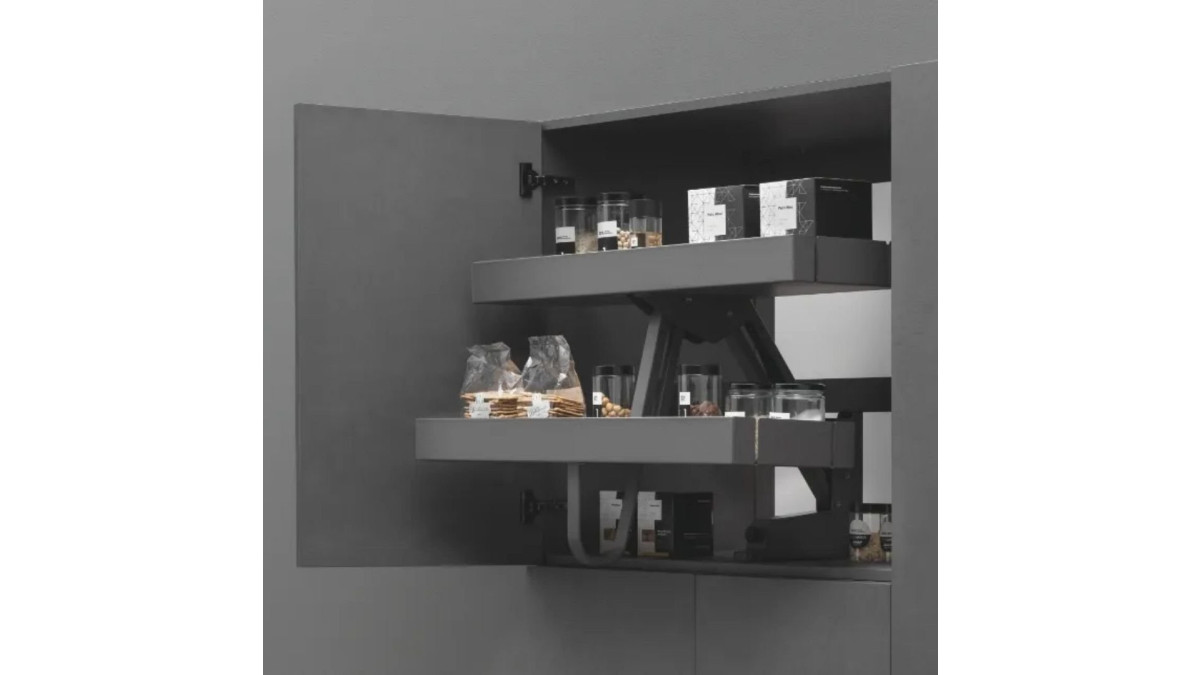

The Vibo Karlo Pull Down System in Lamina Grey is a cabinet storage solution designed to improve access to items stored in high kitchen cabinets. Its spring-loaded mechanism provides an ergonomic pull-down movement, while the central column design maximises usable space on the base shelf.

Key Features
  • Designed for convenient access to high-level kitchen cabinet storage

  • Ergonomic pull-down movement for ease of operation

  • Adjustable spring loading for controlled movement

  • Redesigned central mechanism for easier installation

  • Central column design maximises available base shelf space

  • Load capacity of 7kg per shelf

  • Total load capacity of 14kg, including the base shelf

  • System height: 598mm

  • Distance from cabinet base to top shelf base: 530mm

  • Lamina Grey finish

Scope of Use

Designed for installation within high-level kitchen cabinets to improve accessibility and make efficient use of available storage space. Suitable for kitchen cabinetry where the cabinet dimensions and installation requirements accommodate the system.

Limitations on Use

Installation is subject to cabinet dimensions, available internal clearance and compatibility with the cabinet construction. The system has a maximum load capacity of 7kg per shelf and 14kg total, including the base shelf. Confirm dimensions and fixing requirements before installation. Use only within the manufacturer's specified load limits and installation instructions.

Statement of Building Code Compliance

No specific New Zealand Building Code compliance claims are made for this product.

Other Performance Attributes

The adjustable spring-loaded mechanism is designed to provide controlled pull-down movement. The central column design helps maximise usable base shelf space. No additional independently verified performance claims have been provided.

Documents
Installation and operation
