DORMA ED 100 Automatic Swing Door Operator

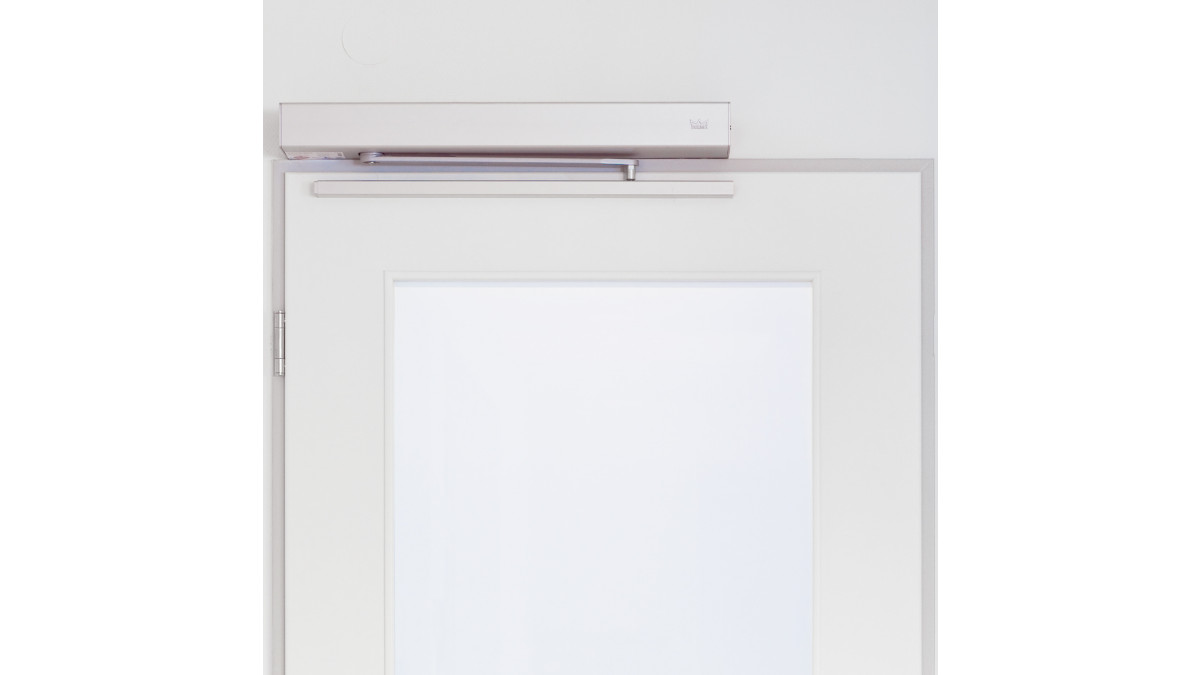

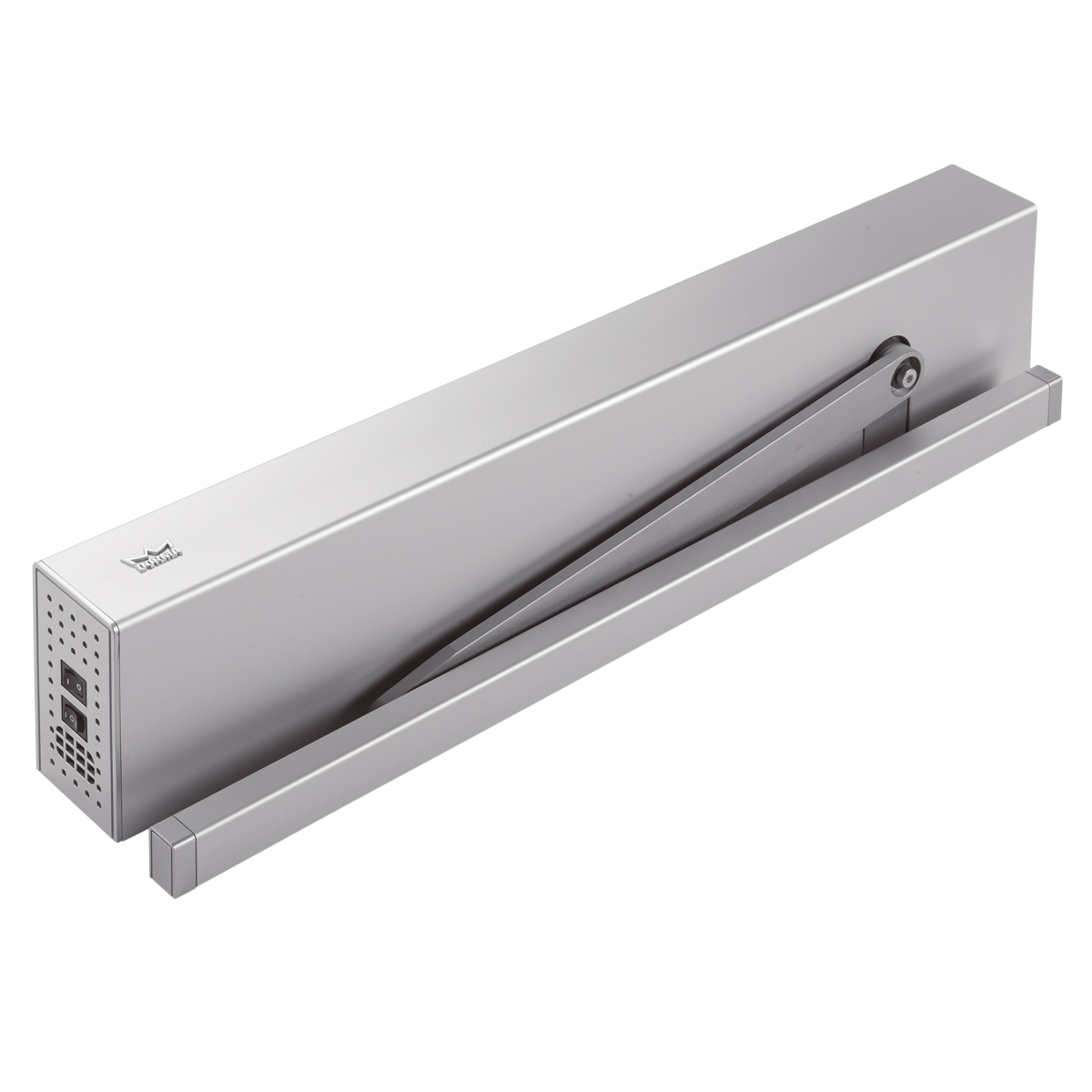

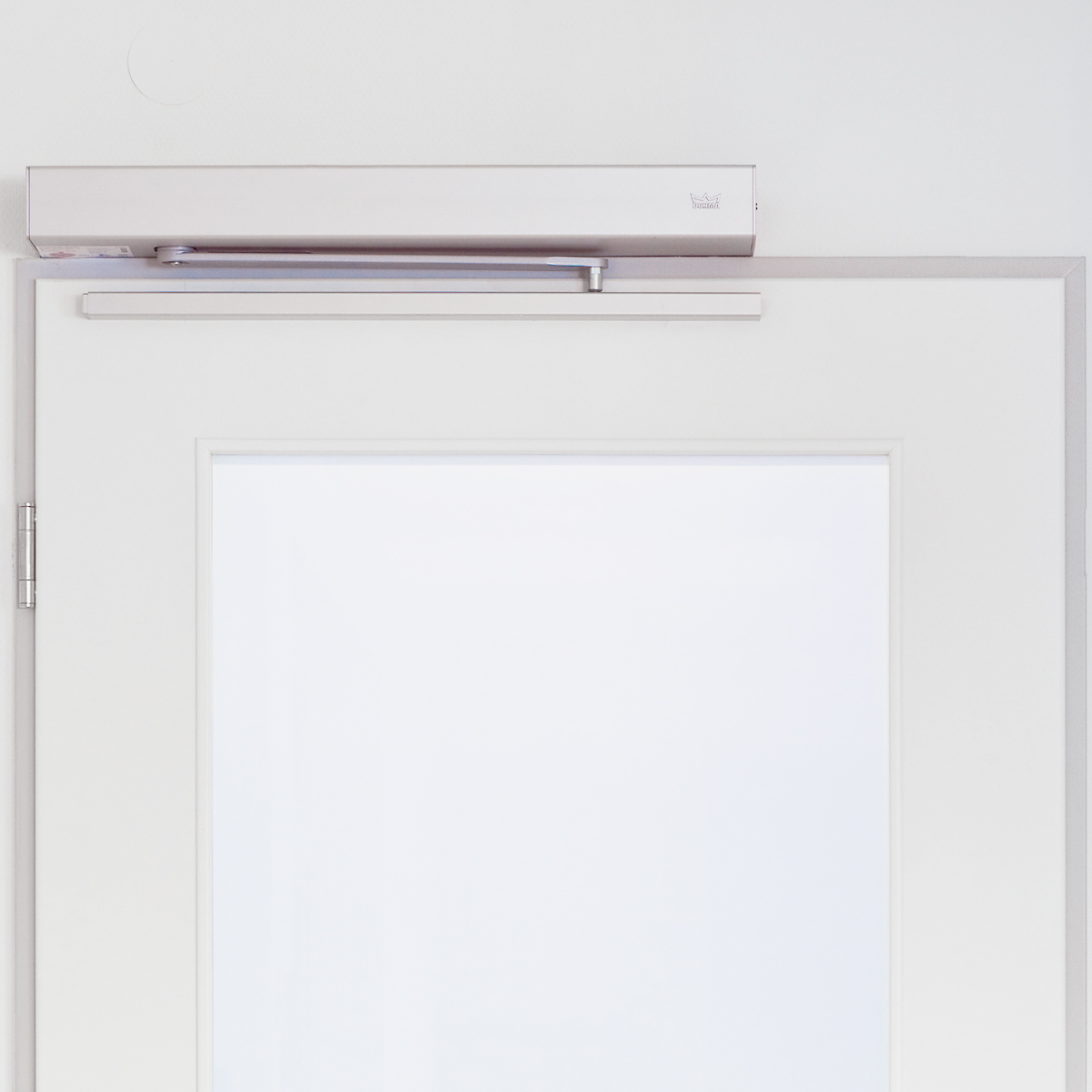

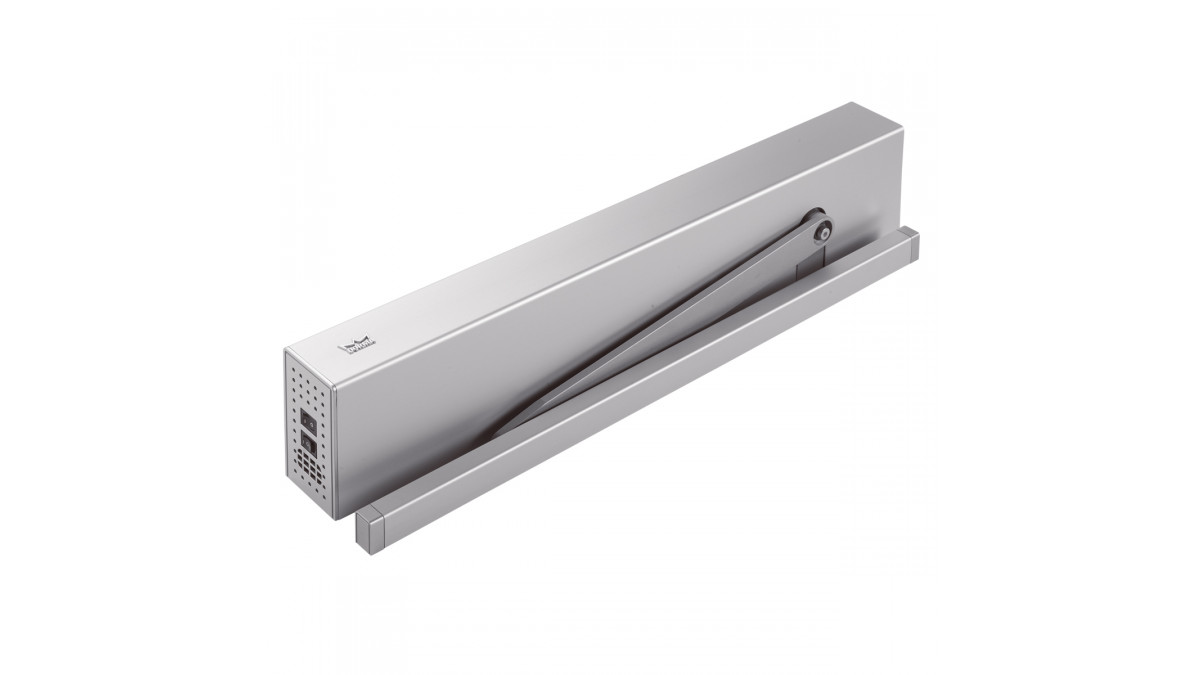

With the ED 100, DORMA offers an electromechanical swing door operator for various fields of application. The operator may be installed as a push version with a standard arm assembly or as a pull version with slide channel.

Key Features
  • Modular design and variable functional range
  • Door widths up to 1100mm
  • Door weights up to 100kg
  • Single and double-leaf swing doors
  • Push or pull version
  • Two operating modes: door closer with optional power assist and also fully automatic
  • While the system is in automatic mode, the wind load control monitors the actuation speed, keeping it constant at the preset value
Automatic Doors
Scope of Use

An easy-to-install integrated door coordinator for double-leaf doors. With the aid of the DORMA Upgrade Card, the system’s functional range may be adapted to various door versions, which further ensures that the majority of possible applications can be readily accommodated.

The ED 100 Swing Door Operator is especially suitable for exterior doors that are subjected to varying wind loads, and for interior doors separating rooms where different air pressures prevail.

In-Service History

Transport for Greater Manchester Cycle Hub – Manchester (GBR)

Transport for Greater Manchester opened a major new cycle hub in the iconic City Tower skyscraper in Manchester’s Piccadilly Gardens. DORMA was appointed to supply ED 100 low energy swing doors for two separate exits.Opening the door at precisely controlled speeds and forces, even in tough climatic conditions, the ED 100 was ideal for cyclists when carrying or riding a bicycle upon exit.

Strong Against Wind
Cold Environments
Key Switch
Product Brochure
