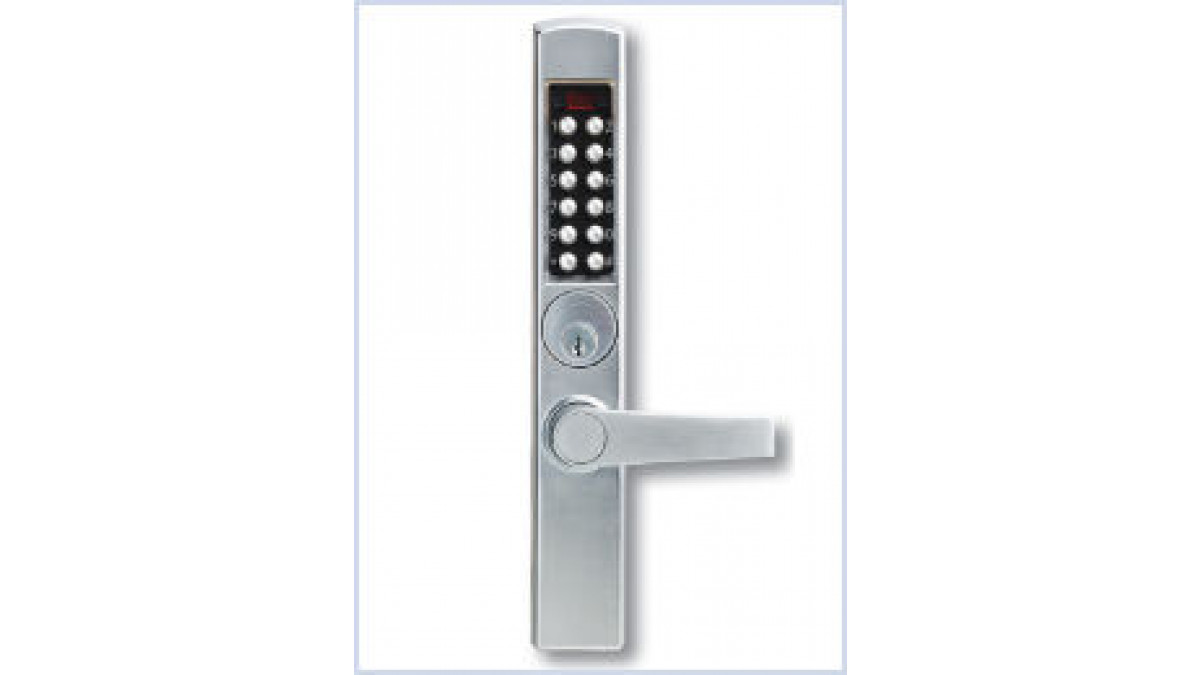

E-Plex 3000

Kaba’s electronic access control provides additional features beyond mechanical access control. E-Plex products range from simple programming at the lock to more advance applications requiring software for managing many users and doors. PIN and/or card access locks allow management to set access schedules and review activity via audit trail.


Key Features
  • Narrow Stile lock for aluminium door frame of glass door installation
  • Users-300 codes per door; over 100 million possible code combinations
  • The most recent 9,000 lock events are recorded in memory including use of the mechanical key override
  • Locks are programmed via keypad or with optional Microsoft Excel based software—Simplifies management of doors and users as facility's number of users and access points grow
  • Locking Device Options: Retrofits inside trim for Adams Rite® locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S and 8400 Series (Not Included with lock)
  • Stand-alone battery power - up to 180,000 cycles

Operation Mode Options:

  • PIN access
  • Passage — PIN or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 to 24)
  • Lockout — PIN
  • Latch Holdback — PIN or key enabled, lever activated


Satin Chrome (standard)
Dark Bronze (optinal)


  • 3-year warranty from date of installation; built-in warranty counter in lock memory
Scope of Use

The Narrow Stile E-Plex 3000 suits all aluminium doors and narrow stile commercial doors.

Limitations on Use


Other Performance Attributes

Certification and Standards:

  • 2 Hour Fire Door Rating
  • Indoor/Outdoor Approved
  • ADA compliant
  • Temperature -35° C to 66° C
Additional Information
