CS SquareFormed Cavity Slider
Description

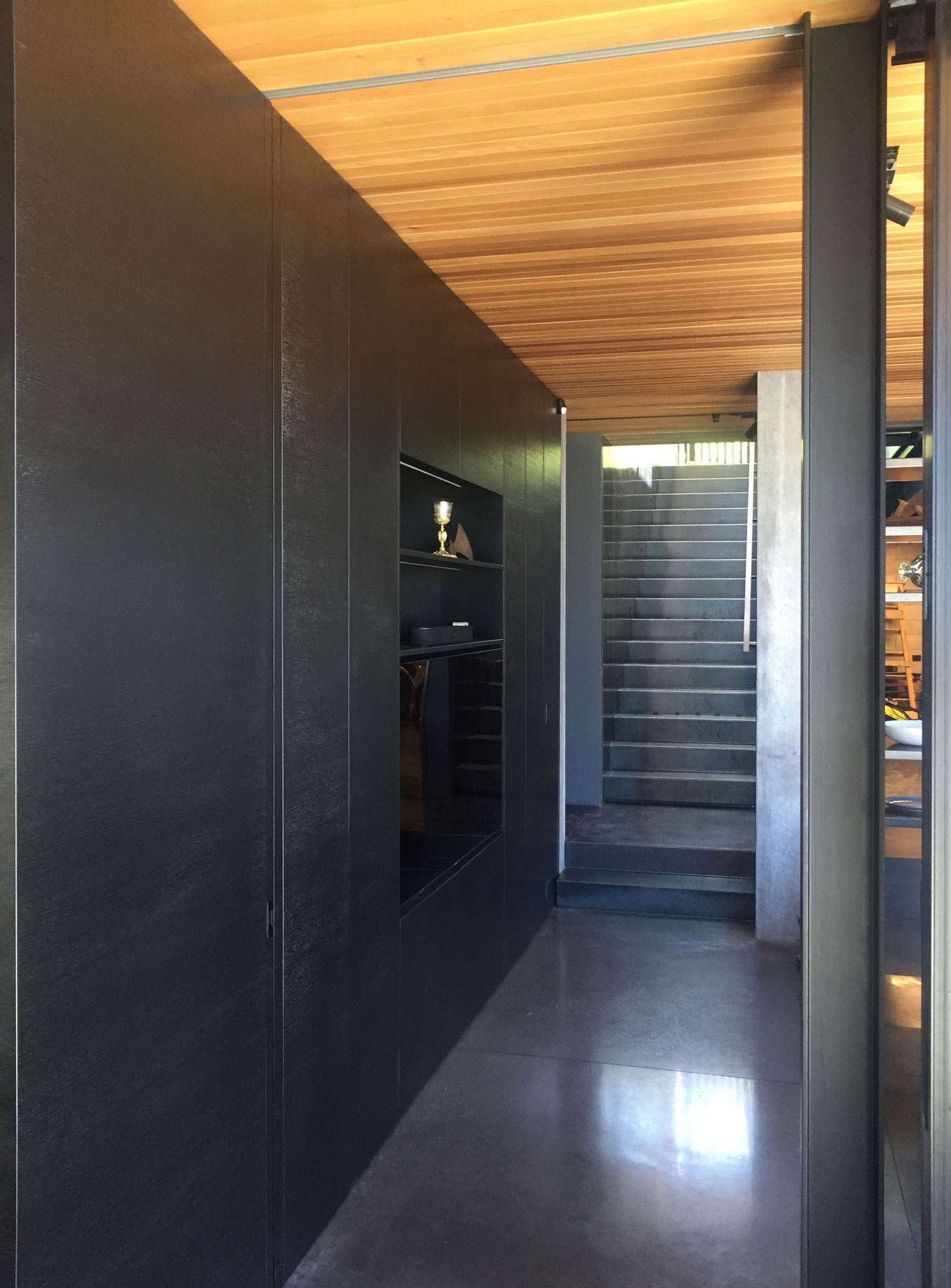

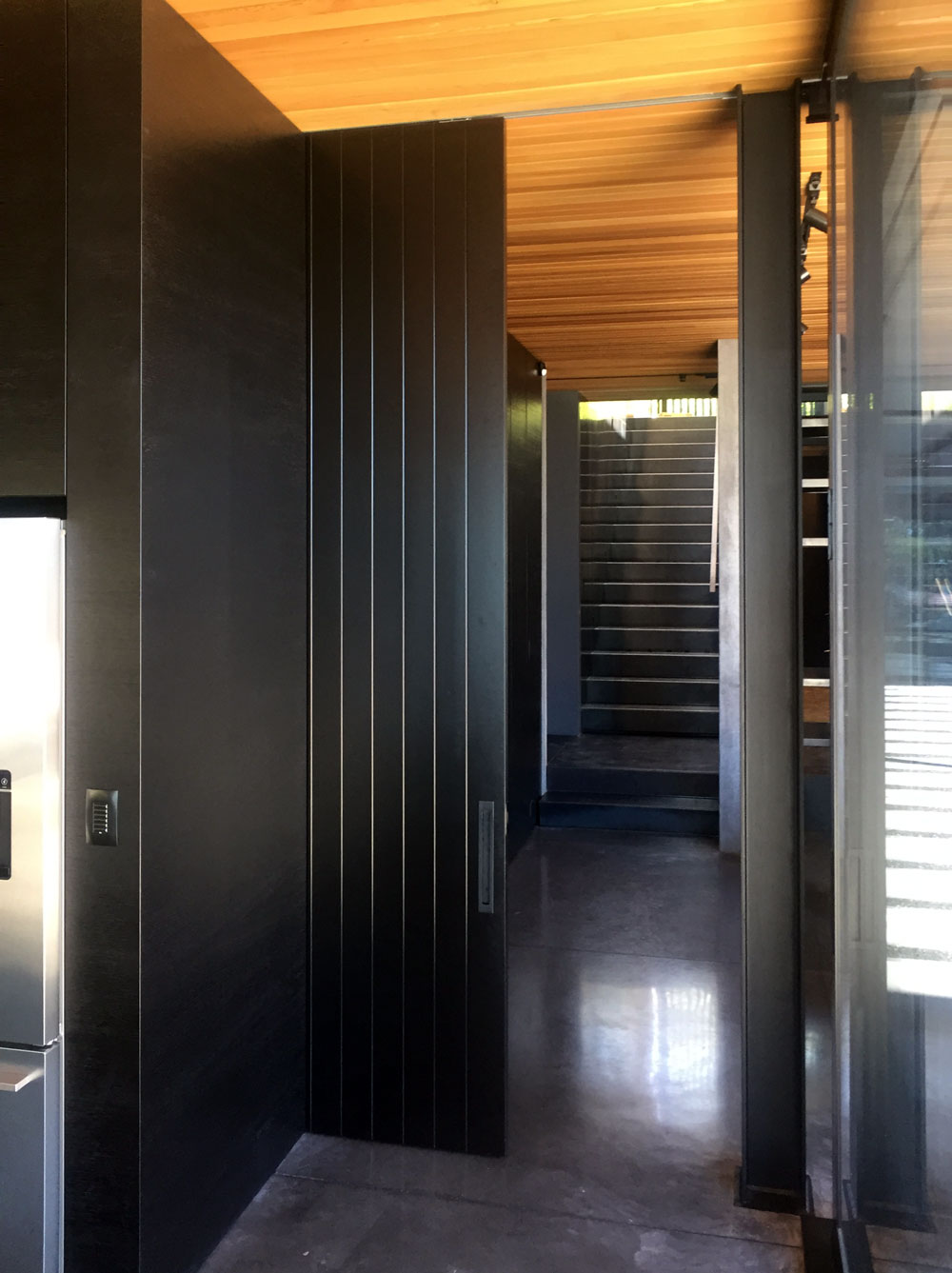

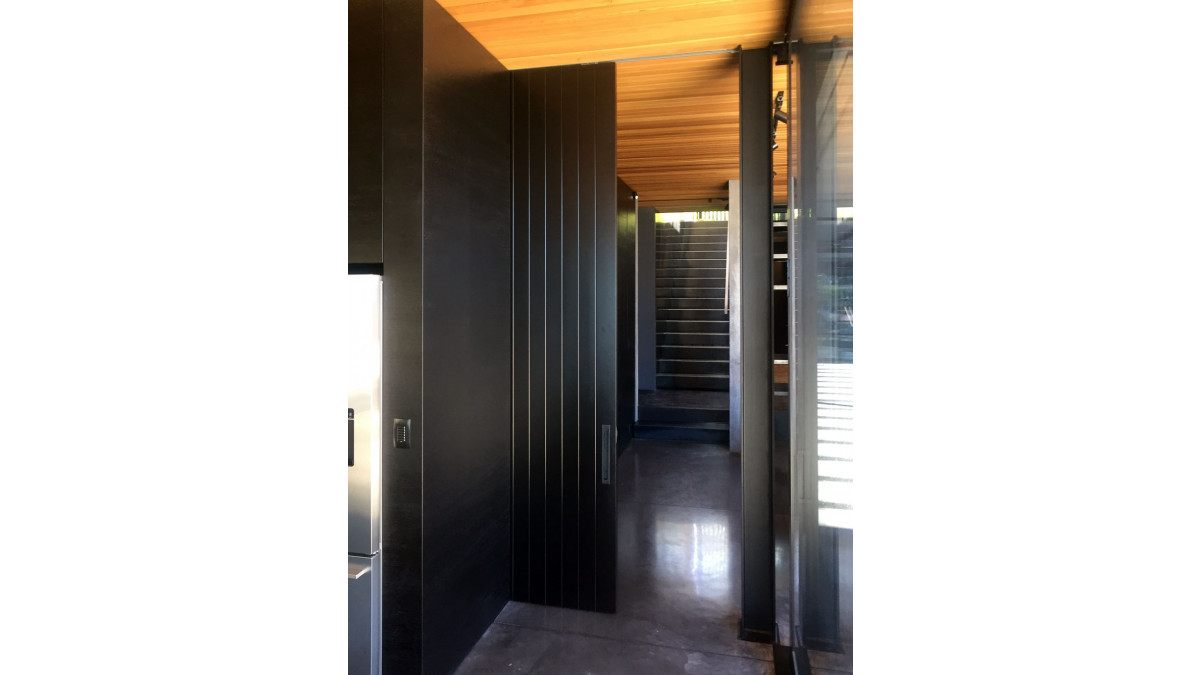

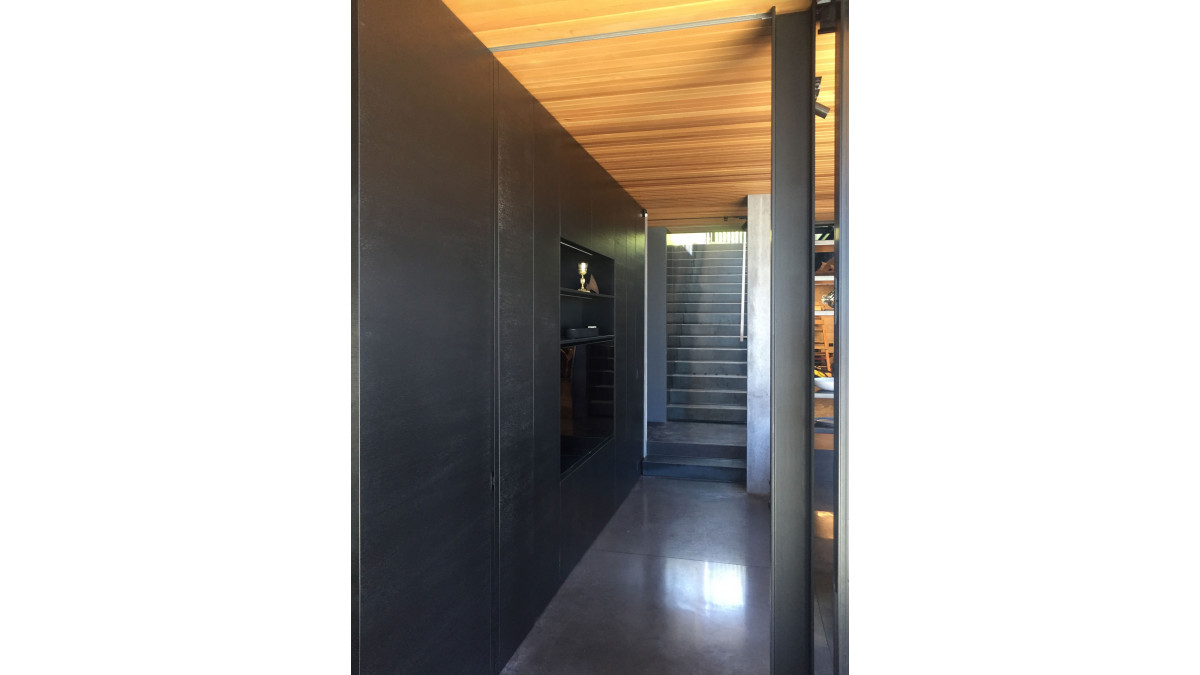

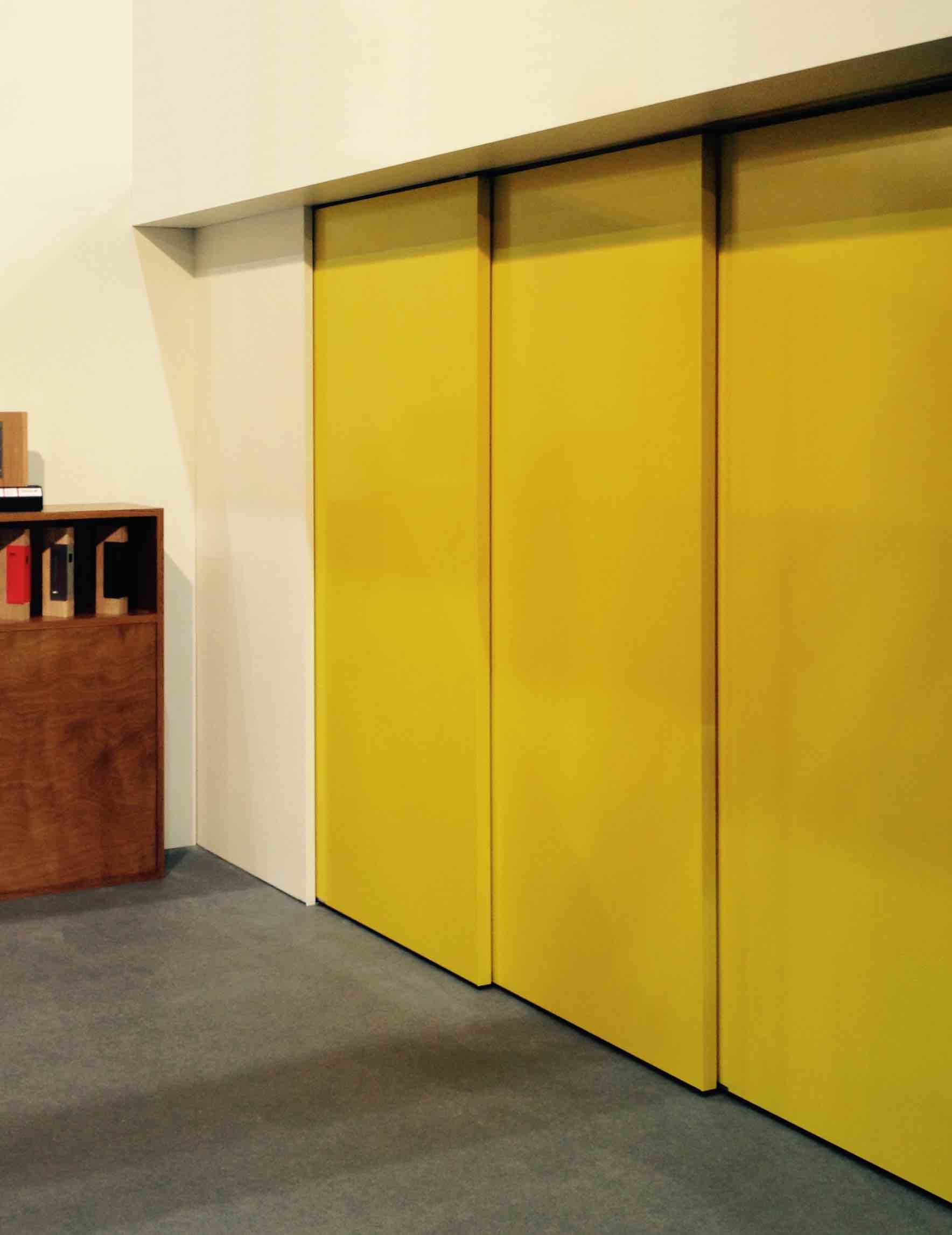

CS For Doors' latest product combines the new SquareStop Split Jamb with Full-Height and NoClosingJamb details to create the CS SquareFormed cavity slider. This complete solution provides a seamless, clean flow around doorways. It is ideal for large room dividers or areas such as hallways where you want a discreet door that is rarely closed.

The unique design of the split jamb on the CS SquareFormed makes finishing on site quicker, easier, neater and stronger. Options are available to suit 10mm or 13mm linings.

Maximum size 2700mm high x 2700mm wide

Operation: Choose from standard (120kg/240kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open and close (50kg).



Key Features

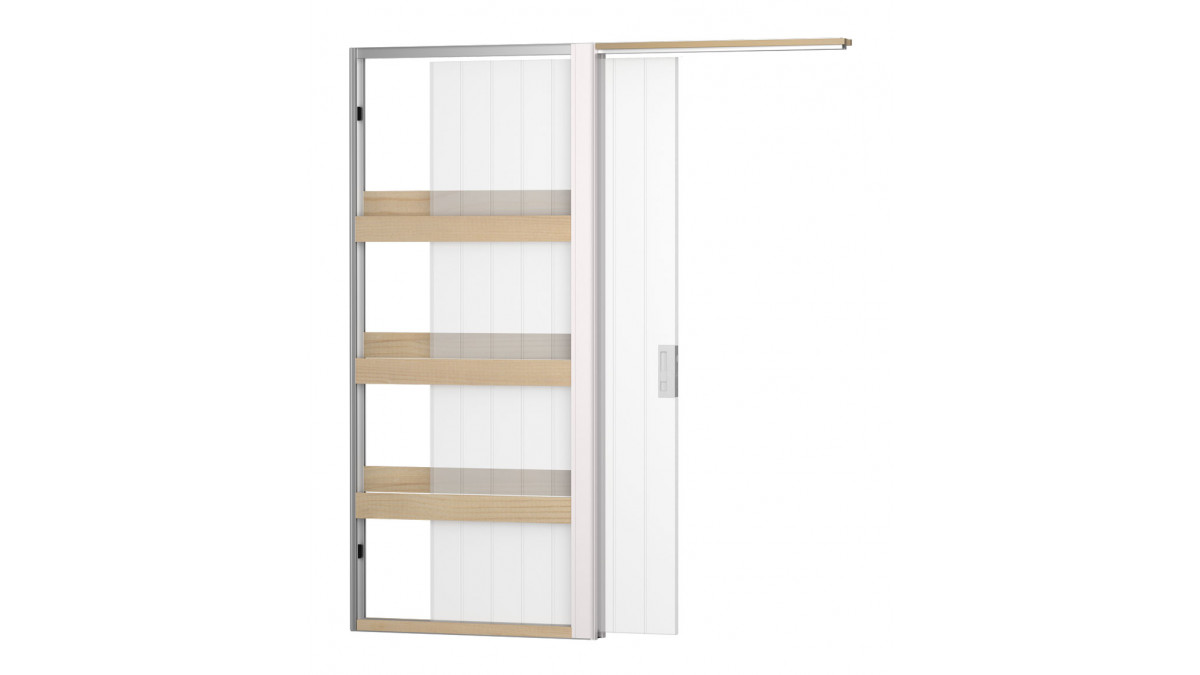

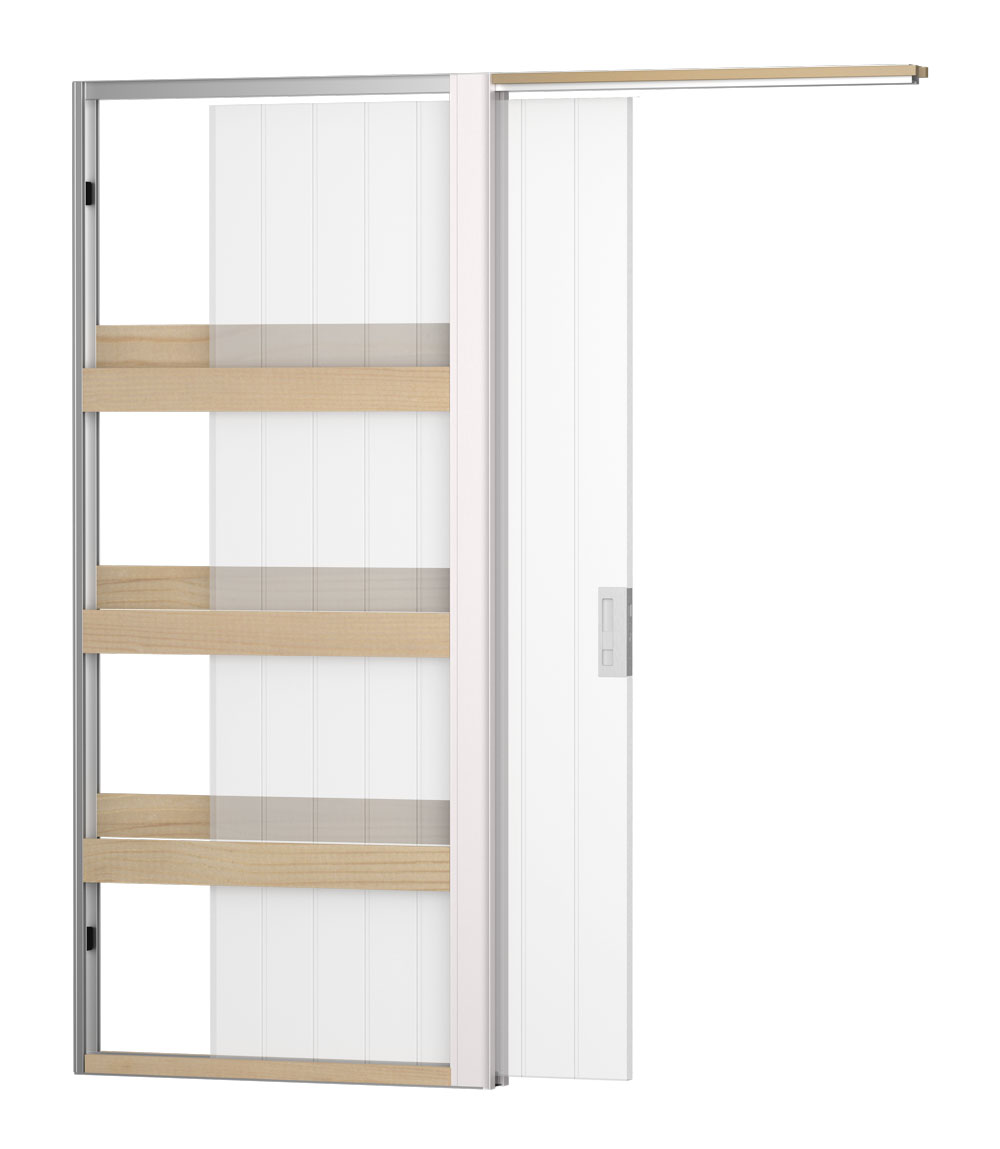

  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Available as Single or Bi-Parting (double) units
  • Options available to suit 10mm or 13mm linings
  • Fits into a standard thickness wall (90 x 45mm framing)
  • Supplied fully assembled for on-site installation
  • No visible floor guides
Categories / Ranges
Cavity Sliders CS Cavity Sliders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

  • Options available to suit 10mm or 13mm linings
  • Fits into a standard thickness wall (90 x 45mm framing)
Limitations on Use
  • Maximum size 2700mm high x 2700mm wide
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors.
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exit-ways.
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
Independent Appraisal (BRANZ)
Maintenance Instructions
Warranty
CS Company Brochure

CS For Doors are a manufacturer of cavity sliding door systems and related products.
