Downpipe FS-65mm
Description

The FS-65 downpipe provides the finishing touch to any quality rainwater installation. Part of Continuous Group's Form Series, the FS-65 is a roll-formed lock seamed downpipe. This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Customers can use Ezi-Flo Series downpipe where a charged/sealed system is required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

All Continuous bends are uniquely designed with male and female ends so as to allow the most efficient flow of water. A typical bend is at 95°, but can be hand made to differing angles where required.

FS-65 downpipe can be run in Magnaflow and Copper.

Key Features

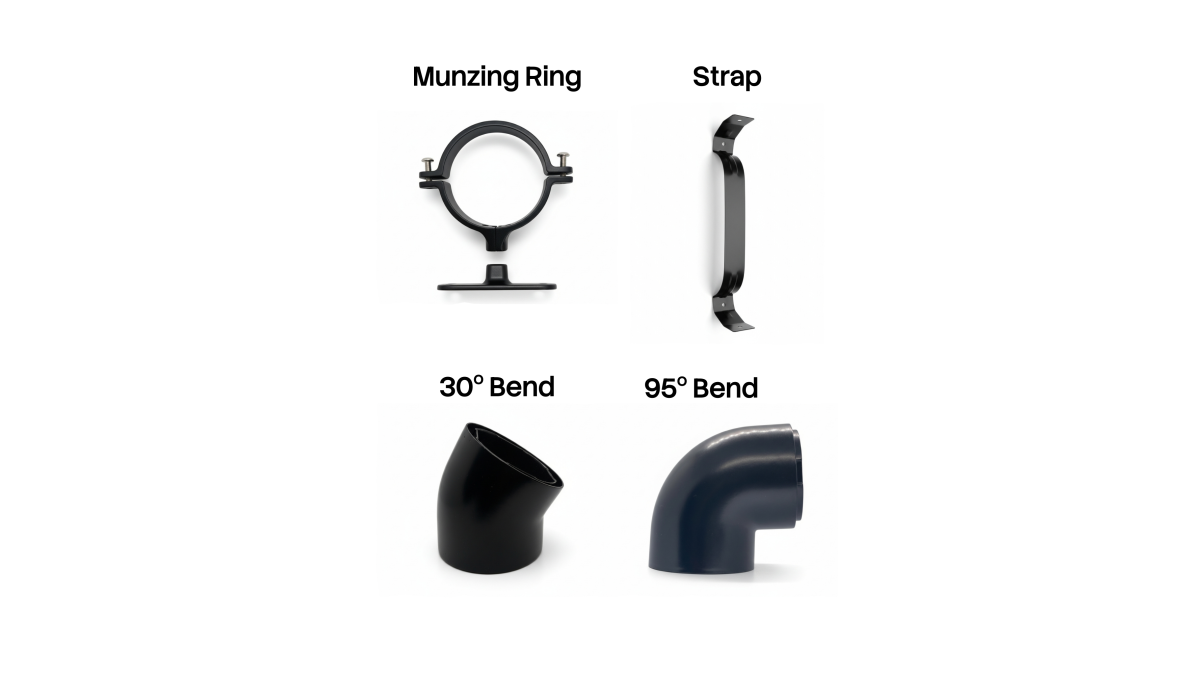

FS-65 (65mm downpipe) comes with a number of different components for different applications:

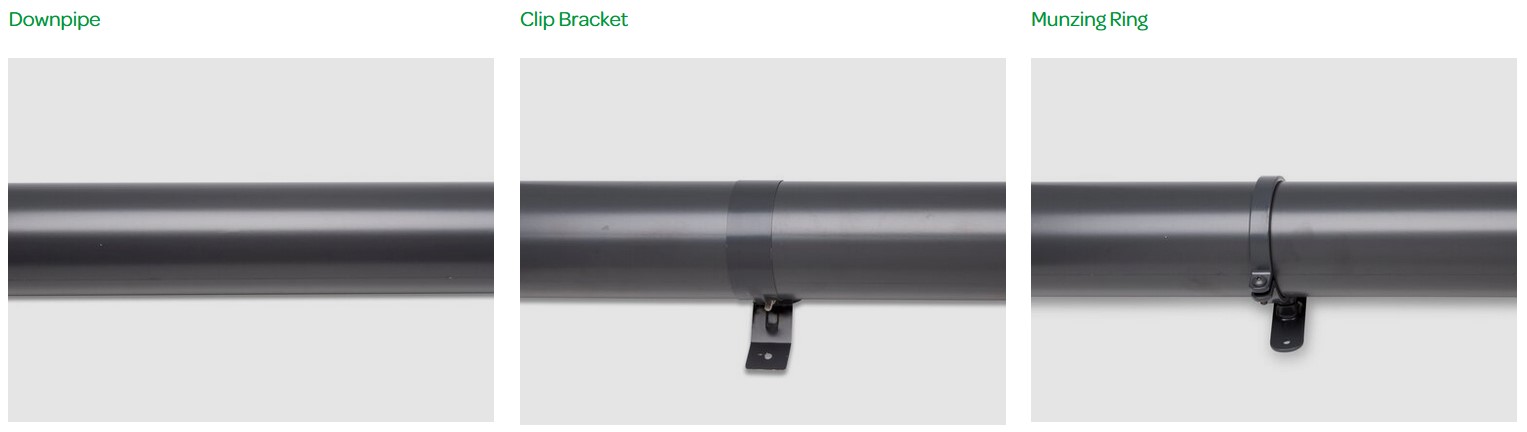

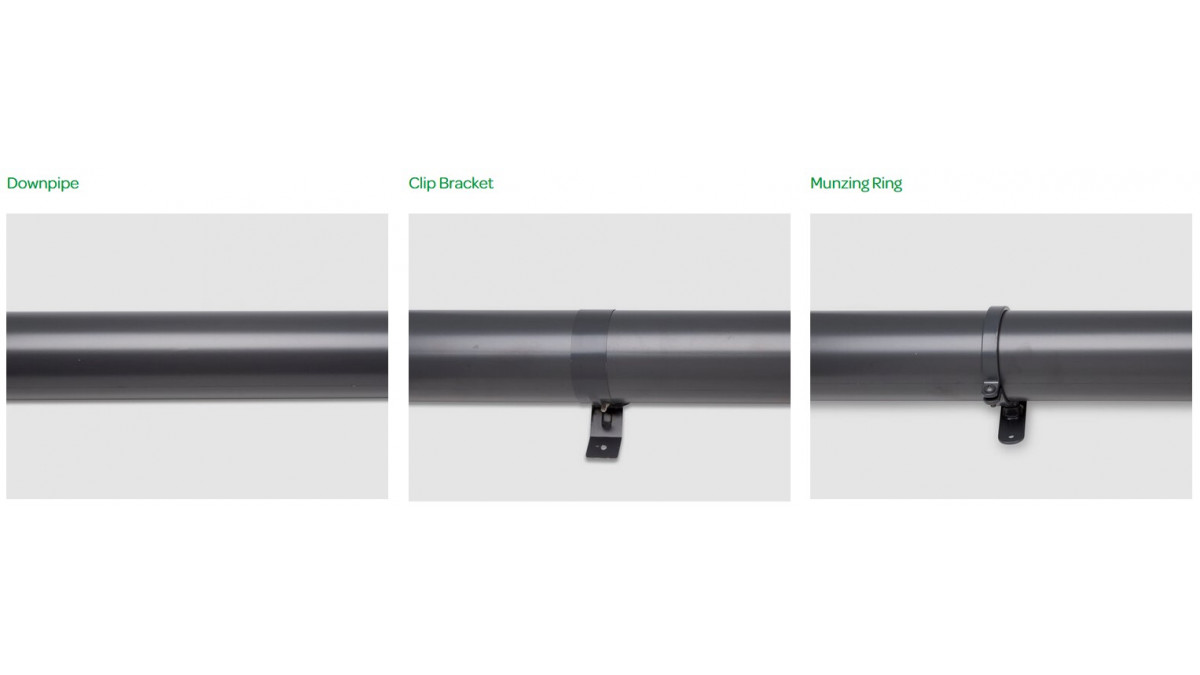

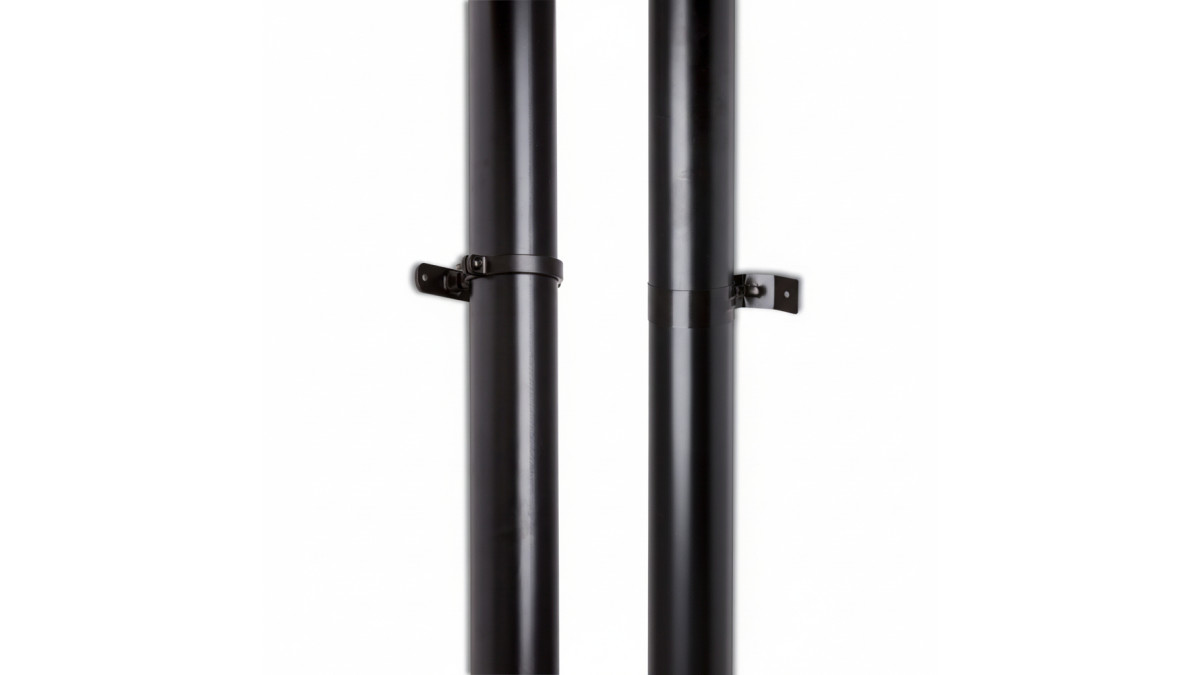

  • Clips or Munzing Rings
  • 95° bends — All other degree bends can be handmade
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Form Series Downpipes are intended to collect and channel water that runs off a roof.  It is intended that the metal downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • Available throughout New Zealand.
  • Inside Diameter = 67.3mm
  • Outside Diameter = 68.5mm
  • Capacity = 3550mm2
Limitations on Use

This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Customers can use Ezi-Flo Series downpipe where a charged/sealed system is required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
FS Downpipe Specifications
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
FS Downpipe Brochure
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow

The Continuous Group are a leading supplier of spouting, downpipes, fascia and rainwater heads in New Zealand.
