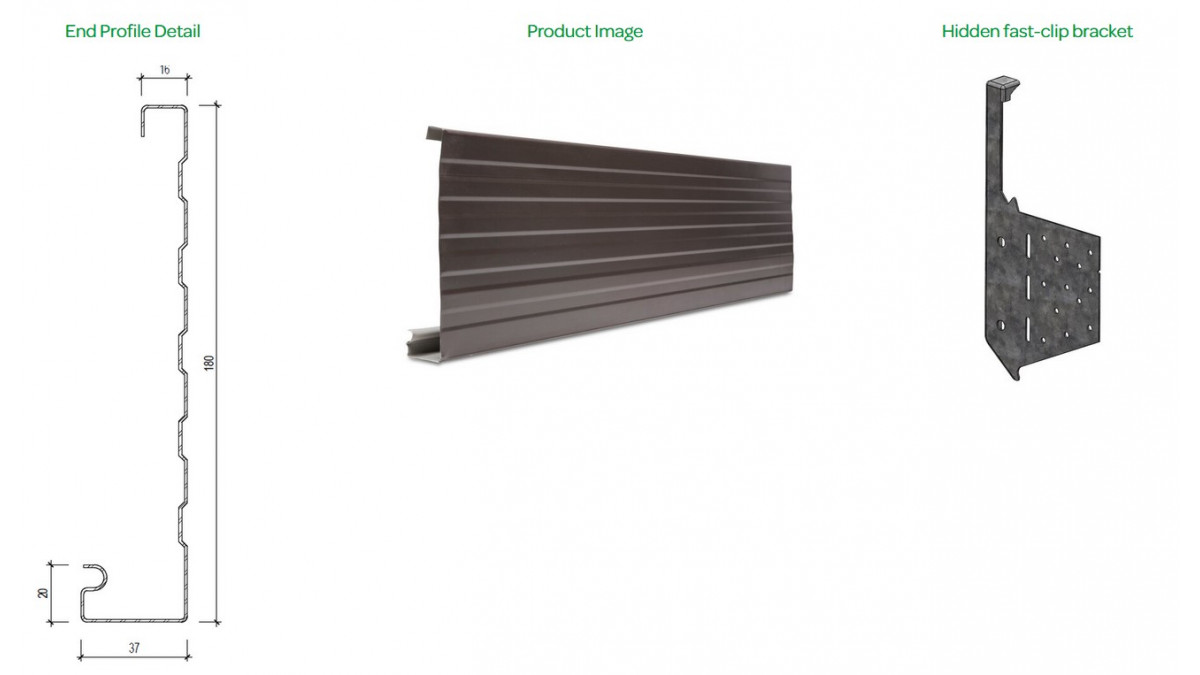

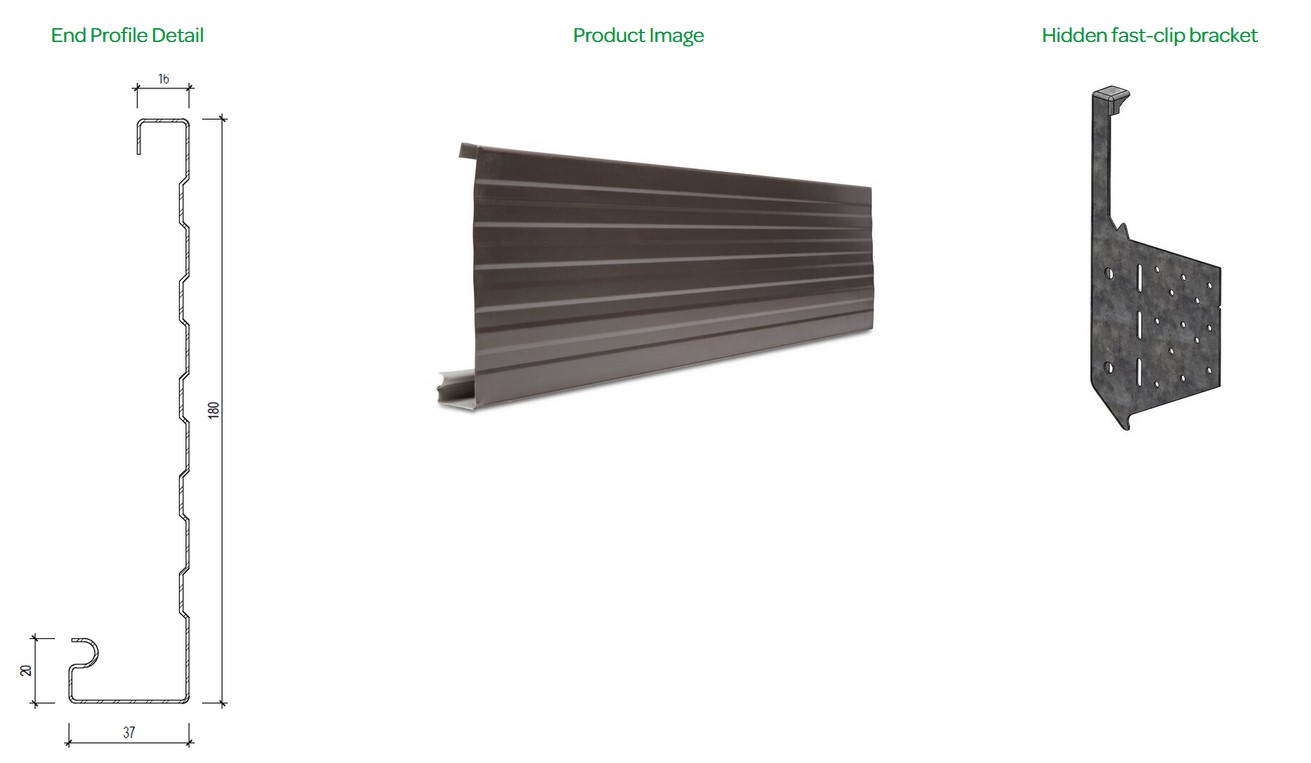

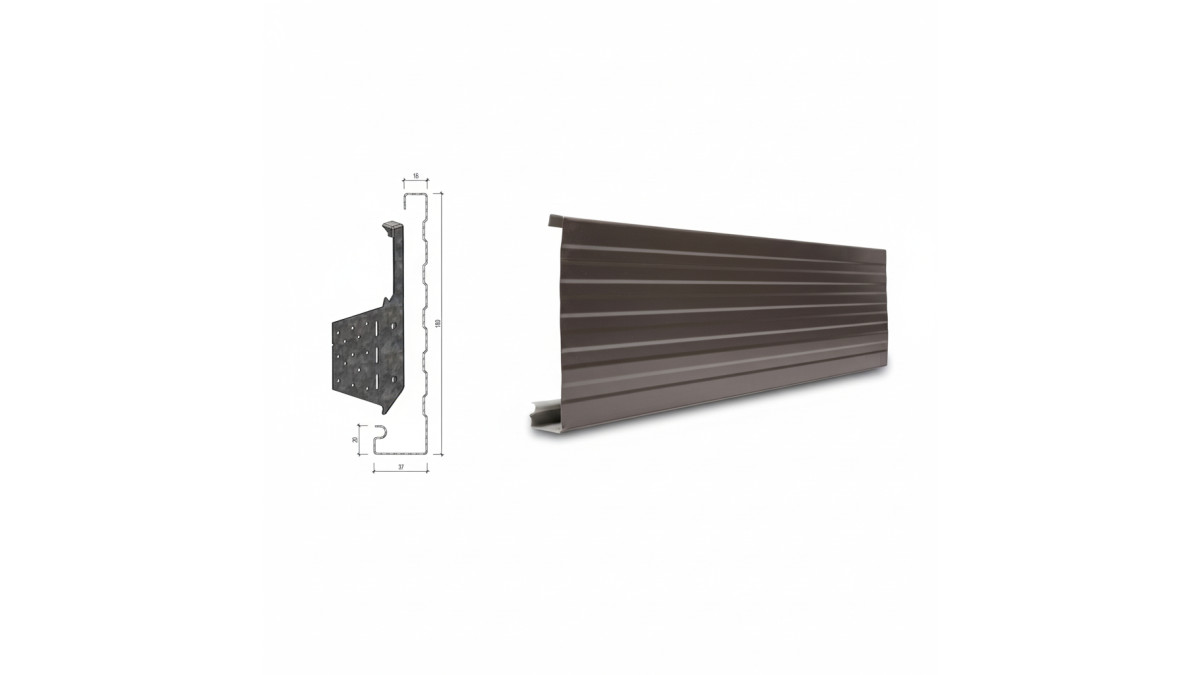

Fascia 180 R5
Description

180 R5 Fascia will provide a superb, low maintenance finish, with a modern uniform look to complement any residential home. 180 R5 Fascia can be colour matched to the spouting profile the customer chooses or can be done in a different colour for contrast. Due to the additional height of this profile most spouting profiles will be suitable.

This product can be manufactured in Magnaflow, Alumigard, Euramax or Copper.  Please note that swages might not be present when manufactured in Alumigard, Euramax or Copper.

This profile is only available in Northland, Waikato and Bay of Plenty.

Key Features
  • low maintenance finish
  • Suitable with a range of spouting profiles
  • Colour matching/contrast options
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Truss Series Fascia systems are intended for use as fascia and barge boards to support spouting systems, covering roof truss ends and gable ends around the roof perimeter on timber trussed residential buildings.

  • Additional height of this profile makes it suitable with most spouting profiles
  • This product can be manufactured in Magnaflow, Alumigard, Euramax or Copper
  • Only available in Northland, Waikato and Bay of Plenty
Limitations on Use
  • Please note that swages might not be present when manufactured in Alumigard, Euramax or Copper
Statement of Building Code Compliance
  • Test information is available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of fascia systems, indicate that provided the product use and maintenance is in line with the guidelines contained in the current literature.  Continuous Group truss series fascia systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products listed above are fit for purpose in environment Zone B and C*.  they may be used in environment Zone D subject to a pre-approval warranty application based on site address*
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference:  Section 4, Durability from NZS3604:2011
Documents
180 R5 Fascia Specifications
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
180 R5 Fascia Construction Detail and Common Drop Heights
180 R5 Fascia Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

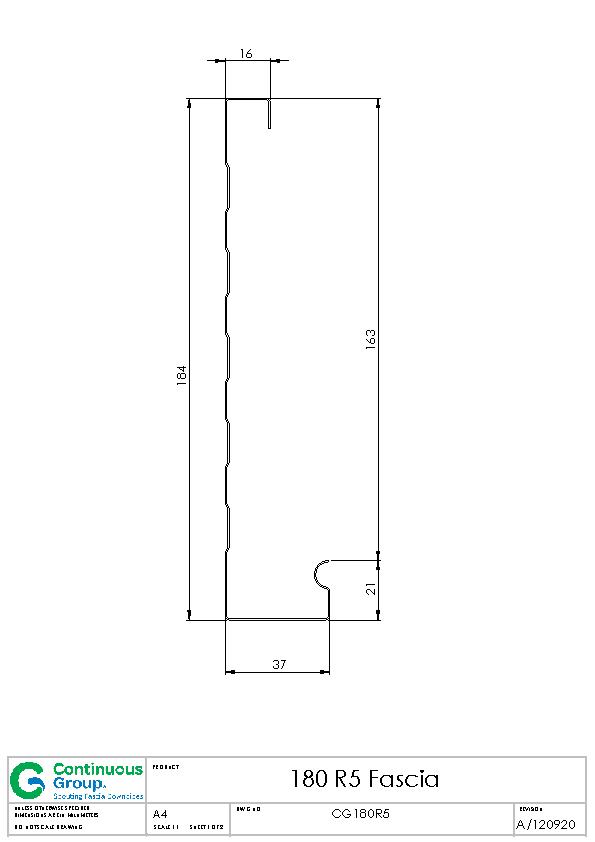

Fascia 180mm R5 Detail
