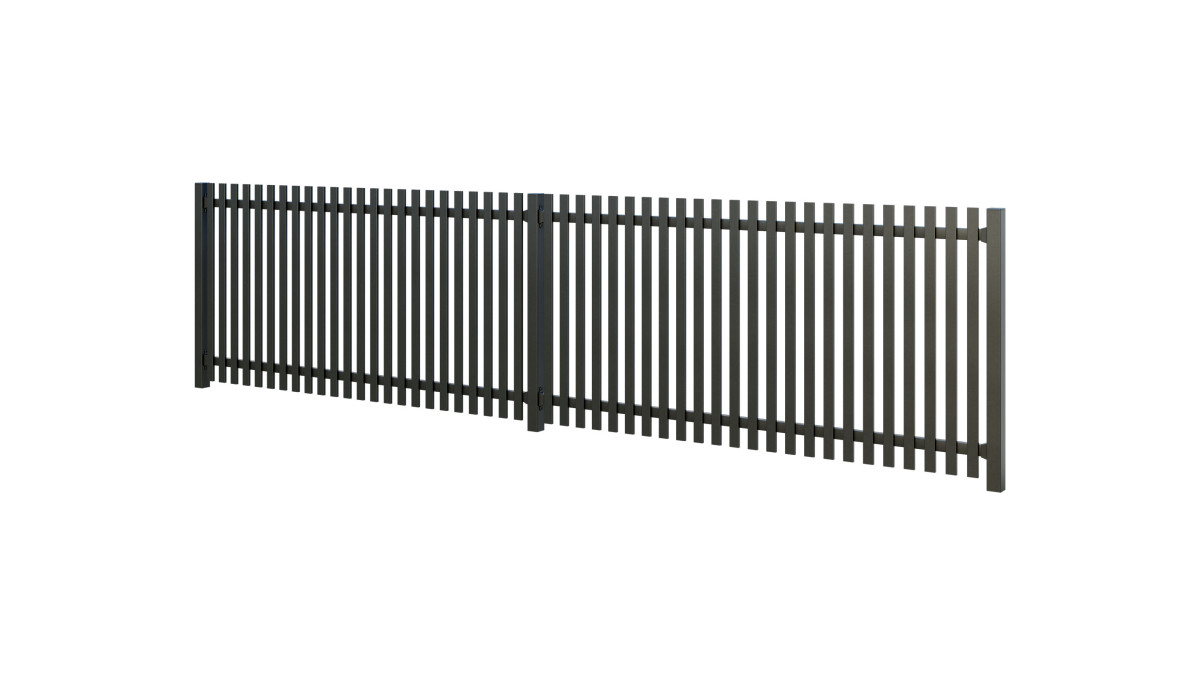

PicketPanel Atlas Fencing System
Description

PicketPanel is the aluminium alternative to timber picket fencing. Atlas has 50mm wide pickets, spaced at 50mm apart, resulting in 50% permeability.

  • Panel Height:950, 1200, 1500, 1800mm
  • Panel Length:2430mm
  • Permeability 50%



Key Features
  • Aluminium construction
  • Traditional picket fence design
  • Available in a raking design
  • Easy installation
  • 50% permeability
Scope of Use
  • Low maintenance alternative to timber batten with lower life cycle cost
  • Available in a raking design
  • Medium density
  • Subdivision fencing
  • Privacy screening
  • Residential boundary fencing
  • Pool fencing
Limitations on Use
  • Must be installed in accordance with Boundaryline's PS1 when being used for F9 appliance
  • This is not compliant for F4 application



Statement of Building Code Compliance

When designed and installed in accordance with the Boundaryline installation instructions and PS1:

  • Compliant with NZ Building Code F9 Restricted access to residential pools
  • Ps1 available on request
Other Performance Attributes
  • 5 year warranty
Documents
PS1 PicketPanel
Installation and Operation

Boundaryline are New Zealand’s largest manufacturer and supplier of fencing, screening, and gate solutions.
