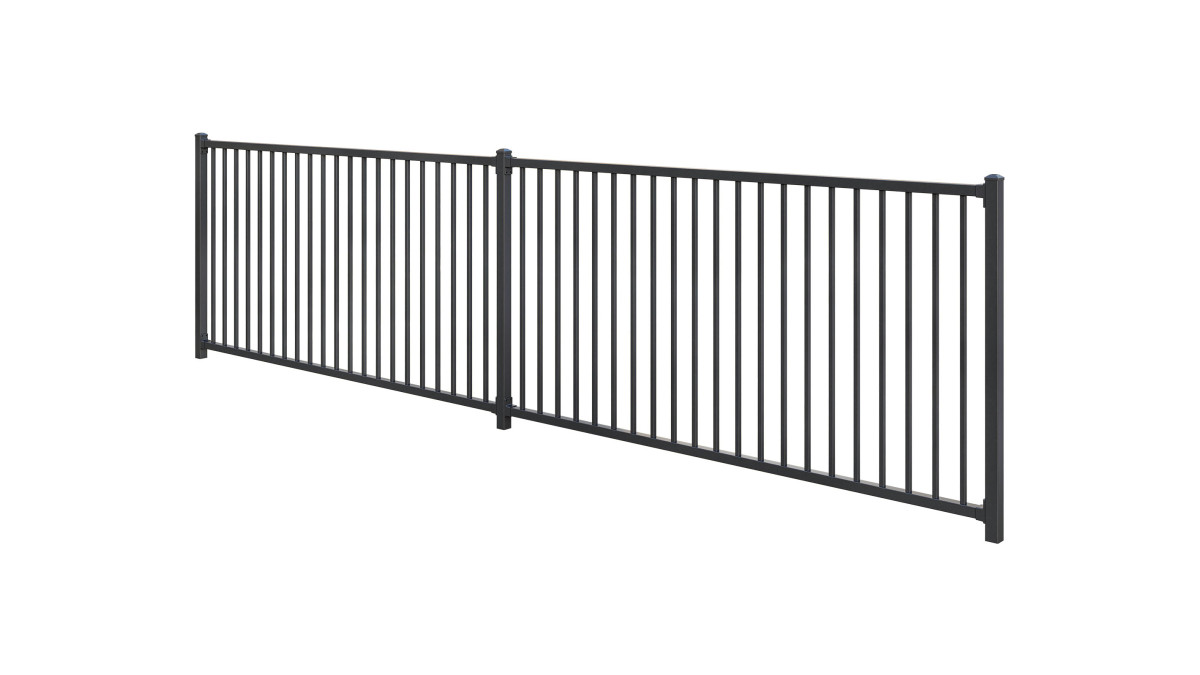

DuraPanel Delta 35 Fencing System
Boundaryline
All products

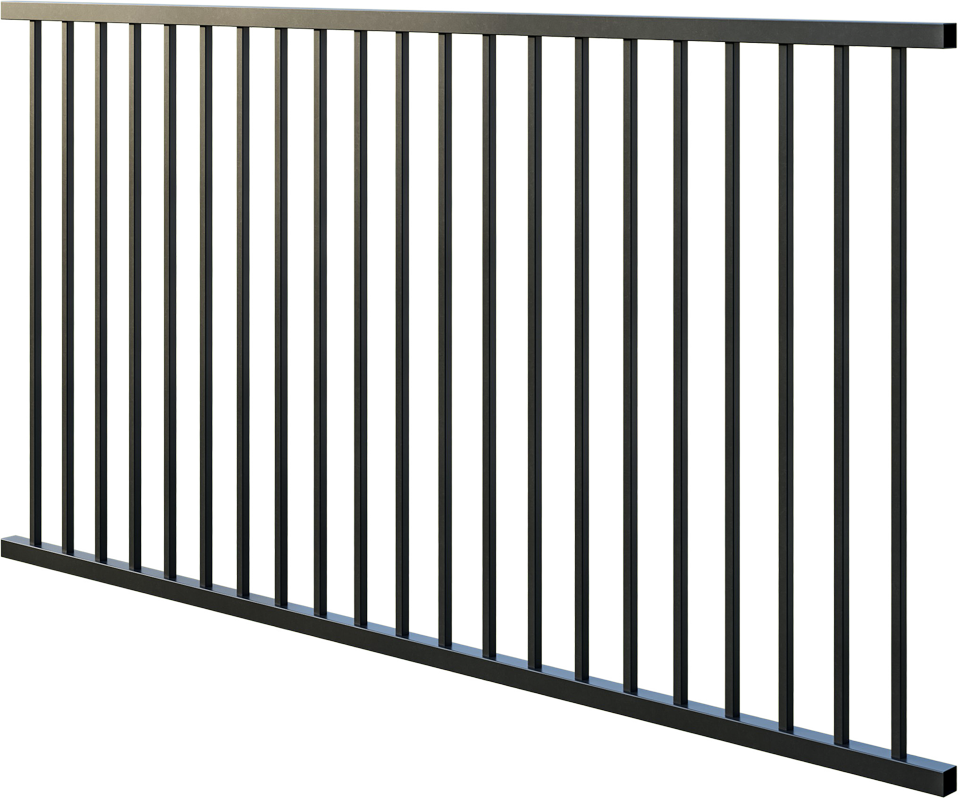

Eboss Image Delta 35 1200 single 1
Eboss Image Delta 35 1200 double 1

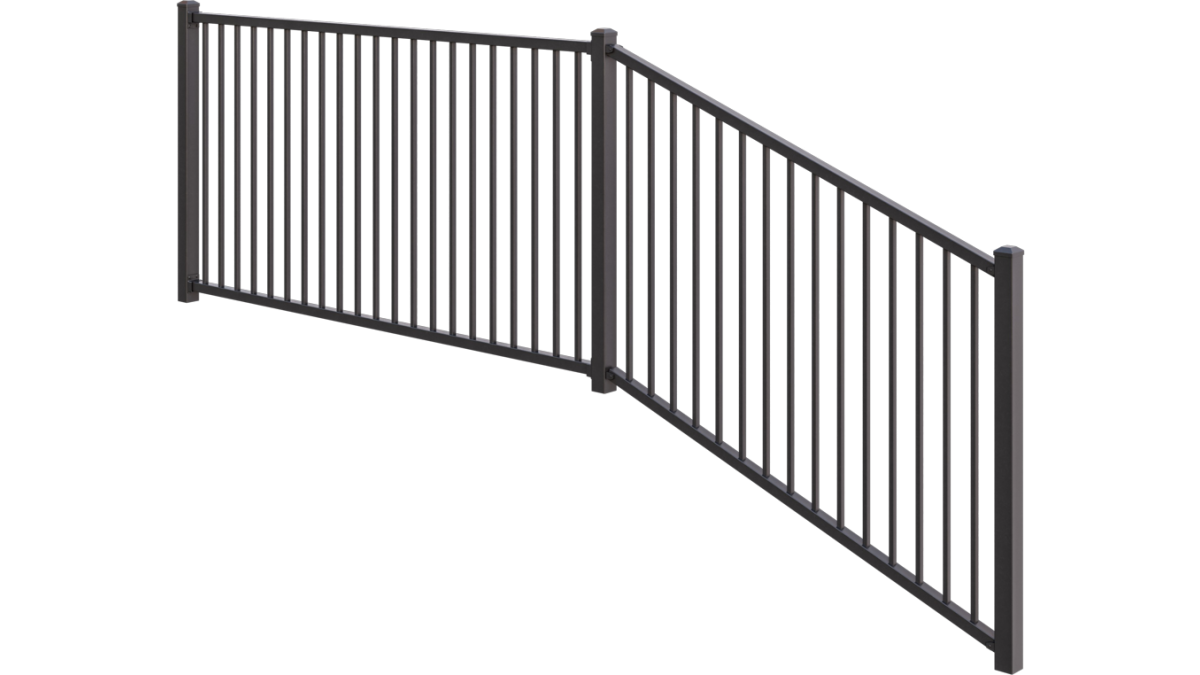

Eboss Image Delta 35 1200 double raking 1
Description

For applications where extra strength is required Boundaryline have design engineered the Delta 35 safety fencing with extra reinforcement to comply with F4 Safety From Falling Compliance, when installed to manufacturers specifications.

DuraPanel Delta 35 is made from welded aluminium and finished with black powder-coating.

  • Panel Height: 1200mm
  • Panel Length: 2400mm
  • Rakeable panel available (rakeable up to 32°)



Key Features
  • F4 compliant
  • Producer Statement available for download
  • Custom gates or panels available to be fabricated
  • Rakeable panel available up to 32°
Categories
Enclosure Balustrades and Stairs Fencing, Walling and Gates
Ranges
Balustrade Raking Visually Permeable
Scope of Use
  • Medium density fencing
  • Subdivision fencing
  • Retaining wall fencing (see limitations)
  • Balustrade fencing
Limitations on Use
  • Must be installed in accordance with Boundaryline's PS1 when being used for F4 applications
  • For F4 situations, refer to the building code to determine accurate loadings
Statement of Building Code Compliance

When designed and installed in accordance with the Boundaryline installation instructions and PS1:

  • Compliant with NZ Building Code F4 Safety from falling
  • Compliant with NZ Building Code F9 Restricted access to residential pools
  • PS1 available on request
Other Performance Attributes
  • 5 year warranty
Documents
PS1 Delta 35
pdf
Installation and Operation
URL

Boundaryline are New Zealand’s largest manufacturer and supplier of fencing, screening, and gate solutions.
