ABLOY Keying
Description

All ABLOY locks are based on the unique operating principle of rotating detainer discs. Inside the ABLOY cylinder, a series of discs rotate and function like those in a safe. Only the correct key, turned 90 degrees, will rotate the discs aligning the side bar gates. After the discs are aligned to the correct opening combination, the locking bar drops into the aligned slot allowing the lock to open. To withdraw the key it must be turned in the reverse direction until it stops. This will mechanically scramble the discs.

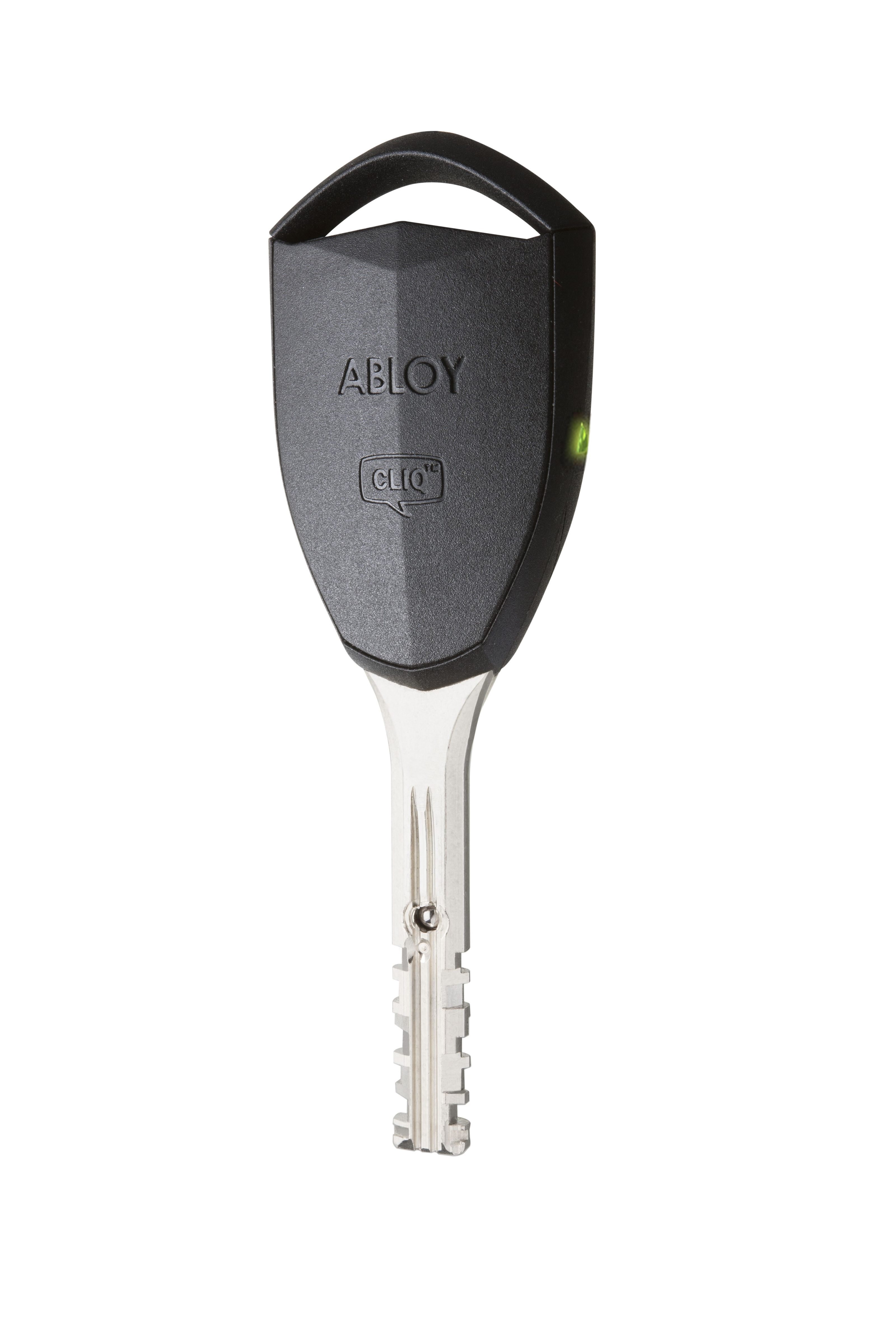

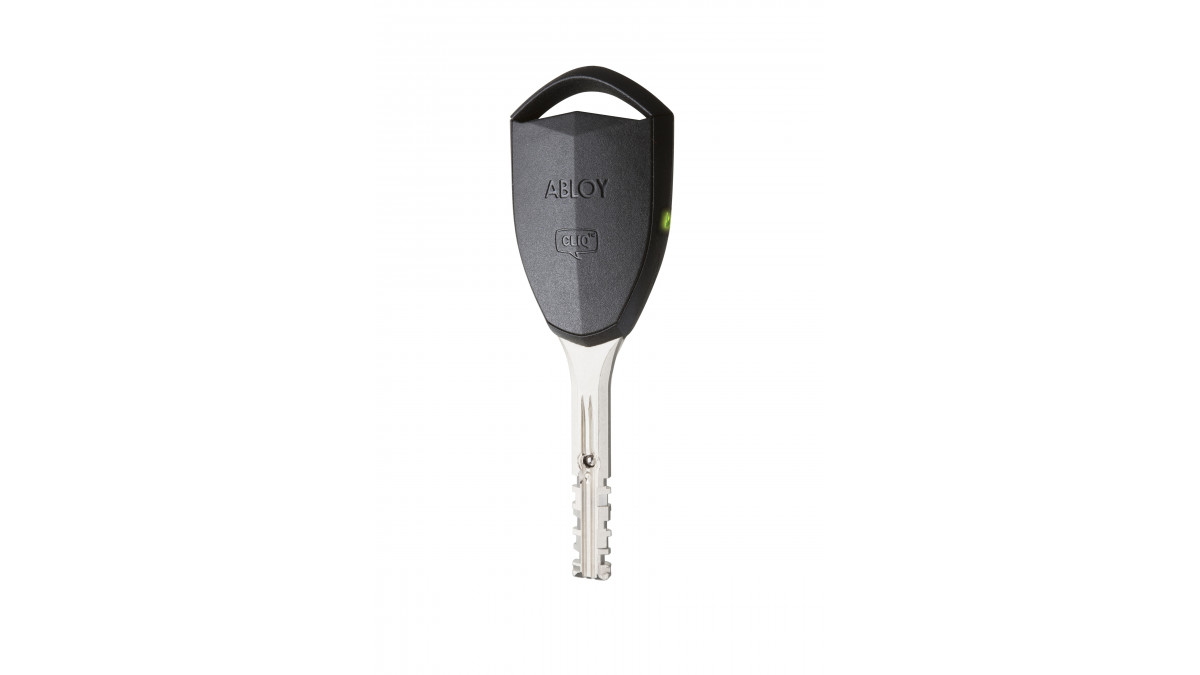

ABLOY PROTEC2 CLIQ:

ABLOY PROTEC2 CLIQ is a true one key solution where CLIQ keys are able to operate both the electromechanical and mechanical cylinders. PROTEC2 CLIQ is a very cost effective solution. CLIQ cylinders are installed in areas which require electronic features such as audit trails, time limited access and easy blocking of lost keys. Those areas could for instance be the perimeters, storerooms or server rooms. Mechanical PROTEC2 cylinders are then installed in  the other areas.

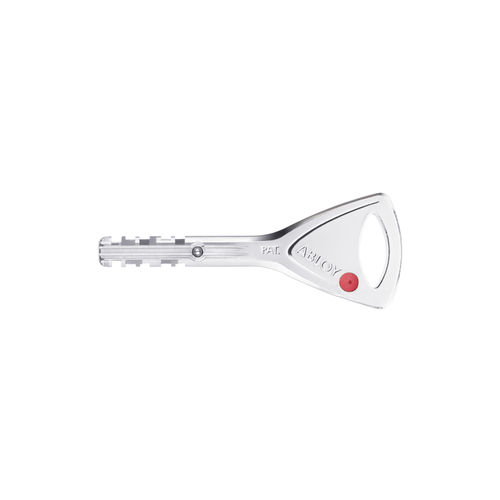

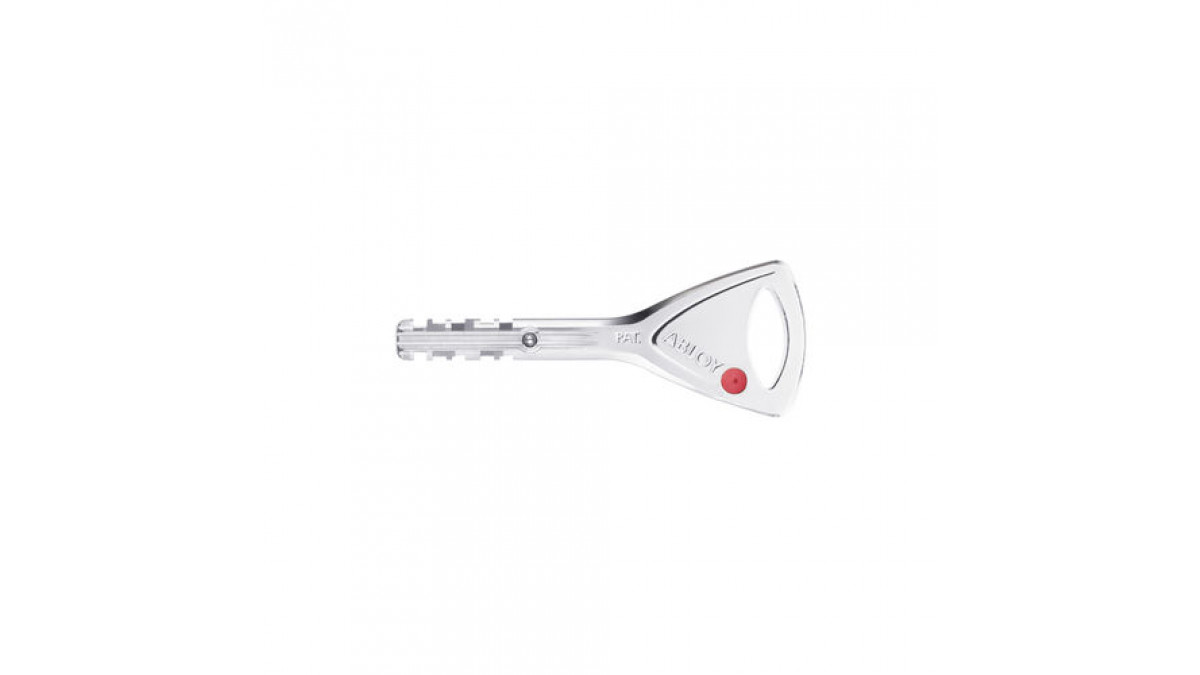

ABLOY PROTEC2:

ABLOY PROTEC2 is the latest milestone in the development of the unique ABLOY rotating disc cylinder keying systems. In an ABLOY PROTEC2 locking system, different products can be keyed into the same master key system and thus all products can be operated with just a single key. This simplifies the locking system and key management.

The range is wide, there are 197 billion different key combinations providing the possibility to create extensive master key systems that fulfil exact specifications.

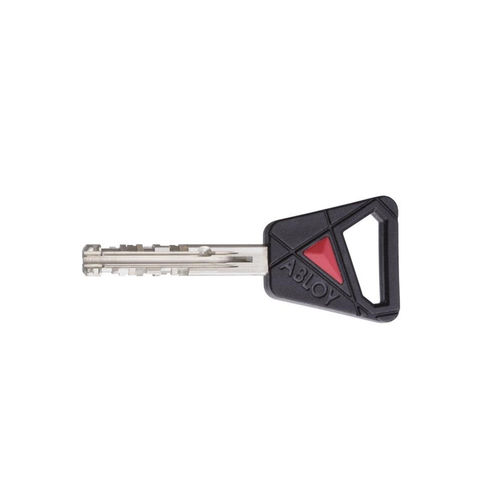

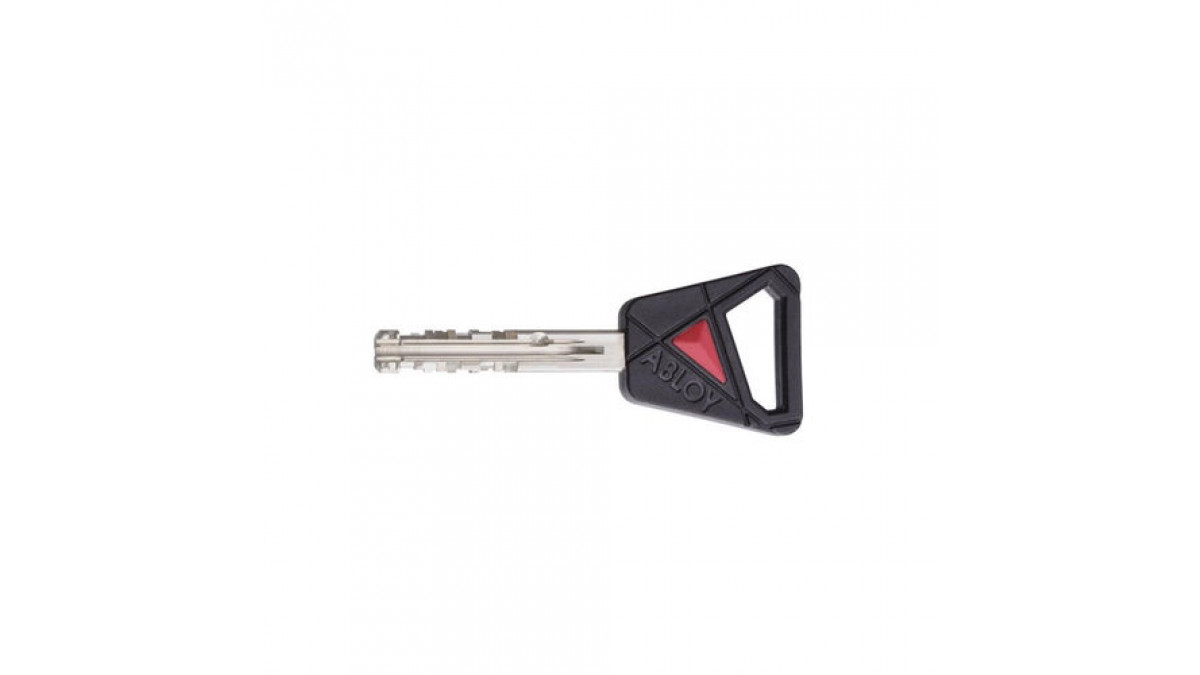

ABLOY NOVEL:

The unique ABLOY cylinder mechanism, based on the use of rotating discs instead of the traditional springs and pins, is known widely by security professionals all over the world. In the ABLOY NOVEL locking system different products can be keyed into one master key system and thus all products can be operated with just a single key whether the application is a door, gate, drawer or cabinet.

The range is wide providing the possibility to create extensive master key systems that fulfil exact specifications. ABLOY NOVEL is an excellent solution for new builds as well as when upgrading existing locking systems. With the ABLOY product range the core always remains the same.

Categories / Ranges
Locks Locking Electronic Locking
Documents
ASSA ABLOY ABLOY Keying
ASSA ABLOY Online Catalogue

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
