Smart Tray Standing Seam Cladding
Description

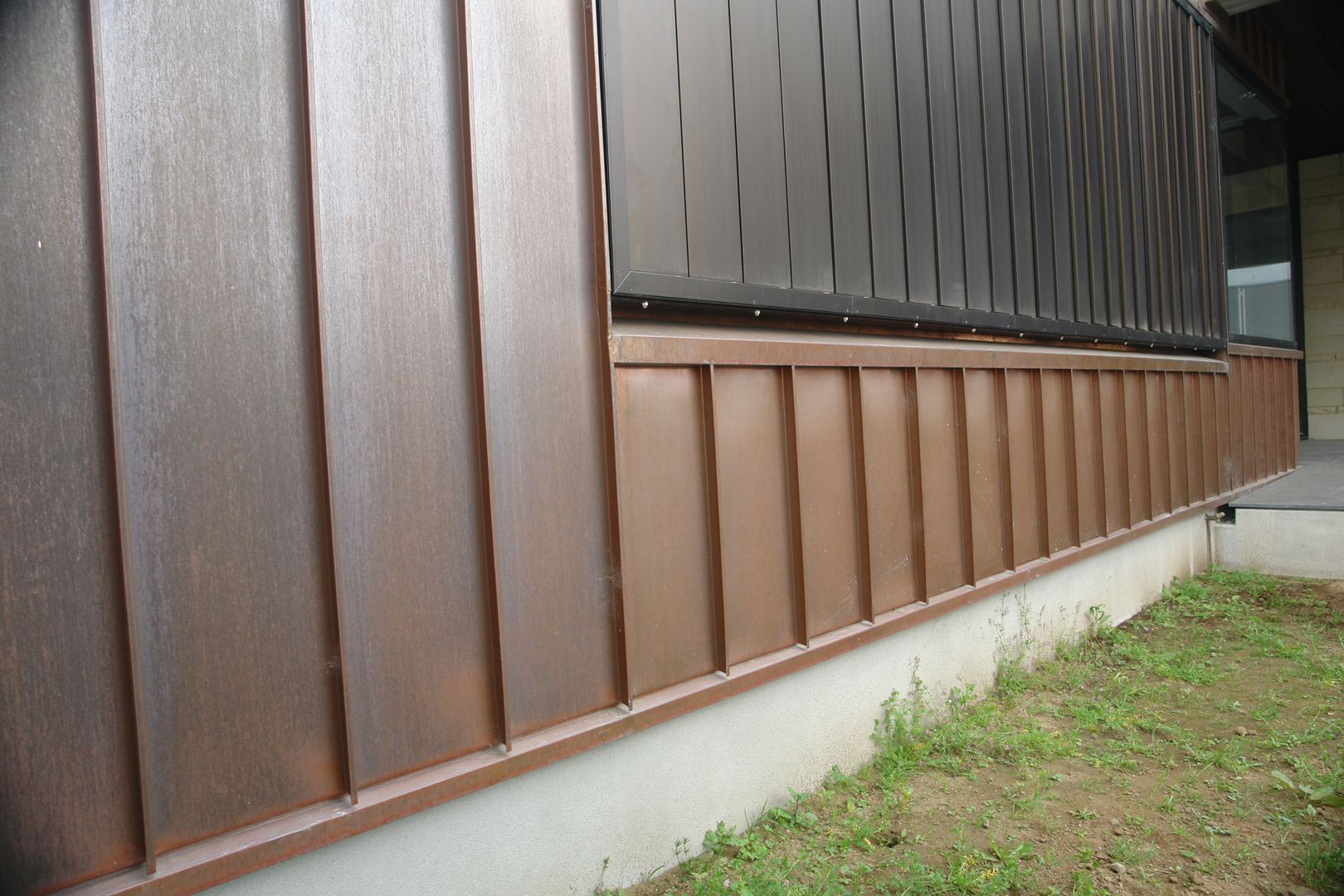

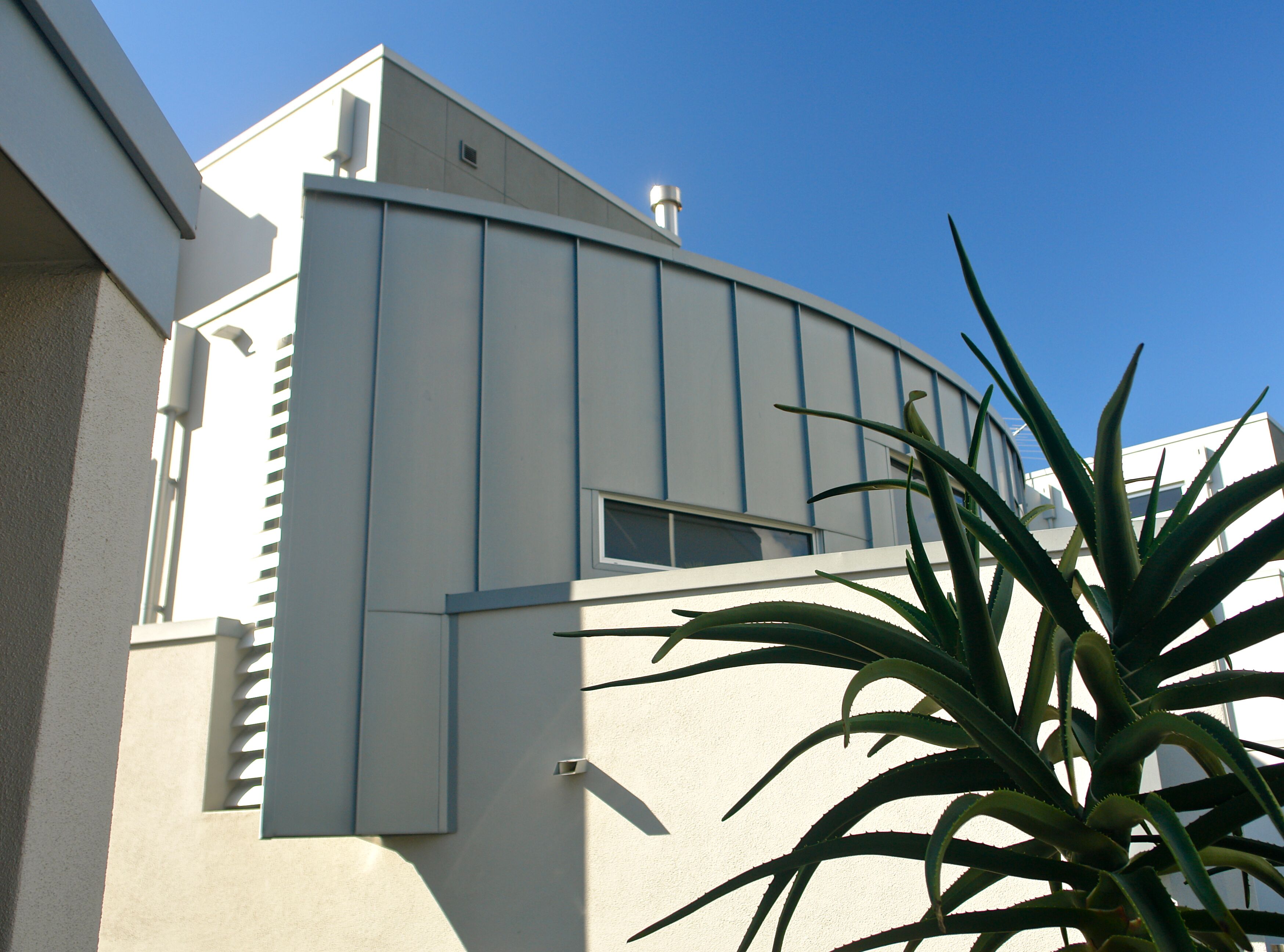

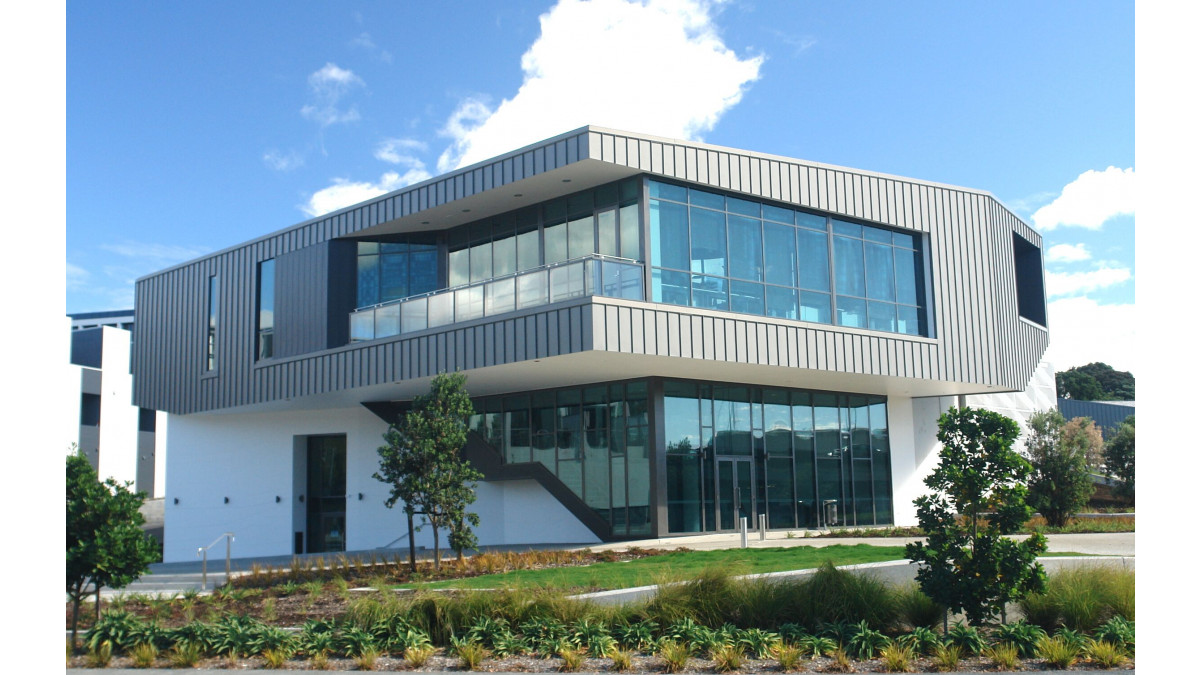

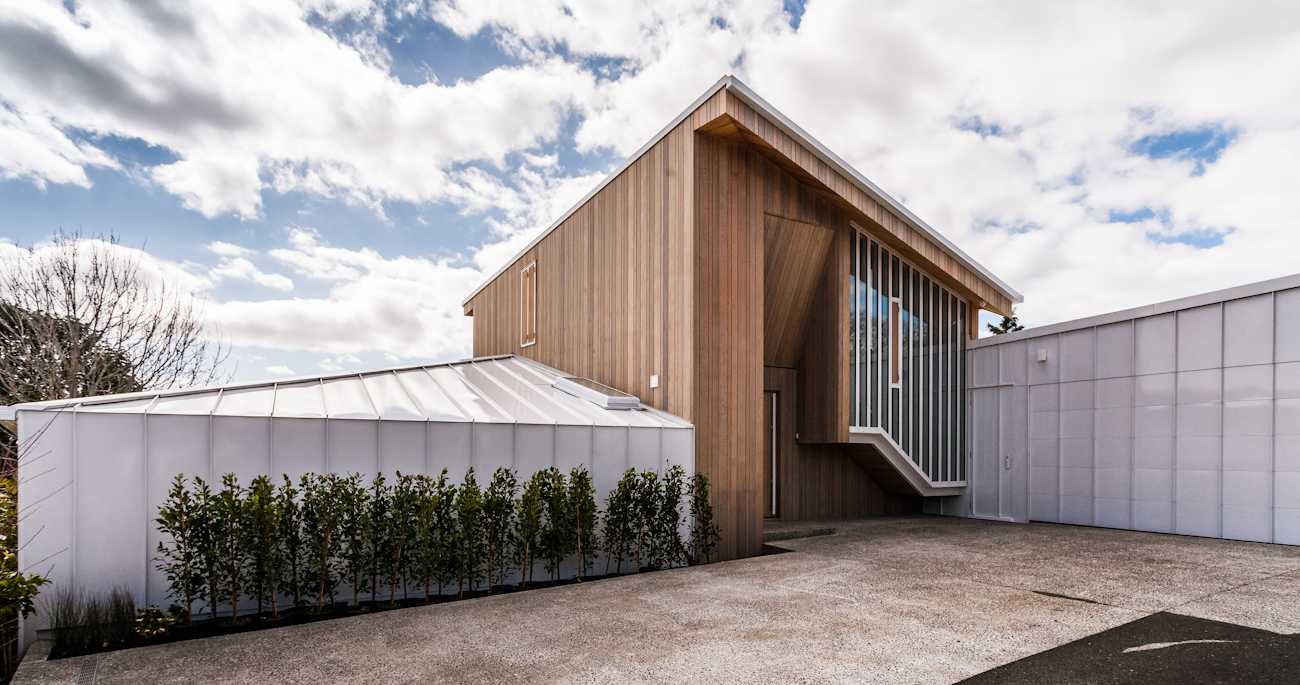

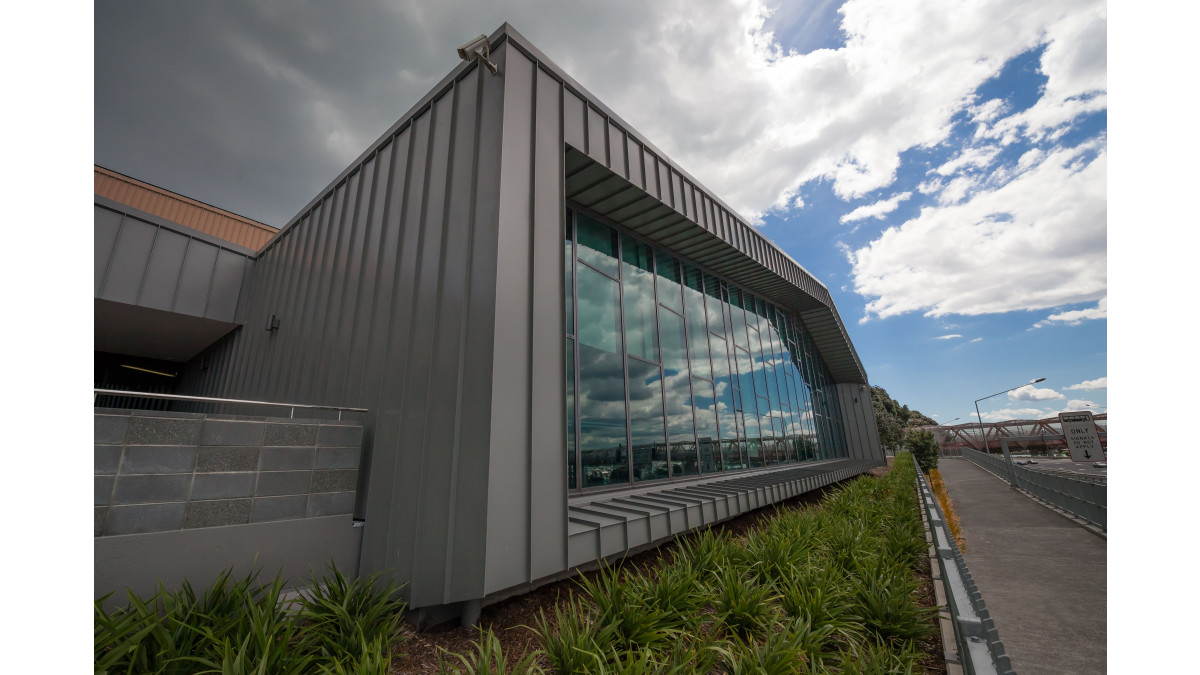

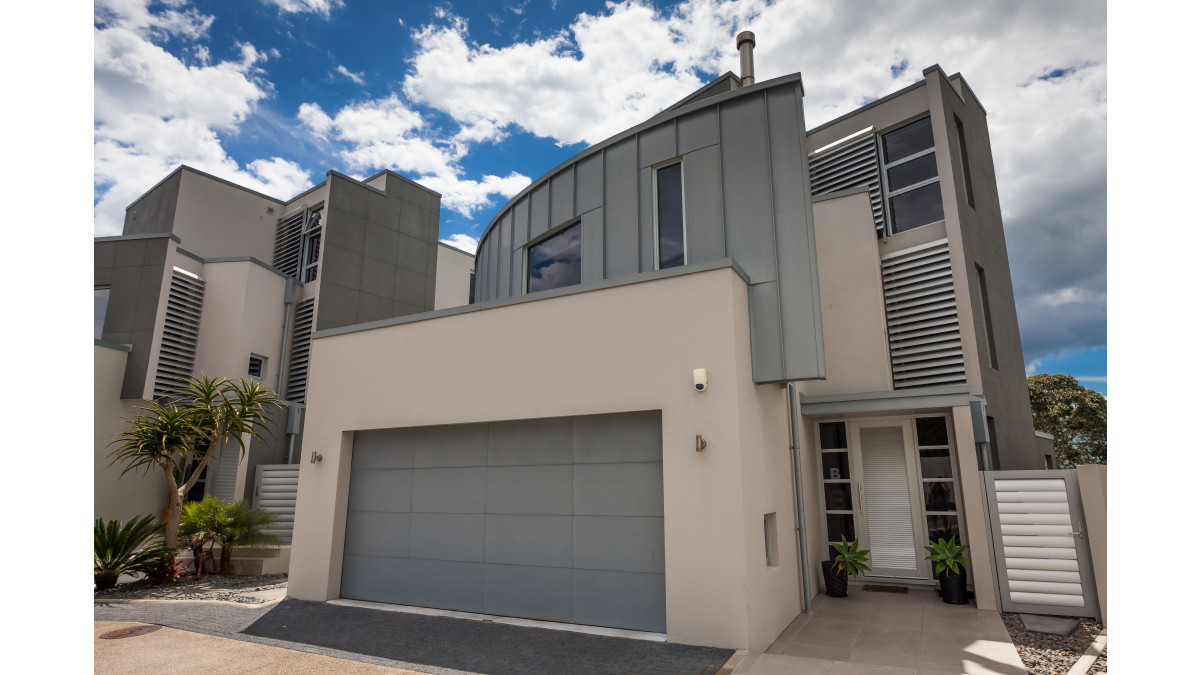

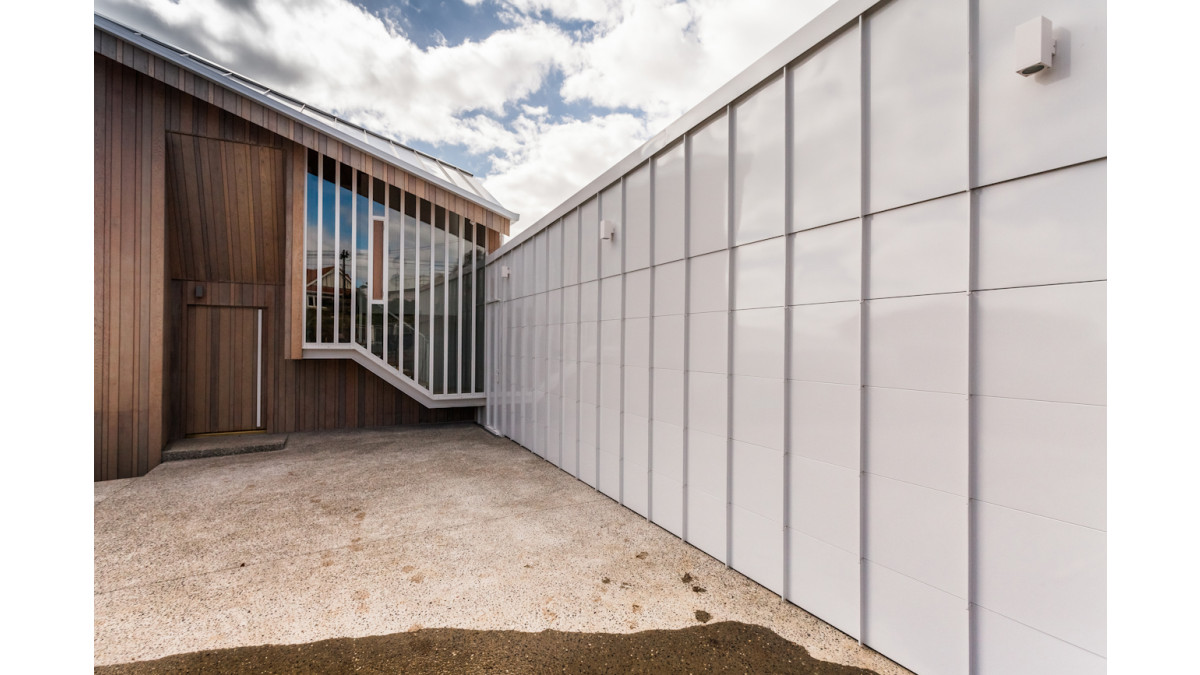

The Smart Tray Standing Seam Cladding Profile is a popular choice of wall cladding finishes with architects and homeowners across the world.

The profile provides a clean minimalist finish that shows enhanced longitudinal seam features with dramatic shading effects. Façades are carefully wrapped in the selected metal to give a very contemporary look and feel to the structure. The trays can be installed in the vertical or horizontal orientation and tray widths can be adjusted to suit the project requirements. This product is available in a single or double lock.

It is this flexibility that sees designers adopting a bit of creativity by introducing new elements such as randomly mixed tray sizes across a façade or two (bar code effect).

Categories
Metal Cladding
NZ Made
NZ Made
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Dissimilar Metals/Materials
Specification Clause/Guide
Producer Statement
Installation and Operation
Maintenance and Warranty

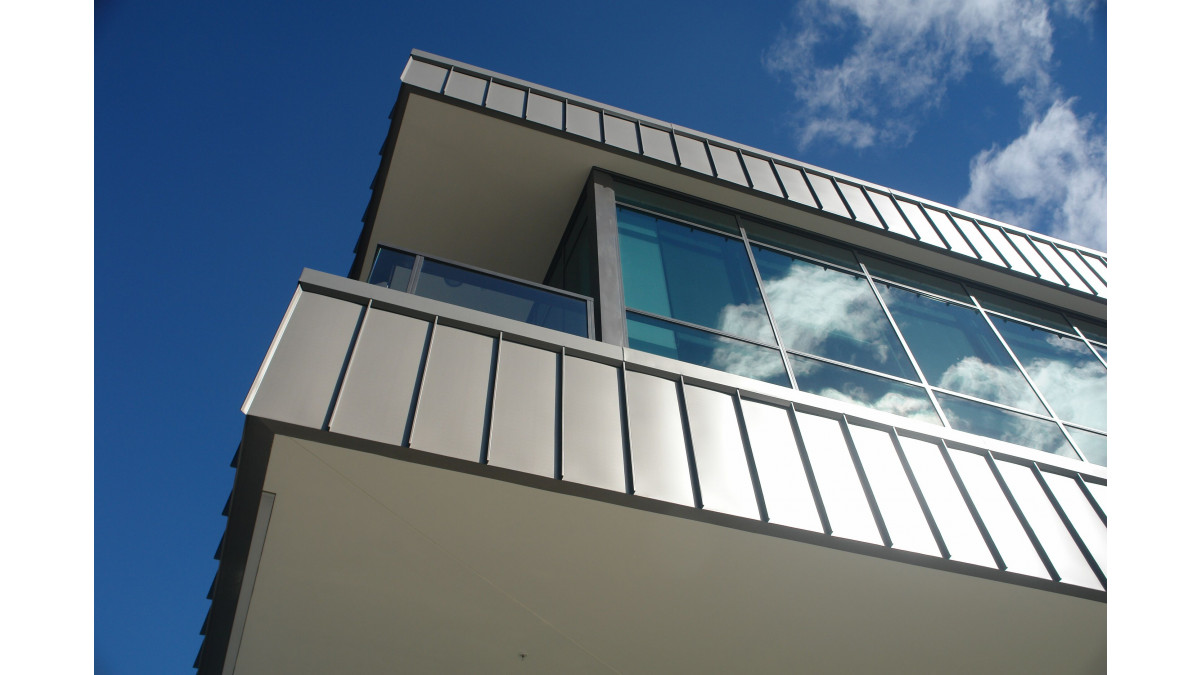

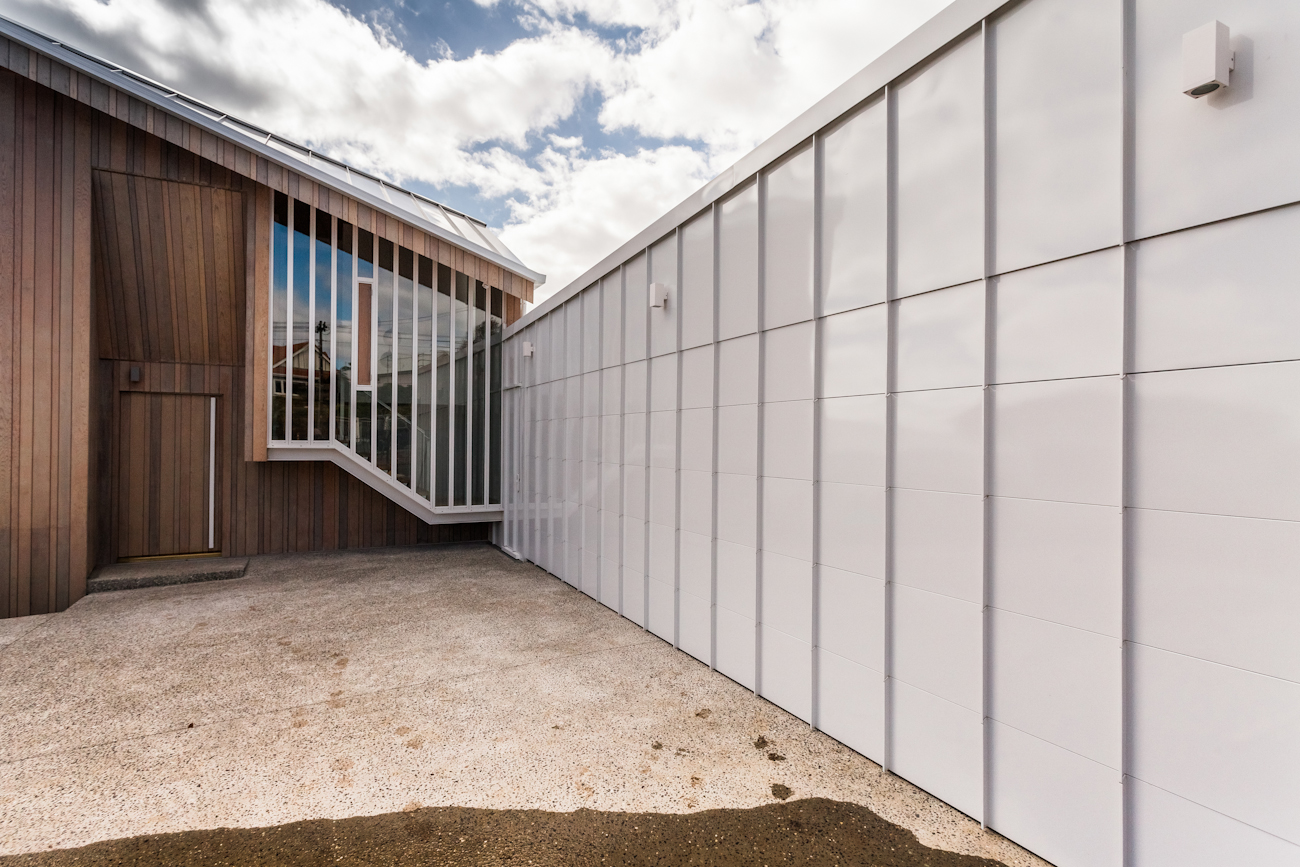

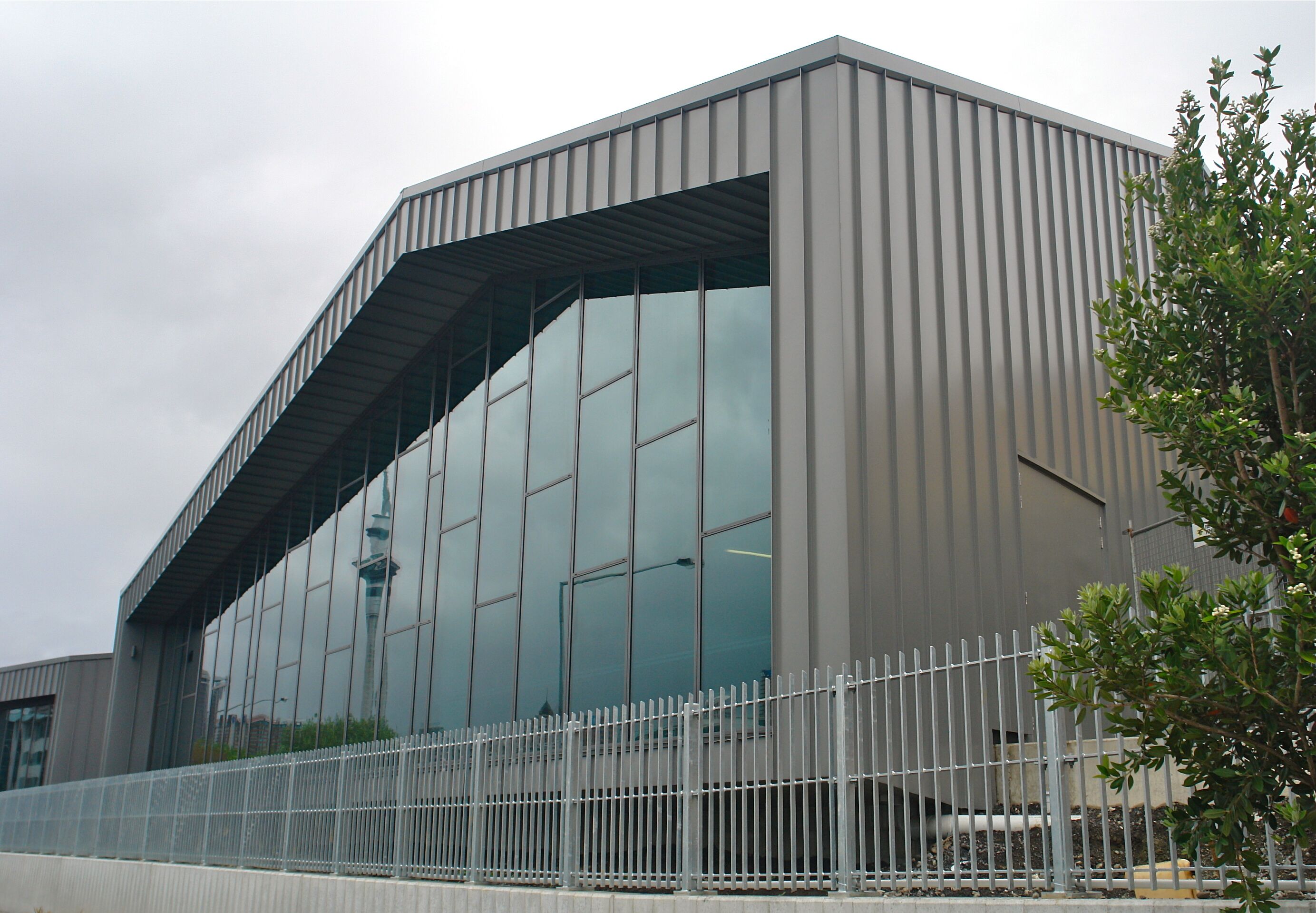

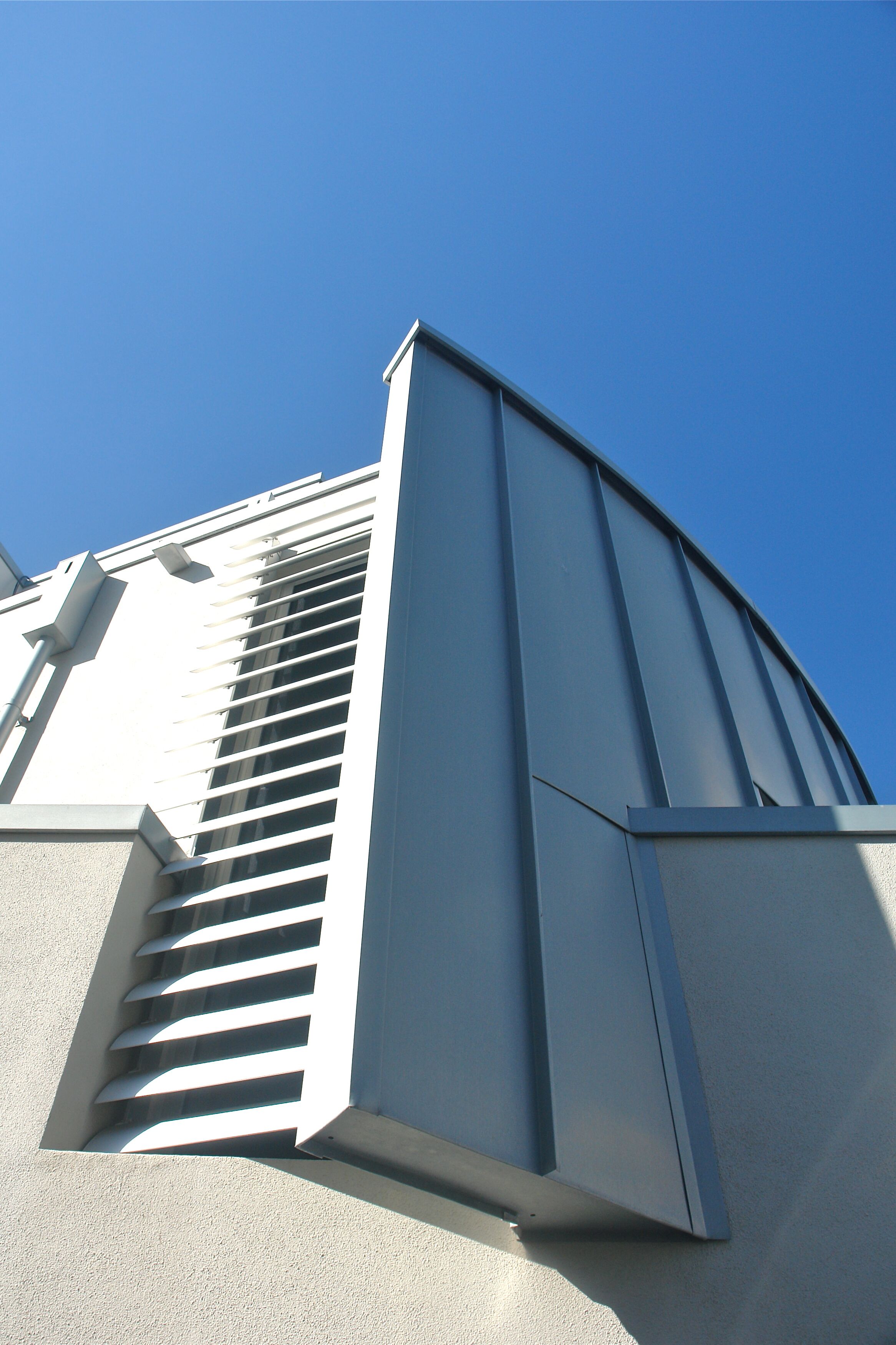

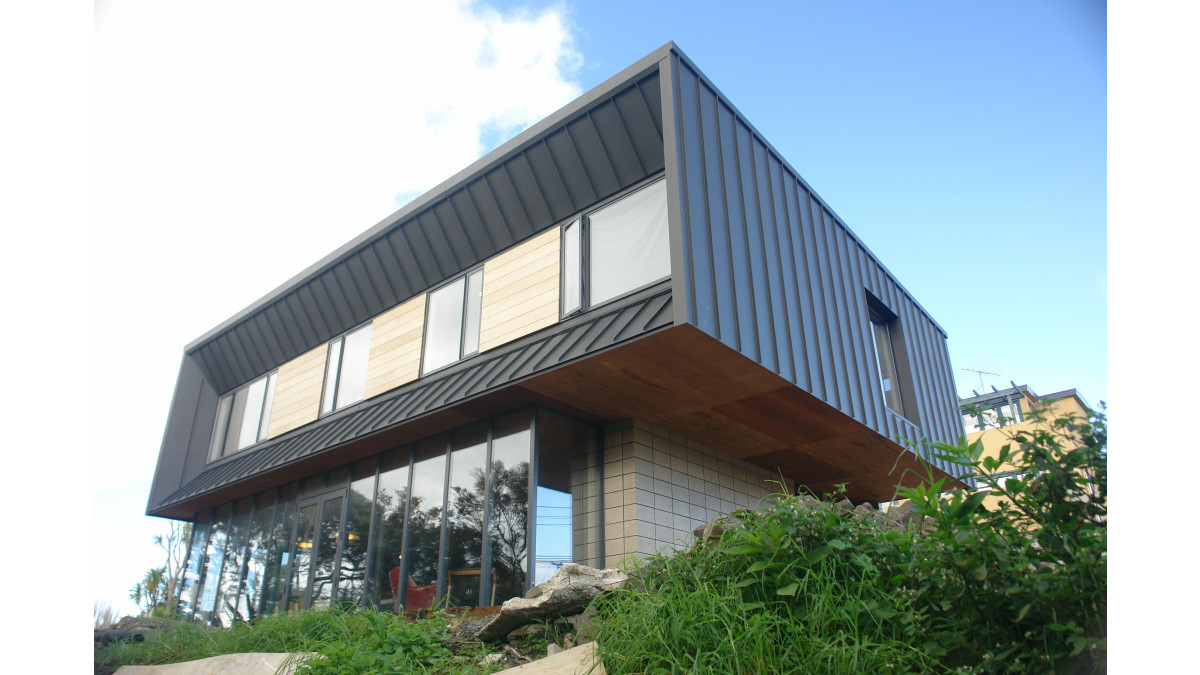

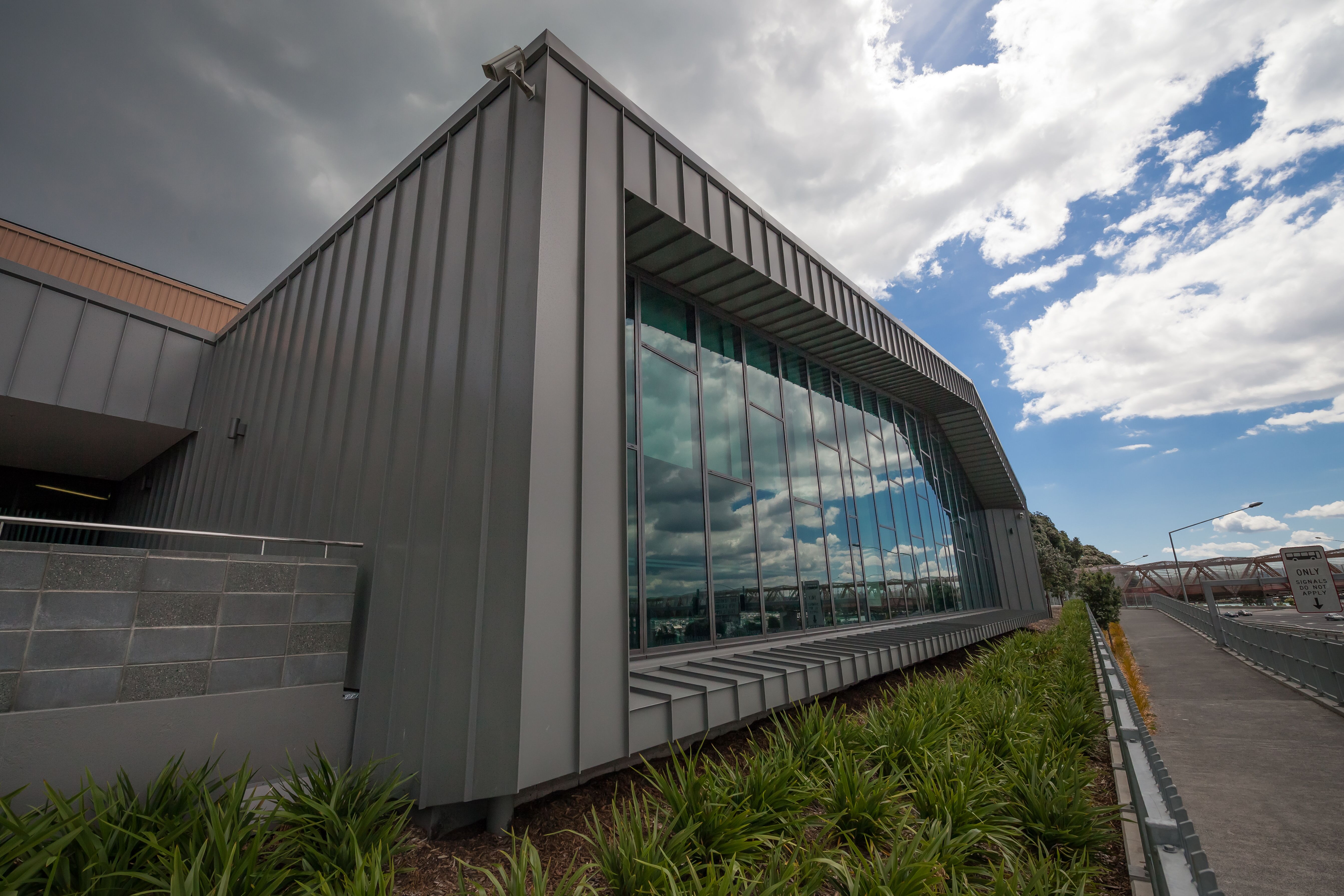

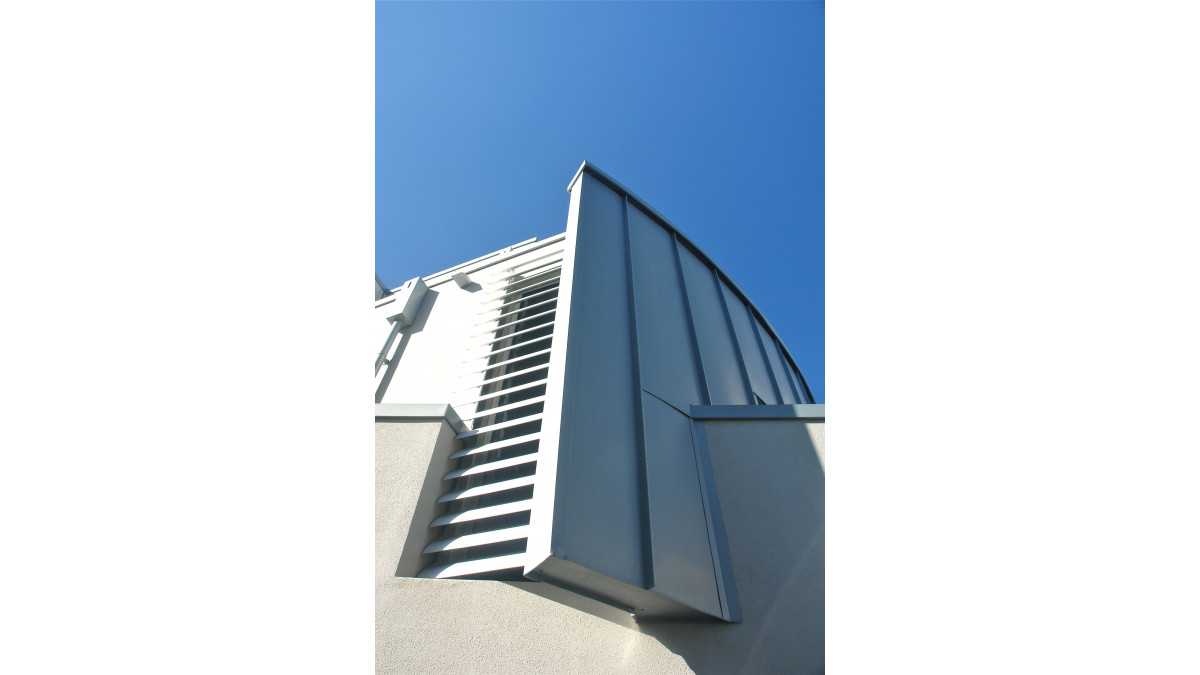

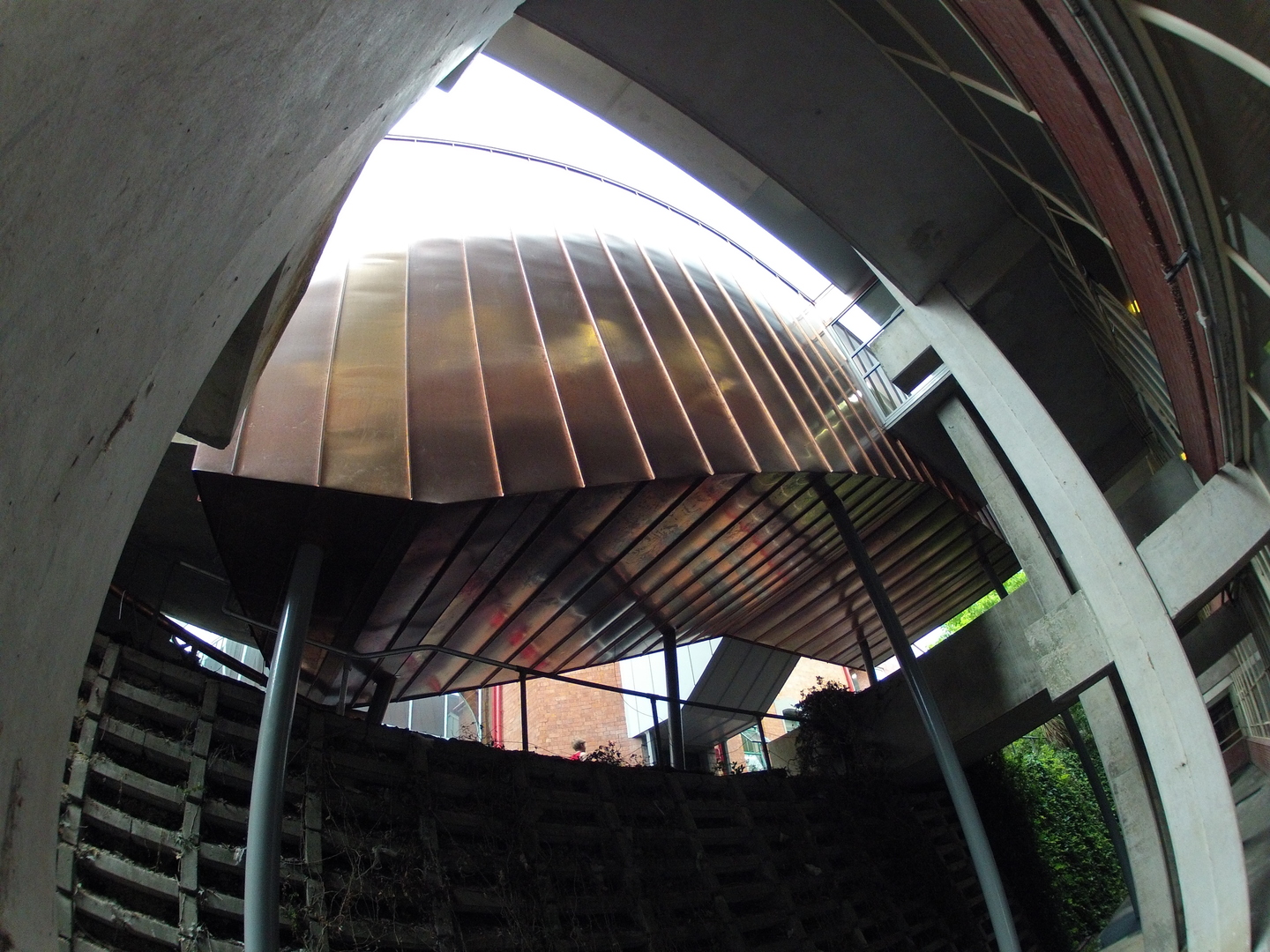

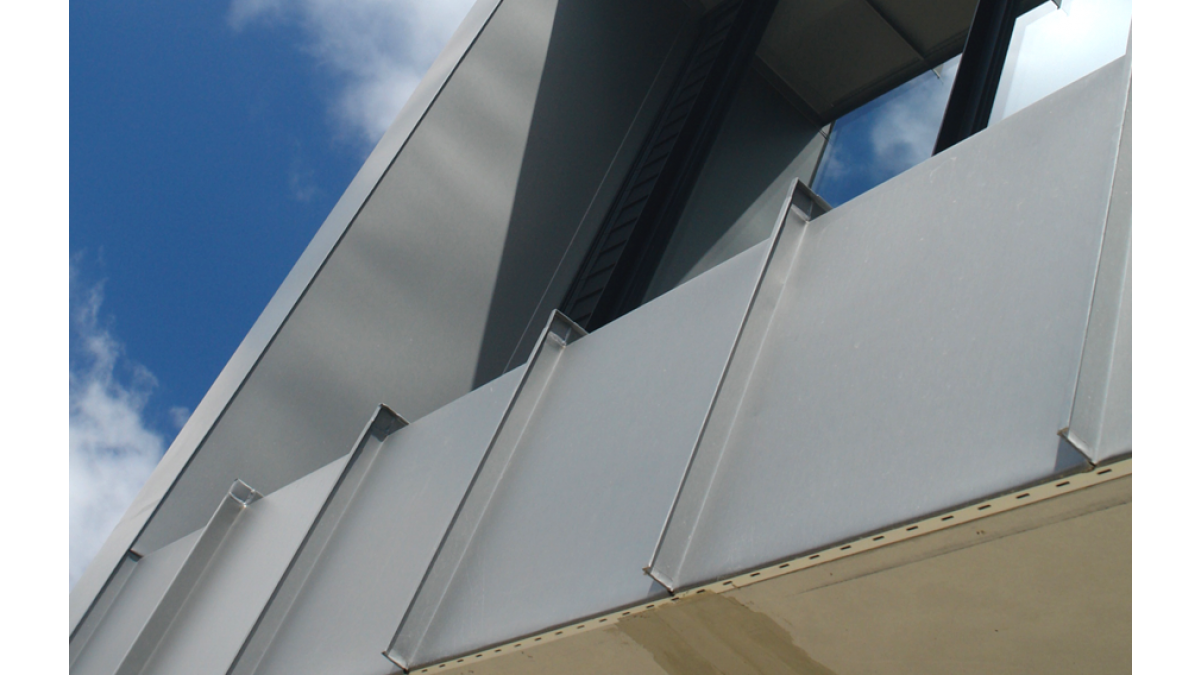

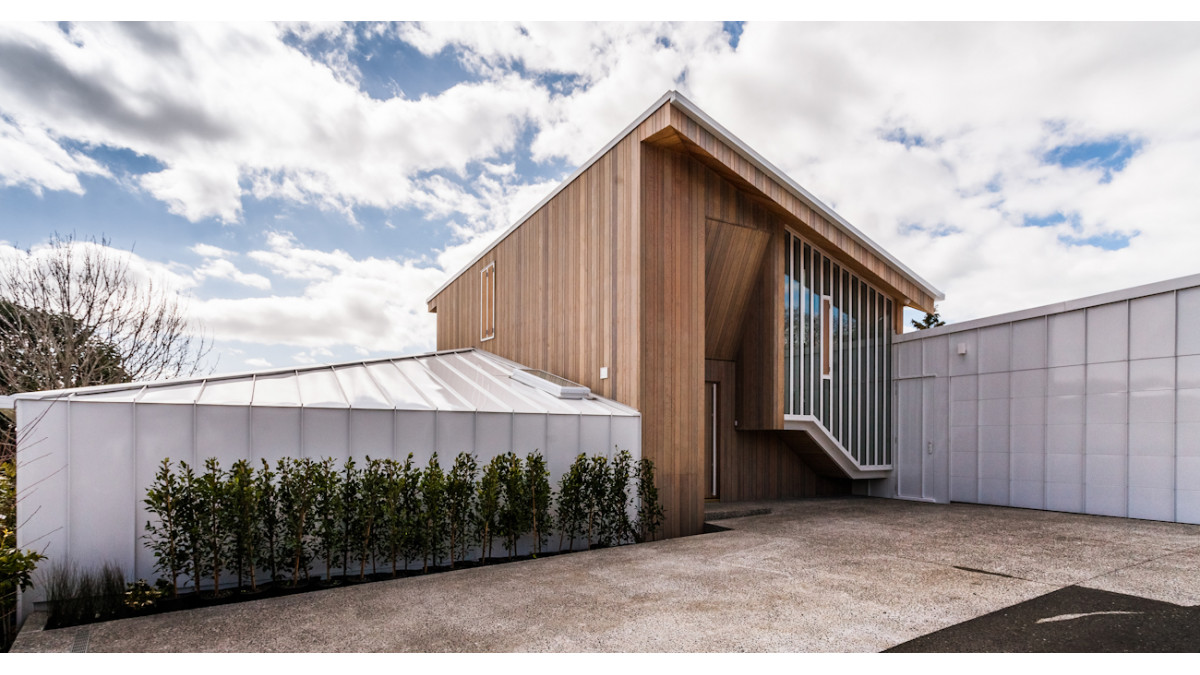

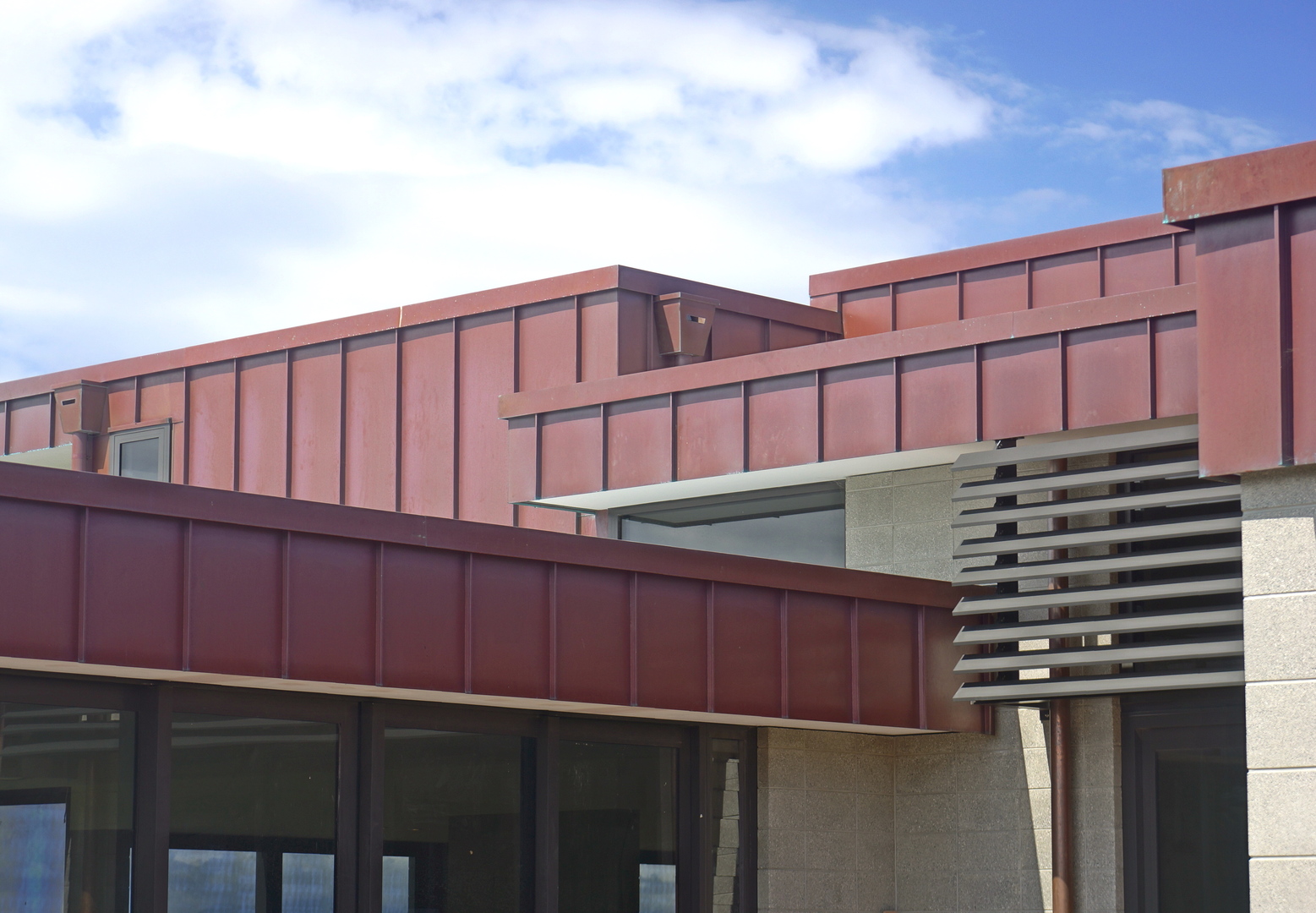

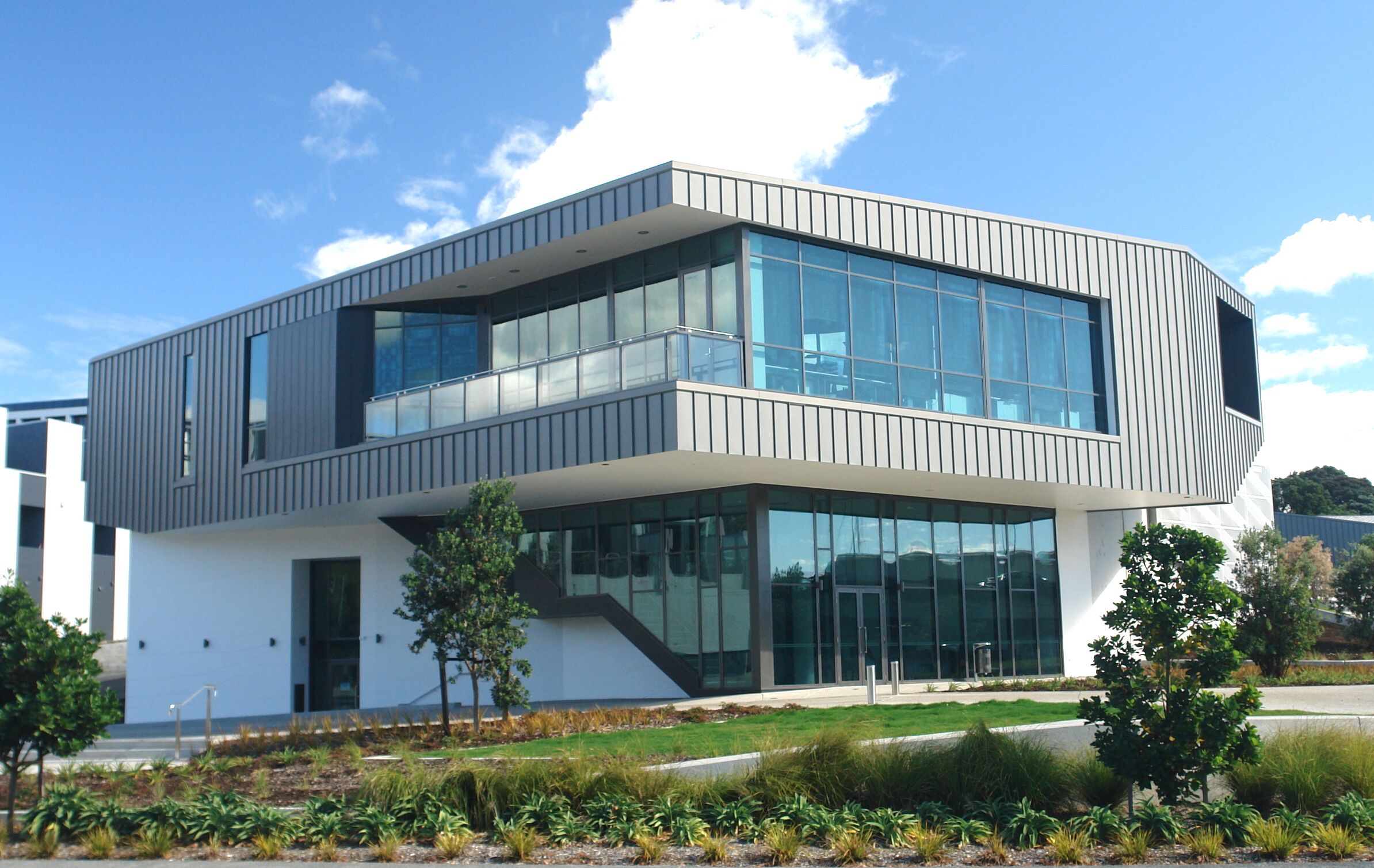

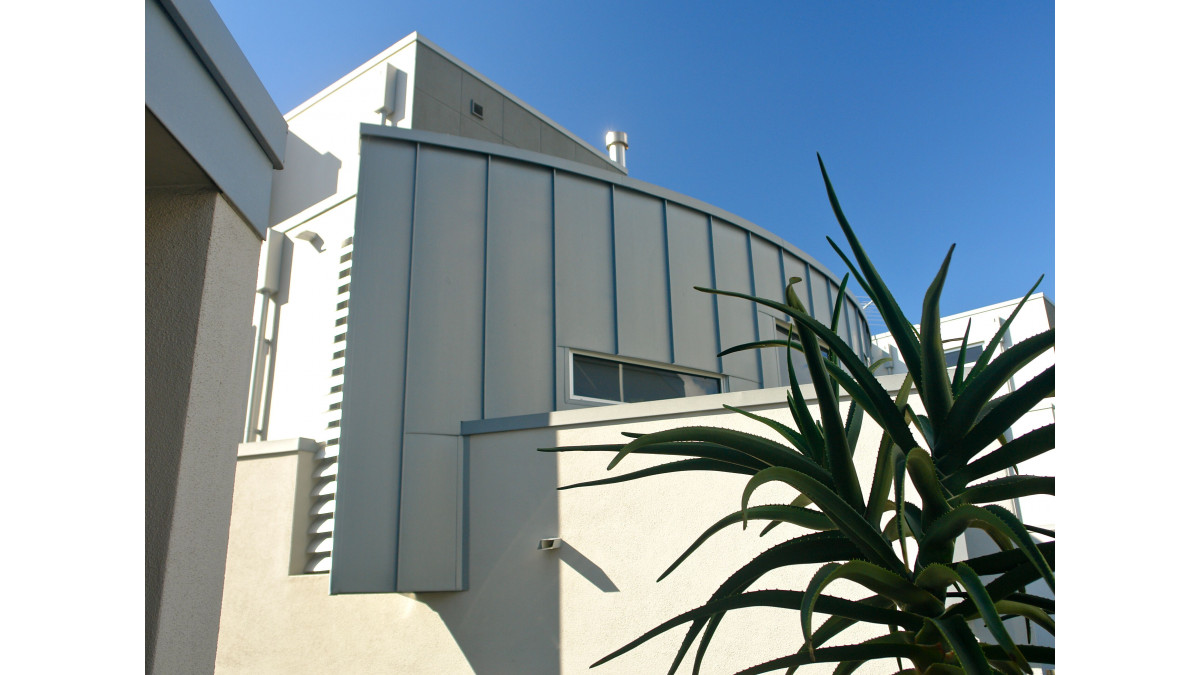

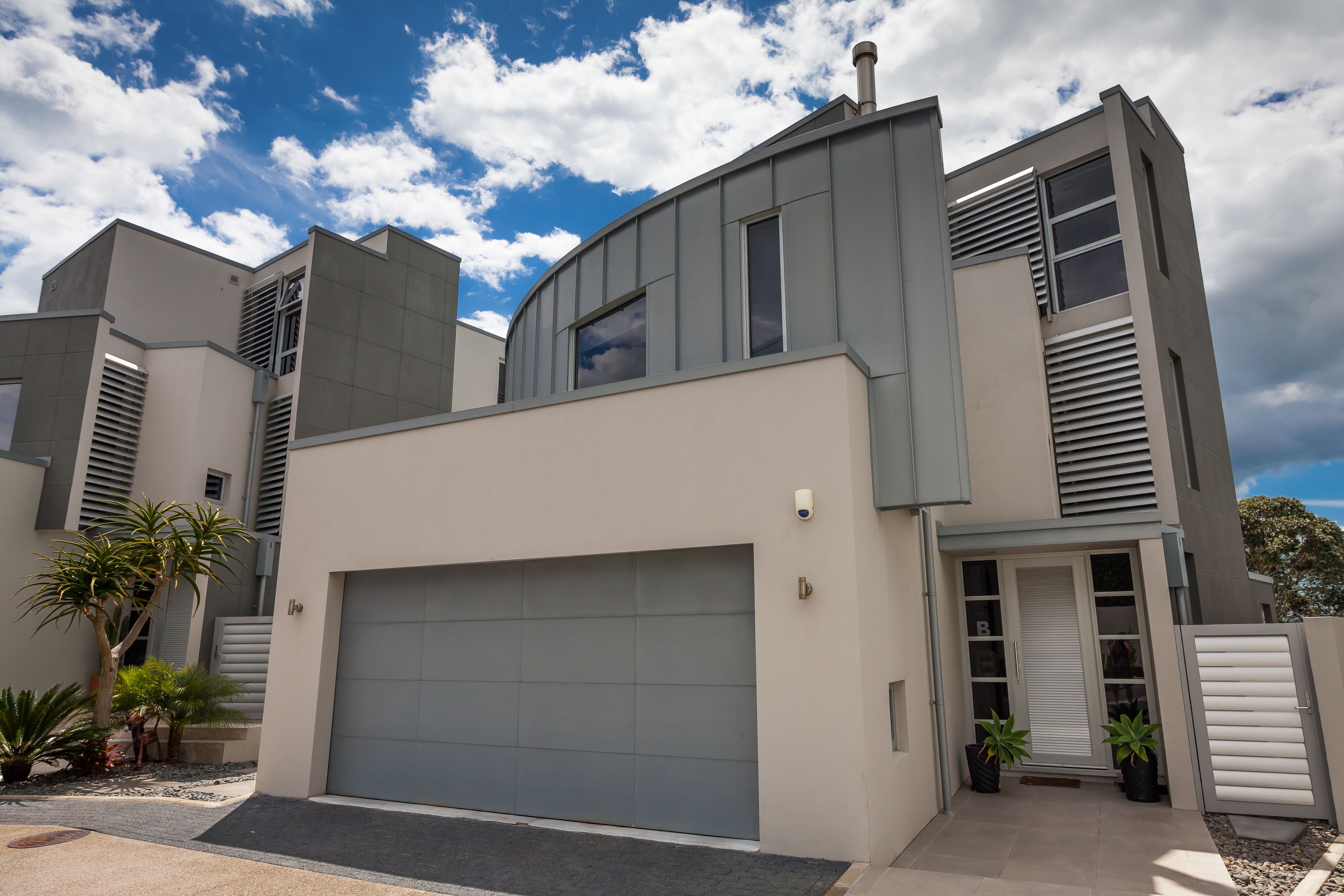

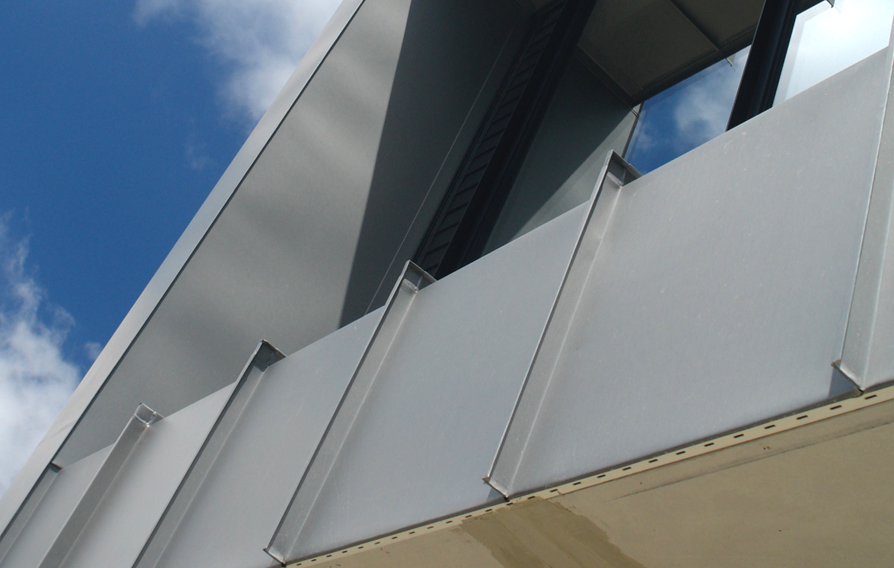

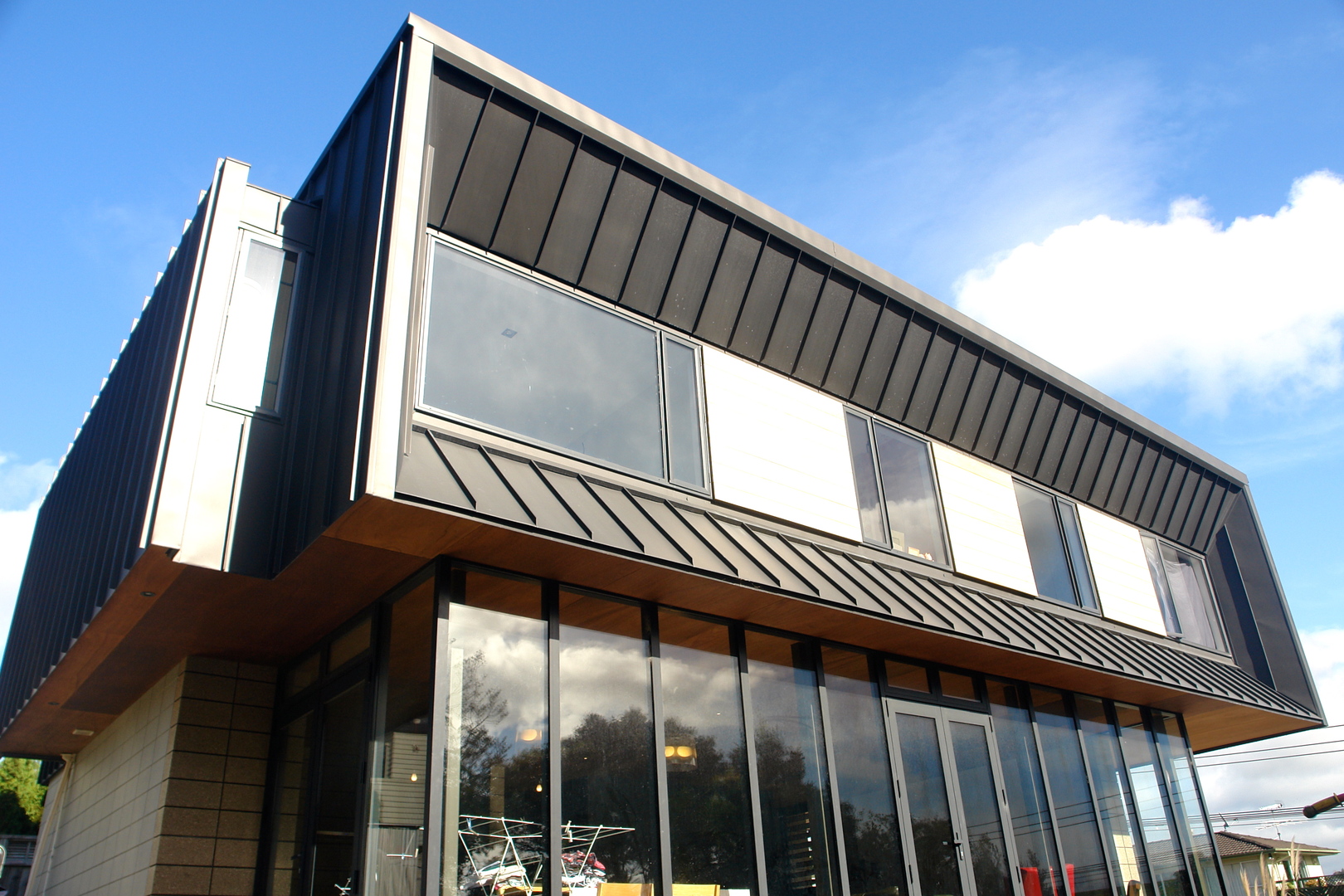

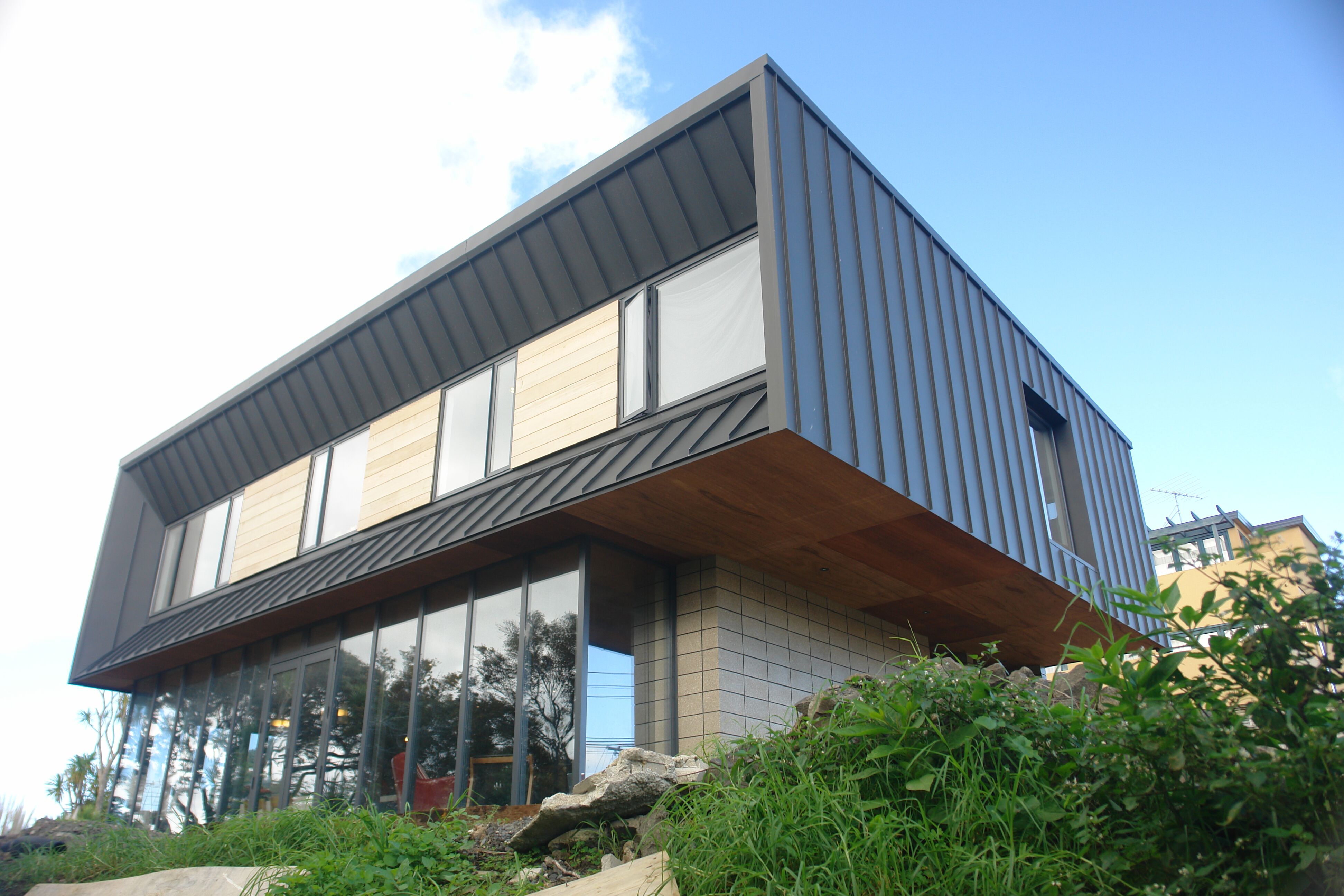

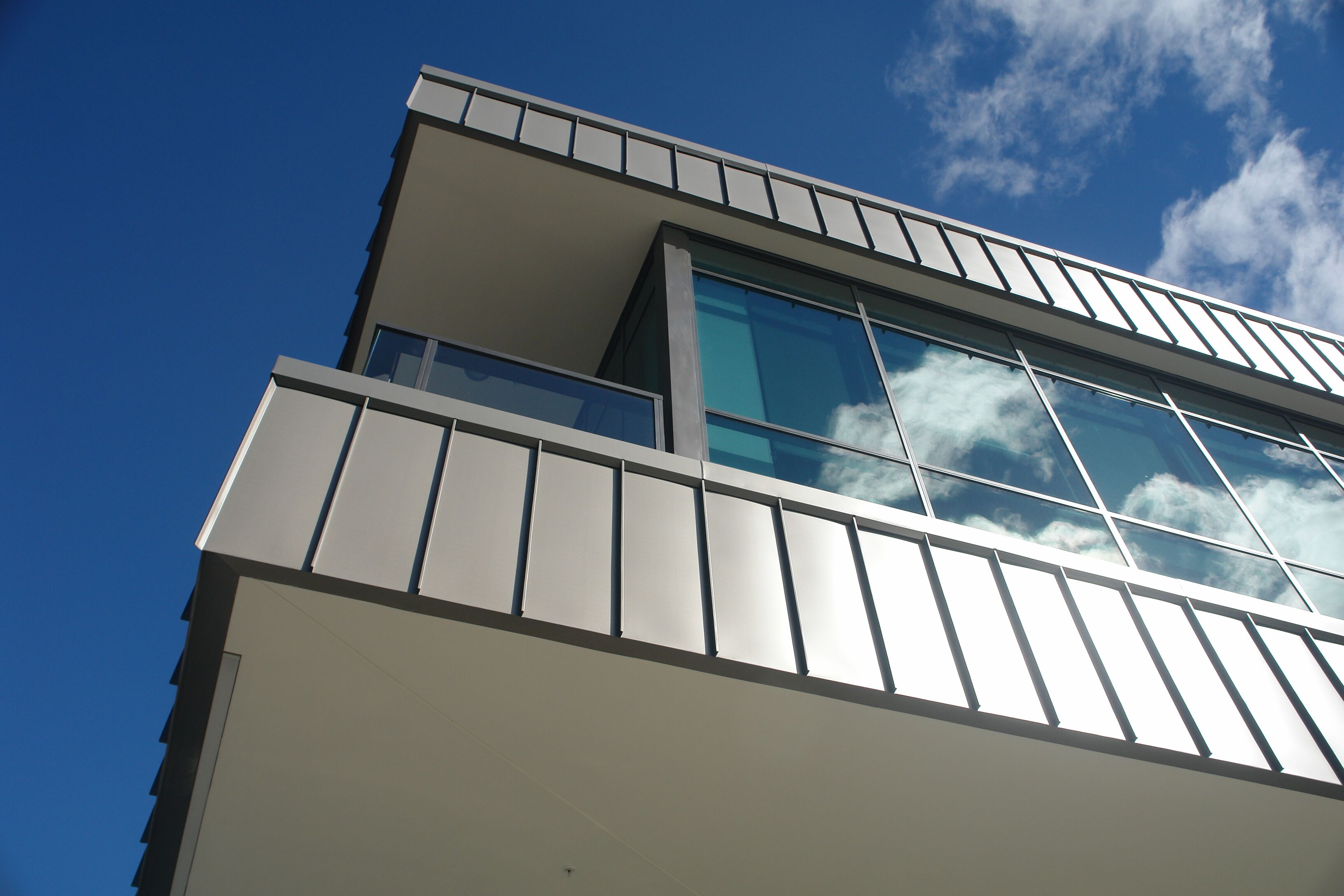

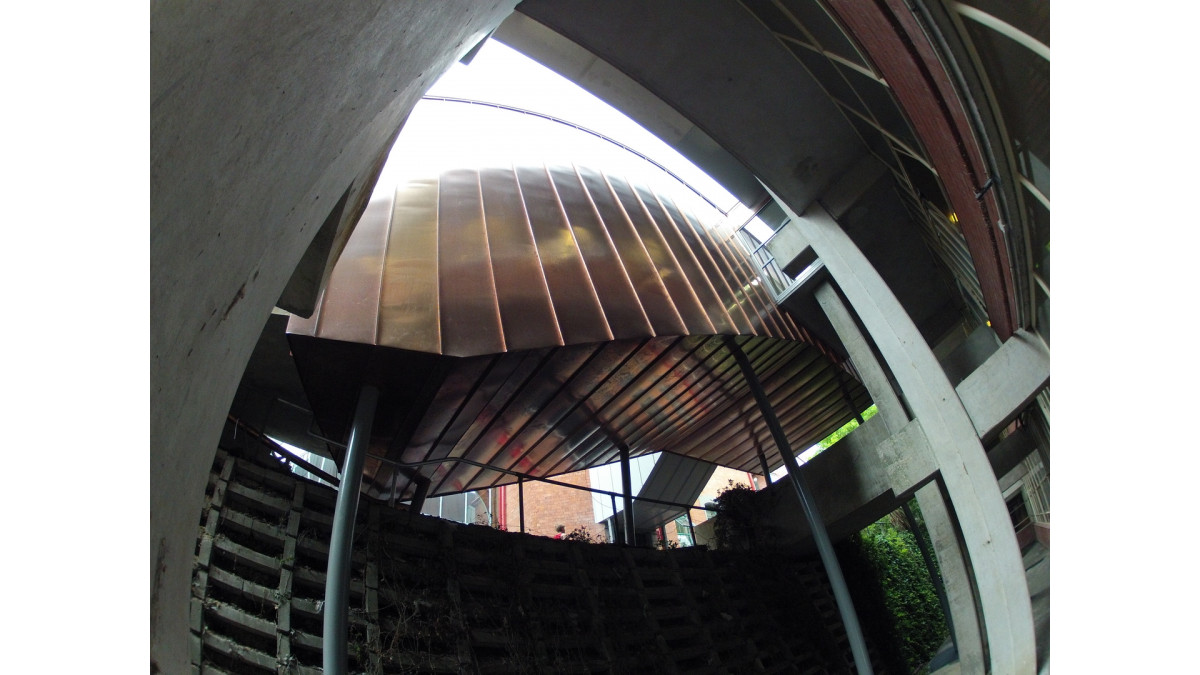

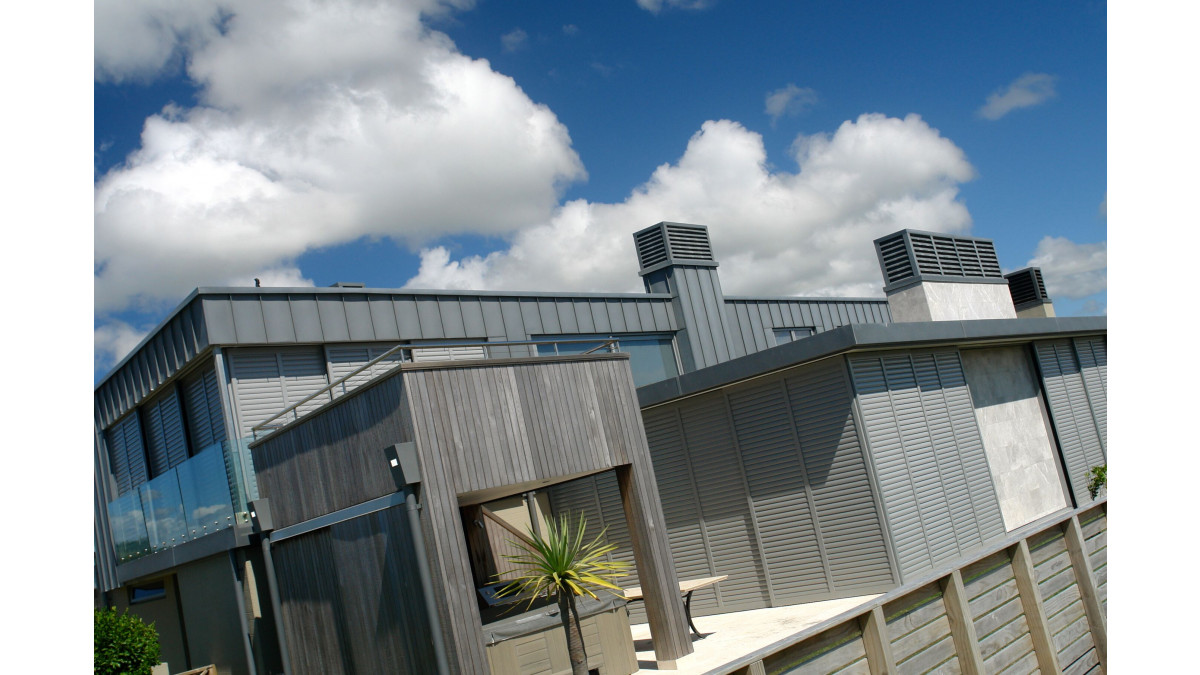

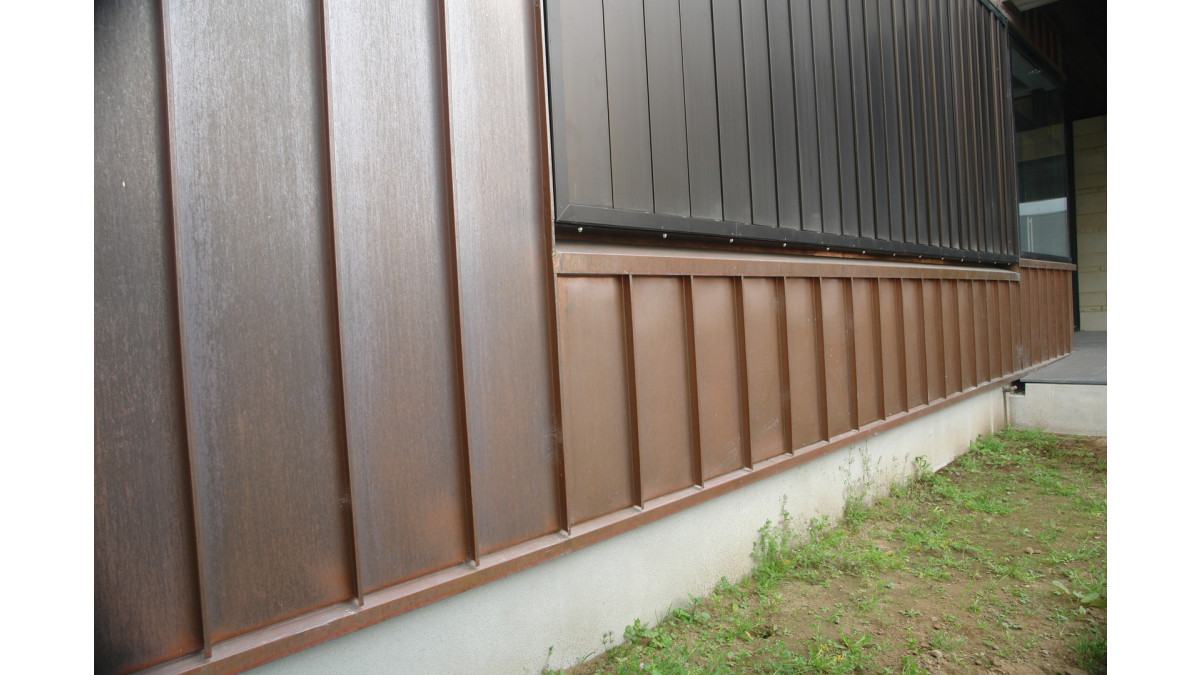

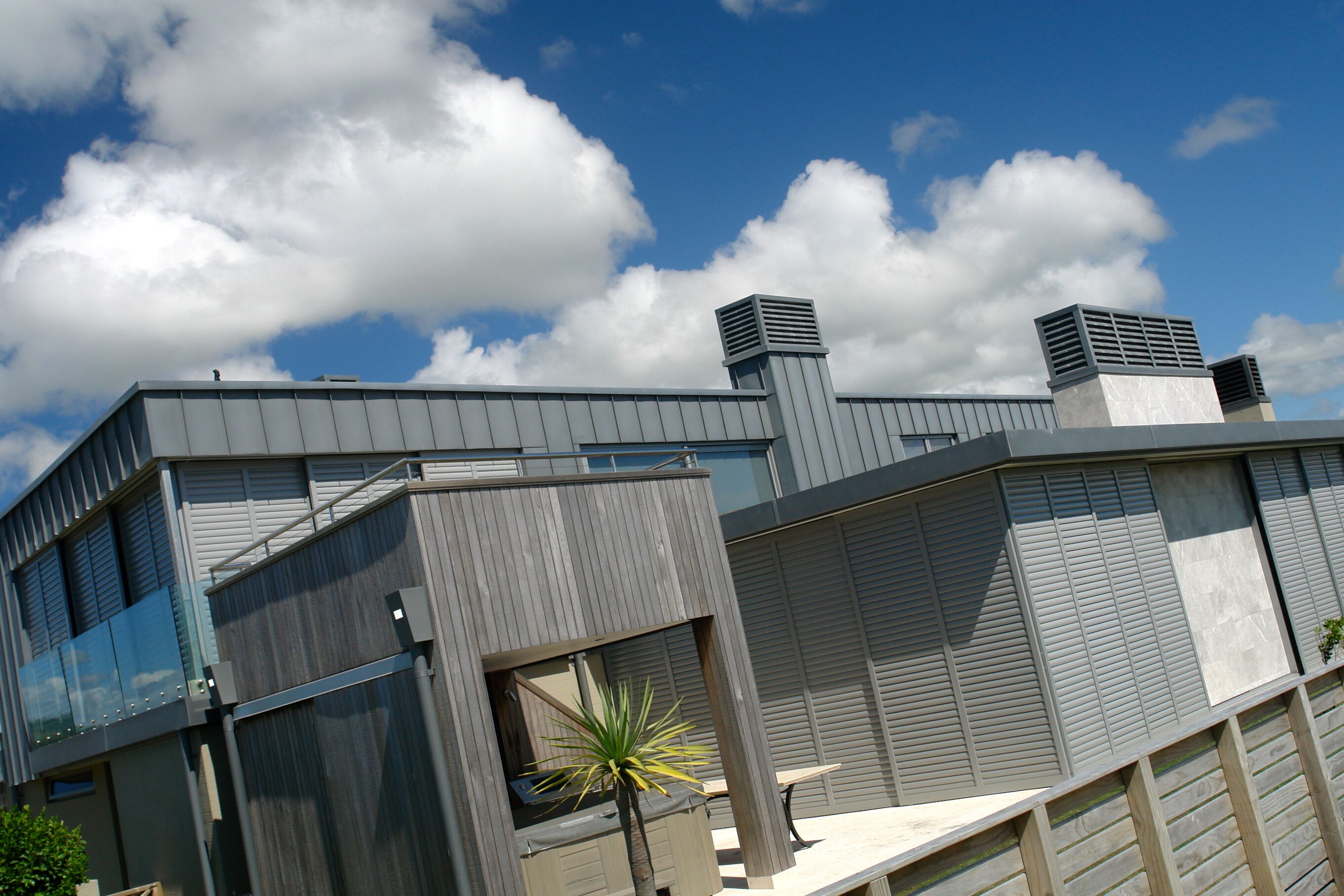

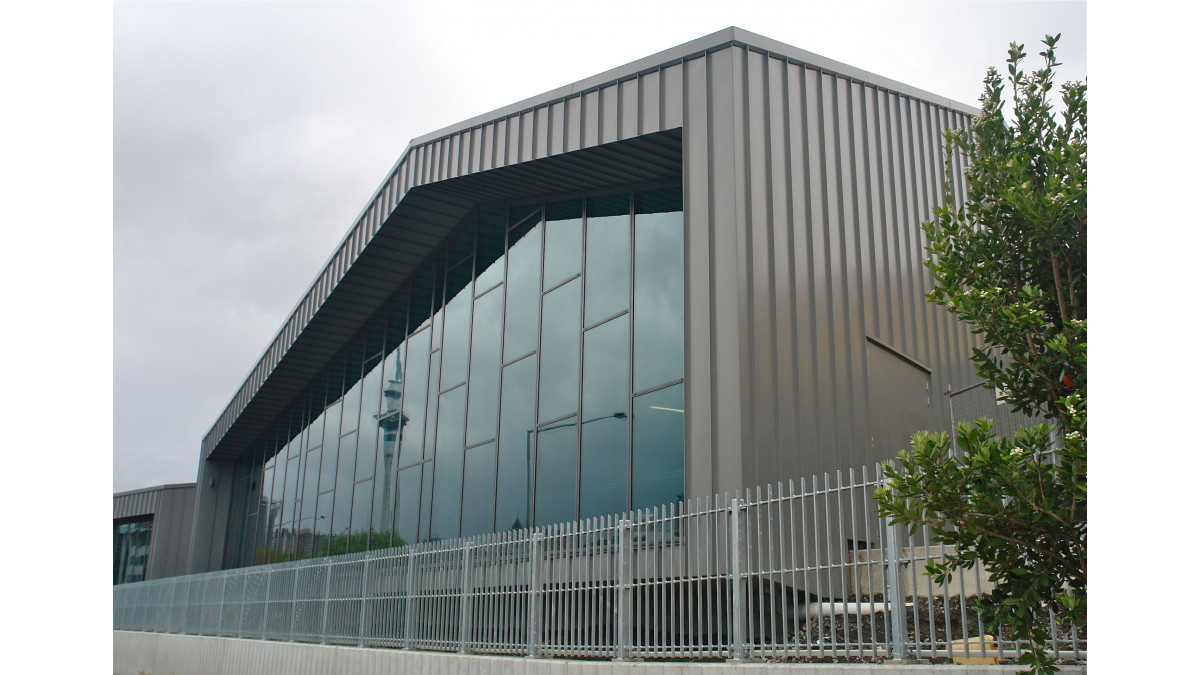

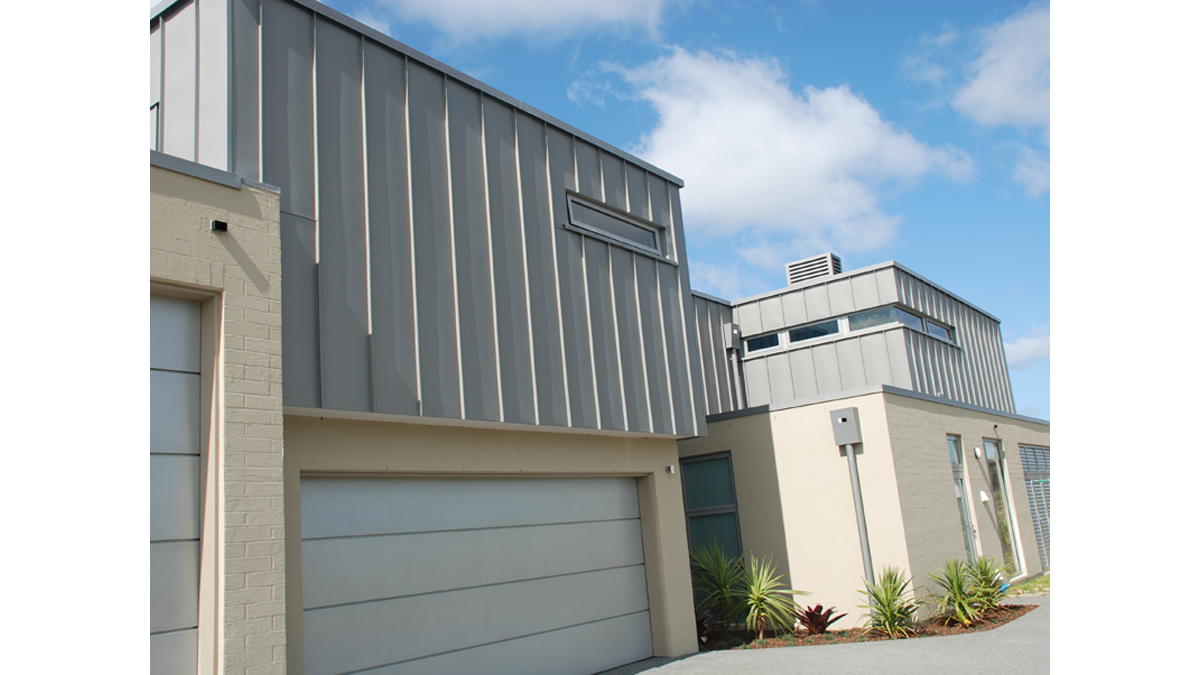

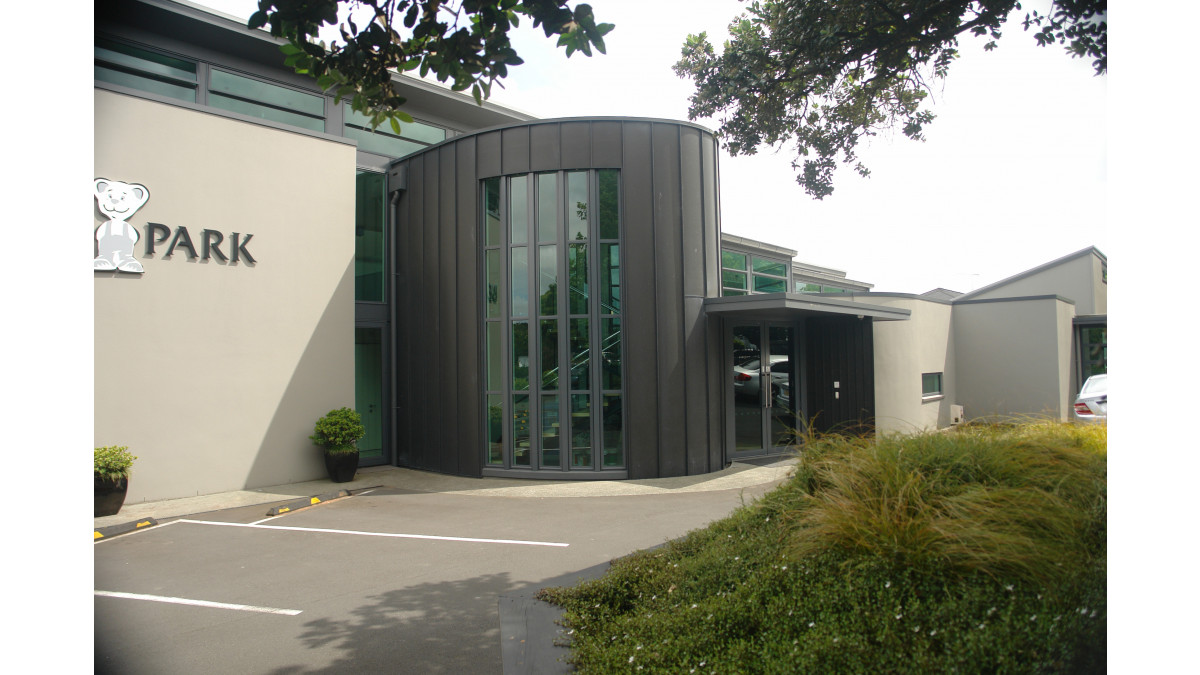

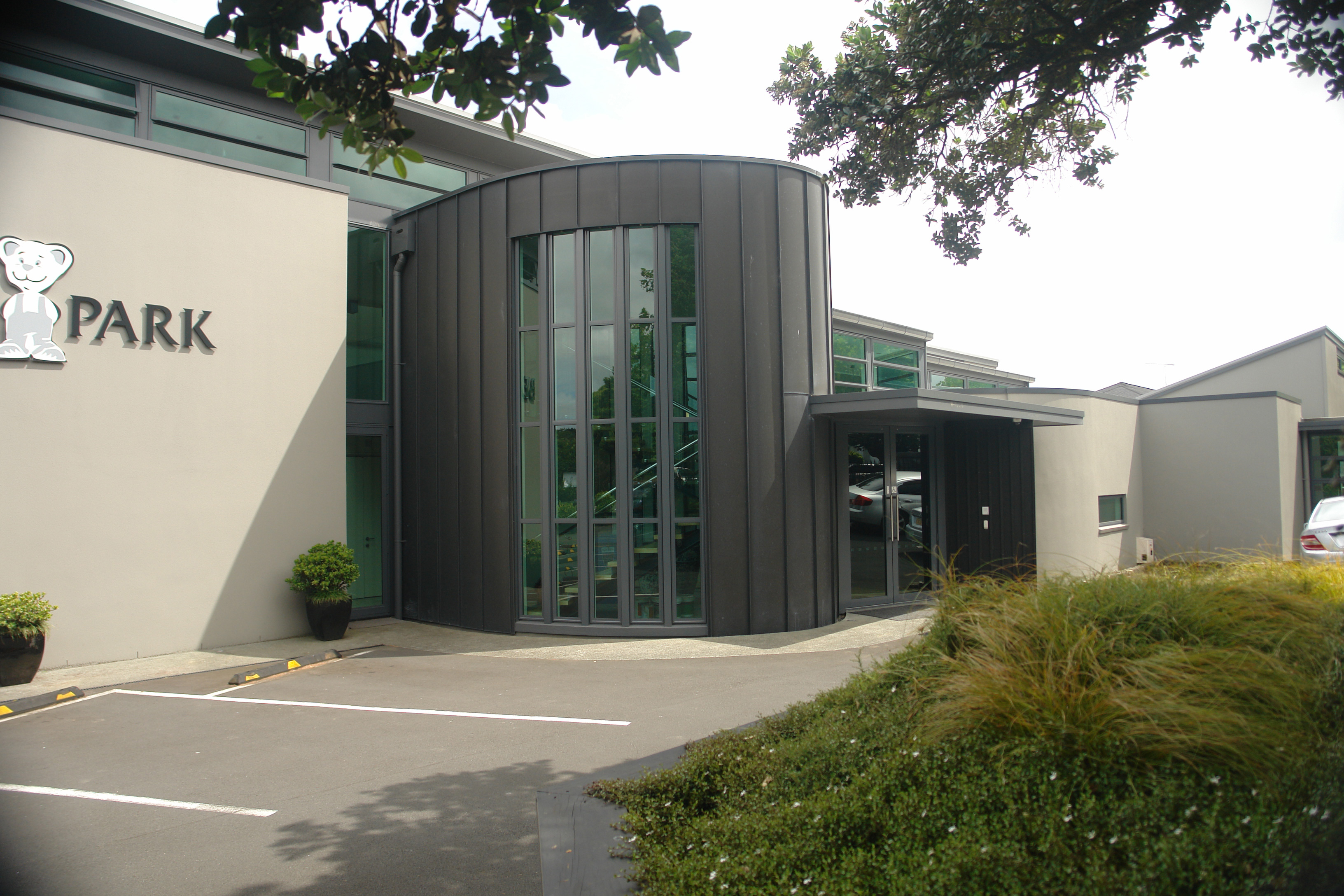

Photo Gallery
CAD/PDF Details

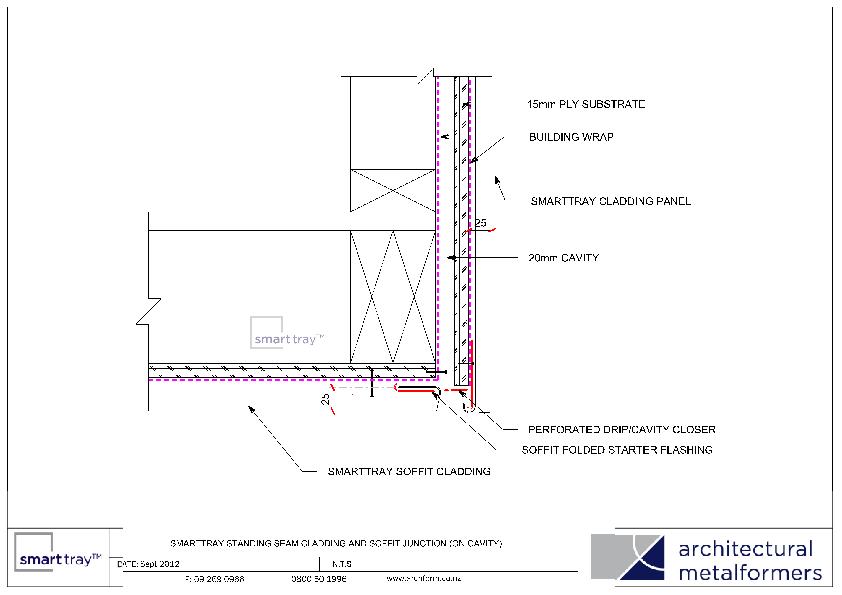

Smarttray Standing Seam Cladding and Soffit Junction (on Cavity)

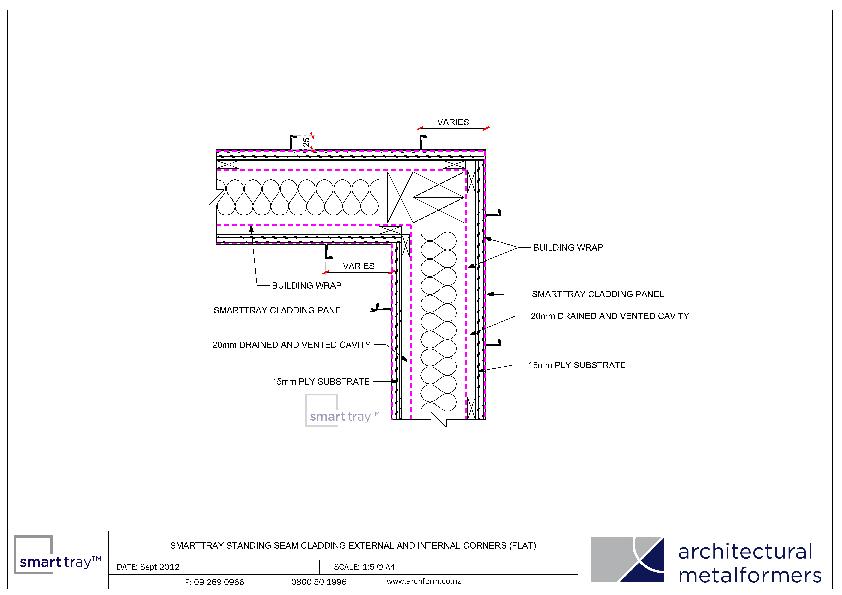

Smarttray Standing Seam Cladding External and Internal Corners (Flat)

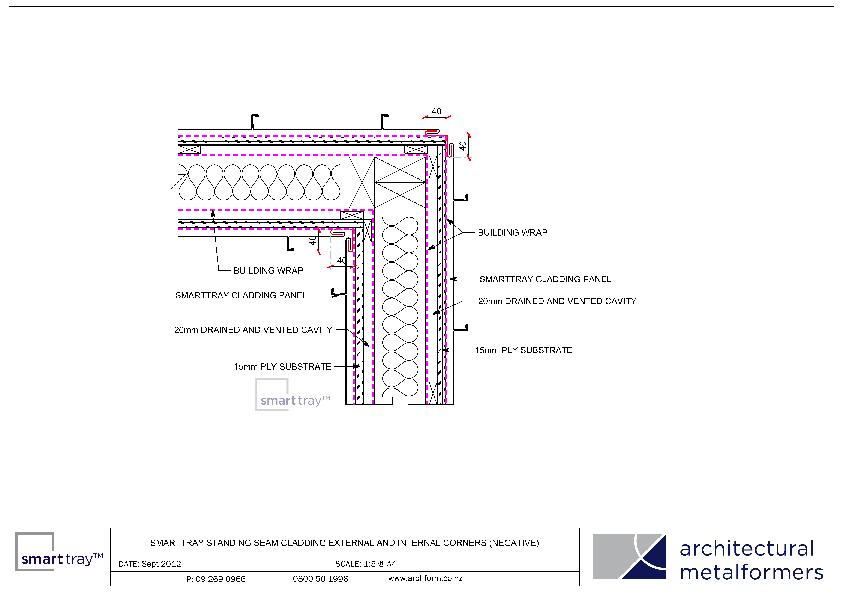

Smarttray Standing Seam Cladding External and Internal Corners (Negative)

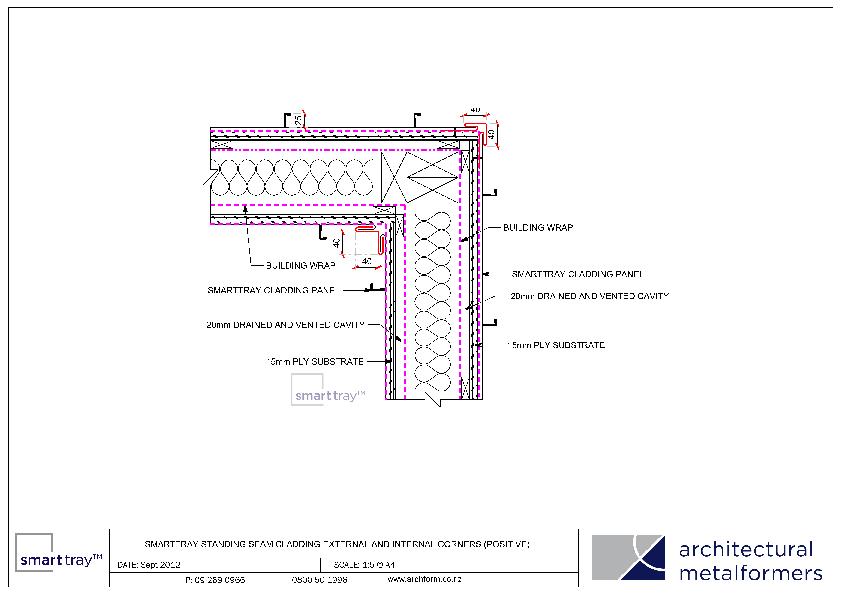

Smarttray Standing Seam Cladding External and Internal Corners (Positive)

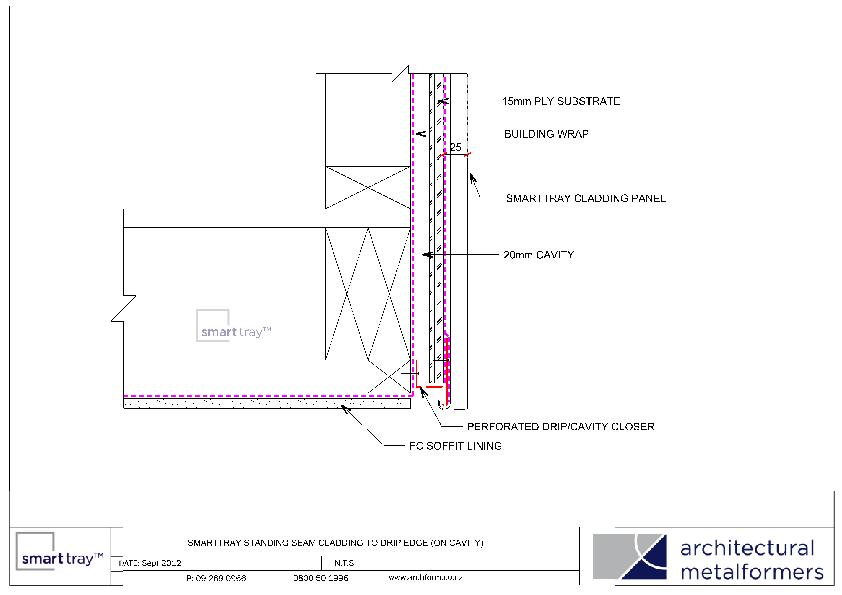

Smarttray Standing Seam Cladding to Drip Edge (on Cavity)

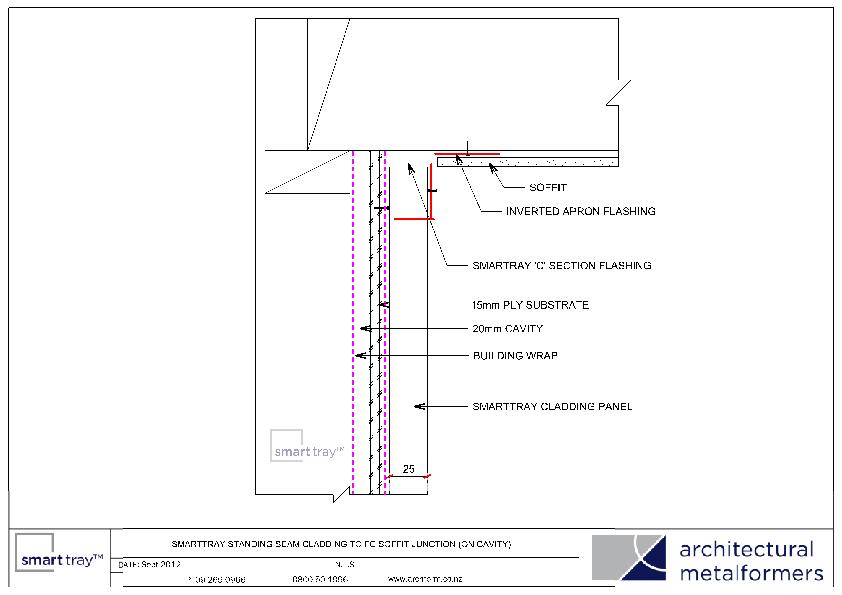

Smarttray Standing Seam Cladding to FC Soffit Junction (on Cavity)

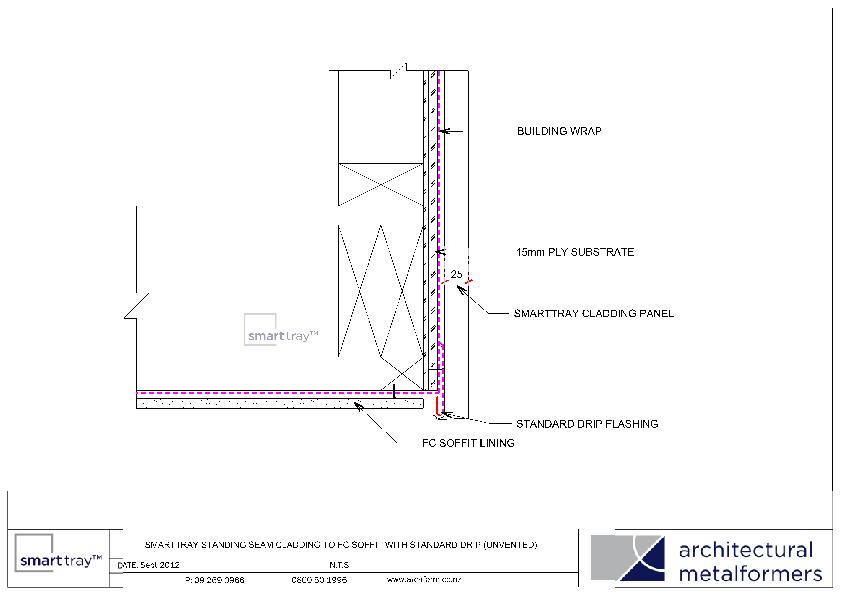

Smarttray Standing Seam Cladding to FC with Standard Drip

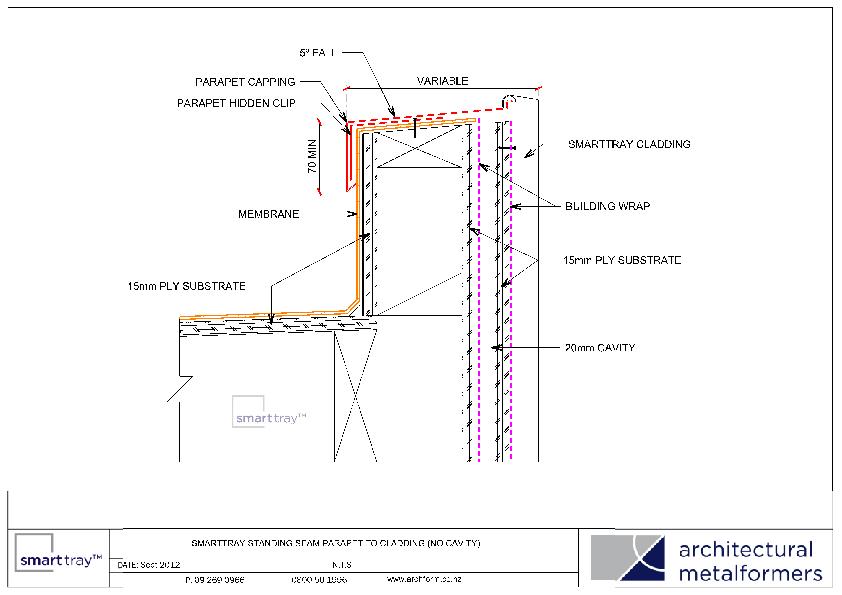

Smarttray Standing Seam Parapet to Cladding (No Cavity)
