Smart Tray Batten Cap Cladding
Description

The Batten Cap profile is a popular wall cladding finish with architects and homeowners across New Zealand.

In addition to the clean minimalist trays, the thicker 38x50mm batten cap seam profile adds significant aesthetic value by introducing a traditional board and batten effect to the wall. The enhanced shading effect on the façade is very attractive as lighting conditions change.

Façades are carefully wrapped in the selected metal to give a very contemporary look and feel to the structure. An additional feature of standing seam cladding is the ability to adjust the tray widths to suit the project specific requirements.

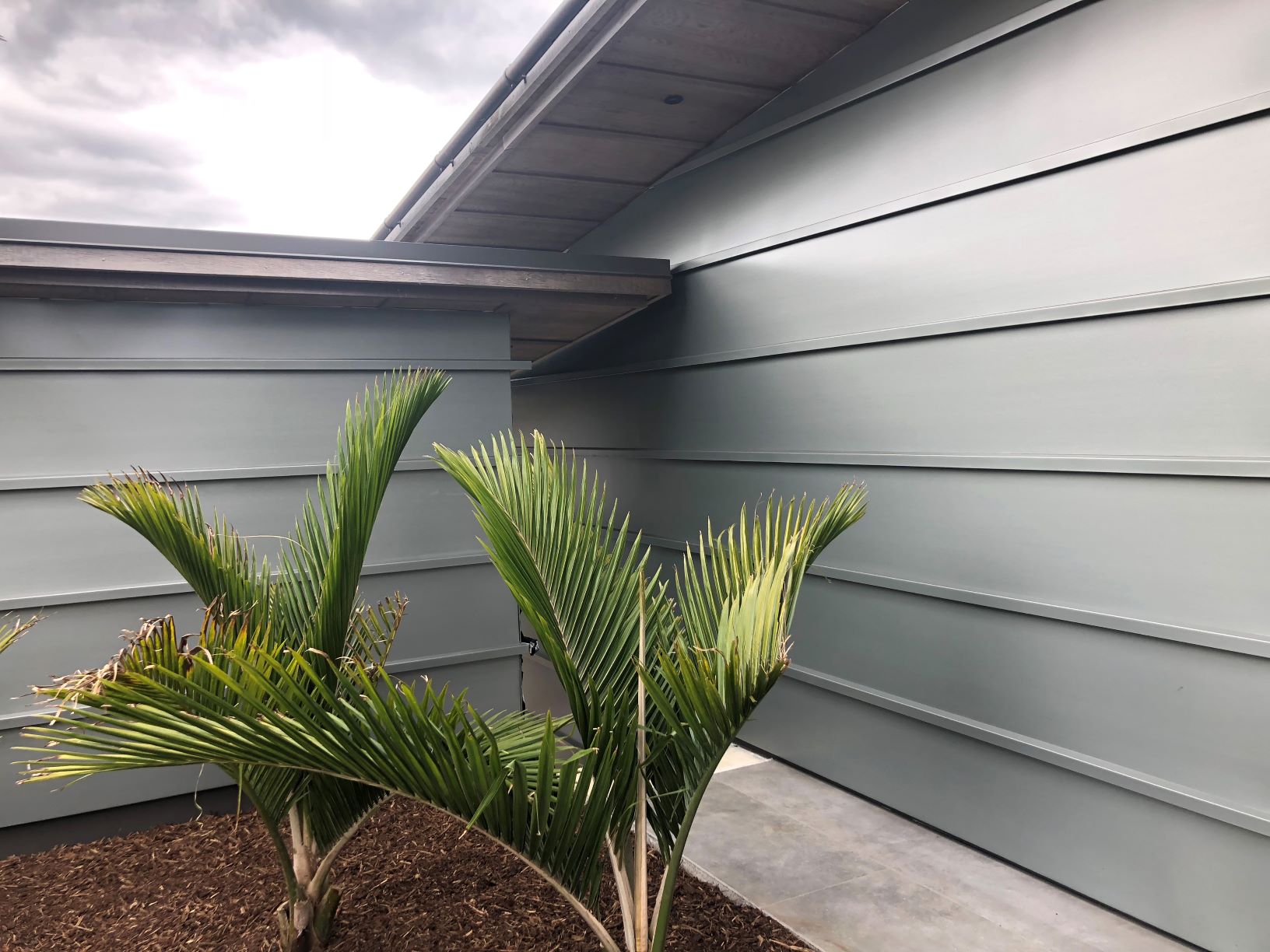

Trays can be installed in the vertical or horizontal orientation.

Categories
Metal Cladding
NZ Made
NZ Made
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Dissimilar Metals/Materials
Producer Statement
Installation and Operation
Maintenance and Warranty

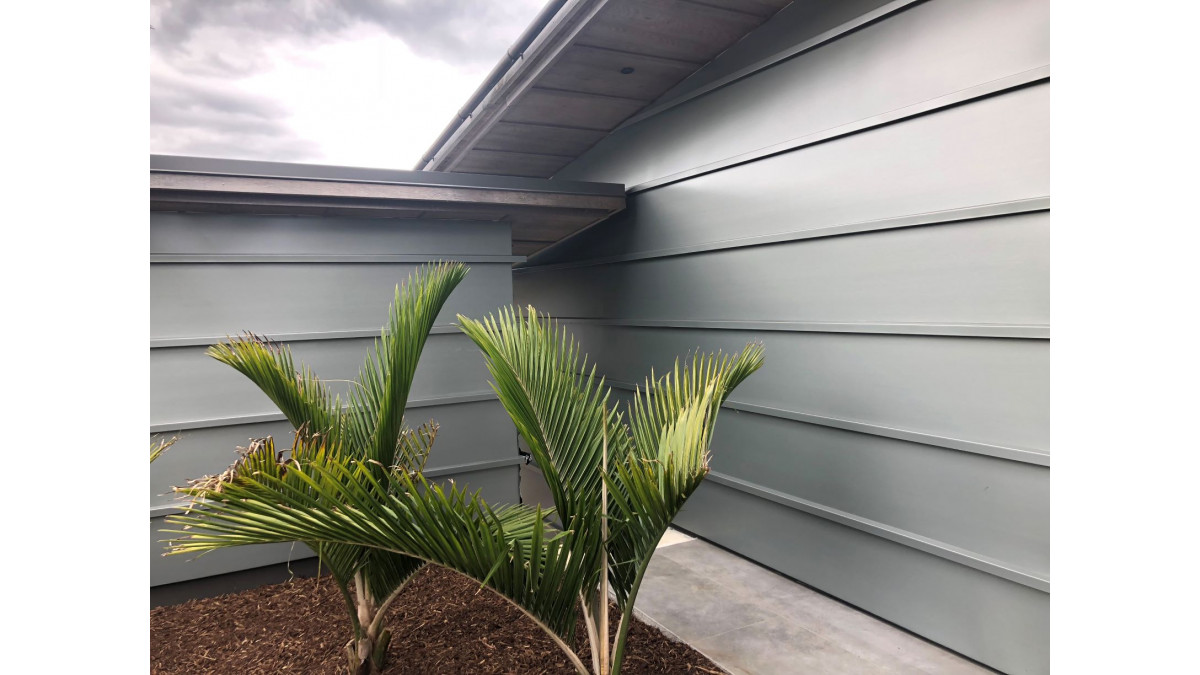

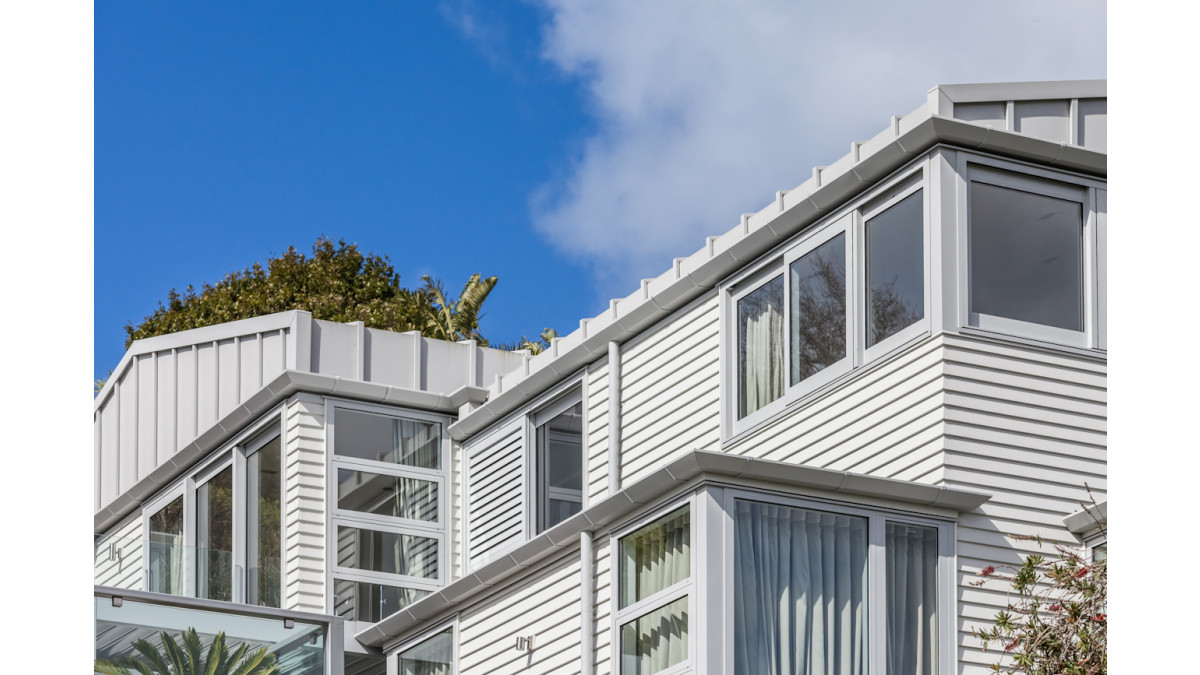

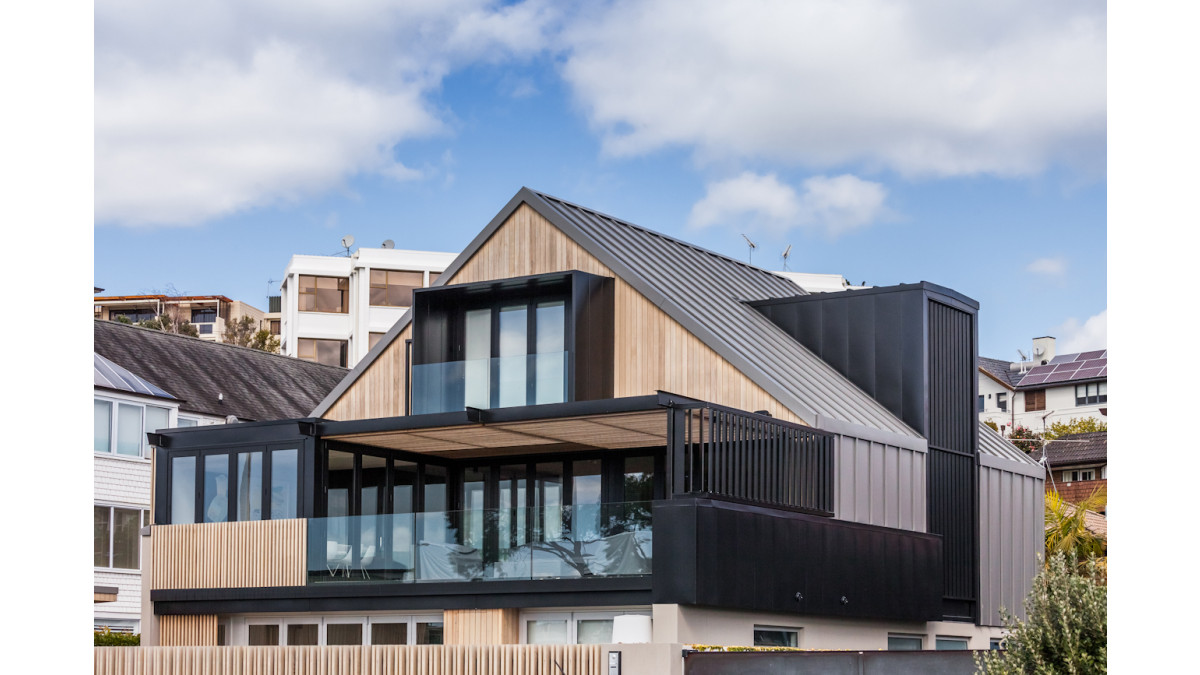

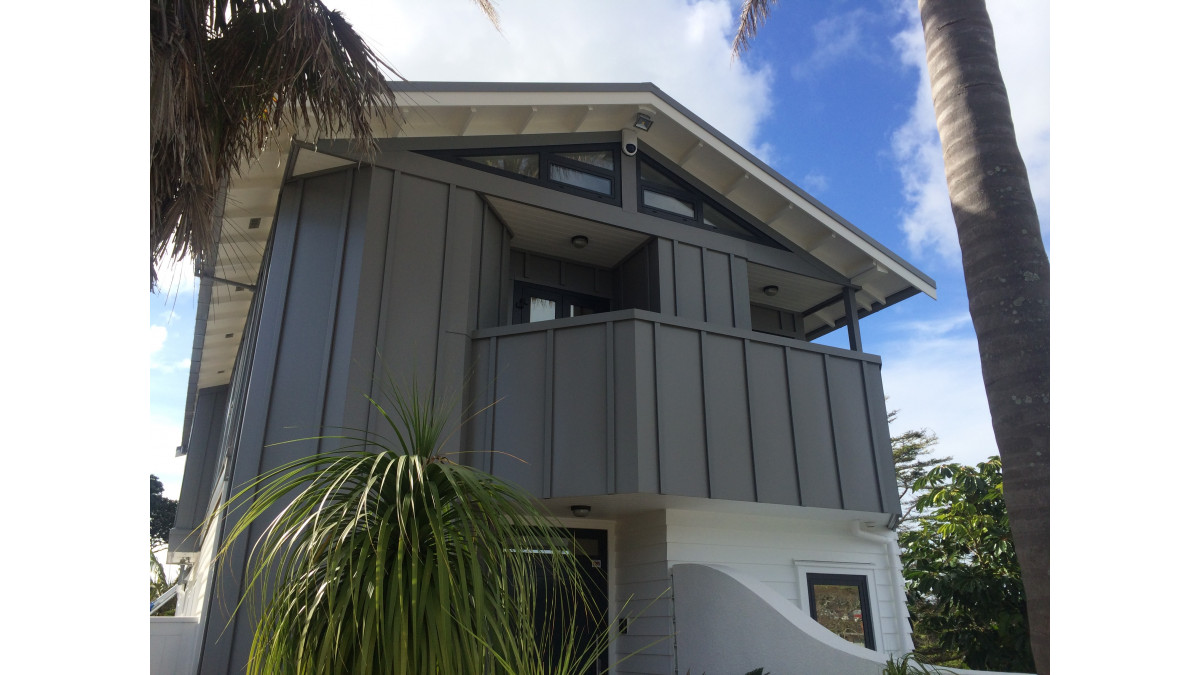

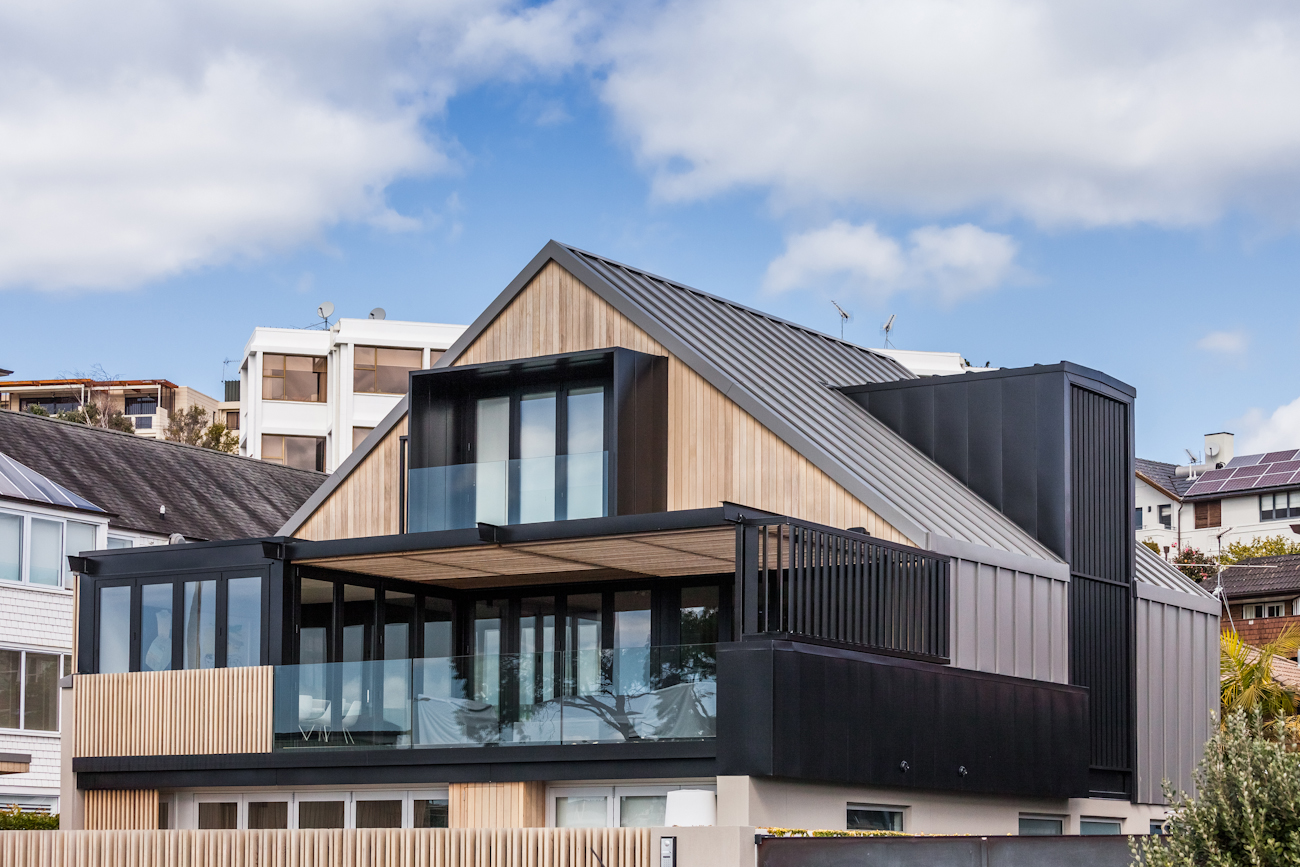

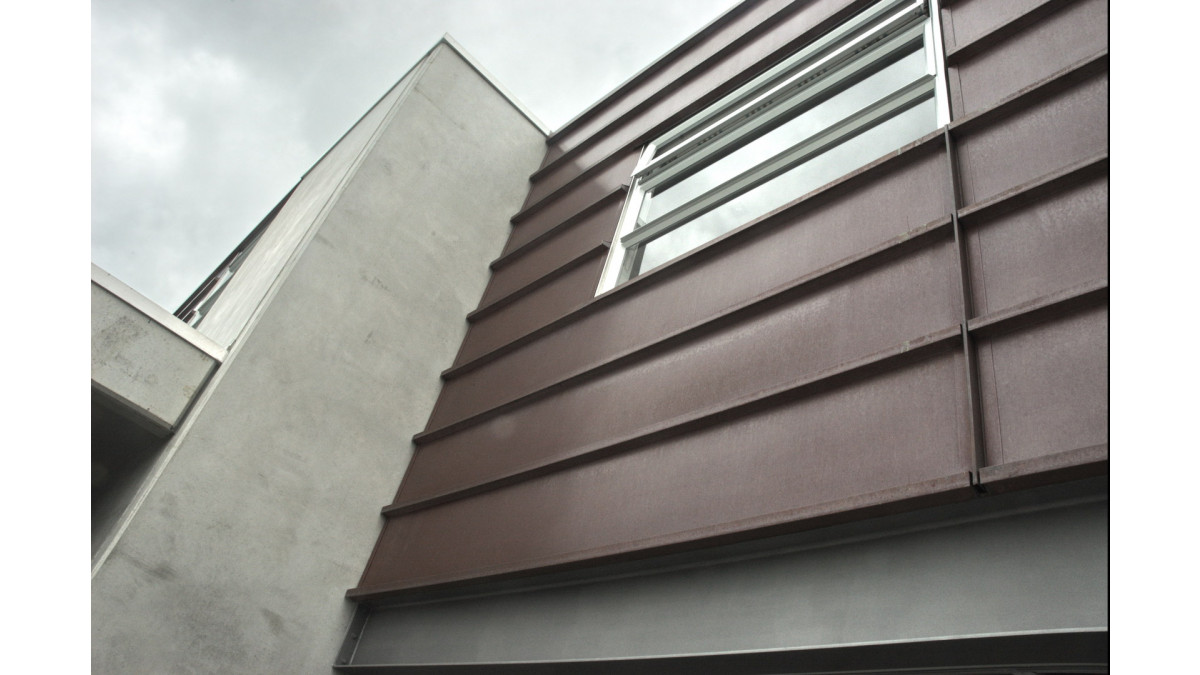

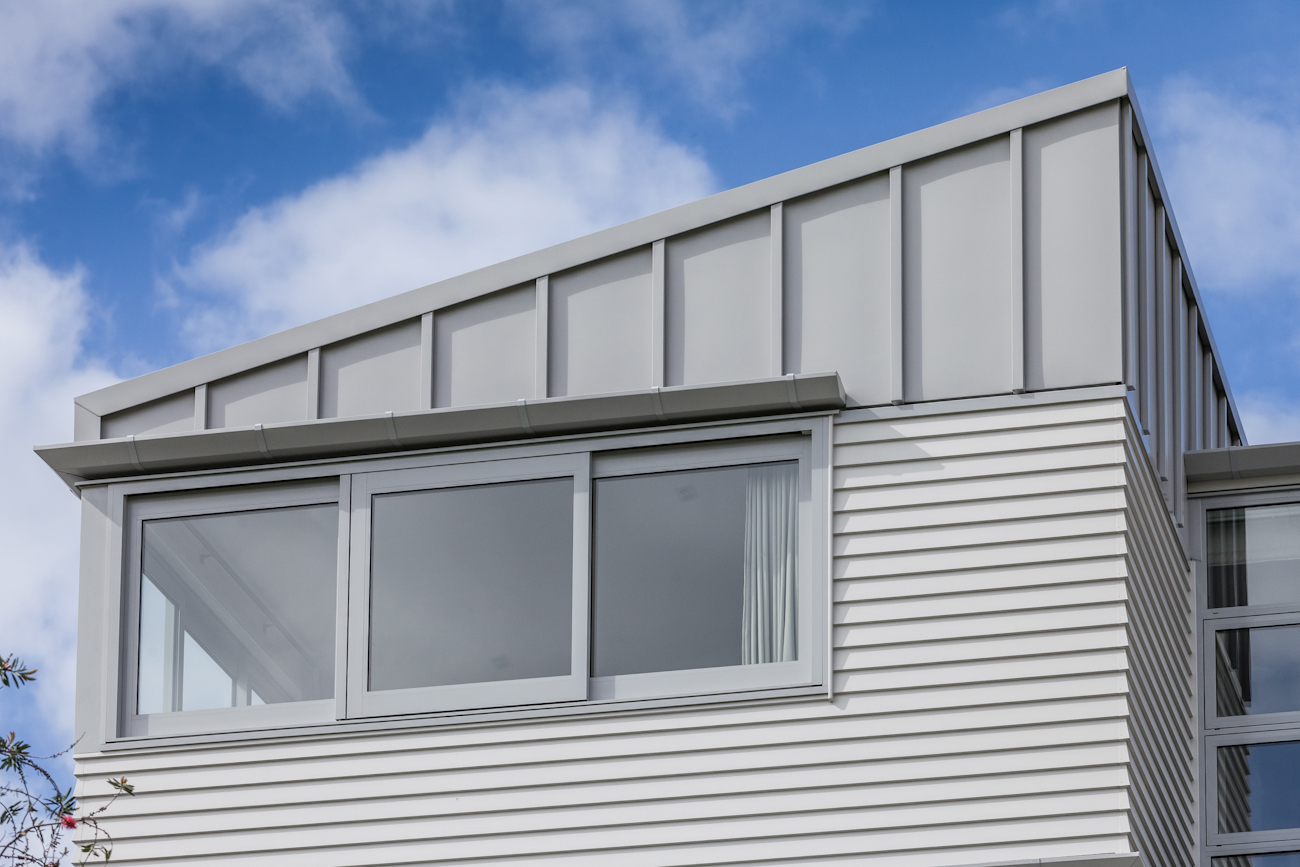

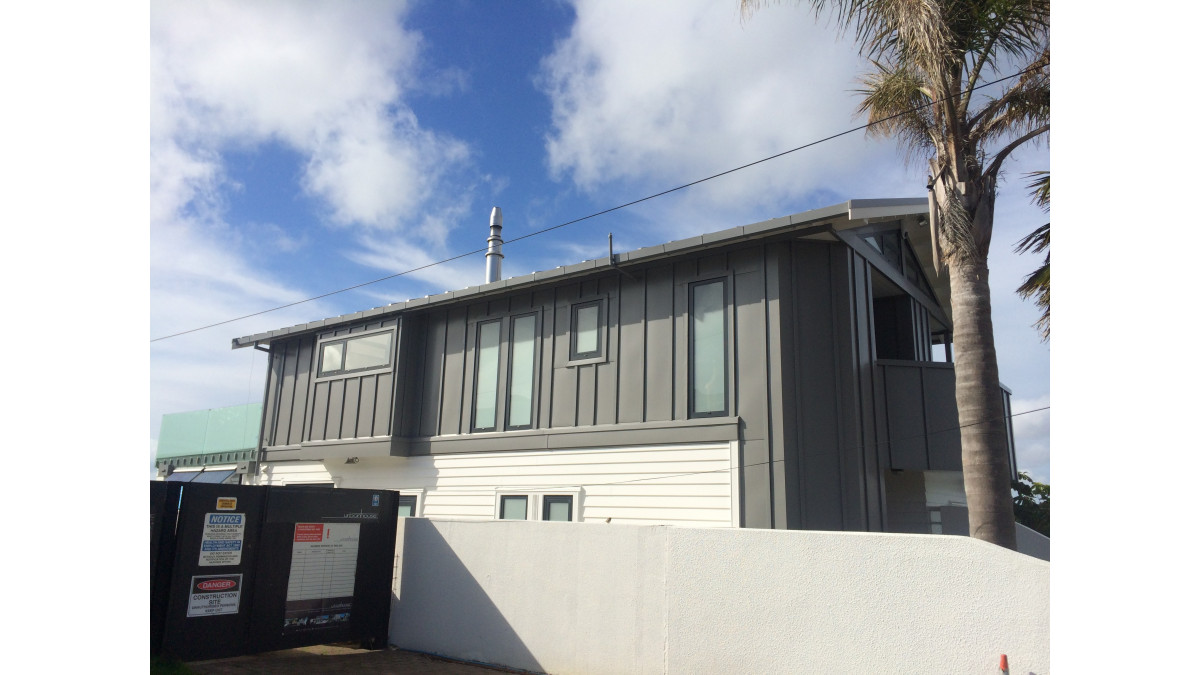

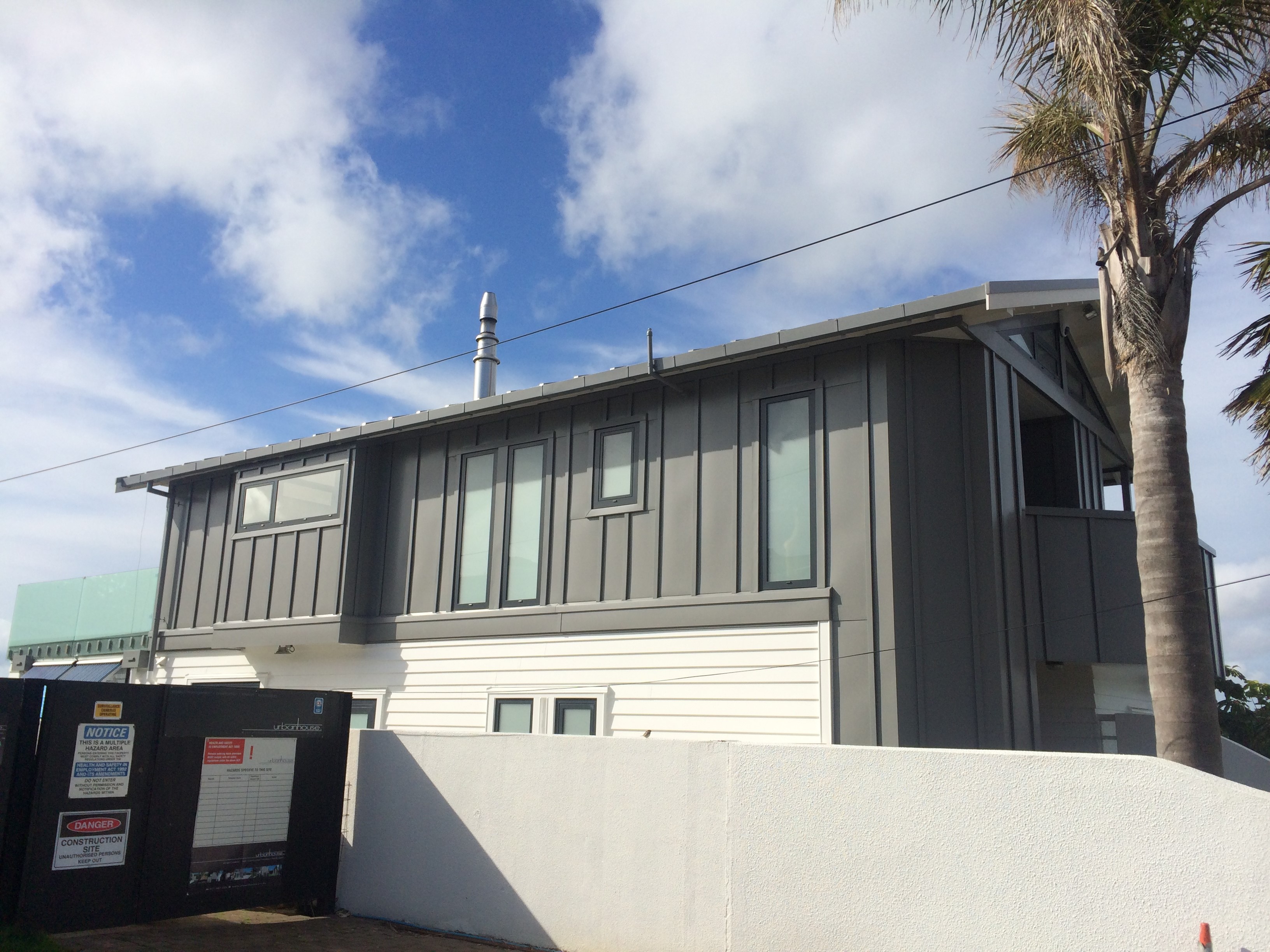

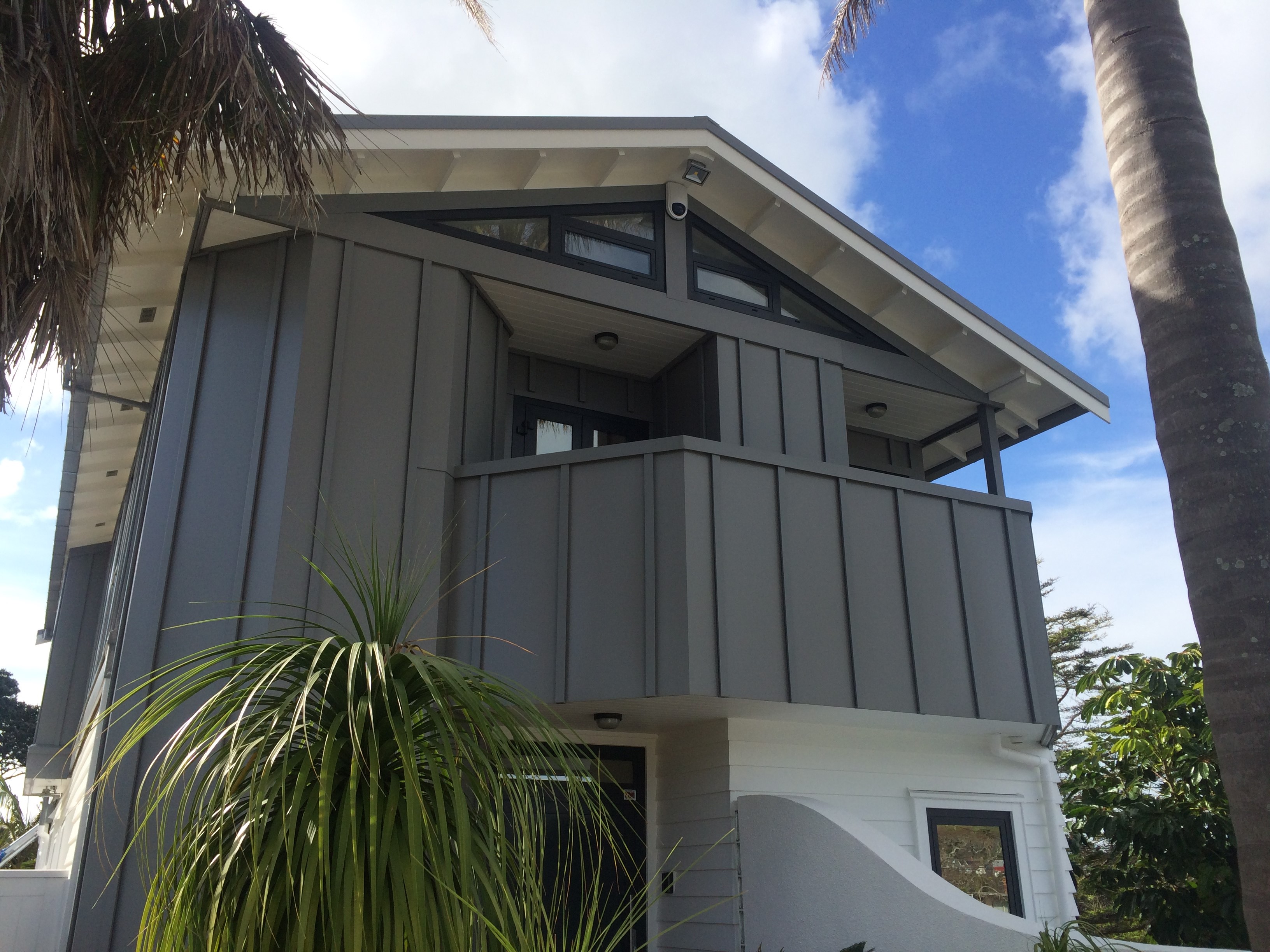

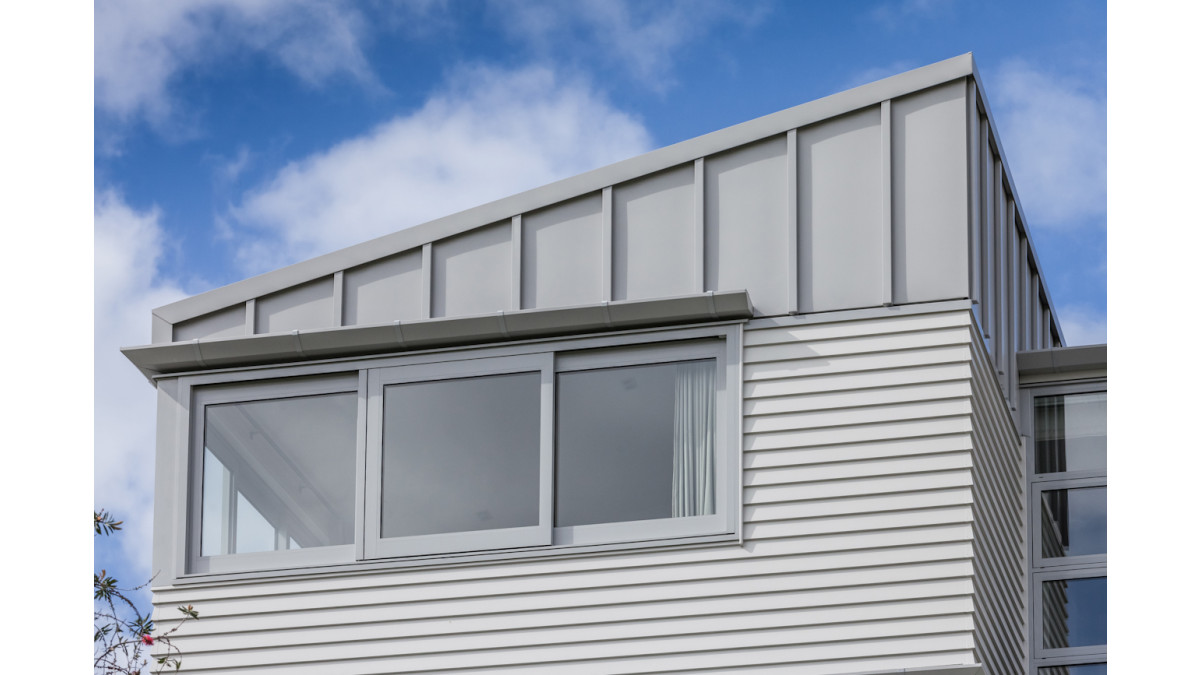

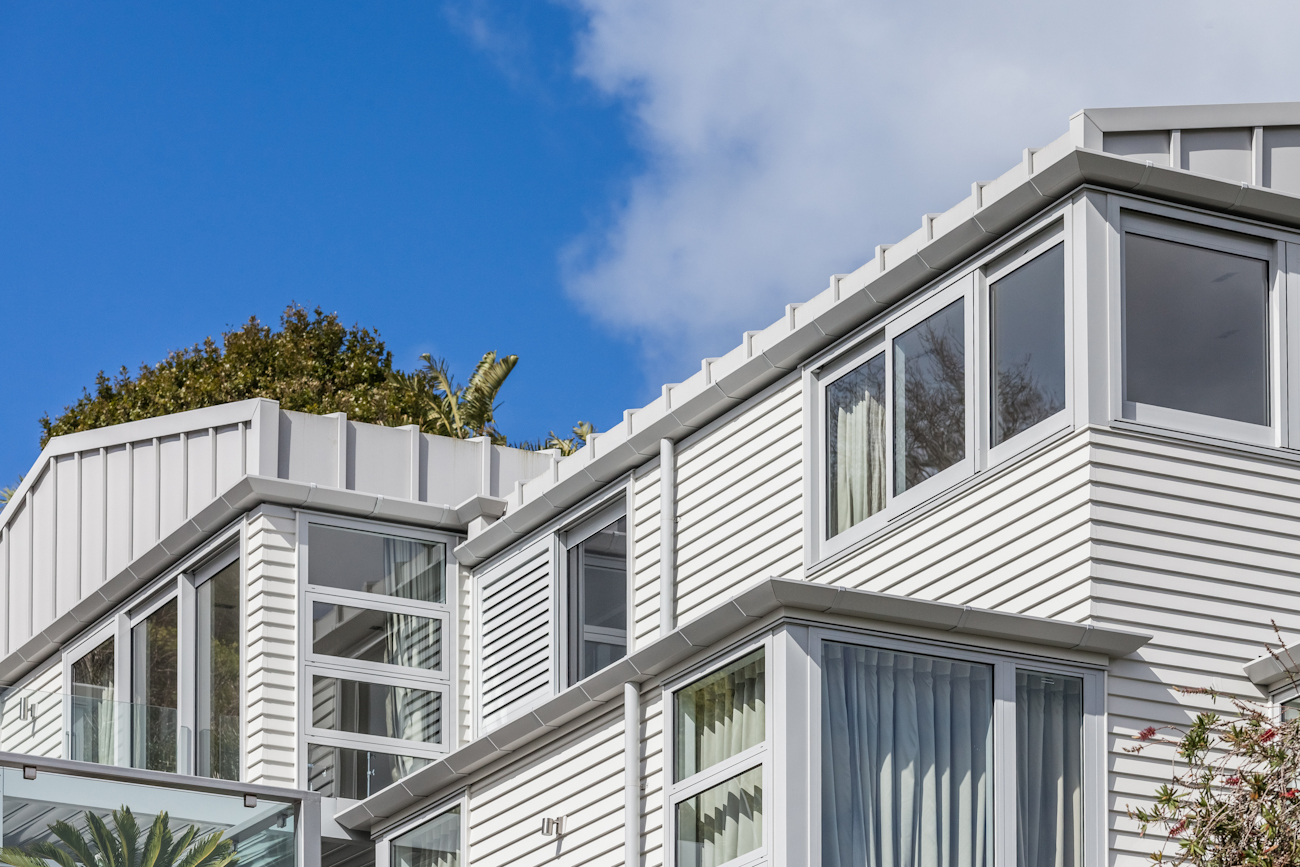

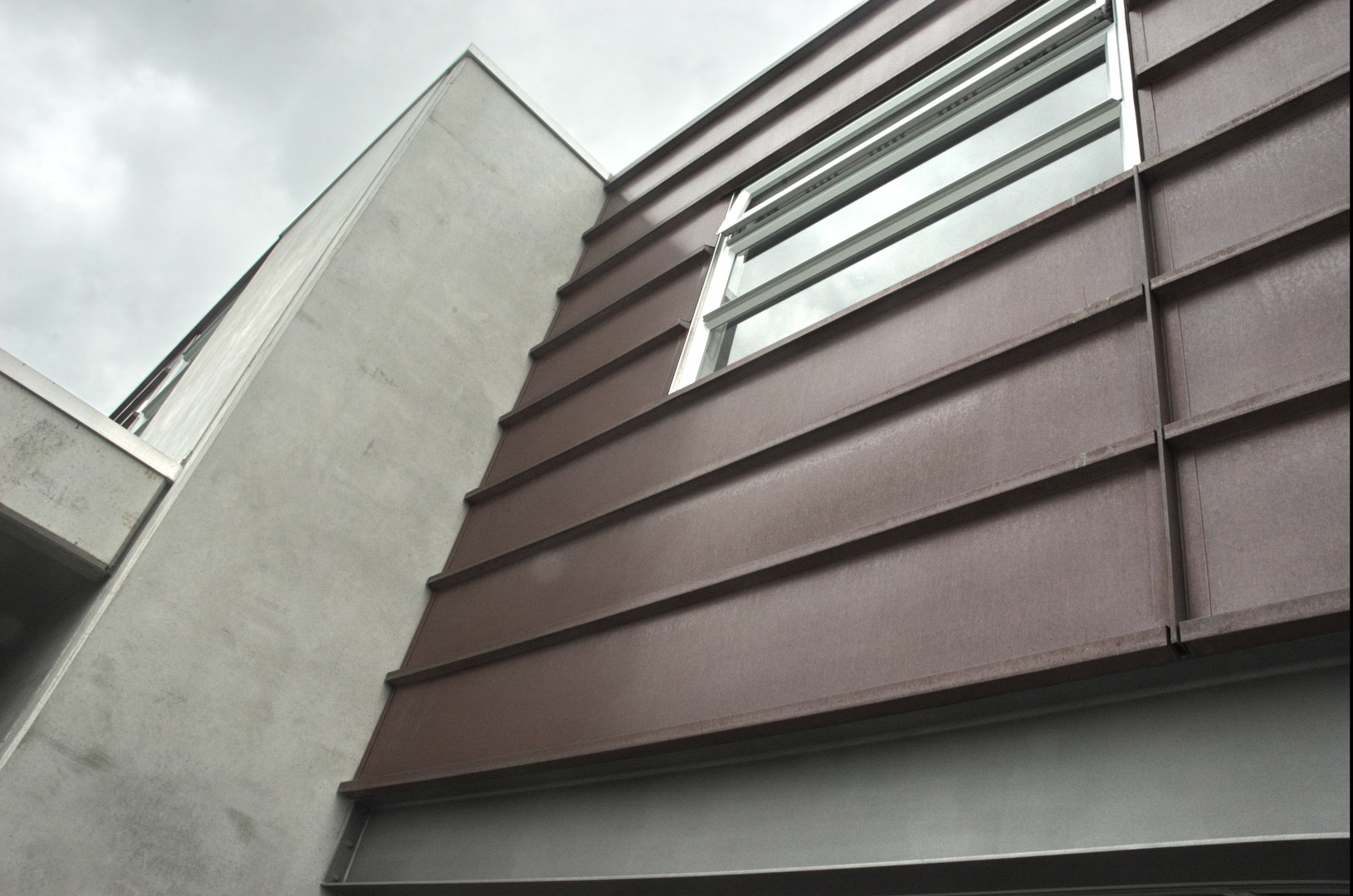

Photo Gallery
CAD/PDF Details

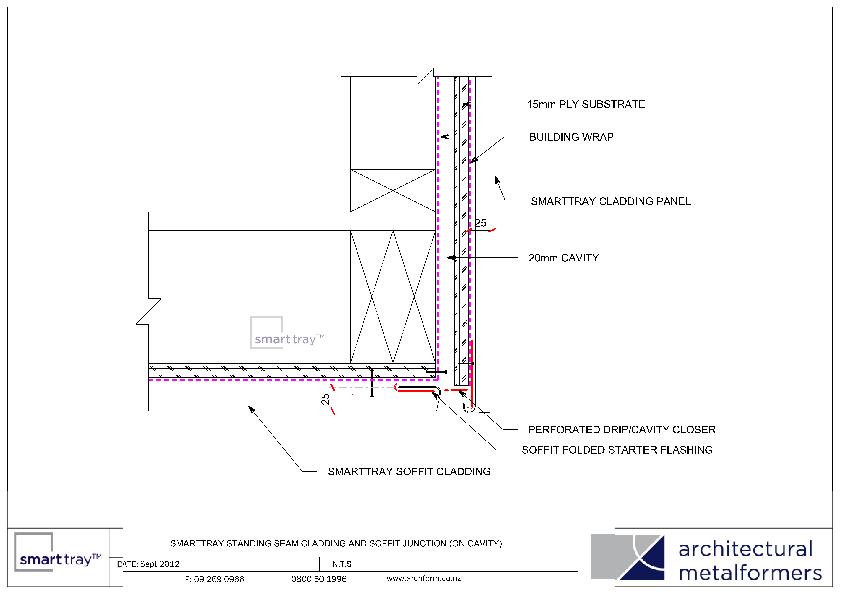

Smarttray Standing Seam Cladding and Soffit Junction (on Cavity)

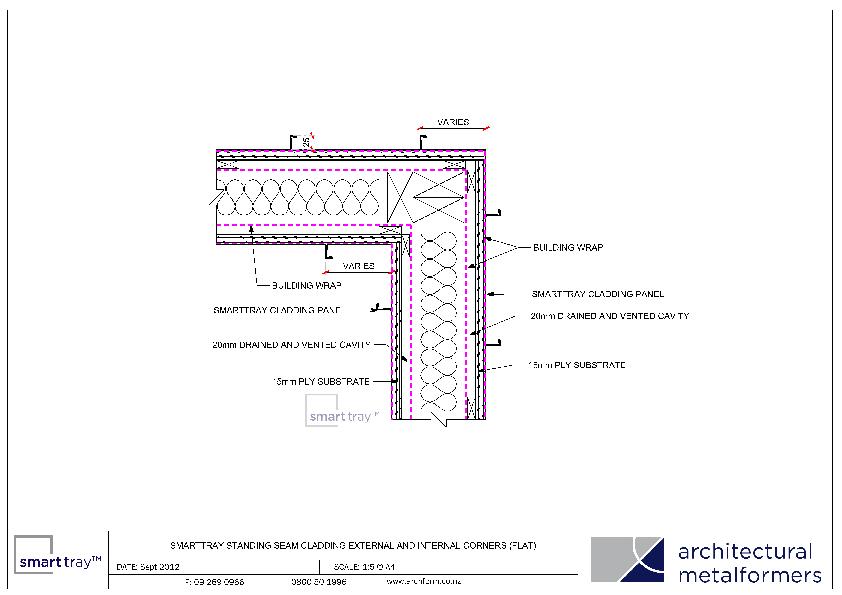

Smarttray Standing Seam Cladding External and Internal Corners (Flat)

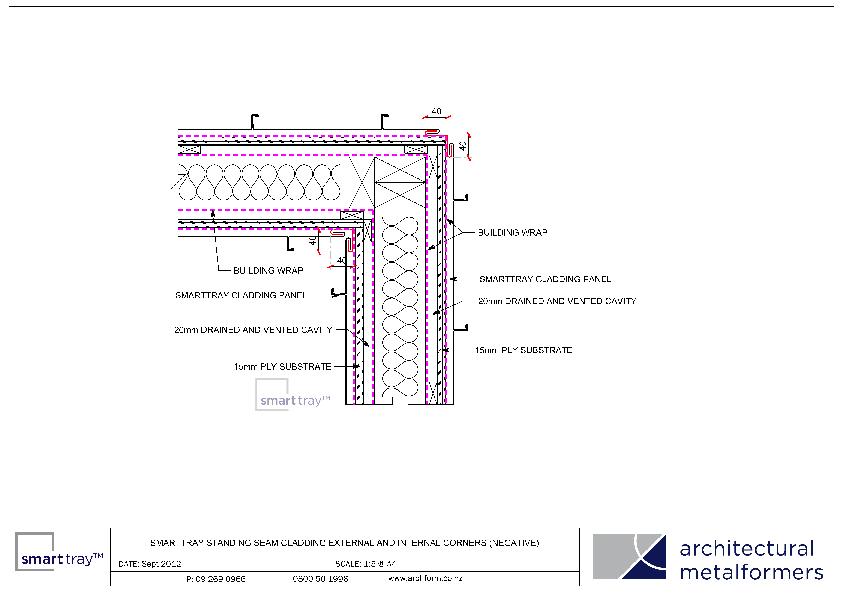

Smarttray Standing Seam Cladding External and Internal Corners (Negative)

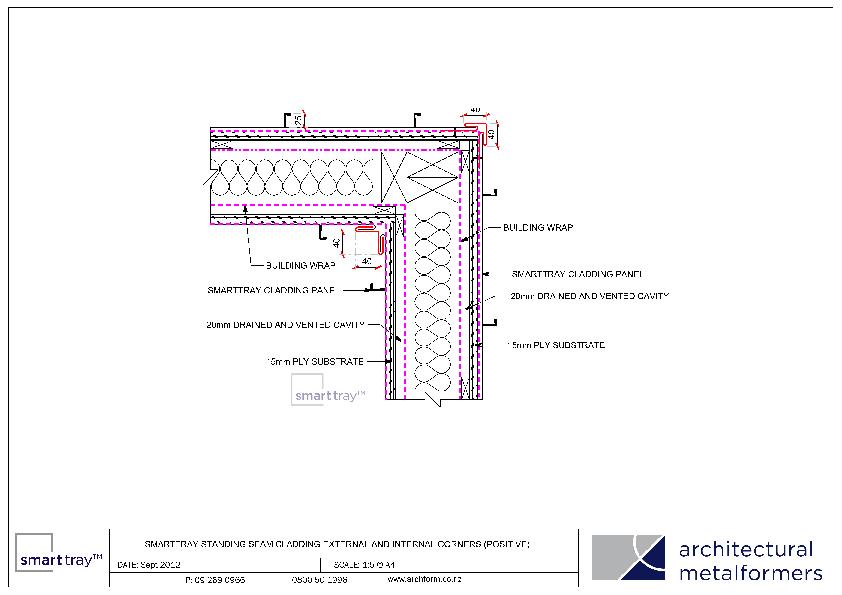

Smarttray Standing Seam Cladding External and Internal Corners (Positive)

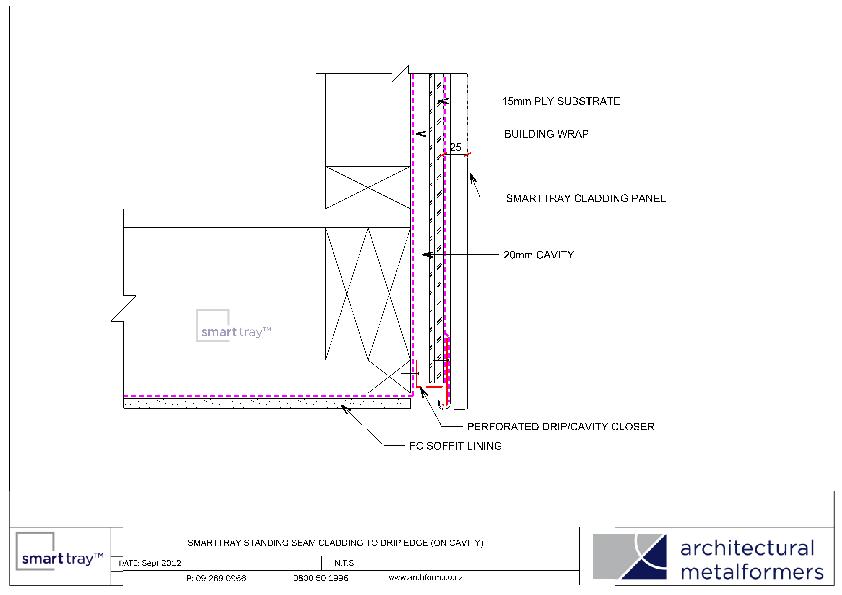

Smarttray Standing Seam Cladding to Drip Edge (on Cavity)

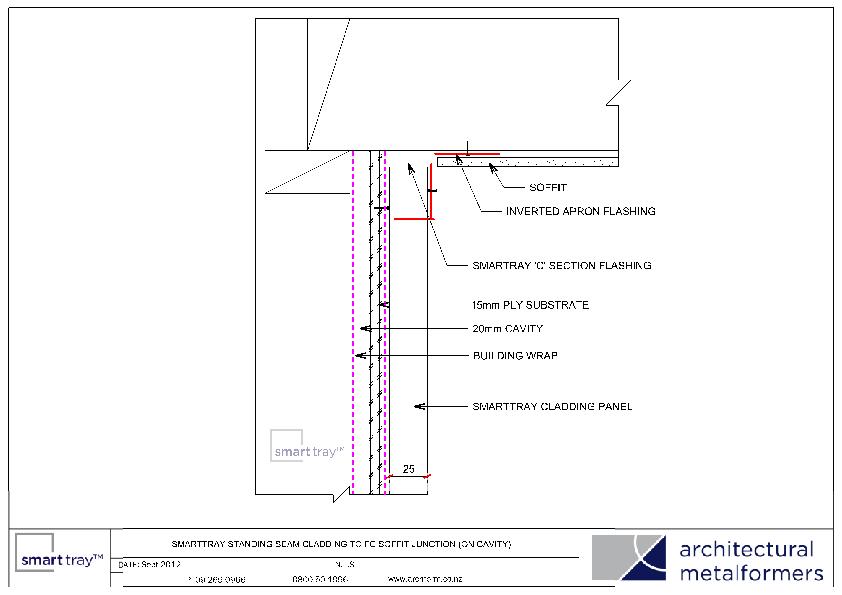

Smarttray Standing Seam Cladding to FC Soffit Junction (on Cavity)

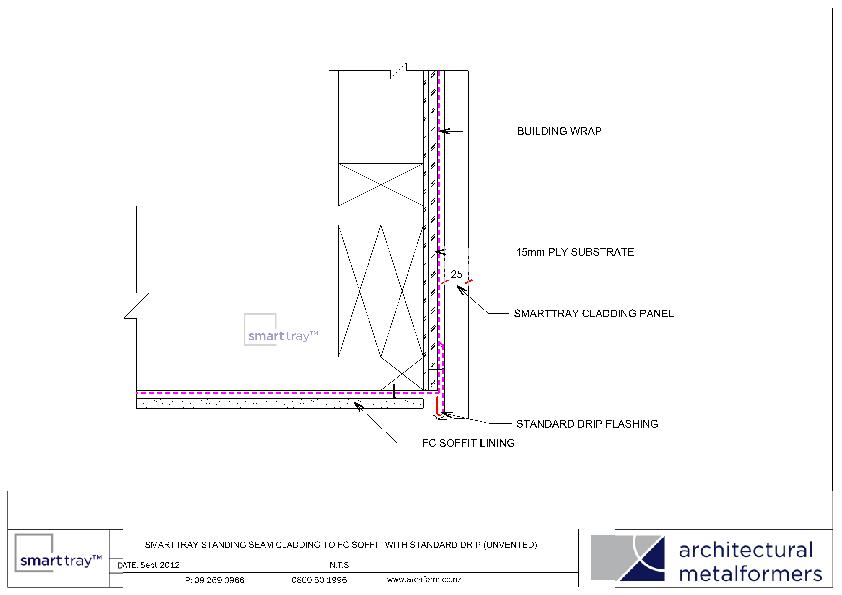

Smarttray Standing Seam Cladding to FC with Standard Drip

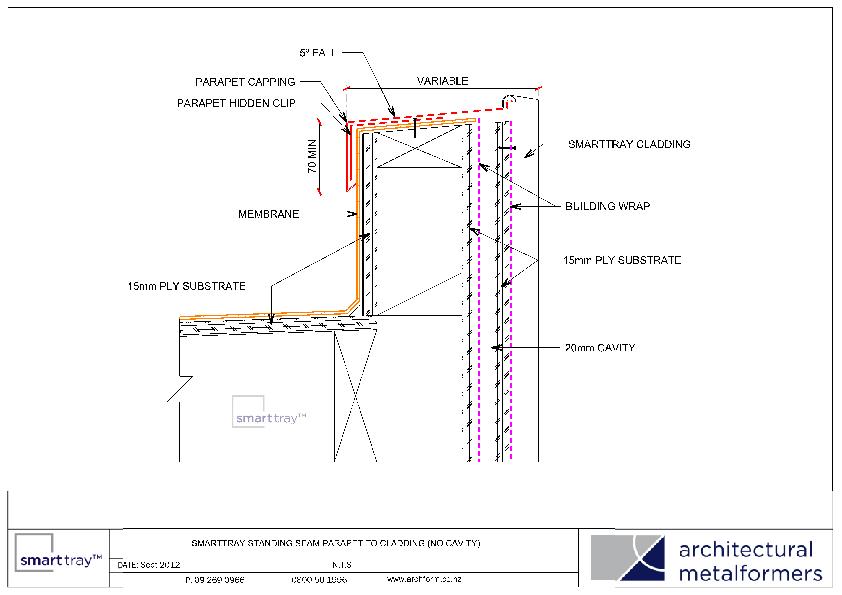

Smarttray Standing Seam Parapet to Cladding (No Cavity)
