Icon Hardware
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

Icon is New Zealand's first fully integrated range of 316 grade stainless steel hardware for aluminium windows and doors.

All APL hardware comes as a complete package, including locking mechanisms.

Key Features
  • 316 grade stainless steel

Options

Pull Handle: Fixed to the door on both the interior and exterior with a lock fixed separately.

  • Small — 325mm
  • Medium — 630mm
  • Large — 930mm
  • Extra Large — 1230mm or 1820mm

Lever Door Lock: A clean compact lever handle. A lifting movement of the handle activates locking rods at top and bottom of the door.

  • Large — Handle length 150mm, Baseplate 290mm
  • Small — Handle length 110mm, Baseplate 210mm

Sliding Door Handle Flush Pull: An alternative to a sliding door handle. It’s ideal for lighter sliding panels. A lock is fixed separately.

  • 230mm high x 43mm wide

Bi-Fold Handle: This swivel operator throws locking stainless steel bolts into the frame at the top and bottom of the panel. Optional key-locking (separately installed) is available.

  • 170mm high x 25mm wide

Window Fastener: The Icon window fastener with separately fixed wedge is designed for high specification window systems - including APL Architectural Series.

  • 110mm wide x 36mm deep

Wedgeless Fastener: This fastener for Residential awning and casement windows blends square-edged and radiused looks. There is a matching grey nylon wedge. Available in a low profile option

  • 110mm wide x 31mm deep
Ranges
Hardware
Scope of Use
  • Suitable for residential and light commercial applications
Statement of Building Code Compliance

All products supplied by FIRST Windows & Doors meet or exceed the requirements of the New Zealand Building Code and New Zealand Standards; NZS4211, Performance of Windows, and NZS4223, Glazing in Buildings - Parts 1-4.

Other Performance Attributes

All products supplied by FIRST Windows & Doors meet or exceed the requirements of the New Zealand Building Code and New Zealand Standards; NZS4211, Performance of Windows, and NZS4223, Glazing in Buildings - Parts 1-4.

Documents
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm on Masterspec
WGANZ Guide to E2/AS1
Altherm Design Brochure

2020

APL and Sustainability

2019

Manufacturer Contact List

Stylish contemporary lines, effective thermal technology and unwavering attention to detail have made Altherm a favourite with architects, designers and homeowners across New Zealand.

Product Enquiries

News from ALTHERM Window Systems

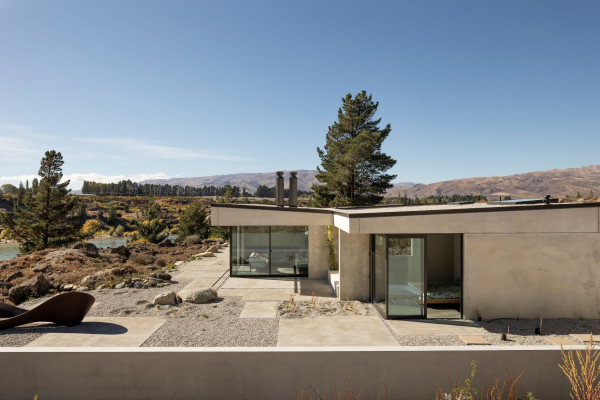

Altherm APL Architectural Series Sliding Doors Perfectly Complement this Bannockburn Build
