APL Architectural Series Sliding Windows
ALTHERM Window Systems
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

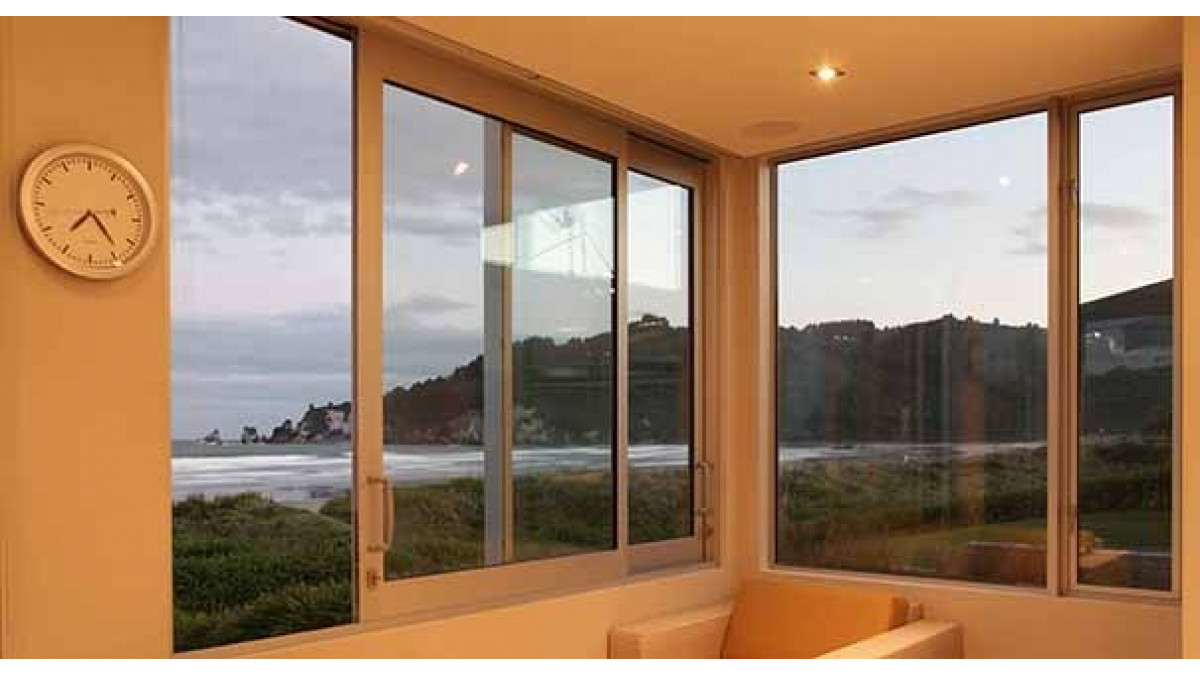

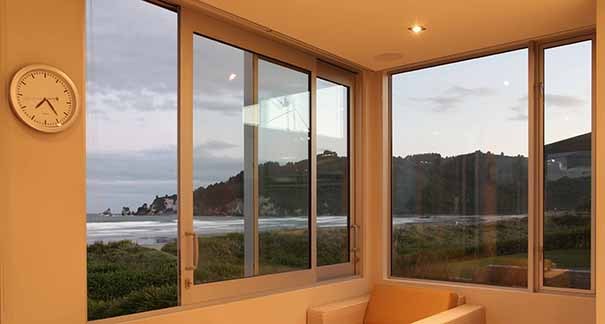

Alth Archi Series slid win

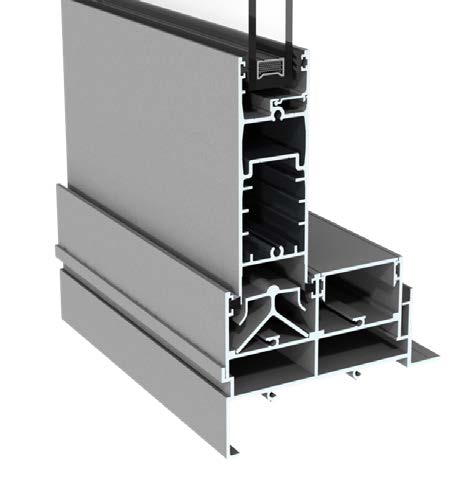

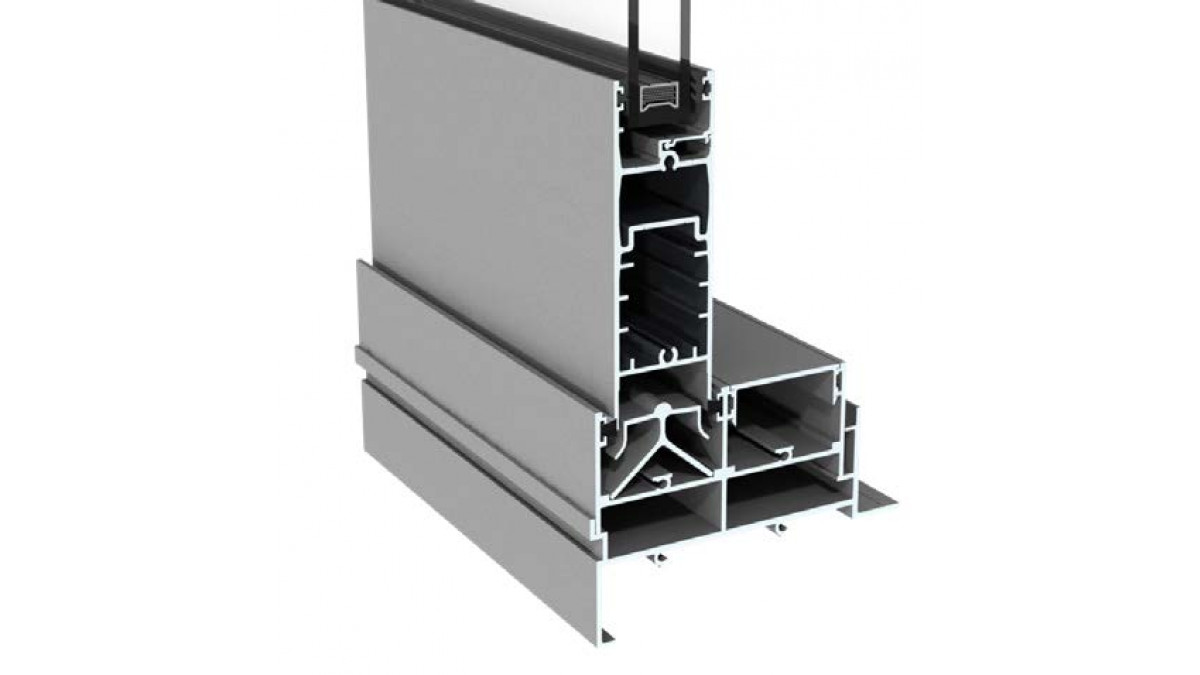

Flush sill option with bottom rail
Flush sill option with bottom rail

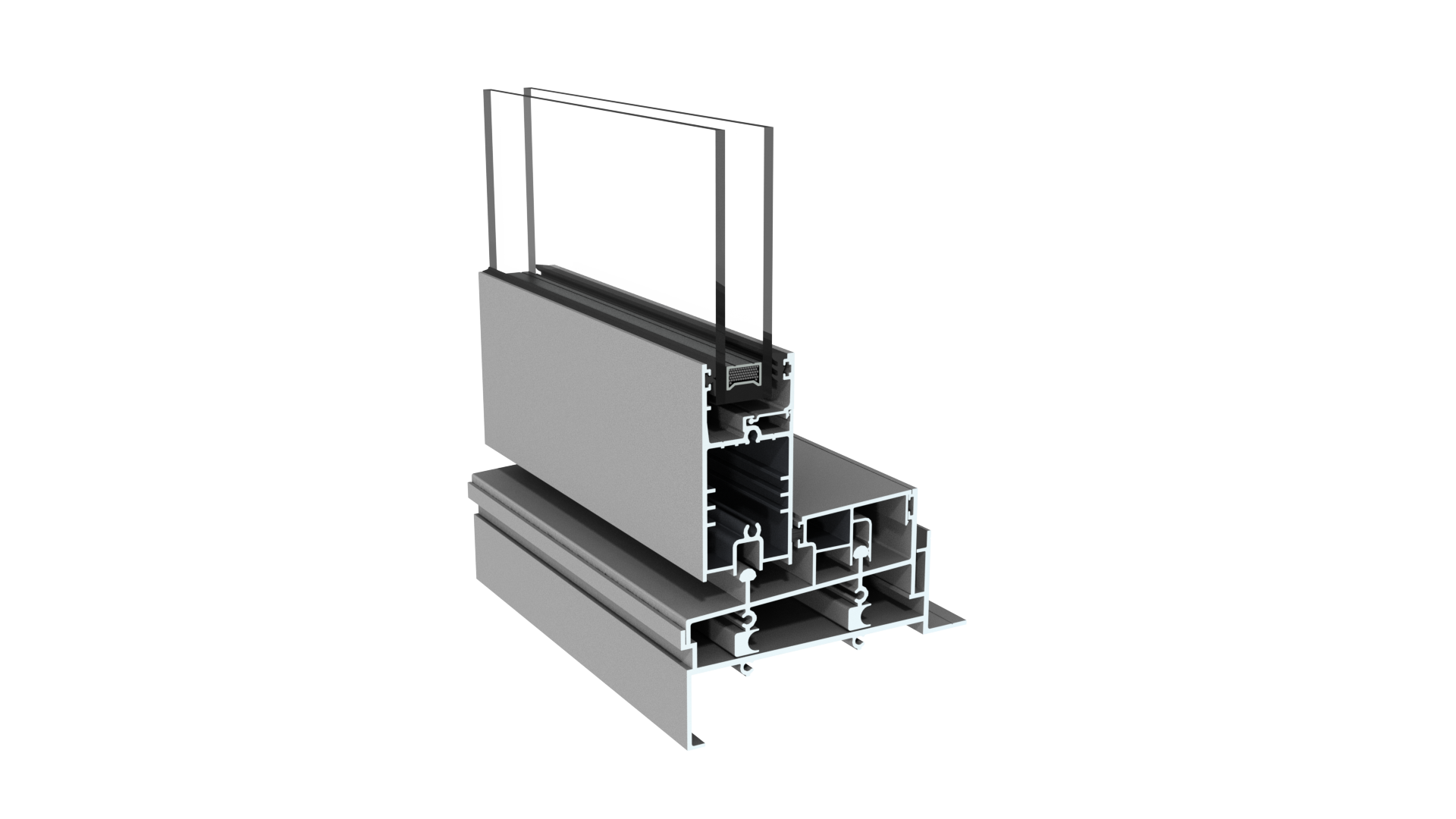

173 Arch SW Sloped Sill + Panel
Sliding window sloped sill – single slider

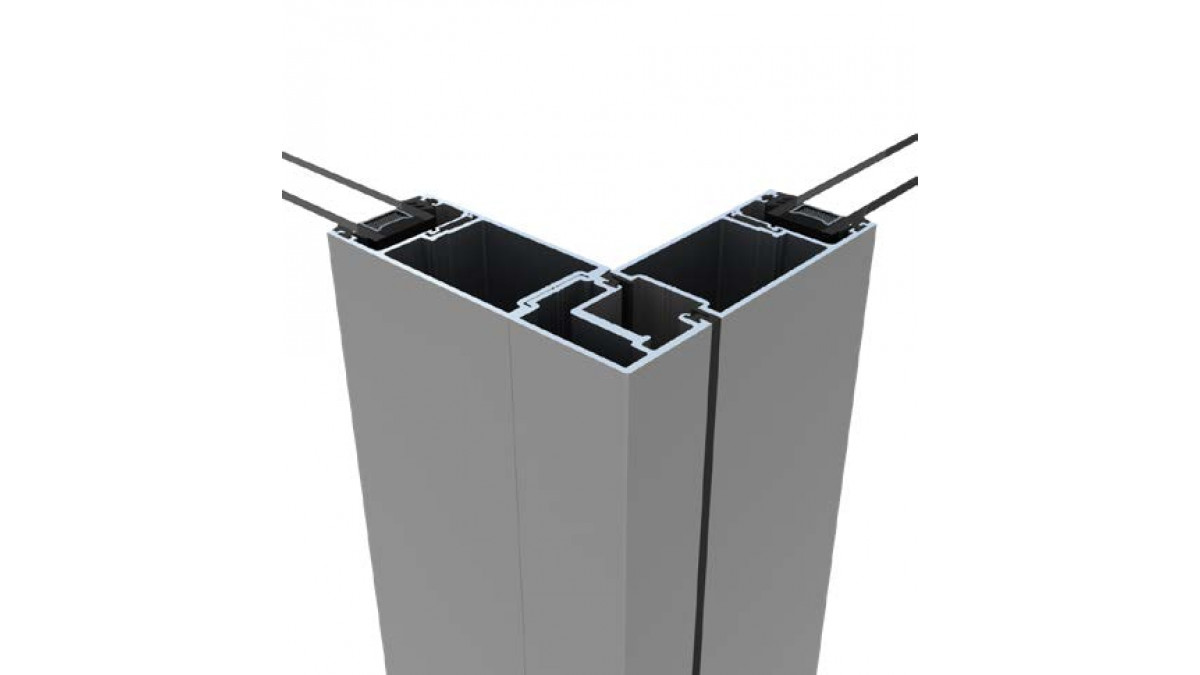

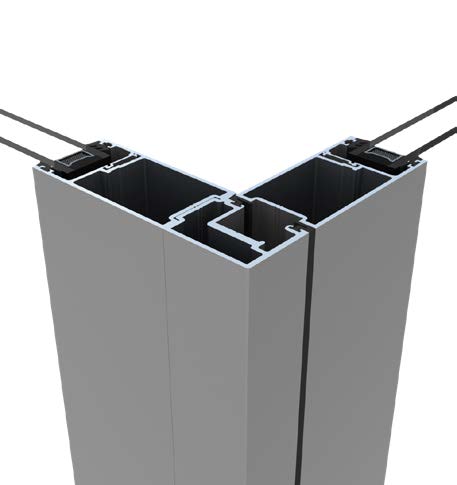

90 corner meeting stiles
90° corner meeting stiles

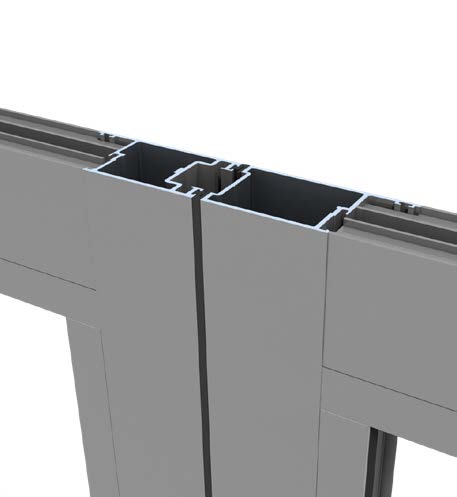

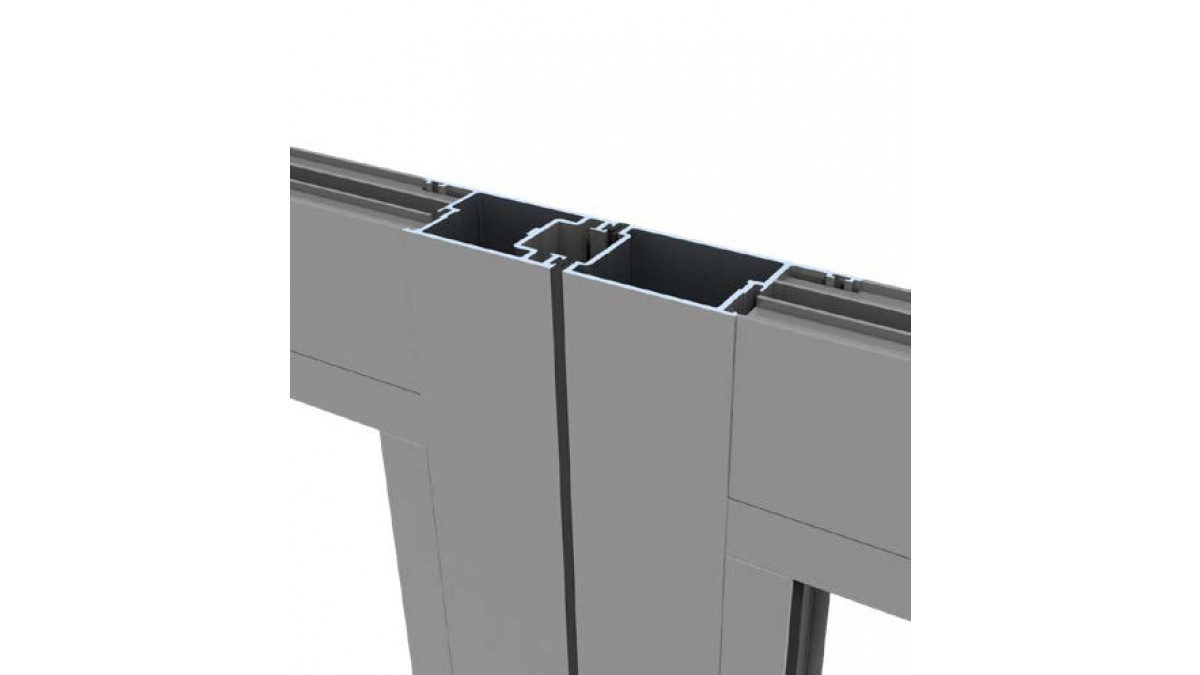

Bi parting meeting stiles
Bi-parting meeting stiles
Description

Sliding windows use the sliding door frame and panels move on an outside track. They can meet at 90° corners without the need for a corner post.

Most configurations include a fixed side panel. However, a bypass slider option is available where two or more panels are configured to open from opposing ends.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • APL Architectural Series sliding windows use the sliding door frame but generally have smaller interlocker stiles, mullions and bi-parting meeting stiles
  • The sill frame has both sloped and flush track options
  • The sloped sill option has a smaller top and bottom rail
  • Interlocker stiles and mullions are flush in the closed position
  • Ideal for non-projecting or servery windows
Categories
Sliding Windows
Ranges
APL Architectural Series
Scope of Use
  • Suitable for most applications where non-projecting windows are desired
  • Need to be used in defined maximum sizes according to the wind exposure
  • Designed for suitability for Extra High wind zones and Specific Design applications
Limitations on Use
  • Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
  • Some weather protection above e.g. wide eaves recommended to protect open windows
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
AGP Care & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Altherm on Masterspec
URL
Calculate R-Value and Ug-Value
pdf
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Altherm Design Brochure

2020

URL
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

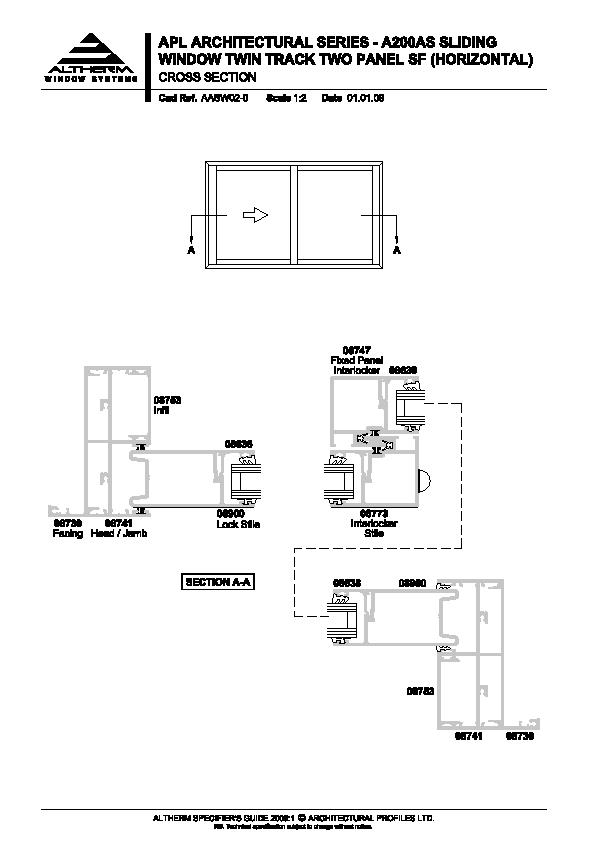

Altherm APL Architectural Series A200AS Sliding Window Twin Track Two Panel SF (Horizontal)

AASW02-0

dwf
dwg
dxf
pdf

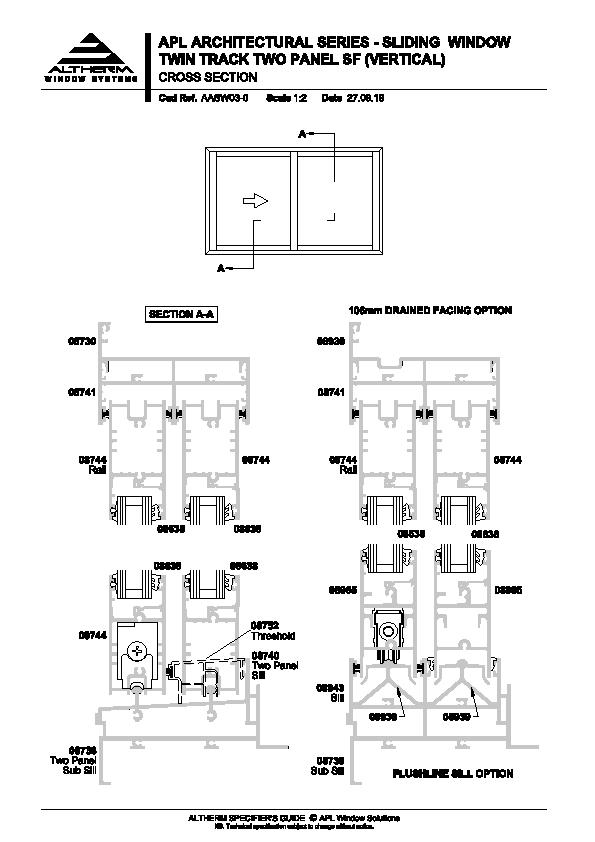

Altherm APL Architectural Series Sliding Window Twin Track Two Panel SF

AASW03-0

dwf
dwg
dxf
pdf

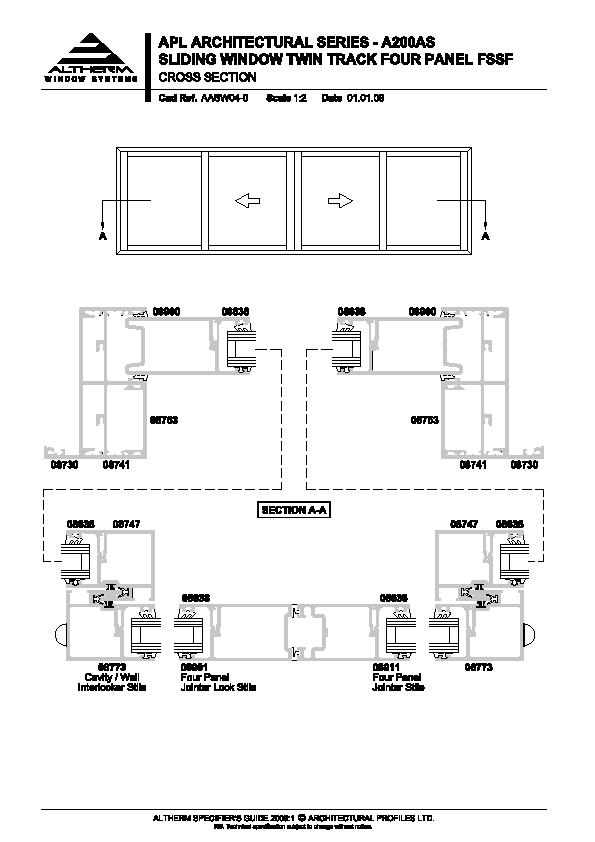

Altherm APL Architectural Series A200AS Sliding Window Twin Track Four Panel FSSF

AASW04-0

dwf
dwg
dxf
pdf

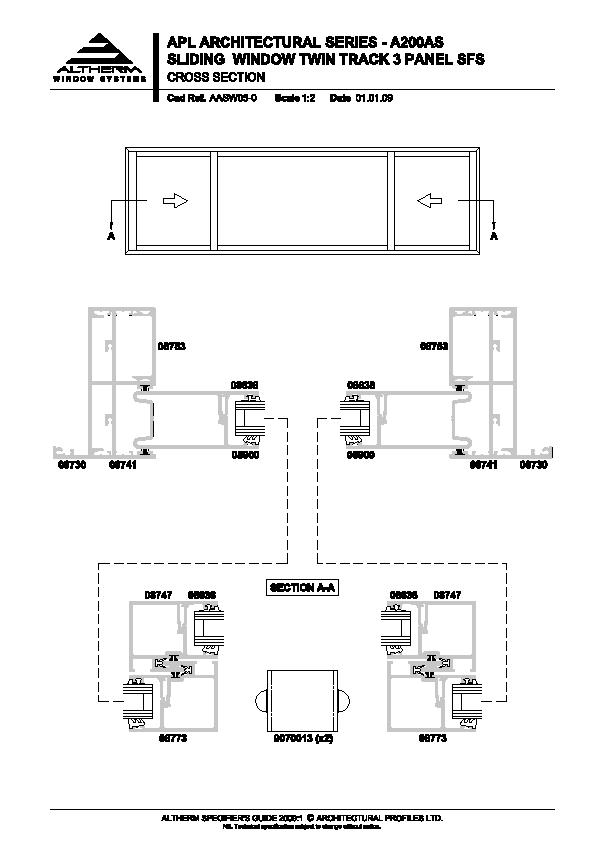

Altherm APL Architectural Series A200AS Sliding Window Twin Track 3 Panel SFS

AASW05-0

dwf
dwg
dxf
pdf
Installation Details
View full

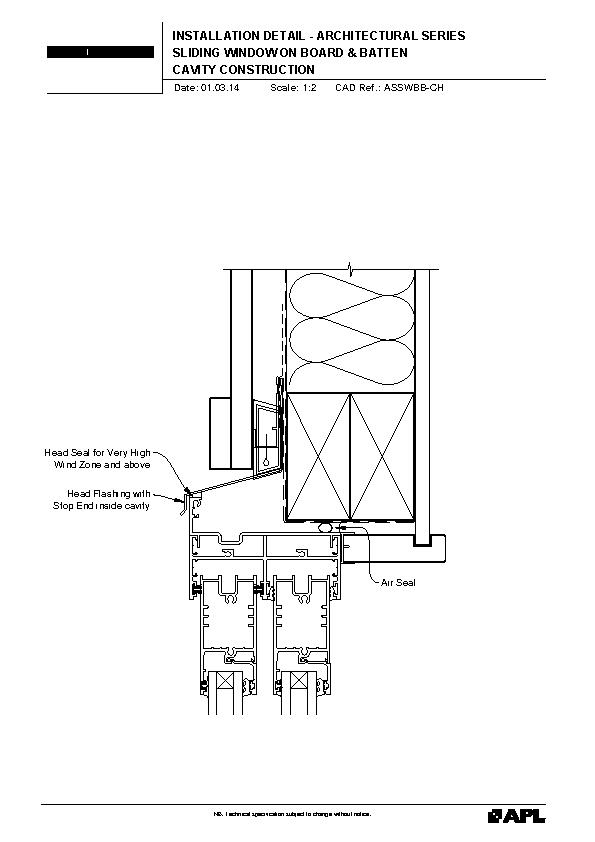

Altherm APL Architectural Series Sliding Window on Board & Batten

ASSWBB

dwg
pdf

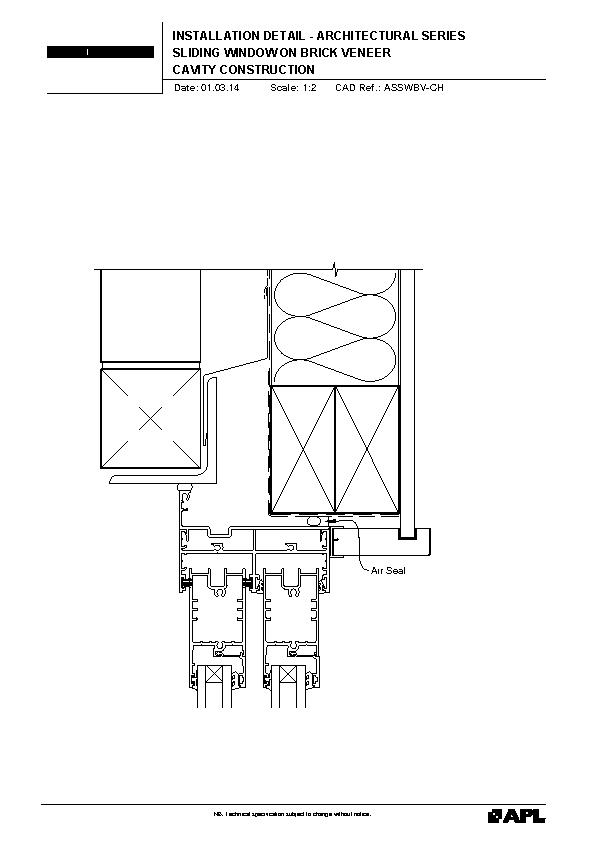

Altherm APL Architectural Series Sliding Window on Brick Veneer

ASSWBV

dwg
pdf

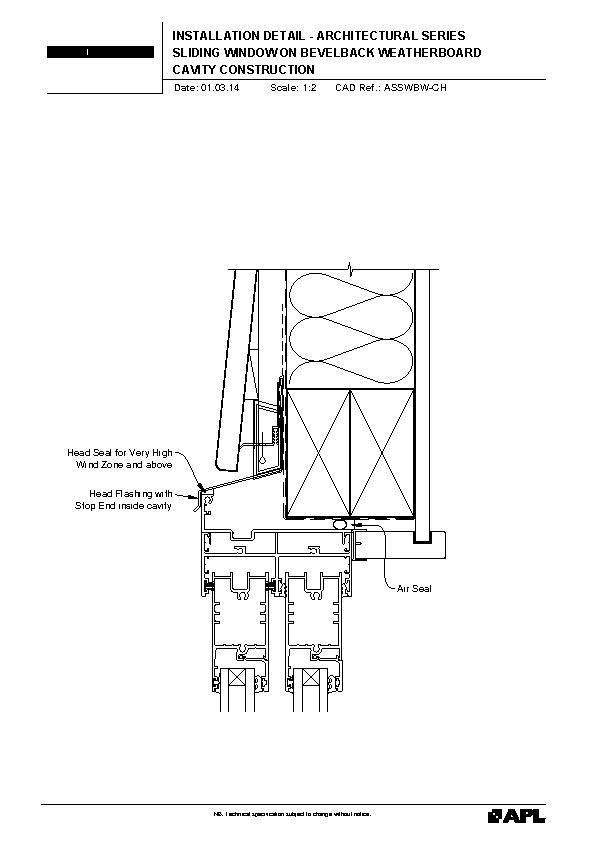

Altherm APL Architectural Series Sliding Window on Bevelback Weatherboard

ASSWBW

dwg
pdf

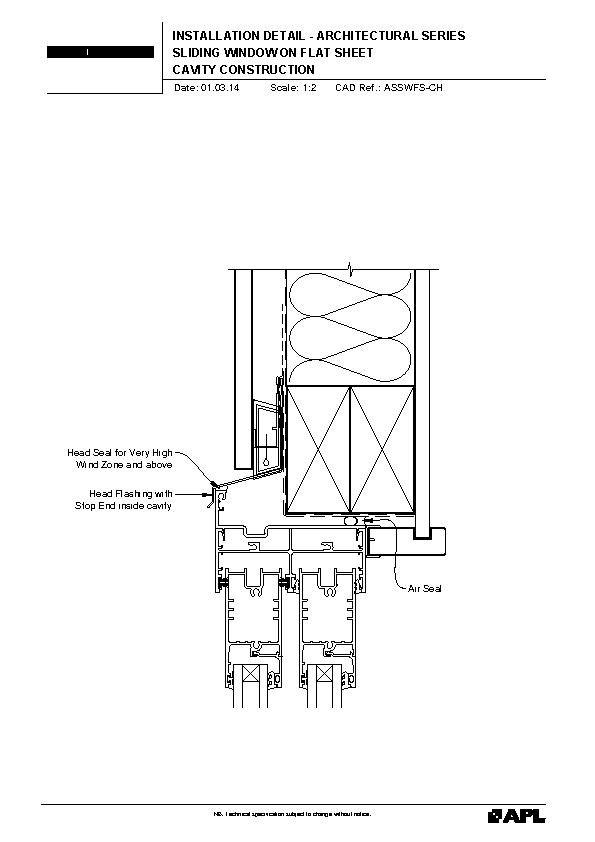

Altherm APL Architectural Series Sliding Window on Flat Sheet

ASSWFS

dwg
pdf

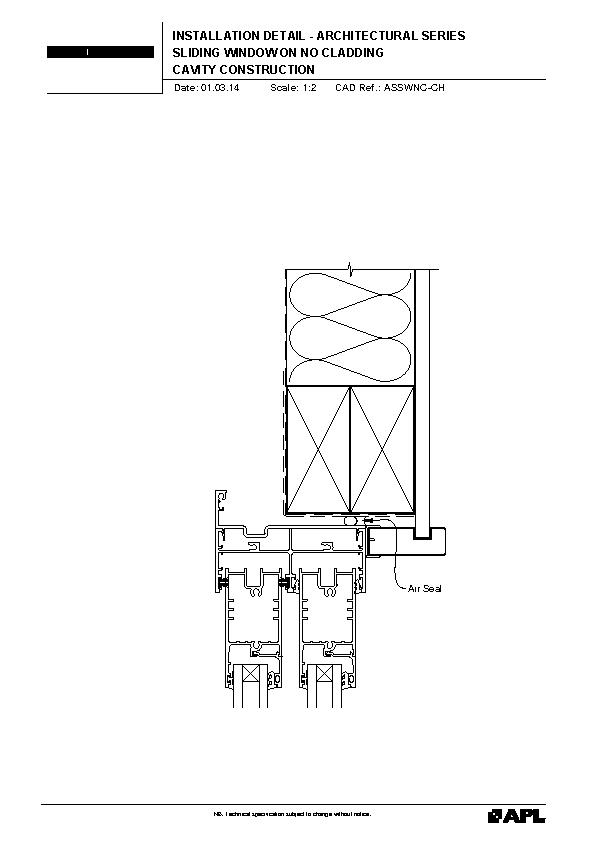

Altherm APL Architectural Series Sliding Window on No Cladding

ASSWNC

dwg
pdf

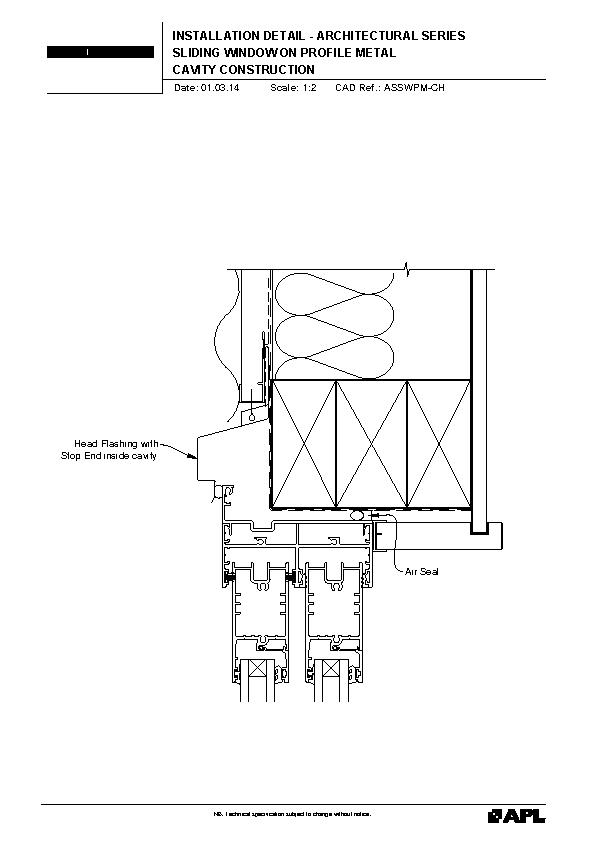

Altherm APL Architectural Series Sliding Window on Profile Metal

ASSWPM

dwg
pdf

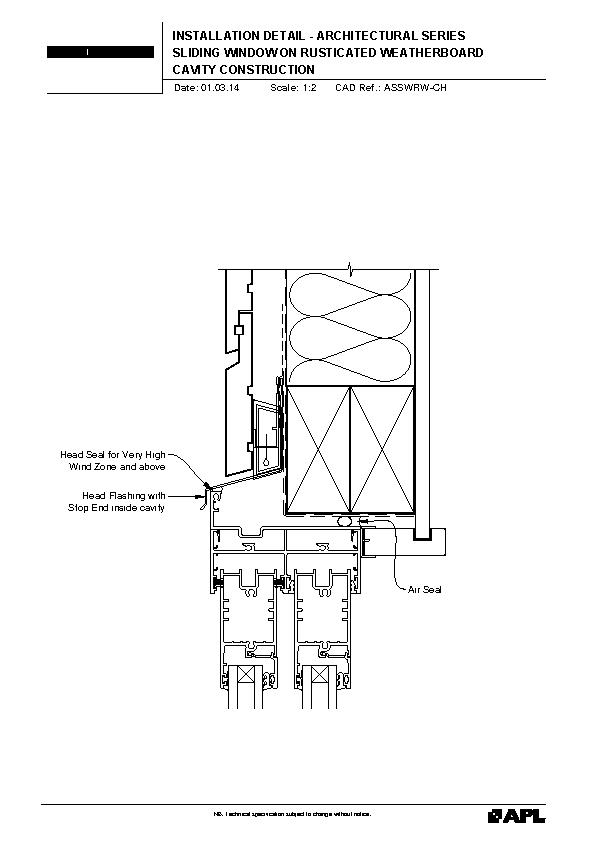

Altherm APL Architectural Series Sliding Window on Rusticated Weatherboard

ASSWRW

dwg
pdf

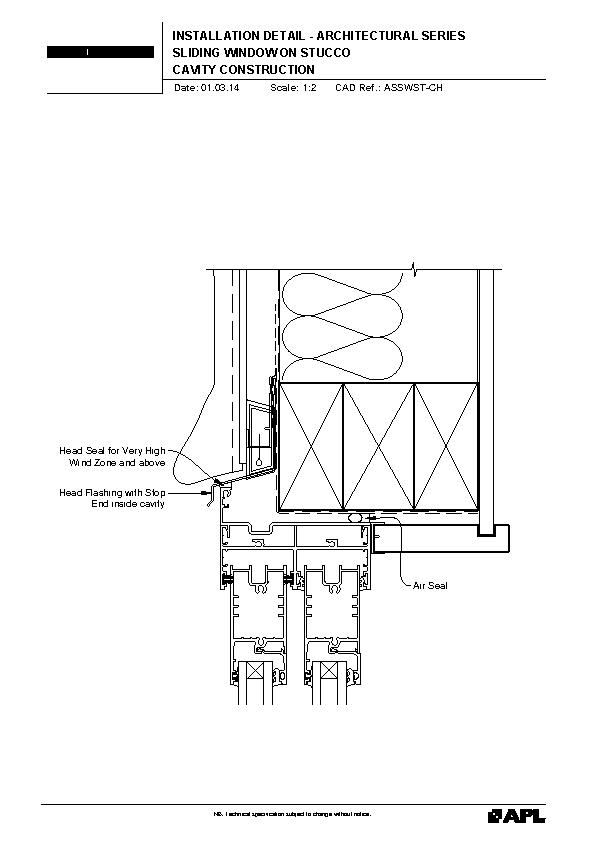

Altherm APL Architectural Series Sliding Window on Stucco

ASSWST

dwg
pdf
BIM
View full
4 panel
Altherm APL Architectural Series Sliding Window FSSF
zip

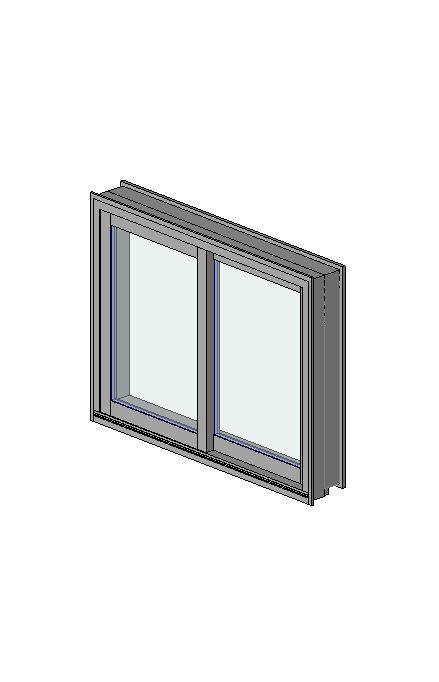

2 panel
Altherm APL Architectural Series Sliding Window SF
zip

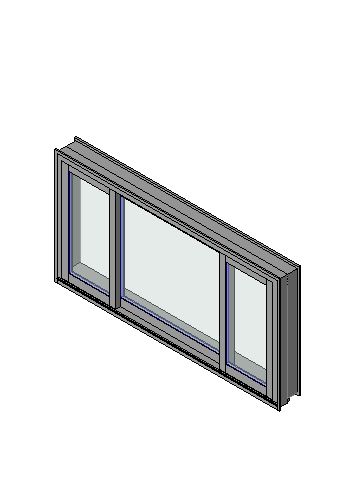

3 panel2
Altherm APL Architectural Series Sliding Window SFS
zip

Stylish contemporary lines, advanced thermal performance and precise detailing have made Altherm a trusted choice for architects and homeowners. Available as a complete window system with AGP glass.

Product Enquiries

News from ALTHERM Window Systems

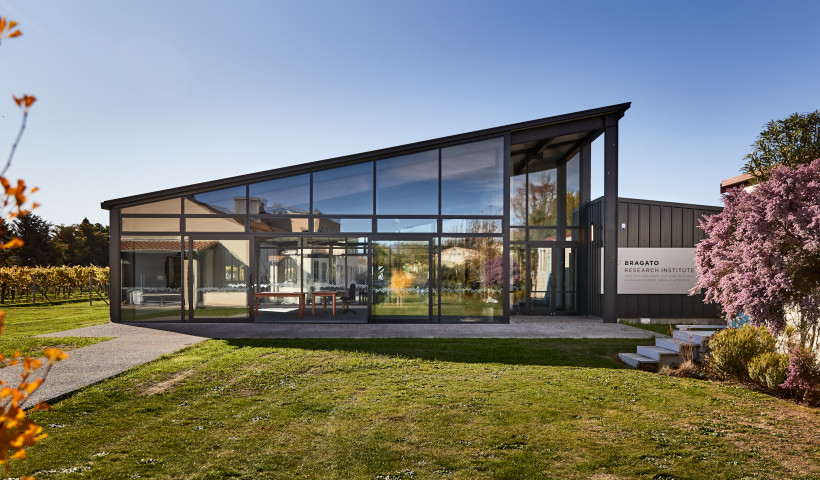

Precision Detail Takes Top Honours
