LCN4310ME Series by Allegion

LCN4310ME Series

Description

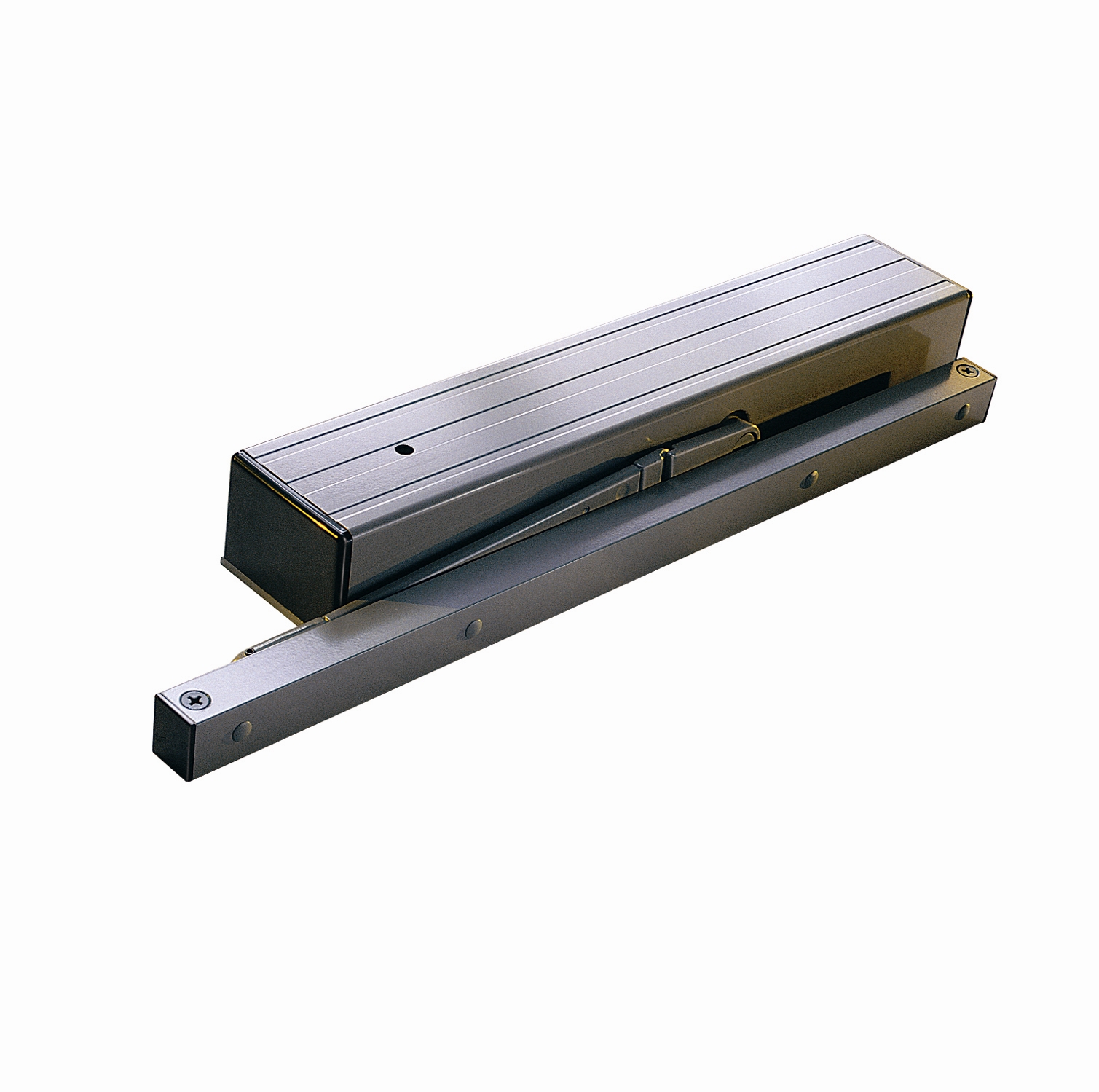

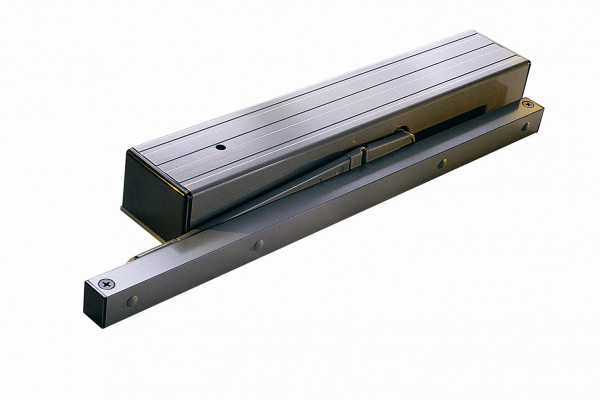

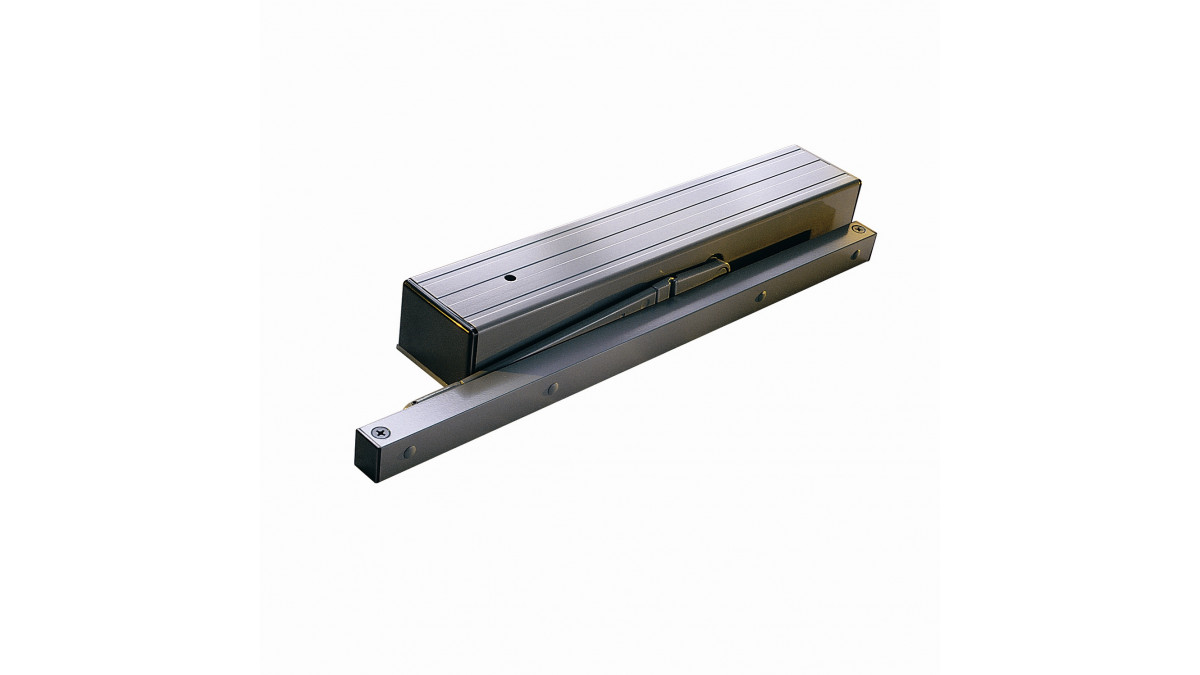

The 4310ME Sentronic is a heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. The door is held open until current interruption releases mechanism and the door closes.

The single lever (track) arm closer is specifically designed for interior doors. Available with a choice of finishes, cylinder functions, and installation accessories. Meets virtually all life safety requirements.

The 4310ME Series function as full rack-and-pinion door closers when hold-open is not engaged or the electrical current is interrupted. The finishes, cylinder functions and installation accessories meet virtually all life and safety requirements.

Key Features

Standard 4310ME series closer shipped with a 24V or 120V cylinder (please specify) on a mounting plate, metal cover, swing-free arm, track, track roller, and wood and machine screw pack
Sized cylinder for interior doors to 100mm
Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with swing-free arm engaged
Handed for right or left swinging door
Concealed or exposed electrical connections
Built-in on/off switch controls hold-open function
Swing-free arm allows door to be moved without door closer resistance
Interfaces with fire alarm systems
Standard or optional custom powder coated finish
Optional plated finish on cover, arm, and fasteners

Ranges

Door Controls

Scope of Use

Heavy duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors
Sized cylinder for interior doors to 100mm
Handed for right or left swinging door
Interfaces with fire alarm systems
Standard or optional custom powder coated finish
Optional plated finish on cover, arm, and fasteners
