January 2013

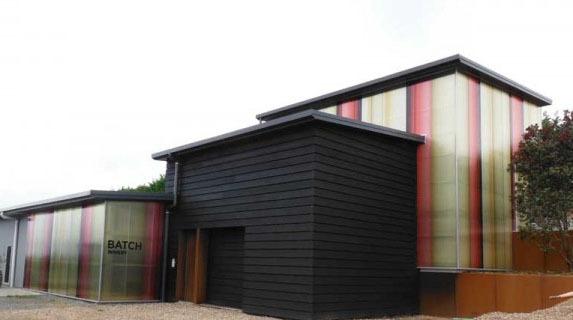

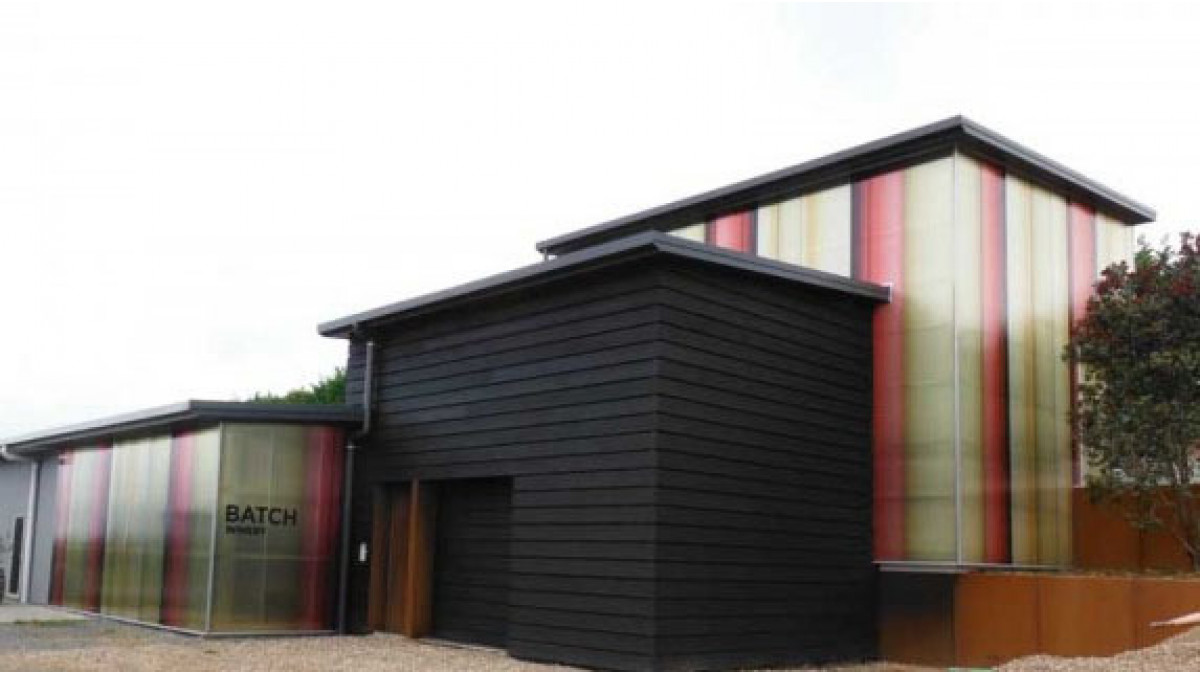

New Batch Winery on Waiheke Island Features 3M Printable Film

The colours decided upon by the client reflect the different types of wines produced on site.

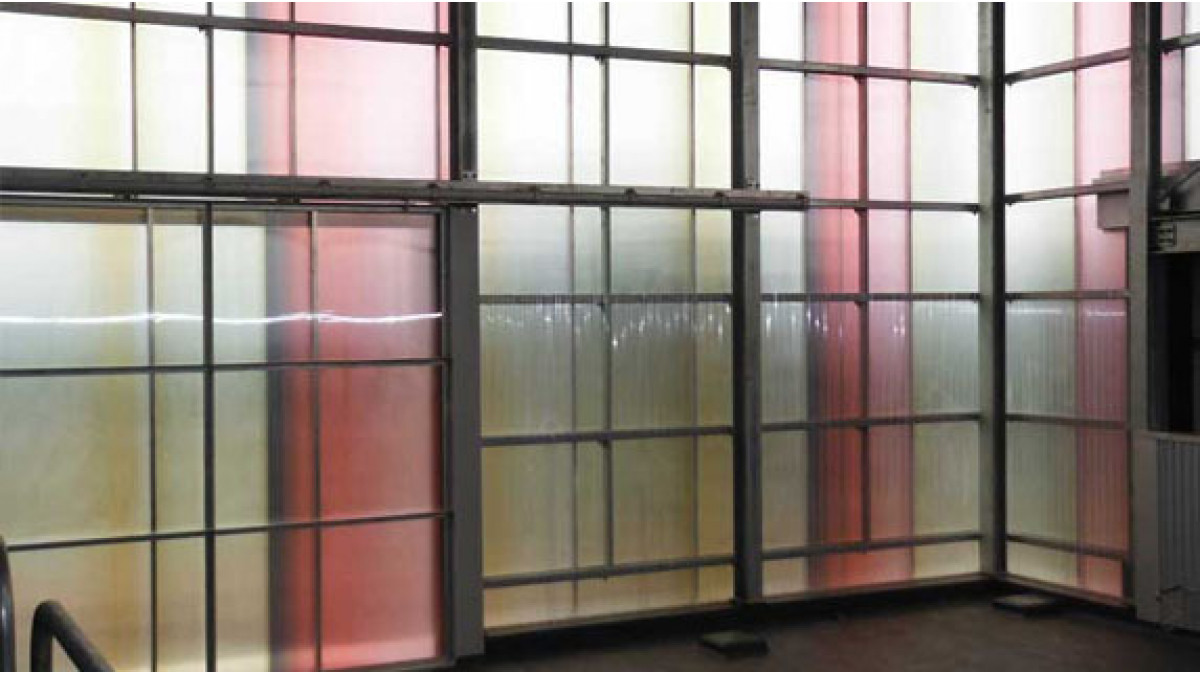

The installation was a challenge as some of the Danpalon polycarbonate panels were 8 m long. Stage one was installed prior to the panels being installed and stage two once the panels were in place.

3M products were chosen as the client wanted maximum light but not optical clear, as the substrate was not totally clear and they wanted some diffused light. Design Tints selected an Agfa Anapurna UV printer to achieve the vibrant colours required.

3M Scotchcal 3650 can be used for interior or exterior graphics. The film has pressure-sensitive adhesive, resists gasoline vapors and occasional petroleum spills and is available in transparent, white or black. Applications include graphics for vehicles, windows, signs and more.

3M Scotchcal Clear View Film 8150 is an optically clear printable window film that can be used in many ways on and inside buildings, enabling architects and shopfitters to implement creative design ideas for new and existing glass surfaces. It allows creativity and offers innovative, high-performance solutions for glass design using graphics, text and special effects. It also offers a great solution for public transport advertising. Despite its hard-wearing qualities, it can be easily removed when no longer required.

Project Name: Batch Winery
Location: 129 Carsons Road, Waiheke Island
Client: Blush Vineyard Partnership
Installer: Design Tints – Mohammad Thompson and Bobby Bharat
Designer: David Scott
Materials used: 3M Scotchcal 3650; 3M Scotchcal Clear View Film 8150
Total project size: 248 m2
Date installed: Stage 1: 10-13 July; Stage 2: 28 December
Printing time: 4 days
Installation time: 5 days
