Meet H1 with New R7 Single Layer Ceiling Insulation from Knauf

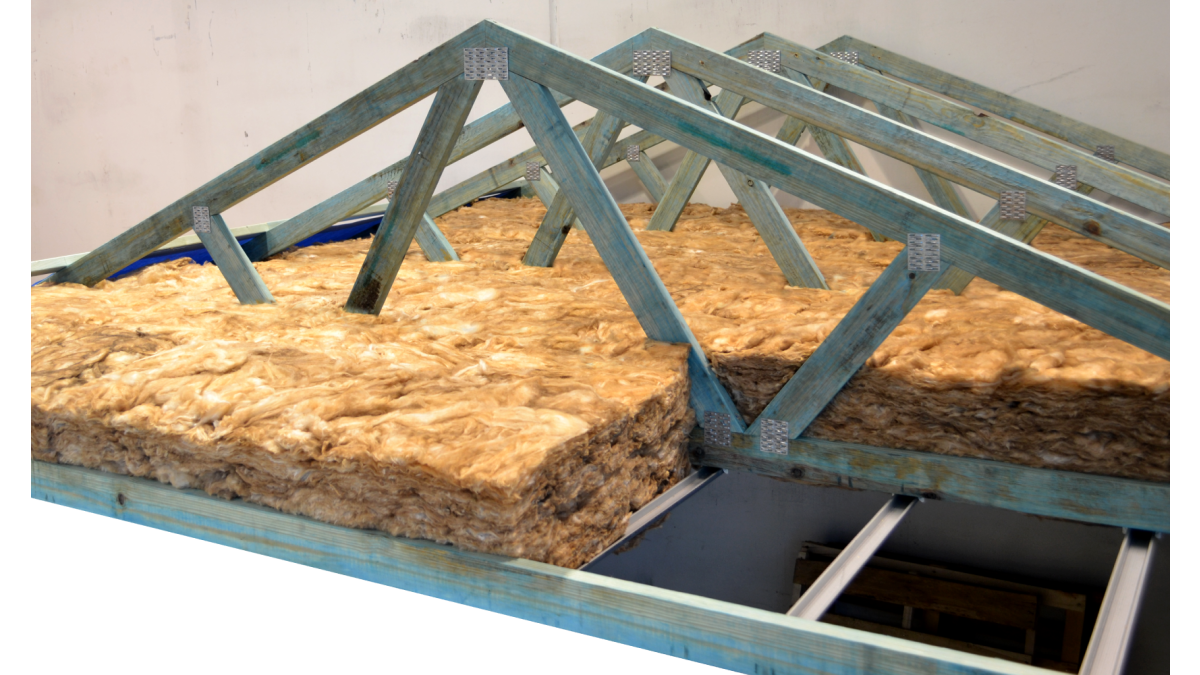

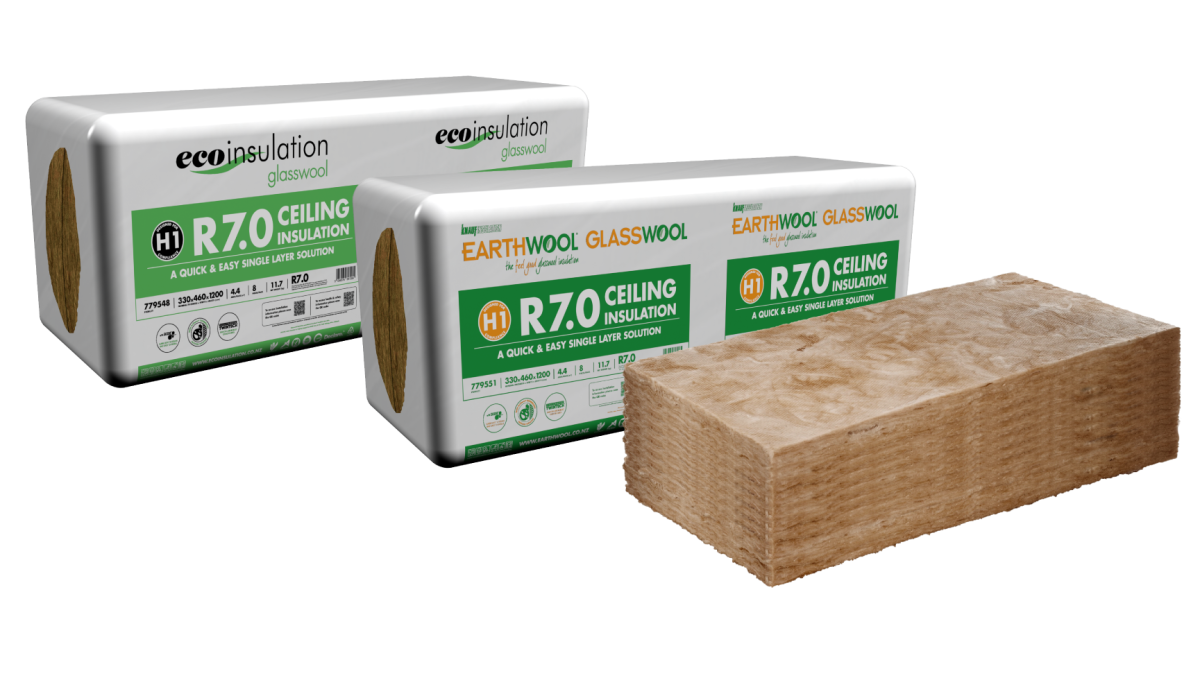

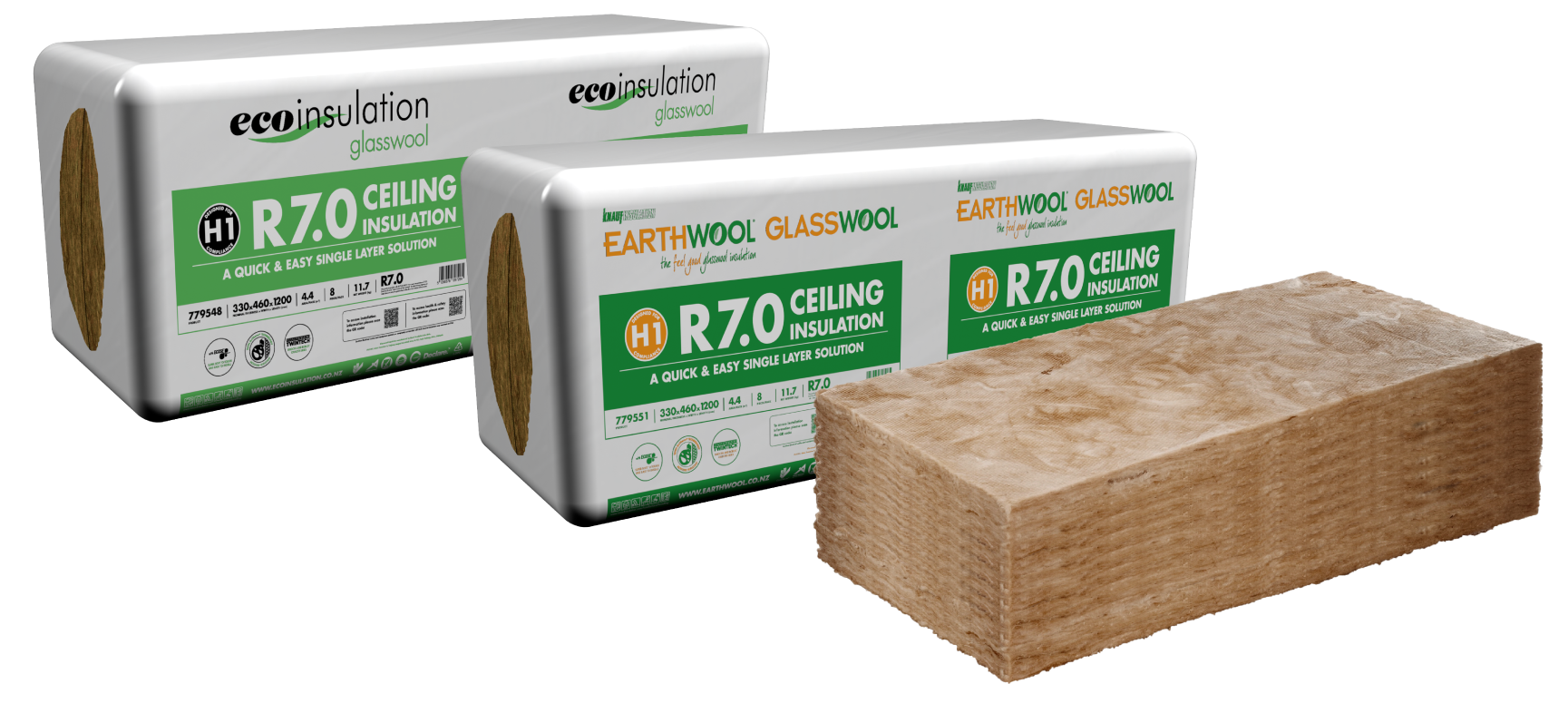

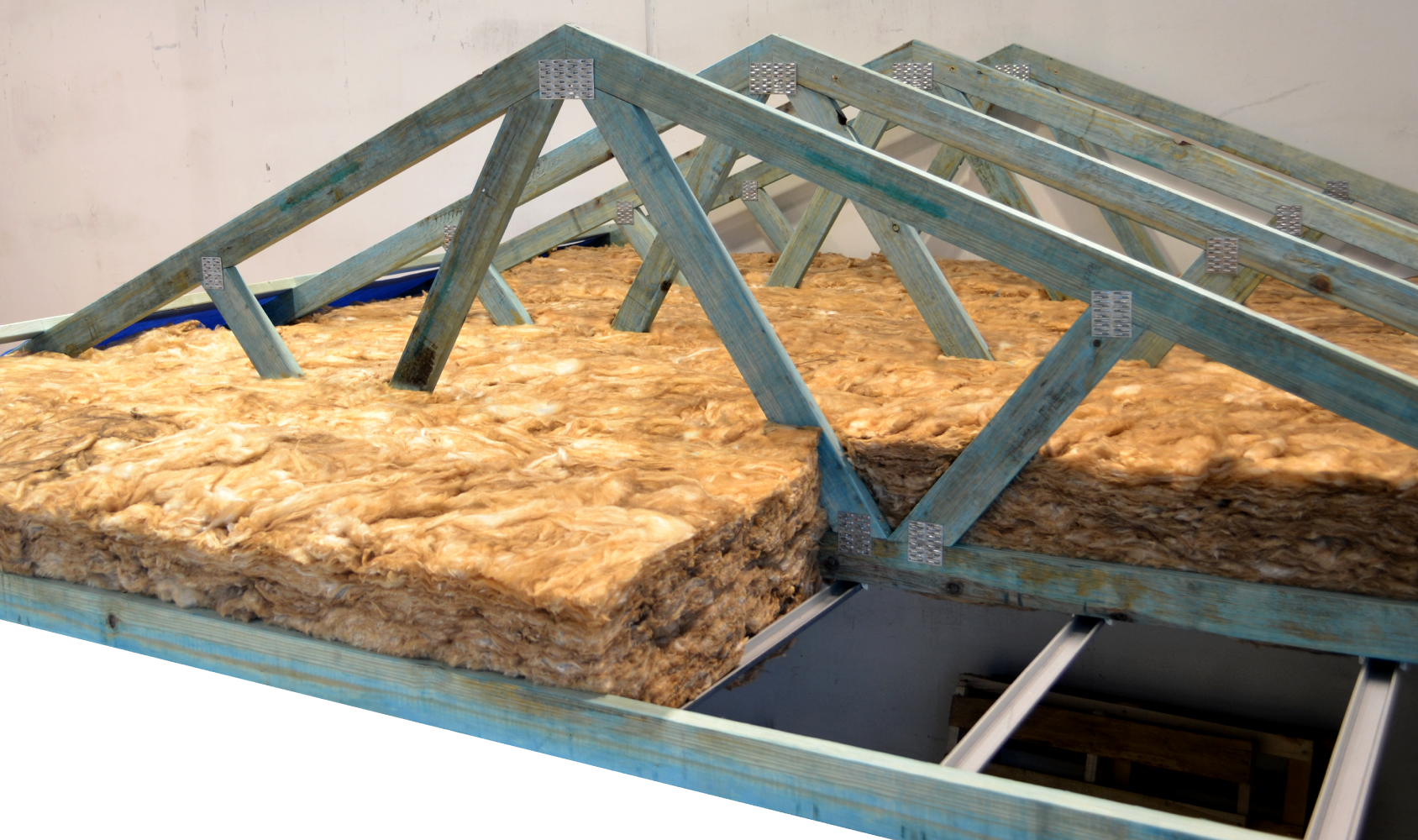

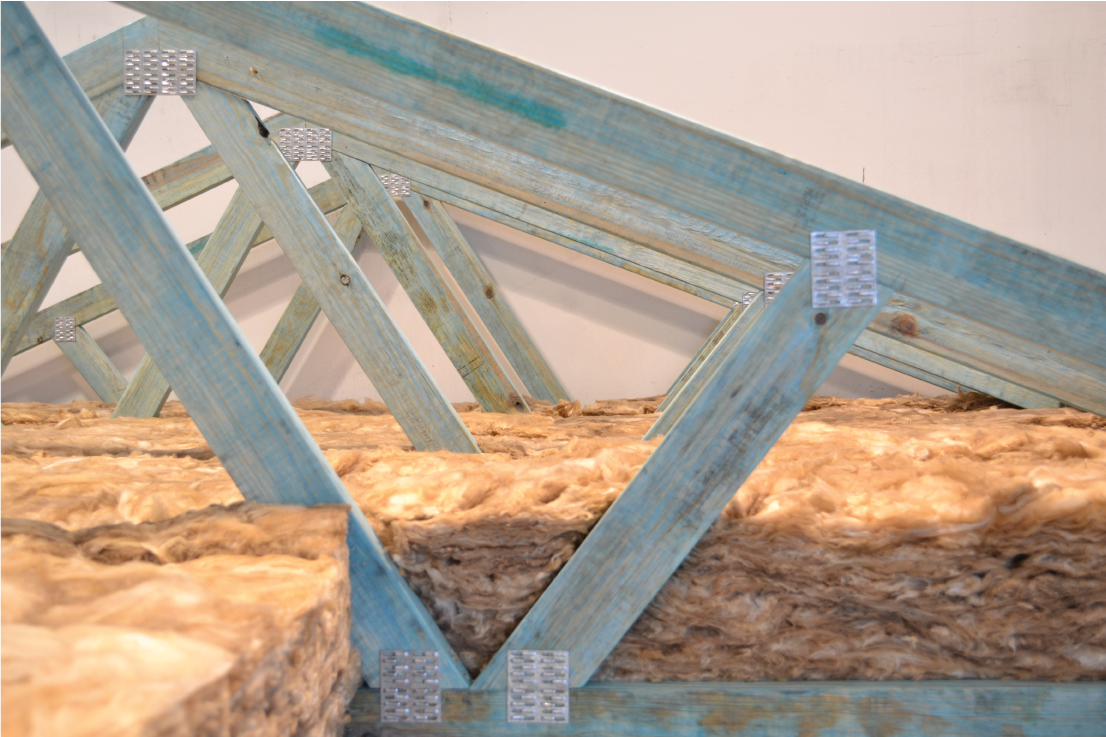

Knauf Insulation is transforming the way ceiling insulation is installed with a new high-performing R7.0 single layer ceiling batt. The R7.0 ceiling solution is extra thick, allowing it to be installed in a single layer with no notching, instead of the time-consuming double layering method, without compromising the H1 New Zealand building code requirements that are now mandatory for newly built New Zealand homes.

Knauf Insulation’s single layer ceiling solution, available in both their Earthwool glasswool and ecoinsulation ranges, features advanced DriTherm Technology, which is used in the manufacturing process, to provide a high level of water resistance. Both ranges are made with up to 80% recycled glass, are non-combustible, and feature Knauf Insulation’s unique bio-based binder — ECOSE Technology, which uses no added formaldehyde. Furthermore, the glasswool ranges feature TwinTech Technology, a dual forming technique that produces a smooth finish on both sides which further enhances the installation process.

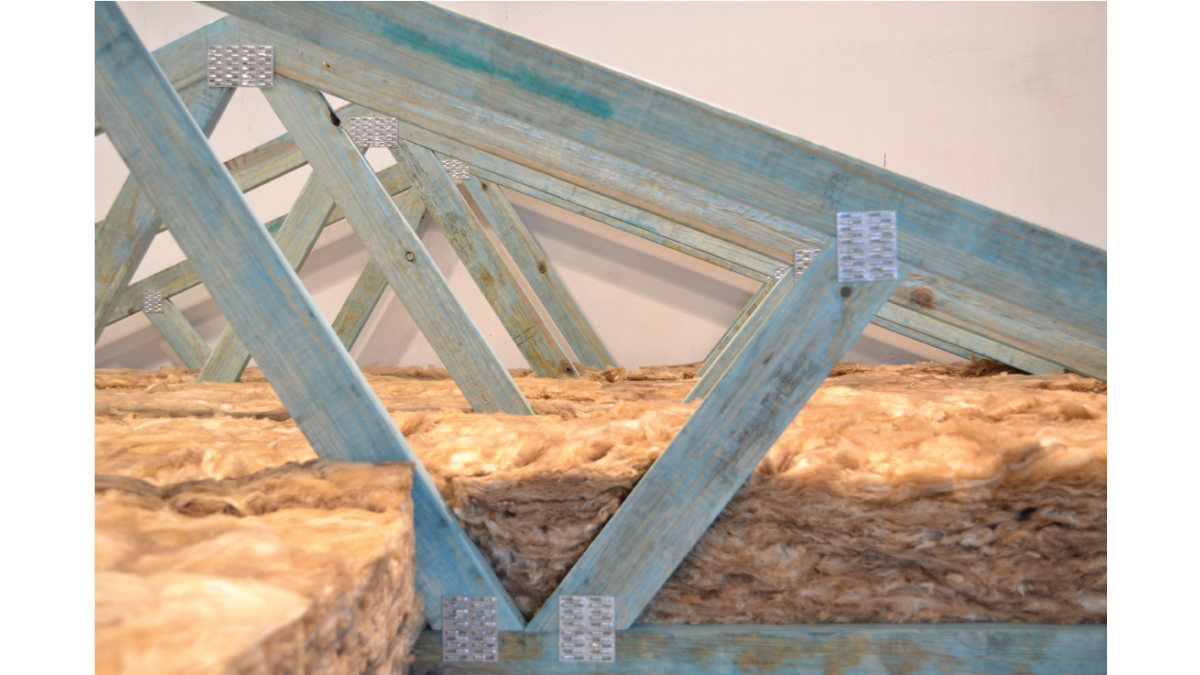

With an incredible range of benefits, Knauf Insulation’s R7.0 single layer ceiling range is designed “over-wide” to deliver a deliberate knit-joint fit with adjacent batts. This provides a complete layer of unbridged insulation to meet the new H1 R-value requirements and eliminates the need for notching, while reducing the complexity of installation. Additionally, Knauf Insulation’s Earthwool glasswool and ecoinsulation products are BRANZ approved and backed by independent certification to ensure installation remains compliant with New Zealand’s H1 requirements.

The single layer glasswool insulation solution from Knauf insulation has less embodied carbon, compared to installing two layers of ceiling insulation, achieves a high R-value of 7.0 in one layer, and requires no need for cross hatching therefore saving time and money on your next project.

Keep an eye out for Knauf Insulation’s new Earthwool glasswool range at Bunnings and ecoinsulation glasswool at Carters.

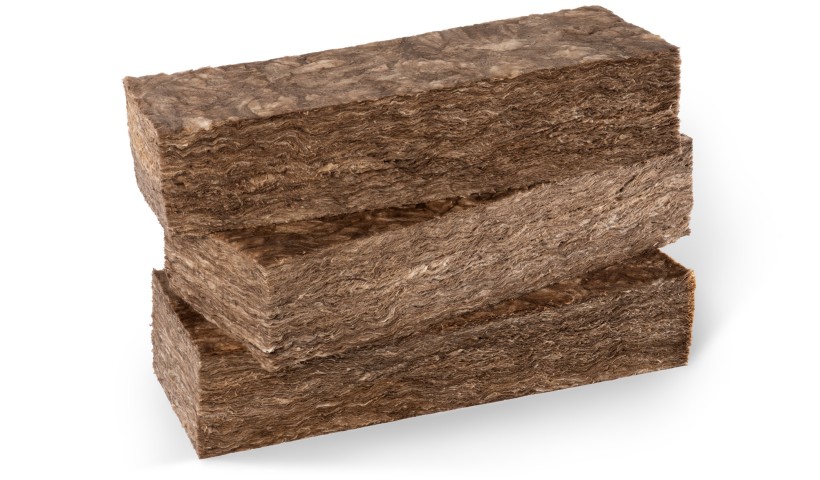

Earthwool glasswool insulation: Ceiling Batts

Knauf Insulation

View Product

The Earthwool® glasswool insulation: ceiling batt range includes a selection of R-values to provide builders, designers, installers the opportunity to choose the best thermal performance for their project.

Declare LBC Red List Free

Green Tag Certified

Pre-Consumer Recycled Content

Earthwool® glasswool insulation has been appraised by BRANZ as a thermal insulation material for framed or part-framed walls, ceilings and roofs of domestic and commercial buildings
The insulation is pre-cut to suit a wide range of thermal insulation requirements and framing set-outs.
Comes in a range of R-values — see Product Data Sheet

AS/NZS 4859.1: 2018 Materials used in the Thermal Insulation of Buildings.

In the opinion of BRANZ, Earthwool® glasswool Insulation if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years
Earthwool glasswool insulation will meet these requirements. See Paragraph 8.1
Clause E3 INTERNAL MOISTURE: Performance E3.3.1
Earthwool glasswool insulation will contribute to meeting this requirement. See Paragraphs 13.1 and 13.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1
Earthwool glasswool insulation meets this requirement and will not present a health hazard to people
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a) and H1.3.2
Earthwool glasswool insulation will contribute to meeting this requirement. See Paragraphs 14.1 and 14.2

See BRANZ Appraisal 648 for full information.

BRANZ Appraised

CodeMark

Energy Efficiency

ecoinsulation Thermal Ceiling Insulation

Knauf Insulation

View Product

ecoinsulation Thermal Ceiling insulation with DriTherm technology is made using a silicone treatment that is added to the during manufacture to upgrade the moisture resistance of the glasswool insulation, and provide guaranteed water resistance for 50 years.

Green Tag Certified

Pre-Consumer Recycled Content

ecoinsulation glasswool has been appraised by BRANZ as a thermal insulation material for framed or part-framed ceilings and roofs of domestic and commercial buildings
The insulation is pre-cut to suit a wide range of thermal insulation requirements and framing set-outs
Comes in a range of R-Values — see Product Schedule

AS/NZS 4859.1 Materials used in the Thermal Insulation of Buildings

In the opinion of BRANZ, ecoinsulation glasswool if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to
meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1(a) not less than 50 years, and B2.3.2. ecoinsulation glasswool insulation products will meet these requirements.
Clause C3 PROTECTION FROM FIRE: Performance C3.7(a). ecoinsulation glasswool insulation products are not combustible building materials and will contribute to meeting this requirement
Clause E3 INTERNAL MOISTURE: Performance E3.3.1. ecoinsulation glasswool insulation products will contribute to meeting this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. ecoinsulation glasswool insulation products do not present a health hazard to people
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1(a) and H1.3.2E. ecoinsulation glasswool insulation products will contribute to meeting these requirements

See BRANZ Appraisal 1049 for full information.

Durability

Protection from Fire

Internal Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised

CodeMark
