BiForm's Solid Composite Decking Excels in Fire Safety

The fire test results of building materials are becoming more and more sought after. Projects will often come to a halt if certain materials don't meet NZBC requirements for fire safety.

To ensure a streamlined specification, BiForm had their solid composite decking fire-rated and now has this information readily available for architects.

The Critical Radiant Flux quantifies the radiant energy a fire needs to sustain flame propagation on a specific material. As stipulated by the NZ Building Code, open pathways, exit ways and fire exits require a minimum Critical Radiant Flux 2.2 k/Wm2. It was found that BiForm's rating of 5.7 k/Wm2 exceeds the Building Code requirement considerably.

This also applies to the requirement in the Verification Method C/VM2 – Framework for Fire Safety Design.

When specifying for decking for areas where fire safety is important, for example, where users are likely to smoke cigarettes, BiForm has had the testing done to justify specification.

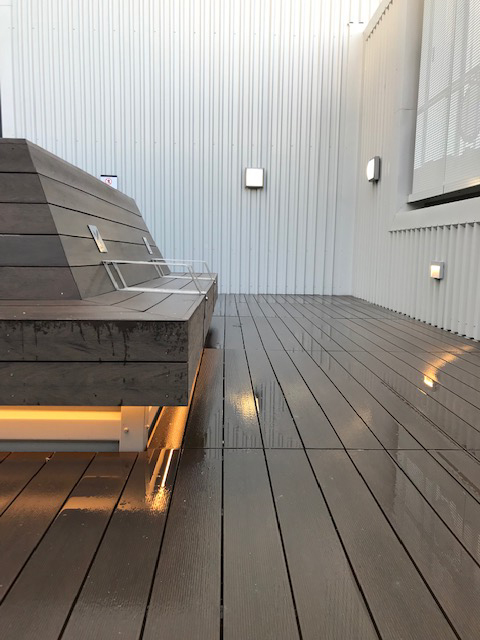

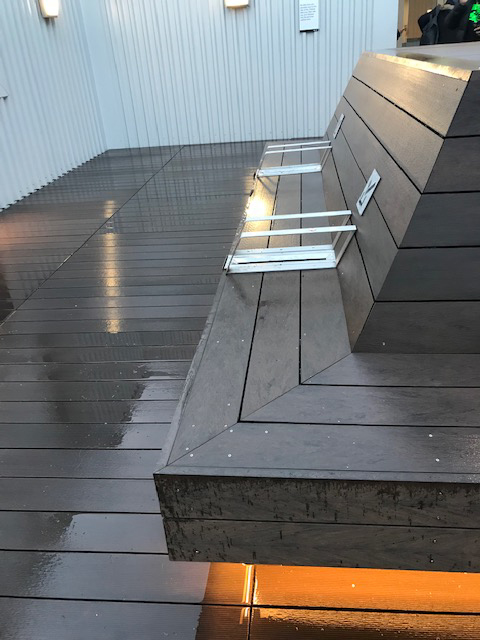

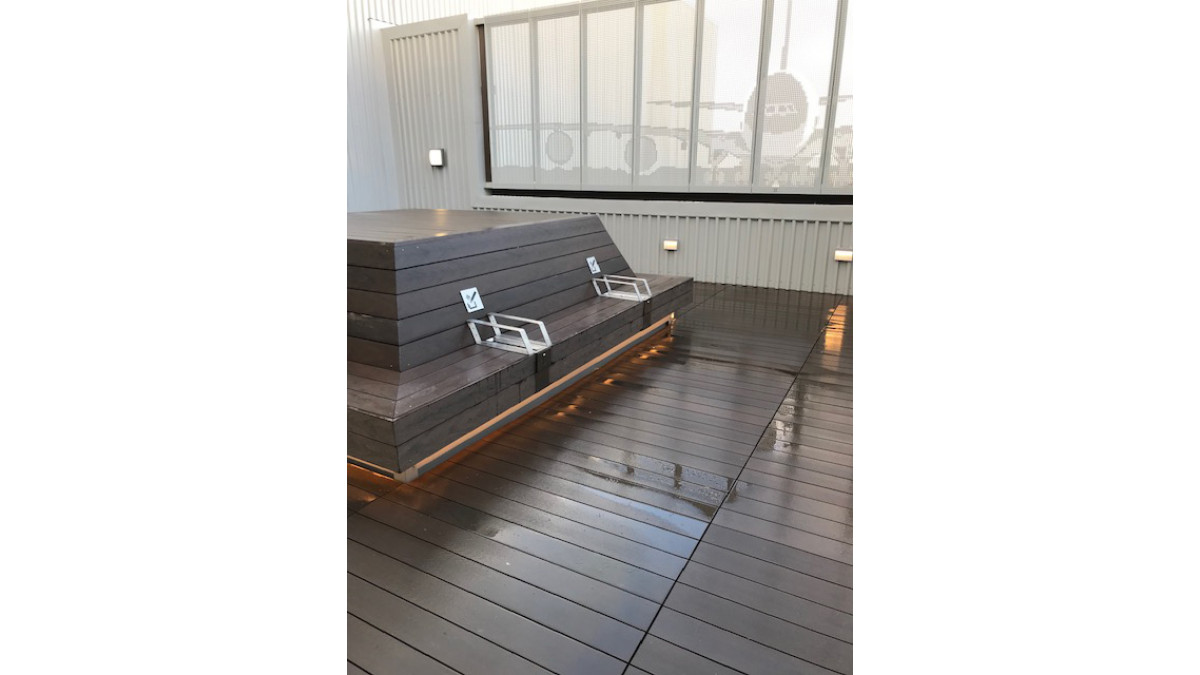

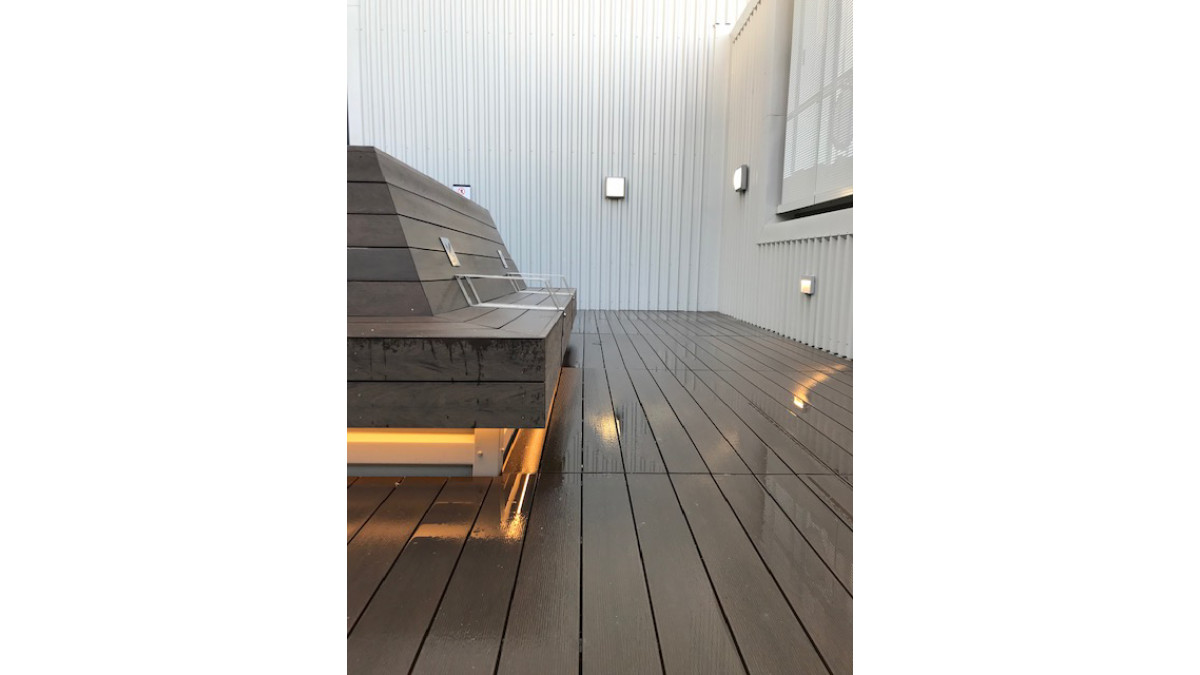

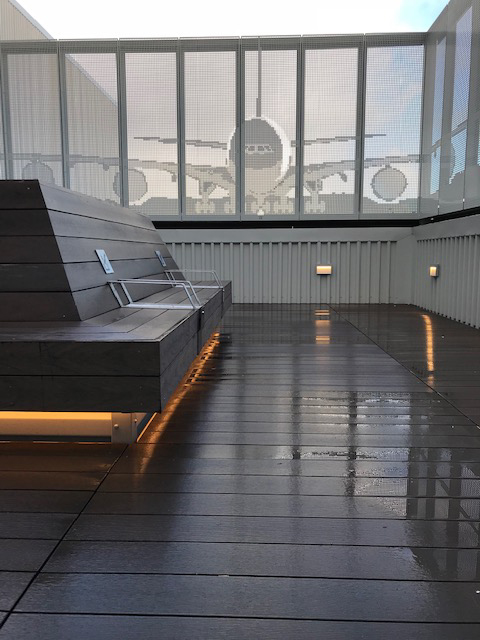

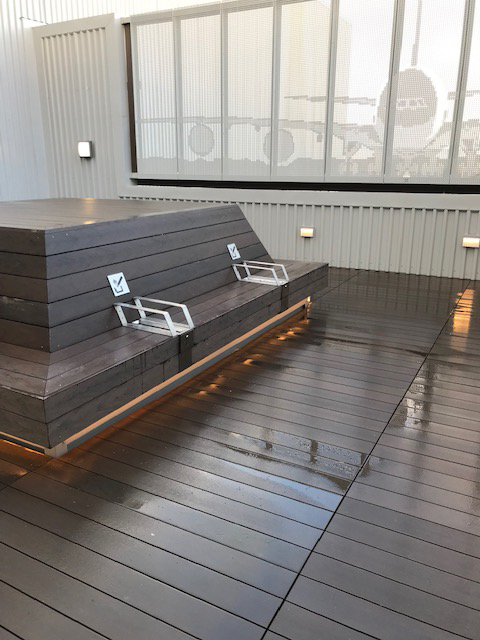

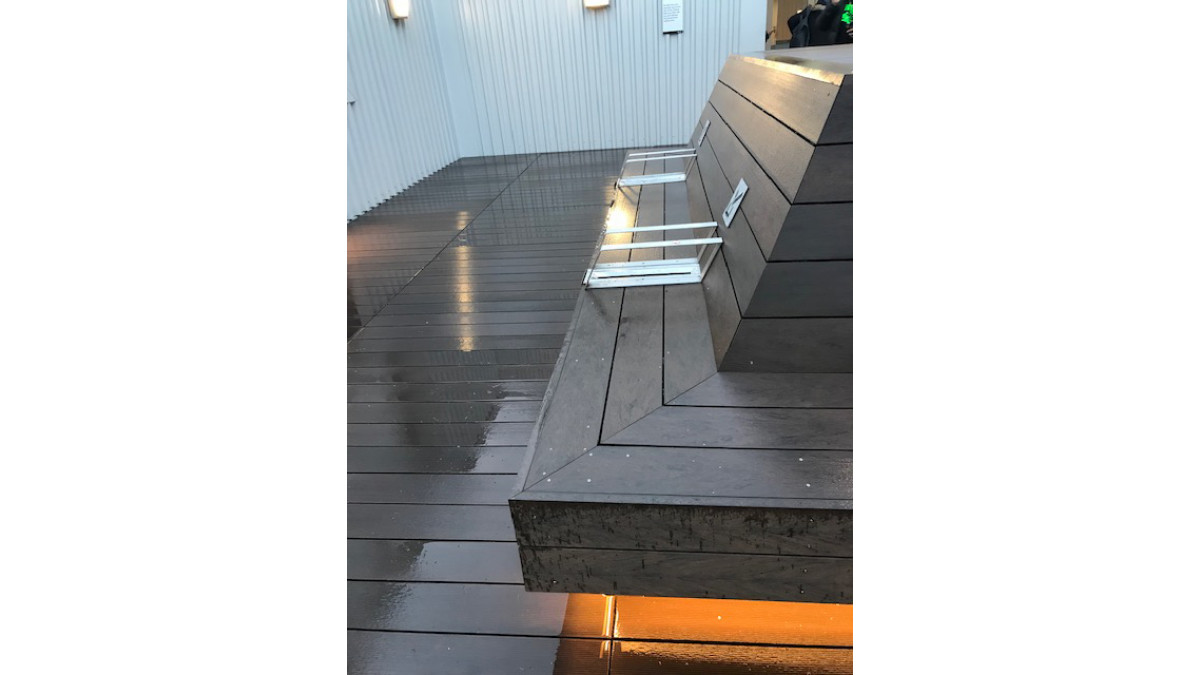

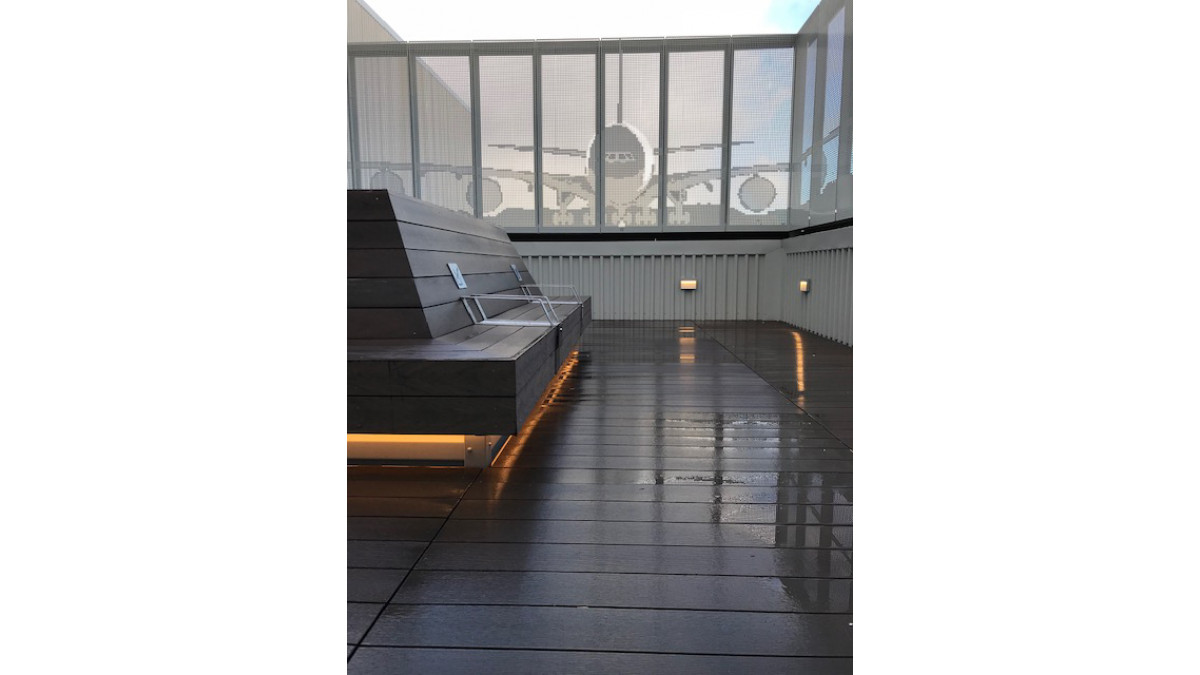

Due to it's fire safe properties, BiForm Solid Composite Decking was specified and used at the Auckland International Airport Smoking Area (pictured).

BiForm FORM 130 Solid Composite Decking

BiForm

View Product

BiForm solid composite decking is an environmentally friendly decking option.

NZ-Owned Business

Post-Consumer Recyclable Content

This 130mm x 19mm board will be more appropriate for, but not limited to residential outdoor decking options, as well as commercial applications where suited.

BRANZ have appraised BiForm Wood Plastic Composite Decking to be used as an alternative exterior decking material for decks designed and constructed in accordance with NZS 3604.

FORM 130 Solid Composite Decking Board has been used most often in the construction of public viewing platforms. It is also used with either the concealed fixing system or predrilled and top fixed for traditional decking.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

In the opinion of BRANZ, if it is designed, used, installed, and maintained in accordance with the statements and conditions of Appraisal No. 680 (2015), BiForm's WPC Decking will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, & B1.3.4. BiForm's WPC Decking meets the requirements of loads arising from self-weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. BiForm's WPC Decking meets this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Biform's WPC Decking meets this requirement and will not present a health hazard to people.

Biform's WPC Decking has been appraised as an alternative solution in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BiForm FORM 140 Solid Composite Decking

BiForm

View Product

BiForm solid composite decking is an environmentally friendly decking option.

NZ-Owned Business

Post-Consumer Recyclable Content

BRANZ have appraised BiForm Wood Plastic Composite Decking to be used as an alternative exterior decking material for decks designed and constructed in accordance with NZS 3604.

FORM 140 Solid Composite Decking Board has been used most often in the construction of public viewing platforms. It is also used with either the concealed fixing system or predrilled and top fixed for traditional decking.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

In the opinion of BRANZ, if it is designed, used, installed, and maintained in accordance with the statements and conditions of Appraisal No. 680 (2010), BiForm's WPC Decking will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, & B1.3.4. BiForm's WPC Decking meets the requirements of loads arising from self weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. BiForm's WPC Decking meets this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Biform's WPC Decking meets this requirement and will not present a health hazard to people.

Biform's WPC Decking has been appraised as an alternative solution in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials
