Anzio for Commercial Occupancy Types B,E,C3

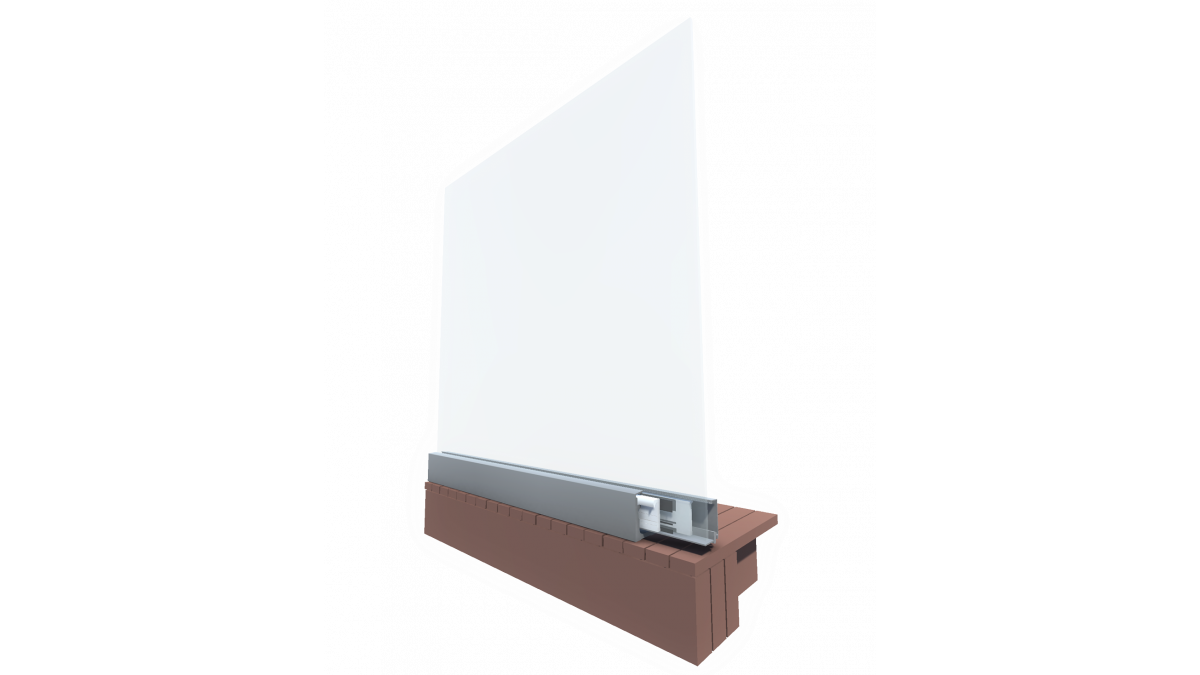

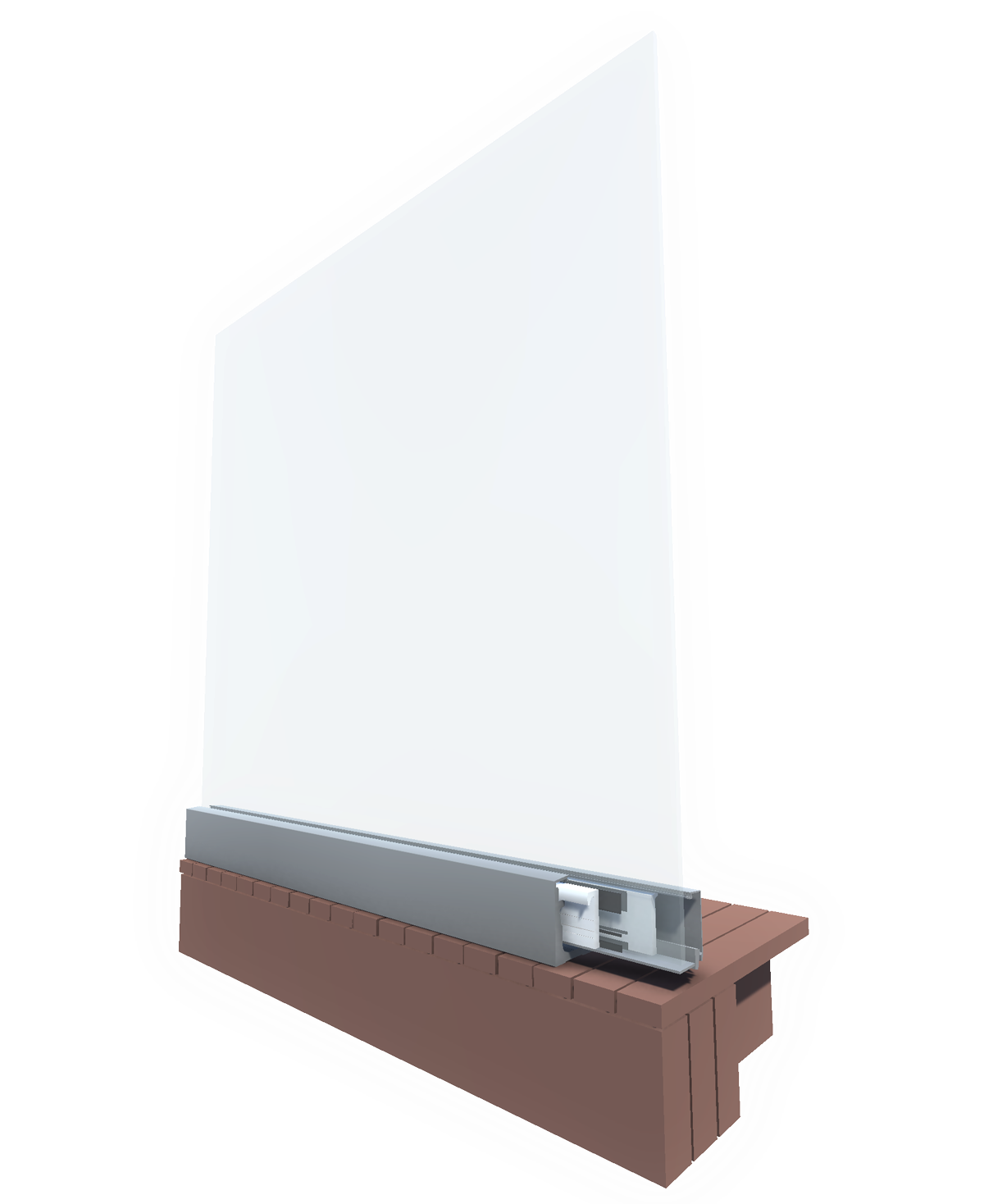

ANZIO is the latest innovation on frameless glass barrier design. ANZIO is a floor mounted cantilevered frameless glass barrier system.

Key Features
  • No need for scaffolding. ANZIO is easily installed from the deck without the need for ladders or scaffolding
  • Quick to install and easy to adjust. Fastest floor mounted system we have designed to date
  •  Architecturally designed with square edges. The square shaped profile allows for flooring to be easily butted up against ANZIO for a tidy seamless look
  • ANZIO is a very strong and stable system. ANZIO is able to meet a commercial C3 occupancy type with;
    • 1) Viridian 12mm toughened safety glass with Euroglass interlinking rail
    • 2) Viridian 13.5mm toughened laminated safety glass with Euroglass interlinking gap clamps
    • 3) Viridian 13.52mm toughened laminated safety glass with a SentryGlas inter-layer with Euroglass interlinking gap clamps (no handrail required)
  • Other systems require thicker glass to meet the commercial C3 occupancy loading requirement
  • ANZIO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match desired colour scheme
Scope of Use
  • Rated to be used up to a Extra High Wind Zone (2.13Kpa or less)

ANZIO is designed to be attached to concrete, timber and steel substrates to create:

  • Balustrades for External Decks and Stairwells
  • Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors

 ANZIO can be attached to the following substrates:

  • Concrete
  •  Timber
  •  Steel

Based on barrier loads taken from AS/NZS1170.0 ANZIO can be used for Commercial Occupancy Types:

  • B & E — Office and work areas not included elsewhere including storage areas:
    Areas not susceptible to overcrowding in office and institutional buildings also industrial and storage buildings. Light access stairs and gangways not more than 600mm wide. Fixed platforms, walkways, stairways and ladders for access.
  • C3 — Areas without obstacles for moving people and not susceptible to overcrowding:
    Stairs, landings, external balconies, edges of roofs

Taken from table 3.3 AS/NZS1170.1

Limitations on Use

Maximum glass height from the finished floor level is 1100mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are:

  • 12mm toughened safety glass with interlinking rail
  • 13.5mm toughened laminated safety glass with interlinking gap clamps
  • 13.52mm toughened SENTRYGLAS laminated safety glass  (SENTRYGLAS is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Statement of Building Code Compliance

This proprietary balustrade system complies with New Zealand Building Code Clauses;

  • B1: Structure and B1/VM1
  • B2: Durability
  • D1: Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)
  • F2: Hazardous Building Materials
  • F4: Safety from Falling

ANZIO complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems:

  • Safe: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems:
    • 1) Squareline
    • 2) Roundline
    • 3) Archline
  • Safer: Viridian's toughened EVA laminated safety glass and Euroglass interlinking gap clamps
  • Safest: Viridian's toughened SENTRYGLAS laminated safety glass and Euroglass gap clamps. SENTRYGLAS incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier
Other Performance Attributes
  • ANZIO is Anotec powder coated with a 10 year warranty
D1 Access Routes compliant
Access Routes
F4 Safety from Falling compliant
Safety from Falling
Balustrade - Anzio commercial balustrade B, E, C3 12-5-17
Occupancy Table AS/NZS 1170
Selection of Side Mounted Interlinking Rails to NZS 4223.3

2016 version 7

Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass - Request for balustrade PS1 v6
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass

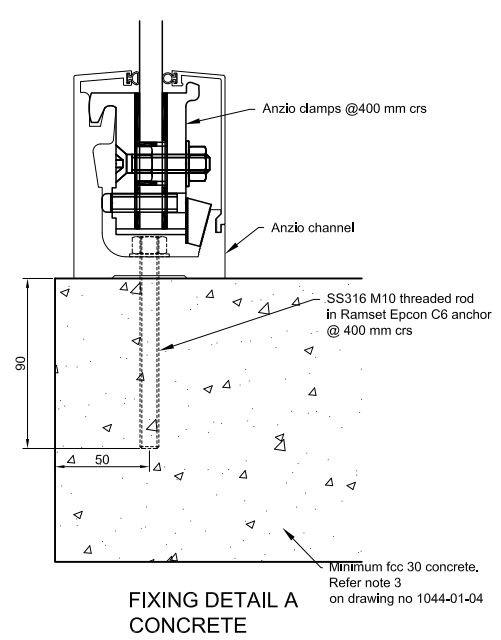

CAD/PDF Details
