Metro Series Double Hung Windows
APL 2019 Specifier Guide available Order now
Description

Double hung windows are a counter-balanced vertical sliding window system where both panels move together. They are a good option for non-projecting ventilation.

Key Features
  • Suitable for residential, commercial and institutional use
  • In the fully open position with both sashes adjoining each other half the window area is open
  • Recommended aspect ratio is 2:1 with a weight restriction of 100kg per panel
  • Tested to Extra High wind zone
  • Generally appropriate in single banks because of the large width of coupling bars
  • Work well with insect screens

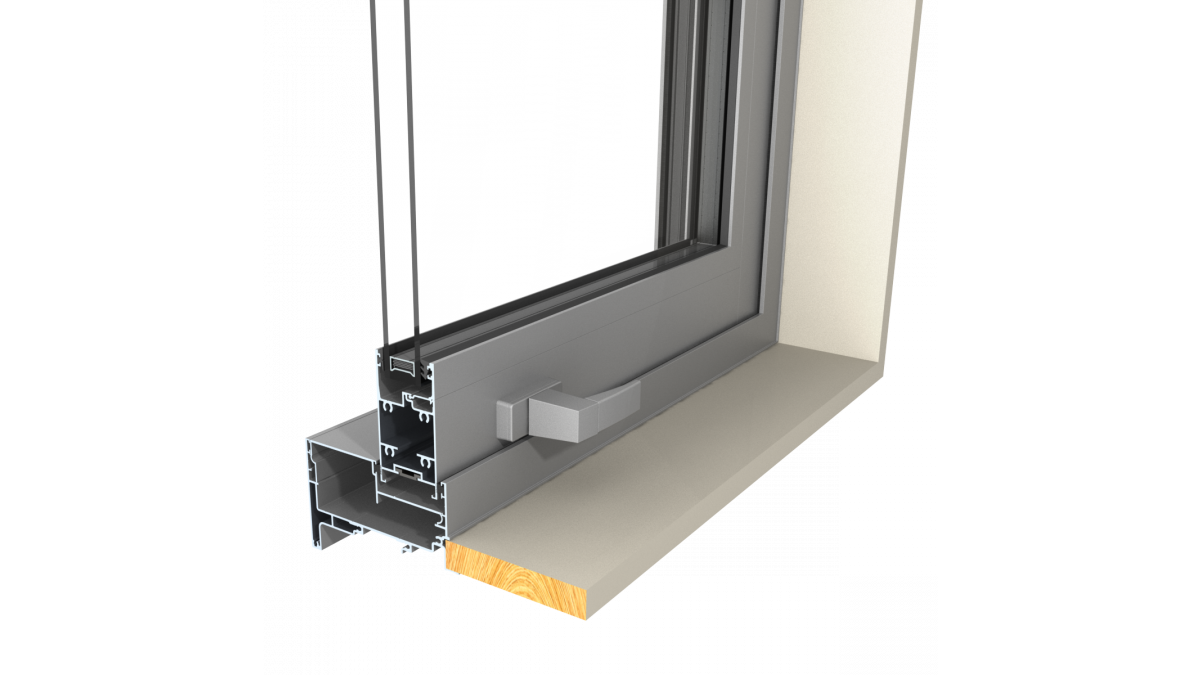

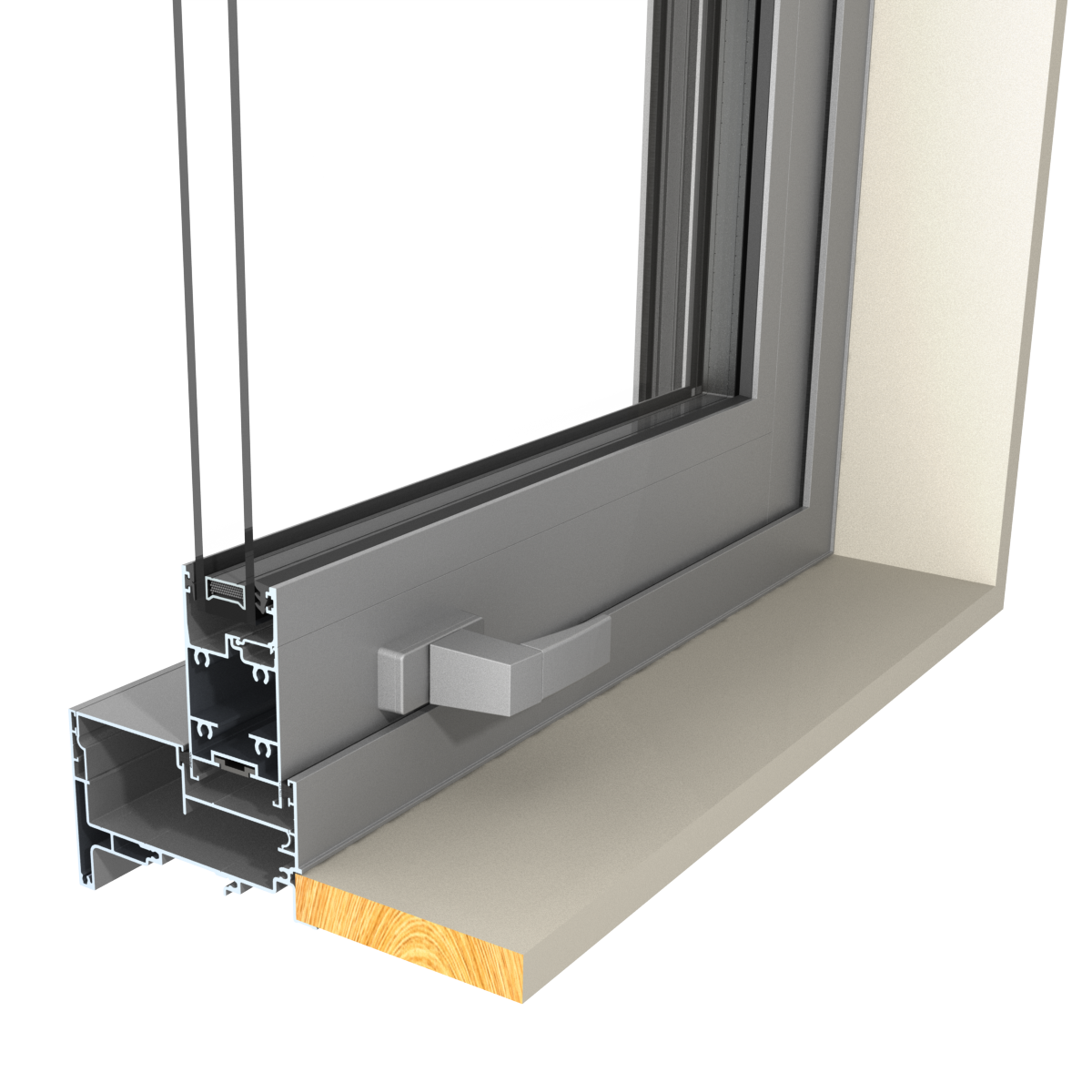

  • Opening handle in bottom rail of lower sash has two locking at the sill
Categories
Sliding Windows
Ranges
Metro Series
Scope of Use
  • Suitable for residential, commercial and institutional use
  • Suitable for wind zones up to Extra High
  • Work well with insect screens
Limitations on Use
  • Opening gap at sill may need to be restricted in high window situations
  • Double hung windows will generally be appropriate in single banks because of the large width of coupling bars
  • Recommended aspect ratio is 2:1 with a weight restriction of 100kg per panel
  • Consider the ease of reaching to the window handle if the sliding panel is placed beyond a bench
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2019
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet

2020

Span Tables
Producer Statement / Warranty

2017

Vantage Care & Maintenance Guide

2017

Specifier Guide

2019

Manufacturer Contact List
WGANZ Guide to E2/AS1

1 August 2019

Vantage Brochure
APL and Sustainability

2019

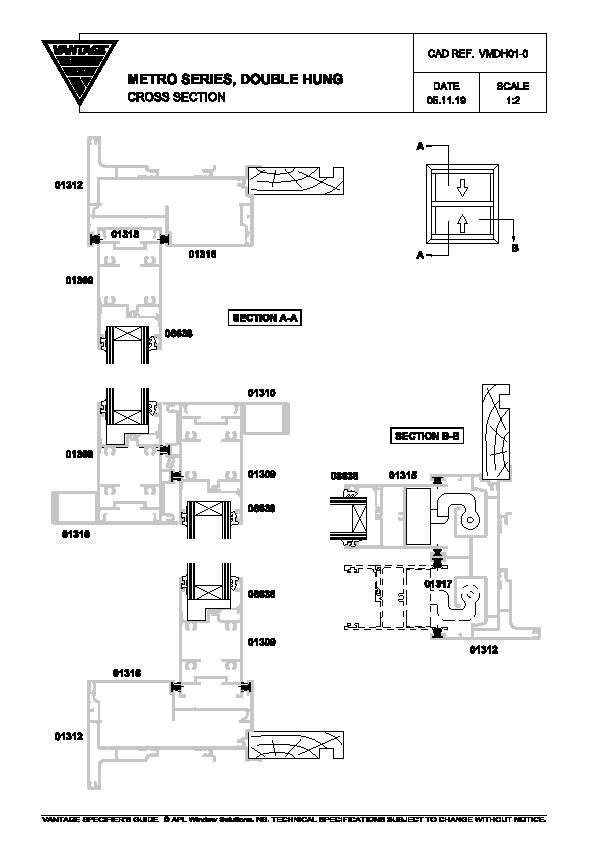

CAD/PDF Details
Vantage Metro Series Double Hung Window

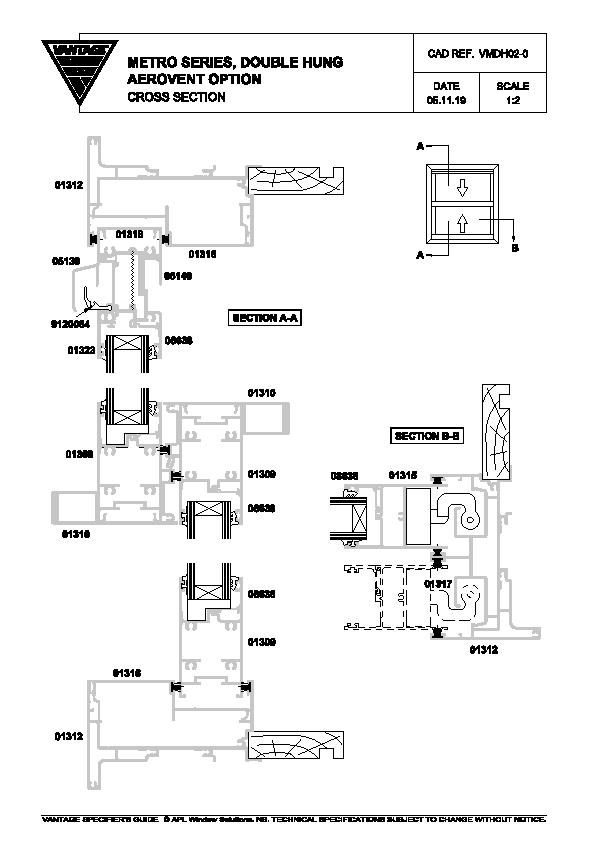

Vantage Metro Series Double Hung Window - Aerovent Option

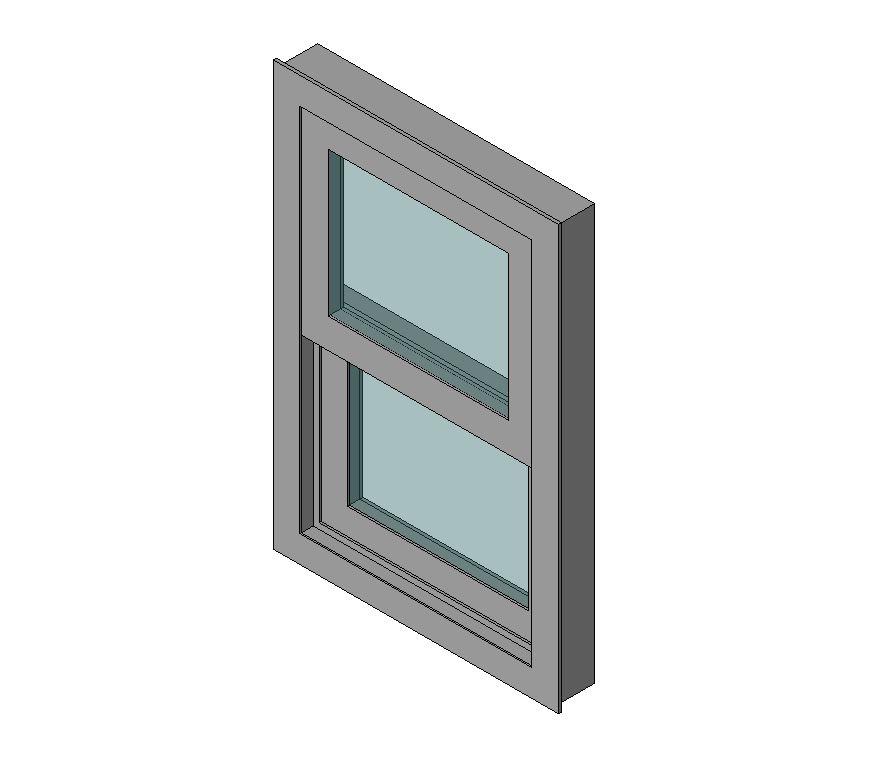

BIM
Vantage Metro Series Double Hung Window

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.
