APL Architectural Series Bi-Fold Doors
VANTAGE Windows & Doors
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

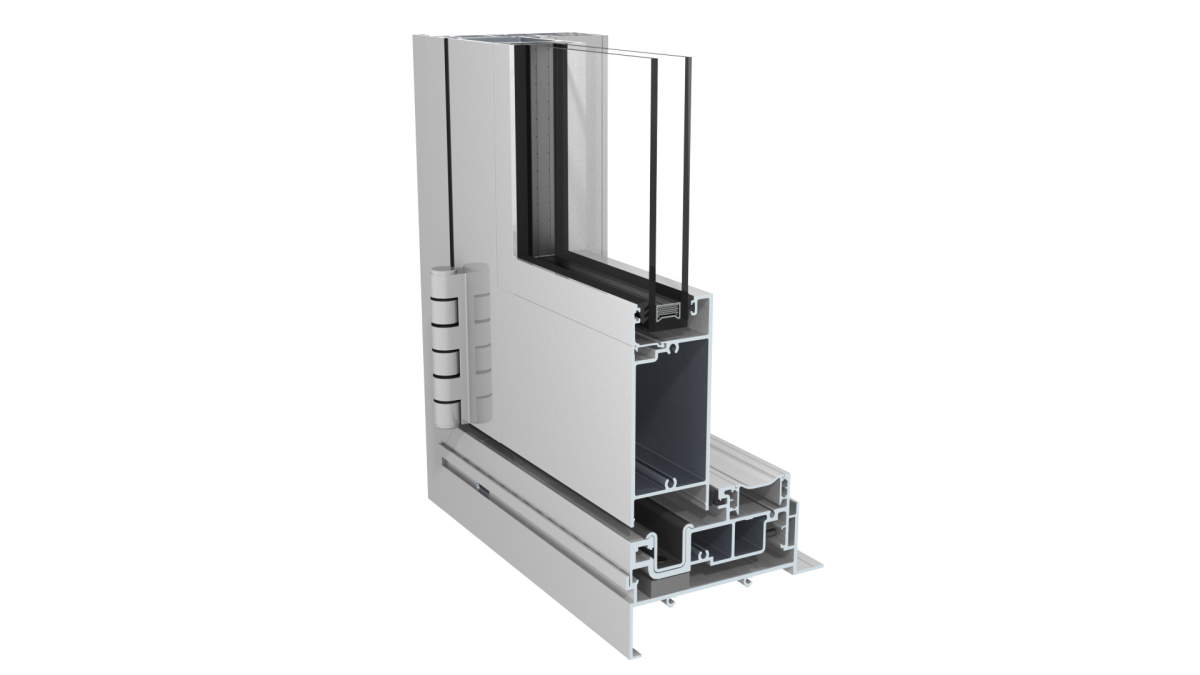

177 Arch Bifold Corner
Sill frame and panel section

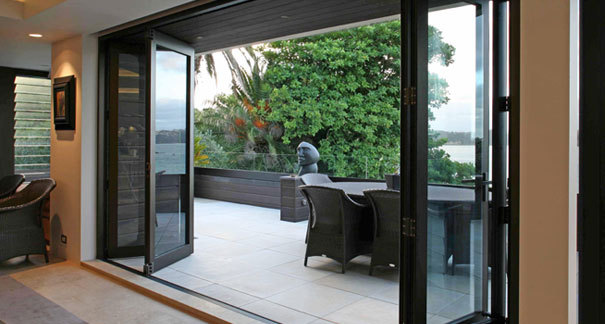

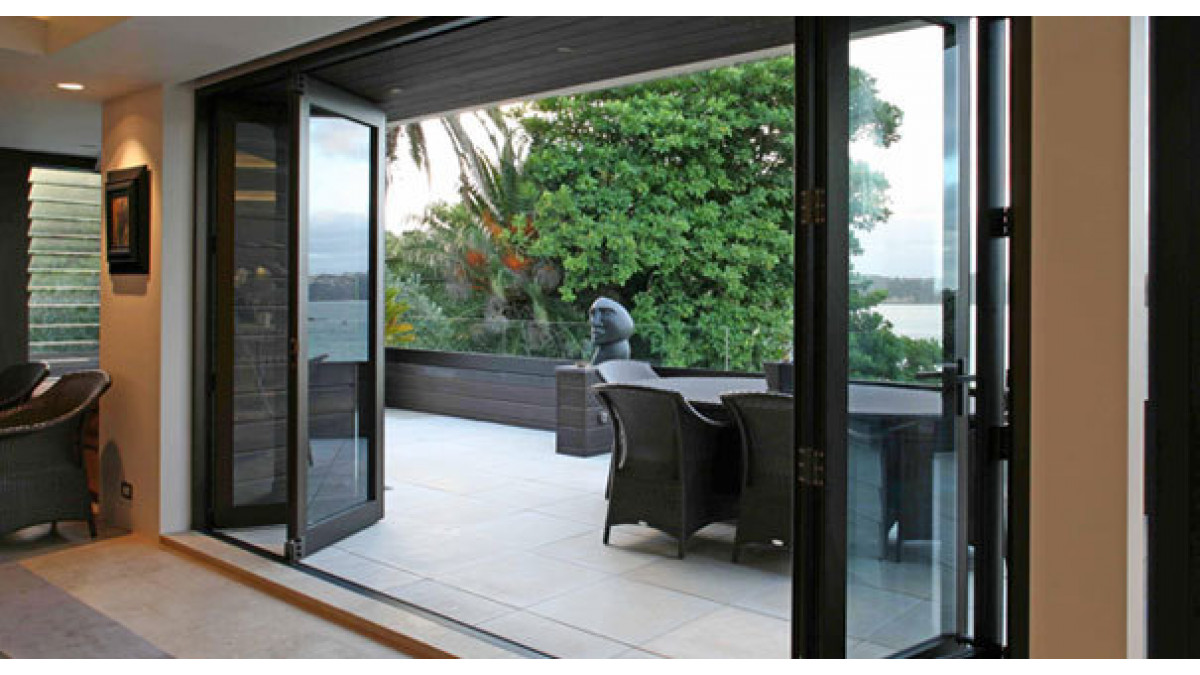

AS Bifold DrsHarvey33525Copy

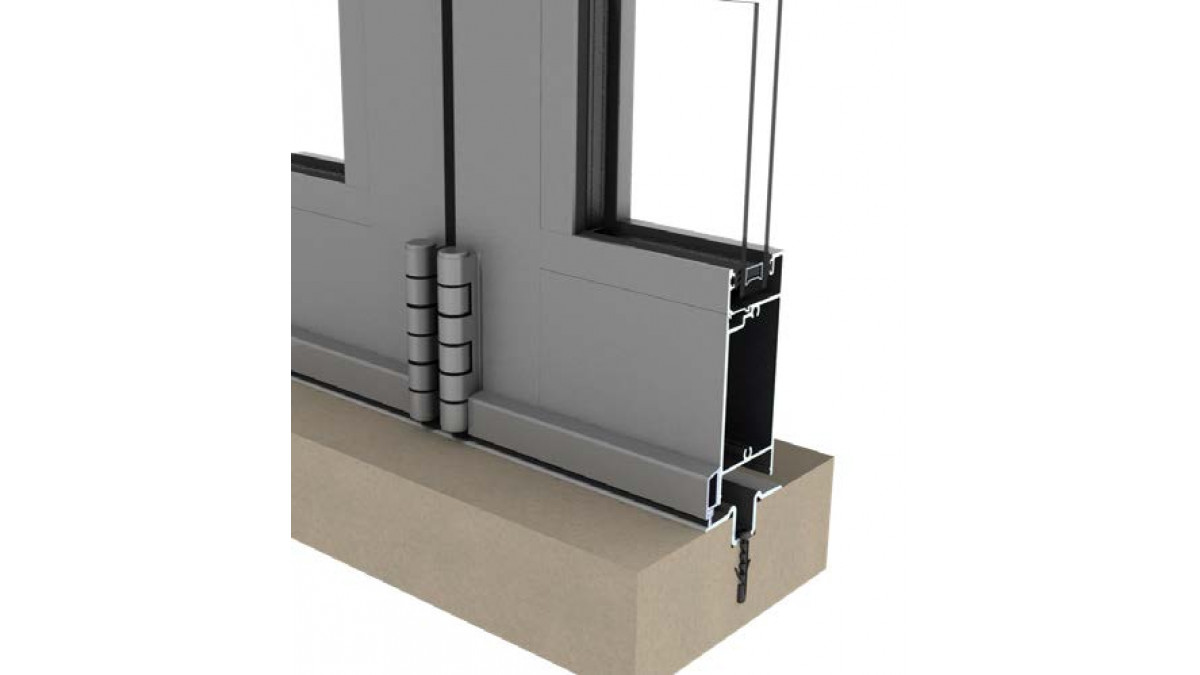

Bi fold flush sill track option
Bi-fold flush sill/track option

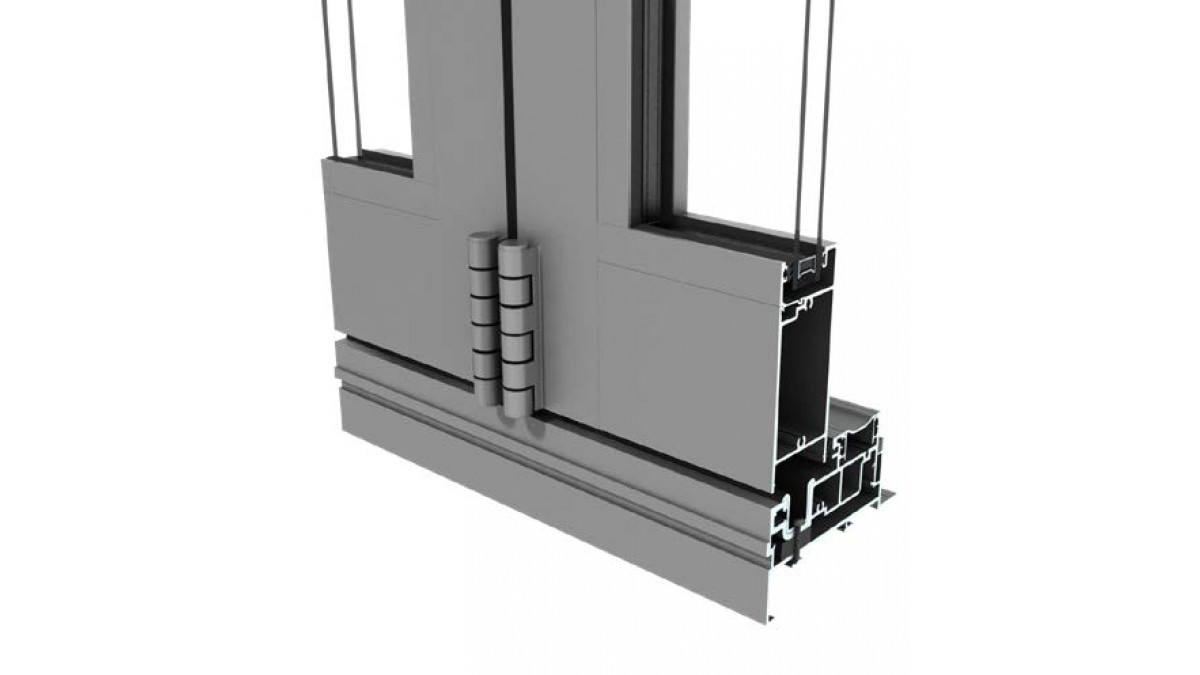

Bi fold 2+2 meeting stiles
Bi-fold 2+2 meeting stiles

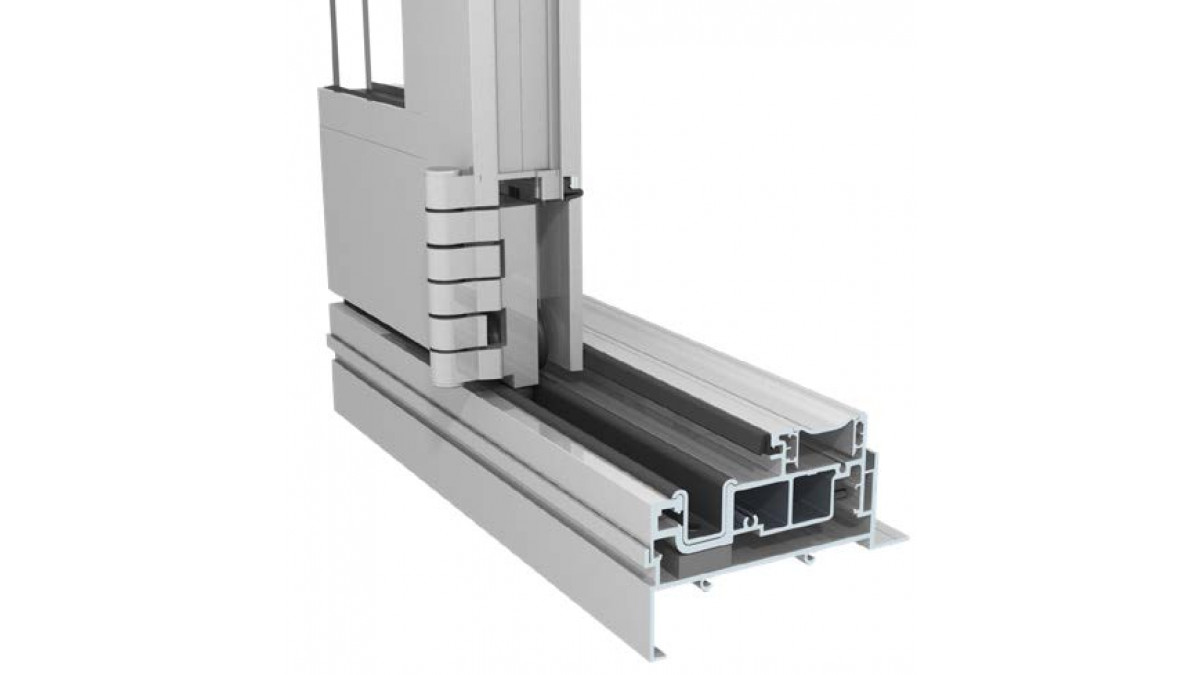

Bi fold sill and roller
Bi-fold sill and roller

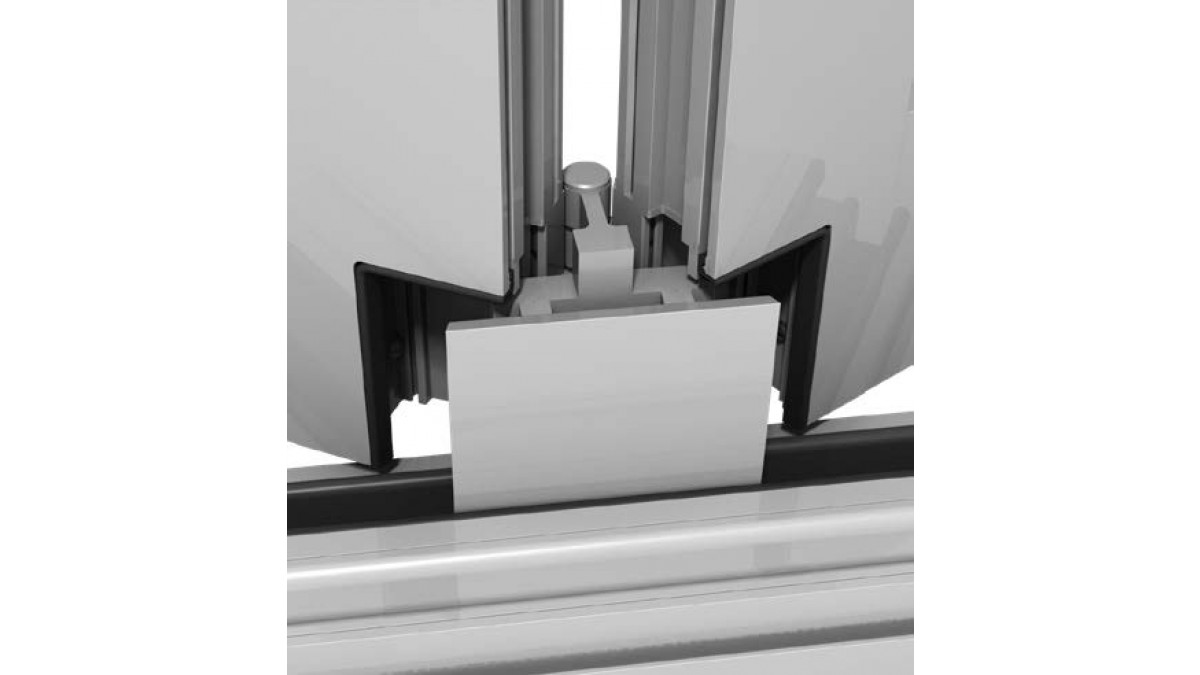

Bi fold hinge roller with free swinging panel
Bi-fold hinge roller with free swinging panel
Description

Bi-fold doors and windows share the same profiles and operating system. Panels are bottom rolling with the weight carried on the sill.

The roller and guide are pivoting inserts within the door stiles thus optimising overall ease of operation. Door panels are 50mm deep and are bead glazed externally on all sides for glass thicknesses of 4-28mm.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • The system is bottom rolling with an in-frame track for optimum panel support
  • A high-performance series of windows and doors designed for suitability for Extra High and Specific Design applications
  • A unique split stile feature ensures panels move smoothly when built in large sizes
  • The track uses an aluminium insert (black anodised) for roller wear
  • A flush sill track is available for sheltered locations
Categories
Bifold Doors
Ranges
APL Architectural Series
Scope of Use
  • Suitable for most residential environments in larger sizes
  • A good option for maximum opening and ventilation
  • Need to be used in defined maximum sizes according to the wind exposure
  • Designed for suitability for Extra High and Specific Design applications
Limitations on Use
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • Open bi-folds need to be monitored in windy conditions
  • In closed position bi-fold door stiles impact views
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
Calculate R-Value and Ug-Value
pdf
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Vantage Brochure
URL
AGP Care & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2023

URL

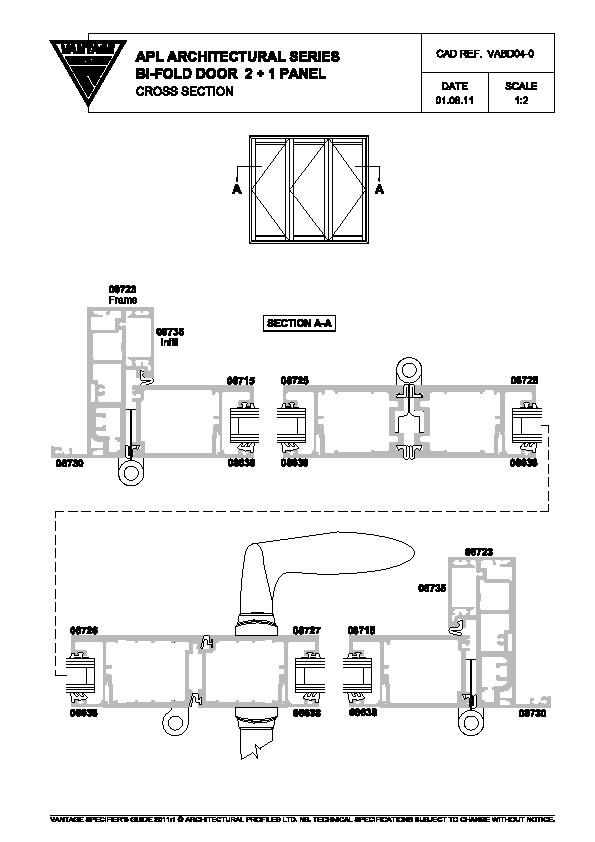

CAD/PDF Details
View full
Vantage APL Architectural Series Bi Fold Doors Drawings pdf
Full Set of Drawings
pdf

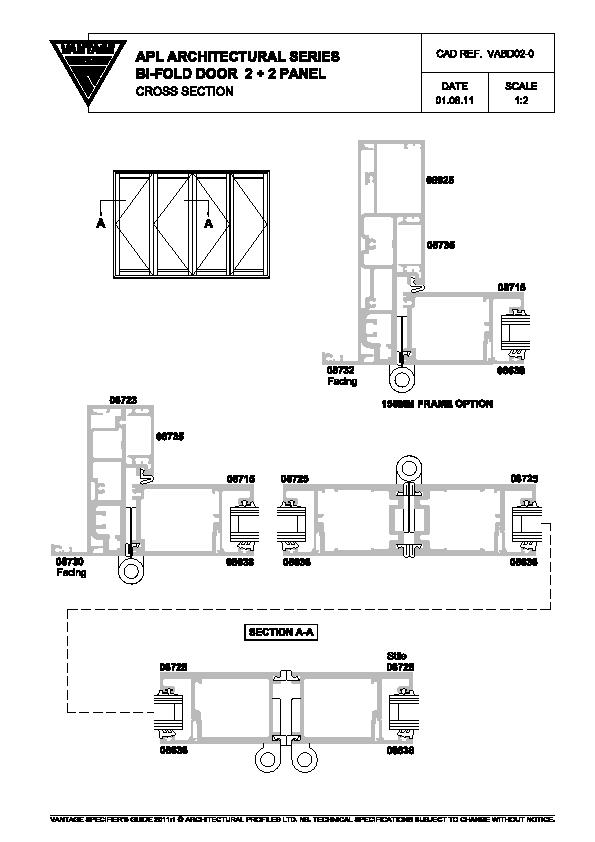

Vantage APL Architectural Series Bi-Fold Door 2 + 2 Panel

VABD02-0

dwf
dwg
dxf
pdf

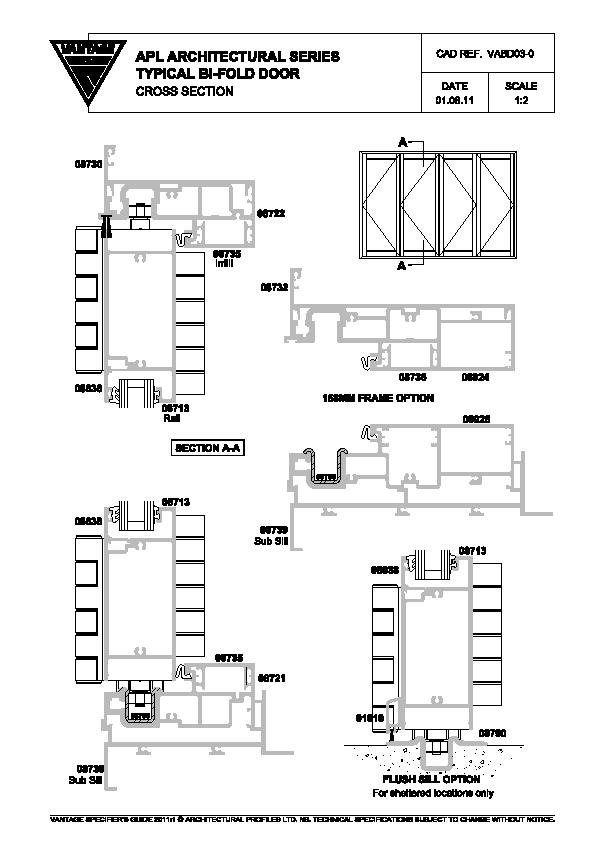

Vantage APL Architectural Series Typical Bi-Fold Door Cross Section

VABD03-0

dwf
dwg
dxf
pdf

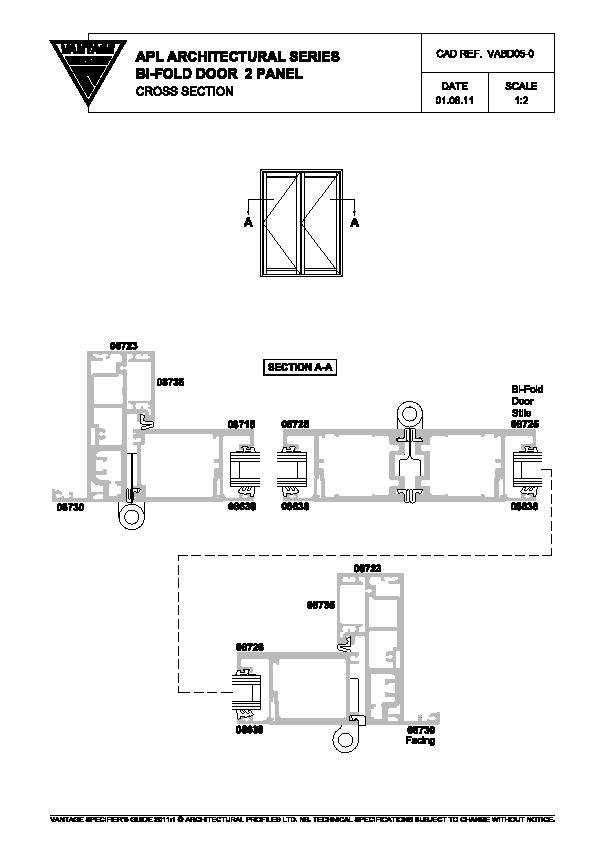

Vantage APL Architectural Series Bi-Fold Door 2 Panel

VABD05-0

dwf
dwg
dxf
pdf

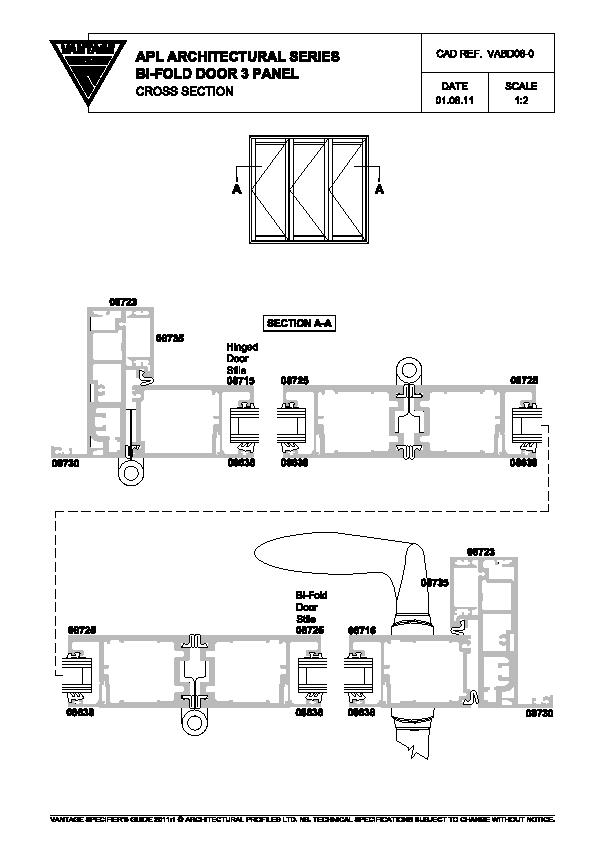

Vantage APL Architectural Series Bi-Fold Door 3 Panel

VABD06-0

dwf
dwg
dxf
pdf

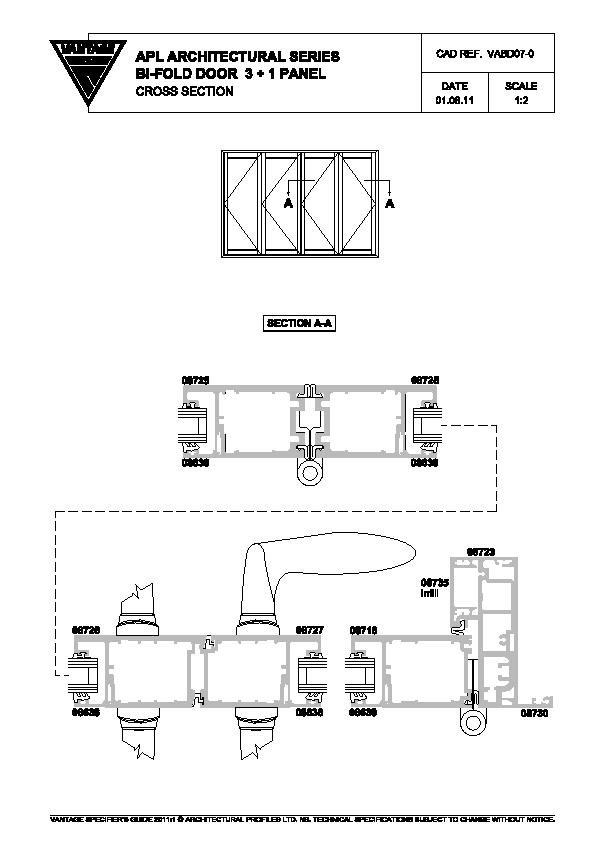

Vantage APL Architectural Series Bi-Fold Door 3 + 1 Panel

VABD07-0

dwf
dwg
dxf
pdf
Installation Details
View full

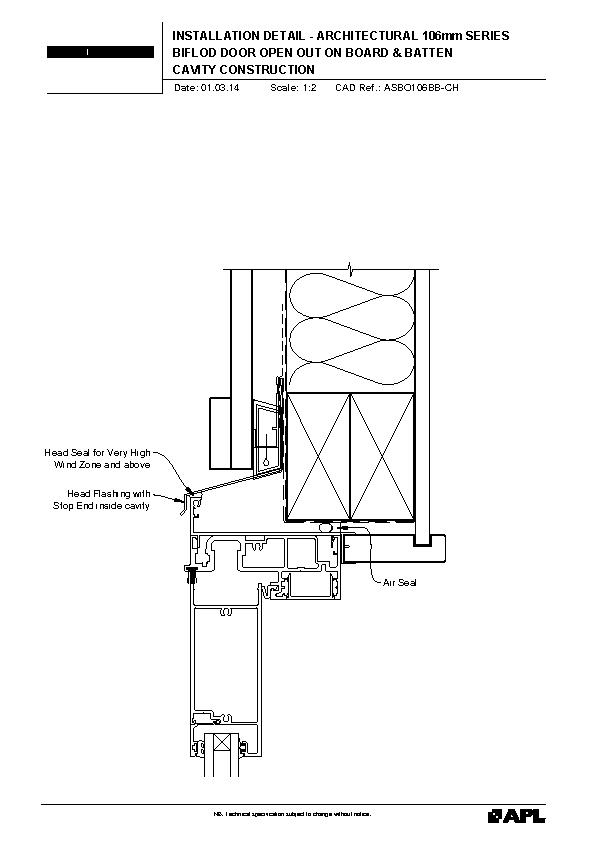

Vantage APL Architectural Series Bifold Door Open Out 106mm on Board and Batten

ASBO106BB

dwg
pdf

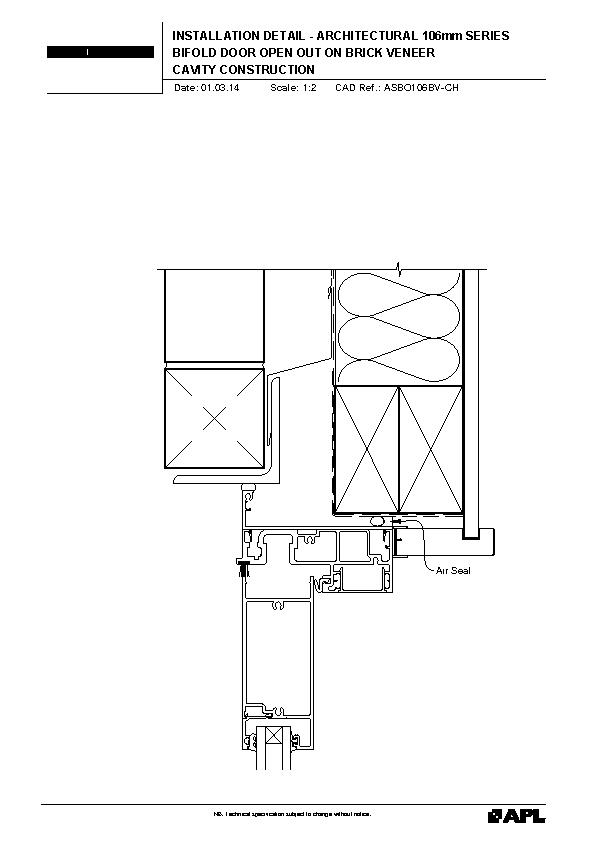

Vantage APL Architectural Series Bifold Door Open Out 106mm on Brick Veneer

ASBO106BV

dwg
pdf

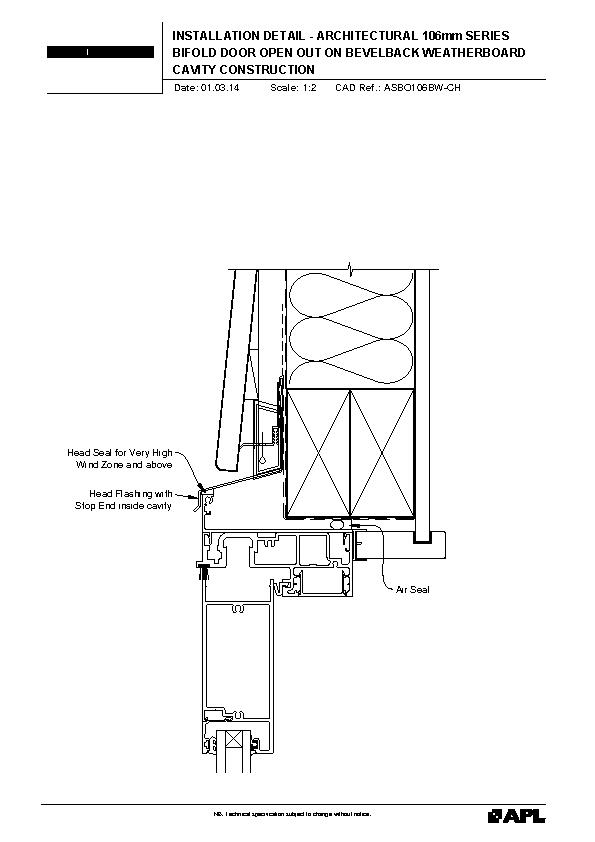

Vantage APL Architectural Series Bifold Door Open Out 106mm on Bevelback Weatherboard

ASBO106BW

dwg
pdf

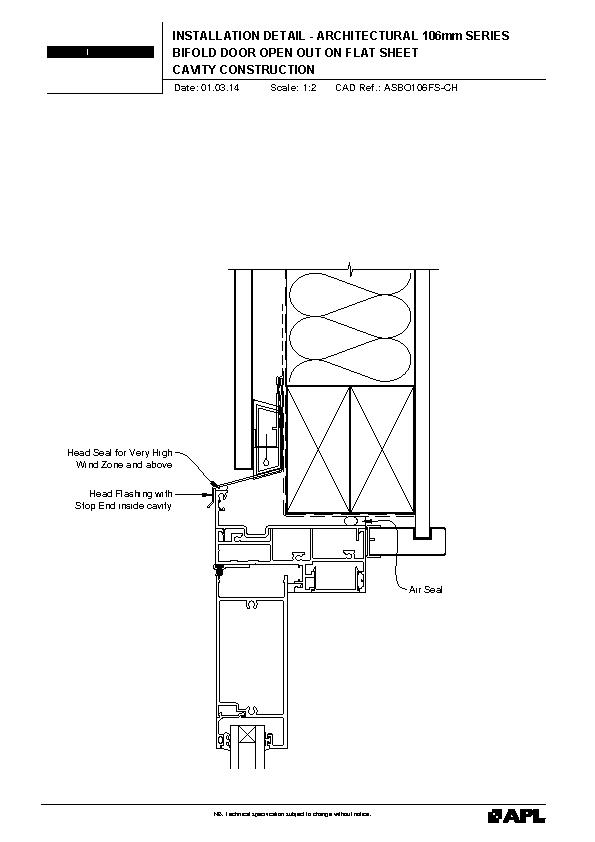

Vantage APL Architectural Series Bifold Door Open Out 106mm on Flat Sheet

ASBO106FS

dwg
pdf

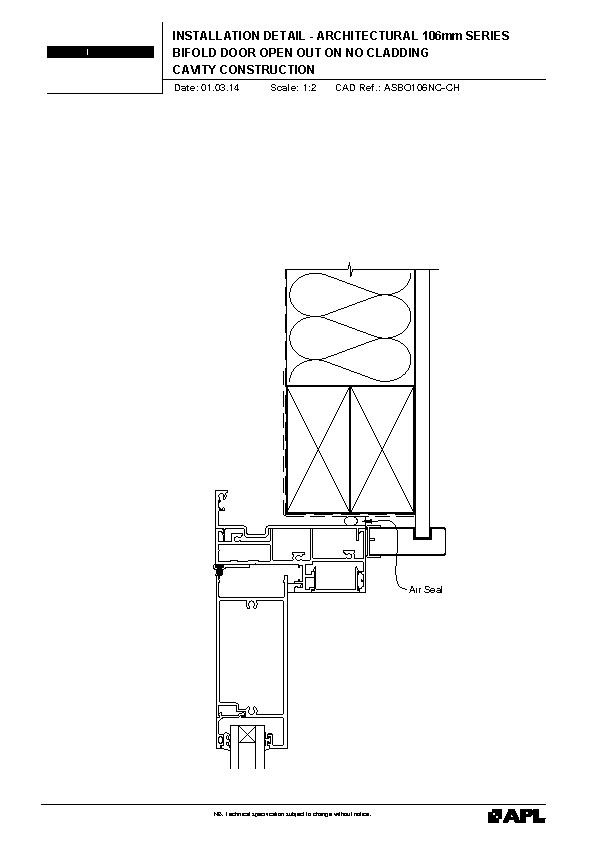

Vantage APL Architectural Series Bifold Door Open Out 106mm No Cladding

ASBO106NC

dwg
pdf

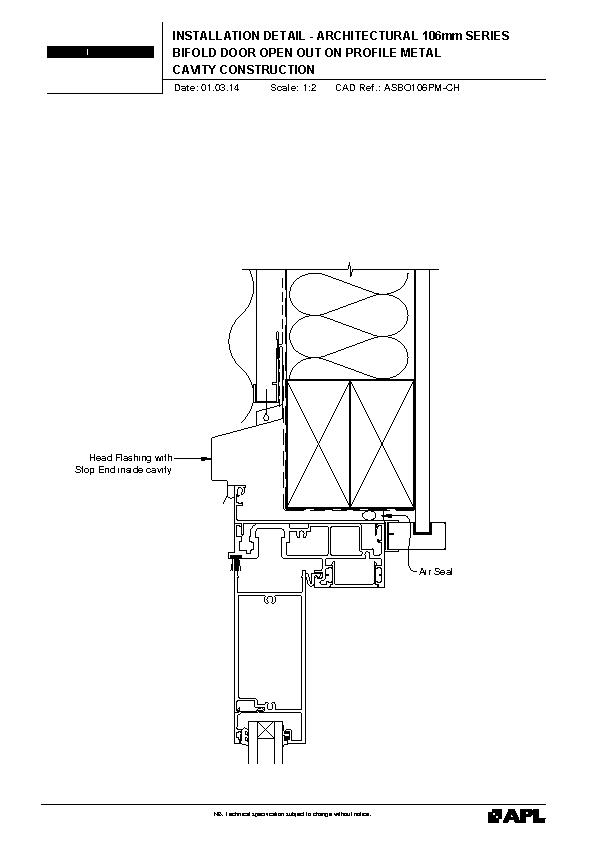

Vantage APL Architectural Series Bifold Door Open Out 106mm on Profile Metal

ASBO106PM

dwg
pdf

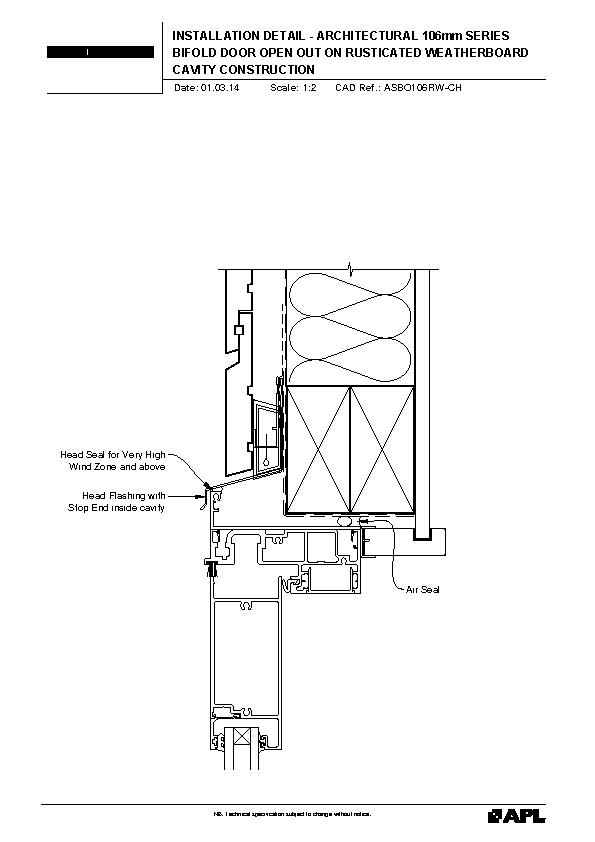

Vantage APL Architectural Series Bifold Door Open Out 106mm on Rusticated Weatherboard

ASBO106RW

dwg
pdf

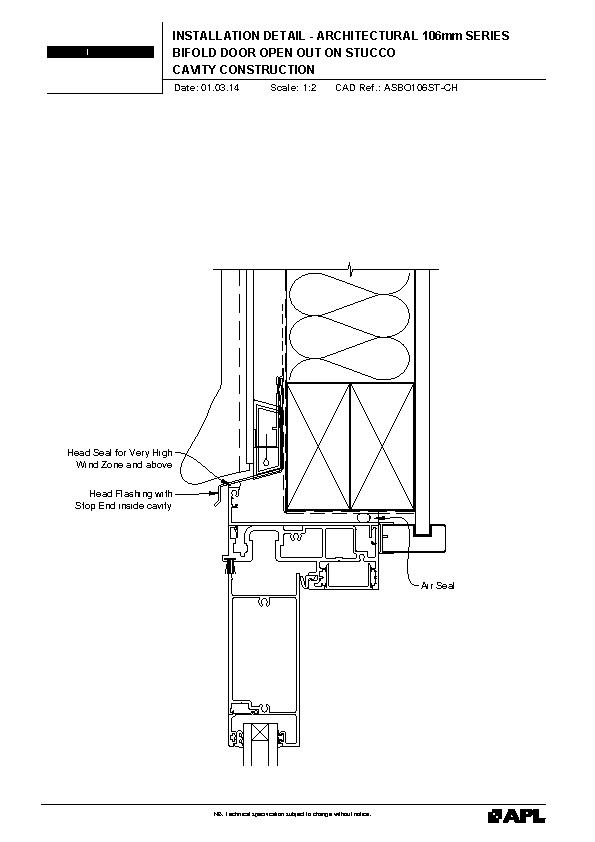

Vantage APL Architectural Series Bifold Door Open Out 106mm on Stucco

ASBO106ST

dwg
pdf

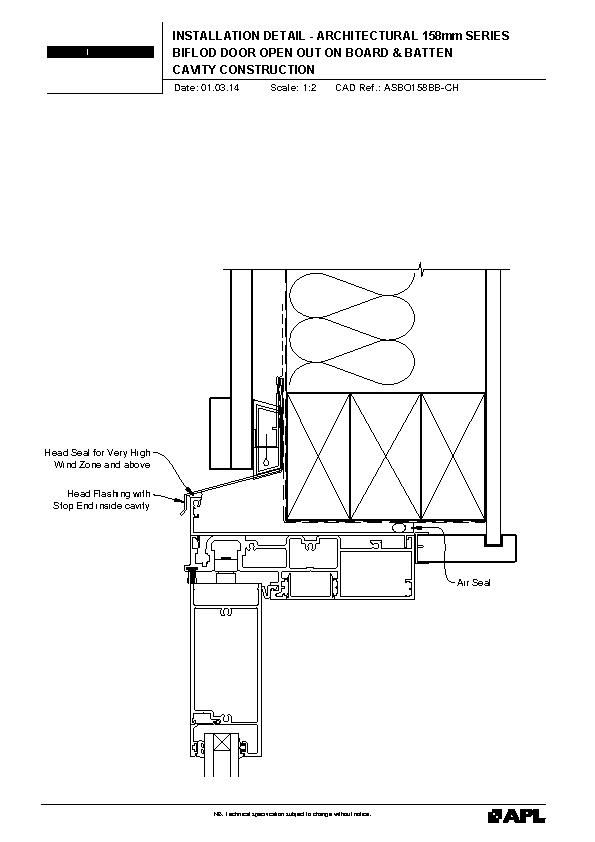

Vantage APL Architectural Series Bifold Door Open Out 158mm on Board and Batten

ASBO158BB

dwg
pdf

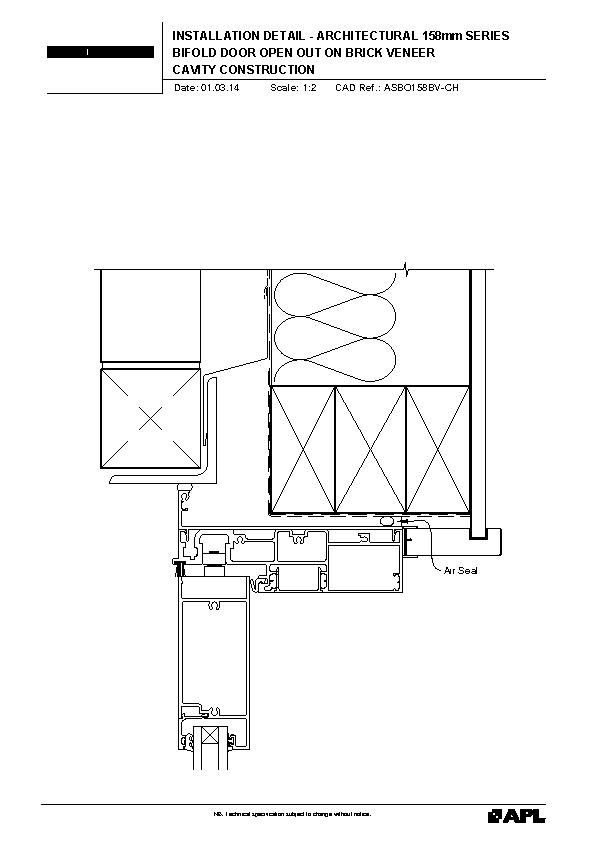

Vantage APL Architectural Series Bifold Door Open Out 158mm on Brick Veneer

ASBO158BV

dwg
pdf

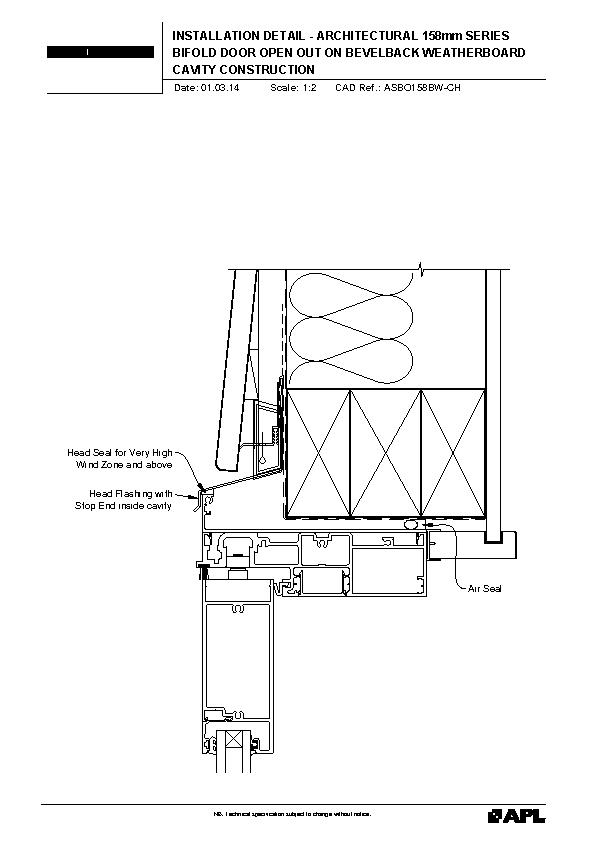

Vantage APL Architectural Series Bifold Door Open Out 158mm on Bevelback Weatherboard

ASBO158BW

dwg
pdf

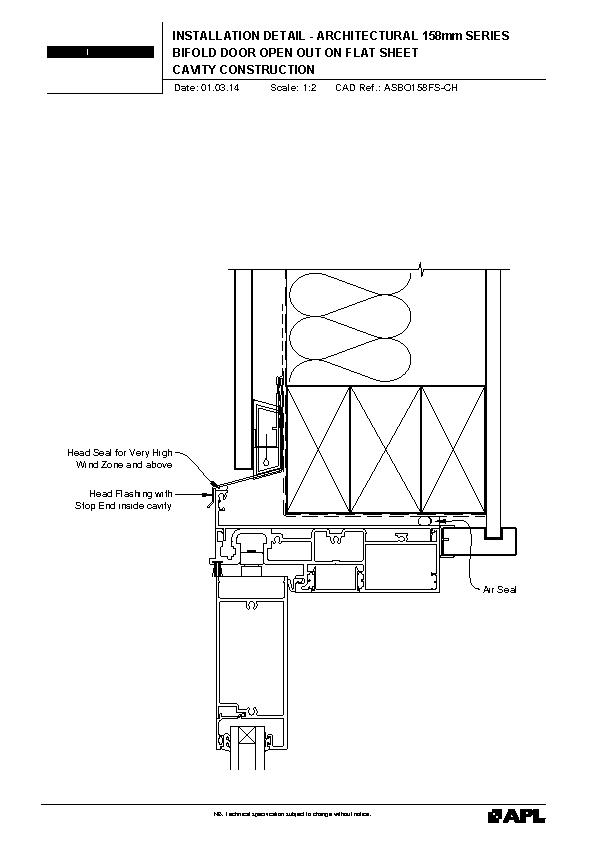

Vantage APL Architectural Series Bifold Door Open Out 158mm on Flat Sheet

ASBO158FS

dwg
pdf

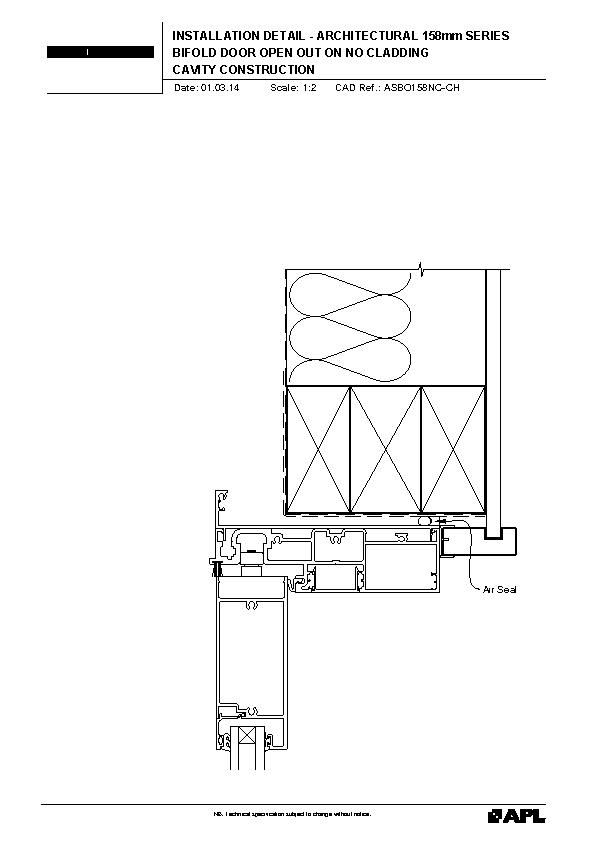

Vantage APL Architectural Series Bifold Door Open Out 158mm No Cladding

ASBO158NC

dwg
pdf

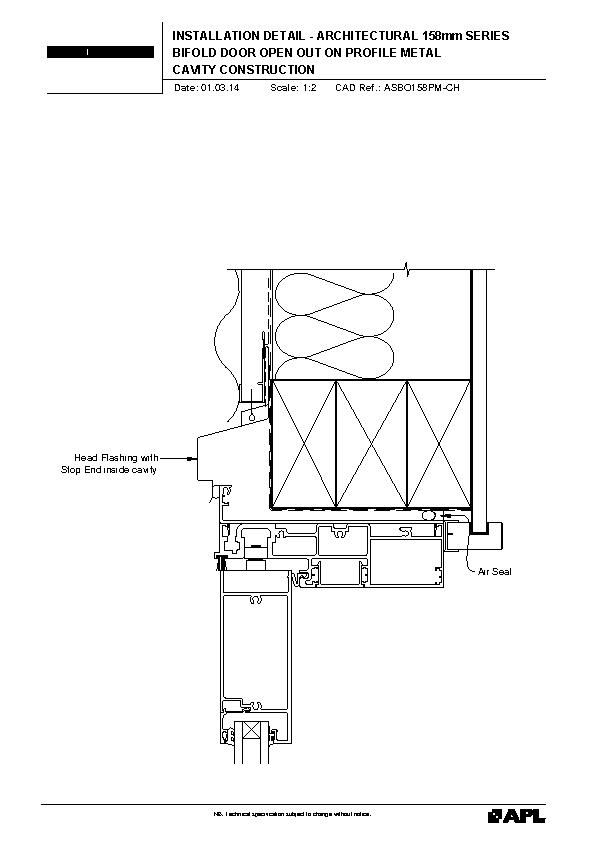

Vantage APL Architectural Series Bifold Door Open Out 158mm on Profile Metal

ASBO158PM

dwg
pdf

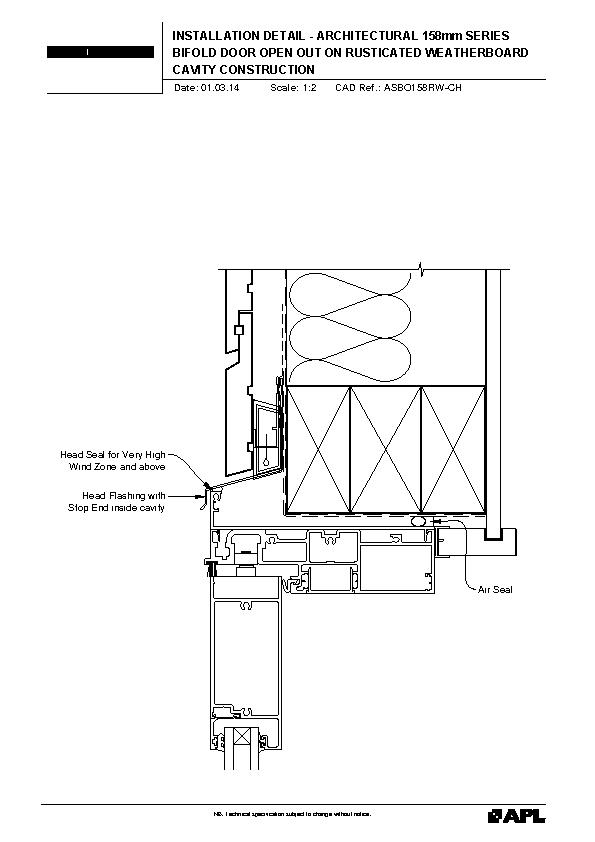

Vantage APL Architectural Series Bifold Door Open Out 158mm on Rusticated Weatherboard

ASBO158RW

dwg
pdf

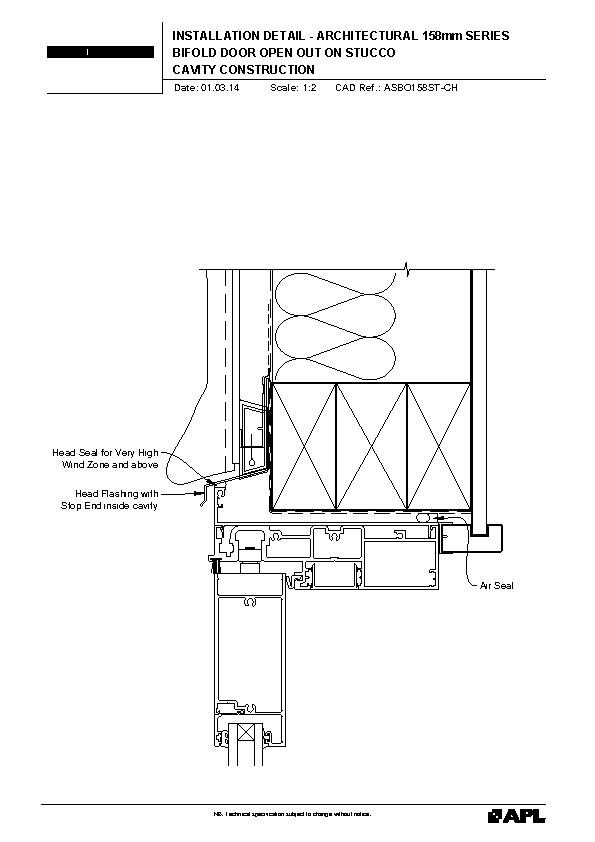

Vantage APL Architectural Series Bifold Door Open Out 158mm on Stucco

ASBO158ST

dwg
pdf

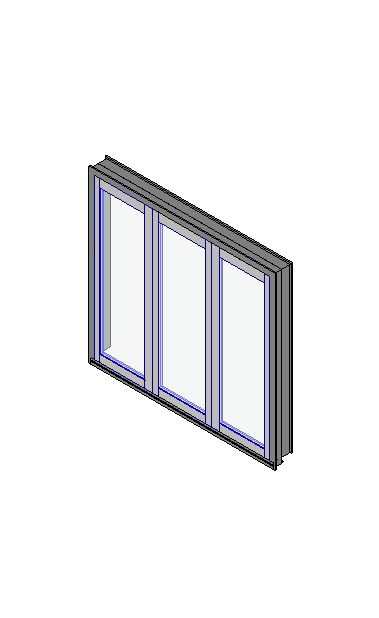

BIM
View full

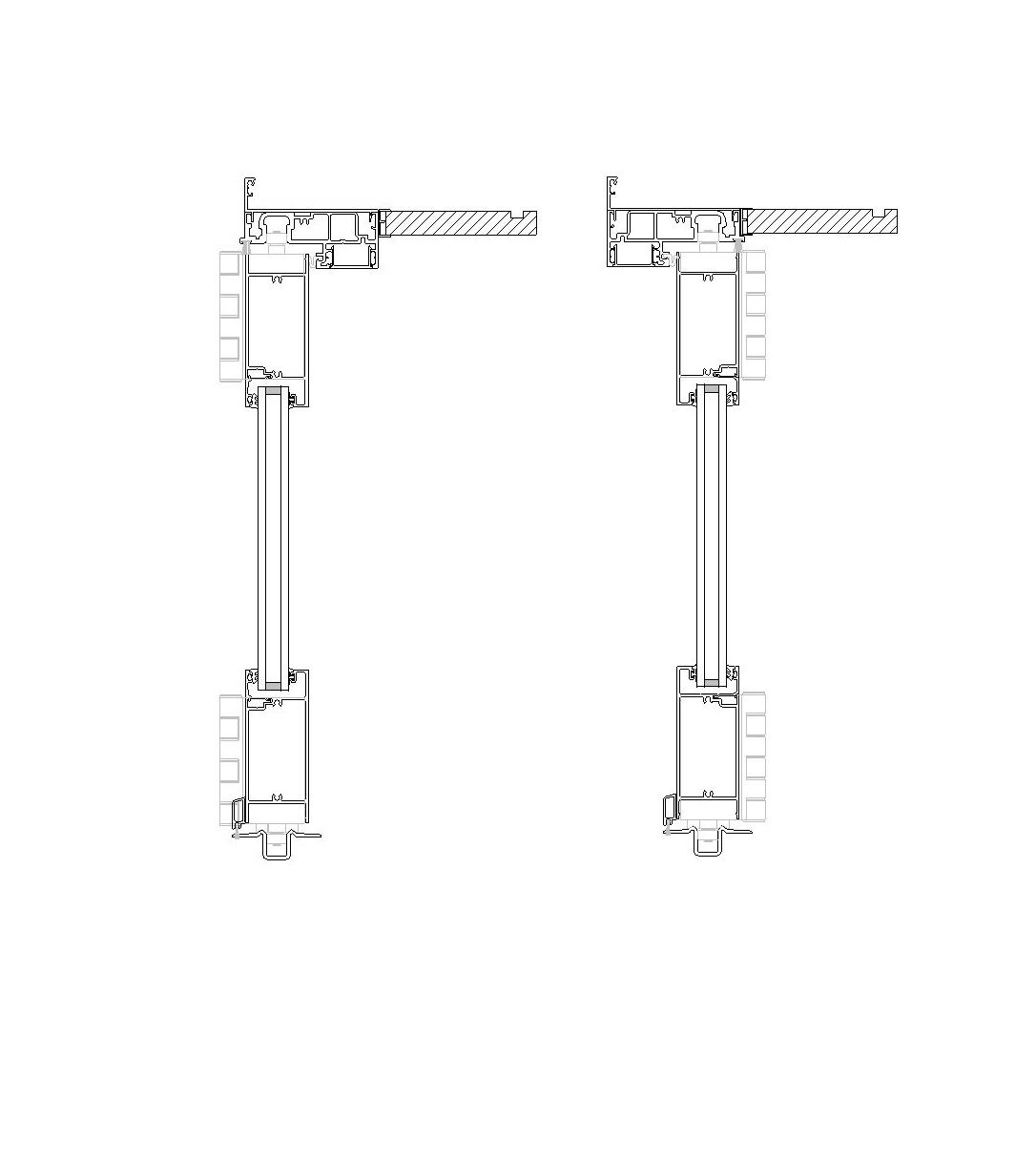

2D Flush Sill Option Open Out In
Vantage APL 106mm Architectural Series Bi-Fold Door, Flush Sill
zip

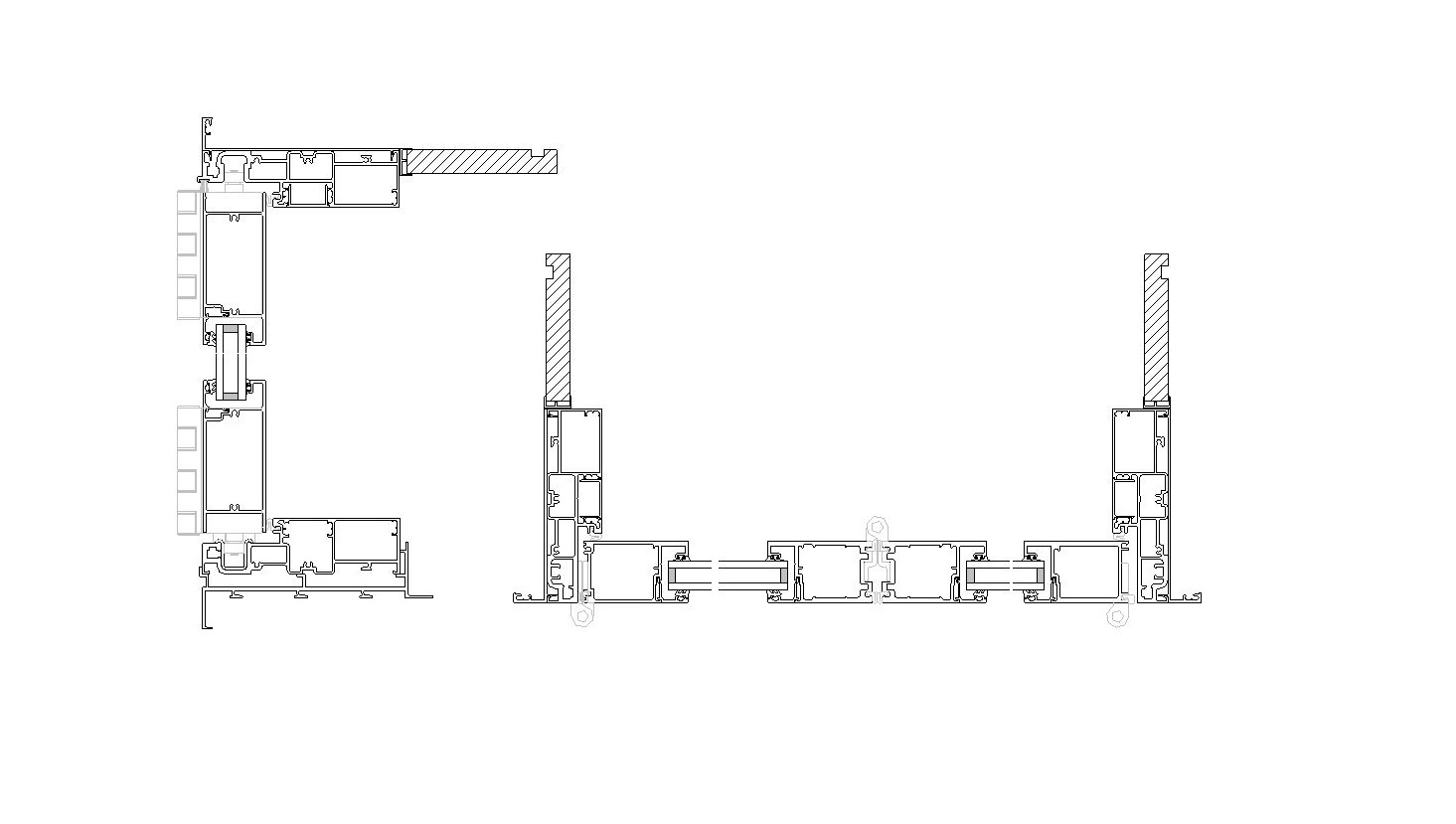

2D 158mm Frame HV
Vantage APL 158mm Architectural Series Bi-Fold Door
zip

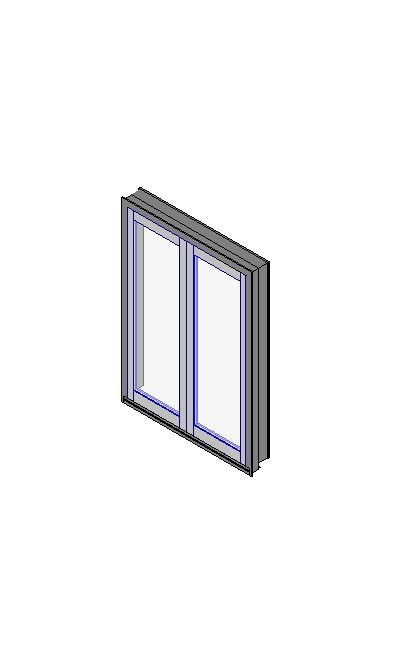

2 panel
Vantage APL Architectural Series Bi-Fold Door 2 Panel
zip

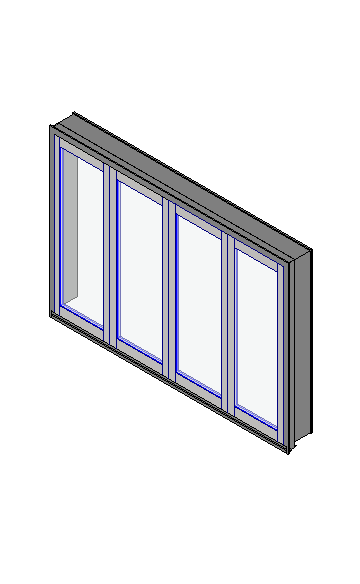

2+2 panel
Vantage APL Architectural Series Bi-Fold Door 2+2 Panel
zip

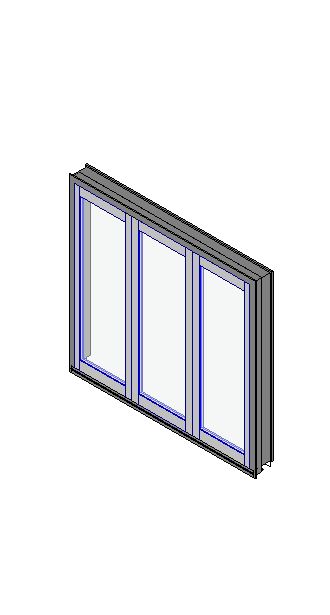

3 panel
Vantage APL Architectural Series Bi-Fold Door 3 Panel
zip

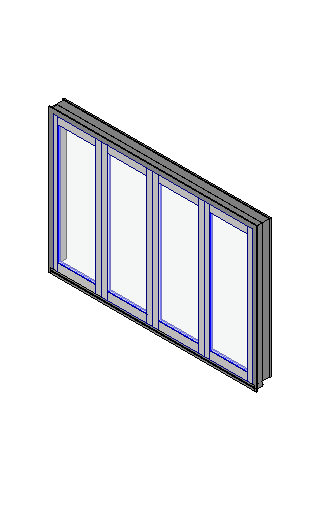

3+1 panel
Vantage APL Architectural Series Bi-Fold Door 3+1 Panel
zip

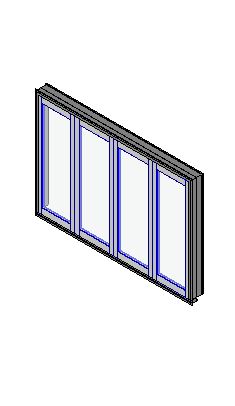

4 panel
Vantage APL Architectural Series Bi-Fold Door 4 Panel
zip
