Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows and Doors

VANTAGE Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

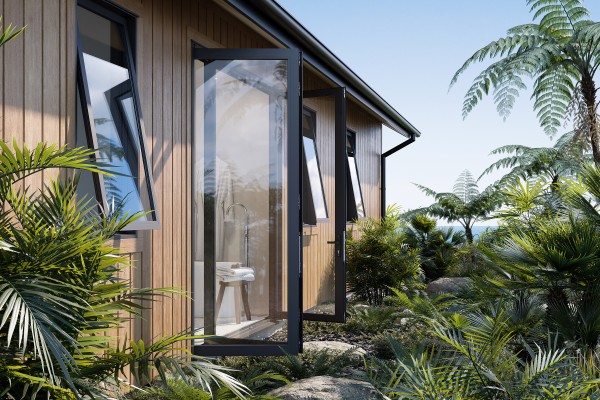

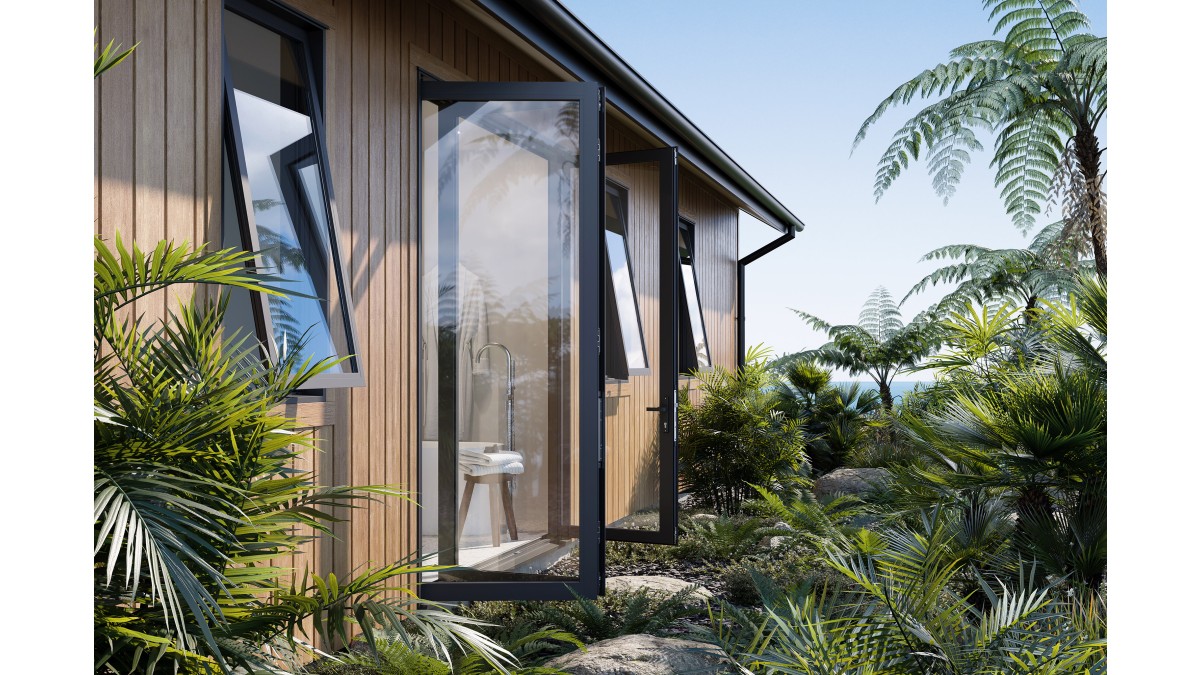

ALP Centrafix CFX BD 2+1 2400 x 2700 Final

Product Enquiries

Description

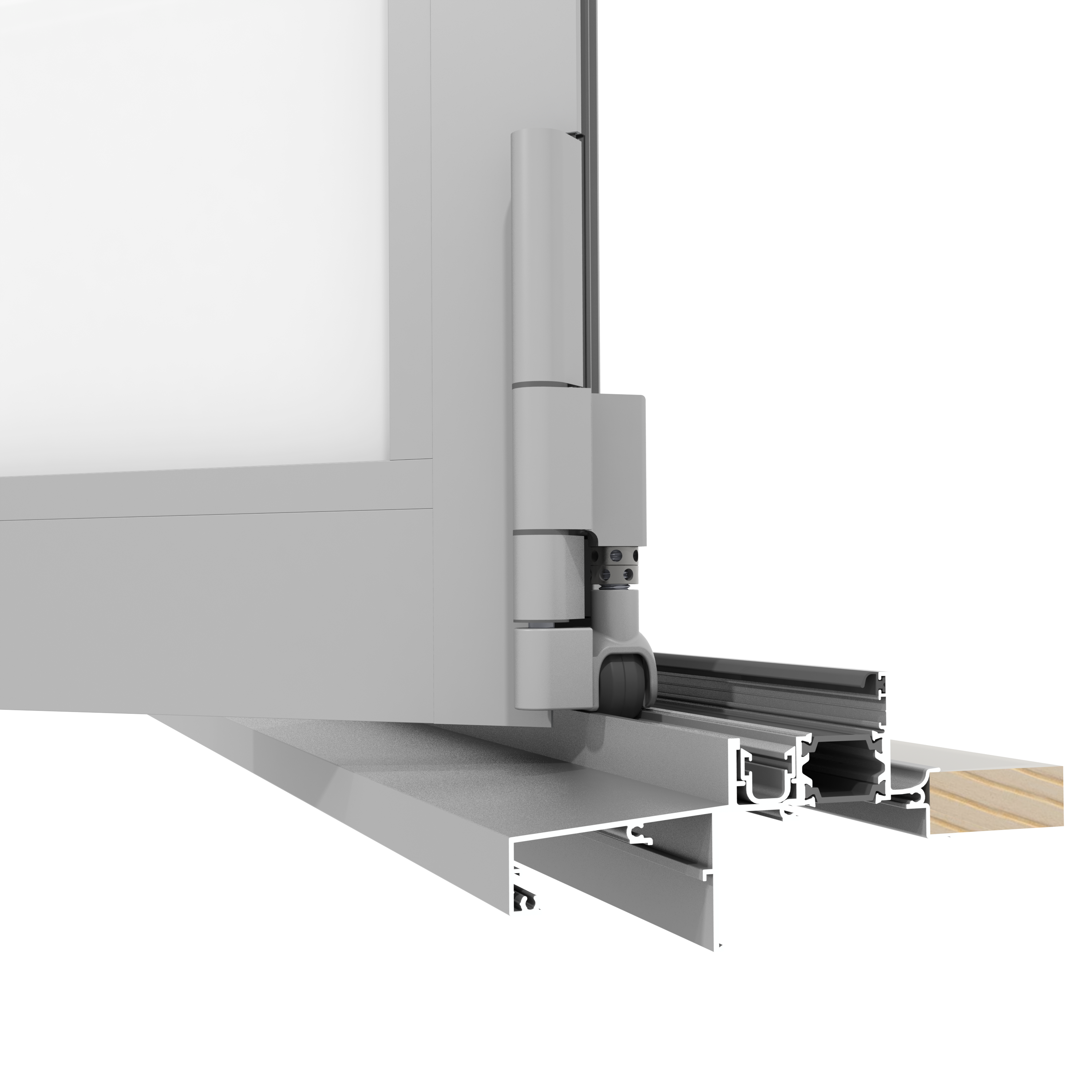

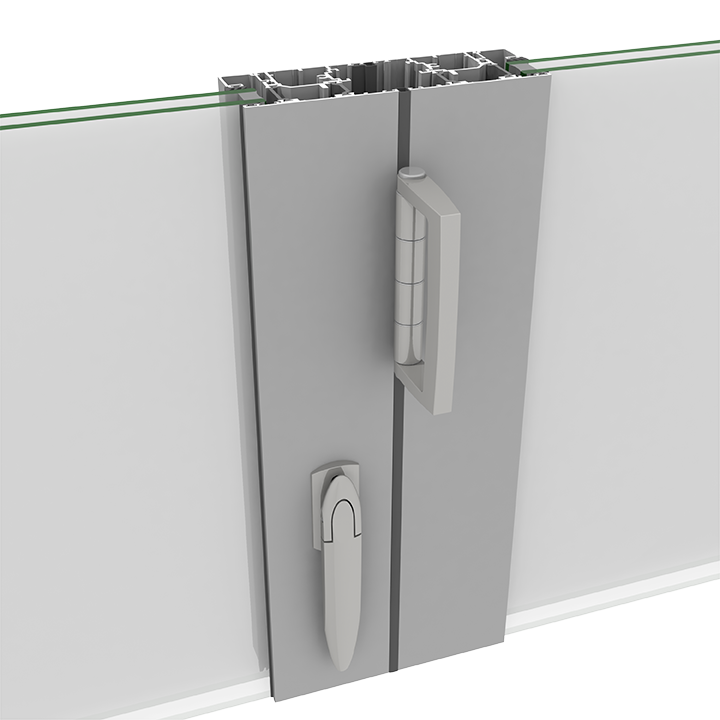

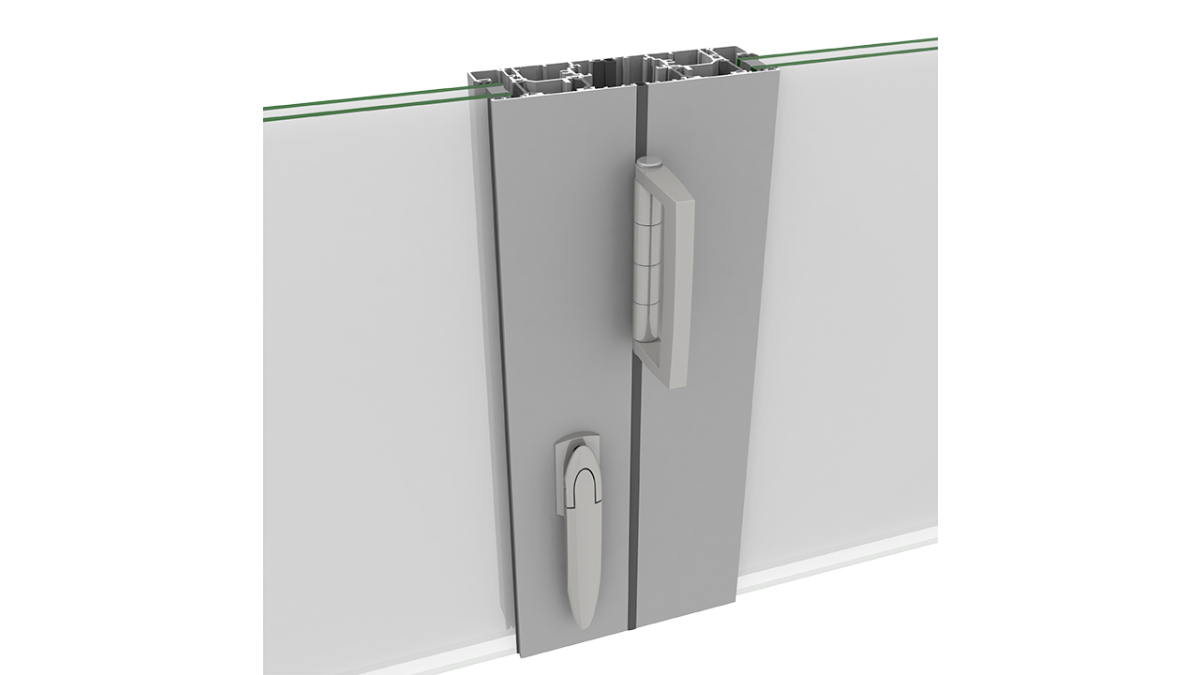

The bi-fold system is bottom rolling with an in-frame track for optimum panel support. Rated to 2.7m high in ExtraHigh wind zones. The bi-fold window system uses the bi-fold door system with a smaller stile and top and bottom panel rail.

Key Features

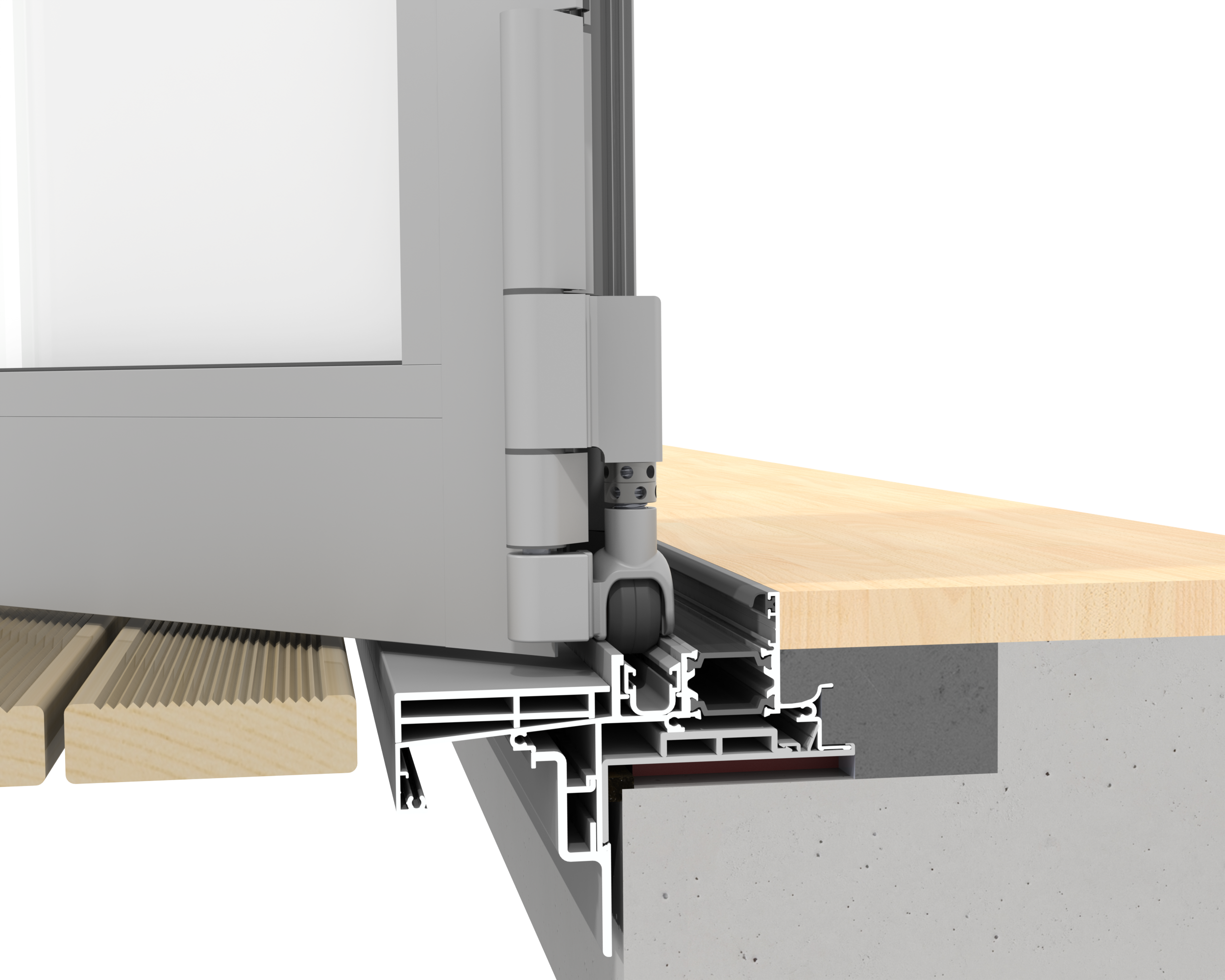

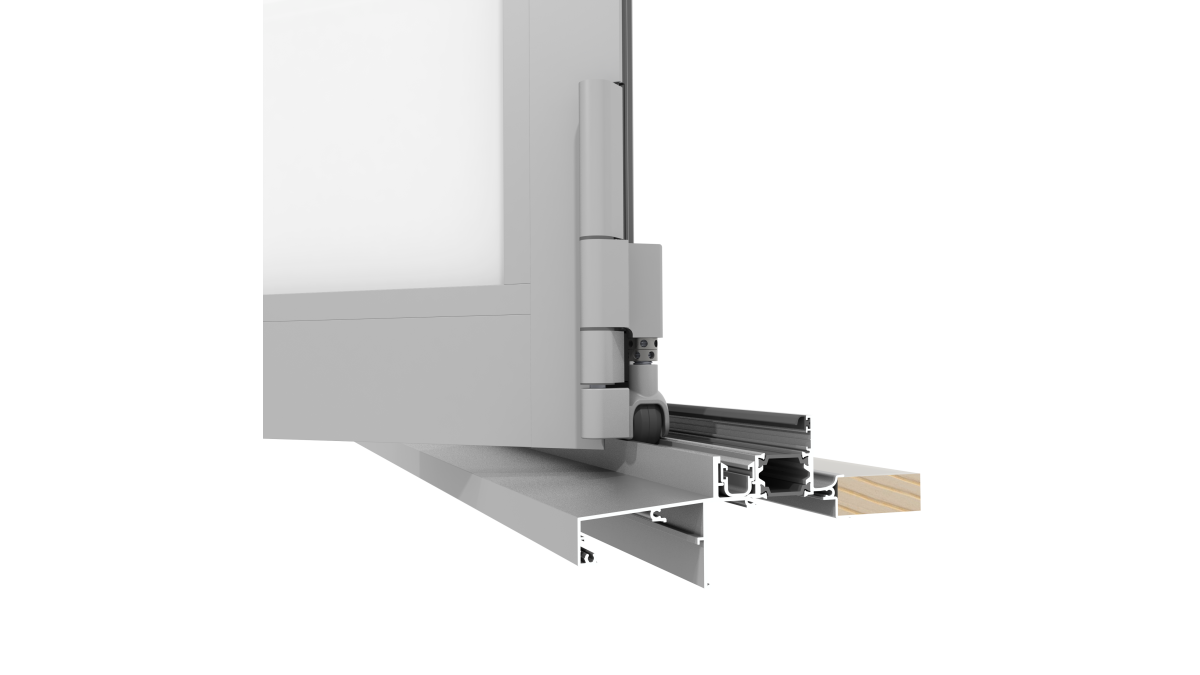

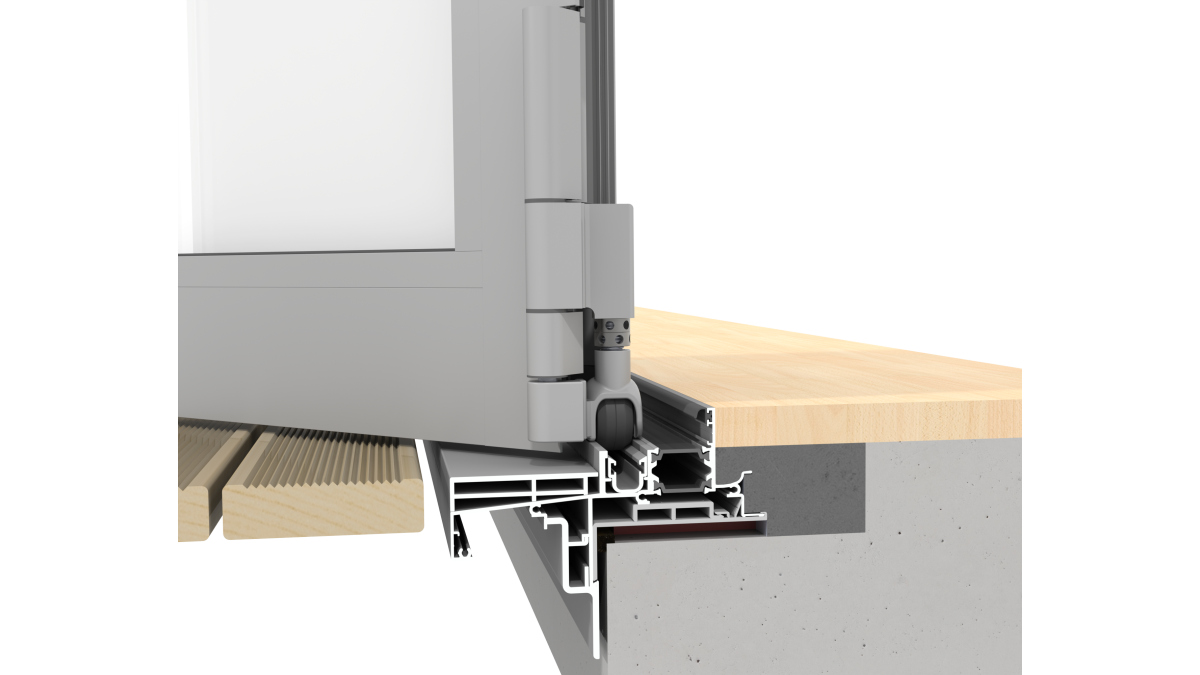

Bottom rolling with an in-frame track for optimum panel support

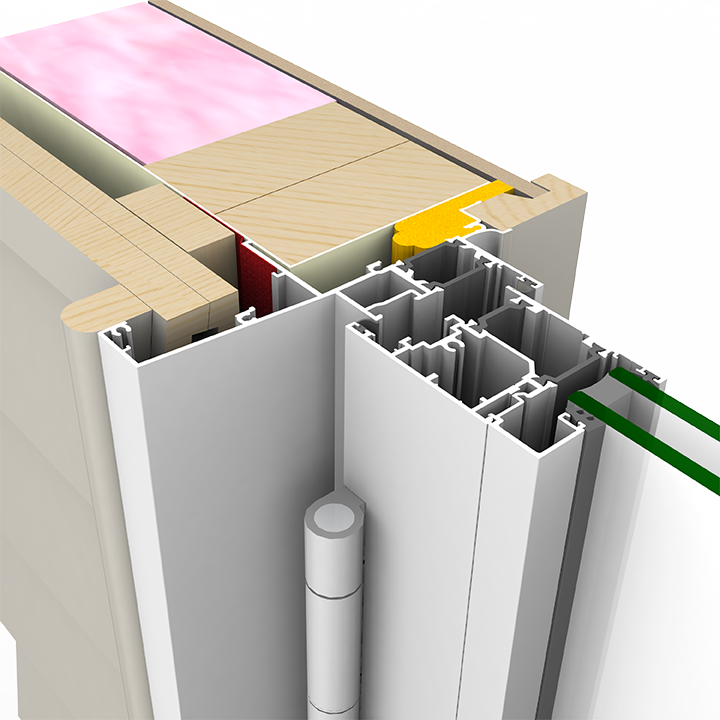

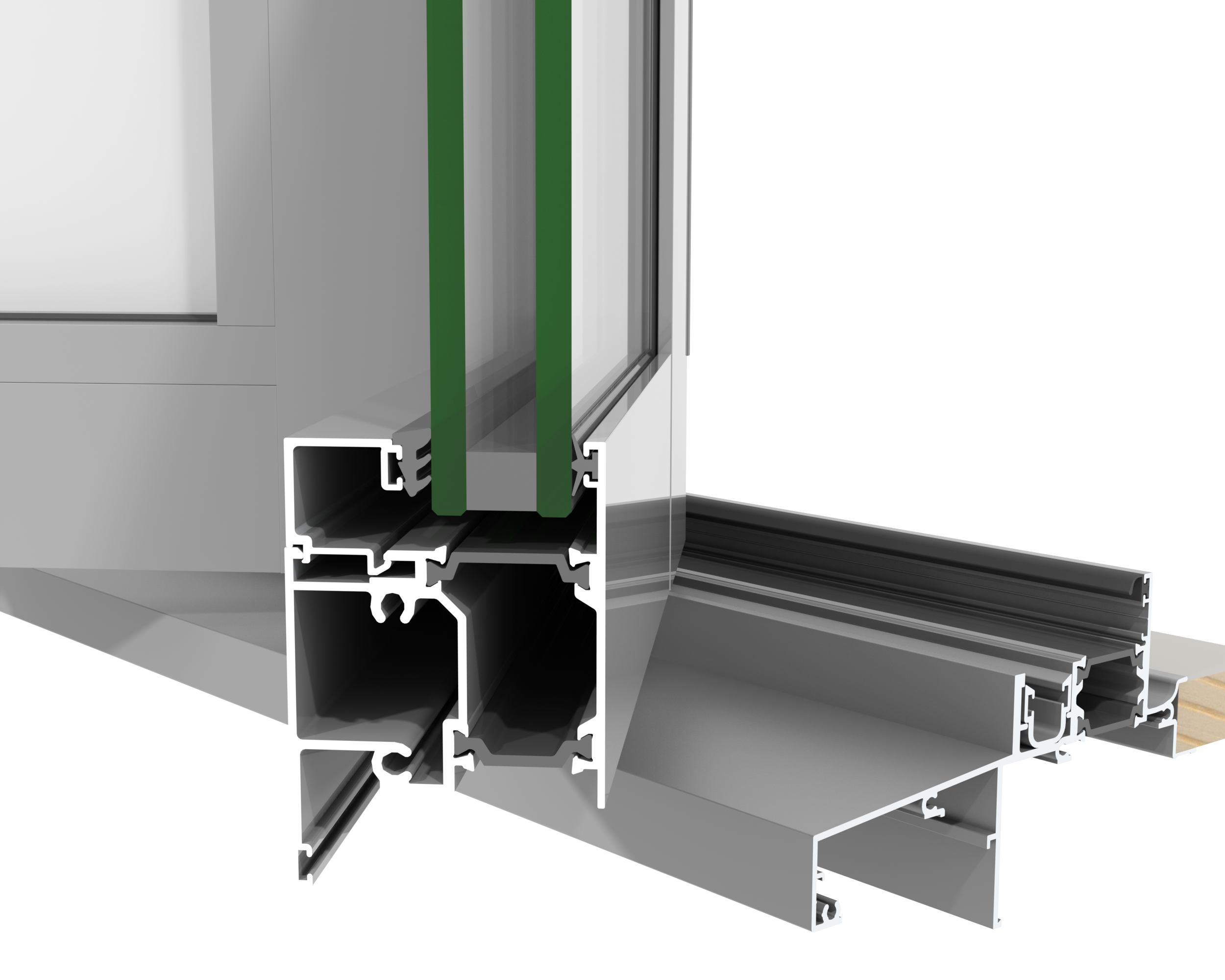

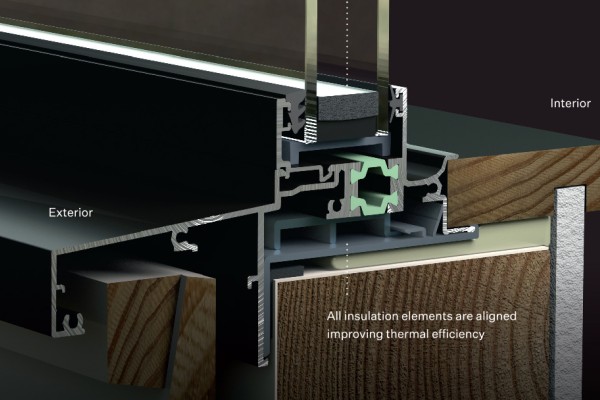

Glazing is deeply set within the building wall, delivering a strong appearance
A wide range of configurations available
Assured smooth operation through enhanced adjustability

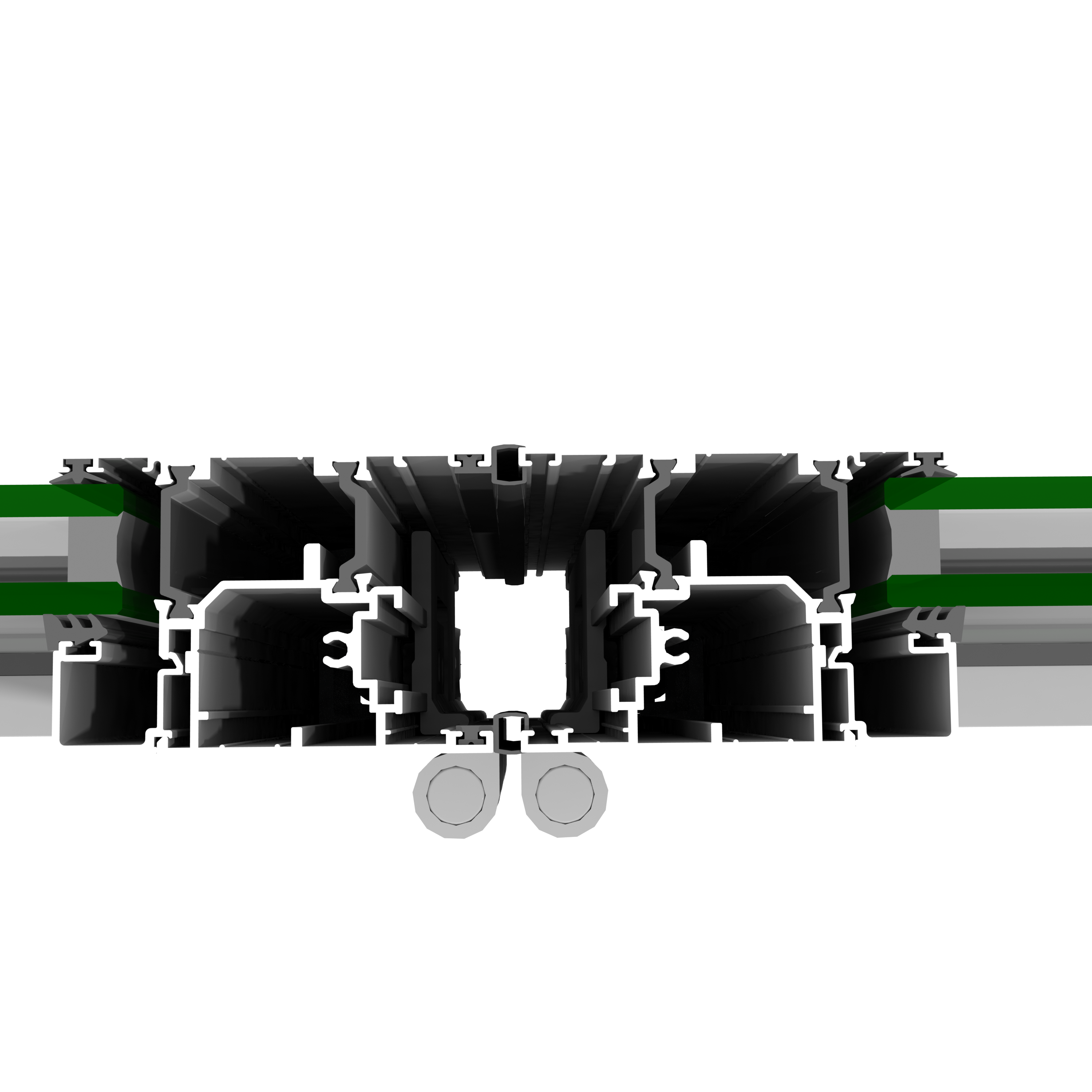

Jamb pivots remove any stresses in bi-fold geometry
A slender door stile and rail option is available to minimise visual intrusion
Layback bi-fold option available in APL Architectural Series ThermalHEART®
Overlights possible
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

Recommended maximum 2700mm high doors in Very High wind zones
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice.
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

News

APL’s Windows and Doors for Passive House Use

VANTAGE Windows & Doors

February 2024

New Products

National Release of New ThermalHeart+ Window Systems

VANTAGE Windows & Doors

May 2023

New Products

Documents

Centrafix™ System Guide

2023

URL

QR Code: Centrafix™ on Working Spec

pdf

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Doors

2023

pdf

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Windows

2023

pdf

Span Tables: Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors

2023

pdf

Span Tables: Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows

2023

pdf

Specifier Guide (Doors)

pdf

Specifier Guide (Windows)

pdf

Full Specification Guide: Metro Series ThermalHEART® with Centrafix™

docx

Specification Guide: Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows and Doors

docx

Vantage on Masterspec

URL

Declare Label

2023

pdf

Manufacturer Contact List

URL

AGP Cleaning & Maintenance

pdf

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

Vantage Brochure

URL

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

URL

CAD/PDF Details

View full

APL MetroTH Centrafix Bifold Doors Drawings pdf v2

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors

FULL SET

PDF and ZIP (contains all DWGs)

pdf

zip

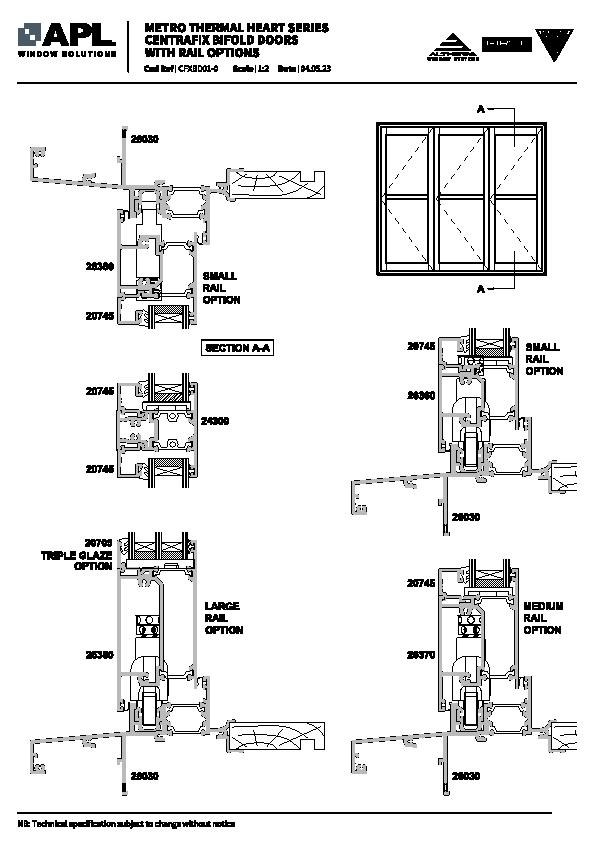

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — With Rail Options

CFXBD01

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — With Overlight Transom

CFXBD02

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2 Panel

CFXBD03

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2+1 Panel

CFXBD04

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3 Panel

CFXBD05

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 2+2 Panel

CFXBD06

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3+1 Panel

CFXBD07

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 4 Panel

CFXBD08

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3+2 Panel

CFXBD09

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 4+1 Panel

CFXBD10

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 5 Panel

CFXBD11

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 3+3 Panel

CFXBD12

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 4+2 Panel

CFXBD13

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 5+1 Panel

CFXBD14

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — 6 Panel

CFXBD15

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Doors — Sidelight Options

CFXBD16

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows

CFXBW01

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows — 2 Panel

CFXBW02

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows - 3 Panel

CFXBW03

dwg

dxf

pdf

Metro Series ThermalHEART® with Centrafix™ Bi-Fold Windows - 2+2 Panel

CFXBW04

dwg

dxf

pdf

Installation Details

View full

The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

pdf
