Maximus Fence and Balustrade System

Urban Group

All products

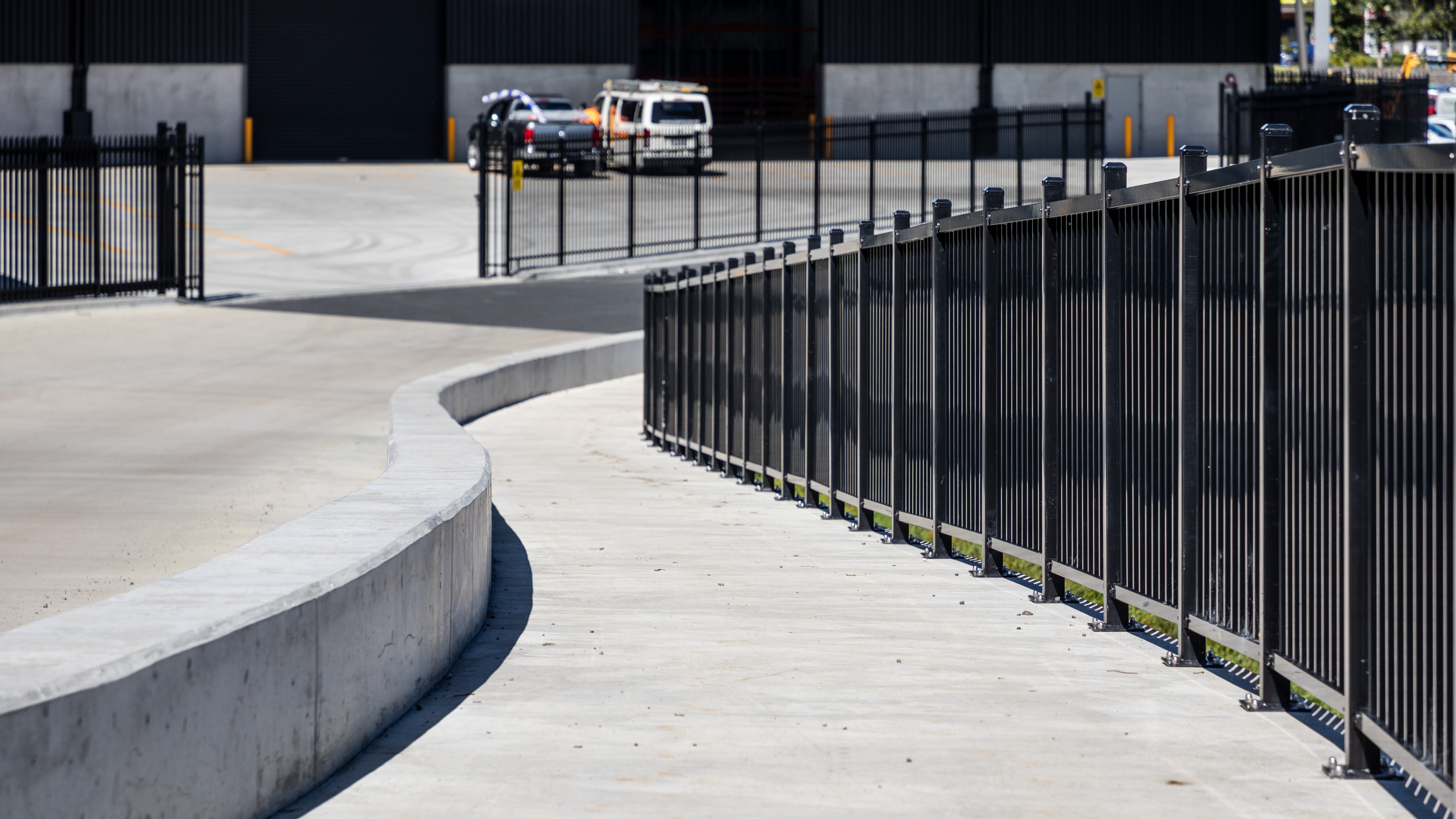

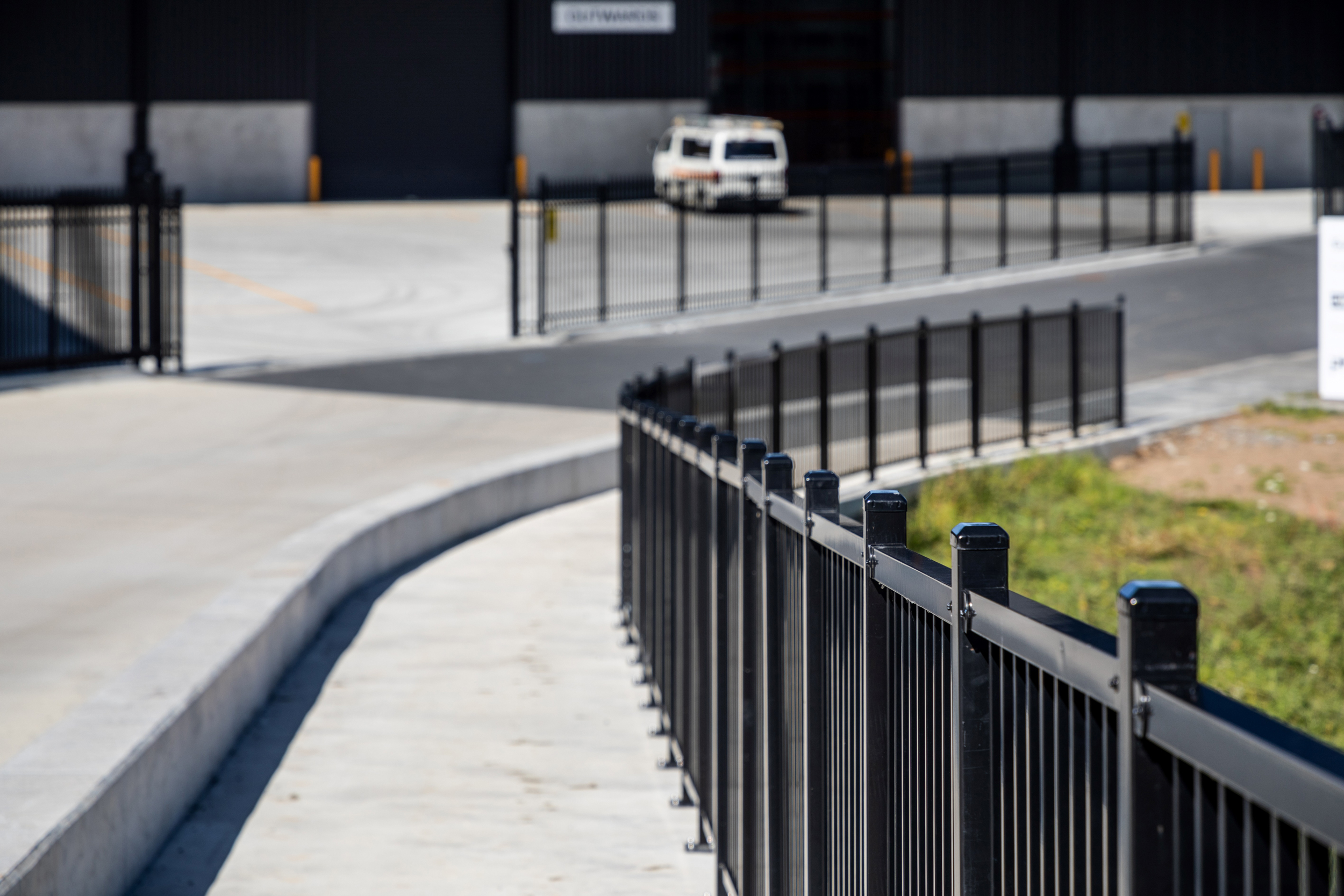

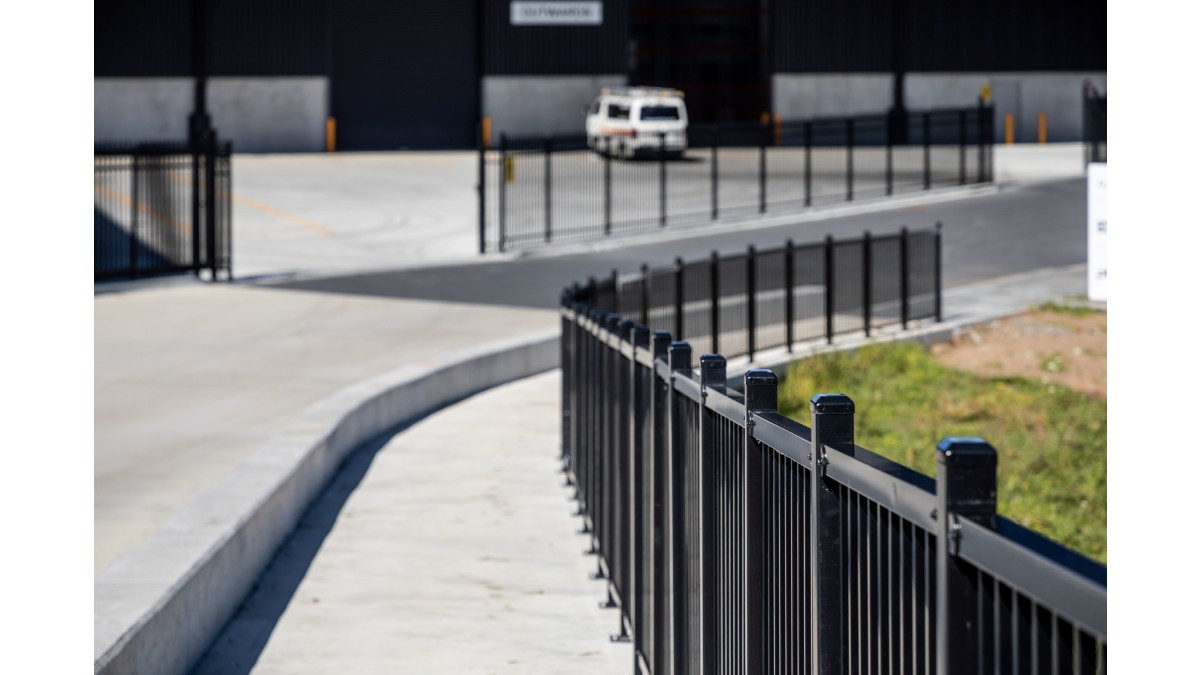

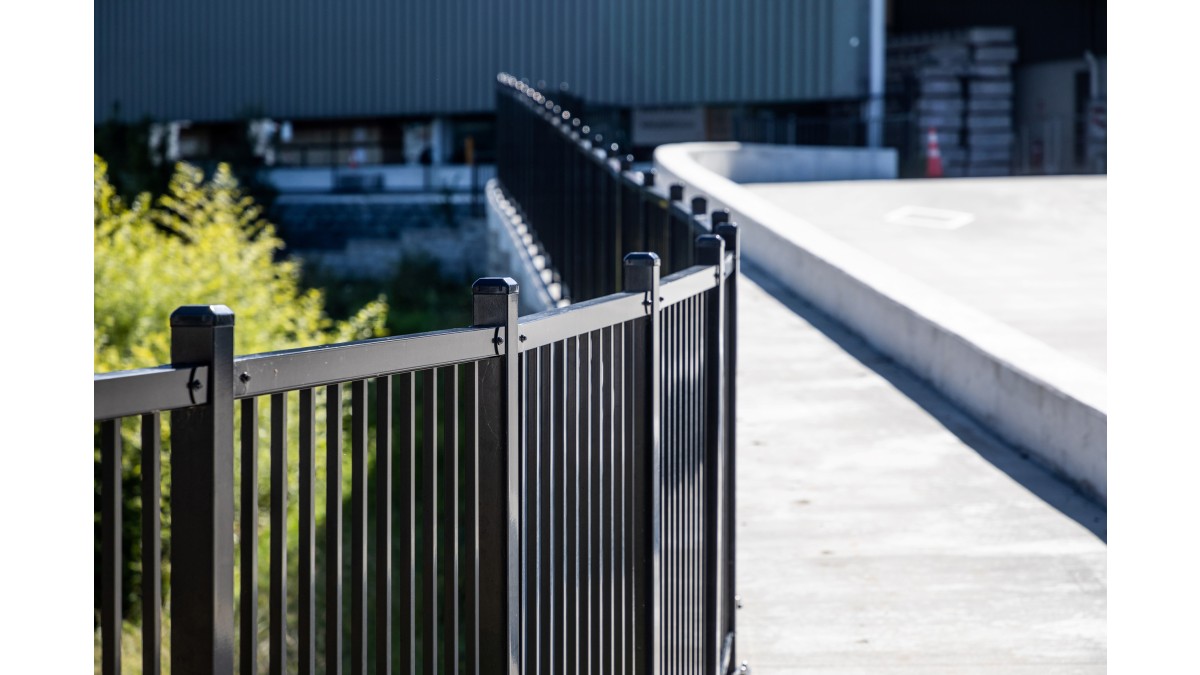

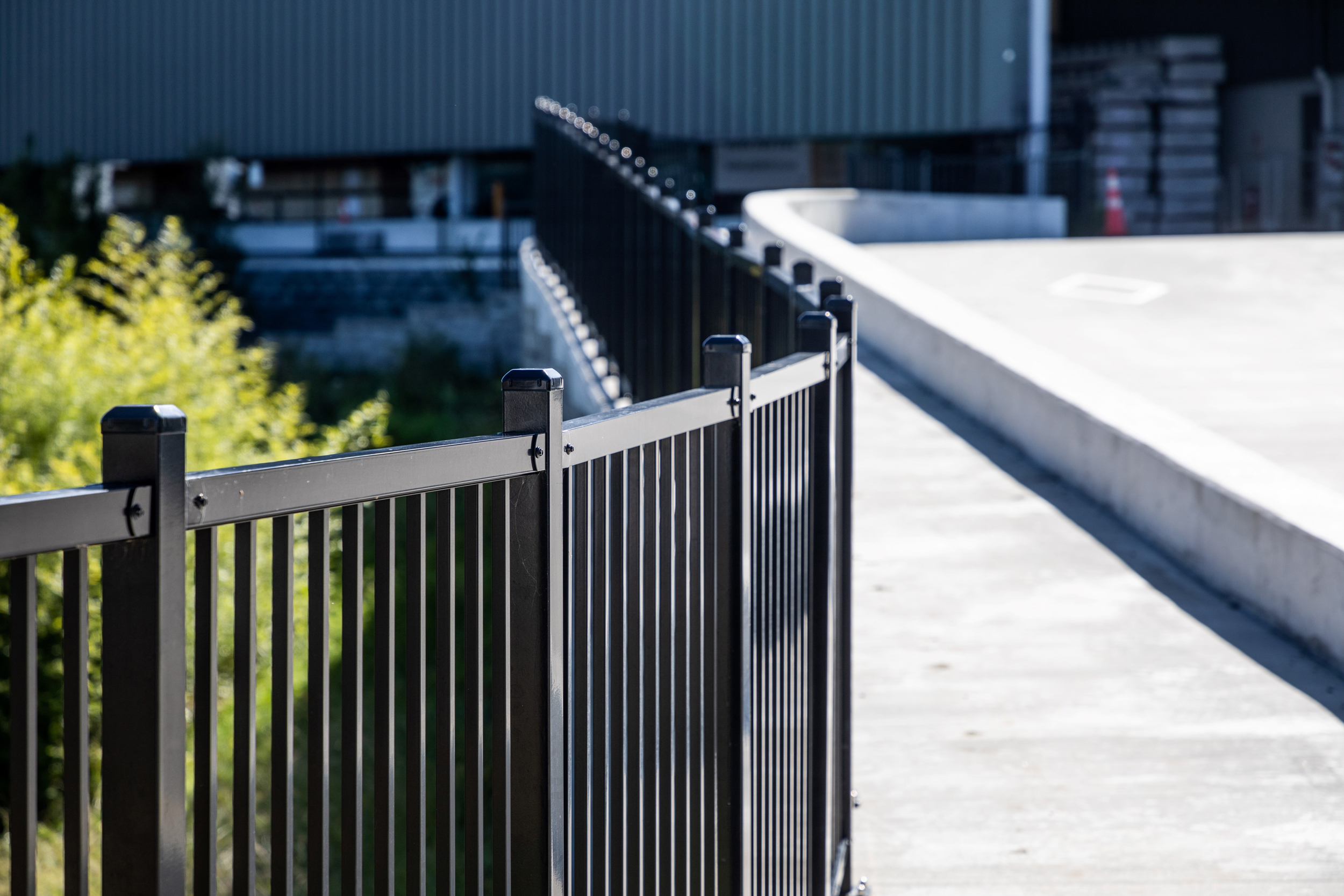

1.2m Maximus Fence Balustrade Tawharau Lane, Highbrook

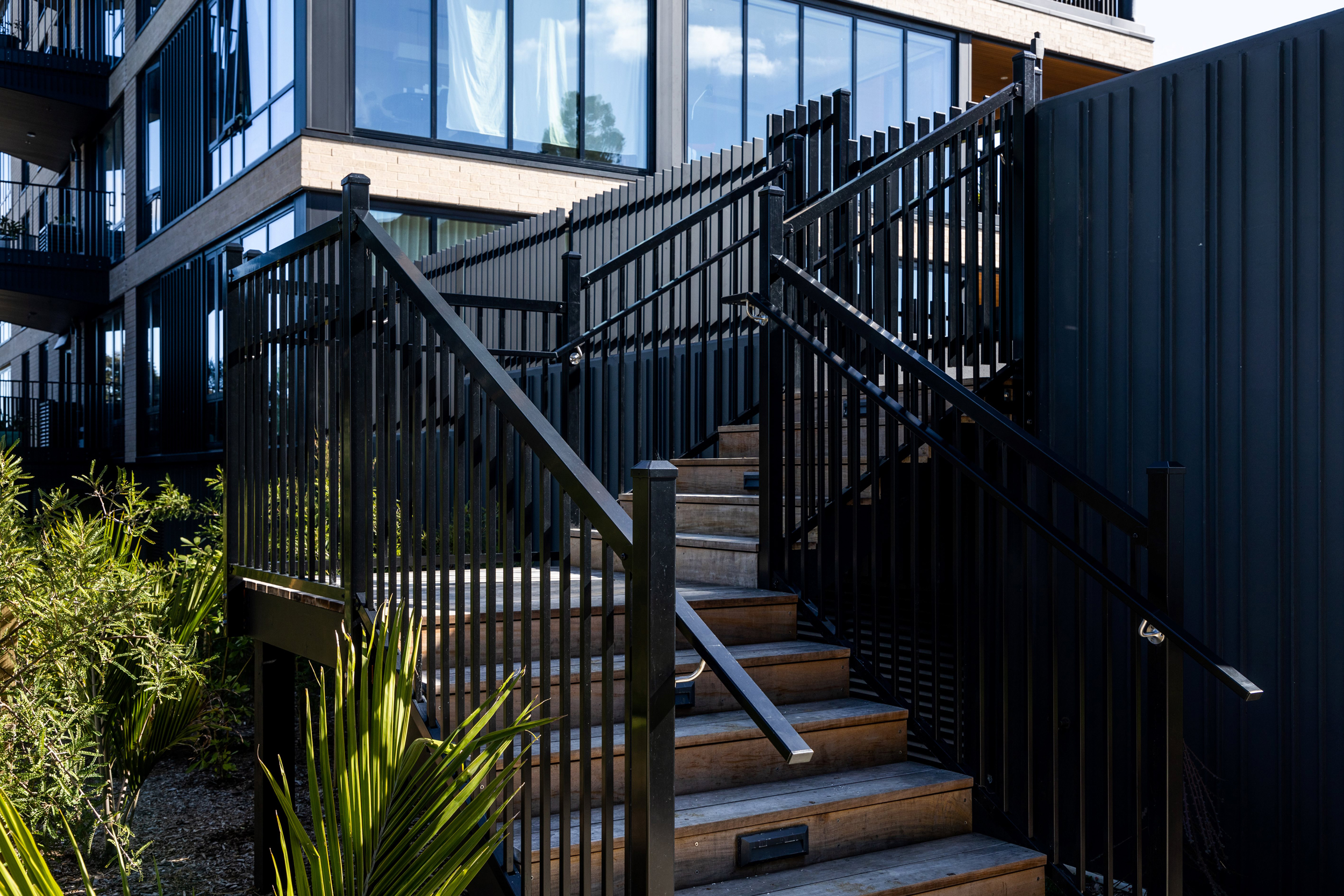

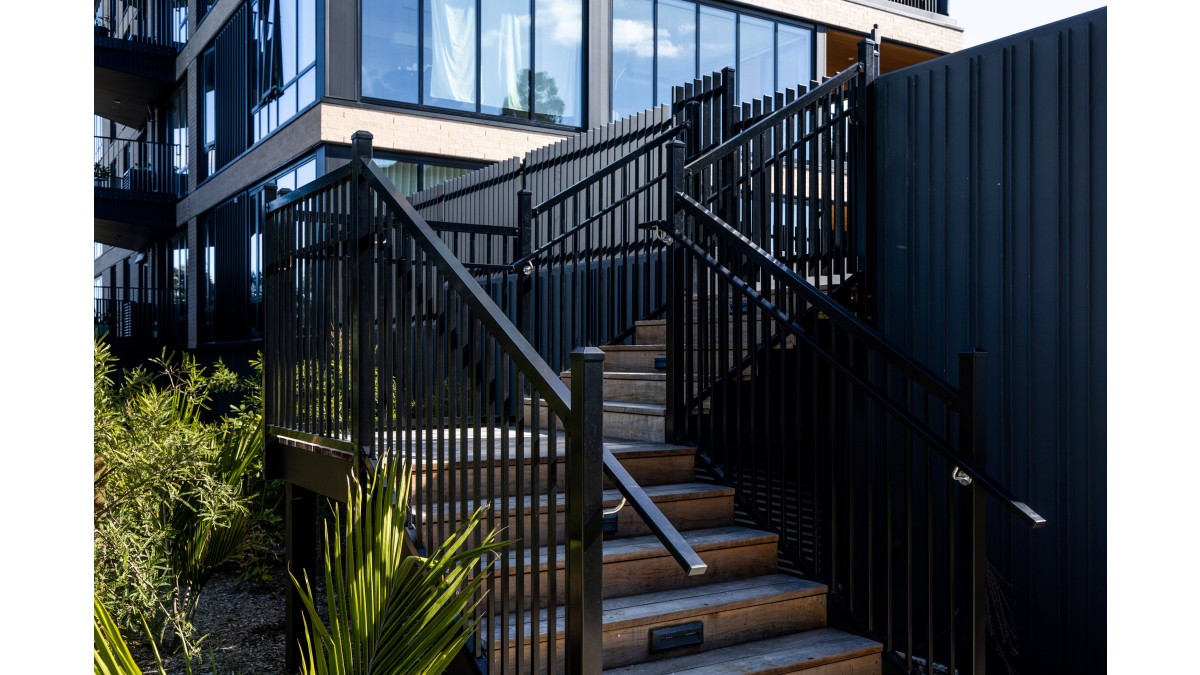

1.2m Maximus Stair Balustrade Ovation Apartments, Auckland

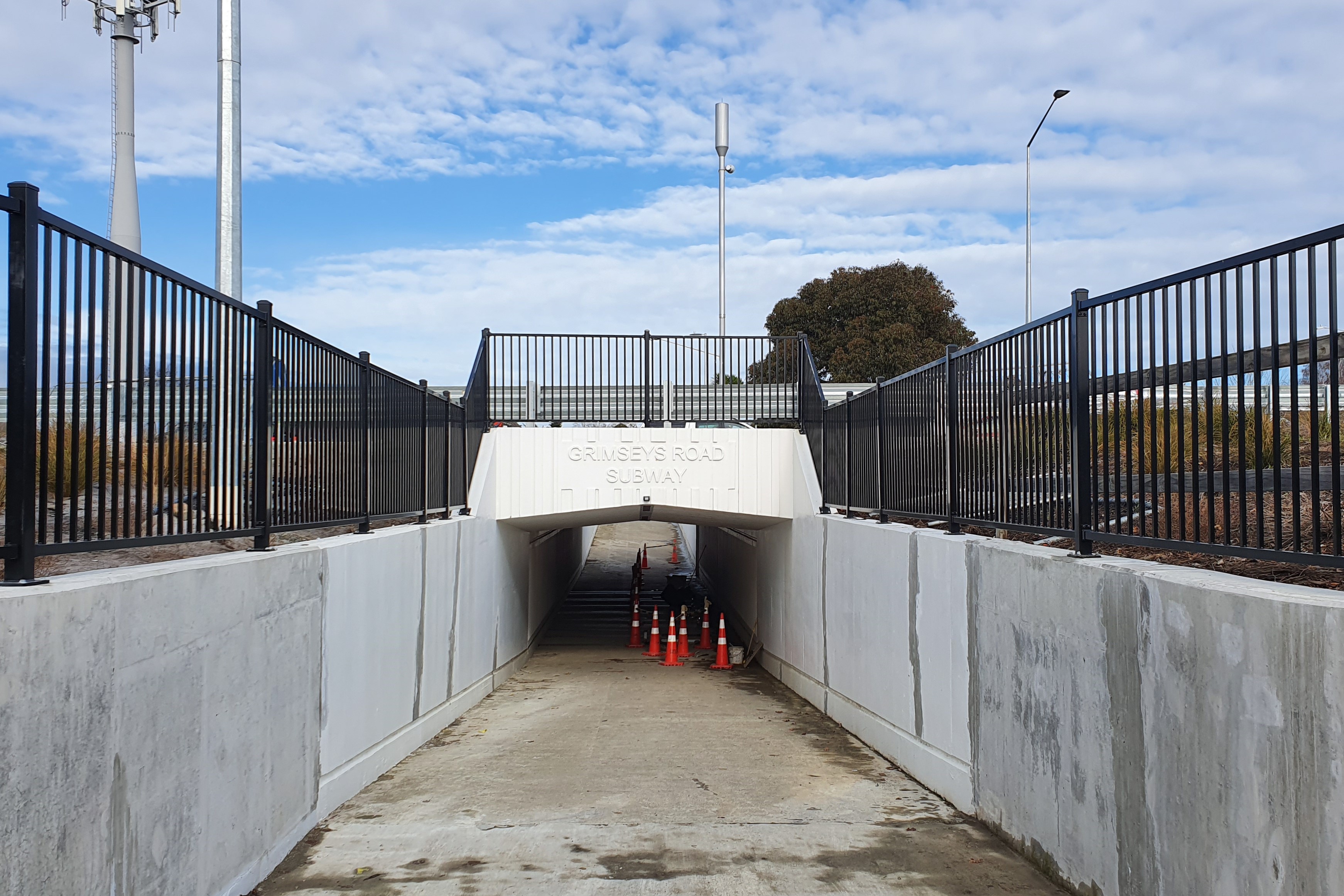

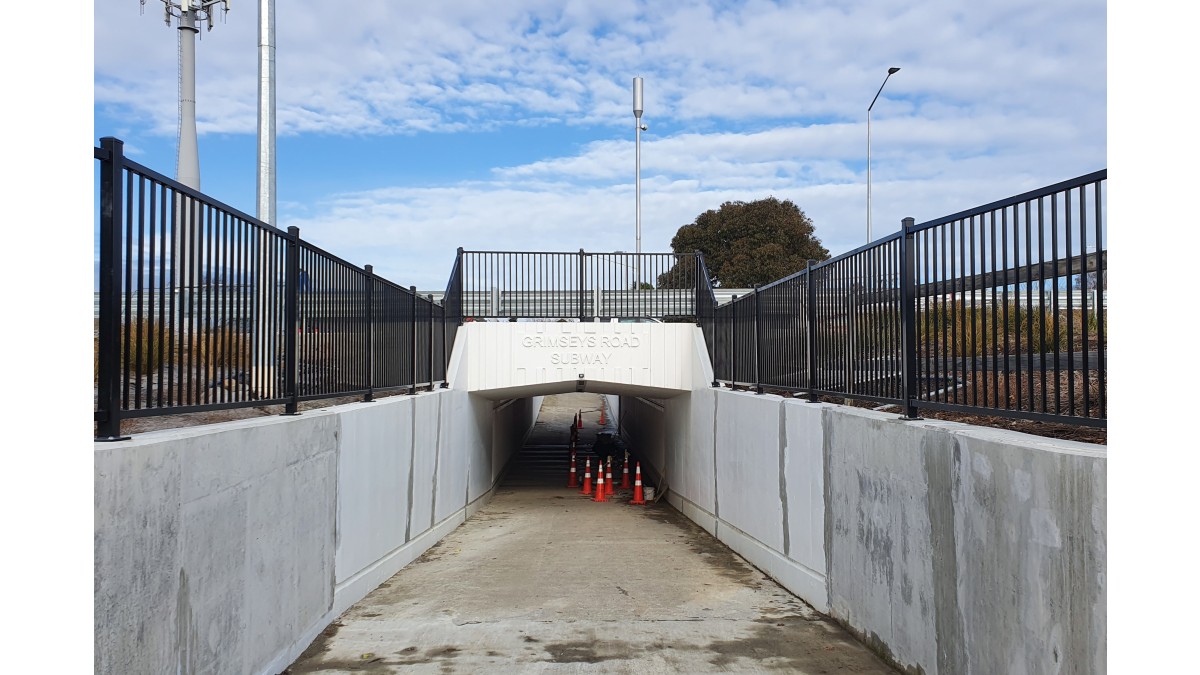

1.2m Maximus Fence Civil balustrade

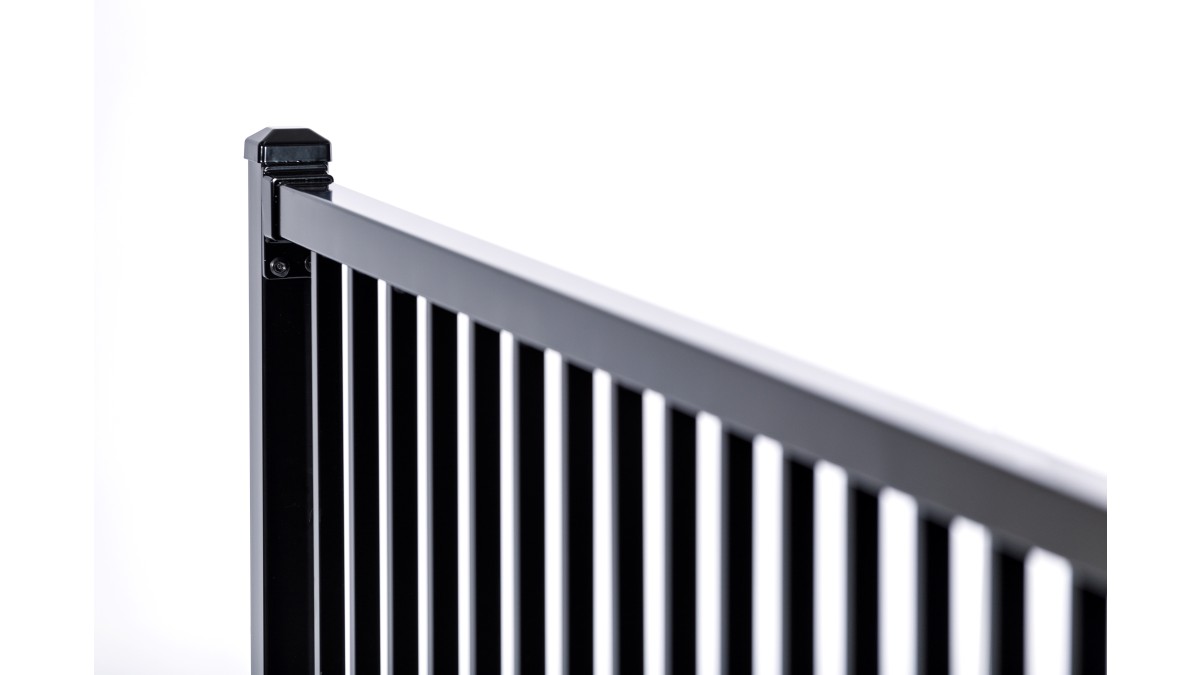

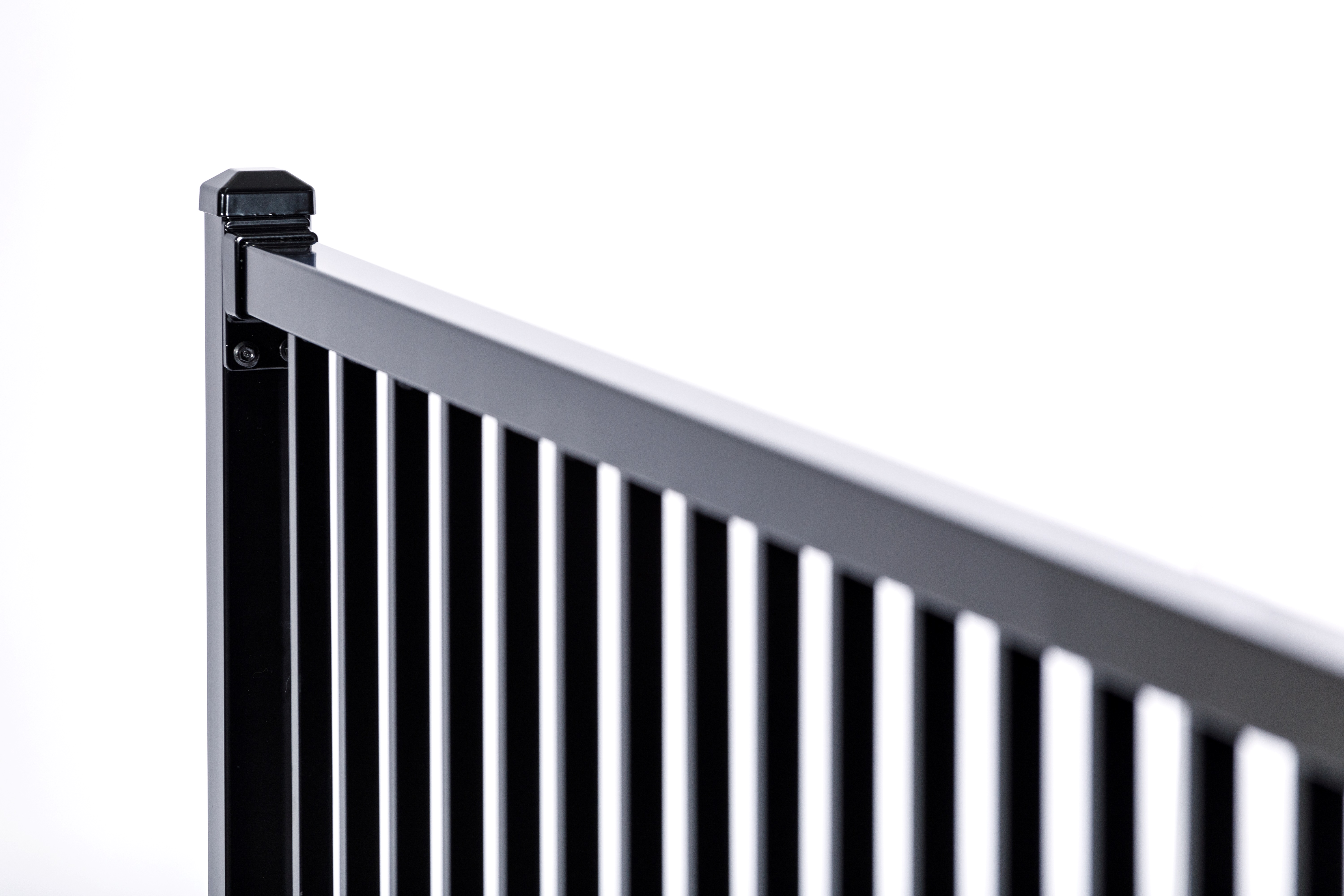

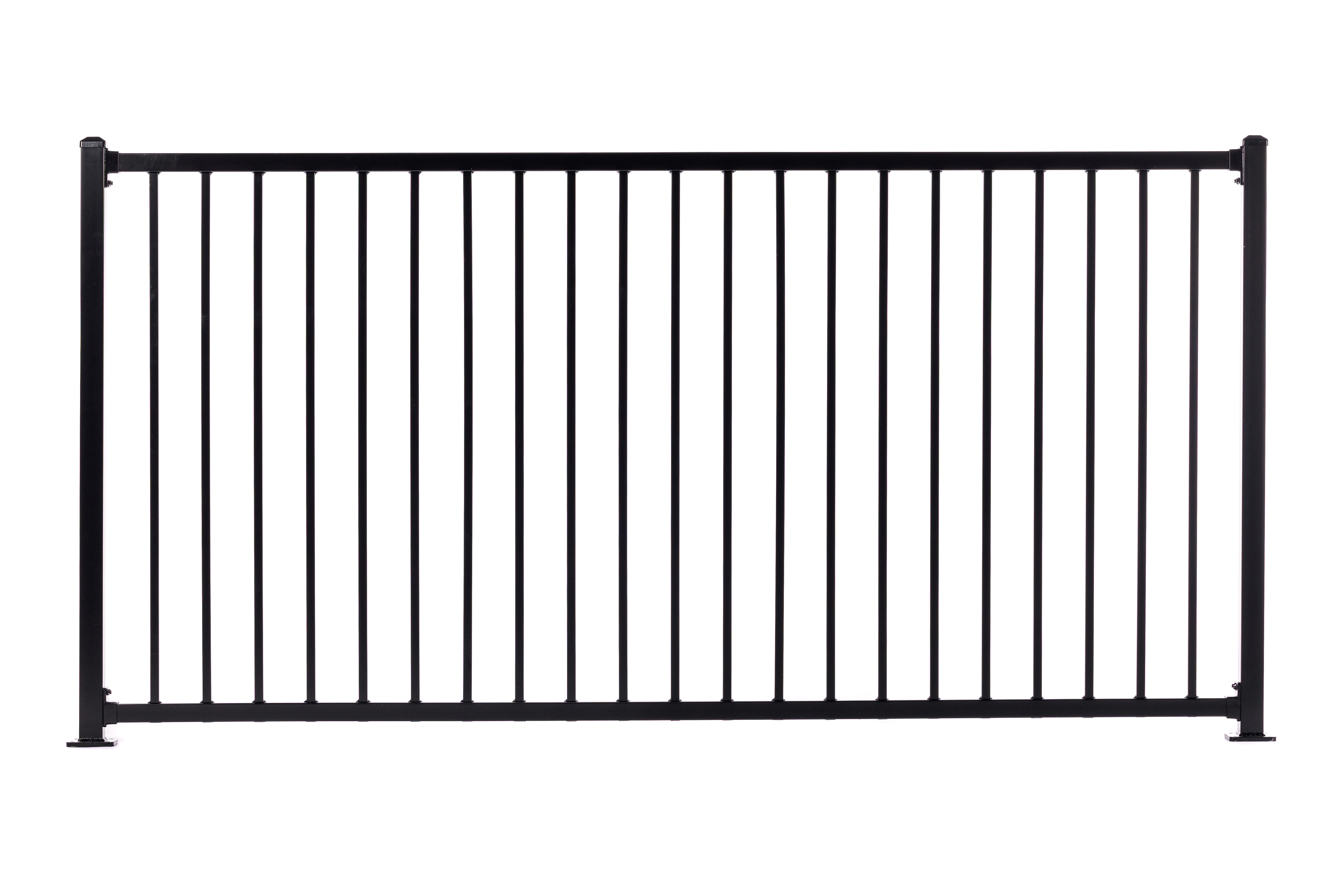

1.2m Maximus Fence

Product Enquiries

Description

As the perfect balustrade, the Maximus fence panel was designed specifically for quick and efficient retaining wall installation, particularly in challenging locations, where it offers a rake of up to 30 degrees.

A heavy-duty top-rail and robust construction ensure the highest levels of protection. Complying with NZBC F4 specification requirements, Maximus can be installed at 2400mm centres with classic style and maximum strength.

Sizes and Options

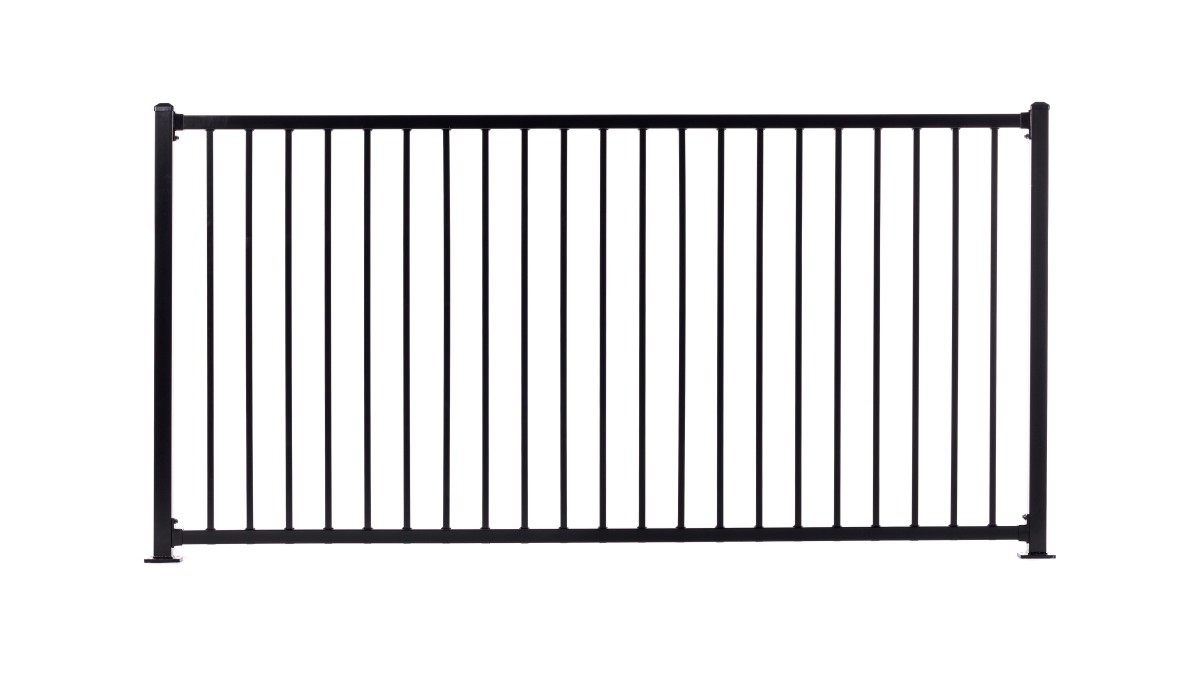

Fence panels:

Height: 1200mm
Width: 2400mm

Driveway gates:

Custom width
Optional automation and access control systems

Key Features

Balanced contemporary design
Low maintenance heavy duty aluminium construction
Fast easy installation
Black powder coated finish as standard, with a large range of colours are available on request
Exclusively available as raking panel up to 30 degrees
Brackets and hardware supplied with system
Custom width driveway gates available with optional automation and access control systems

Scope of Use

Applications:
- Balustrading
- Civil
- Cycleways
- Parks
- Residential pool fencing
Exclusively available as raking panel up to 30 degrees
Brackets and hardware supplied with system

Limitations on Use

Steel posts must be used and installed at up to 2465mm post centres to achieve compliance with NZ Building Code F4 Safety from falling and F9 Restricted access to residential pools

Statement of Building Code Compliance

Compliant with NZ Building Code F4 Safety from falling when using steel posts and installed at up to 2465mm post centres
Compliant with F9 Restricted access to residential pools when installed at up to 2465mm post centres
Generic PS1 available
Site specific PS1 available on request

In-Service History

The features and benefits of the Maximus fence system have led to it being the preferred system to achieve F4 Safety from falling compliance in public infrastructure and commercial projects, such as Tawharau Lane Industrial Estate, Highbrook, Auckland.
