Fresno Fence and Gate System
Description

Combining privacy and personality, Fresno aluminium panels are an adaptable, cost-effective fencing solution, with wide 65mm slats for greater screening. Sturdy and stylish, Fresno panels are both height and width adjustable, and can be used with slats running horizontally or vertically.

Available ex-stock in Satin Black, Fresno offers fast order turnaround times and straightforward installation. Once on site, the panel can be easily adapted to custom sizes.

Sizes and Options

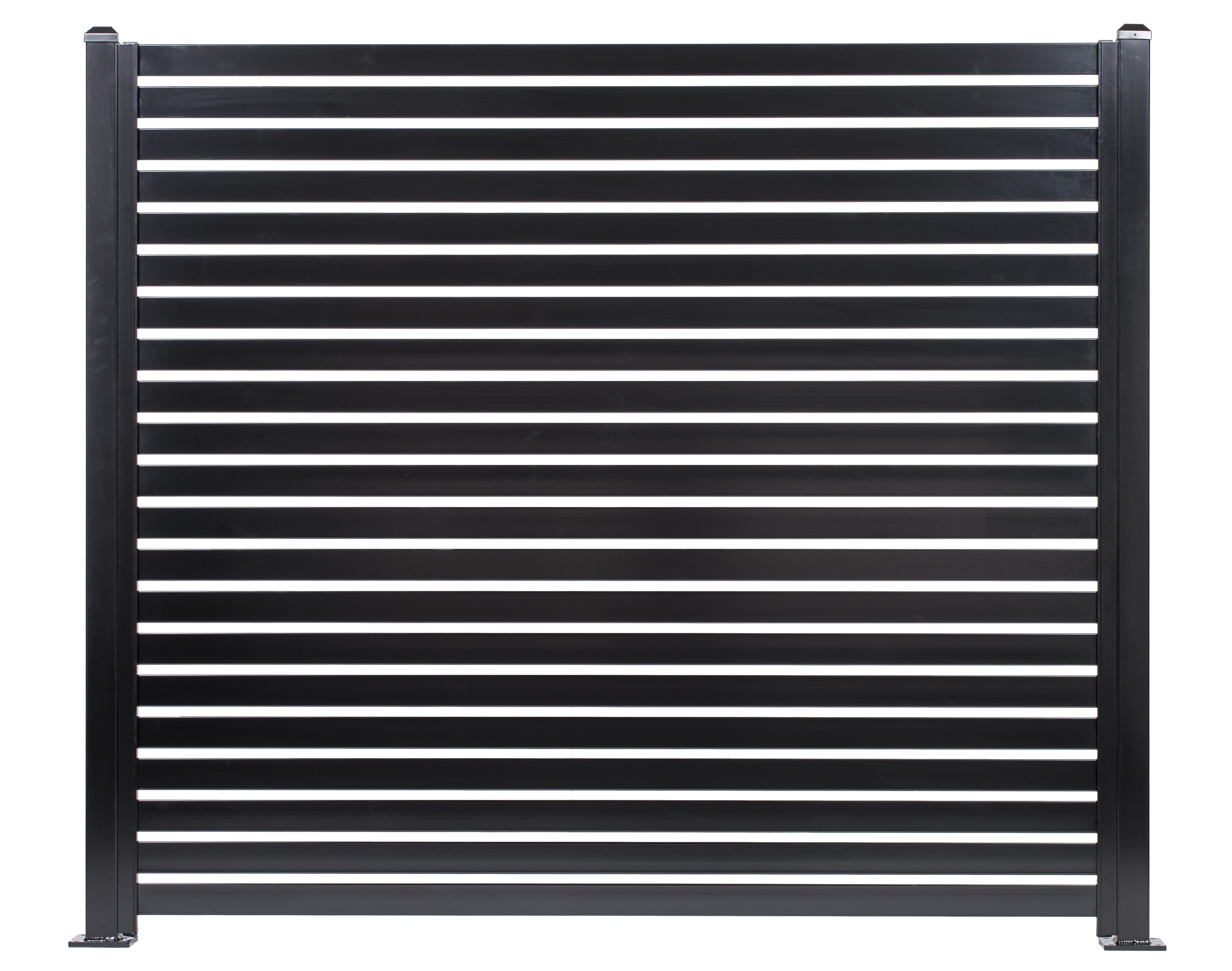

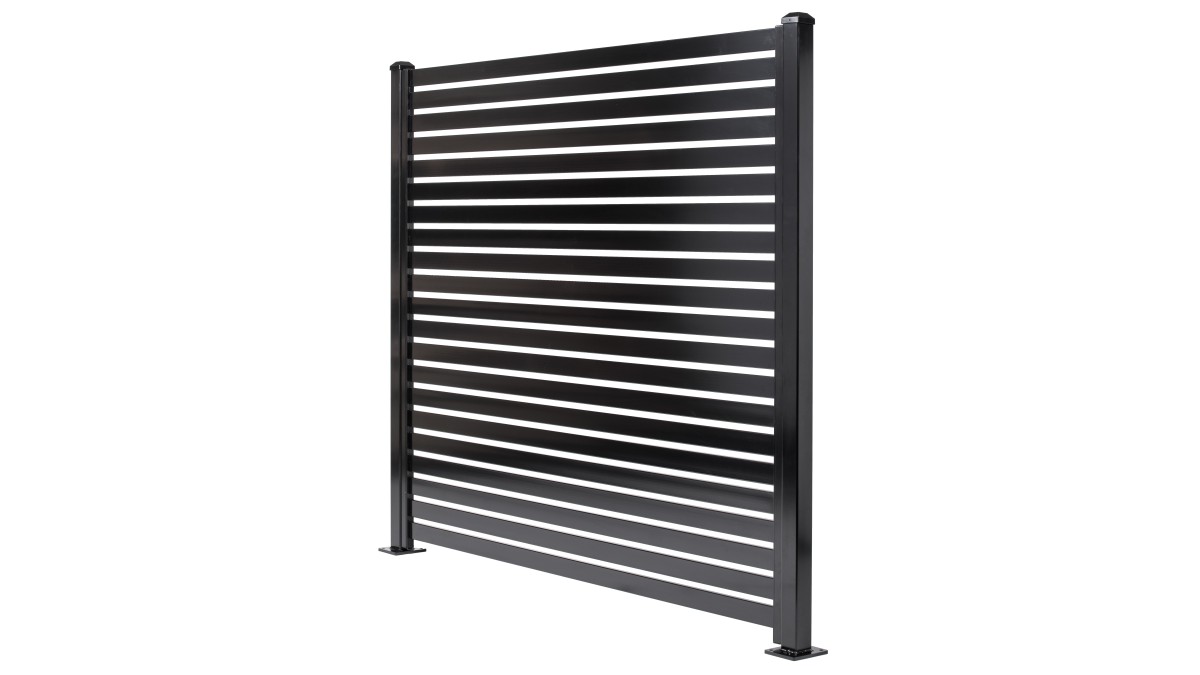

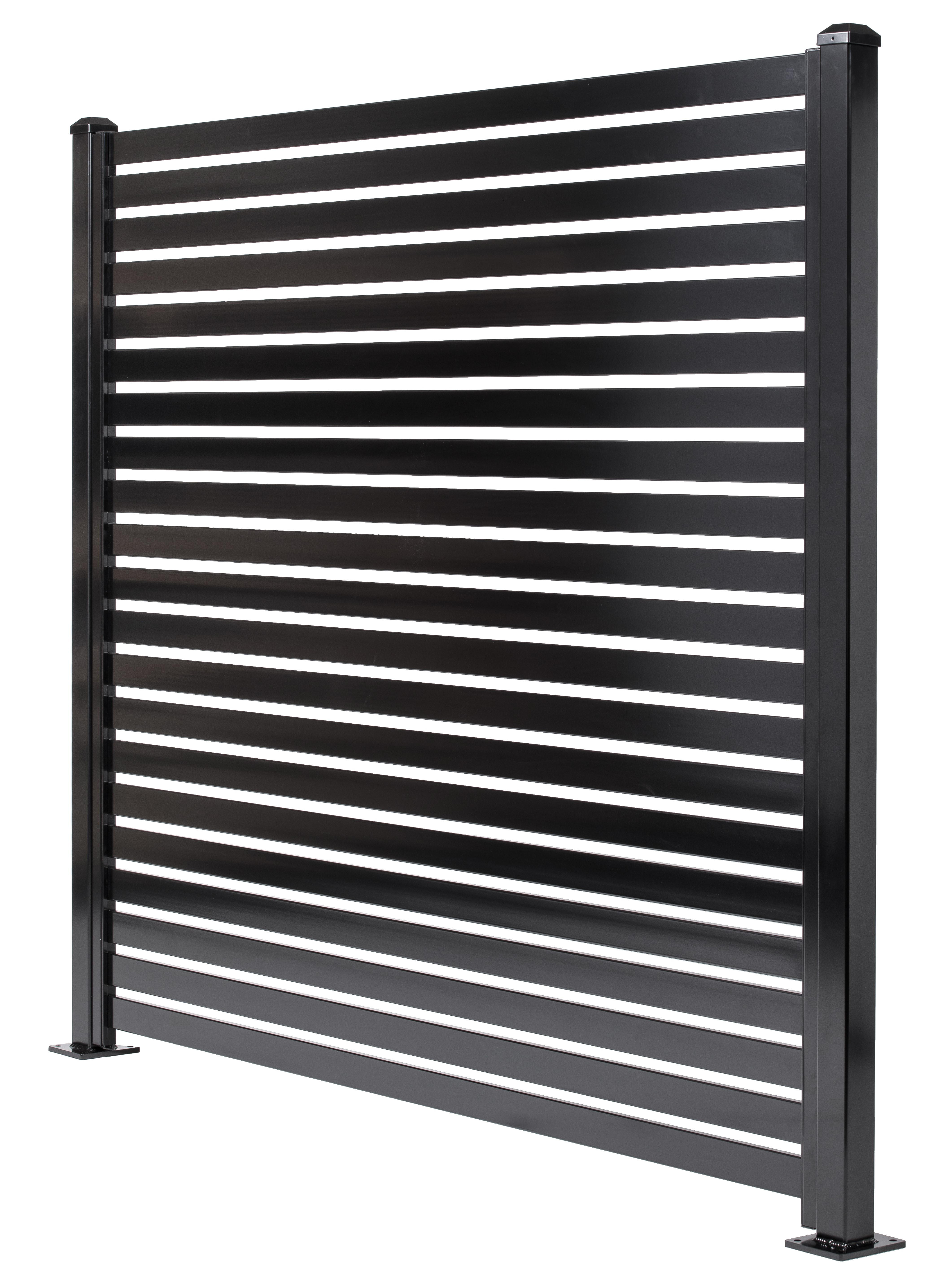

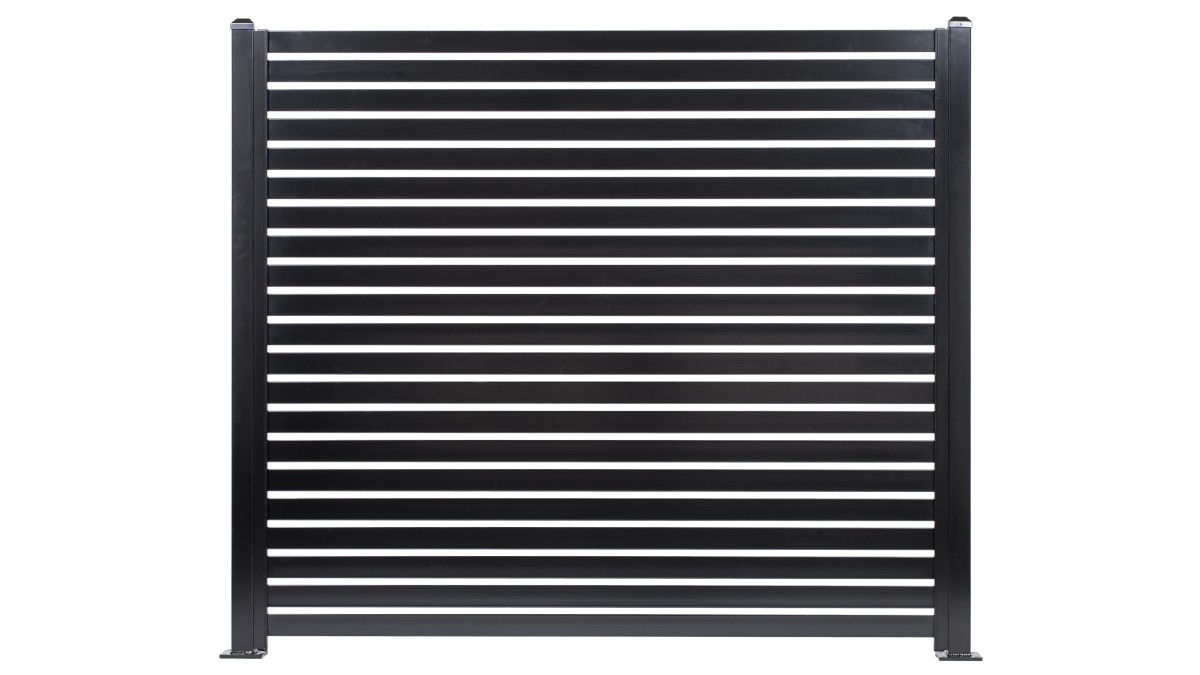

Fence panels:

  • Height: 1800mm
  • Widths: 700, 1200, and 2000mm

Pedestrian gates:

  • Heights: 1200, 1500, and 1800mm
  • Width: 1000mm
  • Custom heights and widths available

Driveway gates:

  • Custom heights and widths available
  • Optional automation and access control systems
Key Features
  • Contemporary design with extra privacy
  • Aluminium construction
  • Lightweight, easy to adapt and install on site
  • Black powder coated finish as standard. Custom colours available on request
  • Panel available in vertical configuration
  • Custom options for pedestrian and driveway gates available
  • Gate automation and access control systems available
  • Brackets and hardware supplied with system
Scope of Use
  • Applications:

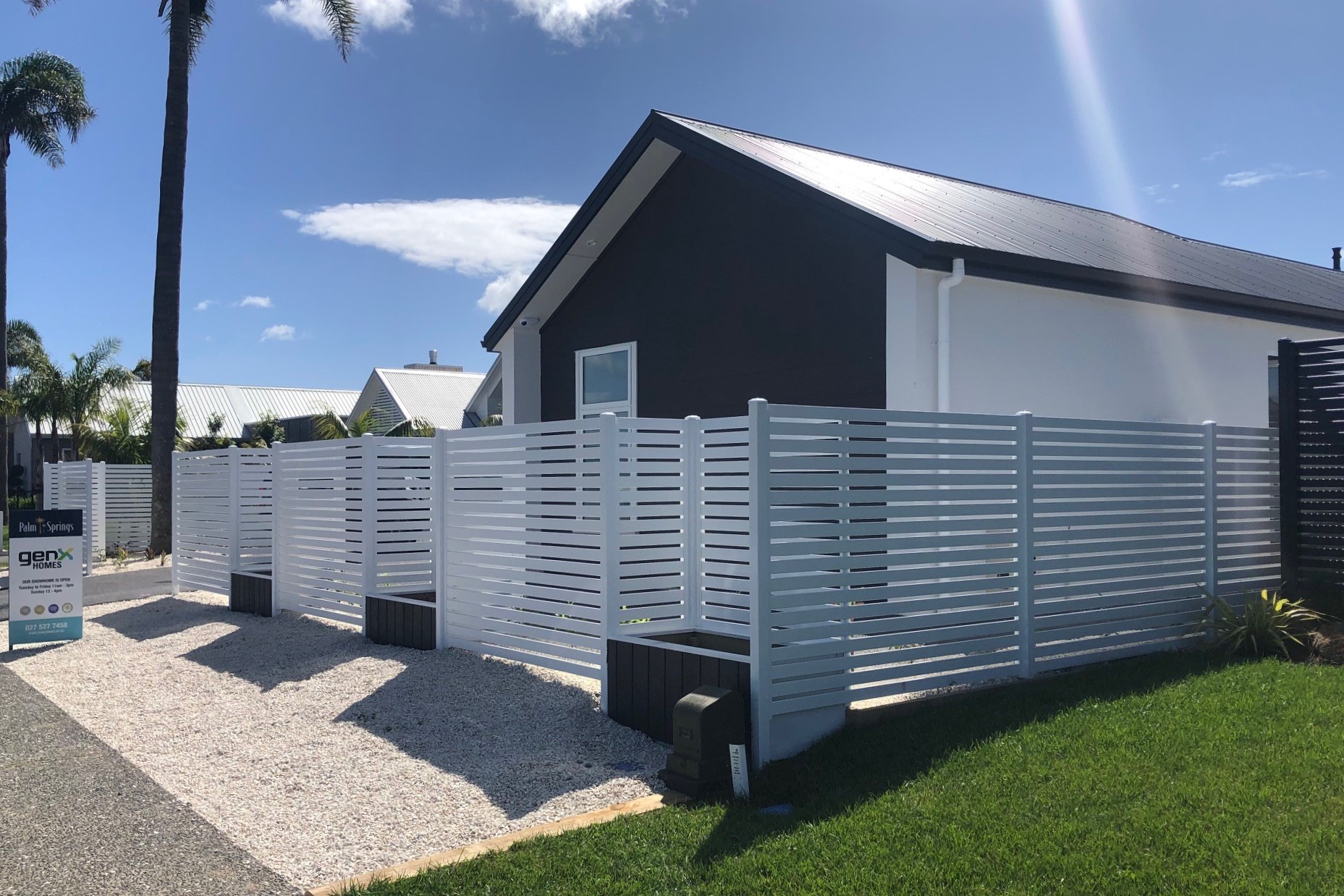

    • Residential

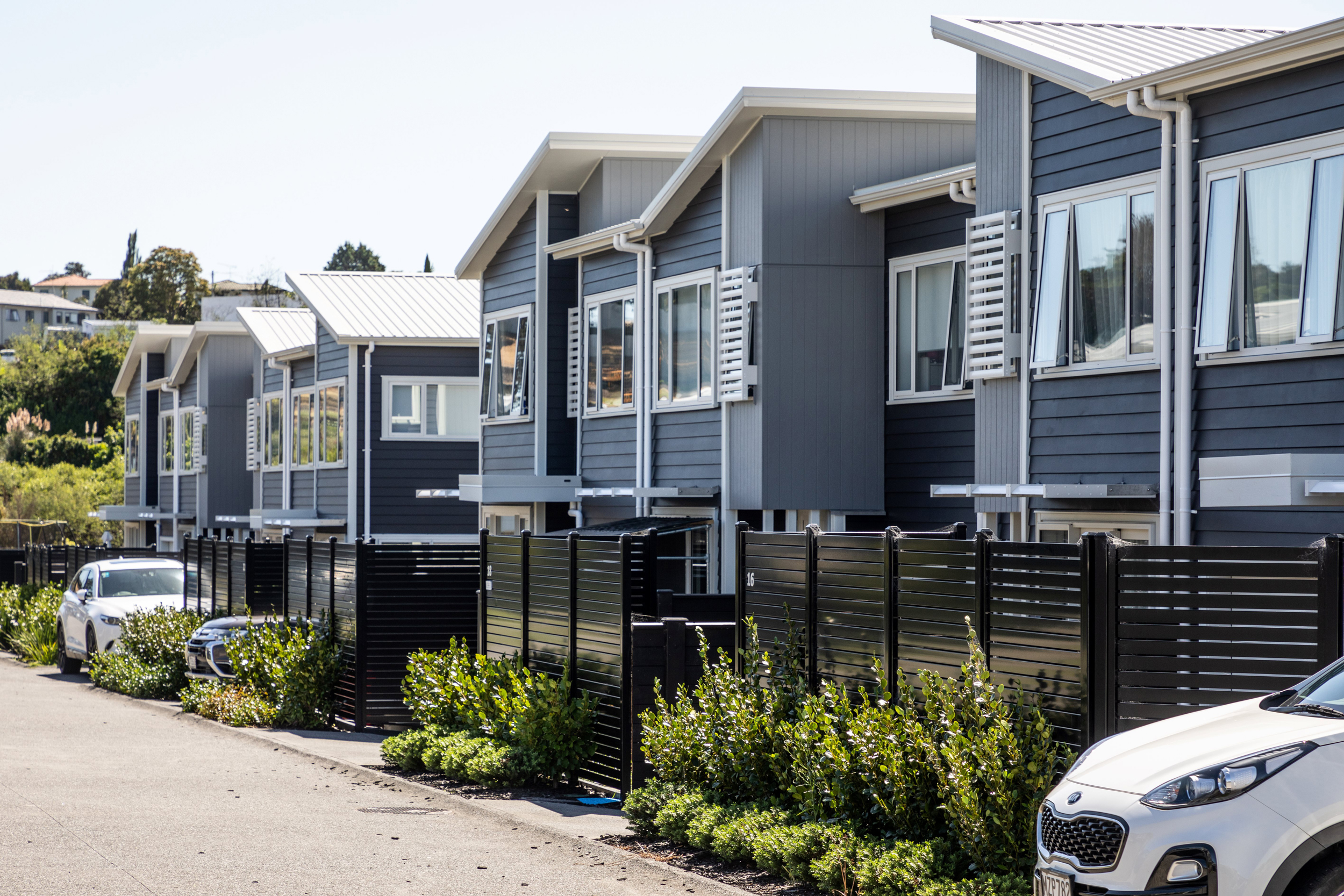

    • Medium/high density
    • Commercial

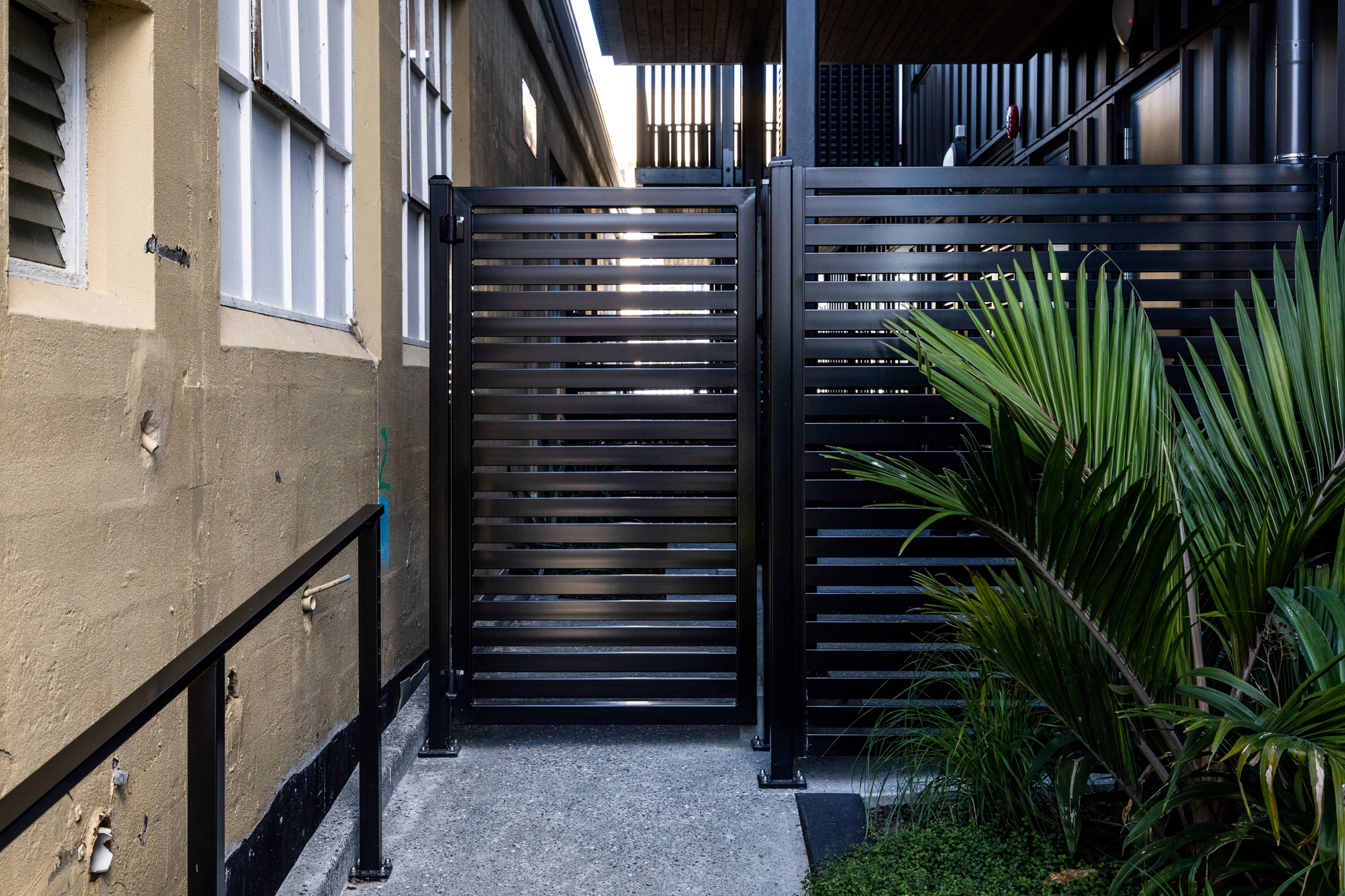

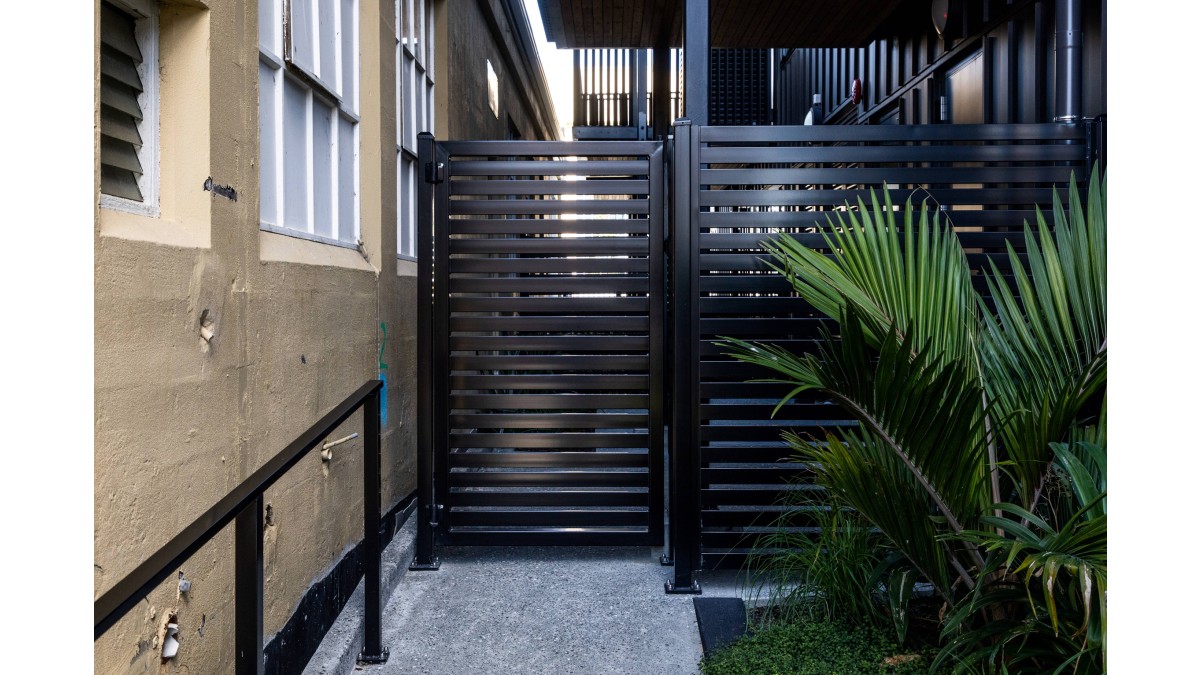

    • Screening off refuse and planted areas
  • Panel available in vertical configuration
  • Brackets and hardware supplied with system
Limitations on Use
  • Does not comply with NZ Building code F4 Safety from falling and F9 Restricting access to residential pools therefore it cannot be used for balustrading or pool fencing
  • A custom Fresno panel with a 10mm gap between the horizontals is available on request that will achieve F9 Restricting access to residential pools compliance
Statement of Building Code Compliance
  • Does NOT comply with NZ Building code F4 Safety from falling or F9 Restricting access to residential pools
  • A custom Fresno panel with a 10mm gap between the horizontals is available on request that will achieve F9 Restricting access to residential pools compliance
  • Site specific PS1 available on request
In-Service History

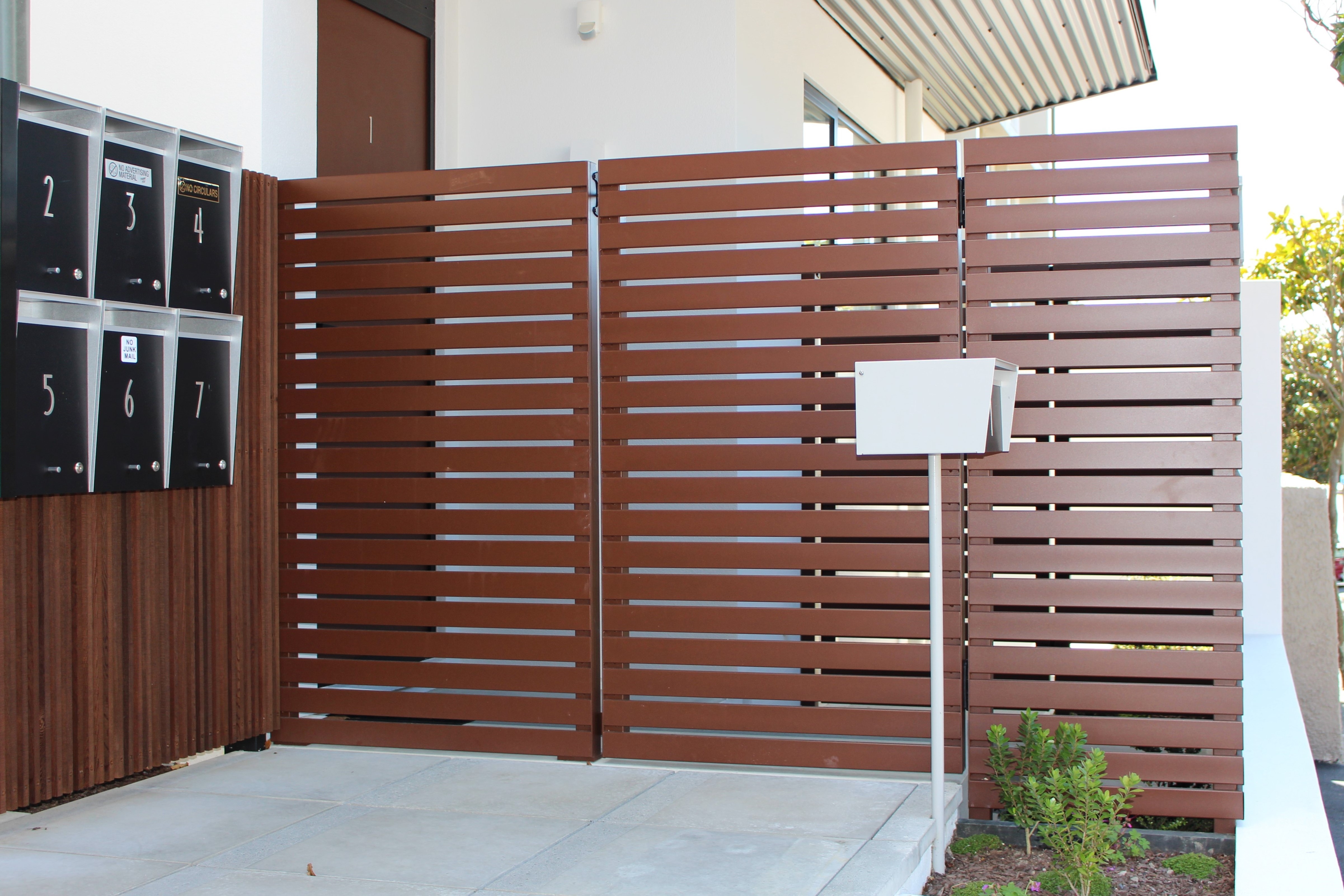

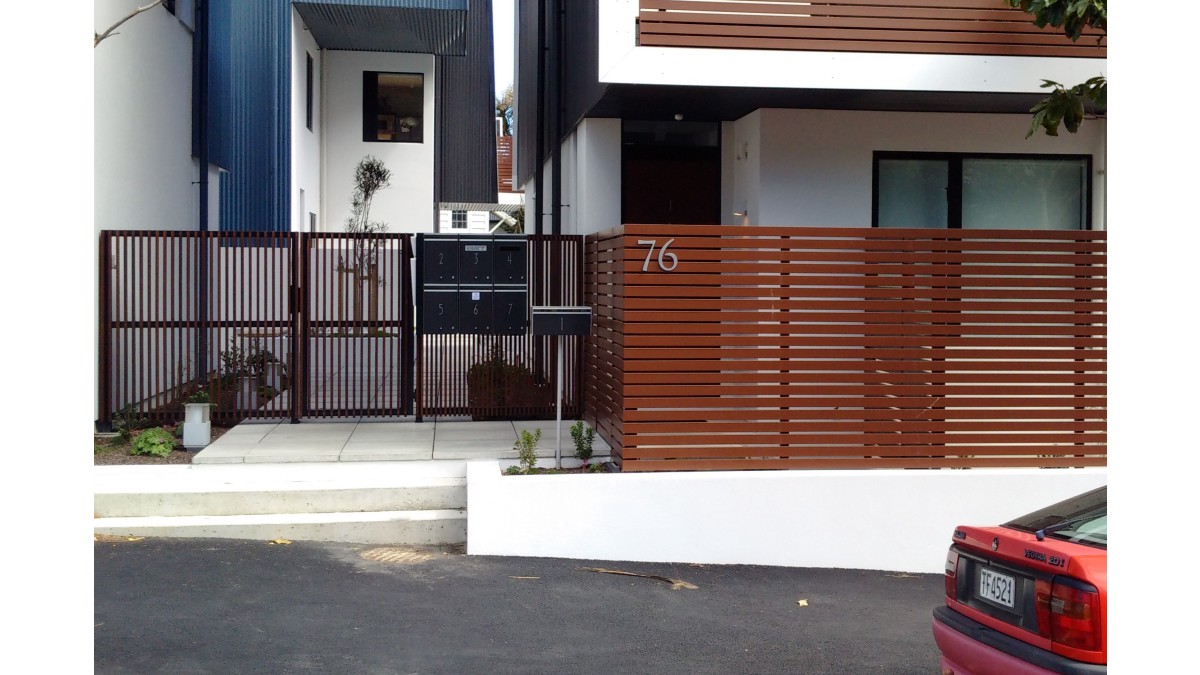

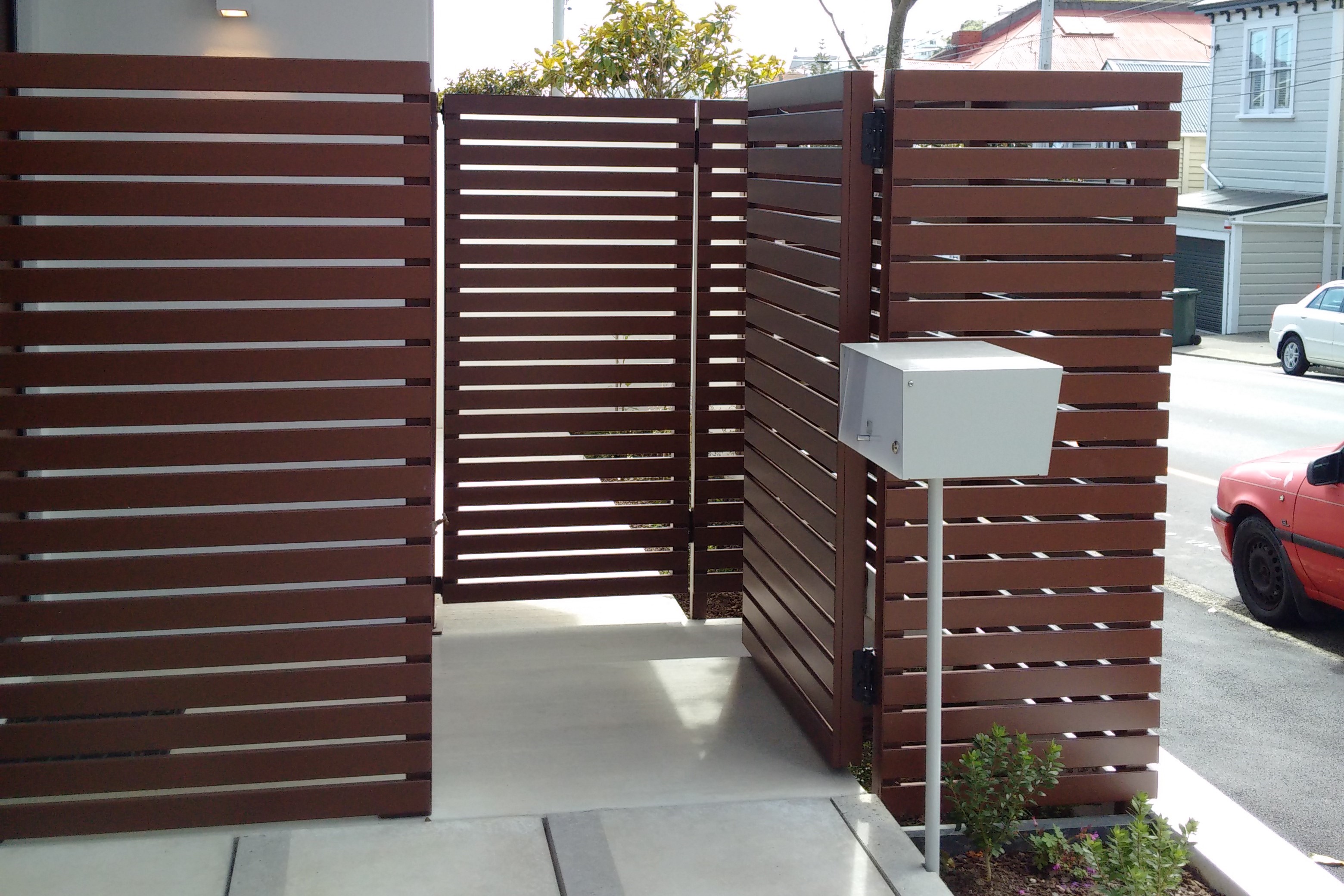

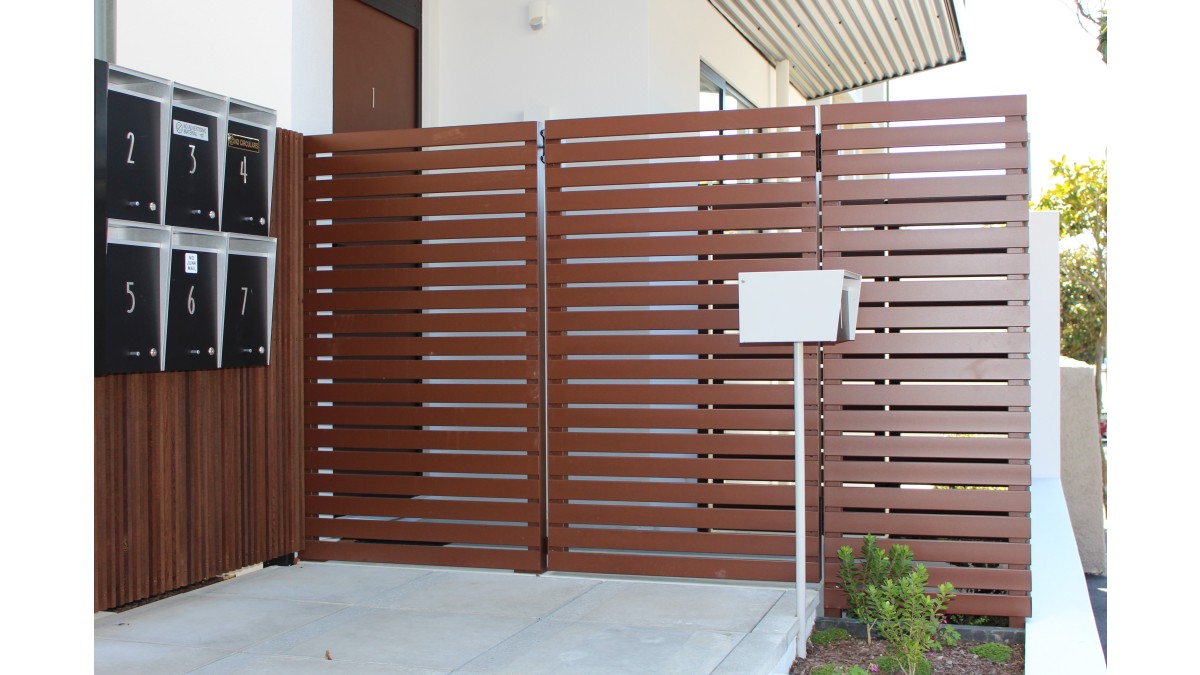

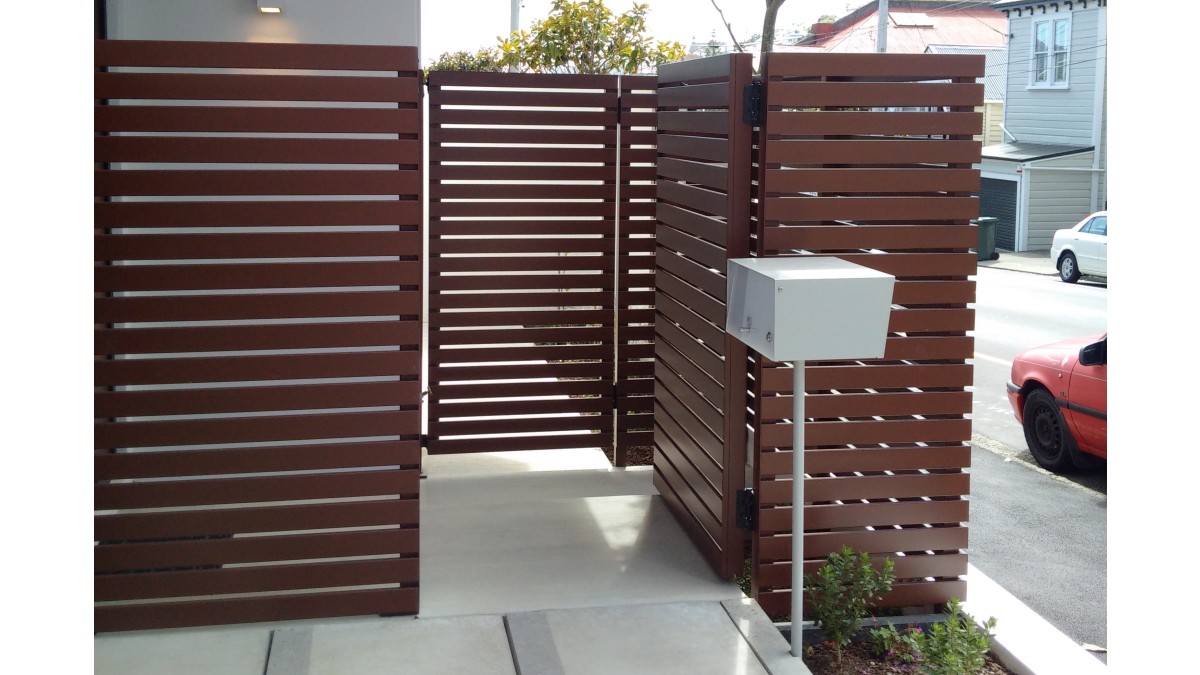

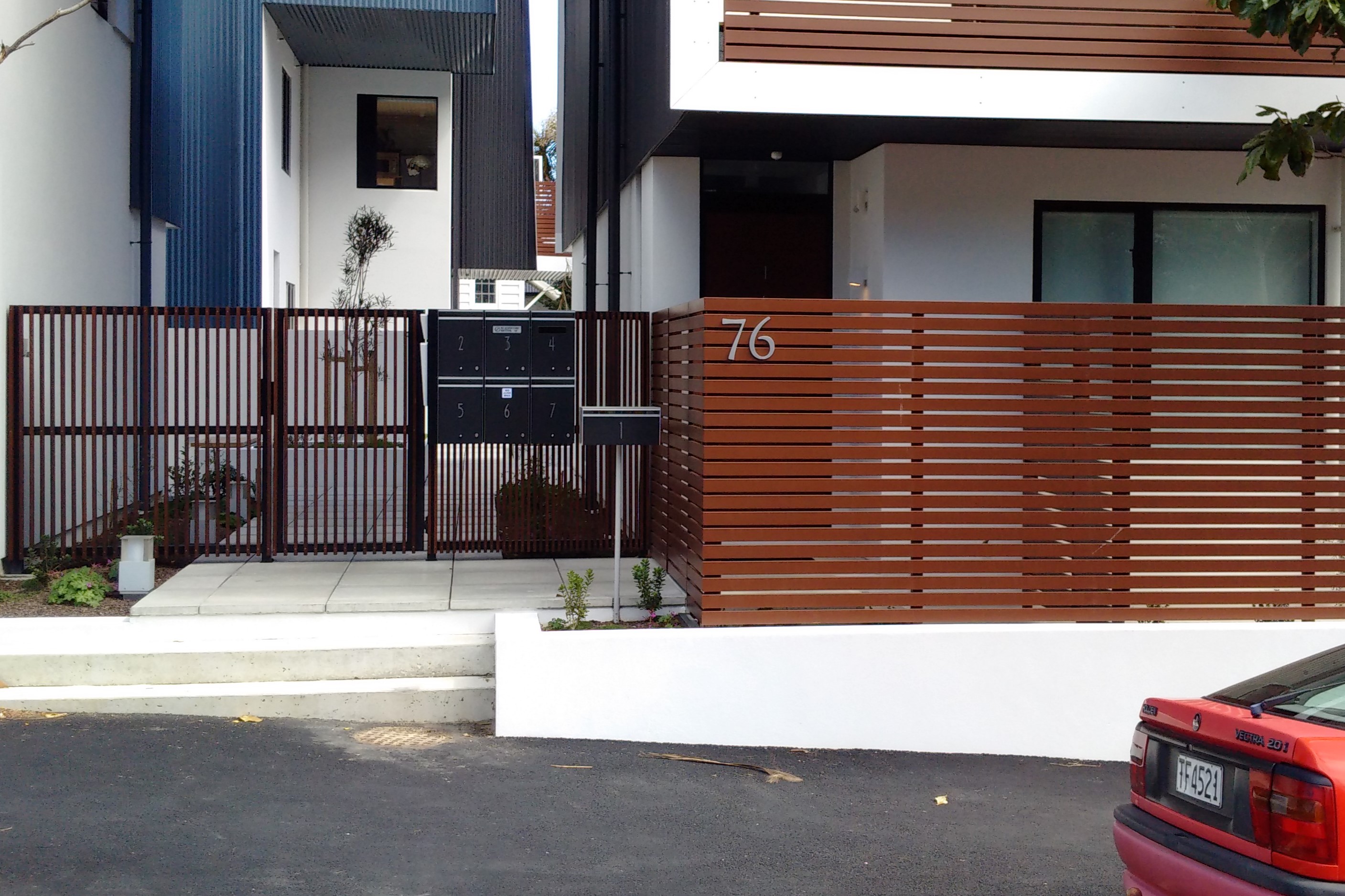

The Fresno fence and gate system has been installed in many residential and commercial projects since its introduction to market, featuring in award winning projects such as Zavos Corner Apartments, Wellington by Parsonson Architects. Its contemporary design has seen it become a favorite choice of designers and homeowners where security, privacy and aesthetic are valued.

Other Performance Attributes

Warranty — Urban Group provide:

  • 10 year warranty on the fence panels, posts, and gates
  • 2 years on associated hardware

These warranty periods are subjected to further terms and conditions, please see the Urban Group Warranty document.

To meet warranty requirements and to extend the life of these products cleaning is recommended every 6 months.

For full care and maintenance information please see the Urban Group Care and Maintenance document.

Documents
Fresno Data Sheet
Care & Maintenance Guide

2023

CAD/PDF Details
Fresno 1800 Spec Sheet

FRE18-SS
