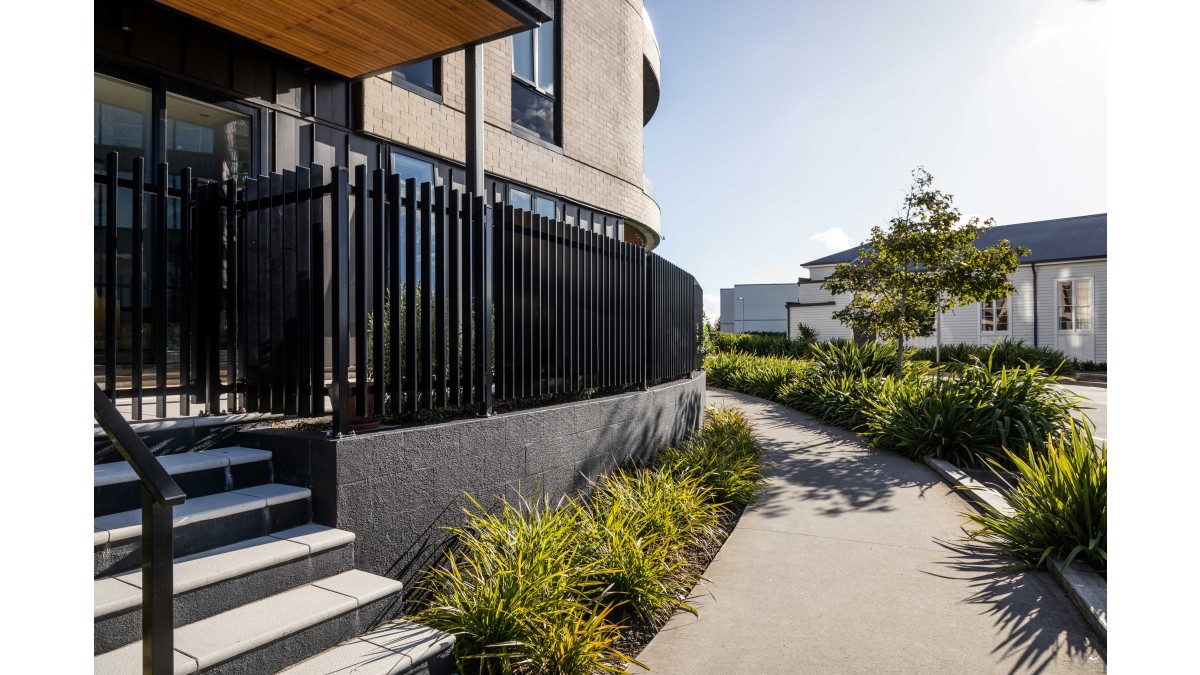

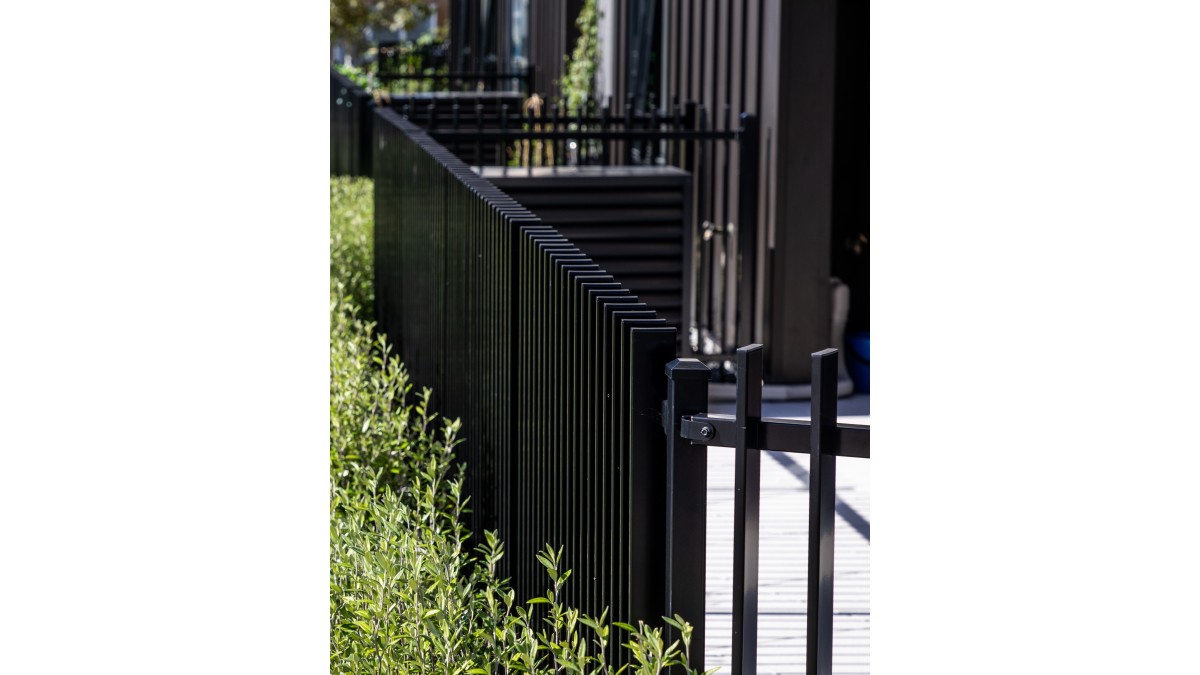

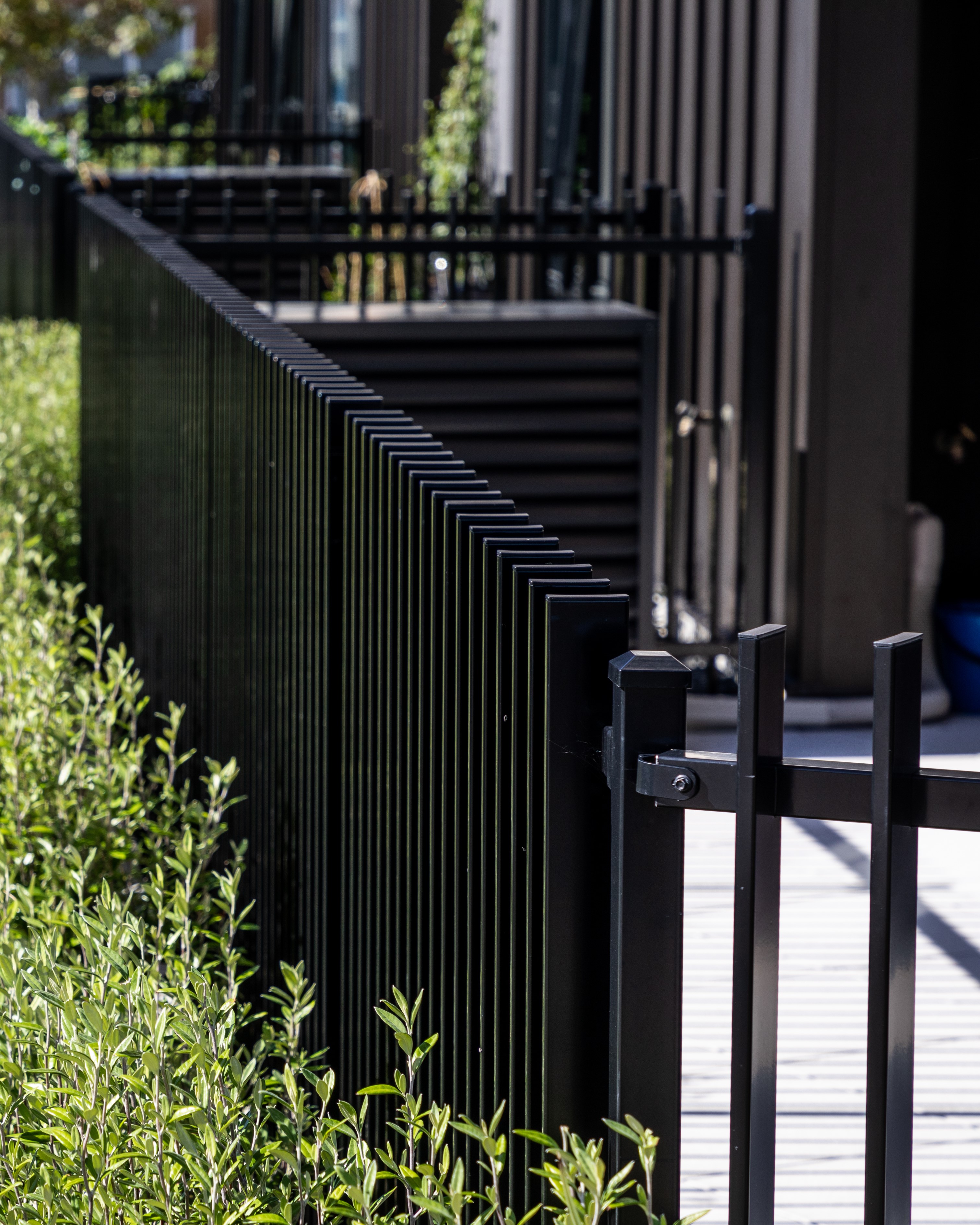

1.2m Paladin fence installed at Marlborough Apartments, Auckland

2 1 v2.2m Paladin fence installed at Marlborough Apartments Auckland

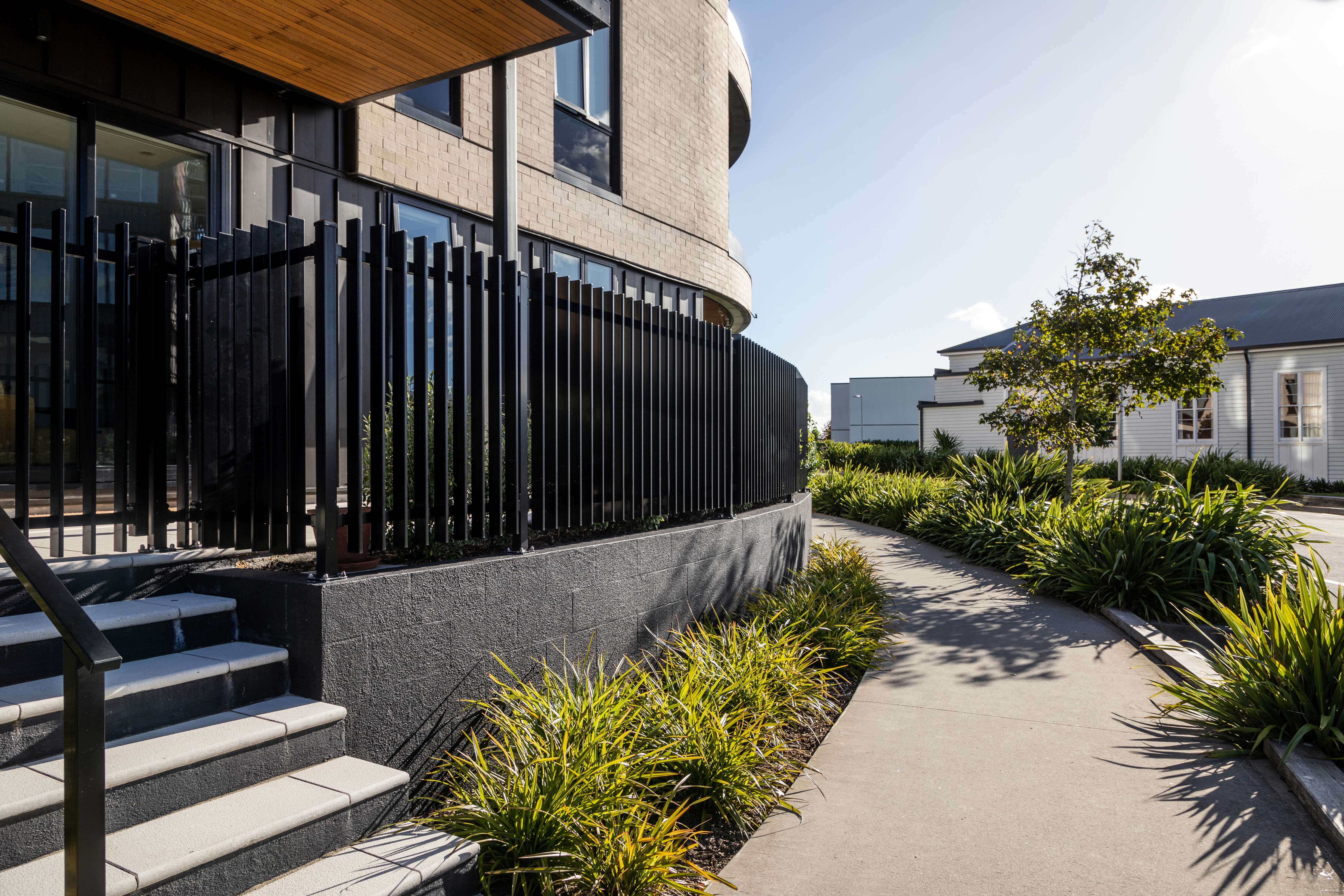

1.2m Paladin fence installed at Marlborough Apartments, Auckland

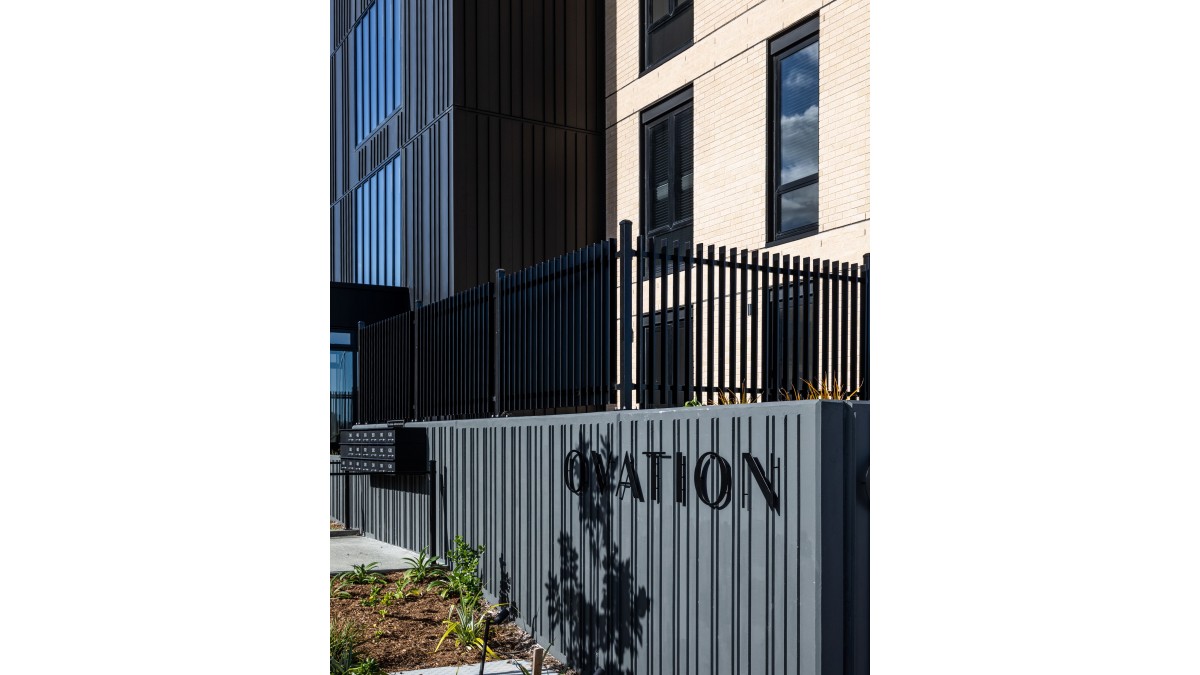

Custom height Paladin fence installed at Ovation Apartments, Auckland

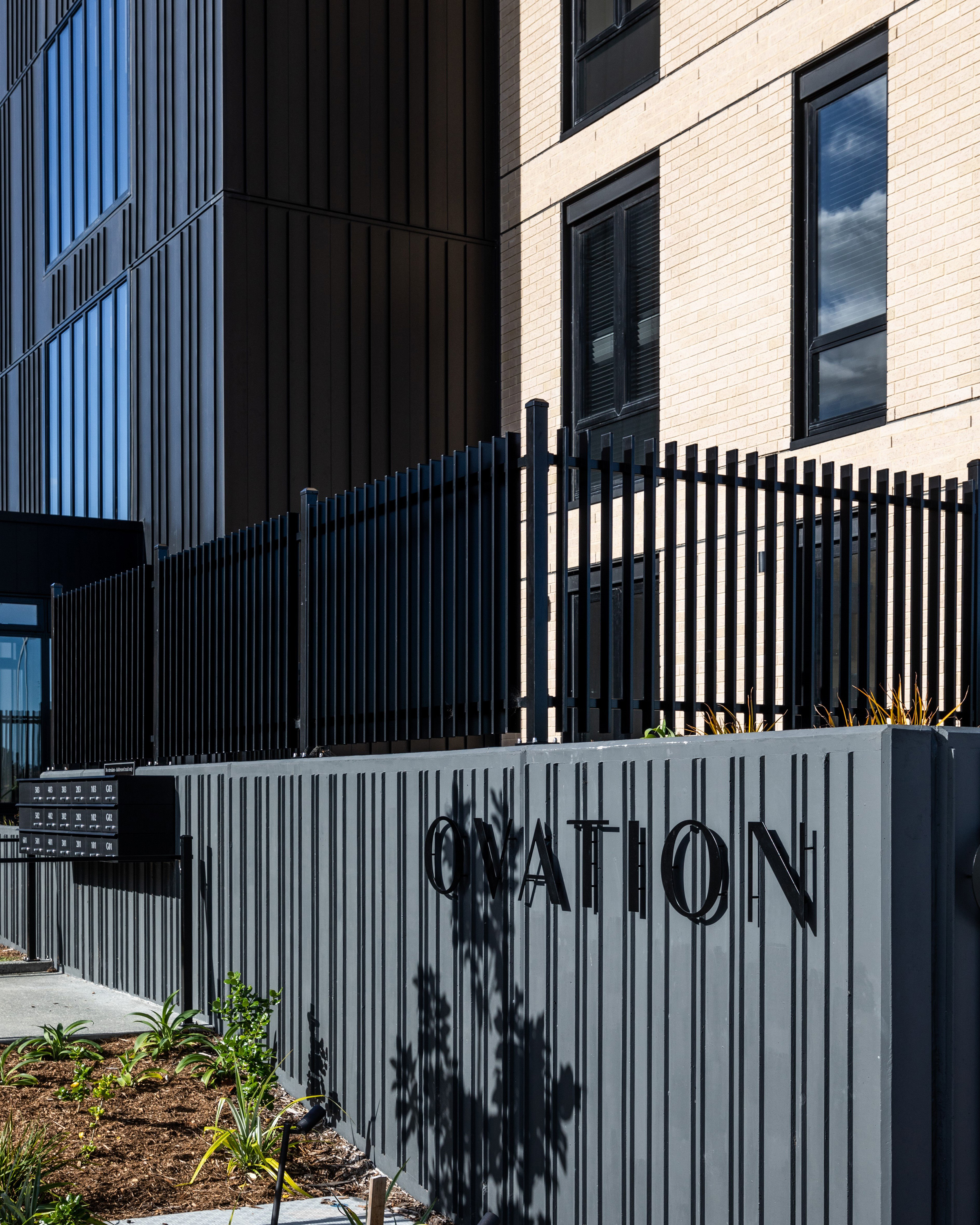

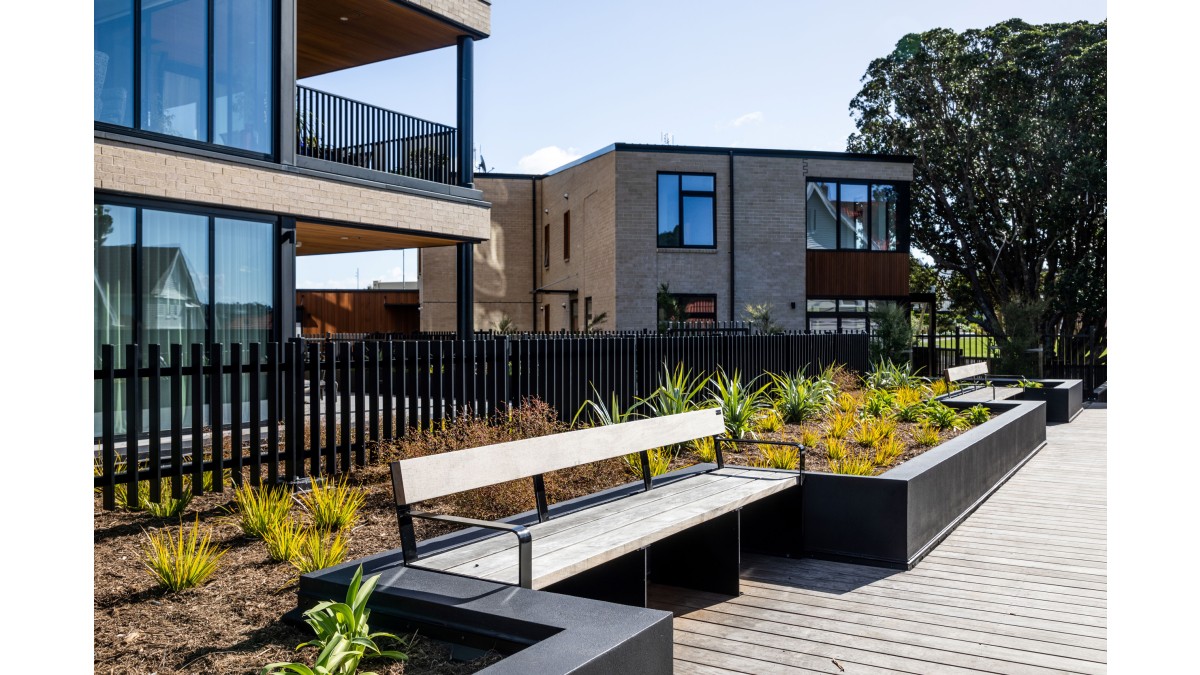

1.2m Paladin fence installed at Ovation Apartments, Auckland

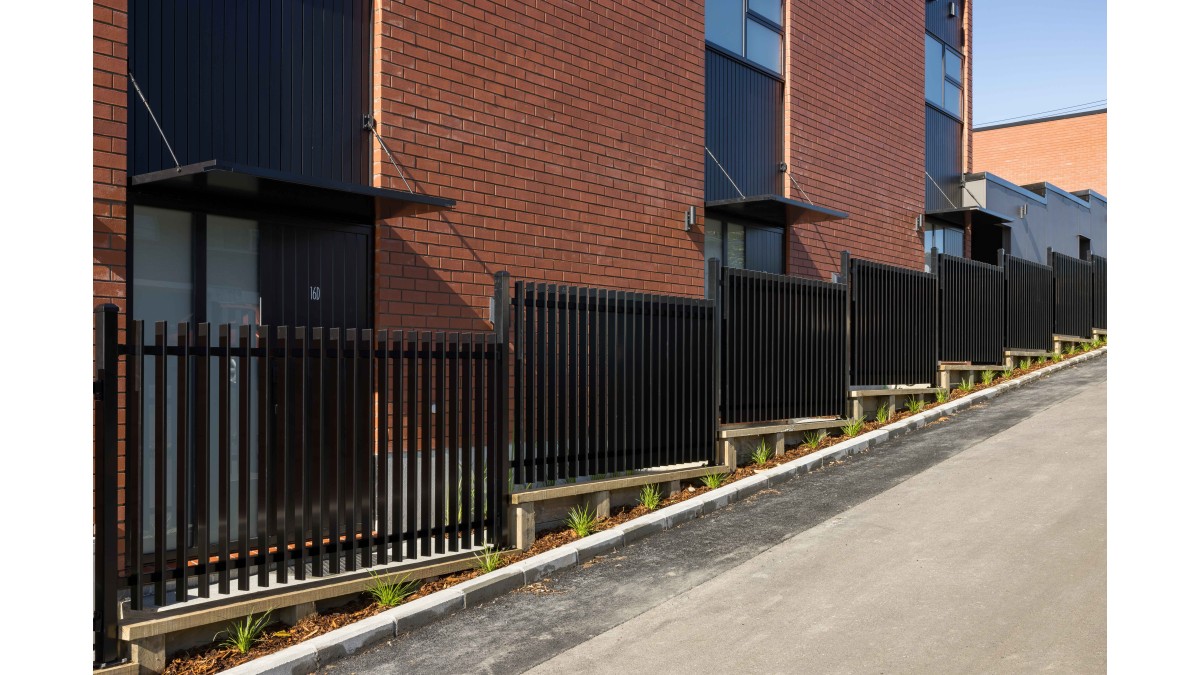

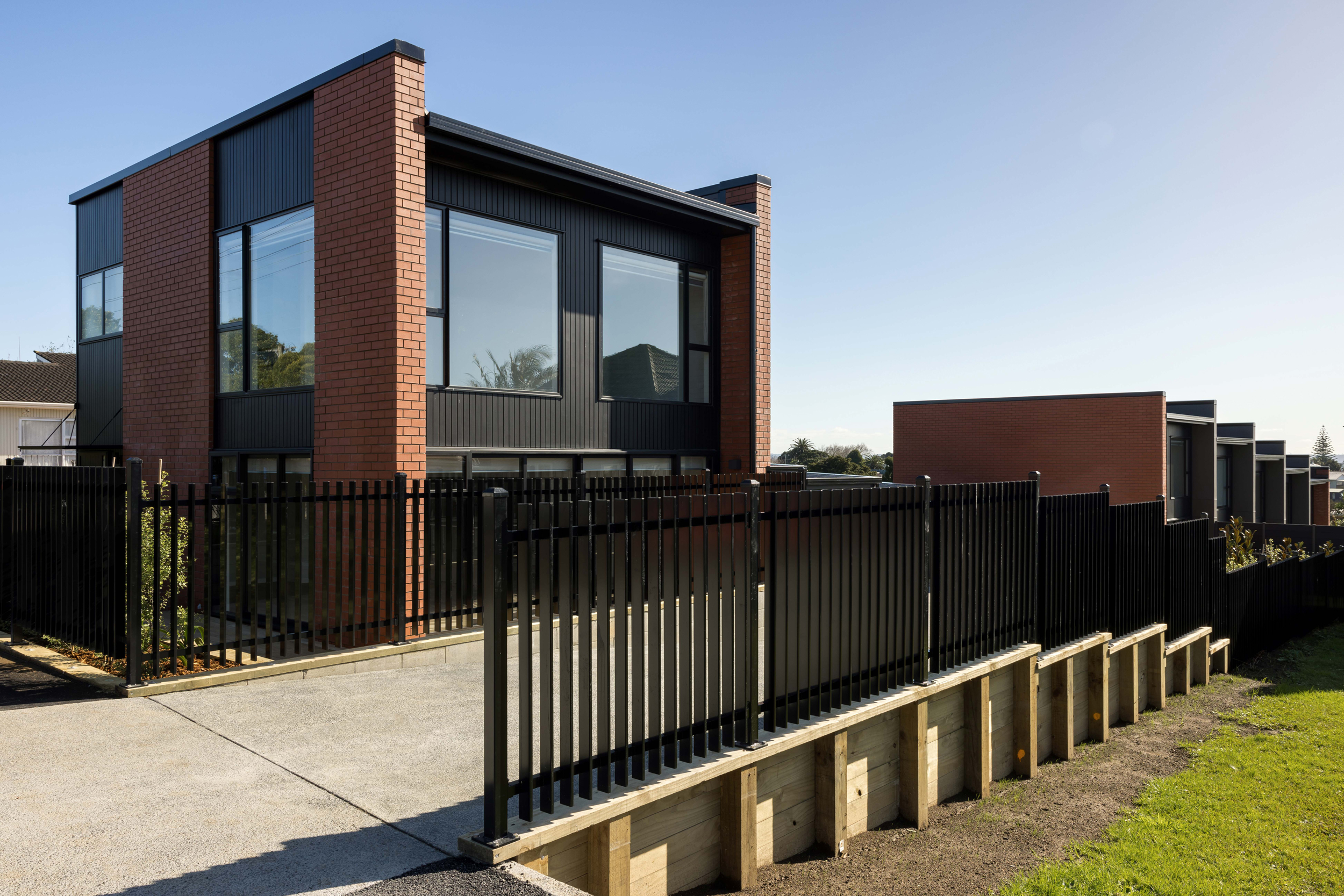

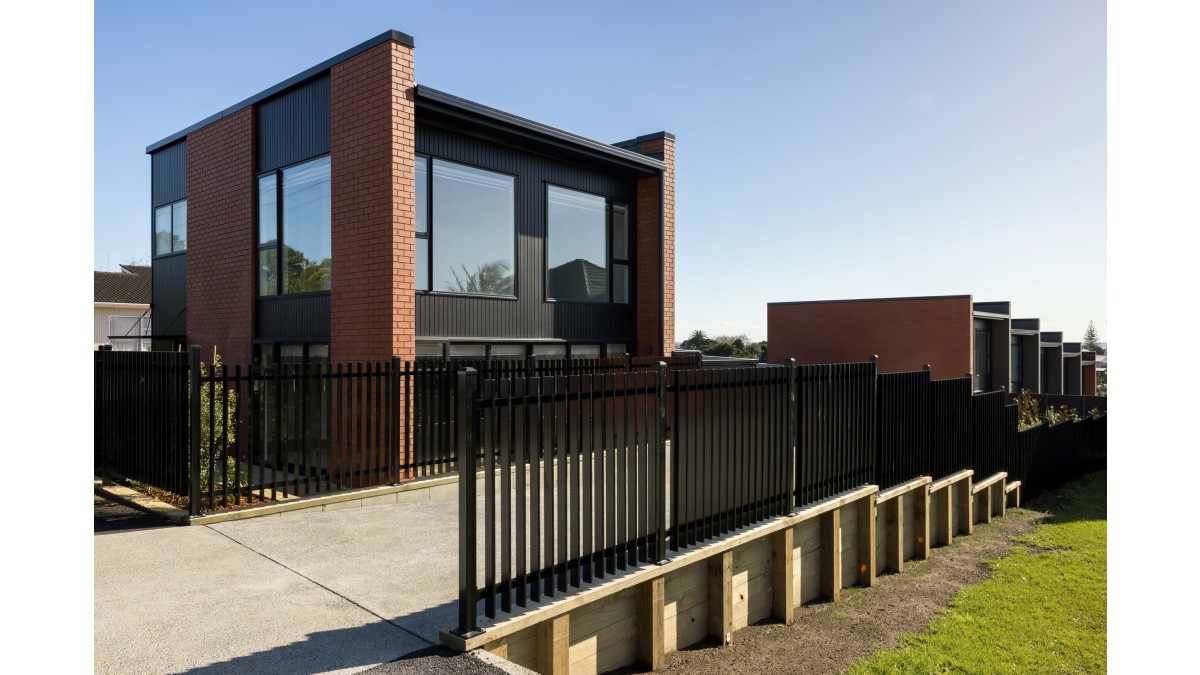

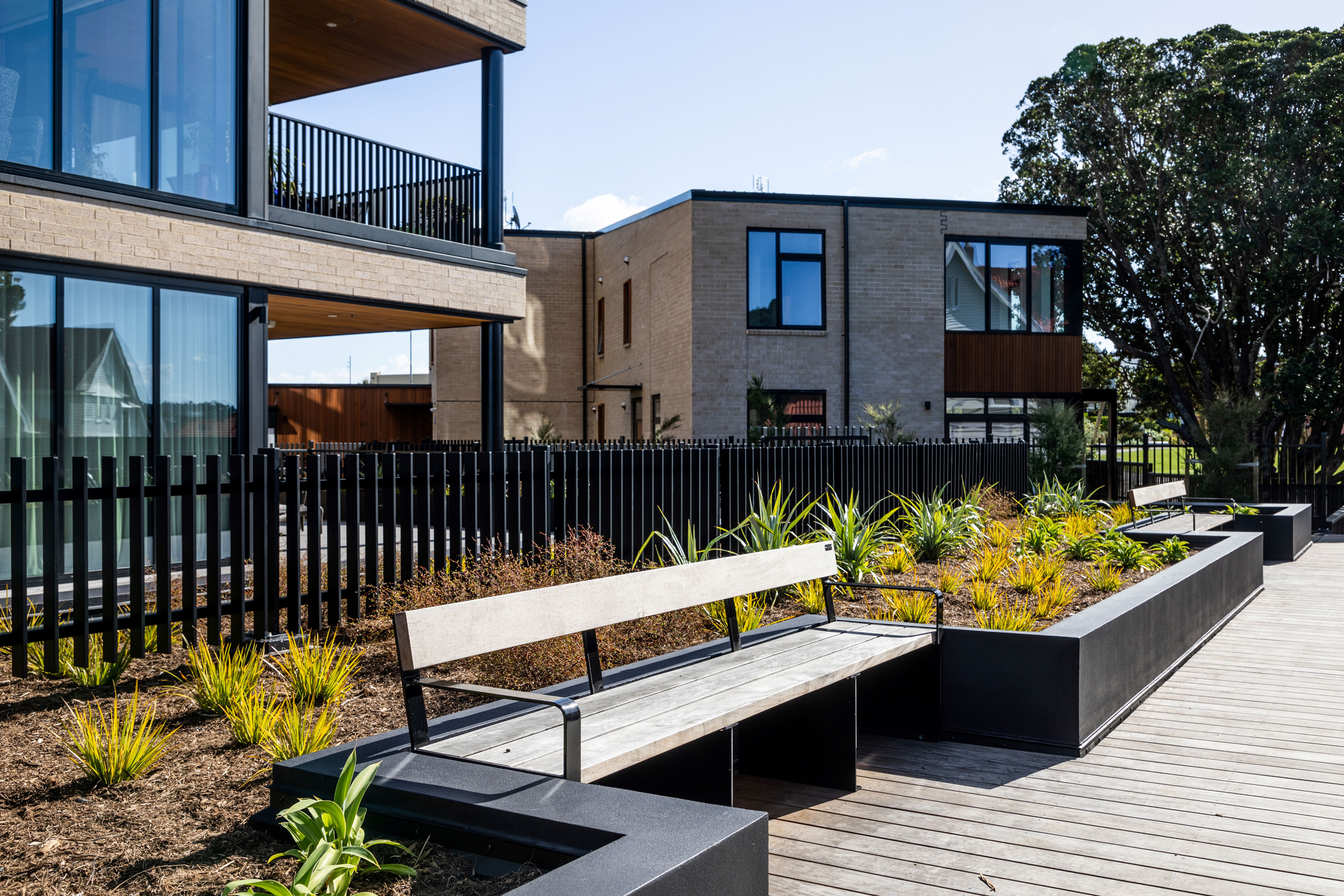

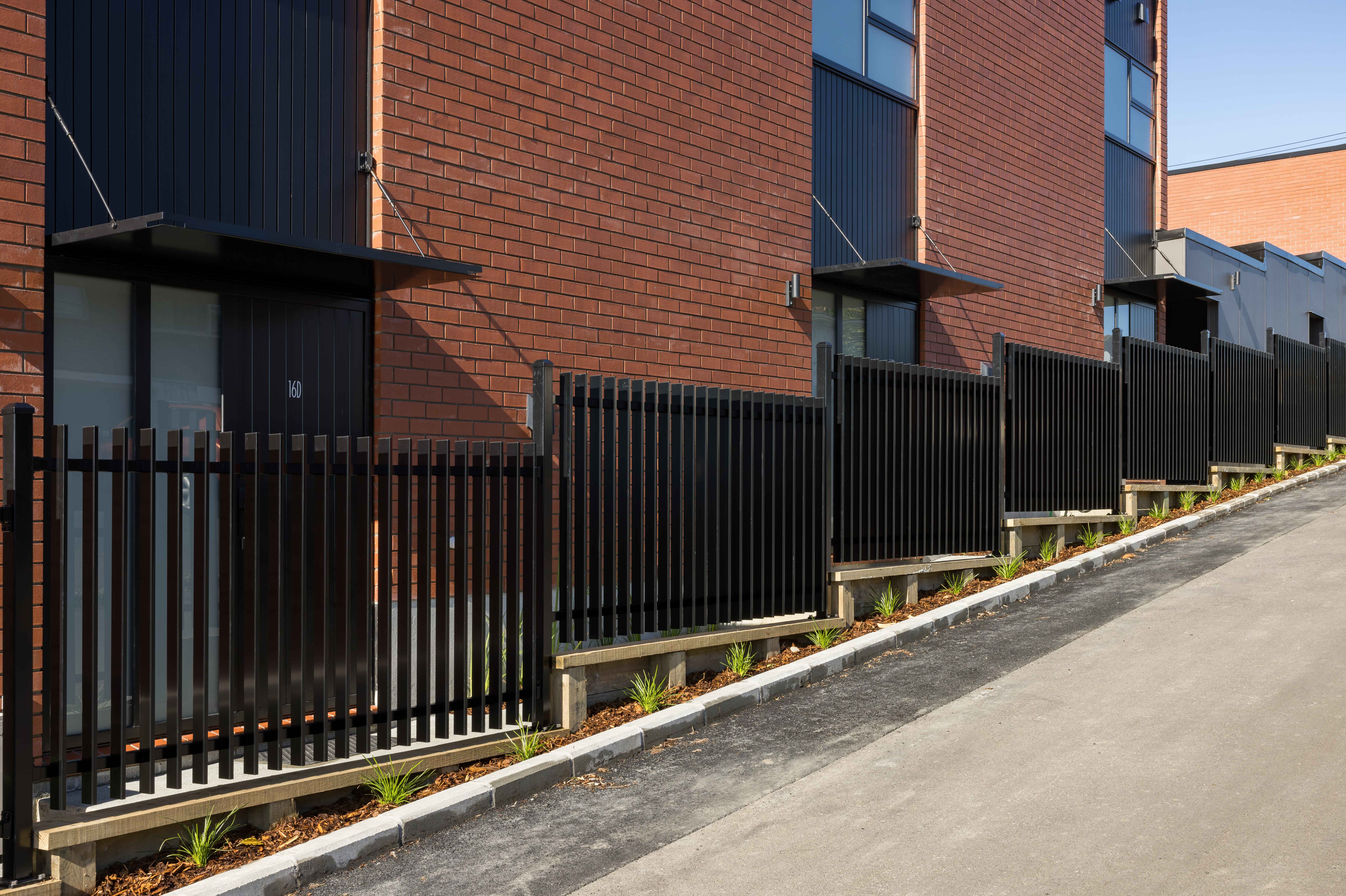

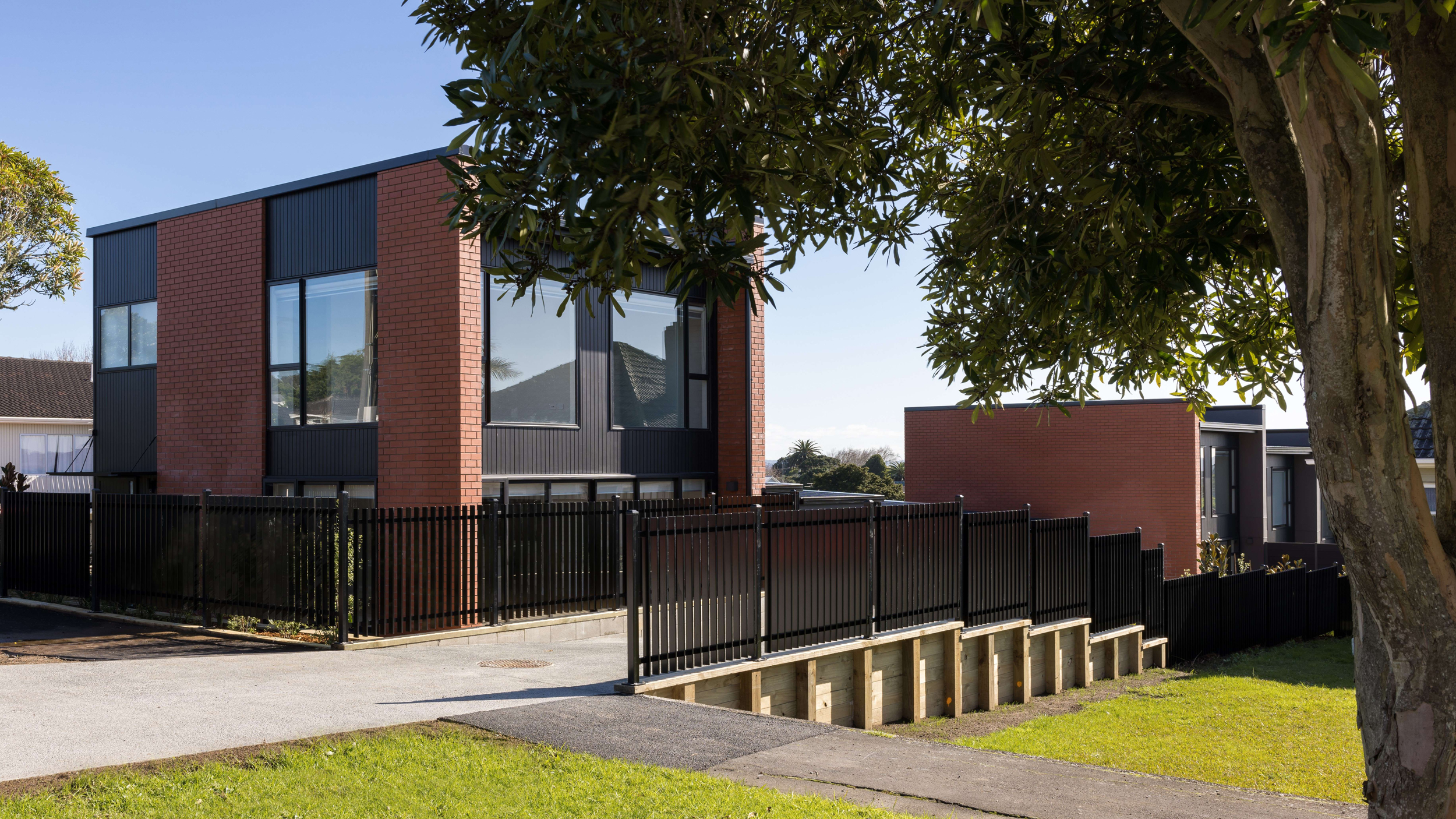

1.2m Paladin fence installed at Auckland multi residential development

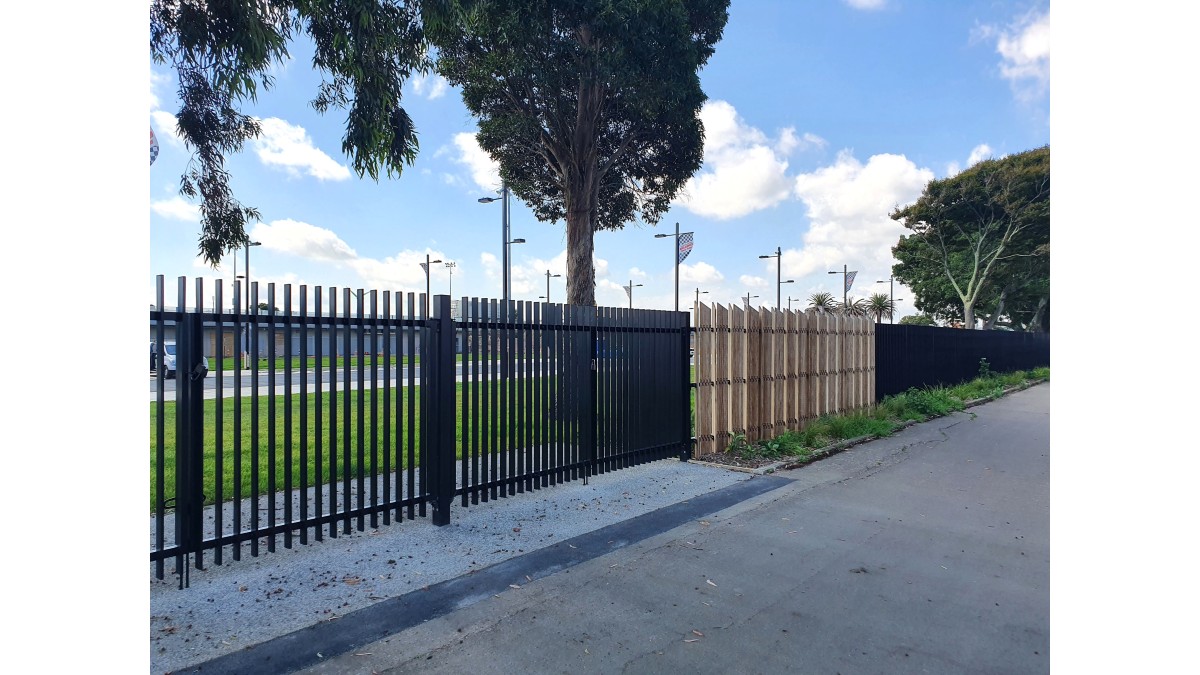

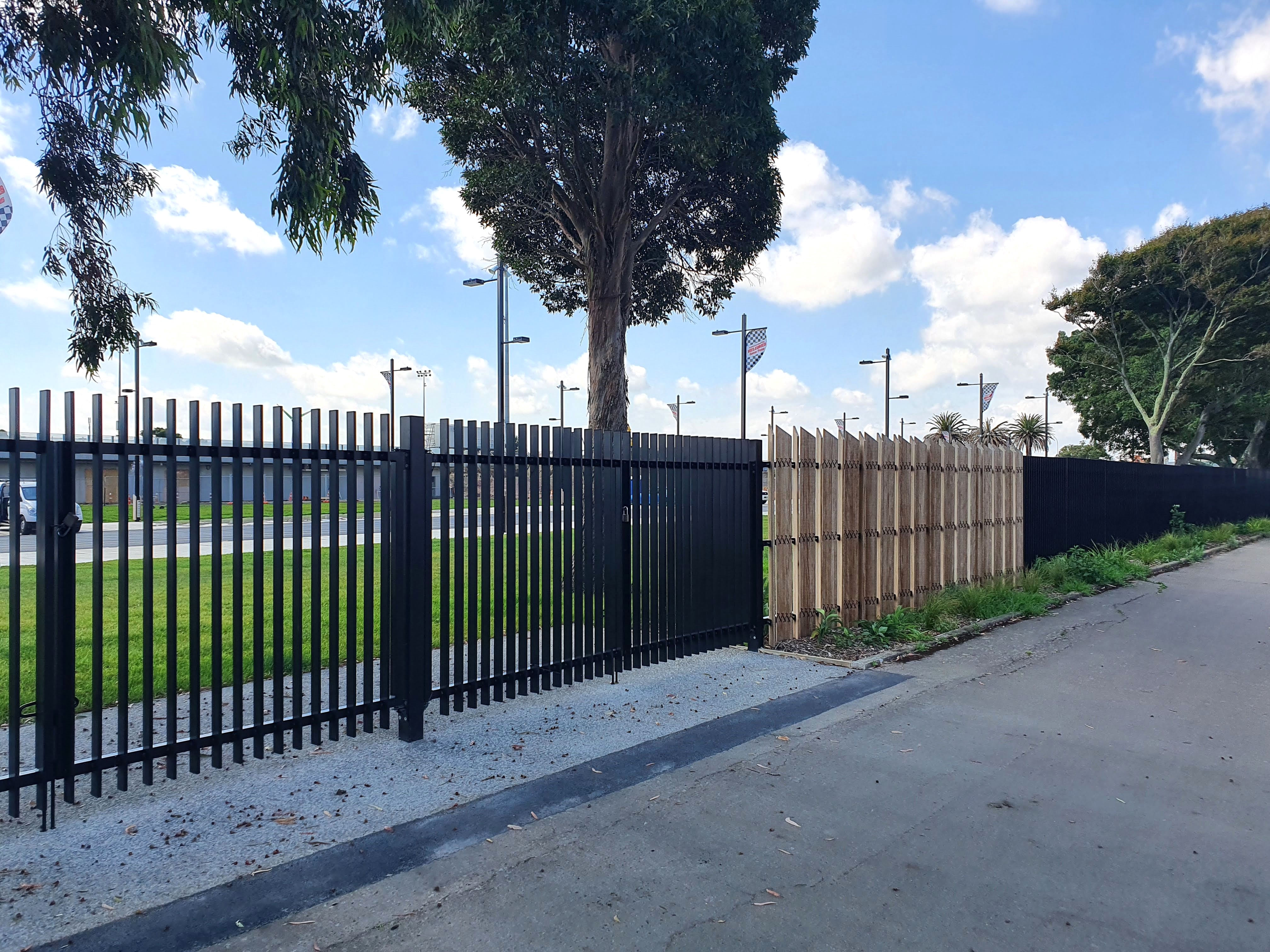

1.8m Paladin fence and vehicle gate installed at Central Energy Trust Arena, Palmerston North

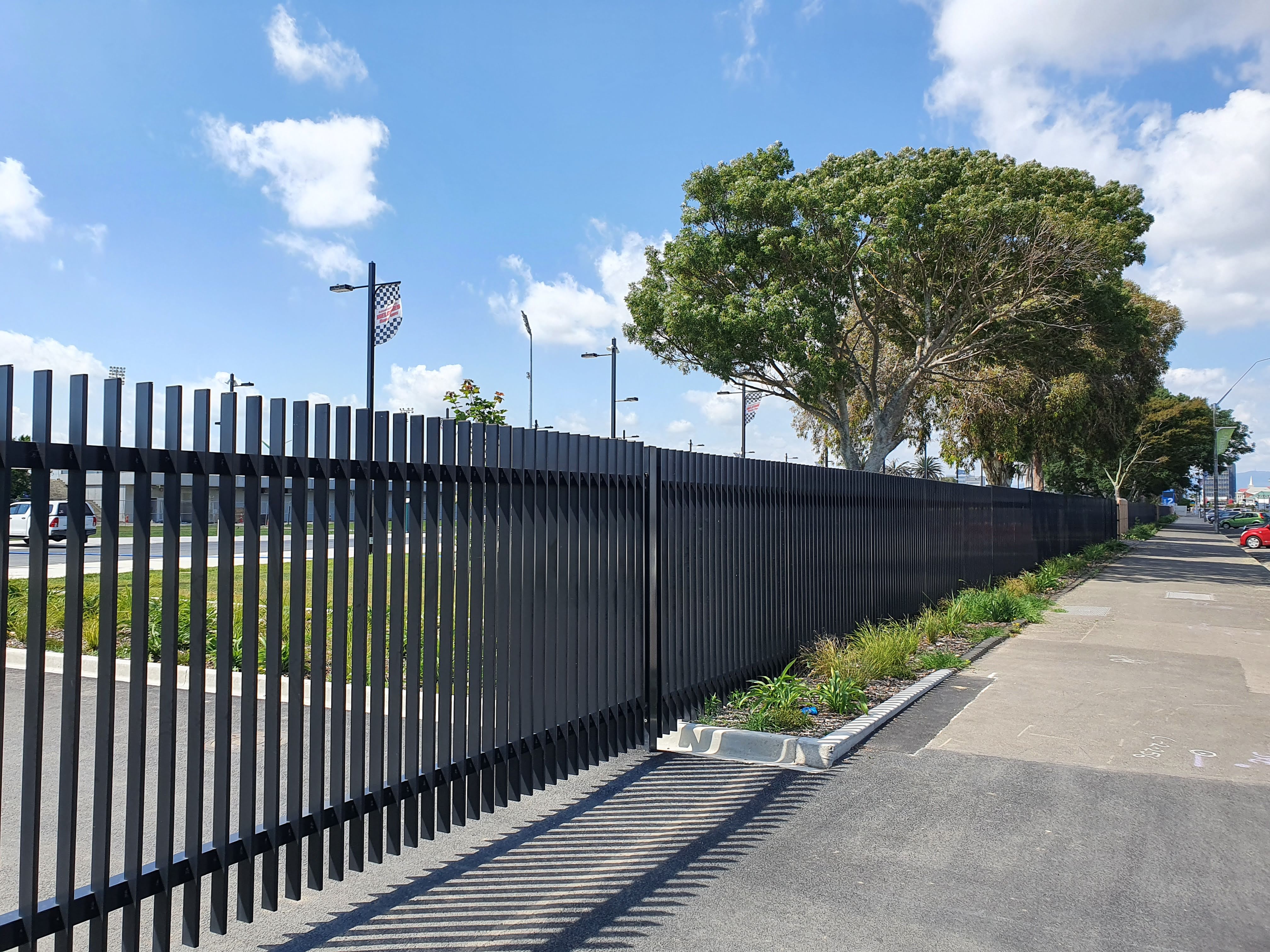

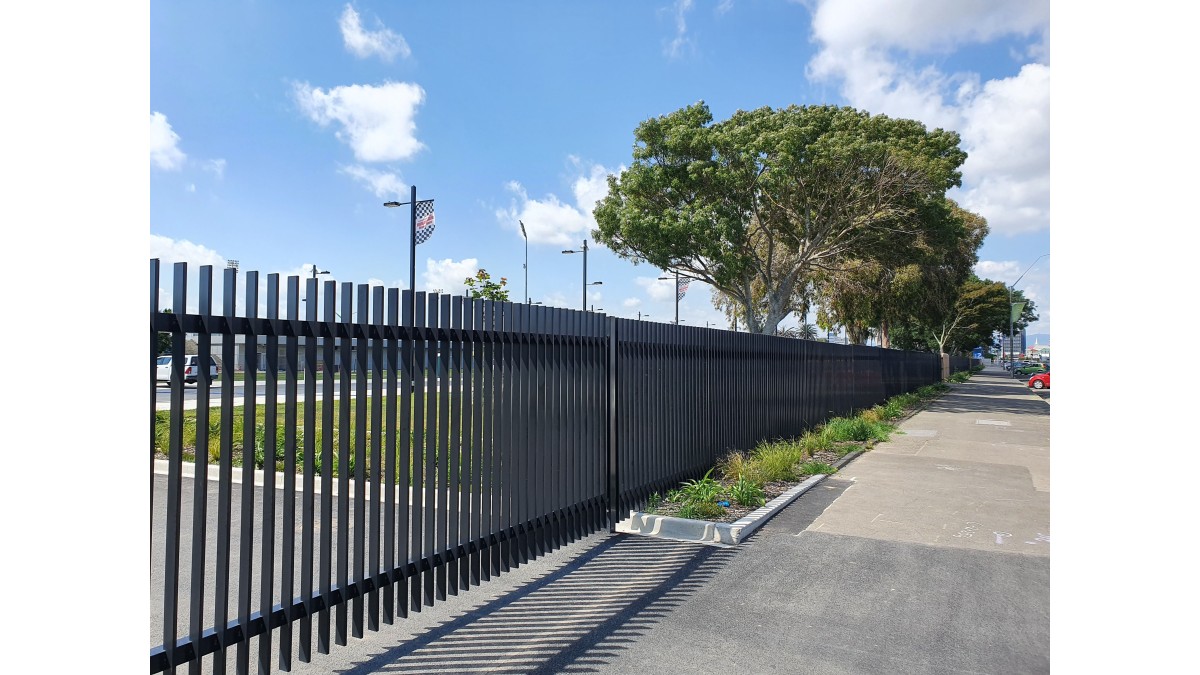

1.8m Paladin fence and pedestrian gates installed at Central Energy Trust Arena, Palmerston North

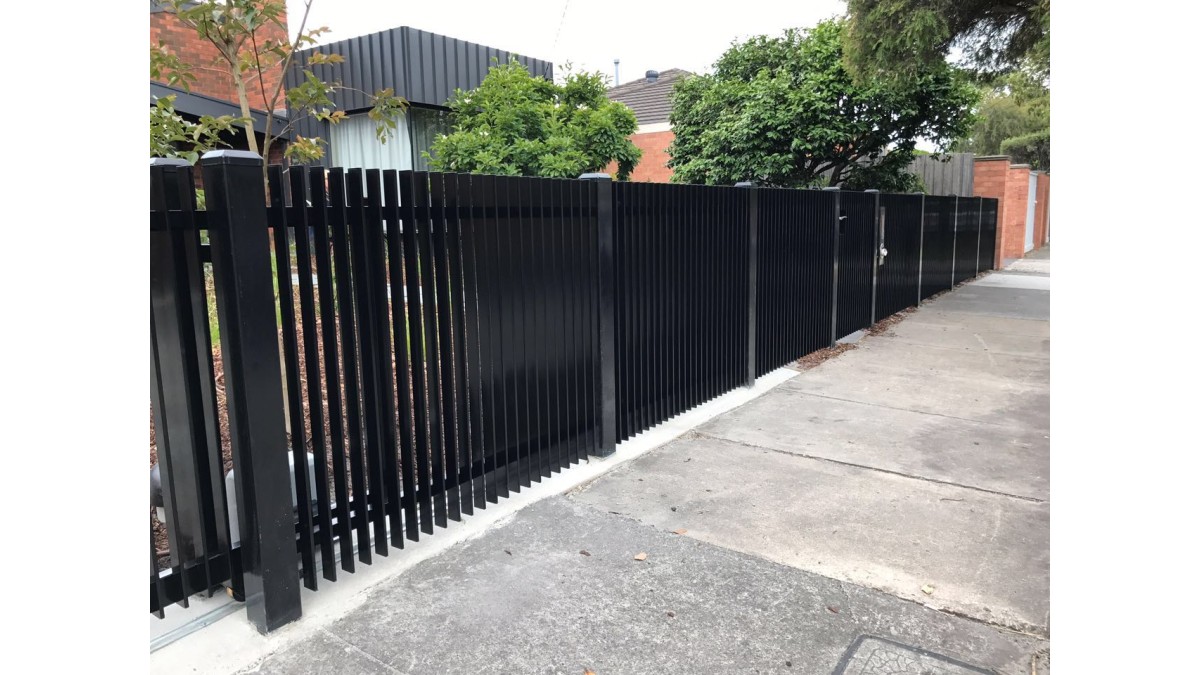

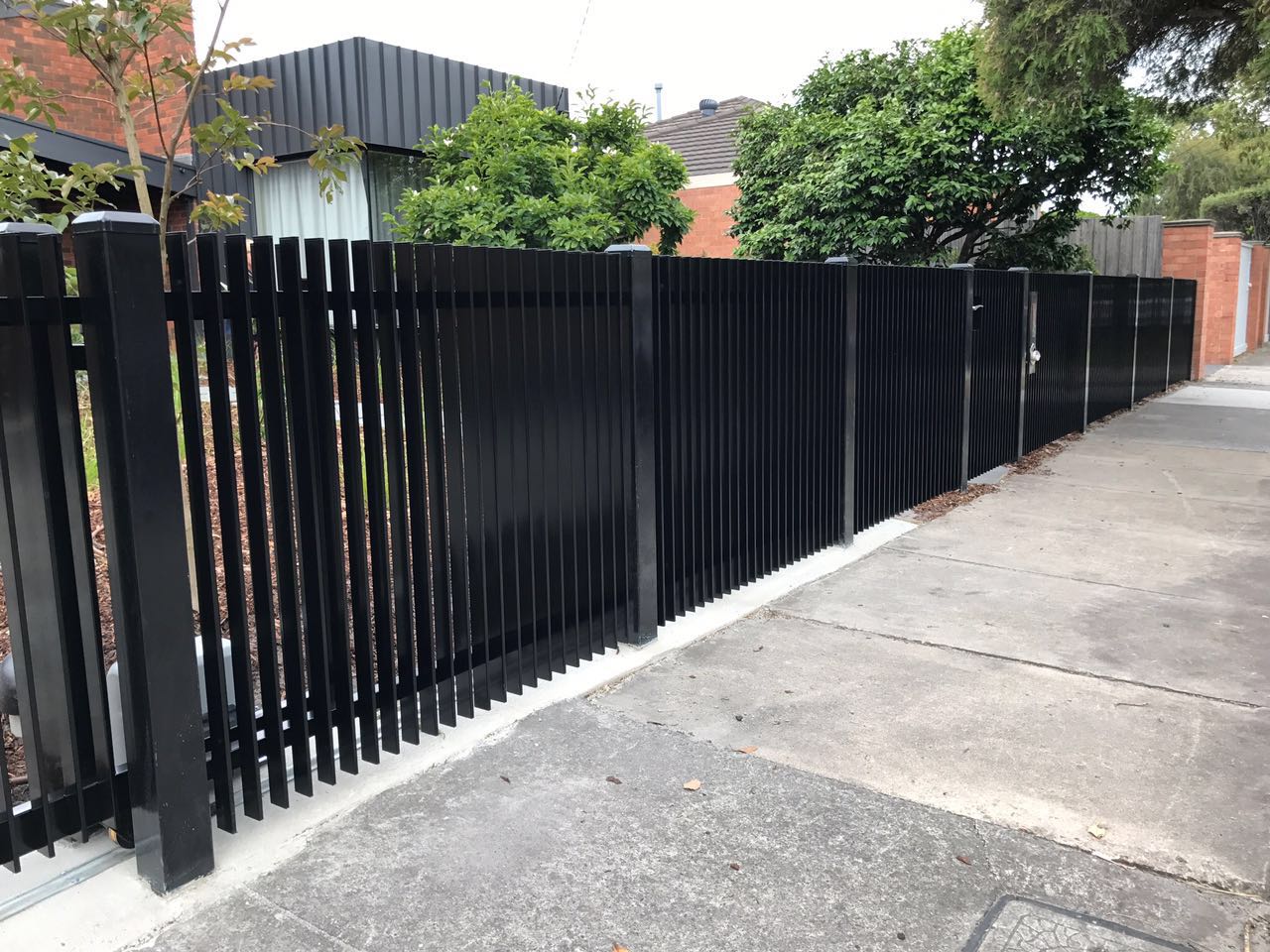

1.2m Paladin fence and pedestrian gate installed at residential property

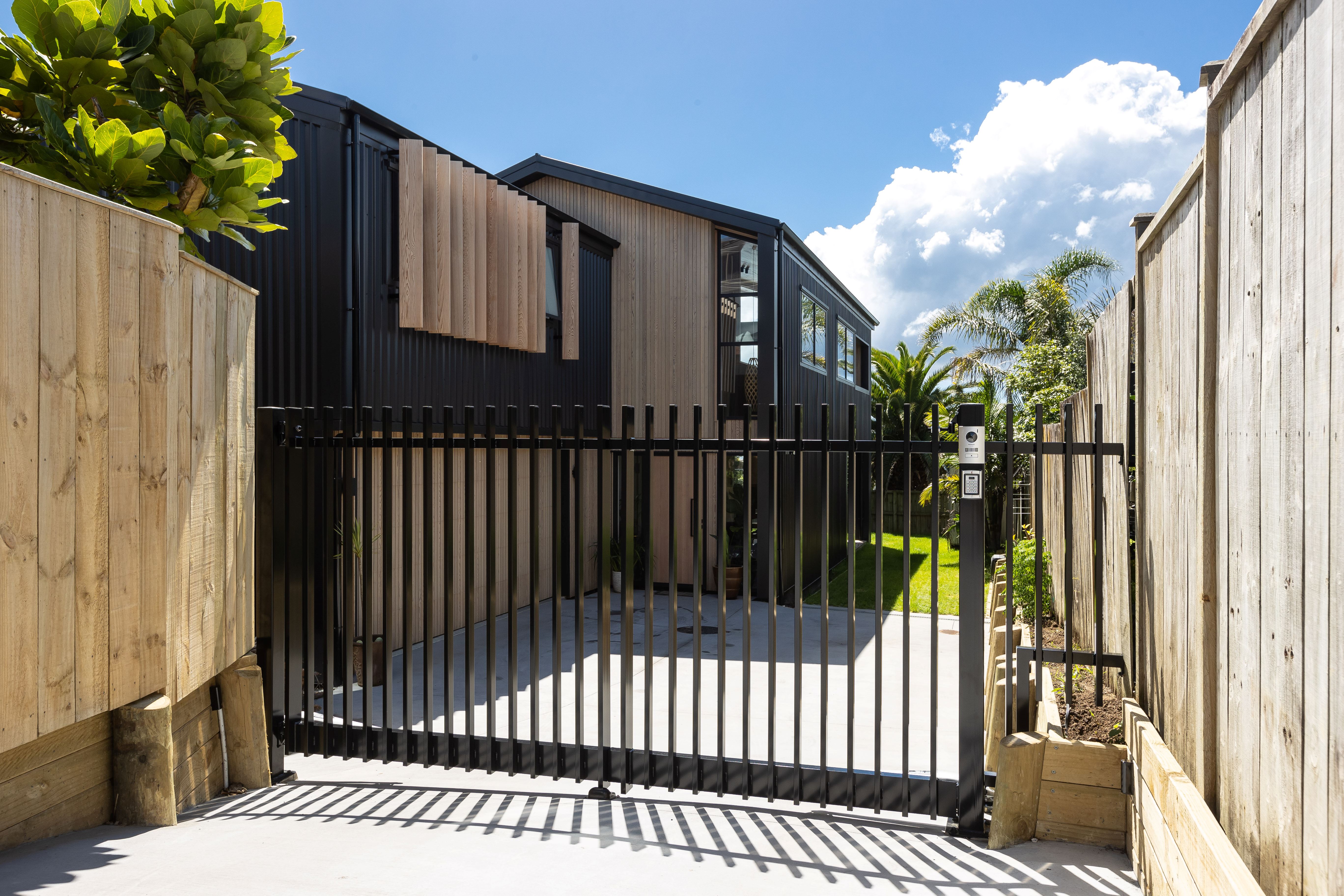

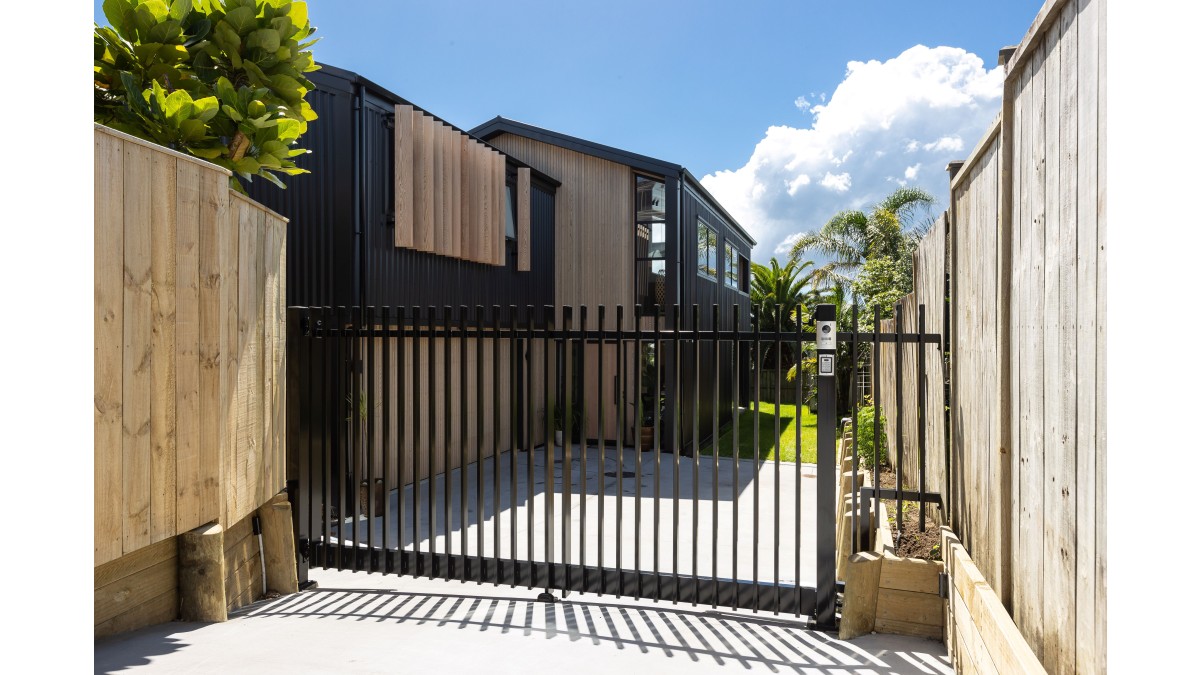

Custom Paladin fence and vehicle gate installed at residential project

8a 1.8m Paladin installed at The Paddington Wellington

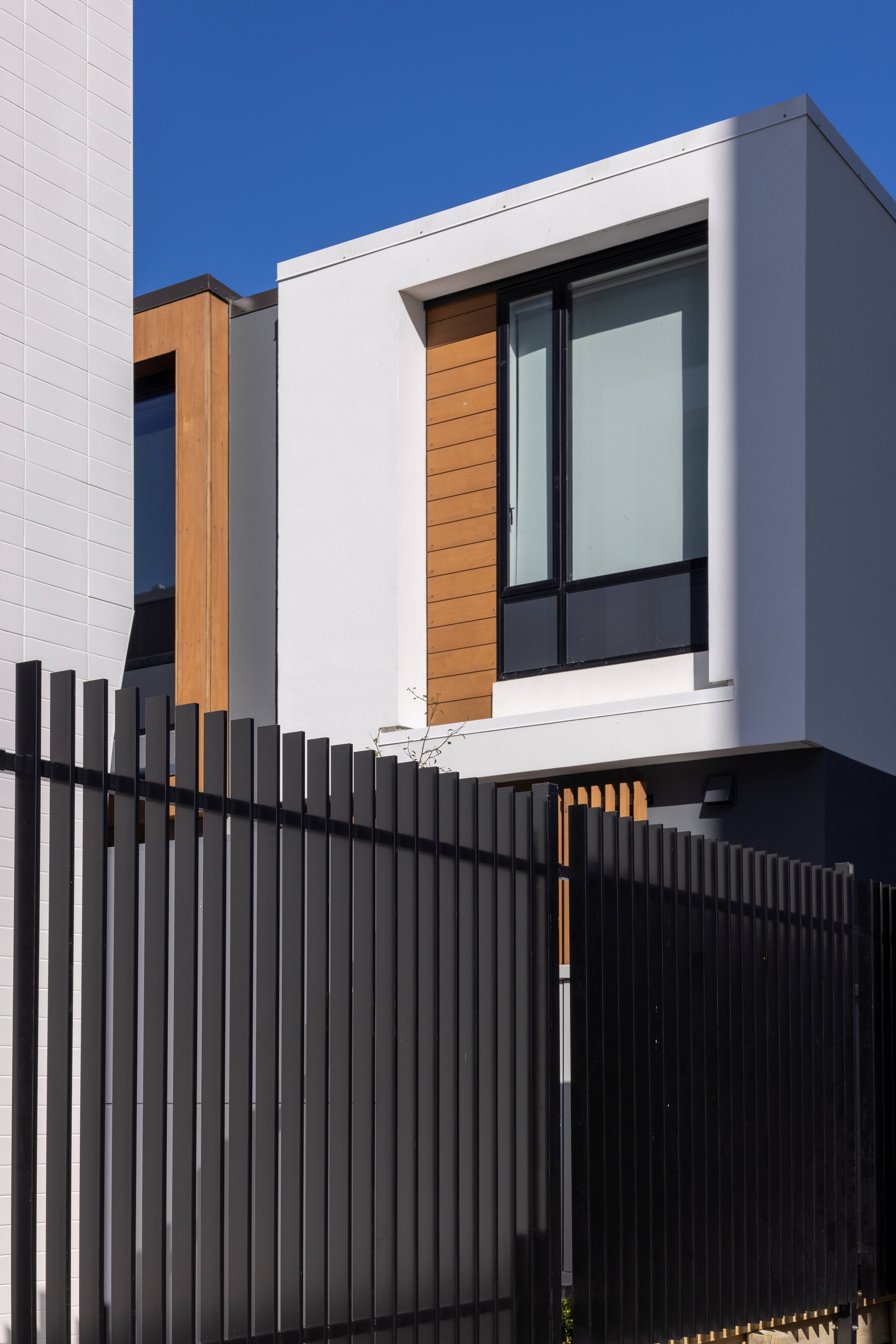

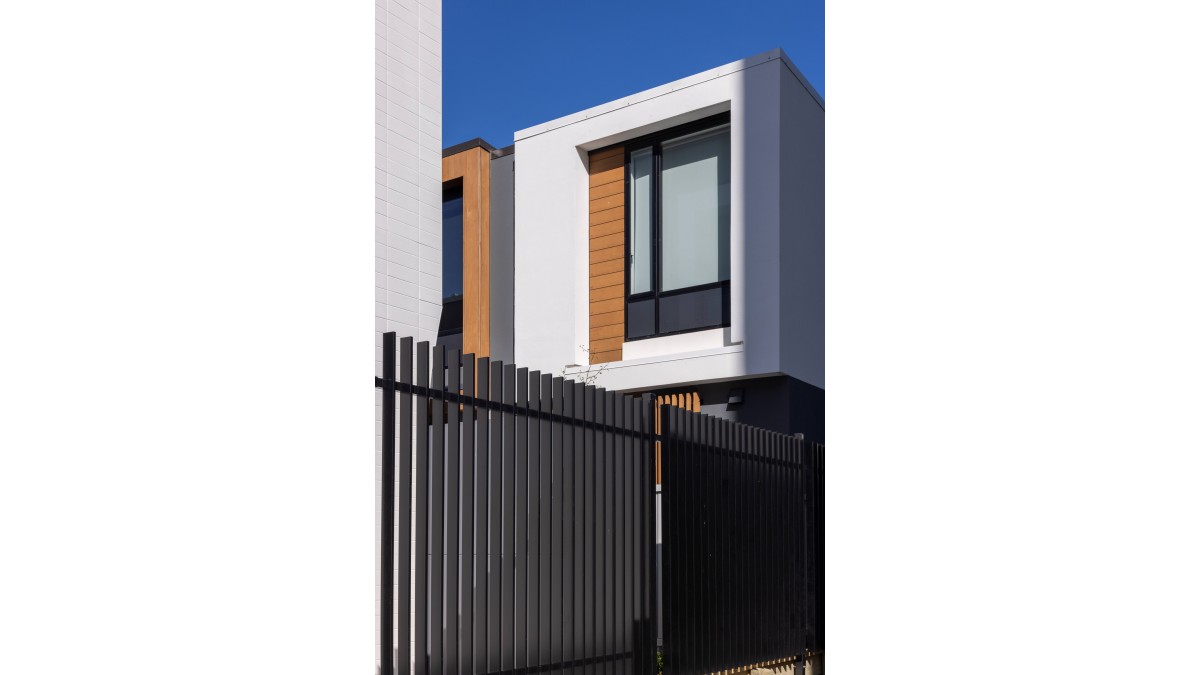

1.8m Paladin fence installed at The Paddington, Wellington

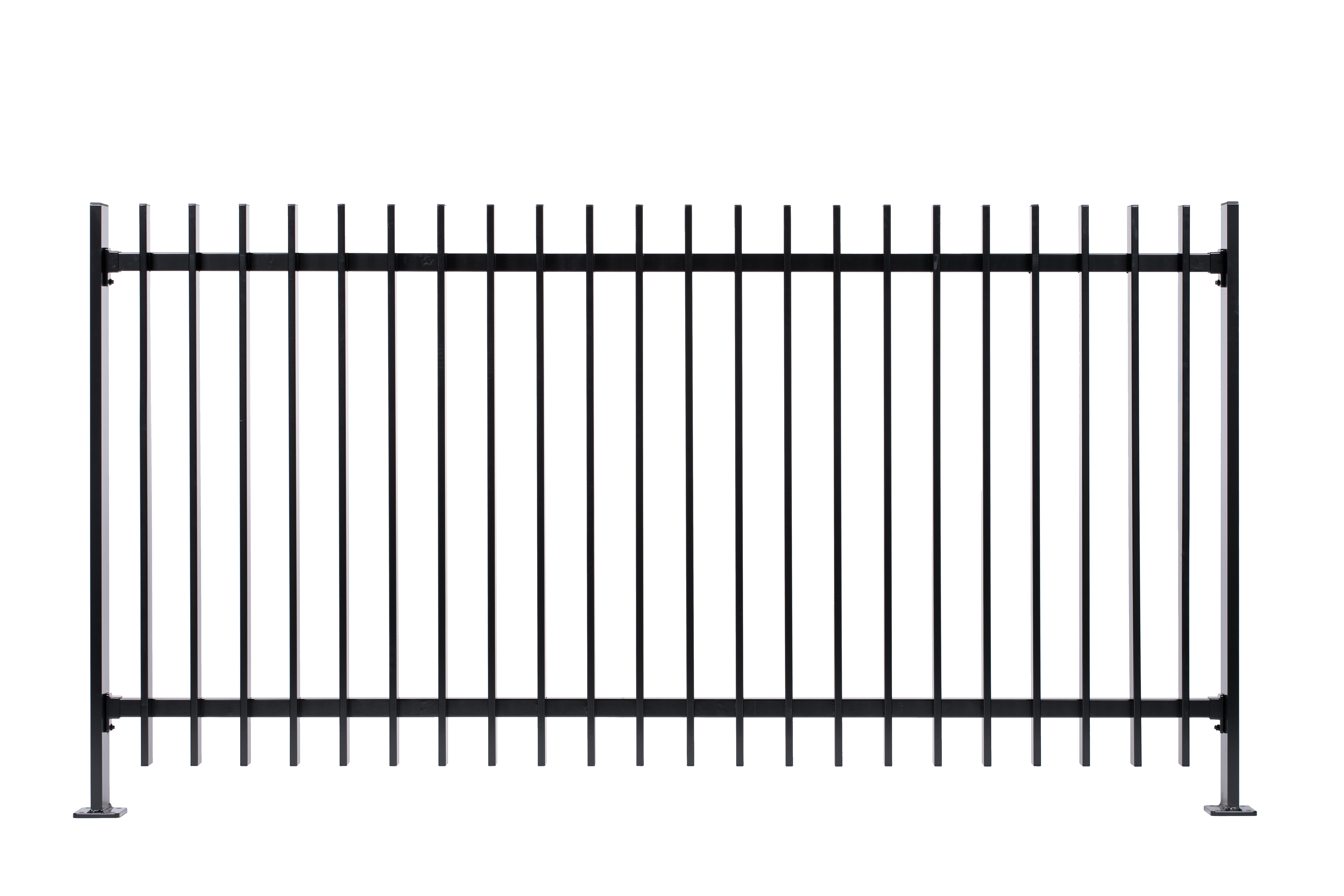

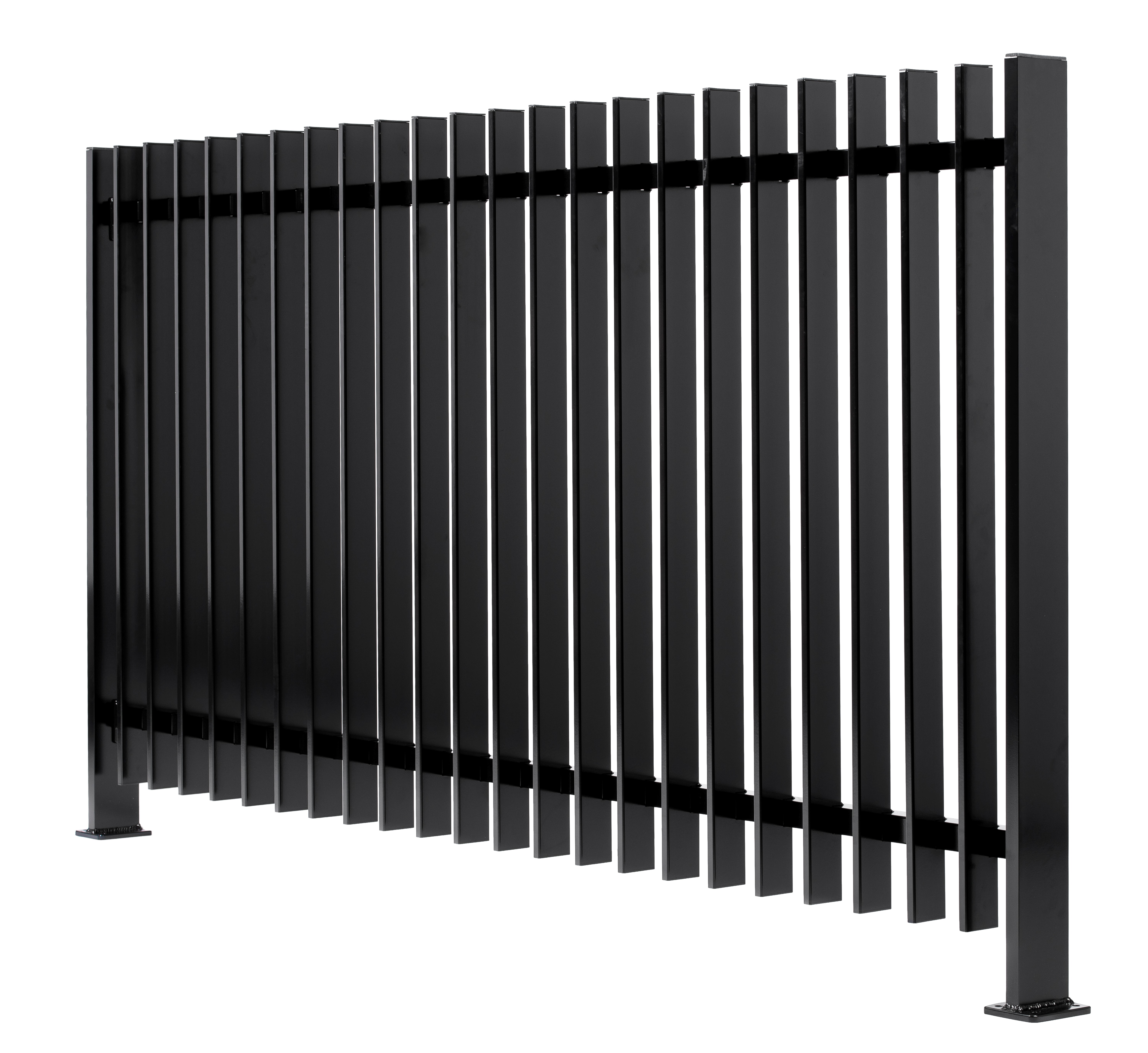

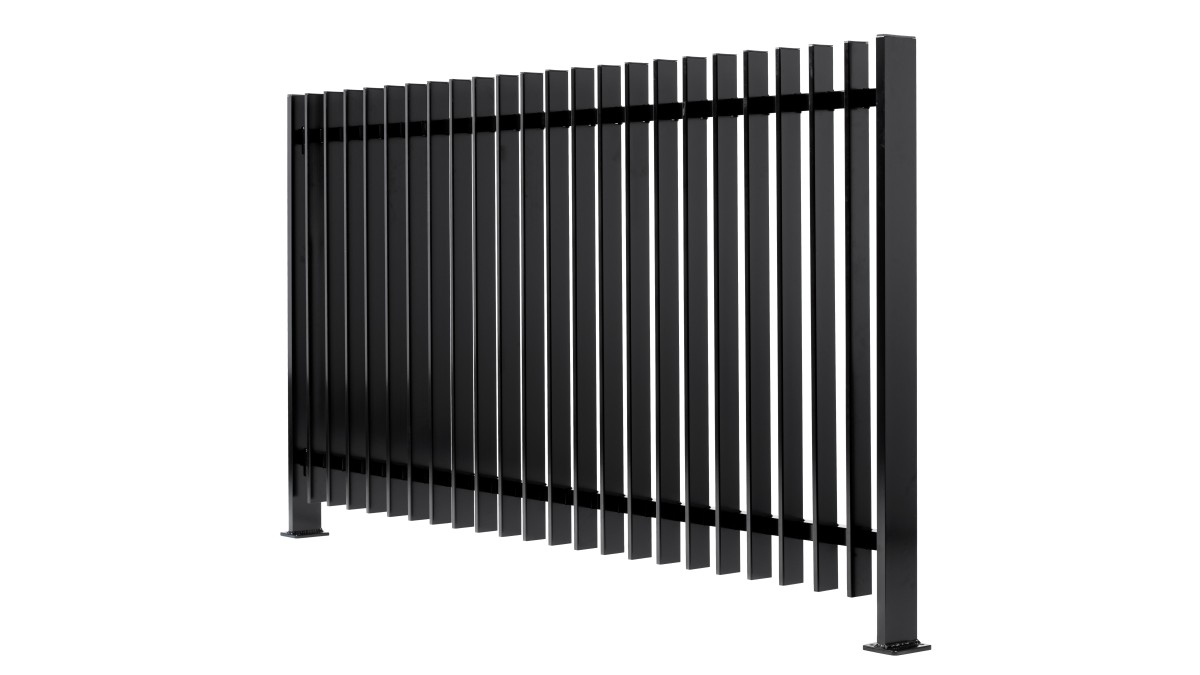

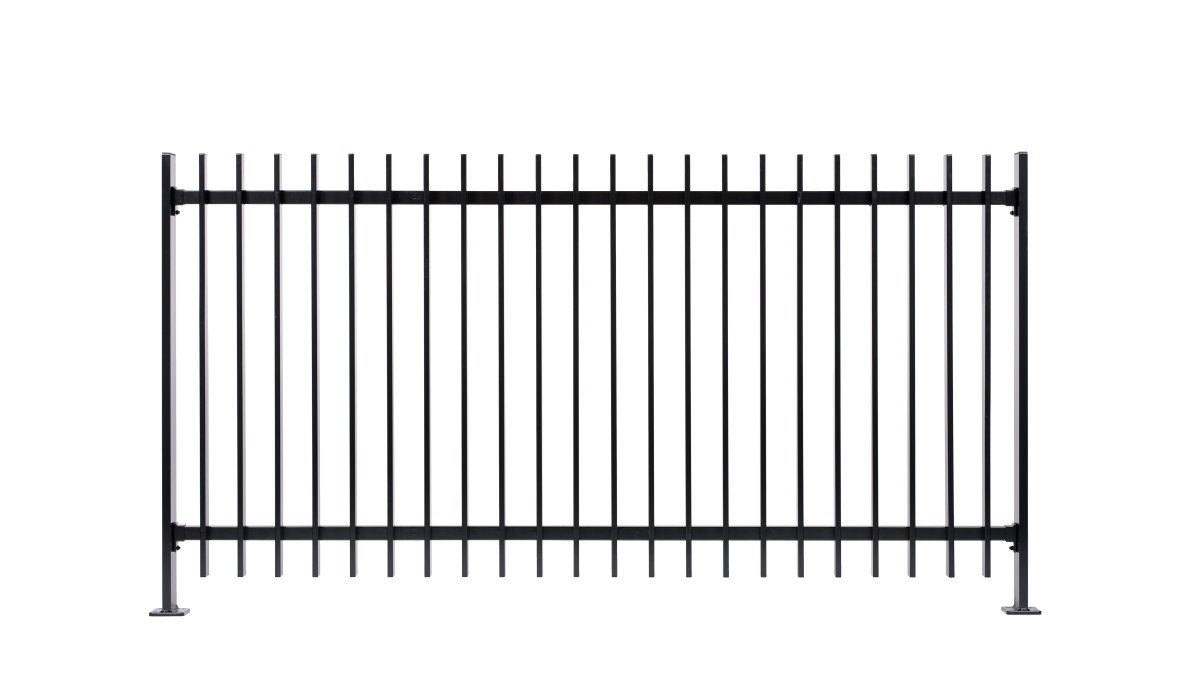

1.2m Paladin fence panel with matching fin posts

Product Enquiries

Description

The striking modern style of Paladin’s vertical 'fin' design makes it a perfect complement to modern, architecturally designed housing. With the fins set perpendicular to the run of the fencing, Paladin combines clean, seamless lines with an elegant profile.

Paladin is available ex-stock in Satin Black, and can be powdercoated in custom colours on request. It is also customisable in width and height, and pool-compliant.

Sizes and Options

Fence:

100mm anti-climb gap in vertical fins
Heights: 1200mm
Width: 2400mm
Custom height panels available between 1000mm and 2000mm
Slim 100x25mm posts to match the Paladin vertical fin
Standard 65x65mm posts are an available option

Pedestrian gates:

Height: 1200mm
Width: 1000mm
Custom height and widths available

Driveway gates:

Custom height and width
Optional automation and access control systems

Key Features

Contemporary architectural design
Low maintenance aluminium construction
100mm anti-climb gap in vertical fins
Black powder coated finish as standard, with a large range of colours are available on request.
Slim 100x25mm posts to match the Paladin vertical fin. Standard 65x65mm posts are an available option
Options for pedestrian and driveway gates
Optional automation and access control systems
Brackets and hardware supplied with system

Scope of Use

Applications
- Residential
- Balustrading
- Residential pool fencing
- Streetscapes
- Parks & playgrounds
Option of slim (100x25mm) or standard (65x65mm) posts
Brackets and hardware supplied with system

Limitations on Use

Must be installed at up to 1265mm post centres to comply with NZBC F4 Safety from falling
Must be installed at up to 2465mm post centres to comply with NZBC F9 Restricted access to residential pools

Statement of Building Code Compliance

Compliant with NZ Building Code F4 Safety from falling when installed at 1265mm post centres
Compliant with NZ Building Code F9 Restricted access to residential pools when installed at 2465mm post centres
Generic PS1 available
Site specific PS1 available on request

In-Service History

The Paladin fence and gate system has been installed in many residential and public projects since it was introduced in 2019. Its contemporary design has seen it featured in some of New Zealand's best residential architecture.
