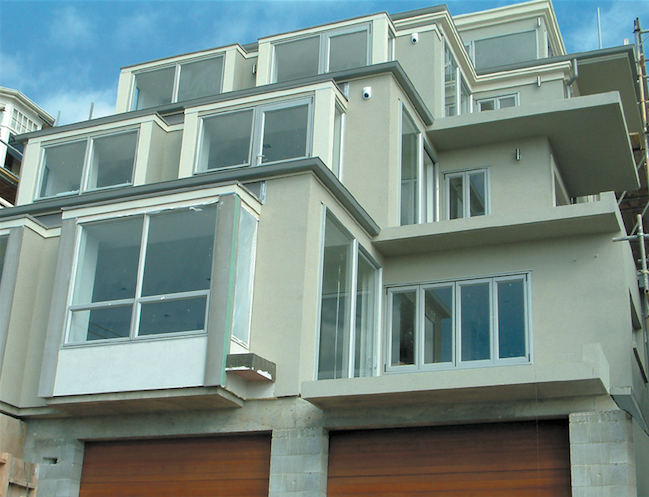

StoLite Stucco Construction System
Description

The StoLite System is a lightweight Stucco on backerboard which offers a proprietary system to clad timber framed construction. By selecting the appropriate fibre cement sheet, the strength, bracing and acoustic properties of the exterior can be adjusted to meet the site conditions. A cavity allows for a dry zone between the interior and exterior claddings with the system coated in a Sto Plaster System of your choice.

Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a 15 or 20 year Sto System Warranty and 5 year renewable Workmanship Warranty plus Maintenance Schedule.

Key Features
  • BRANZ Appraised
  • 15 to 20 year warranty with maintenance schedule
  • Simple installation and easy assembly
  • Fibre cement backing in a range of different thicknesses – 4.5, 6.0, 7.5 and 9.0mm
  • Dry cavity design
  • Weathertight with a double line of defence
  • Cement-free reinforcing compound/base coat with guiding grain
  • Ready-to-use, to save on time and labour cost
  • Flexible and crack-proof
  • High durability and impact resistance
  • Range of finishes
  • For residential and commercial applications
Scope of Use

Sto Lite has been appraised as an external wall cladding system for buildings within the following scope:

  • The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1
  • Constructed with timber framing complying with the NZBC
  • With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, table 2
  • Situated in NZS 3604 Building Wind Zones up to, and including ‘Very High’

Sto Lite has also been appraised for weather tightness and structural wind loading when used on buildings subject to specific design up to a differential design ultimate limit state (ULS) wind pressure of 2500 Pa. Sto Lite must only be installed on vertical surfaces (except for tops of parapets, sills and balustrades. The system is appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills.

NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.3, B1.3.4
  • Clause B2 Durability: Performance B2.3.1(b)
  • Clause E2 External moisture: Performance E2.3.2
  • Clause F2 Hazardous building materials: Performance F2.3.1

Note: Sto Lite is expected to have a serviceable life of at least 30 years provided the system is maintained in accordance with this Appraisal, and the fibre cement sheets, fixings and plaster are continuously protected by a weathertight coating and remain dry in service.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Literature
Drawings
CAD
Product Assurance
Data Sheet
Environmental Information
Independent Appraisal (BRANZ)
Installation
Specification Clause
Warranty

Sto supply facade insulation systems and manufacturer of high-quality exterior and interior plaster systems and coatings worldwide.

Product Enquiries

News from Sto

The StoColor System is Now Available Online
StoPoren Facade Specified for Farmers Rangiora

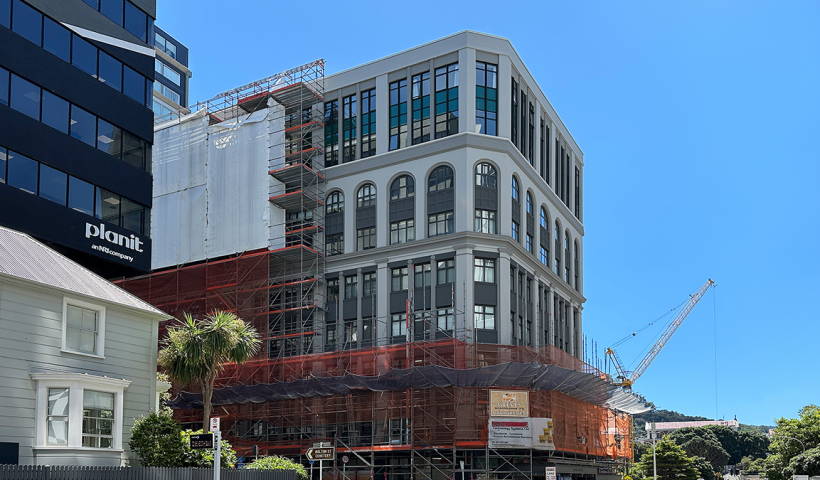

Thompson Park Apartments Benefit from StoArmat Render System
