Custom Orb
Steel & Tube
All products

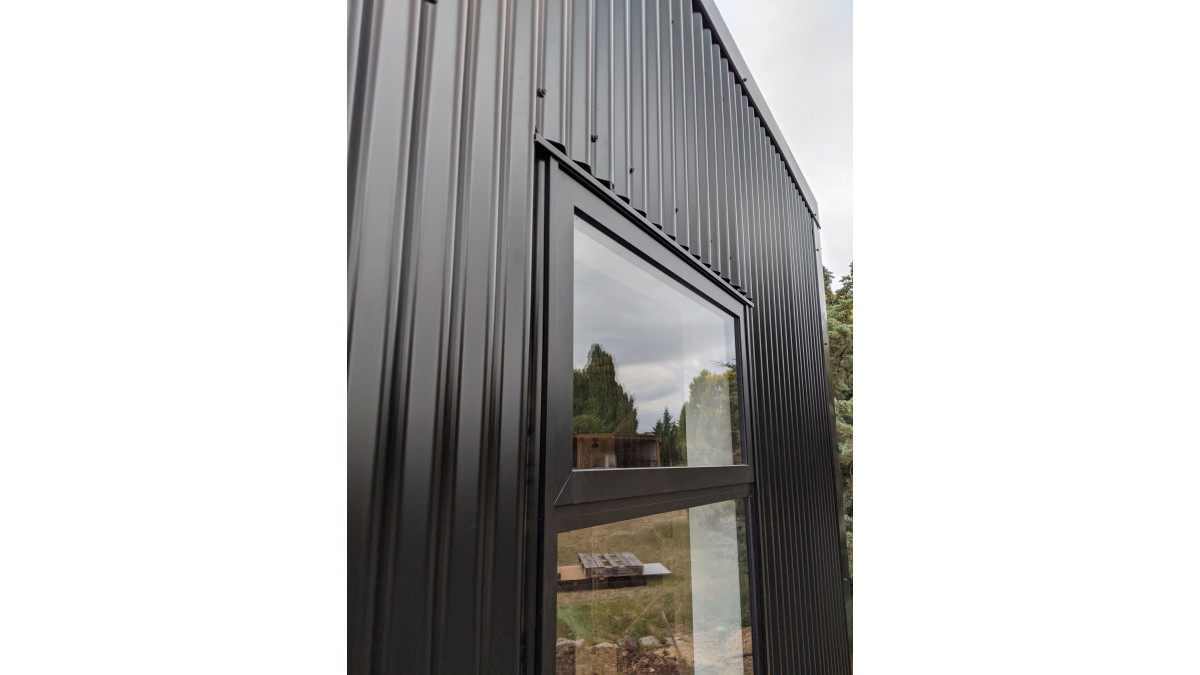

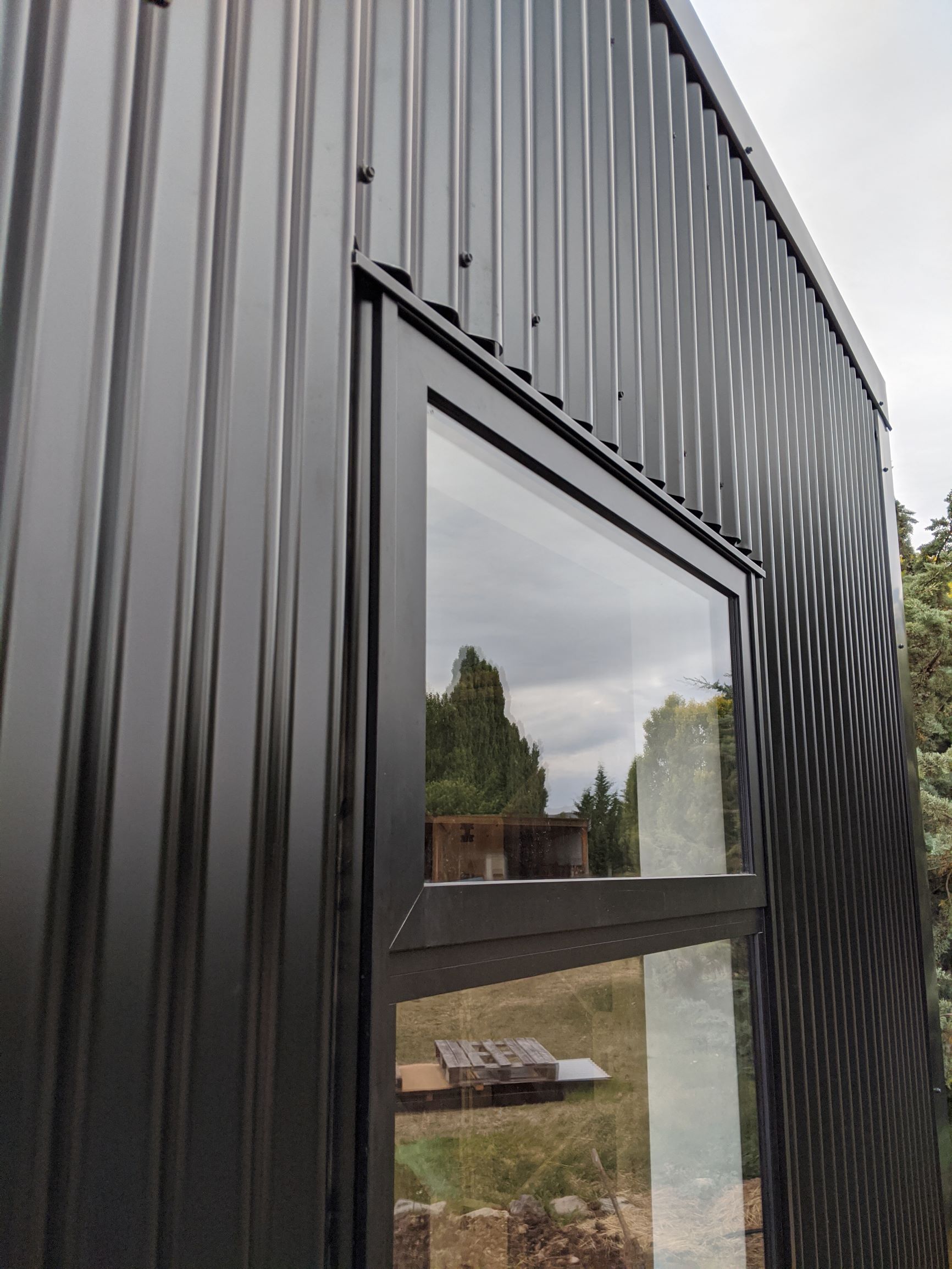

Ged Finch Circular Economy Close up Custom Orb

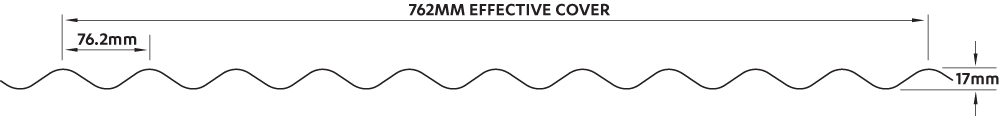

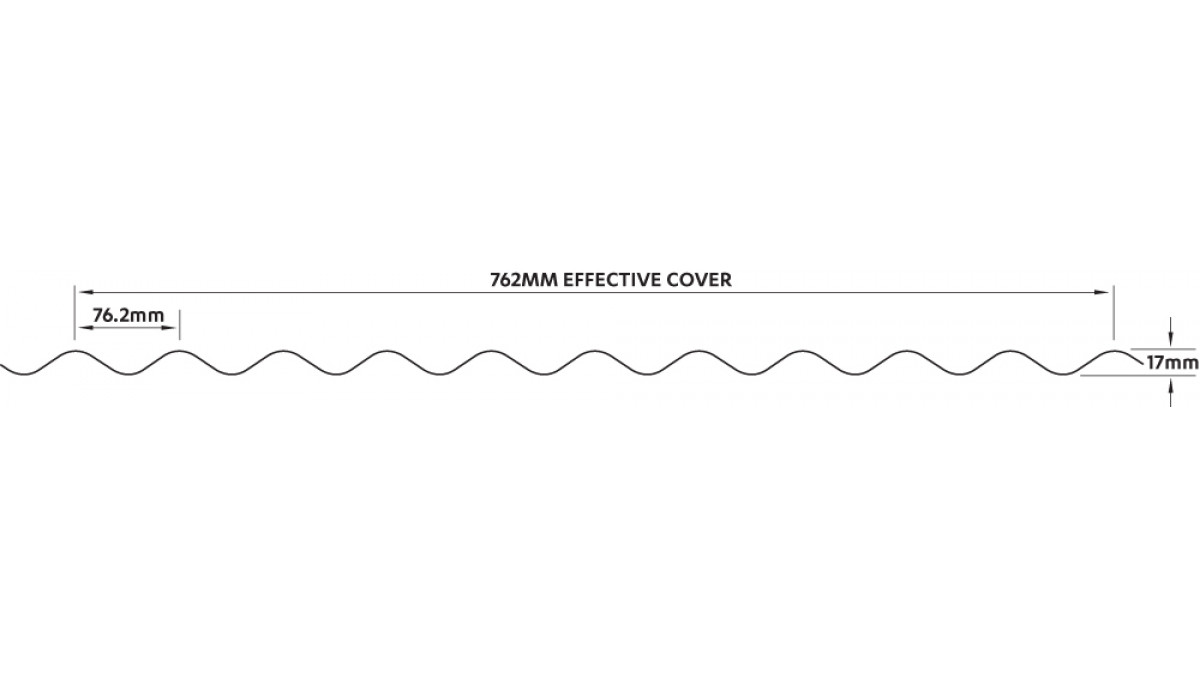

Custom Orb Profile Karbon

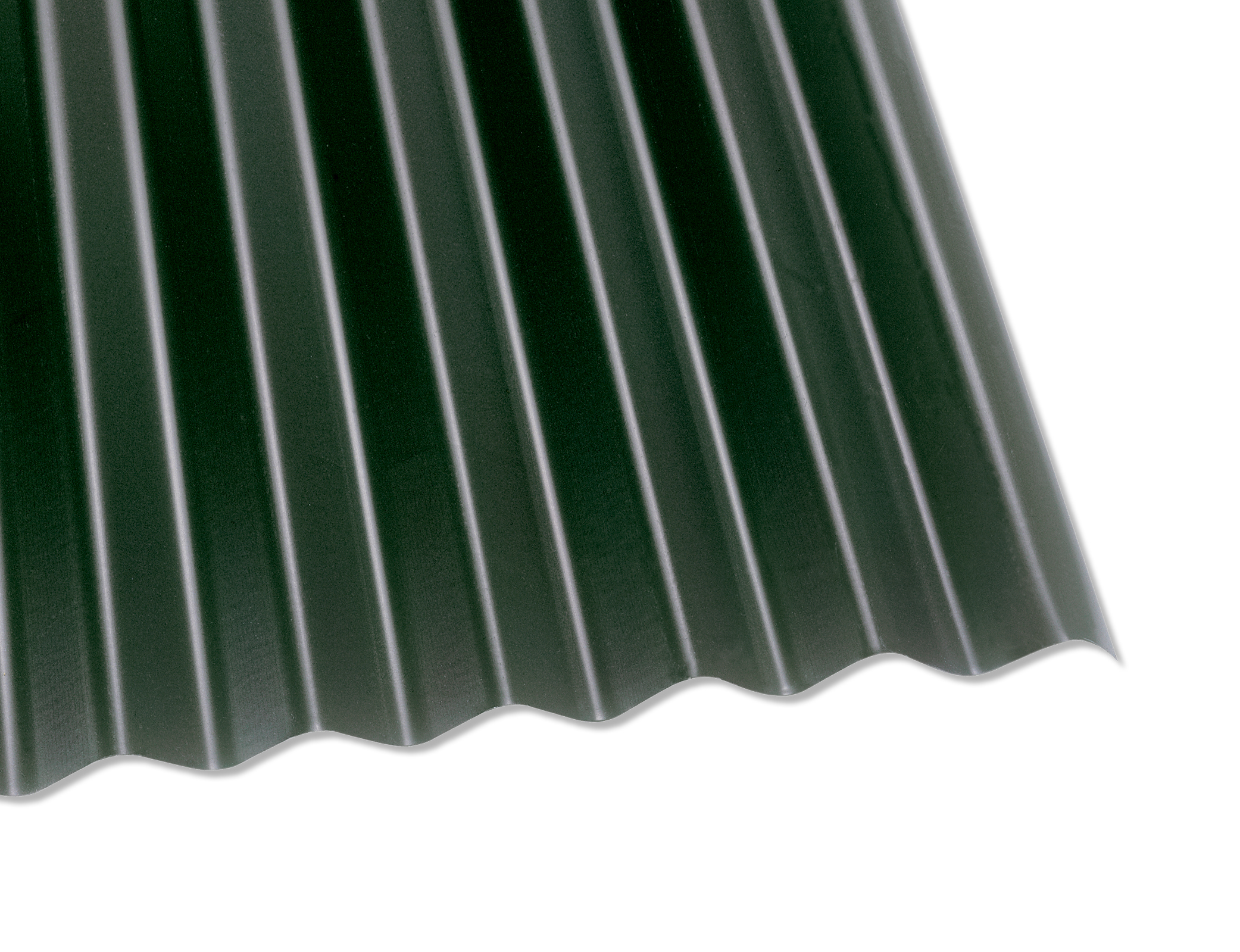

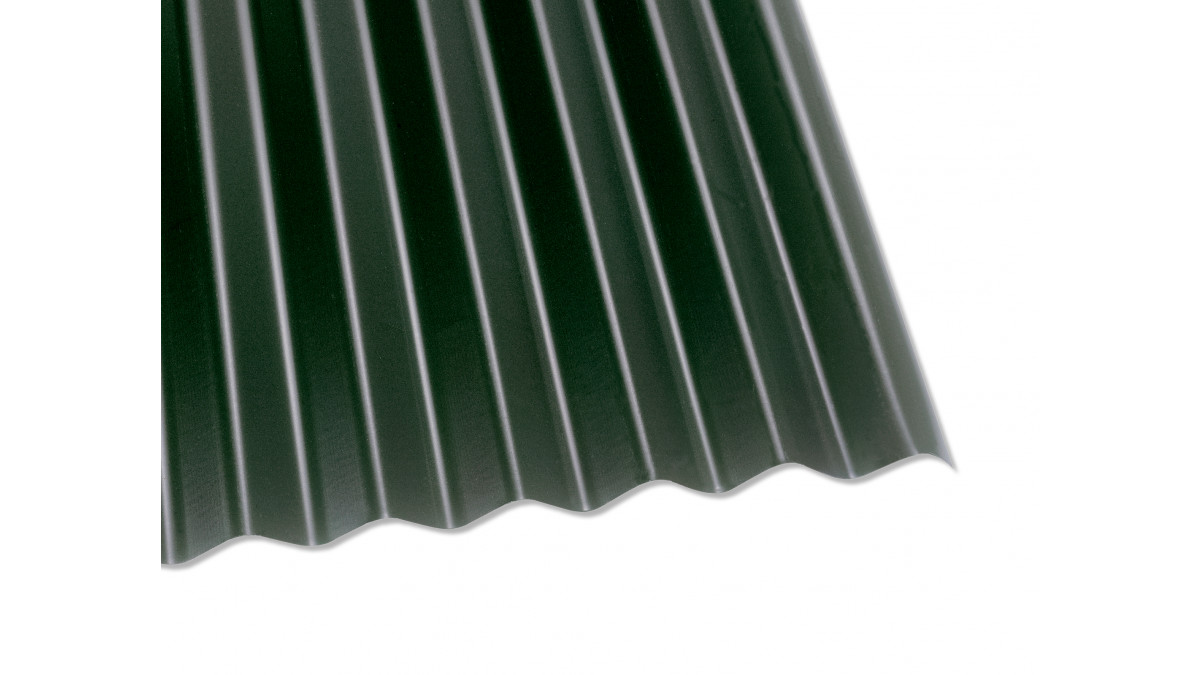

Custom Orb Karaka

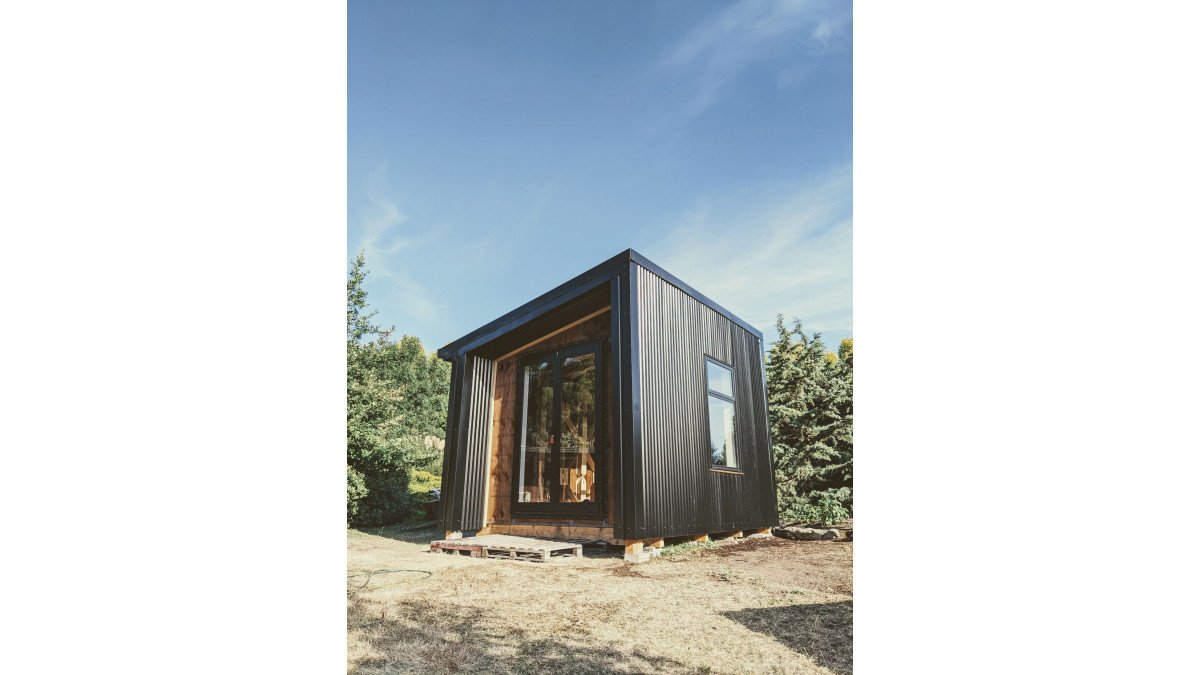

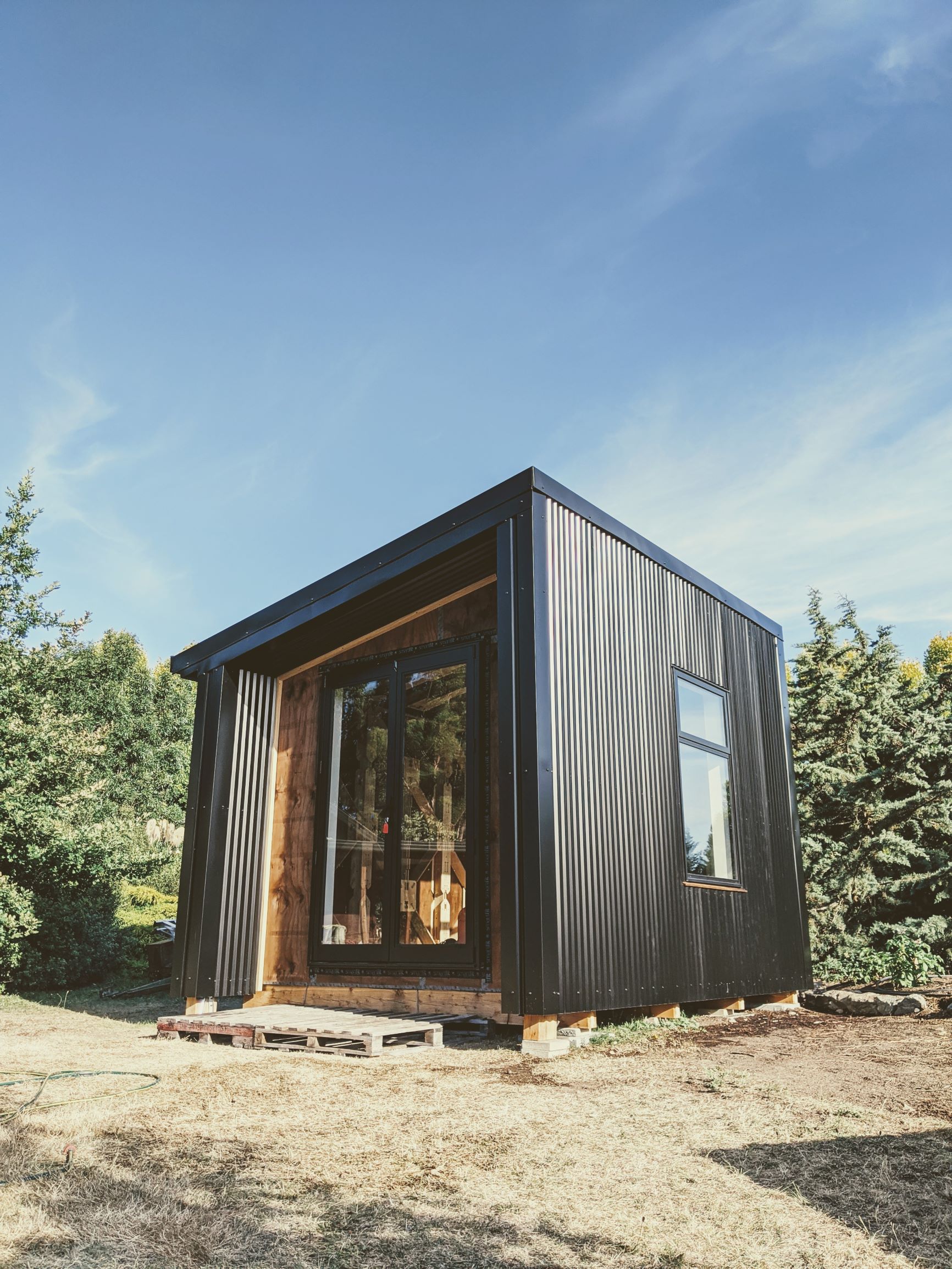

Custom Orb Ged Finch Circular Economy 4 mp

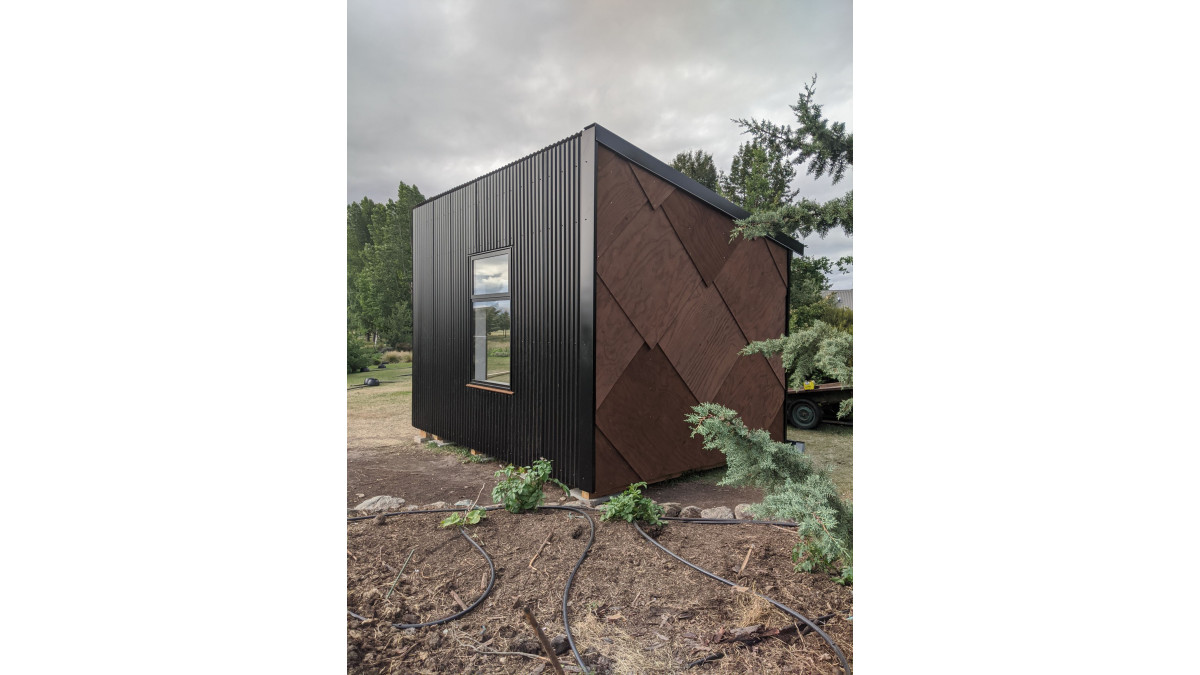

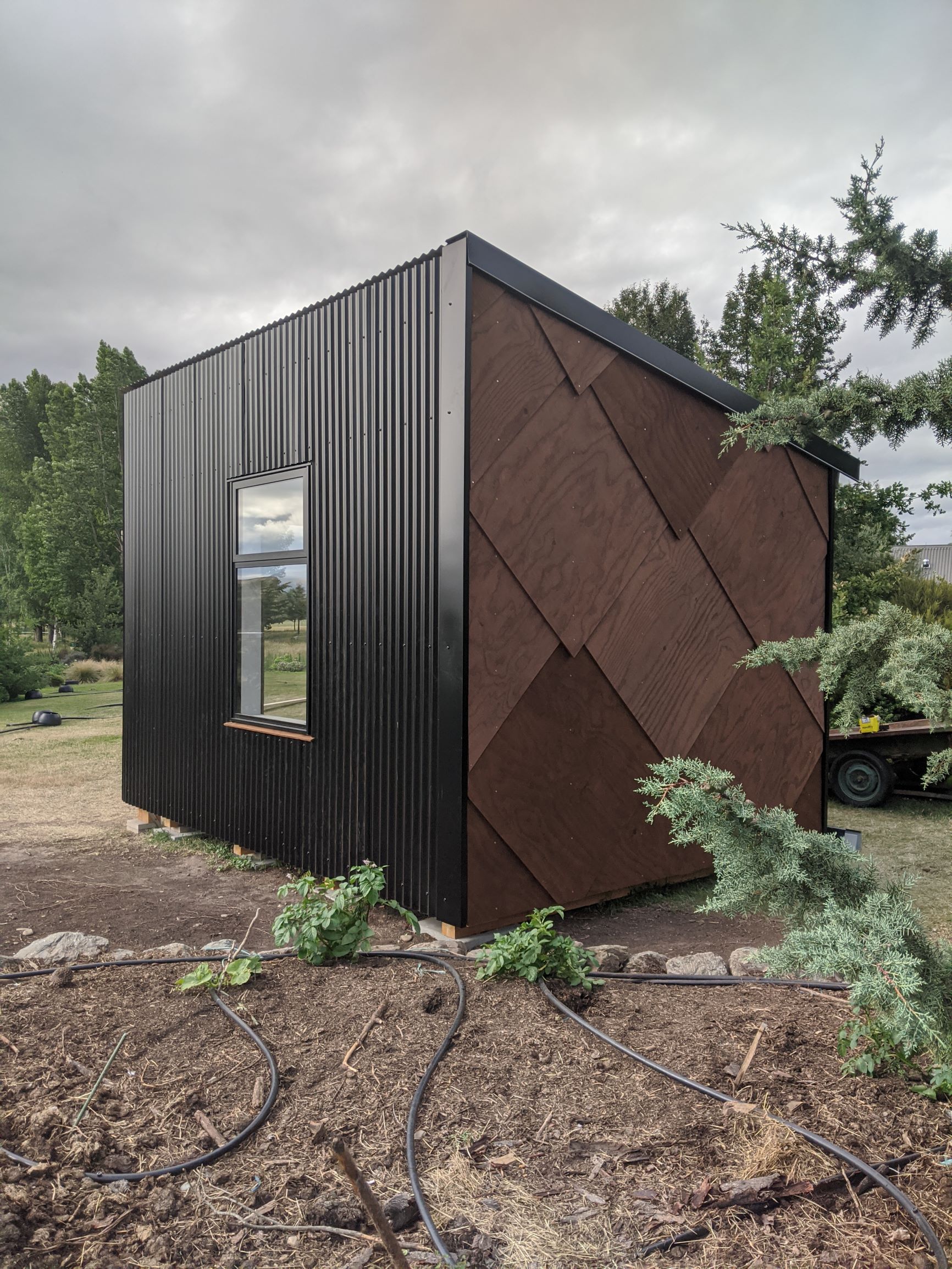

Ged Finch Circular Economy 4 mp
Description

Custom Orb offers the timeless elegance and matchless adaptability of the traditional corrugate profile, together with Steel & Tube's unrivalled technical advice, quality control and after-sales service.

Key Features
  • Manufactured in Whangarei, Auckland, Hamitlon, Tauranga,Wellington and Christchurch
  • Minimum pitch 8°
  • Top coverage in its class for best economy
  • Can be roll curved (Bull nosed) to 400mm radius
  • Can be crimp curved to 400mm radius
  • Spring Curved to a radii greater than 9 metres depending on grade, thickness and material used
  • It is also popular in perforates patterns for decorative or sound control situations
Categories
Metal Cladding Metal Roofing
Ranges
Profiled Metal Roofing and Cladding Solutions: Roofing Solutions: Curved Panels Wall Cladding Solutions
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Residential roofing and cladding
  • Commercial and industrial cladding
  • Drape curving
  • Ceilings and linings
  • Steel & Tube Custom Orb is available in a variety of materials to suit the environment including galvanised, Zincalume and aluminium
  • Matching glass reinforced natural lighting sheets are available in trafficable, non-trafficable, thermal and condensation control and fire ratings to suit the project
  • A full range of matching accessories are available including ridging, underlays, safety mesh, fasteners and rainwater systems.
Limitations on Use
  • Minimum pitch 8°
NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E1 Surface Water compliant
Surface Water
E2 External Moisture compliant
External Moisture
Documents
BIM Files Custom Orb
URL
CAD/PDF Link Custom Orb
URL
PTS / Data Sheet
URL
Environmental Choice NZ Award - Hamilton Branch

2022 March

pdf
Environmental Choice NZ Award - Wellington Branch

2022 March

pdf
Environmental Choice NZ Award - Whangarei Branch

2022 March

pdf
Environmental Choice NZ Award — Auckland Branch

2022 March

pdf
Environmental Choice NZ Award — Christchurch Branch

2022 March

pdf
Environmental Choice NZ Award — Tauranga Branch

2022 March

pdf
Test Results: Fire Testing
pdf
Colorsteel Material Selection
pdf
Maintenance Instructions
URL
Warranty
URL
Brochure: Product Showcase
URL
Brochure: Roofing Solutions Product Guide
pdf
Brochure: Spring Curve

2017 October

pdf
Colour Range
URL
Order Roofing and Wall Cladding Samples
URL
Product resources and links
URL
